base class for all MAC-level wifi objects. More...

#include "wifi-mac.h"

Inheritance diagram for ns3::WifiMac:

Collaboration diagram for ns3::WifiMac:

Classes
struct	LinkEntity
	Structure holding information specific to a single link. More...

Public Types
typedef Callback< void, Ptr< const Packet >, Mac48Address, Mac48Address >	ForwardUpCallback
	This type defines the callback of a higher layer that a WifiMac(-derived) object invokes to pass a packet up the stack. More...

using	OriginatorAgreementOptConstRef = std::optional< std::reference_wrapper< const OriginatorBlockAckAgreement > >
	optional const reference to OriginatorBlockAckAgreement More...

using	RecipientAgreementOptConstRef = std::optional< std::reference_wrapper< const RecipientBlockAckAgreement > >
	optional const reference to RecipientBlockAckAgreement More...

Public Member Functions
	WifiMac ()

	WifiMac (const WifiMac &)=delete

	~WifiMac () override

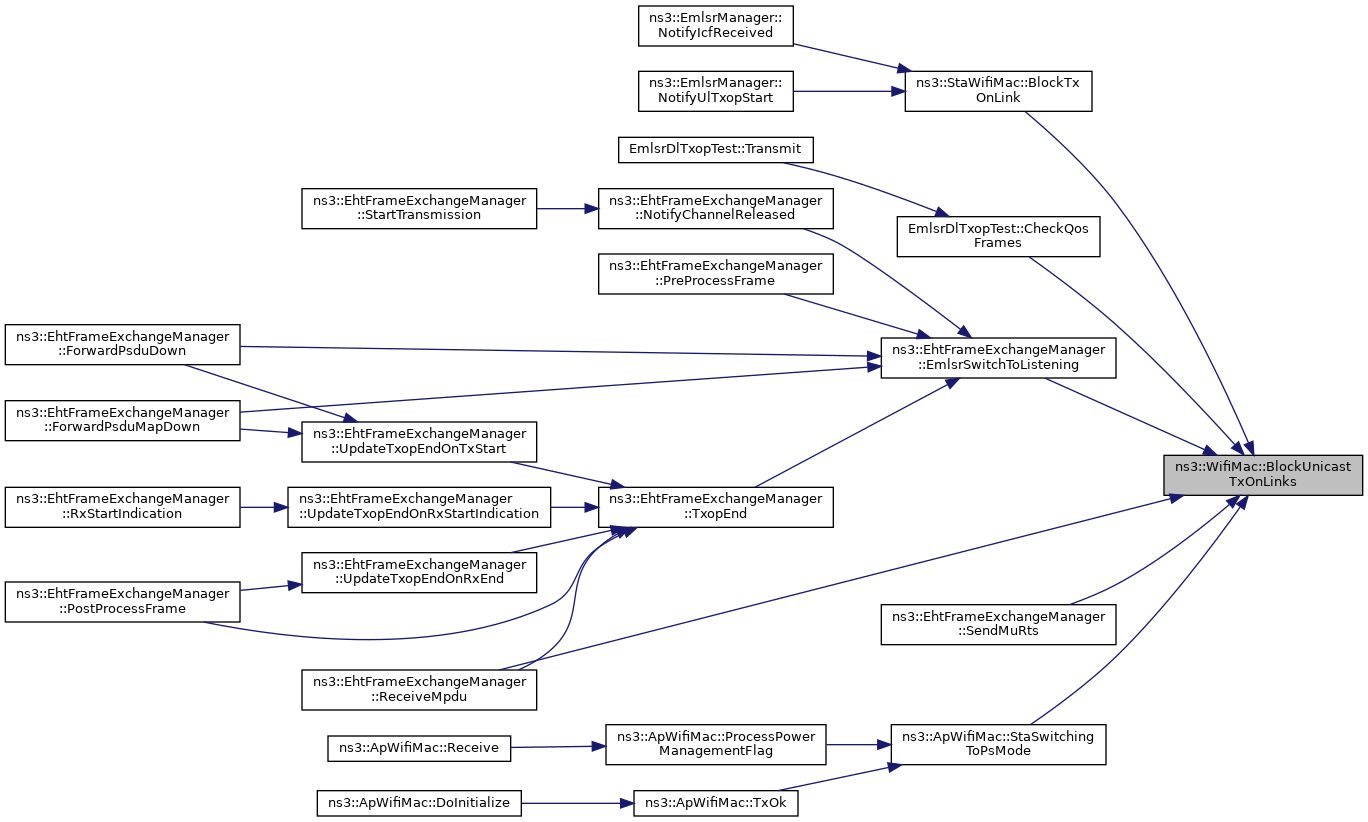

void	BlockUnicastTxOnLinks (WifiQueueBlockedReason reason, const Mac48Address &address, const std::set< uint8_t > &linkIds)
	Block the transmission on the given links of all unicast frames addressed to the station with the given address for the given reason. More...

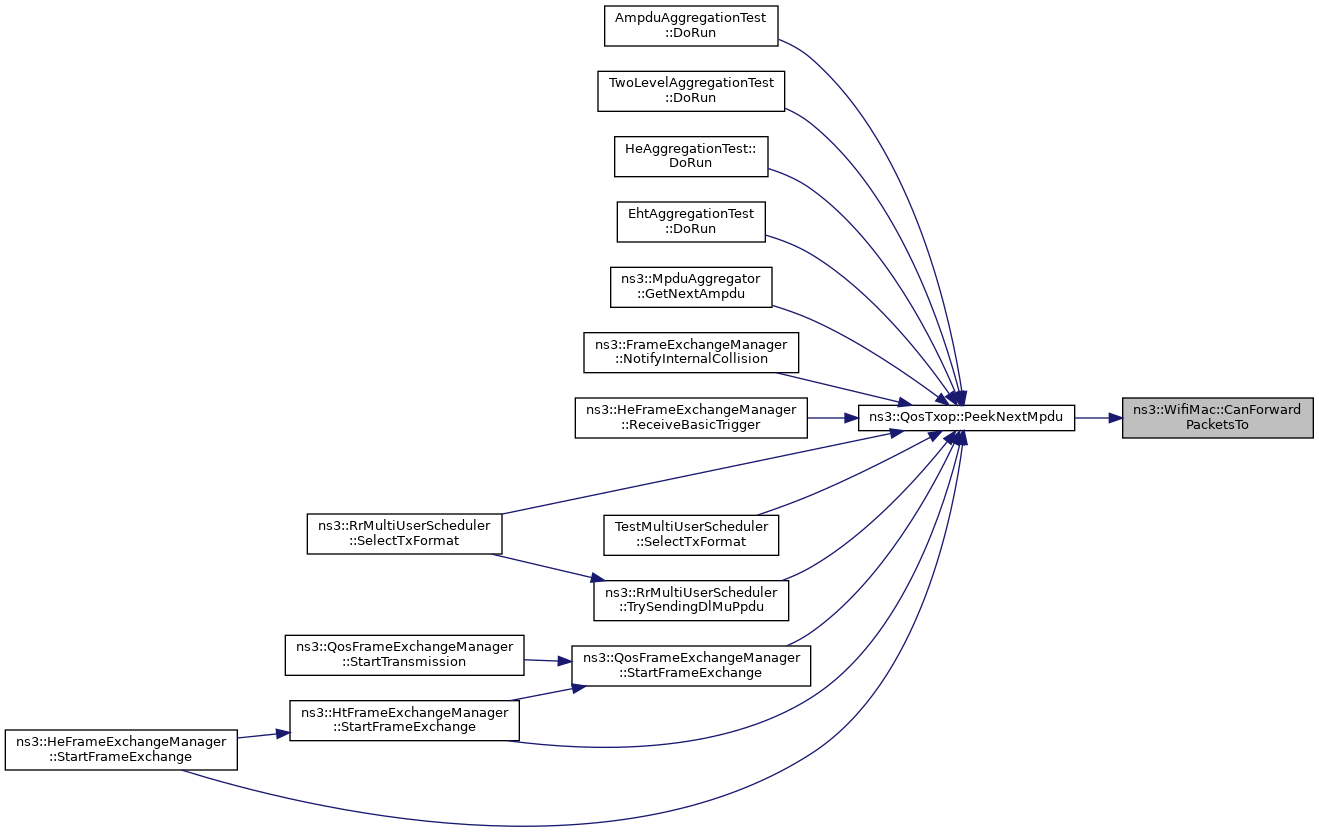

virtual bool	CanForwardPacketsTo (Mac48Address to) const =0
	Return true if packets can be forwarded to the given destination, false otherwise. More...

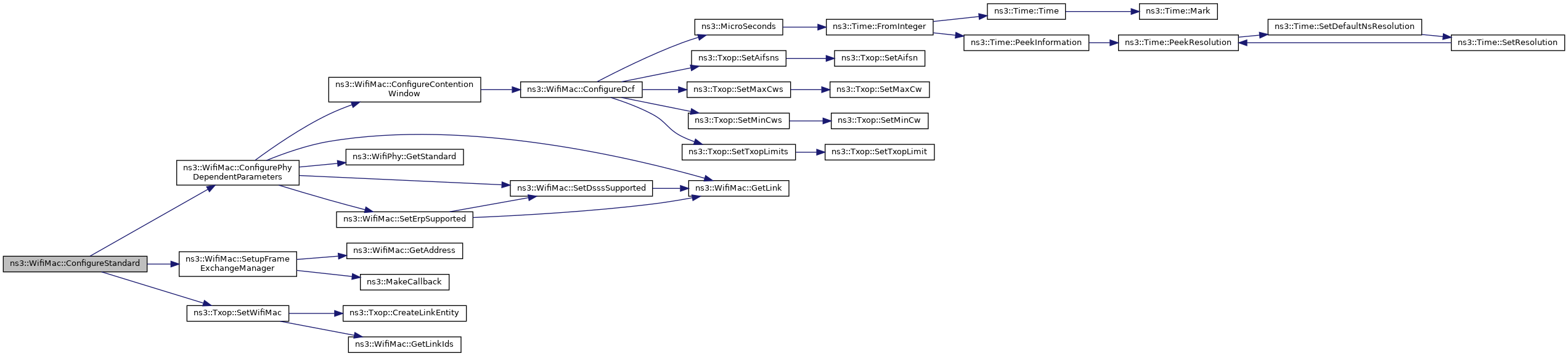

virtual void	ConfigureStandard (WifiStandard standard)

virtual void	Enqueue (Ptr< Packet > packet, Mac48Address to)=0

virtual void	Enqueue (Ptr< Packet > packet, Mac48Address to, Mac48Address from)

Mac48Address	GetAddress () const

OriginatorAgreementOptConstRef	GetBaAgreementEstablishedAsOriginator (Mac48Address recipient, uint8_t tid) const

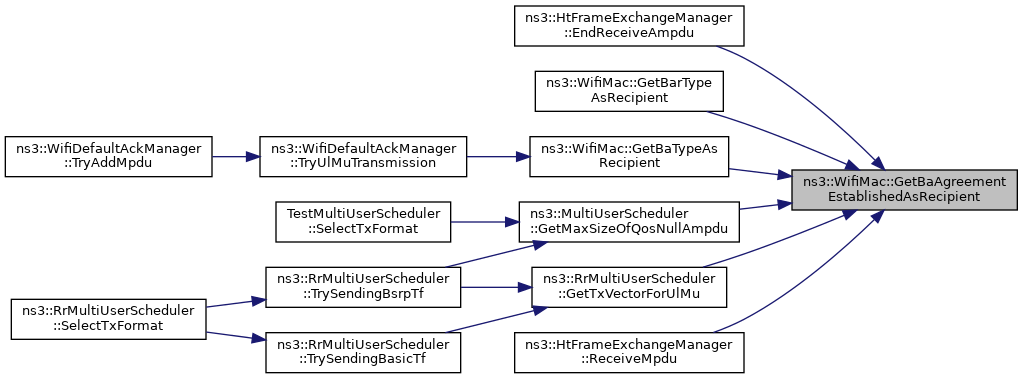

RecipientAgreementOptConstRef	GetBaAgreementEstablishedAsRecipient (Mac48Address originator, uint8_t tid) const

BlockAckReqType	GetBarTypeAsOriginator (const Mac48Address &recipient, uint8_t tid) const

BlockAckReqType	GetBarTypeAsRecipient (Mac48Address originator, uint8_t tid) const

BlockAckType	GetBaTypeAsOriginator (const Mac48Address &recipient, uint8_t tid) const

BlockAckType	GetBaTypeAsRecipient (Mac48Address originator, uint8_t tid) const

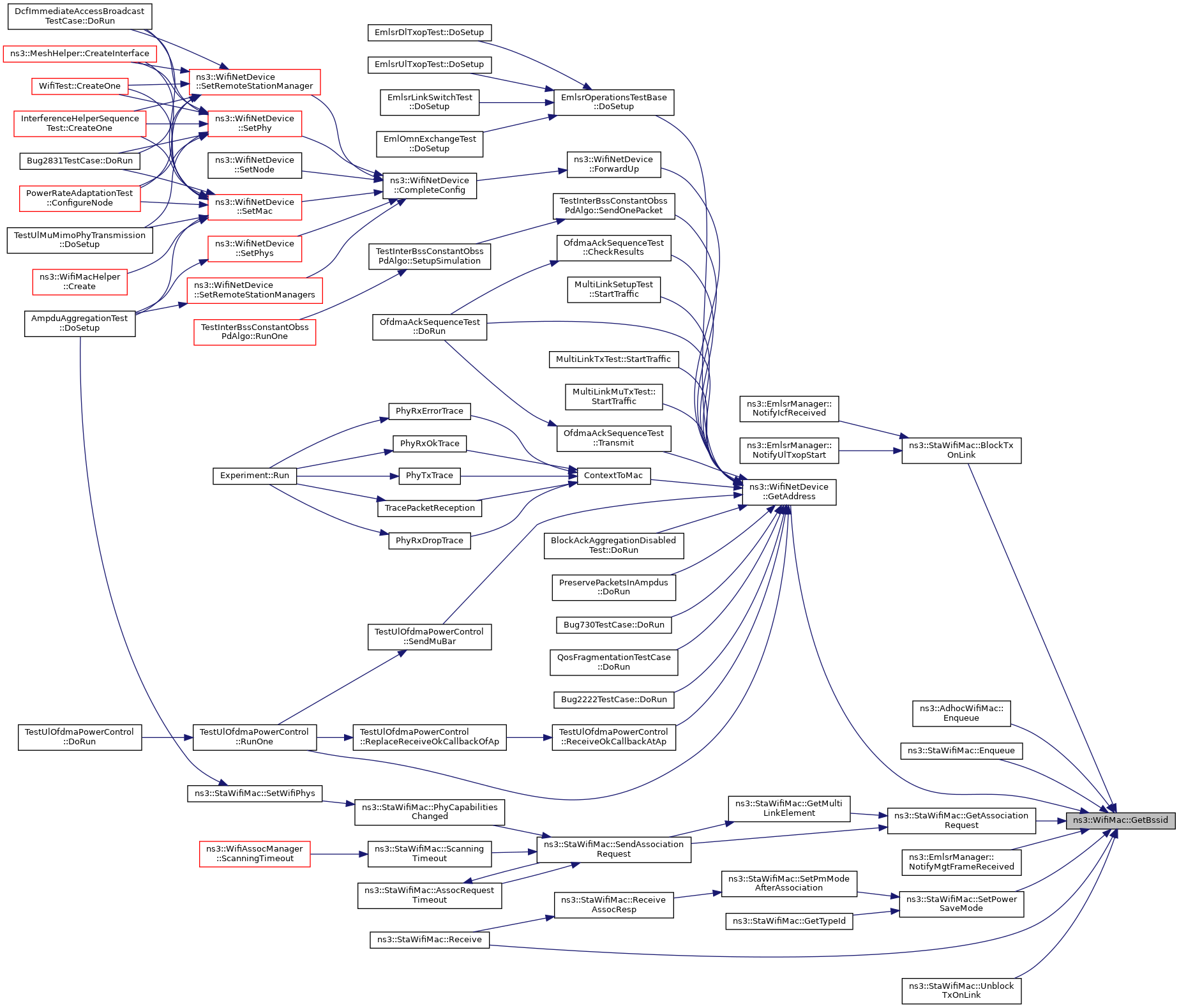

Mac48Address	GetBssid (uint8_t linkId) const

Ptr< ChannelAccessManager >	GetChannelAccessManager (uint8_t linkId=SINGLE_LINK_OP_ID) const
	Get the Channel Access Manager associated with the given link. More...

Ptr< WifiNetDevice >	GetDevice () const
	Return the device this PHY is associated with. More...

bool	GetDsssSupported (uint8_t linkId) const
	Return whether the device supports DSSS on the given link. More...

EhtCapabilities	GetEhtCapabilities (uint8_t linkId) const
	Return the EHT capabilities of the device for the given link. More...

Ptr< EhtConfiguration >	GetEhtConfiguration () const

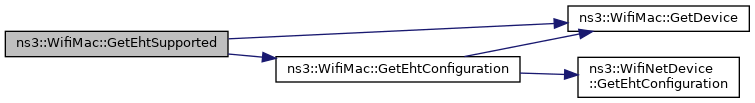

bool	GetEhtSupported () const
	Return whether the device supports EHT. More...

bool	GetEhtSupported (const Mac48Address &address) const

bool	GetErpSupported (uint8_t linkId) const
	Return whether the device supports ERP on the given link. More...

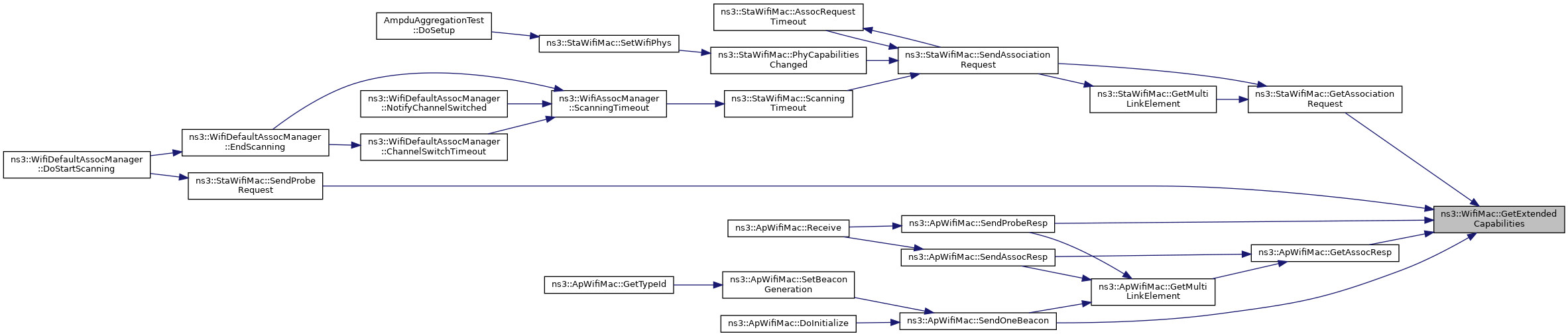

ExtendedCapabilities	GetExtendedCapabilities () const
	Return the extended capabilities of the device. More...

Ptr< FrameExchangeManager >	GetFrameExchangeManager (uint8_t linkId=SINGLE_LINK_OP_ID) const
	Get the Frame Exchange Manager associated with the given link. More...

HeCapabilities	GetHeCapabilities (uint8_t linkId) const
	Return the HE capabilities of the device for the given link. More...

Ptr< HeConfiguration >	GetHeConfiguration () const

bool	GetHeSupported () const
	Return whether the device supports HE. More...

bool	GetHeSupported (const Mac48Address &address) const

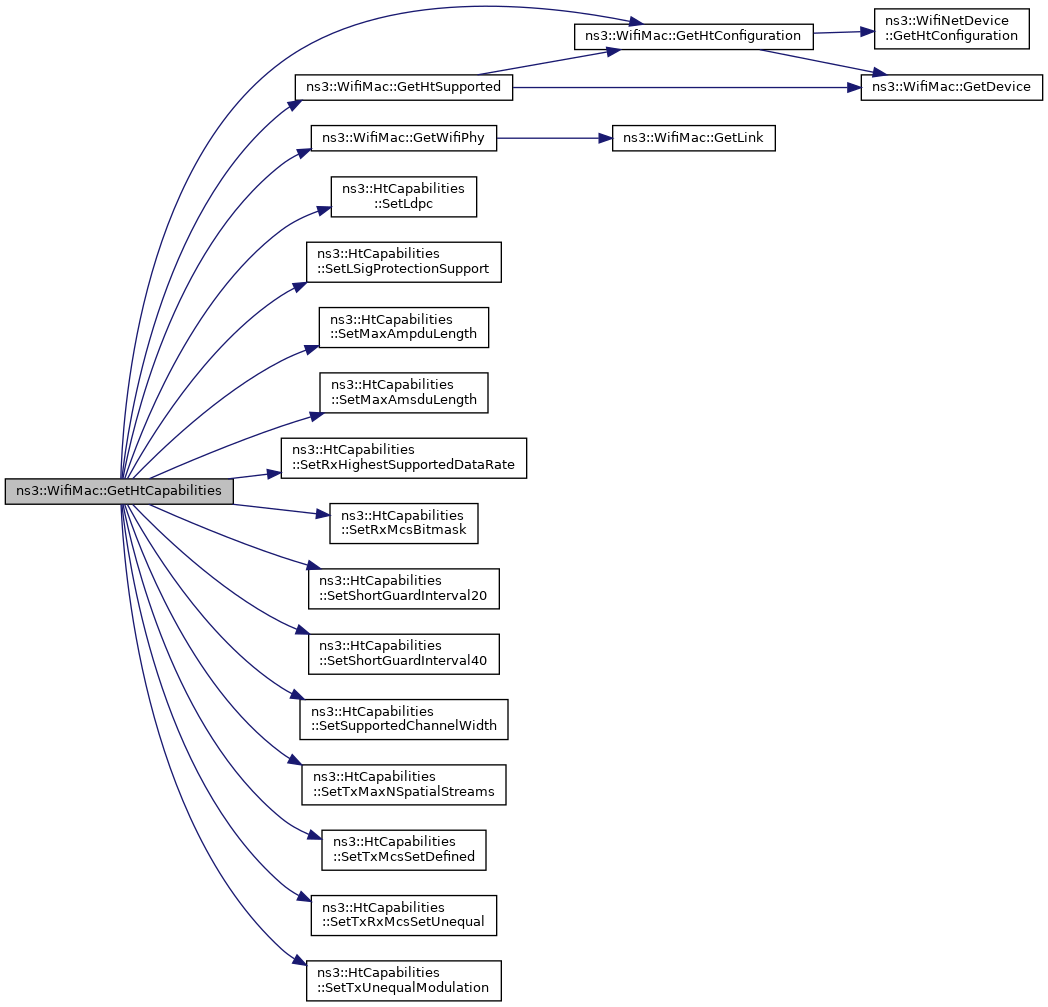

HtCapabilities	GetHtCapabilities (uint8_t linkId) const
	Return the HT capabilities of the device for the given link. More...

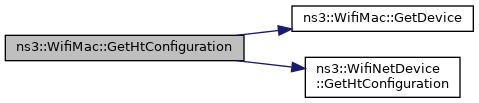

Ptr< HtConfiguration >	GetHtConfiguration () const

bool	GetHtSupported () const
	Return whether the device supports HT. More...

bool	GetHtSupported (const Mac48Address &address) const

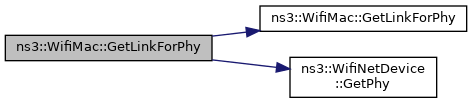

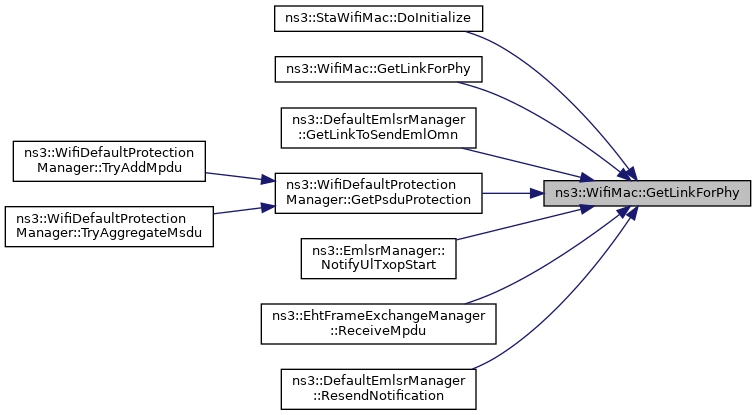

std::optional< uint8_t >	GetLinkForPhy (Ptr< const WifiPhy > phy) const
	Get the ID of the link (if any) on which the given PHY is operating. More...

std::optional< uint8_t >	GetLinkForPhy (std::size_t phyId) const
	Get the ID of the link (if any) on which the given PHY is operating. More...

virtual std::optional< uint8_t >	GetLinkIdByAddress (const Mac48Address &address) const
	Get the ID of the link having the given MAC address, if any. More...

const std::set< uint8_t > &	GetLinkIds () const

Mac48Address	GetLocalAddress (const Mac48Address &remoteAddr) const
	Get the local MAC address used to communicate with a remote STA. More...

Ptr< WifiMacQueueScheduler >	GetMacQueueScheduler () const
	Get the wifi MAC queue scheduler. More...

uint32_t	GetMaxAmpduSize (AcIndex ac) const
	Return the maximum A-MPDU size of the given Access Category. More...

uint16_t	GetMaxAmsduSize (AcIndex ac) const
	Return the maximum A-MSDU size of the given Access Category. More...

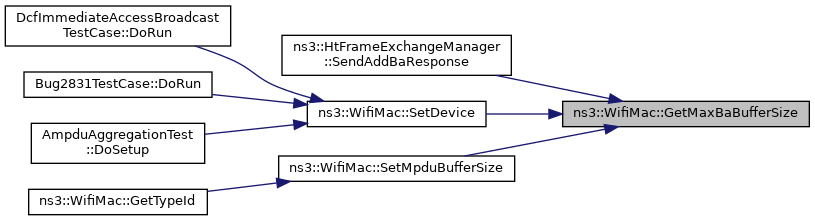

uint16_t	GetMaxBaBufferSize (std::optional< Mac48Address > address=std::nullopt) const
	Get the maximum Block Ack buffer size (in number of MPDUs) supported by the given device, if any, or by this device, otherwise, based on the supported standard. More...

std::optional< Mac48Address >	GetMldAddress (const Mac48Address &remoteAddr) const

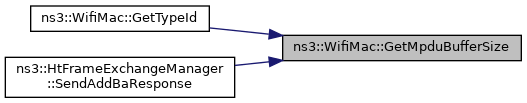

uint16_t	GetMpduBufferSize () const

uint8_t	GetNLinks () const
	Get the number of links (can be greater than 1 for 11be devices only). More...

bool	GetQosSupported () const
	Return whether the device supports QoS. More...

Ptr< QosTxop >	GetQosTxop (AcIndex ac) const
	Accessor for a specified EDCA object. More...

Ptr< QosTxop >	GetQosTxop (uint8_t tid) const
	Accessor for a specified EDCA object. More...

Ssid	GetSsid () const

std::optional< std::reference_wrapper< const WifiTidLinkMapping > >	GetTidToLinkMapping (Mac48Address mldAddr, WifiDirection dir) const
	Get the TID-to-Link Mapping negotiated with the given MLD (if any) for the given direction. More...

Ptr< Txop >	GetTxop () const
	Accessor for the Txop object. More...

virtual Ptr< WifiMacQueue >	GetTxopQueue (AcIndex ac) const
	Get the wifi MAC queue of the (Qos)Txop associated with the given AC, if such (Qos)Txop is installed, or a null pointer, otherwise. More...

TypeOfStation	GetTypeOfStation () const
	Return the type of station. More...

VhtCapabilities	GetVhtCapabilities (uint8_t linkId) const
	Return the VHT capabilities of the device for the given link. More...

Ptr< VhtConfiguration >	GetVhtConfiguration () const

bool	GetVhtSupported (const Mac48Address &address) const

bool	GetVhtSupported (uint8_t linkId) const
	Return whether the device supports VHT on the given link. More...

Ptr< WifiPhy >	GetWifiPhy (uint8_t linkId=SINGLE_LINK_OP_ID) const

Ptr< WifiRemoteStationManager >	GetWifiRemoteStationManager (uint8_t linkId=0) const

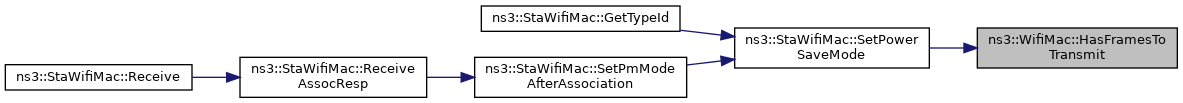

virtual bool	HasFramesToTransmit (uint8_t linkId)
	Check if the MAC has frames to transmit over the given link. More...

virtual void	NotifyChannelSwitching (uint8_t linkId)
	Notify that channel on the given link has been switched. More...

void	NotifyPromiscRx (Ptr< const Packet > packet)

void	NotifyRx (Ptr< const Packet > packet)

void	NotifyRxDrop (Ptr< const Packet > packet)

void	NotifyTx (Ptr< const Packet > packet)

void	NotifyTxDrop (Ptr< const Packet > packet)

WifiMac &	operator= (const WifiMac &)=delete

void	ResetWifiPhys ()
	Remove currently attached WifiPhy objects from this MAC. More...

virtual void	SetAddress (Mac48Address address)

void	SetBssid (Mac48Address bssid, uint8_t linkId)

void	SetCtsToSelfSupported (bool enable)
	Enable or disable CTS-to-self feature. More...

void	SetDevice (const Ptr< WifiNetDevice > device)
	Sets the device this PHY is associated with. More...

void	SetForwardUpCallback (ForwardUpCallback upCallback)

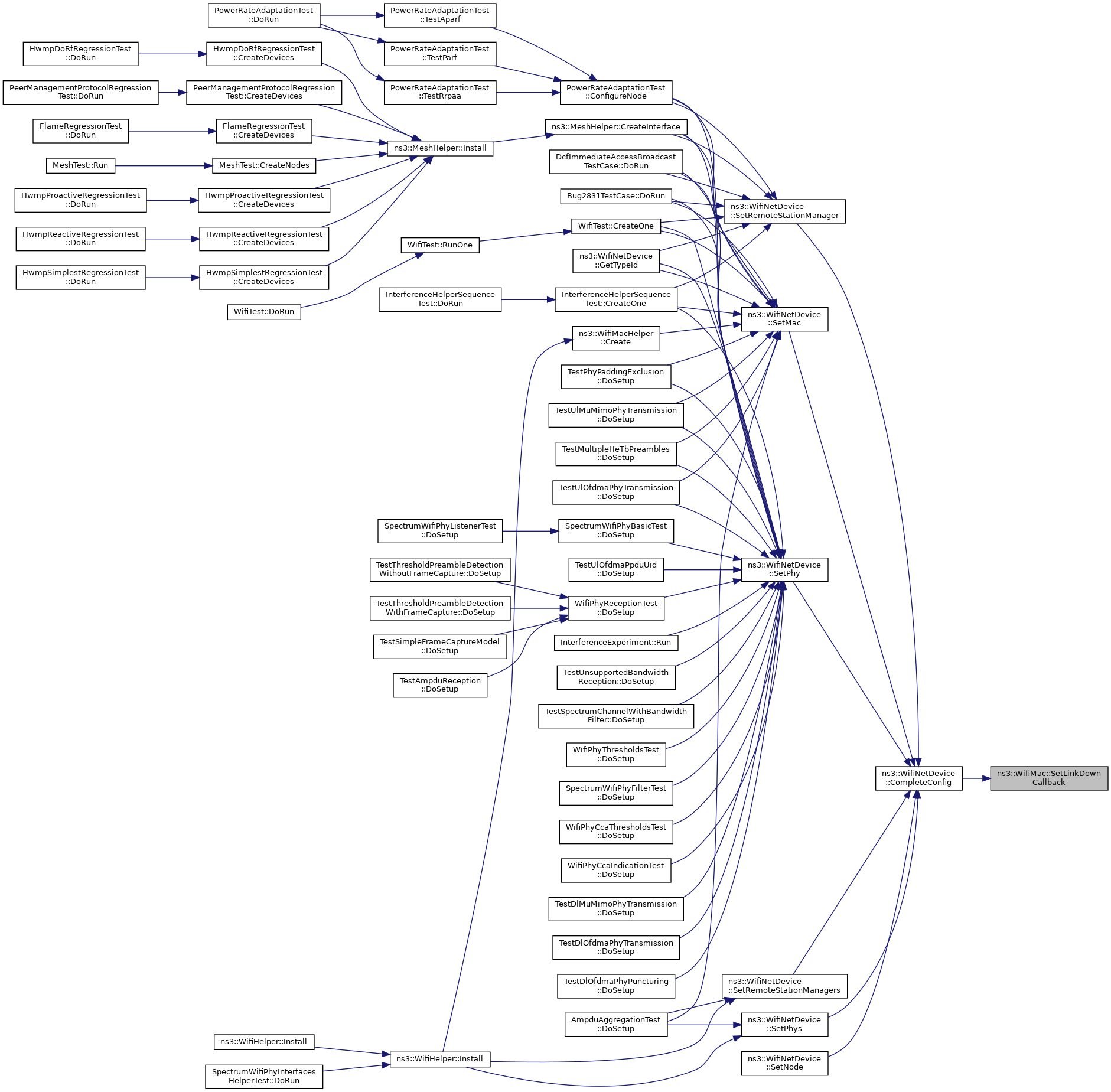

void	SetLinkDownCallback (Callback< void > linkDown)

virtual void	SetLinkUpCallback (Callback< void > linkUp)

virtual void	SetMacQueueScheduler (Ptr< WifiMacQueueScheduler > scheduler)
	Set the wifi MAC queue scheduler. More...

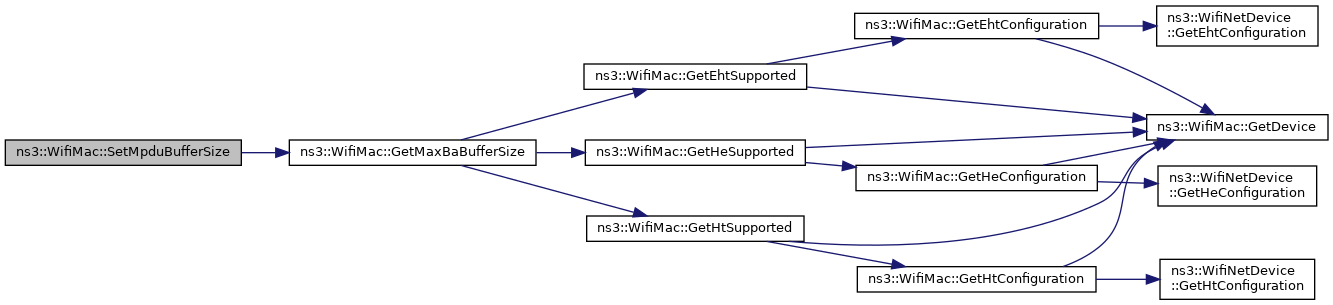

void	SetMpduBufferSize (uint16_t size)

void	SetPromisc ()
	Sets the interface in promiscuous mode. More...

void	SetSsid (Ssid ssid)

void	SetTypeOfStation (TypeOfStation type)
	This method is invoked by a subclass to specify what type of station it is implementing. More...

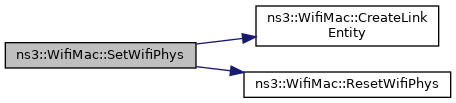

virtual void	SetWifiPhys (const std::vector< Ptr< WifiPhy >> &phys)

void	SetWifiRemoteStationManager (Ptr< WifiRemoteStationManager > stationManager)

void	SetWifiRemoteStationManagers (const std::vector< Ptr< WifiRemoteStationManager >> &stationManagers)

virtual bool	SupportsSendFrom () const

bool	TidMappedOnLink (Mac48Address mldAddr, WifiDirection dir, uint8_t tid, uint8_t linkId) const
	Check whether the given TID is mapped on the given link in the given direction for the given MLD. More...

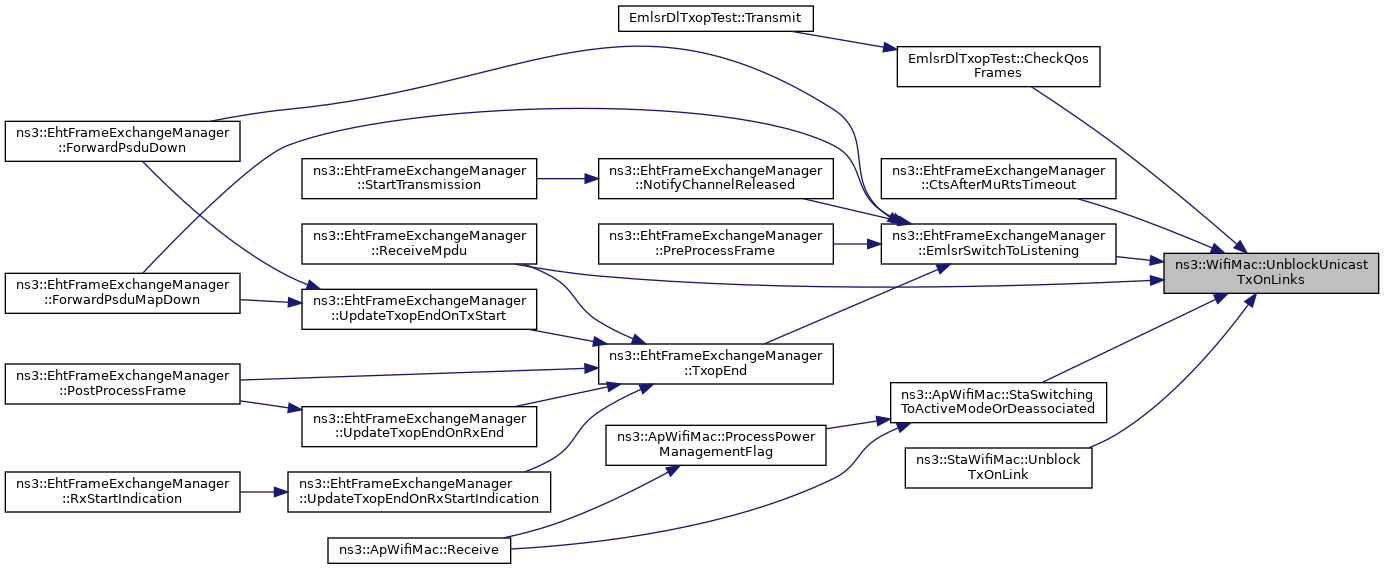

void	UnblockUnicastTxOnLinks (WifiQueueBlockedReason reason, const Mac48Address &address, const std::set< uint8_t > &linkIds)
	Unblock the transmission on the given links of all unicast frames addressed to the station with the given address for the given reason. More...

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

	~Object () override
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose ()
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator () const
	Get an iterator to the Objects aggregated to this one. More...

TypeId	GetInstanceTypeId () const override
	Get the most derived TypeId for this Object. More...

template<typename T >
Ptr< T >	GetObject () const
	Get a pointer to the requested aggregated Object. More...

template<>
Ptr< Object >	GetObject () const
	Specialization of () for objects of type ns3::Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< Object >	GetObject (TypeId tid) const
	Specialization of (TypeId tid) for objects of type ns3::Object. More...

void	Initialize ()
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized () const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
	Copy constructor. More...

uint32_t	GetReferenceCount () const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o[[maybe_unused]])
	Assignment operator. More...

void	Ref () const
	Increment the reference count. More...

void	Unref () const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising errors. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions

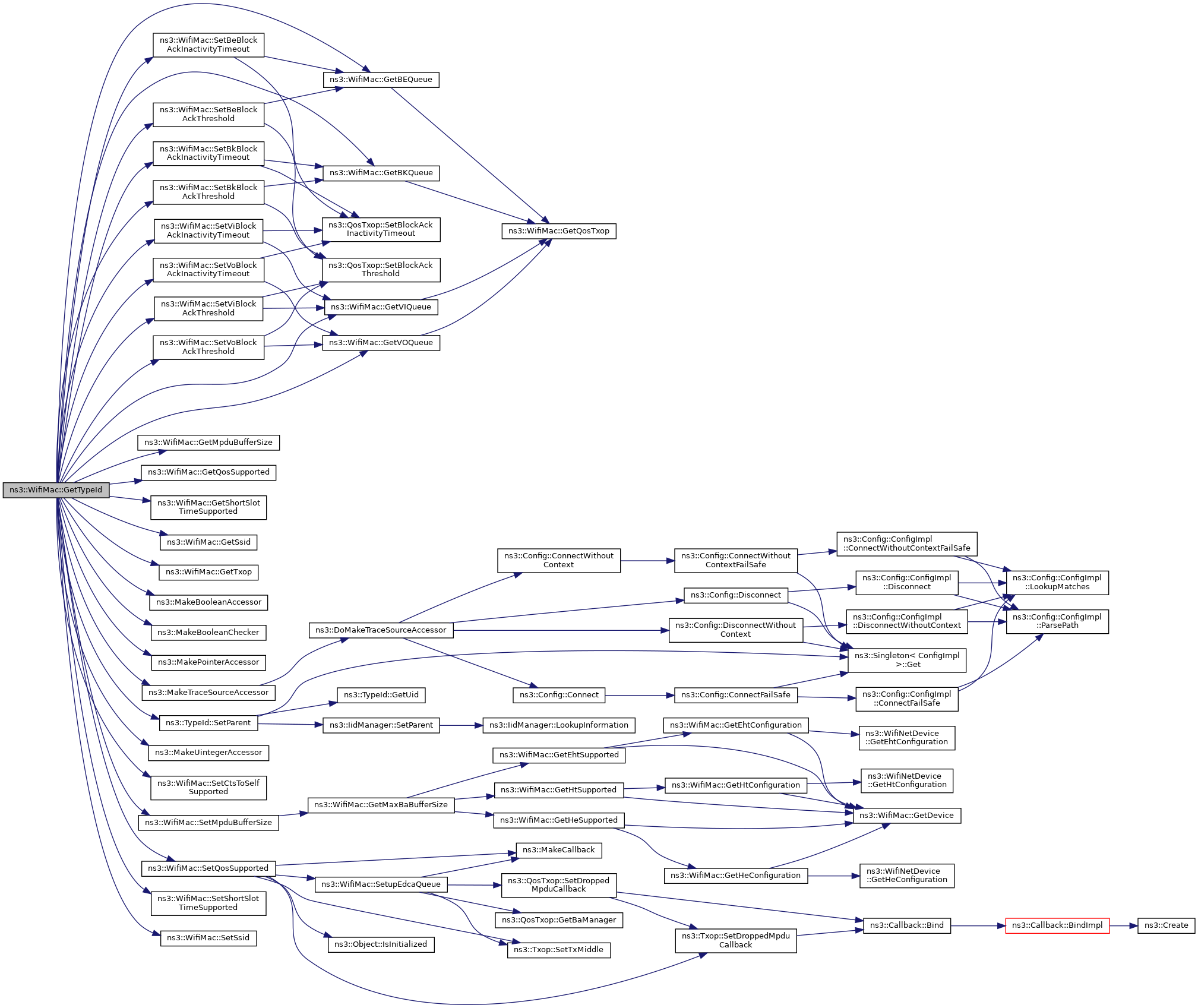

static TypeId	GetTypeId ()
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId ()
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId ()
	Get the type ID. More...

Protected Member Functions
void	ApplyTidLinkMapping (const Mac48Address &mldAddr, WifiDirection dir)
	Apply the TID-to-Link Mapping negotiated with the given MLD for the given direction by properly configuring the queue scheduler. More...

virtual void	ConfigureContentionWindow (uint32_t cwMin, uint32_t cwMax)

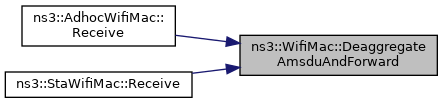

virtual void	DeaggregateAmsduAndForward (Ptr< const WifiMpdu > mpdu)
	This method can be called to de-aggregate an A-MSDU and forward the constituent packets up the stack. More...

void	DoDispose () override
	Destructor implementation. More...

void	DoInitialize () override
	Initialize() implementation. More...

void	ForwardUp (Ptr< const Packet > packet, Mac48Address from, Mac48Address to)
	Forward the packet up to the device. More...

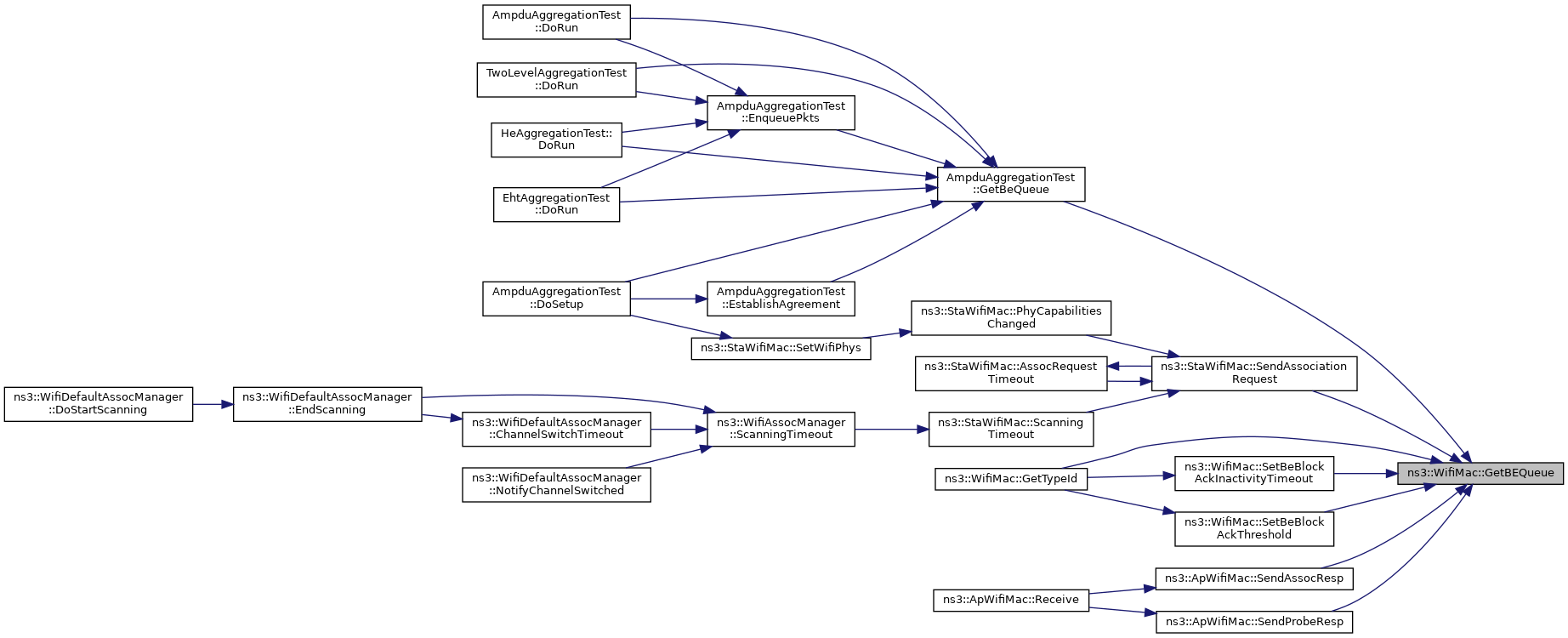

Ptr< QosTxop >	GetBEQueue () const
	Accessor for the AC_BE channel access function. More...

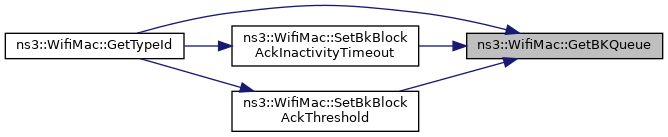

Ptr< QosTxop >	GetBKQueue () const
	Accessor for the AC_BK channel access function. More...

LinkEntity &	GetLink (uint8_t linkId) const
	Get a reference to the link associated with the given ID. More...

const std::map< uint8_t, std::unique_ptr< LinkEntity > > &	GetLinks () const

bool	GetShortSlotTimeSupported () const

Ptr< QosTxop >	GetVIQueue () const
	Accessor for the AC_VI channel access function. More...

Ptr< QosTxop >	GetVOQueue () const
	Accessor for the AC_VO channel access function. More...

virtual void	Receive (Ptr< const WifiMpdu > mpdu, uint8_t linkId)
	This method acts as the MacRxMiddle receive callback and is invoked to notify us that a frame has been received on the given link. More...

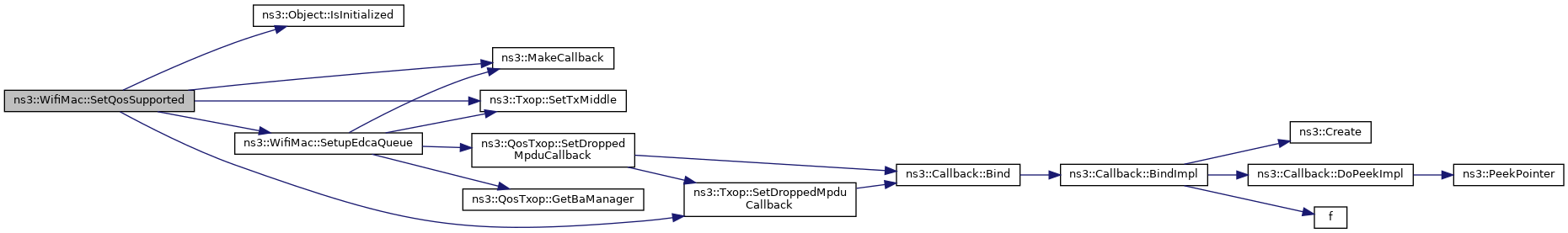

void	SetQosSupported (bool enable)
	Enable or disable QoS support for the device. More...

void	SetShortSlotTimeSupported (bool enable)
	Enable or disable short slot time feature. More...

void	SwapLinks (std::map< uint8_t, uint8_t > links)
	Swap the links based on the information included in the given map. More...

void	UpdateTidToLinkMapping (const Mac48Address &mldAddr, WifiDirection dir, const WifiTidLinkMapping &mapping)
	Update the TID-to-Link Mappings for the given MLD in the given direction based on the given negotiated mappings. More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	NotifyNewAggregate ()
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted ()
	Notifier called once the ObjectBase is fully constructed. More...

Protected Attributes
Callback< void >	m_linkDown
	Callback when a link is down. More...

Callback< void >	m_linkUp
	Callback when a link is up. More...

Ptr< MacRxMiddle >	m_rxMiddle
	RX middle (defragmentation etc.) More...

Ptr< WifiMacQueueScheduler >	m_scheduler
	wifi MAC queue scheduler More...

Ptr< MacTxMiddle >	m_txMiddle
	TX middle (aggregation etc.) More...

Ptr< Txop >	m_txop
	TXOP used for transmission of frames to non-QoS peers. More...

Private Types
typedef void(*	DroppedMpduCallback) (WifiMacDropReason reason, Ptr< const WifiMpdu > mpdu)
	TracedCallback signature for MPDU drop events. More...

typedef TracedCallback< WifiMacDropReason, Ptr< const WifiMpdu > >	DroppedMpduTracedCallback
	TracedCallback for MPDU drop events typedef. More...

typedef std::map< AcIndex, Ptr< QosTxop >, std::greater<> >	EdcaQueues
	This type defines a mapping between an Access Category index, and a pointer to the corresponding channel access function. More...

typedef void(*	MpduResponseTimeoutCallback) (uint8_t reason, Ptr< const WifiMpdu > mpdu, const WifiTxVector &txVector)
	TracedCallback signature for MPDU response timeout events. More...

typedef TracedCallback< uint8_t, Ptr< const WifiMpdu >, const WifiTxVector & >	MpduResponseTimeoutTracedCallback
	TracedCallback for MPDU response timeout events typedef. More...

typedef TracedCallback< Ptr< const WifiMpdu > >	MpduTracedCallback
	TracedCallback for acked/nacked MPDUs typedef. More...

typedef void(*	PsduMapResponseTimeoutCallback) (uint8_t reason, WifiPsduMap psduMap, const std::set< Mac48Address > missingStations, std::size_t nTotalStations)
	TracedCallback signature for PSDU map response timeout events. More...

typedef TracedCallback< uint8_t, WifiPsduMap , const std::set< Mac48Address > , std::size_t >	PsduMapResponseTimeoutTracedCallback
	TracedCallback for PSDU map response timeout events typedef. More...

typedef void(*	PsduResponseTimeoutCallback) (uint8_t reason, Ptr< const WifiPsdu > psdu, const WifiTxVector &txVector)
	TracedCallback signature for PSDU response timeout events. More...

typedef TracedCallback< uint8_t, Ptr< const WifiPsdu >, const WifiTxVector & >	PsduResponseTimeoutTracedCallback
	TracedCallback for PSDU response timeout events typedef. More...

Private Member Functions
void	ConfigureDcf (Ptr< Txop > dcf, uint32_t cwmin, uint32_t cwmax, std::list< bool > isDsss, AcIndex ac)

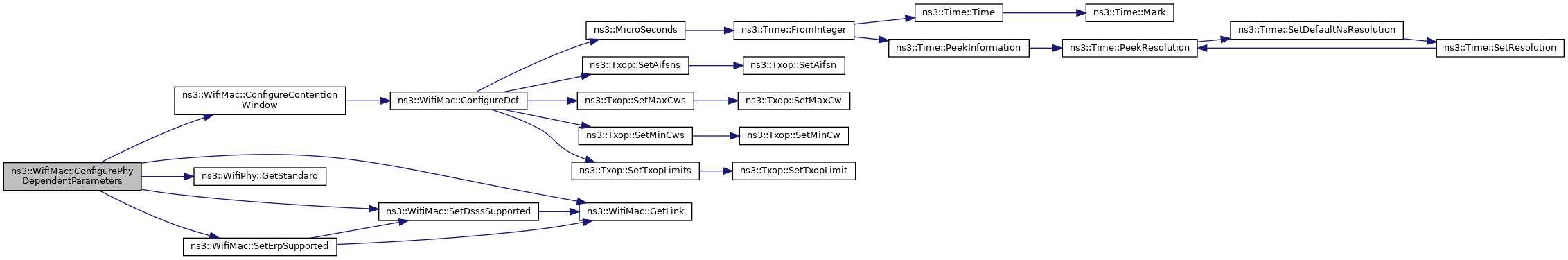

void	ConfigurePhyDependentParameters (uint8_t linkId)
	Configure PHY dependent parameters such as CWmin and CWmax on the given link. More...

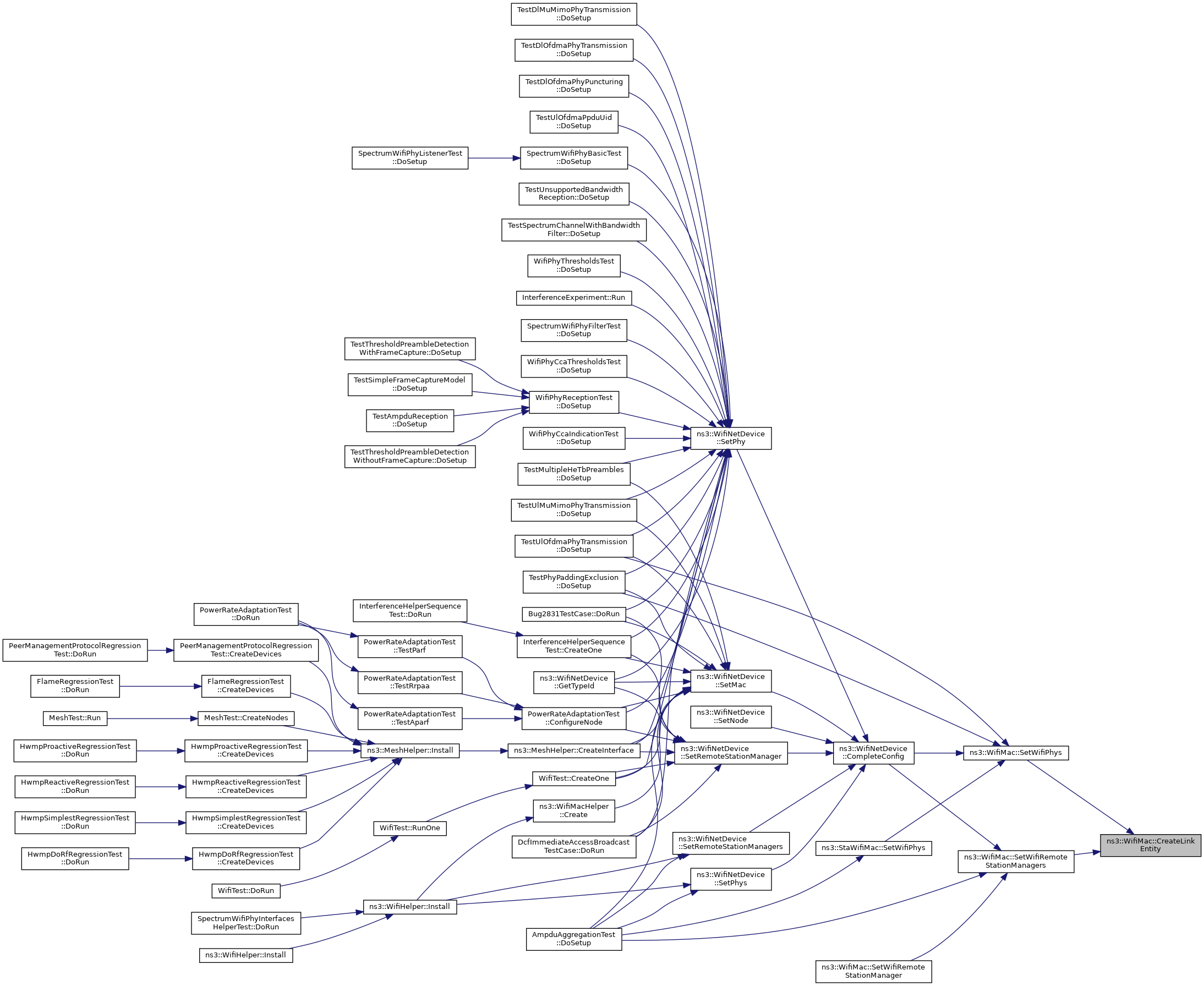

virtual std::unique_ptr< LinkEntity >	CreateLinkEntity () const
	Create a LinkEntity object. More...

virtual Mac48Address	DoGetLocalAddress (const Mac48Address &remoteAddr) const
	This method is called if this device is an MLD to determine the MAC address of the affiliated STA used to communicate with the single link device having the given MAC address. More...

void	SetBeBlockAckInactivityTimeout (uint16_t timeout)
	Set BE block ack inactivity timeout. More...

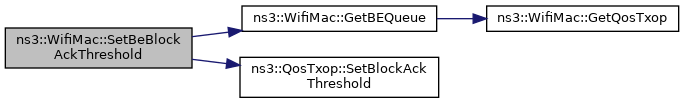

void	SetBeBlockAckThreshold (uint8_t threshold)
	Set the block ack threshold for AC_BE. More...

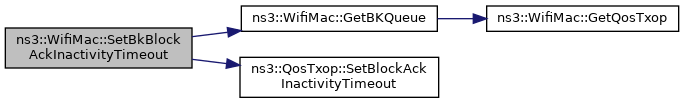

void	SetBkBlockAckInactivityTimeout (uint16_t timeout)
	Set BK block ack inactivity timeout. More...

void	SetBkBlockAckThreshold (uint8_t threshold)
	Set the block ack threshold for AC_BK. More...

void	SetDsssSupported (bool enable, uint8_t linkId)
	Enable or disable DSSS support for the given link. More...

void	SetErpSupported (bool enable, uint8_t linkId)
	Enable or disable ERP support for the given link. More...

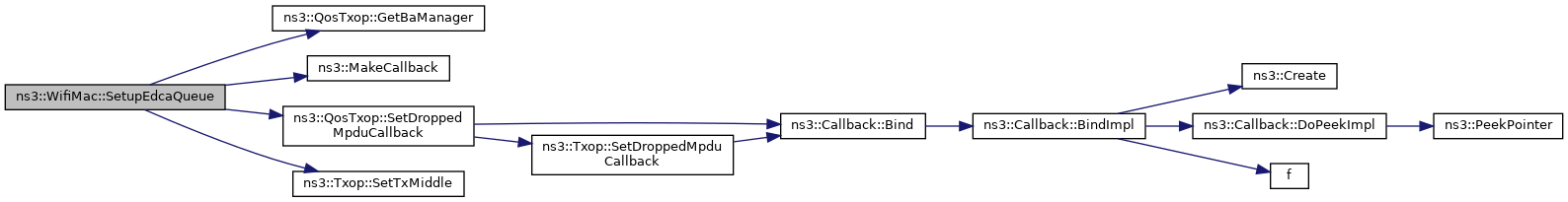

void	SetupEdcaQueue (AcIndex ac)
	This method is a private utility invoked to configure the channel access function for the specified Access Category. More...

Ptr< FrameExchangeManager >	SetupFrameExchangeManager (WifiStandard standard)
	Create a Frame Exchange Manager depending on the supported version of the standard. More...

void	SetViBlockAckInactivityTimeout (uint16_t timeout)
	Set VI block ack inactivity timeout. More...

void	SetViBlockAckThreshold (uint8_t threshold)
	Set the block ack threshold for AC_VI. More...

void	SetVoBlockAckInactivityTimeout (uint16_t timeout)
	Set VO block ack inactivity timeout. More...

void	SetVoBlockAckThreshold (uint8_t threshold)
	Set the block ack threshold for AC_VO. More...

void	UpdateLinkId (uint8_t id)
	This method is intended to be called when a link changes ID in order to update the link ID stored by the Frame Exchange Manager and the Channel Access Manager operating on that link. More...

Private Attributes
MpduTracedCallback	m_ackedMpduCallback
	ack'ed MPDU callback More...

Mac48Address	m_address
	MAC address of this station. More...

uint32_t	m_beMaxAmpduSize
	maximum A-MPDU size for AC_BE (in bytes) More...

uint16_t	m_beMaxAmsduSize
	maximum A-MSDU size for AC_BE (in bytes) More...

uint32_t	m_bkMaxAmpduSize
	maximum A-MPDU size for AC_BK (in bytes) More...

uint16_t	m_bkMaxAmsduSize
	maximum A-MSDU size for AC_BK (in bytes) More...

bool	m_ctsToSelfSupported
	flag indicating whether CTS-To-Self is supported More...

Ptr< WifiNetDevice >	m_device
	Pointer to the device. More...

std::unordered_map< Mac48Address, WifiTidLinkMapping, WifiAddressHash >	m_dlTidLinkMappings
	DL TID-to-Link Mapping negotiated with an MLD (identified by its MLD address) More...

DroppedMpduTracedCallback	m_droppedMpduCallback
	This trace indicates that an MPDU was dropped for the given reason. More...

EdcaQueues	m_edca
	This is a map from Access Category index to the corresponding channel access function. More...

ForwardUpCallback	m_forwardUp
	Callback to forward packet up the stack. More...

std::set< uint8_t >	m_linkIds
	IDs of the links in use. More...

std::map< uint8_t, std::unique_ptr< LinkEntity > >	m_links
	ID-indexed map of Link objects. More...

TracedCallback< Ptr< const Packet > >	m_macPromiscRxTrace
	The trace source fired for packets successfully received by the device immediately before being forwarded up to higher layers (at the L2/L3 transition). More...

TracedCallback< Ptr< const Packet > >	m_macRxDropTrace
	The trace source fired when packets coming into the "top" of the device are dropped at the MAC layer during reception. More...

TracedCallback< Ptr< const Packet > >	m_macRxTrace
	The trace source fired for packets successfully received by the device immediately before being forwarded up to higher layers (at the L2/L3 transition). More...

TracedCallback< Ptr< const Packet > >	m_macTxDropTrace
	The trace source fired when packets coming into the "top" of the device are dropped at the MAC layer before being queued for transmission. More...

TracedCallback< Ptr< const Packet > >	m_macTxTrace
	The trace source fired when packets come into the "top" of the device at the L3/L2 transition, before being queued for transmission. More...

uint16_t	m_mpduBufferSize
	BlockAck buffer size (in number of MPDUs) More...

MpduResponseTimeoutTracedCallback	m_mpduResponseTimeoutCallback
	MPDU response timeout traced callback. More...

MpduTracedCallback	m_nackedMpduCallback
	nack'ed MPDU callback More...

PsduMapResponseTimeoutTracedCallback	m_psduMapResponseTimeoutCallback
	PSDU map response timeout traced callback. More...

PsduResponseTimeoutTracedCallback	m_psduResponseTimeoutCallback
	PSDU response timeout traced callback. More...

bool	m_qosSupported
	This Boolean is set `true` iff this WifiMac is to model 802.11e/WMM style Quality of Service. More...

bool	m_shortSlotTimeSupported
	flag whether short slot time is supported More...

Ssid	m_ssid
	Service Set ID (SSID) More...

TypeOfStation	m_typeOfStation
	the type of station More...

std::unordered_map< Mac48Address, WifiTidLinkMapping, WifiAddressHash >	m_ulTidLinkMappings
	UL TID-to-Link Mapping negotiated with an MLD (identified by its MLD address) More...

uint32_t	m_viMaxAmpduSize
	maximum A-MPDU size for AC_VI (in bytes) More...

uint16_t	m_viMaxAmsduSize
	maximum A-MSDU size for AC_VI (in bytes) More...

uint32_t	m_voMaxAmpduSize
	maximum A-MPDU size for AC_VO (in bytes) More...

uint16_t	m_voMaxAmsduSize
	maximum A-MSDU size for AC_VO (in bytes) More...

Additional Inherited Members
Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid ()
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

base class for all MAC-level wifi objects.

This class encapsulates all the low-level MAC functionality DCA, EDCA, etc) and all the high-level MAC functionality (association/disassociation state machines).

Definition at line 95 of file wifi-mac.h.

Member Typedef Documentation

◆ DroppedMpduCallback

typedef void(* ns3::WifiMac::DroppedMpduCallback) (WifiMacDropReason reason, Ptr< const WifiMpdu > mpdu)

private

TracedCallback signature for MPDU drop events.

Parameters

reason the reason why the MPDU was dropped (

See also: WifiMacDropReason)

Parameters

mpdu	the dropped MPDU

Definition at line 1131 of file wifi-mac.h.

◆ DroppedMpduTracedCallback

typedef TracedCallback<WifiMacDropReason, Ptr<const WifiMpdu> > ns3::WifiMac::DroppedMpduTracedCallback

private

TracedCallback for MPDU drop events typedef.

Definition at line 1134 of file wifi-mac.h.

◆ EdcaQueues

typedef std::map<AcIndex, Ptr<QosTxop>, std::greater<> > ns3::WifiMac::EdcaQueues

private

This type defines a mapping between an Access Category index, and a pointer to the corresponding channel access function.

Access Categories are sorted in decreasing order of priority.

Definition at line 1062 of file wifi-mac.h.

◆ ForwardUpCallback

typedef Callback<void, Ptr<const Packet>, Mac48Address, Mac48Address> ns3::WifiMac::ForwardUpCallback

This type defines the callback of a higher layer that a WifiMac(-derived) object invokes to pass a packet up the stack.

Parameters

packet	the packet that has been received.
from	the MAC address of the device that sent the packet.
to	the MAC address of the device that the packet is destined for.

Definition at line 409 of file wifi-mac.h.

◆ MpduResponseTimeoutCallback

typedef void(* ns3::WifiMac::MpduResponseTimeoutCallback) (uint8_t reason, Ptr< const WifiMpdu > mpdu, const WifiTxVector &txVector)

private

TracedCallback signature for MPDU response timeout events.

Parameters

reason	the reason why the timer was started
mpdu	the MPDU whose response was not received before the timeout
txVector	the TXVECTOR used to transmit the MPDU

Definition at line 1154 of file wifi-mac.h.

◆ MpduResponseTimeoutTracedCallback

typedef TracedCallback<uint8_t, Ptr<const WifiMpdu>, const WifiTxVector&> ns3::WifiMac::MpduResponseTimeoutTracedCallback

private

TracedCallback for MPDU response timeout events typedef.

Definition at line 1160 of file wifi-mac.h.

◆ MpduTracedCallback

typedef TracedCallback<Ptr<const WifiMpdu> > ns3::WifiMac::MpduTracedCallback

private

TracedCallback for acked/nacked MPDUs typedef.

Definition at line 1142 of file wifi-mac.h.

◆ OriginatorAgreementOptConstRef

using ns3::WifiMac::OriginatorAgreementOptConstRef = std::optional<std::reference_wrapper<const OriginatorBlockAckAgreement> >

optional const reference to OriginatorBlockAckAgreement

Definition at line 615 of file wifi-mac.h.

◆ PsduMapResponseTimeoutCallback

typedef void(* ns3::WifiMac::PsduMapResponseTimeoutCallback) (uint8_t reason, WifiPsduMap *psduMap, const std::set< Mac48Address > *missingStations, std::size_t nTotalStations)

private

TracedCallback signature for PSDU map response timeout events.

Parameters

reason	the reason why the timer was started
psduMap	the PSDU map for which not all responses were received before the timeout
missingStations	the MAC addresses of the stations that did not respond
nTotalStations	the total number of stations that had to respond

Definition at line 1197 of file wifi-mac.h.

◆ PsduMapResponseTimeoutTracedCallback

typedef TracedCallback<uint8_t, WifiPsduMap*, const std::set<Mac48Address>*, std::size_t> ns3::WifiMac::PsduMapResponseTimeoutTracedCallback

private

TracedCallback for PSDU map response timeout events typedef.

Definition at line 1204 of file wifi-mac.h.

◆ PsduResponseTimeoutCallback

typedef void(* ns3::WifiMac::PsduResponseTimeoutCallback) (uint8_t reason, Ptr< const WifiPsdu > psdu, const WifiTxVector &txVector)

private

TracedCallback signature for PSDU response timeout events.

Parameters

reason	the reason why the timer was started
psdu	the PSDU whose response was not received before the timeout
txVector	the TXVECTOR used to transmit the PSDU

Definition at line 1175 of file wifi-mac.h.

◆ PsduResponseTimeoutTracedCallback

typedef TracedCallback<uint8_t, Ptr<const WifiPsdu>, const WifiTxVector&> ns3::WifiMac::PsduResponseTimeoutTracedCallback

private

TracedCallback for PSDU response timeout events typedef.

Definition at line 1181 of file wifi-mac.h.

◆ RecipientAgreementOptConstRef

using ns3::WifiMac::RecipientAgreementOptConstRef = std::optional<std::reference_wrapper<const RecipientBlockAckAgreement> >

optional const reference to RecipientBlockAckAgreement

Definition at line 618 of file wifi-mac.h.

Constructor & Destructor Documentation

◆ WifiMac() [1/2]

ns3::WifiMac::WifiMac ( )

Definition at line 50 of file wifi-mac.cc.

References m_rxMiddle, m_txMiddle, ns3::MakeCallback(), NS_LOG_FUNCTION, and Receive().

Here is the call graph for this function:

◆ ~WifiMac()

ns3::WifiMac::~WifiMac ( )

override

Definition at line 61 of file wifi-mac.cc.

References NS_LOG_FUNCTION.

◆ WifiMac() [2/2]

ns3::WifiMac::WifiMac ( const WifiMac & )

delete

Member Function Documentation

◆ ApplyTidLinkMapping()

void ns3::WifiMac::ApplyTidLinkMapping	(	const Mac48Address &	mldAddr,
		WifiDirection	dir
	)

protected

Apply the TID-to-Link Mapping negotiated with the given MLD for the given direction by properly configuring the queue scheduler.

Parameters

mldAddr	the MLD MAC address of the given MLD
dir	the given direction (DL or UL)

Definition at line 1305 of file wifi-mac.cc.

References ns3::BOTH_DIRECTIONS, dir, ns3::DOWNLINK, GetAddress(), openflow-switch::link, m_dlTidLinkMappings, m_links, m_scheduler, m_ulTidLinkMappings, NS_ABORT_MSG_IF, NS_LOG_FUNCTION, ns3::QosUtilsMapTidToAc(), ns3::TID_NOT_MAPPED, and ns3::WIFI_QOSDATA_QUEUE.

Referenced by ns3::StaWifiMac::ReceiveAssocResp(), and ns3::ApWifiMac::TxOk().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ BlockUnicastTxOnLinks()

void ns3::WifiMac::BlockUnicastTxOnLinks	(	WifiQueueBlockedReason	reason,
		const Mac48Address &	address,
		const std::set< uint8_t > &	linkIds
	)

Block the transmission on the given links of all unicast frames addressed to the station with the given address for the given reason.

The given MAC address must be the MLD address in case the addressed device is multi-link.

Parameters

reason	the reason for blocking transmissions
address	the MAC address of the given device
linkIds	the IDs of the links to block

Definition at line 1387 of file wifi-mac.cc.

References first::address, GetAddress(), GetLink(), openflow-switch::link, m_scheduler, NS_ASSERT, NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::WIFI_CTL_QUEUE, ns3::WIFI_MGT_QUEUE, ns3::WIFI_QOSDATA_QUEUE, and ns3::wifiAcList.

Referenced by ns3::StaWifiMac::BlockTxOnLink(), EmlsrDlTxopTest::CheckQosFrames(), ns3::EhtFrameExchangeManager::EmlsrSwitchToListening(), ns3::EhtFrameExchangeManager::ReceiveMpdu(), ns3::EhtFrameExchangeManager::SendMuRts(), and ns3::ApWifiMac::StaSwitchingToPsMode().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ CanForwardPacketsTo()

virtual bool ns3::WifiMac::CanForwardPacketsTo ( Mac48Address to ) const

pure virtual

Return true if packets can be forwarded to the given destination, false otherwise.

Parameters

to	the address to which the packet should be sent

Returns: whether packets can be forwarded to the given destination

Implemented in MldSwapLinksTest::TestWifiMac, ns3::StaWifiMac, ns3::ApWifiMac, ns3::AdhocWifiMac, and ns3::MeshWifiInterfaceMac.

Referenced by ns3::QosTxop::PeekNextMpdu().

Here is the caller graph for this function:

◆ ConfigureContentionWindow()

void ns3::WifiMac::ConfigureContentionWindow	(	uint32_t	cwMin,
		uint32_t	cwMax
	)

protectedvirtual

Parameters

cwMin	the minimum contention window size
cwMax	the maximum contention window size

This method is called to set the minimum and the maximum contention window size.

Reimplemented in ns3::MeshWifiInterfaceMac.

Definition at line 646 of file wifi-mac.cc.

References ns3::AC_BE_NQOS, ConfigureDcf(), openflow-switch::link, m_edca, m_links, and m_txop.

Referenced by ns3::MeshWifiInterfaceMac::ConfigureContentionWindow(), and ConfigurePhyDependentParameters().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ConfigureDcf()

void ns3::WifiMac::ConfigureDcf	(	Ptr< Txop >	dcf,
		uint32_t	cwmin,
		uint32_t	cwmax,
		std::list< bool >	isDsss,
		AcIndex	ac
	)

private

Parameters

dcf	the DCF to be configured
cwmin	the minimum contention window for the DCF
cwmax	the maximum contention window for the DCF
isDsss	vector of flags to indicate whether PHY is DSSS or HR/DSSS for every link
ac	the access category for the DCF

Configure the DCF with appropriate values depending on the given access category.

Definition at line 669 of file wifi-mac.cc.

References ns3::AC_BE, ns3::AC_BE_NQOS, ns3::AC_BEACON, ns3::AC_BK, ns3::AC_UNDEF, ns3::AC_VI, ns3::AC_VO, m_links, ns3::MicroSeconds(), NS_FATAL_ERROR, NS_LOG_FUNCTION, ns3::Txop::SetAifsns(), ns3::Txop::SetMaxCws(), ns3::Txop::SetMinCws(), and ns3::Txop::SetTxopLimits().

Referenced by ConfigureContentionWindow().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ConfigurePhyDependentParameters()

void ns3::WifiMac::ConfigurePhyDependentParameters ( uint8_t linkId )

private

Configure PHY dependent parameters such as CWmin and CWmax on the given link.

Parameters

linkId the ID of the given link

Definition at line 795 of file wifi-mac.cc.

References ConfigureContentionWindow(), GetLink(), ns3::WifiPhy::GetStandard(), m_links, NS_LOG_FUNCTION, third::phy, ns3::WifiMac::LinkEntity::phy, SetDsssSupported(), SetErpSupported(), ns3::WIFI_PHY_BAND_2_4GHZ, ns3::WIFI_STANDARD_80211b, and ns3::WIFI_STANDARD_80211g.

Referenced by ConfigureStandard(), and NotifyChannelSwitching().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ConfigureStandard()

void ns3::WifiMac::ConfigureStandard ( WifiStandard standard )

virtual

Parameters

standard the wifi standard to be configured

This method completes the configuration process for a requested PHY standard by creating the Frame Exchange Manager and the Channel Access Manager and configuring the PHY dependent parameters. This method can only be called after a configured PHY has been set.

Reimplemented in ns3::ApWifiMac, and ns3::MeshWifiInterfaceMac.

Definition at line 748 of file wifi-mac.cc.

References ConfigurePhyDependentParameters(), openflow-switch::link, m_edca, m_links, m_qosSupported, m_txop, NS_ABORT_IF, NS_ABORT_MSG_IF, NS_LOG_FUNCTION, SetupFrameExchangeManager(), ns3::Txop::SetWifiMac(), and ns3::WIFI_STANDARD_80211n.

Referenced by ns3::MeshWifiInterfaceMac::ConfigureStandard(), ns3::ApWifiMac::ConfigureStandard(), Bug2831TestCase::DoRun(), and AmpduAggregationTest::DoSetup().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ CreateLinkEntity()

std::unique_ptr< WifiMac::LinkEntity > ns3::WifiMac::CreateLinkEntity ( ) const

privatevirtual

Create a LinkEntity object.

Returns: a unique pointer to the created LinkEntity object

Reimplemented in ns3::StaWifiMac, and ns3::ApWifiMac.

Definition at line 912 of file wifi-mac.cc.

Referenced by SetWifiPhys(), and SetWifiRemoteStationManagers().

Here is the caller graph for this function:

◆ DeaggregateAmsduAndForward()

void ns3::WifiMac::DeaggregateAmsduAndForward ( Ptr< const WifiMpdu > mpdu )

protectedvirtual

This method can be called to de-aggregate an A-MSDU and forward the constituent packets up the stack.

Parameters

mpdu	the MPDU containing the A-MSDU.

Reimplemented in ns3::ApWifiMac.

Definition at line 1620 of file wifi-mac.cc.

References ForwardUp(), NS_LOG_FUNCTION, and ns3::PeekPointer().

Referenced by ns3::AdhocWifiMac::Receive(), and ns3::StaWifiMac::Receive().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DoDispose()

void ns3::WifiMac::DoDispose ( void )

overrideprotectedvirtual

Destructor implementation.

This method is called by Dispose() or by the Object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overridden version of this method and chain up to their parent's implementation once they are done. i.e, for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose() method.

It is safe to call GetObject() from within this method.

Reimplemented from ns3::Object.

Definition at line 373 of file wifi-mac.cc.

References ns3::Object::Dispose(), m_device, m_edca, m_links, m_rxMiddle, m_scheduler, m_txMiddle, m_txop, and NS_LOG_FUNCTION.

Referenced by ns3::MeshWifiInterfaceMac::DoDispose(), ns3::ApWifiMac::DoDispose(), and ns3::StaWifiMac::DoDispose().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DoGetLocalAddress()

Mac48Address ns3::WifiMac::DoGetLocalAddress ( const Mac48Address & remoteAddr ) const

privatevirtual

This method is called if this device is an MLD to determine the MAC address of the affiliated STA used to communicate with the single link device having the given MAC address.

This method is overridden because its implementation depends on the type of station.

Parameters

remoteAddr the MAC address of the remote single link device

Returns: the MAC address of the affiliated STA used to communicate with the remote device

Reimplemented in ns3::StaWifiMac, and ns3::ApWifiMac.

Definition at line 1673 of file wifi-mac.cc.

References m_address.

Referenced by GetLocalAddress().

Here is the caller graph for this function:

◆ DoInitialize()

void ns3::WifiMac::DoInitialize ( void )

overrideprotectedvirtual

Initialize() implementation.

This method is called only once by Initialize(). If the user calls Initialize() multiple times, DoInitialize() is called only the first time.

Subclasses are expected to override this method and chain up to their parent's implementation once they are done. It is safe to call GetObject() and AggregateObject() from within this method.

Reimplemented from ns3::Object.

Definition at line 349 of file wifi-mac.cc.

References ns3::Object::Initialize(), openflow-switch::link, m_edca, m_links, m_txop, and NS_LOG_FUNCTION.

Referenced by ns3::ApWifiMac::DoInitialize(), and ns3::StaWifiMac::DoInitialize().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Enqueue() [1/2]

virtual void ns3::WifiMac::Enqueue	(	Ptr< Packet >	packet,
		Mac48Address	to
	)

pure virtual

Parameters

packet	the packet to send.
to	the address to which the packet should be sent.

The packet should be enqueued in a TX queue, and should be dequeued as soon as the DCF function determines that access it granted to this MAC.

Implemented in MldSwapLinksTest::TestWifiMac, ns3::StaWifiMac, ns3::ApWifiMac, ns3::AdhocWifiMac, and ns3::MeshWifiInterfaceMac.

◆ Enqueue() [2/2]

void ns3::WifiMac::Enqueue	(	Ptr< Packet >	packet,
		Mac48Address	to,
		Mac48Address	from
	)

virtual

Parameters

packet	the packet to send.
to	the address to which the packet should be sent.
from	the address from which the packet should be sent.

The packet should be enqueued in a TX queue, and should be dequeued as soon as the DCF function determines that access it granted to this MAC. The extra parameter "from" allows this device to operate in a bridged mode, forwarding received frames without altering the source address.

Reimplemented in ns3::ApWifiMac, and ns3::MeshWifiInterfaceMac.

Definition at line 1479 of file wifi-mac.cc.

References GetAddress(), and NS_FATAL_ERROR.

Referenced by ns3::WifiNetDevice::Send(), and ns3::WifiNetDevice::SendFrom().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ForwardUp()

void ns3::WifiMac::ForwardUp	(	Ptr< const Packet >	packet,
		Mac48Address	from,
		Mac48Address	to
	)

protected

Forward the packet up to the device.

Parameters

packet	the packet that we are forwarding up to the device
from	the address of the source
to	the address of the destination

Definition at line 1490 of file wifi-mac.cc.

References m_forwardUp, and NS_LOG_FUNCTION.

Referenced by DeaggregateAmsduAndForward(), ns3::ApWifiMac::DeaggregateAmsduAndForward(), ns3::MeshWifiInterfaceMac::Receive(), ns3::AdhocWifiMac::Receive(), ns3::ApWifiMac::Receive(), and ns3::StaWifiMac::Receive().

Here is the caller graph for this function:

◆ GetAddress()

Mac48Address ns3::WifiMac::GetAddress ( ) const

Returns: the MAC address associated to this MAC layer.

Definition at line 452 of file wifi-mac.cc.

References m_address.

Here is the caller graph for this function:

◆ GetBaAgreementEstablishedAsOriginator()

WifiMac::OriginatorAgreementOptConstRef ns3::WifiMac::GetBaAgreementEstablishedAsOriginator	(	Mac48Address	recipient,
		uint8_t	tid
	)		const

Parameters

recipient	(link or device) MAC address of the recipient
tid	traffic ID.

Returns: the originator block ack agreement, if one has been established

Checks if an originator block ack agreement is established with station addressed by recipient for TID tid.

Definition at line 1679 of file wifi-mac.cc.

References ns3::QosTxop::GetBaManager(), GetMldAddress(), and GetQosTxop().

Referenced by ns3::QosTxop::CompleteMpduTx(), ns3::WifiDefaultAckManager::ExistInflightOnSameLink(), ns3::HtFrameExchangeManager::GetBar(), GetBarTypeAsOriginator(), GetBaTypeAsOriginator(), ns3::WifiDefaultAckManager::GetMaxDistFromStartingSeq(), ns3::MpduAggregator::GetNextAmpdu(), ns3::QosTxop::GetNextMpdu(), ns3::QosTxop::IsQosOldPacket(), ns3::HtFrameExchangeManager::MissedBlockAck(), ns3::HtFrameExchangeManager::NotifyReceivedNormalAck(), ns3::QosTxop::PeekNextMpdu(), ns3::HtFrameExchangeManager::ReleaseSequenceNumbers(), ns3::HtFrameExchangeManager::RetransmitMpduAfterMissedAck(), ns3::HeFrameExchangeManager::StartFrameExchange(), ns3::WifiDefaultAckManager::TryAddMpdu(), and ns3::RrMultiUserScheduler::TrySendingDlMuPpdu().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetBaAgreementEstablishedAsRecipient()

WifiMac::RecipientAgreementOptConstRef ns3::WifiMac::GetBaAgreementEstablishedAsRecipient	(	Mac48Address	originator,
		uint8_t	tid
	)		const

Parameters

originator	(link or device) MAC address of the originator
tid	traffic ID.

Returns: the recipient block ack agreement, if one has been established

Checks if a recipient block ack agreement is established with station addressed by originator for TID tid.

Definition at line 1693 of file wifi-mac.cc.

References ns3::QosTxop::GetBaManager(), GetMldAddress(), and GetQosTxop().

Referenced by ns3::HtFrameExchangeManager::EndReceiveAmpdu(), GetBarTypeAsRecipient(), GetBaTypeAsRecipient(), ns3::MultiUserScheduler::GetMaxSizeOfQosNullAmpdu(), ns3::RrMultiUserScheduler::GetTxVectorForUlMu(), and ns3::HtFrameExchangeManager::ReceiveMpdu().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetBarTypeAsOriginator()

BlockAckReqType ns3::WifiMac::GetBarTypeAsOriginator	(	const Mac48Address &	recipient,
		uint8_t	tid
	)		const

Parameters

recipient	MAC address of recipient
tid	traffic ID

Returns: the type of Block Ack Requests sent to the recipient

This function returns the type of Block Ack Requests sent to the recipient.

Definition at line 1710 of file wifi-mac.cc.

References GetBaAgreementEstablishedAsOriginator(), and NS_ABORT_MSG_IF.

Referenced by ns3::WifiDefaultAckManager::GetAckInfoIfAggregatedMuBar(), ns3::WifiDefaultAckManager::GetAckInfoIfBarBaSequence(), ns3::WifiDefaultAckManager::GetAckInfoIfTfMuBar(), and ns3::WifiDefaultAckManager::TryAddMpdu().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetBarTypeAsRecipient()

BlockAckReqType ns3::WifiMac::GetBarTypeAsRecipient	(	Mac48Address	originator,
		uint8_t	tid
	)		const

Parameters

originator	MAC address of originator
tid	traffic ID

Returns: the type of Block Ack Requests sent by the originator

This function returns the type of Block Ack Requests sent by the originator.

Definition at line 1728 of file wifi-mac.cc.

References GetBaAgreementEstablishedAsRecipient(), and NS_ABORT_MSG_IF.

Here is the call graph for this function:

◆ GetBaTypeAsOriginator()

BlockAckType ns3::WifiMac::GetBaTypeAsOriginator	(	const Mac48Address &	recipient,
		uint8_t	tid
	)		const

Parameters

recipient	MAC address
tid	traffic ID

Returns: the type of Block Acks sent by the recipient

This function returns the type of Block Acks sent by the recipient.

Definition at line 1701 of file wifi-mac.cc.

References GetBaAgreementEstablishedAsOriginator(), and NS_ABORT_MSG_IF.

Referenced by ns3::WifiDefaultAckManager::GetAckInfoIfAggregatedMuBar(), ns3::WifiDefaultAckManager::GetAckInfoIfBarBaSequence(), ns3::WifiDefaultAckManager::GetAckInfoIfTfMuBar(), and ns3::WifiDefaultAckManager::TryAddMpdu().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetBaTypeAsRecipient()

BlockAckType ns3::WifiMac::GetBaTypeAsRecipient	(	Mac48Address	originator,
		uint8_t	tid
	)		const

Parameters

originator	MAC address of originator
tid	traffic ID

Returns: the type of Block Acks sent to the originator

This function returns the type of Block Acks sent to the originator.

Definition at line 1719 of file wifi-mac.cc.

References GetBaAgreementEstablishedAsRecipient(), and NS_ABORT_MSG_IF.

Referenced by ns3::WifiDefaultAckManager::TryUlMuTransmission().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetBEQueue()

Ptr< QosTxop > ns3::WifiMac::GetBEQueue ( ) const

protected

Accessor for the AC_BE channel access function.

Returns: a smart pointer to QosTxop

Definition at line 533 of file wifi-mac.cc.

References ns3::AC_BE, GetQosTxop(), and m_qosSupported.

Referenced by AmpduAggregationTest::GetBeQueue(), GetTypeId(), ns3::StaWifiMac::SendAssociationRequest(), ns3::ApWifiMac::SendAssocResp(), ns3::ApWifiMac::SendProbeResp(), SetBeBlockAckInactivityTimeout(), and SetBeBlockAckThreshold().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetBKQueue()

Ptr< QosTxop > ns3::WifiMac::GetBKQueue ( ) const

protected

Accessor for the AC_BK channel access function.

Returns: a smart pointer to QosTxop

Definition at line 539 of file wifi-mac.cc.

References ns3::AC_BK, GetQosTxop(), and m_qosSupported.

Referenced by GetTypeId(), SetBkBlockAckInactivityTimeout(), and SetBkBlockAckThreshold().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetBssid()

Mac48Address ns3::WifiMac::GetBssid ( uint8_t linkId ) const

Returns: the BSSID of the network the given link belongs to.

Parameters

linkId the ID of the given link

Definition at line 478 of file wifi-mac.cc.

References ns3::WifiMac::LinkEntity::feManager, and GetLink().

Referenced by ns3::StaWifiMac::BlockTxOnLink(), ns3::AdhocWifiMac::Enqueue(), ns3::StaWifiMac::Enqueue(), ns3::WifiNetDevice::GetAddress(), ns3::StaWifiMac::GetAssociationRequest(), ns3::EmlsrManager::NotifyMgtFrameReceived(), ns3::StaWifiMac::Receive(), ns3::StaWifiMac::SetPowerSaveMode(), and ns3::StaWifiMac::UnblockTxOnLink().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetChannelAccessManager()

Ptr< ChannelAccessManager > ns3::WifiMac::GetChannelAccessManager ( uint8_t linkId = SINGLE_LINK_OP_ID ) const

Get the Channel Access Manager associated with the given link.

Parameters

linkId the ID of the given link

Returns: the Channel Access Manager

Definition at line 870 of file wifi-mac.cc.

References ns3::WifiMac::LinkEntity::channelAccessManager, and GetLink().

Referenced by ns3::MultiUserScheduler::AccessReqTimeout(), ns3::QosTxop::NotifyChannelReleased(), ns3::EmlsrManager::NotifyIcfReceived(), ns3::EmlsrManager::NotifyUlTxopStart(), ns3::Txop::RequestAccess(), ns3::Txop::StartAccessAfterEvent(), and ns3::QosTxop::StartMuEdcaTimerNow().

Here is the call graph for this function:

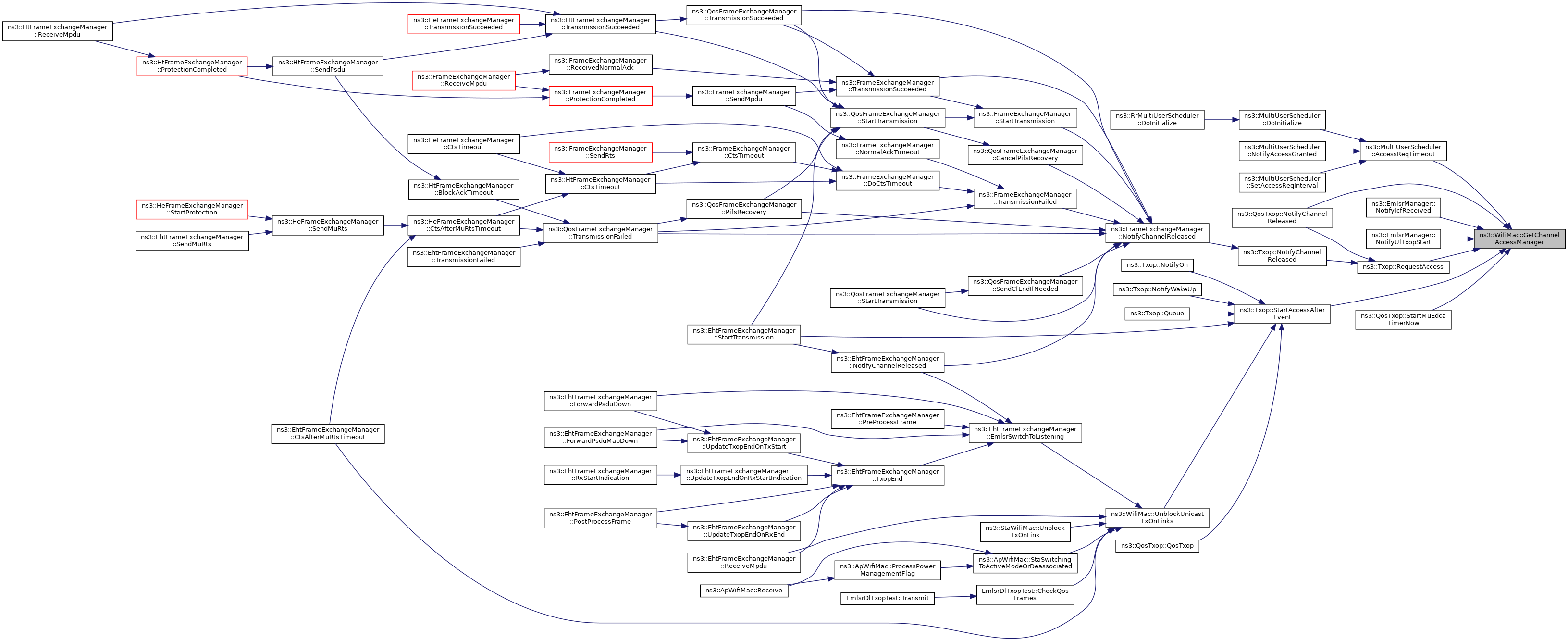

Here is the caller graph for this function:

◆ GetDevice()

Ptr< WifiNetDevice > ns3::WifiMac::GetDevice ( ) const

Return the device this PHY is associated with.

Returns: the device this PHY is associated with

Definition at line 439 of file wifi-mac.cc.

References m_device.

Referenced by EmlsrDlTxopTest::CheckQosFrames(), EmlsrLinkSwitchTest::CheckQosFrames(), ns3::MeshWifiInterfaceMac::CheckSupportedRates(), ns3::DefaultEmlsrManager::DoNotifyTxopEnd(), MultiLinkSetupTest::DoRun(), EmlsrOperationsTestBase::DoSetup(), MultiLinkOperationsTestBase::DoSetup(), GetEhtConfiguration(), GetEhtSupported(), GetHeConfiguration(), GetHeSupported(), GetHtConfiguration(), GetHtSupported(), ns3::MeshWifiInterfaceMac::GetSupportedRates(), GetVhtConfiguration(), GetVhtSupported(), ns3::EmlsrManager::NotifyIcfReceived(), ns3::EmlsrManager::NotifyUlTxopStart(), Receive(), ns3::MeshWifiInterfaceMac::Receive(), ns3::StaWifiMac::Receive(), EmlsrOperationsTestBase::SetSsid(), EmlsrDlTxopTest::StartTraffic(), MultiLinkSetupTest::StartTraffic(), MultiLinkTxTest::StartTraffic(), MultiLinkMuTxTest::StartTraffic(), ReleaseSeqNoAfterCtsTimeoutTest::StartTraffic(), ns3::EhtFrameExchangeManager::StartTransmission(), and ReleaseSeqNoAfterCtsTimeoutTest::Transmit().

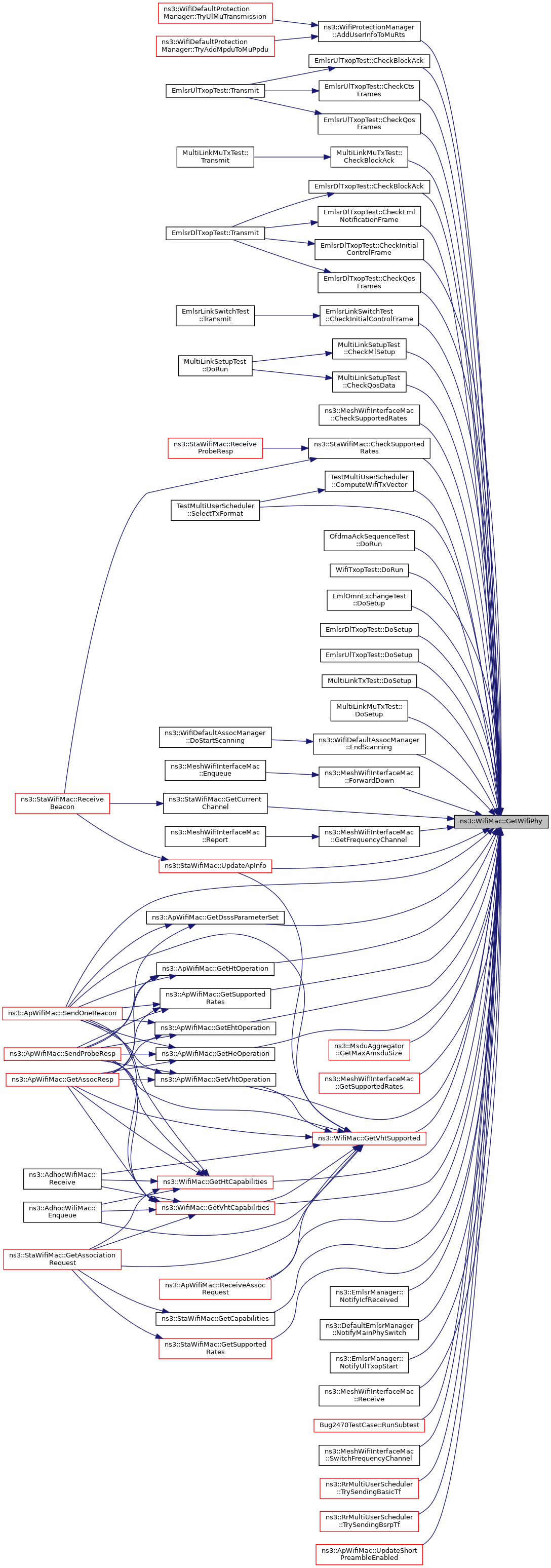

Here is the caller graph for this function:

◆ GetDsssSupported()

bool ns3::WifiMac::GetDsssSupported ( uint8_t linkId ) const

Return whether the device supports DSSS on the given link.

Parameters

linkId the ID of the given link

Returns: true if DSSS is supported, false otherwise

Definition at line 1252 of file wifi-mac.cc.

References ns3::WifiMac::LinkEntity::dsssSupported, and GetLink().

Referenced by ns3::ApWifiMac::GetDsssParameterSet(), ns3::ApWifiMac::Receive(), ns3::ApWifiMac::SendOneBeacon(), and ns3::ApWifiMac::SendProbeResp().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetEhtCapabilities()

EhtCapabilities ns3::WifiMac::GetEhtCapabilities ( uint8_t linkId ) const

Return the EHT capabilities of the device for the given link.

Parameters

linkId the ID of the given link

Returns: the EHT capabilities that we support

Definition at line 2158 of file wifi-mac.cc.

References ns3::EhtMcsAndNssSet::EHT_MCS_MAP_TYPE_160_MHZ, ns3::EhtMcsAndNssSet::EHT_MCS_MAP_TYPE_20_MHZ_ONLY, ns3::EhtMcsAndNssSet::EHT_MCS_MAP_TYPE_NOT_LARGER_THAN_80_MHZ, ns3::VhtConfiguration::Get160MHzOperationSupported(), GetEhtSupported(), GetHtConfiguration(), GetLink(), GetVhtConfiguration(), m_beMaxAmpduSize, m_beMaxAmsduSize, m_bkMaxAmpduSize, m_bkMaxAmsduSize, ns3::EhtCapabilities::m_phyCapabilities, m_viMaxAmpduSize, m_viMaxAmsduSize, m_voMaxAmpduSize, m_voMaxAmsduSize, max, min, NS_ASSERT, NS_LOG_FUNCTION, third::phy, ns3::WifiMac::LinkEntity::phy, ns3::EhtCapabilities::SetMaxAmpduLength(), ns3::EhtCapabilities::SetMaxMpduLength(), ns3::EhtCapabilities::SetSupportedRxEhtMcsAndNss(), ns3::EhtCapabilities::SetSupportedTxEhtMcsAndNss(), ns3::EhtPhyCapabilities::supportRx1024And4096QamForRuSmallerThan242Tones, ns3::EhtPhyCapabilities::supportTx1024And4096QamForRuSmallerThan242Tones, ns3::WIFI_MOD_CLASS_EHT, and ns3::WIFI_PHY_BAND_2_4GHZ.

Referenced by ns3::AdhocWifiMac::Enqueue(), ns3::StaWifiMac::GetAssociationRequest(), ns3::ApWifiMac::GetAssocResp(), ns3::AdhocWifiMac::Receive(), ns3::ApWifiMac::SendOneBeacon(), ns3::StaWifiMac::SendProbeRequest(), and ns3::ApWifiMac::SendProbeResp().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetEhtConfiguration()

Ptr< EhtConfiguration > ns3::WifiMac::GetEhtConfiguration ( ) const

Returns: pointer to EhtConfiguration if it exists

Definition at line 1755 of file wifi-mac.cc.

References GetDevice(), and ns3::WifiNetDevice::GetEhtConfiguration().

Referenced by ns3::WifiAssocManager::CanSetupMultiLink(), MultiLinkSetupTest::DoSetup(), GetEhtSupported(), ns3::StaWifiMac::GetMultiLinkElement(), ns3::ApWifiMac::GetMultiLinkElement(), ns3::StaWifiMac::GetTidToLinkMappingElements(), ns3::ApWifiMac::ReceiveAssocRequest(), ns3::ApWifiMac::ReceiveEmlOmn(), and ns3::EmlsrManager::SetWifiMac().

Here is the call graph for this function:

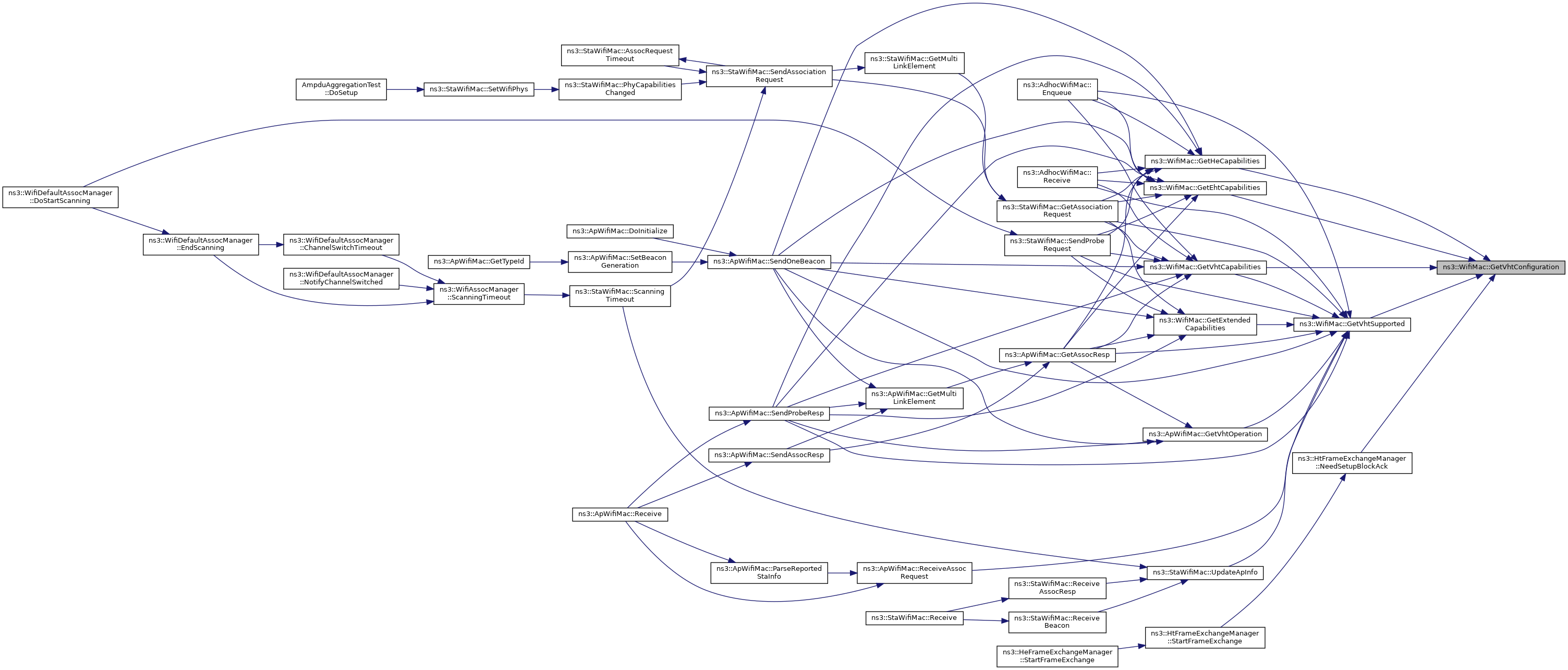

Here is the caller graph for this function:

◆ GetEhtSupported() [1/2]

bool ns3::WifiMac::GetEhtSupported ( ) const

Return whether the device supports EHT.

Returns: true if EHT is supported, false otherwise

Definition at line 1780 of file wifi-mac.cc.

References GetDevice(), and GetEhtConfiguration().

Referenced by ns3::AdhocWifiMac::Enqueue(), ns3::StaWifiMac::GetAssociationRequest(), ns3::ApWifiMac::GetAssocResp(), GetEhtCapabilities(), ns3::ApWifiMac::GetEhtOperation(), GetMaxBaBufferSize(), ns3::ApWifiMac::GetReducedNeighborReport(), ns3::RrMultiUserScheduler::GetTxVectorForUlMu(), ns3::AdhocWifiMac::Receive(), ns3::ApWifiMac::ReceiveAssocRequest(), ns3::ApWifiMac::SendOneBeacon(), ns3::StaWifiMac::SendProbeRequest(), ns3::ApWifiMac::SendProbeResp(), ns3::RrMultiUserScheduler::TrySendingDlMuPpdu(), and ns3::StaWifiMac::UpdateApInfo().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetEhtSupported() [2/2]

bool ns3::WifiMac::GetEhtSupported ( const Mac48Address & address ) const

Parameters

address the (link or MLD) address of a remote station

Returns: true if the remote station with the given address supports EHT

Definition at line 1825 of file wifi-mac.cc.

References first::address, openflow-switch::link, and m_links.

◆ GetErpSupported()

bool ns3::WifiMac::GetErpSupported ( uint8_t linkId ) const

Return whether the device supports ERP on the given link.

Parameters

linkId the ID of the given link

Returns: true if ERP is supported, false otherwise

Definition at line 1228 of file wifi-mac.cc.

References ns3::WifiMac::LinkEntity::erpSupported, and GetLink().

Referenced by ns3::StaWifiMac::GetCapabilities(), ns3::ApWifiMac::GetErpInformation(), ns3::ApWifiMac::ReceiveAssocRequest(), ns3::ApWifiMac::SendOneBeacon(), ns3::ApWifiMac::SendProbeResp(), ns3::StaWifiMac::UpdateApInfo(), ns3::ApWifiMac::UpdateShortPreambleEnabled(), and ns3::ApWifiMac::UpdateShortSlotTimeEnabled().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetExtendedCapabilities()

ExtendedCapabilities ns3::WifiMac::GetExtendedCapabilities ( ) const

Return the extended capabilities of the device.

Returns: the extended capabilities that we support

Definition at line 1948 of file wifi-mac.cc.

References GetHtSupported(), GetVhtSupported(), NS_LOG_FUNCTION, ns3::ExtendedCapabilities::SetHtSupported(), ns3::ExtendedCapabilities::SetVhtSupported(), and ns3::SINGLE_LINK_OP_ID.

Referenced by ns3::StaWifiMac::GetAssociationRequest(), ns3::ApWifiMac::GetAssocResp(), ns3::ApWifiMac::SendOneBeacon(), ns3::StaWifiMac::SendProbeRequest(), and ns3::ApWifiMac::SendProbeResp().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetFrameExchangeManager()

Ptr< FrameExchangeManager > ns3::WifiMac::GetFrameExchangeManager ( uint8_t linkId = SINGLE_LINK_OP_ID ) const

Get the Frame Exchange Manager associated with the given link.

Parameters

linkId the ID of the given link

Returns: the Frame Exchange Manager

Definition at line 864 of file wifi-mac.cc.

References ns3::WifiMac::LinkEntity::feManager, and GetLink().

Referenced by ns3::StaWifiMac::BlockTxOnLink(), MultiLinkOperationsTestBase::CheckAddresses(), MultiLinkSetupTest::CheckAssocResponse(), MultiLinkSetupTest::CheckBeacon(), MultiLinkSetupTest::CheckMlSetup(), MultiLinkSetupTest::CheckProbeResponse(), ns3::ApWifiMac::DoGetLocalAddress(), ns3::StaWifiMac::DoGetLocalAddress(), AmpduAggregationTest::DoRun(), TwoLevelAggregationTest::DoRun(), HeAggregationTest::DoRun(), EhtAggregationTest::DoRun(), Bug2831TestCase::DoRun(), AmpduAggregationTest::DoSetup(), EmlsrDlTxopTest::DoSetup(), MultiLinkTxTest::DoSetup(), MultiLinkMuTxTest::DoSetup(), ns3::StaWifiMac::Enqueue(), ns3::ApWifiMac::ForwardDown(), ns3::WifiDefaultAckManager::GetAckInfoIfBarBaSequence(), ns3::WifiNetDevice::GetAddress(), ns3::EmlsrManager::GetEhtFem(), ns3::MultiUserScheduler::GetHeFem(), ns3::ApWifiMac::GetMultiLinkElement(), ns3::QosTxop::GetNextMpdu(), ns3::WifiDefaultProtectionManager::GetPsduProtection(), ns3::RrMultiUserScheduler::GetTxVectorForUlMu(), Receive(), ns3::ApWifiMac::Receive(), ns3::StaWifiMac::Receive(), ns3::ApWifiMac::SendAssocResp(), ns3::StaWifiMac::SendProbeRequest(), ns3::MpduAggregator::SetLinkId(), ns3::MsduAggregator::SetLinkId(), ns3::StaWifiMac::SetPowerSaveMode(), ns3::MpduAggregator::SetWifiMac(), ns3::MsduAggregator::SetWifiMac(), ns3::MultiUserScheduler::SetWifiMac(), MultiLinkTxTest::Transmit(), ns3::WifiDefaultProtectionManager::TryAddMpduToMuPpdu(), ns3::WifiDefaultAckManager::TryUlMuTransmission(), ns3::WifiDefaultProtectionManager::TryUlMuTransmission(), ns3::ApWifiMac::TxFailed(), ns3::ApWifiMac::TxOk(), and ns3::StaWifiMac::UnblockTxOnLink().

Here is the call graph for this function:

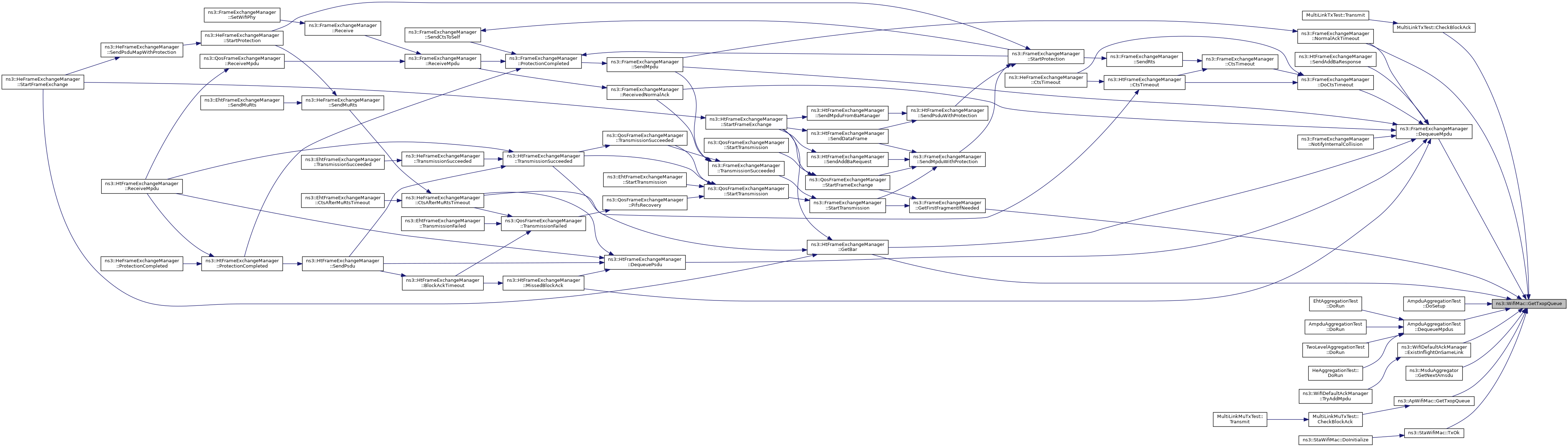

Here is the caller graph for this function:

◆ GetHeCapabilities()

HeCapabilities ns3::WifiMac::GetHeCapabilities ( uint8_t linkId ) const

Return the HE capabilities of the device for the given link.

Parameters

linkId the ID of the given link

Returns: the HE capabilities that we support

Definition at line 2100 of file wifi-mac.cc.

References ns3::VhtConfiguration::Get160MHzOperationSupported(), GetHeConfiguration(), GetHeSupported(), GetHtConfiguration(), GetLink(), GetVhtConfiguration(), m_beMaxAmpduSize, m_bkMaxAmpduSize, m_viMaxAmpduSize, m_voMaxAmpduSize, max, min, ns3::NanoSeconds(), NS_ASSERT, NS_LOG_FUNCTION, third::phy, ns3::WifiMac::LinkEntity::phy, ns3::HeCapabilities::SetChannelWidthSet(), ns3::HeCapabilities::SetHePpdu4xHeLtf800nsGi(), ns3::HeCapabilities::SetHeSuPpdu1xHeLtf800nsGi(), ns3::HeCapabilities::SetHighestMcsSupported(), ns3::HeCapabilities::SetHighestNssSupported(), ns3::HeCapabilities::SetLdpcCodingInPayload(), ns3::HeCapabilities::SetMaxAmpduLength(), ns3::WIFI_MOD_CLASS_HE, ns3::WIFI_PHY_BAND_2_4GHZ, ns3::WIFI_PHY_BAND_5GHZ, and ns3::WIFI_PHY_BAND_6GHZ.

Referenced by ns3::AdhocWifiMac::Enqueue(), ns3::StaWifiMac::GetAssociationRequest(), ns3::ApWifiMac::GetAssocResp(), ns3::AdhocWifiMac::Receive(), ns3::ApWifiMac::SendOneBeacon(), ns3::StaWifiMac::SendProbeRequest(), and ns3::ApWifiMac::SendProbeResp().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetHeConfiguration()

Ptr< HeConfiguration > ns3::WifiMac::GetHeConfiguration ( ) const

Returns: pointer to HeConfiguration if it exists

Definition at line 1749 of file wifi-mac.cc.

References GetDevice(), and ns3::WifiNetDevice::GetHeConfiguration().

Referenced by TestMultiUserScheduler::ComputeWifiTxVector(), GetHeCapabilities(), ns3::ApWifiMac::GetHeOperation(), GetHeSupported(), ns3::ApWifiMac::GetMuEdcaParameterSet(), ns3::RrMultiUserScheduler::GetTxVectorForUlMu(), ns3::HeFrameExchangeManager::SetMultiUserScheduler(), ns3::MultiUserScheduler::SetWifiMac(), ns3::RrMultiUserScheduler::TrySendingDlMuPpdu(), and ns3::StaWifiMac::UpdateApInfo().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetHeSupported() [1/2]

bool ns3::WifiMac::GetHeSupported ( ) const

Return whether the device supports HE.

Returns: true if HE is supported, false otherwise

Definition at line 1774 of file wifi-mac.cc.

References GetDevice(), and GetHeConfiguration().

Referenced by TestMultiUserScheduler::ComputeWifiTxVector(), ns3::AdhocWifiMac::Enqueue(), ns3::StaWifiMac::GetAssociationRequest(), ns3::ApWifiMac::GetAssocResp(), GetHeCapabilities(), ns3::ApWifiMac::GetHeOperation(), GetMaxBaBufferSize(), ns3::ApWifiMac::GetMuEdcaParameterSet(), ns3::RrMultiUserScheduler::NotifyStationAssociated(), ns3::RrMultiUserScheduler::NotifyStationDeassociated(), ns3::AdhocWifiMac::Receive(), ns3::ApWifiMac::ReceiveAssocRequest(), ns3::RrMultiUserScheduler::SelectTxFormat(), TestMultiUserScheduler::SelectTxFormat(), ns3::ApWifiMac::SendOneBeacon(), ns3::StaWifiMac::SendProbeRequest(), ns3::ApWifiMac::SendProbeResp(), and ns3::StaWifiMac::UpdateApInfo().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetHeSupported() [2/2]

bool ns3::WifiMac::GetHeSupported ( const Mac48Address & address ) const

Parameters

address the (link or MLD) address of a remote station

Returns: true if the remote station with the given address supports HE

Definition at line 1812 of file wifi-mac.cc.

References first::address, openflow-switch::link, and m_links.

◆ GetHtCapabilities()

HtCapabilities ns3::WifiMac::GetHtCapabilities ( uint8_t linkId ) const

Return the HT capabilities of the device for the given link.

Parameters

linkId the ID of the given link

Returns: the HT capabilities that we support

Definition at line 1959 of file wifi-mac.cc.

Referenced by ns3::AdhocWifiMac::Enqueue(), ns3::StaWifiMac::GetAssociationRequest(), ns3::ApWifiMac::GetAssocResp(), ns3::AdhocWifiMac::Receive(), ns3::ApWifiMac::SendOneBeacon(), ns3::StaWifiMac::SendProbeRequest(), and ns3::ApWifiMac::SendProbeResp().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetHtConfiguration()

Ptr< HtConfiguration > ns3::WifiMac::GetHtConfiguration ( ) const

Returns: pointer to HtConfiguration if it exists

Definition at line 1737 of file wifi-mac.cc.

References GetDevice(), and ns3::WifiNetDevice::GetHtConfiguration().

Referenced by GetEhtCapabilities(), GetHeCapabilities(), GetHtCapabilities(), ns3::ApWifiMac::GetHtOperation(), GetHtSupported(), and GetVhtCapabilities().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetHtSupported() [1/2]

bool ns3::WifiMac::GetHtSupported ( ) const

Return whether the device supports HT.

Returns: true if HT is supported, false otherwise

Definition at line 1761 of file wifi-mac.cc.

References GetDevice(), and GetHtConfiguration().

Referenced by ns3::AdhocWifiMac::Enqueue(), ns3::StaWifiMac::GetAssociationRequest(), ns3::ApWifiMac::GetAssocResp(), GetExtendedCapabilities(), GetHtCapabilities(), ns3::ApWifiMac::GetHtOperation(), GetMaxBaBufferSize(), ns3::QosTxop::GetNextMpdu(), ns3::ApWifiMac::GetSupportedRates(), ns3::StaWifiMac::GetSupportedRates(), ns3::HtFrameExchangeManager::NeedSetupBlockAck(), ns3::AdhocWifiMac::Receive(), ns3::ApWifiMac::Receive(), ns3::ApWifiMac::ReceiveAssocRequest(), ns3::ApWifiMac::SendOneBeacon(), ns3::StaWifiMac::SendProbeRequest(), ns3::ApWifiMac::SendProbeResp(), SetDevice(), and ns3::StaWifiMac::UpdateApInfo().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetHtSupported() [2/2]

bool ns3::WifiMac::GetHtSupported ( const Mac48Address & address ) const

Parameters

address the (link or MLD) address of a remote station

Returns: true if the remote station with the given address supports HT

Definition at line 1786 of file wifi-mac.cc.

References first::address, openflow-switch::link, and m_links.

◆ GetLink()

WifiMac::LinkEntity & ns3::WifiMac::GetLink ( uint8_t linkId ) const

protected

Get a reference to the link associated with the given ID.

Parameters

linkId the given link ID

Returns: a reference to the link associated with the given ID

Definition at line 924 of file wifi-mac.cc.

References m_links, and NS_ASSERT.

Referenced by BlockUnicastTxOnLinks(), ns3::MeshWifiInterfaceMac::ConfigureContentionWindow(), ConfigurePhyDependentParameters(), GetBssid(), GetChannelAccessManager(), GetDsssSupported(), GetEhtCapabilities(), GetErpSupported(), GetFrameExchangeManager(), GetHeCapabilities(), ns3::ApWifiMac::GetLink(), ns3::StaWifiMac::GetLink(), GetWifiPhy(), GetWifiRemoteStationManager(), NotifyChannelSwitching(), Receive(), SetBssid(), SetDsssSupported(), SetErpSupported(), ns3::MeshWifiInterfaceMac::SwitchFrequencyChannel(), UnblockUnicastTxOnLinks(), and UpdateLinkId().

Here is the caller graph for this function:

◆ GetLinkForPhy() [1/2]

std::optional< uint8_t > ns3::WifiMac::GetLinkForPhy ( Ptr< const WifiPhy > phy ) const

Get the ID of the link (if any) on which the given PHY is operating.

Parameters

phy	the given PHY

Returns: the ID of the link (if any) on which the given PHY is operating

Definition at line 974 of file wifi-mac.cc.

References openflow-switch::link, m_links, and third::phy.

Referenced by ns3::StaWifiMac::DoInitialize(), GetLinkForPhy(), ns3::DefaultEmlsrManager::GetLinkToSendEmlOmn(), ns3::WifiDefaultProtectionManager::GetPsduProtection(), ns3::EmlsrManager::NotifyUlTxopStart(), ns3::EhtFrameExchangeManager::ReceiveMpdu(), and ns3::DefaultEmlsrManager::ResendNotification().

Here is the caller graph for this function:

◆ GetLinkForPhy() [2/2]

std::optional< uint8_t > ns3::WifiMac::GetLinkForPhy ( std::size_t phyId ) const

Get the ID of the link (if any) on which the given PHY is operating.

Parameters

phyId the index of the given PHY in the vector of PHYs held by WifiNetDevice

Returns: the ID of the link (if any) on which the given PHY is operating

Definition at line 987 of file wifi-mac.cc.

References GetLinkForPhy(), ns3::WifiNetDevice::GetPhy(), m_device, NS_ABORT_UNLESS, and third::phy.

Here is the call graph for this function:

◆ GetLinkIdByAddress()

std::optional< uint8_t > ns3::WifiMac::GetLinkIdByAddress ( const Mac48Address & address ) const

virtual

Get the ID of the link having the given MAC address, if any.

Parameters

address the given MAC address

Returns: the ID of the link having the given MAC address, if any

Definition at line 961 of file wifi-mac.cc.

References first::address, openflow-switch::link, and m_links.

Referenced by MultiLinkSetupTest::CheckAssocResponse(), MultiLinkTxTest::CheckBlockAck(), MultiLinkMuTxTest::CheckBlockAck(), MultiLinkTxTest::Transmit(), ns3::ApWifiMac::TxFailed(), ns3::ApWifiMac::TxOk(), and ns3::StaWifiMac::TxOk().

Here is the caller graph for this function:

◆ GetLinkIds()

const std::set< uint8_t > & ns3::WifiMac::GetLinkIds ( ) const

Returns: the set of link IDs in use by this device

Definition at line 939 of file wifi-mac.cc.

References m_linkIds.

Referenced by ns3::EmlsrManager::NotifyIcfReceived(), ns3::EmlsrManager::NotifyTxopEnd(), ns3::EmlsrManager::NotifyUlTxopStart(), ns3::Txop::SetWifiMac(), and MultiLinkTxTest::Transmit().

Here is the caller graph for this function:

◆ GetLinks()

const std::map< uint8_t, std::unique_ptr< WifiMac::LinkEntity > > & ns3::WifiMac::GetLinks ( ) const

protected

Returns: a const reference to the map of link entities

Definition at line 918 of file wifi-mac.cc.

References m_links.

Referenced by ns3::StaWifiMac::Disassociated(), AmpduAggregationTest::DoSetup(), ns3::StaWifiMac::GetMultiLinkElement(), ns3::StaWifiMac::GetSetupLinkIds(), ns3::StaWifiMac::MissedBeacons(), ns3::StaWifiMac::NotifyEmlsrModeChanged(), ns3::StaWifiMac::NotifySwitchingEmlsrLink(), ns3::StaWifiMac::ReceiveAssocResp(), ns3::StaWifiMac::ScanningTimeout(), ns3::StaWifiMac::SendAssociationRequest(), ns3::StaWifiMac::SetPmModeAfterAssociation(), and ns3::StaWifiMac::StartScanning().

Here is the caller graph for this function:

◆ GetLocalAddress()

Mac48Address ns3::WifiMac::GetLocalAddress ( const Mac48Address & remoteAddr ) const

Get the local MAC address used to communicate with a remote STA.

Specifically:

If the given remote address is the address of a STA affiliated with a remote MLD and operating on a setup link, the address of the local STA operating on such a link is returned.
If the given remote address is the MLD address of a remote MLD (with which some link has been setup), the MLD address of this device is returned.
If this is a single link device, the unique MAC address of this device is returned.
Otherwise, return the MAC address of the affiliated STA (which must exists) that can be used to communicate with the remote device.

Parameters

remoteAddr the MAC address of the remote device

Returns: the local MAC address used to communicate with the remote device

Definition at line 1645 of file wifi-mac.cc.

References DoGetLocalAddress(), GetNLinks(), openflow-switch::link, m_address, and m_links.

Referenced by ns3::QosTxop::QosTxop(), and ns3::QosTxop::PrepareBlockAckRequest().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetMacQueueScheduler()

Ptr< WifiMacQueueScheduler > ns3::WifiMac::GetMacQueueScheduler ( ) const

Get the wifi MAC queue scheduler.

Returns: the wifi MAC queue scheduler

Definition at line 576 of file wifi-mac.cc.

References m_scheduler.

Referenced by ns3::QosTxop::QosTxop(), ns3::StaWifiMac::BlockTxOnLink(), EmlsrLinkSwitchTest::CheckQosFrames(), ns3::QosTxop::PeekNextMpdu(), ns3::Txop::Queue(), EmlsrLinkSwitchTest::Transmit(), ns3::StaWifiMac::UnblockTxOnLink(), and ns3::EhtFrameExchangeManager::UsingOtherEmlsrLink().

Here is the caller graph for this function:

◆ GetMaxAmpduSize()

uint32_t ns3::WifiMac::GetMaxAmpduSize ( AcIndex ac ) const

Return the maximum A-MPDU size of the given Access Category.

Parameters

ac	Access Category index

Returns: the maximum A-MPDU size

Definition at line 2251 of file wifi-mac.cc.

References ns3::AC_BE, ns3::AC_BK, ns3::AC_VI, ns3::AC_VO, m_beMaxAmpduSize, m_bkMaxAmpduSize, m_viMaxAmpduSize, m_voMaxAmpduSize, and NS_ABORT_MSG.

Referenced by ns3::MpduAggregator::GetMaxAmpduSize().

Here is the caller graph for this function:

◆ GetMaxAmsduSize()

uint16_t ns3::WifiMac::GetMaxAmsduSize ( AcIndex ac ) const

Return the maximum A-MSDU size of the given Access Category.

Parameters

ac	Access Category index

Returns: the maximum A-MSDU size

Definition at line 2276 of file wifi-mac.cc.

References ns3::AC_BE, ns3::AC_BK, ns3::AC_VI, ns3::AC_VO, m_beMaxAmsduSize, m_bkMaxAmsduSize, m_viMaxAmsduSize, m_voMaxAmsduSize, and NS_ABORT_MSG.

Referenced by ns3::MsduAggregator::GetMaxAmsduSize().

Here is the caller graph for this function:

◆ GetMaxBaBufferSize()

uint16_t ns3::WifiMac::GetMaxBaBufferSize ( std::optional< Mac48Address > address = std::nullopt ) const

Get the maximum Block Ack buffer size (in number of MPDUs) supported by the given device, if any, or by this device, otherwise, based on the supported standard.

Parameters

address the (MLD or link) address of the given device

Returns: the maximum supported Block Ack buffer size (in number of MPDUs)

Definition at line 1838 of file wifi-mac.cc.

References first::address, GetEhtSupported(), GetHeSupported(), GetHtSupported(), and NS_ASSERT.

Referenced by ns3::HtFrameExchangeManager::SendAddBaResponse(), SetDevice(), and SetMpduBufferSize().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetMldAddress()

std::optional< Mac48Address > ns3::WifiMac::GetMldAddress ( const Mac48Address & remoteAddr ) const

Parameters

remoteAddr the (MLD or link) address of a remote device

Returns: the MLD address of the remote device having the given (MLD or link) address, if the remote device is an MLD.

Definition at line 1632 of file wifi-mac.cc.

References openflow-switch::link, and m_links.

Referenced by ns3::EhtFrameExchangeManager::CtsAfterMuRtsTimeout(), ns3::StaWifiMac::Enqueue(), GetBaAgreementEstablishedAsOriginator(), GetBaAgreementEstablishedAsRecipient(), ns3::HtFrameExchangeManager::GetBar(), ns3::ApWifiMac::GetMultiLinkElement(), ns3::QosTxop::PrepareBlockAckRequest(), ns3::StaWifiMac::ReceiveAssocResp(), ns3::HtFrameExchangeManager::ReceiveMpdu(), ns3::StaWifiMac::SendAssociationRequest(), ns3::ApWifiMac::SendAssocResp(), and MultiLinkMuTxTest::Transmit().

Here is the caller graph for this function:

◆ GetMpduBufferSize()

uint16_t ns3::WifiMac::GetMpduBufferSize ( ) const

Returns: the size (in number of MPDUs) of the buffer used for each BlockAck agreement in which this node is a recipient

Definition at line 1862 of file wifi-mac.cc.

References m_mpduBufferSize.

Referenced by GetTypeId(), and ns3::HtFrameExchangeManager::SendAddBaResponse().

Here is the caller graph for this function:

◆ GetNLinks()

uint8_t ns3::WifiMac::GetNLinks ( ) const

Get the number of links (can be greater than 1 for 11be devices only).

Returns: the number of links used by this MAC

Definition at line 933 of file wifi-mac.cc.

References m_links.

Referenced by ns3::MultiUserScheduler::AccessReqTimeout(), ns3::WifiAssocManager::CanSetupMultiLink(), MultiLinkOperationsTestBase::CheckAddresses(), MultiLinkSetupTest::CheckAssocRequest(), MultiLinkSetupTest::CheckAssocResponse(), MultiLinkSetupTest::CheckBeacon(), EmlsrDlTxopTest::CheckBlockAck(), EmlsrDlTxopTest::CheckInitialControlFrame(), MultiLinkSetupTest::CheckMlSetup(), EmlsrDlTxopTest::CheckPmModeAfterAssociation(), MultiLinkSetupTest::CheckProbeResponse(), MultiLinkSetupTest::CheckQosData(), EmlsrDlTxopTest::CheckQosFrames(), ns3::ApWifiMac::ConfigureStandard(), ns3::EhtFrameExchangeManager::CreateAliasIfNeeded(), ns3::EhtFrameExchangeManager::CtsAfterMuRtsTimeout(), ns3::ApWifiMac::DoInitialize(), EmlOmnExchangeTest::DoSetup(), EmlsrDlTxopTest::DoSetup(), MultiLinkTxTest::DoSetup(), MultiLinkMuTxTest::DoSetup(), ns3::WifiDefaultAssocManager::DoStartScanning(), ns3::EhtFrameExchangeManager::EmlsrSwitchToListening(), ns3::WifiDefaultAssocManager::EndScanning(), ns3::ApWifiMac::ForwardDown(), ns3::WifiNetDevice::GetAddress(), GetLocalAddress(), ns3::EhtFrameExchangeManager::GetMostRecentRssi(), ns3::StaWifiMac::GetMultiLinkElement(), ns3::ApWifiMac::GetMultiLinkElement(), ns3::ApWifiMac::GetReducedNeighborReport(), ns3::ApWifiMac::IsAssociated(), ns3::ApWifiMac::ParseReportedStaInfo(), ns3::ApWifiMac::Receive(), ns3::StaWifiMac::ReceiveAssocResp(), ns3::EhtFrameExchangeManager::ReceiveMpdu(), ns3::StaWifiMac::SendAssociationRequest(), ns3::ApWifiMac::SendAssocResp(), ns3::EhtFrameExchangeManager::SendMuRts(), ns3::ApWifiMac::SendOneBeacon(), ns3::ApWifiMac::SendProbeResp(), ns3::ApWifiMac::SetBeaconGeneration(), ns3::MultiUserScheduler::SetWifiMac(), ns3::EmlsrManager::SetWifiMac(), EmlsrDlTxopTest::StartTraffic(), EmlsrLinkSwitchTest::Transmit(), ns3::ApWifiMac::TxFailed(), and ns3::ApWifiMac::TxOk().

Here is the caller graph for this function:

◆ GetQosSupported()

bool ns3::WifiMac::GetQosSupported ( ) const

Return whether the device supports QoS.

Returns: true if QoS is supported, false otherwise

Definition at line 1222 of file wifi-mac.cc.

References m_qosSupported.

Referenced by ns3::MeshWifiInterfaceMac::ConfigureStandard(), ns3::AdhocWifiMac::Enqueue(), ns3::StaWifiMac::Enqueue(), ns3::ApWifiMac::ForwardDown(), ns3::ApWifiMac::GetAssocResp(), ns3::ApWifiMac::GetEdcaParameterSet(), GetTypeId(), Receive(), ns3::StaWifiMac::SendAssociationRequest(), ns3::ApWifiMac::SendAssocResp(), ns3::ApWifiMac::SendOneBeacon(), ns3::StaWifiMac::SendProbeRequest(), ns3::ApWifiMac::SendProbeResp(), ns3::StaWifiMac::SetPowerSaveMode(), and ns3::StaWifiMac::UpdateApInfo().

Here is the caller graph for this function:

◆ GetQosTxop() [1/2]

Ptr< QosTxop > ns3::WifiMac::GetQosTxop ( AcIndex ac ) const

Accessor for a specified EDCA object.

Parameters

ac	the Access Category

Returns: a smart pointer to a QosTxop

Definition at line 499 of file wifi-mac.cc.

References m_edca.

Here is the caller graph for this function:

◆ GetQosTxop() [2/2]

Ptr< QosTxop > ns3::WifiMac::GetQosTxop ( uint8_t tid ) const

Accessor for a specified EDCA object.

Parameters

tid	the Traffic ID

Returns: a smart pointer to a QosTxop

Definition at line 515 of file wifi-mac.cc.

References GetQosTxop(), and ns3::QosUtilsMapTidToAc().

Here is the call graph for this function:

◆ GetShortSlotTimeSupported()

bool ns3::WifiMac::GetShortSlotTimeSupported ( ) const

protected

Returns: whether the device supports short slot time capability.

Definition at line 1272 of file wifi-mac.cc.

References m_shortSlotTimeSupported.

Referenced by ns3::StaWifiMac::GetCapabilities(), GetTypeId(), and ns3::ApWifiMac::UpdateShortSlotTimeEnabled().

Here is the caller graph for this function:

◆ GetSsid()

Ssid ns3::WifiMac::GetSsid ( ) const

Returns: the SSID which this MAC layer is going to try to stay in.

Definition at line 465 of file wifi-mac.cc.

References m_ssid.

Referenced by ns3::StaWifiMac::GetAssociationRequest(), GetTypeId(), ns3::MeshWifiInterfaceMac::Receive(), ns3::ApWifiMac::Receive(), ns3::MeshWifiInterfaceMac::SendBeacon(), ns3::ApWifiMac::SendOneBeacon(), ns3::StaWifiMac::SendProbeRequest(), ns3::ApWifiMac::SendProbeResp(), and ns3::StaWifiMac::StartScanning().

Here is the caller graph for this function:

◆ GetTidToLinkMapping()

std::optional< std::reference_wrapper< const WifiTidLinkMapping > > ns3::WifiMac::GetTidToLinkMapping	(	Mac48Address	mldAddr,
		WifiDirection	dir
	)		const

Get the TID-to-Link Mapping negotiated with the given MLD (if any) for the given direction.

An empty mapping indicates the default mapping.

Parameters

mldAddr	the MLD address of the given MLD
dir	the given direction (DL or UL)

Returns: the negotiated TID-to-Link Mapping

Definition at line 1100 of file wifi-mac.cc.

References ns3::BOTH_DIRECTIONS, dir, ns3::DOWNLINK, m_dlTidLinkMappings, m_ulTidLinkMappings, and NS_ABORT_MSG_IF.

Referenced by MultiLinkSetupTest::CheckQosData().

Here is the caller graph for this function:

◆ GetTxop()

Ptr< Txop > ns3::WifiMac::GetTxop ( ) const

Accessor for the Txop object.

Returns: a smart pointer to Txop

Definition at line 493 of file wifi-mac.cc.

References m_txop.

Referenced by ns3::AdhocWifiMac::Enqueue(), ns3::StaWifiMac::Enqueue(), ns3::ApWifiMac::ForwardDown(), GetTypeId(), ns3::StaWifiMac::ReceiveAssocResp(), ns3::StaWifiMac::SendAssociationRequest(), ns3::ApWifiMac::SendAssocResp(), ns3::StaWifiMac::SendProbeRequest(), and ns3::ApWifiMac::SendProbeResp().

Here is the caller graph for this function:

◆ GetTxopQueue()

Ptr< WifiMacQueue > ns3::WifiMac::GetTxopQueue ( AcIndex ac ) const

virtual

Get the wifi MAC queue of the (Qos)Txop associated with the given AC, if such (Qos)Txop is installed, or a null pointer, otherwise.

Parameters

ac	the given Access Category

Returns: the wifi MAC queue of the (Qos)Txop associated with the given AC, if such (Qos)Txop is installed, or a null pointer, otherwise

Reimplemented in ns3::ApWifiMac.

Definition at line 545 of file wifi-mac.cc.

References ns3::AC_BE_NQOS, GetQosTxop(), ns3::Txop::GetWifiMacQueue(), and m_txop.

Referenced by MultiLinkTxTest::CheckBlockAck(), ns3::FrameExchangeManager::DequeueMpdu(), AmpduAggregationTest::DequeueMpdus(), AmpduAggregationTest::DoSetup(), ns3::WifiDefaultAckManager::ExistInflightOnSameLink(), ns3::HtFrameExchangeManager::GetBar(), ns3::FrameExchangeManager::GetFirstFragmentIfNeeded(), ns3::MsduAggregator::GetNextAmsdu(), ns3::ApWifiMac::GetTxopQueue(), ns3::FrameExchangeManager::NormalAckTimeout(), and ns3::StaWifiMac::TxOk().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::WifiMac::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 67 of file wifi-mac.cc.

References ns3::TypeId::ATTR_CONSTRUCT, ns3::TypeId::ATTR_GET, GetBEQueue(), GetBKQueue(), GetMpduBufferSize(), GetQosSupported(), GetShortSlotTimeSupported(), GetSsid(), GetTxop(), GetVIQueue(), GetVOQueue(), m_ackedMpduCallback, m_beMaxAmpduSize, m_beMaxAmsduSize, m_bkMaxAmpduSize, m_bkMaxAmsduSize, m_droppedMpduCallback, m_macPromiscRxTrace, m_macRxDropTrace, m_macRxTrace, m_macTxDropTrace, m_macTxTrace, m_mpduResponseTimeoutCallback, m_nackedMpduCallback, m_psduMapResponseTimeoutCallback, m_psduResponseTimeoutCallback, m_viMaxAmpduSize, m_viMaxAmsduSize, m_voMaxAmpduSize, m_voMaxAmsduSize, ns3::MakeBooleanAccessor(), ns3::MakeBooleanChecker(), ns3::MakePointerAccessor(), ns3::MakeTraceSourceAccessor(), ns3::MakeUintegerAccessor(), SetBeBlockAckInactivityTimeout(), SetBeBlockAckThreshold(), SetBkBlockAckInactivityTimeout(), SetBkBlockAckThreshold(), SetCtsToSelfSupported(), SetMpduBufferSize(), ns3::TypeId::SetParent(), SetQosSupported(), SetShortSlotTimeSupported(), SetSsid(), SetViBlockAckInactivityTimeout(), SetViBlockAckThreshold(), SetVoBlockAckInactivityTimeout(), and SetVoBlockAckThreshold().

Here is the call graph for this function:

◆ GetTypeOfStation()

TypeOfStation ns3::WifiMac::GetTypeOfStation ( ) const

Return the type of station.

Returns: the type of station.

Definition at line 422 of file wifi-mac.cc.

References m_typeOfStation.

Referenced by ns3::WifiProtectionManager::AddUserInfoToMuRts(), ns3::HePhy::DoStartReceivePayload(), ns3::FrameExchangeManager::FinalizeMacHeader(), ns3::HtFrameExchangeManager::FinalizeMacHeader(), ns3::QosFrameExchangeManager::ForwardMpduDown(), ns3::WifiNetDevice::GetAddress(), ns3::WifiRemoteStationManager::GetStaId(), ns3::QosFrameExchangeManager::PreProcessFrame(), ns3::EmlsrManager::SetWifiMac(), ns3::WifiDefaultProtectionManager::TryAddMpduToMuPpdu(), and ns3::WifiDefaultProtectionManager::TryUlMuTransmission().

Here is the caller graph for this function:

◆ GetVhtCapabilities()

VhtCapabilities ns3::WifiMac::GetVhtCapabilities ( uint8_t linkId ) const

Return the VHT capabilities of the device for the given link.

Parameters

linkId the ID of the given link

Returns: the VHT capabilities that we support

Definition at line 2018 of file wifi-mac.cc.

Referenced by ns3::AdhocWifiMac::Enqueue(), ns3::StaWifiMac::GetAssociationRequest(), ns3::ApWifiMac::GetAssocResp(), ns3::AdhocWifiMac::Receive(), ns3::ApWifiMac::SendOneBeacon(), ns3::StaWifiMac::SendProbeRequest(), and ns3::ApWifiMac::SendProbeResp().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetVhtConfiguration()

Ptr< VhtConfiguration > ns3::WifiMac::GetVhtConfiguration ( ) const

Returns: pointer to VhtConfiguration if it exists

Definition at line 1743 of file wifi-mac.cc.

References GetDevice(), and ns3::WifiNetDevice::GetVhtConfiguration().

Referenced by GetEhtCapabilities(), GetHeCapabilities(), GetVhtCapabilities(), GetVhtSupported(), and ns3::HtFrameExchangeManager::NeedSetupBlockAck().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetVhtSupported() [1/2]

bool ns3::WifiMac::GetVhtSupported ( const Mac48Address & address ) const

Parameters

address the (link or MLD) address of a remote station

Returns: true if the remote station with the given address supports VHT

Definition at line 1799 of file wifi-mac.cc.

References first::address, openflow-switch::link, and m_links.

◆ GetVhtSupported() [2/2]

bool ns3::WifiMac::GetVhtSupported ( uint8_t linkId ) const

Return whether the device supports VHT on the given link.

Parameters

linkId the ID of the given link.

Returns: true if VHT is supported, false otherwise

Definition at line 1767 of file wifi-mac.cc.

References GetDevice(), GetVhtConfiguration(), GetWifiPhy(), and ns3::WIFI_PHY_BAND_2_4GHZ.

Referenced by ns3::AdhocWifiMac::Enqueue(), ns3::StaWifiMac::GetAssociationRequest(), ns3::ApWifiMac::GetAssocResp(), GetExtendedCapabilities(), GetVhtCapabilities(), ns3::ApWifiMac::GetVhtOperation(), ns3::AdhocWifiMac::Receive(), ns3::ApWifiMac::ReceiveAssocRequest(), ns3::ApWifiMac::SendOneBeacon(), ns3::StaWifiMac::SendProbeRequest(), ns3::ApWifiMac::SendProbeResp(), and ns3::StaWifiMac::UpdateApInfo().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetVIQueue()

Ptr< QosTxop > ns3::WifiMac::GetVIQueue ( ) const

protected

Accessor for the AC_VI channel access function.

Returns: a smart pointer to QosTxop

Definition at line 527 of file wifi-mac.cc.

References ns3::AC_VI, GetQosTxop(), and m_qosSupported.

Referenced by GetTypeId(), SetViBlockAckInactivityTimeout(), and SetViBlockAckThreshold().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetVOQueue()

Ptr< QosTxop > ns3::WifiMac::GetVOQueue ( ) const

protected

Accessor for the AC_VO channel access function.

Returns: a smart pointer to QosTxop

Definition at line 521 of file wifi-mac.cc.

References ns3::AC_VO, GetQosTxop(), and m_qosSupported.

Referenced by GetTypeId(), ns3::StaWifiMac::SendAssociationRequest(), ns3::ApWifiMac::SendAssocResp(), ns3::StaWifiMac::SendProbeRequest(), ns3::ApWifiMac::SendProbeResp(), SetVoBlockAckInactivityTimeout(), and SetVoBlockAckThreshold().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetWifiPhy()

Ptr< WifiPhy > ns3::WifiMac::GetWifiPhy ( uint8_t linkId = SINGLE_LINK_OP_ID ) const

Parameters

linkId the index (starting at 0) of the PHY object to retrieve

Returns: the physical layer attached to this MAC

Definition at line 1171 of file wifi-mac.cc.

References GetLink(), and ns3::WifiMac::LinkEntity::phy.

Referenced by ns3::WifiProtectionManager::AddUserInfoToMuRts(), EmlsrUlTxopTest::CheckBlockAck(), EmlsrDlTxopTest::CheckBlockAck(), MultiLinkMuTxTest::CheckBlockAck(), EmlsrUlTxopTest::CheckCtsFrames(), EmlsrDlTxopTest::CheckEmlNotificationFrame(), EmlsrLinkSwitchTest::CheckInitialControlFrame(), EmlsrDlTxopTest::CheckInitialControlFrame(), MultiLinkSetupTest::CheckMlSetup(), MultiLinkSetupTest::CheckQosData(), EmlsrDlTxopTest::CheckQosFrames(), EmlsrUlTxopTest::CheckQosFrames(), ns3::MeshWifiInterfaceMac::CheckSupportedRates(), ns3::StaWifiMac::CheckSupportedRates(), TestMultiUserScheduler::ComputeWifiTxVector(), OfdmaAckSequenceTest::DoRun(), WifiTxopTest::DoRun(), EmlOmnExchangeTest::DoSetup(), EmlsrDlTxopTest::DoSetup(), EmlsrUlTxopTest::DoSetup(), MultiLinkTxTest::DoSetup(), MultiLinkMuTxTest::DoSetup(), ns3::WifiDefaultAssocManager::EndScanning(), ns3::MeshWifiInterfaceMac::ForwardDown(), ns3::StaWifiMac::GetCapabilities(), ns3::StaWifiMac::GetCurrentChannel(), ns3::ApWifiMac::GetDsssParameterSet(), ns3::ApWifiMac::GetEhtOperation(), ns3::MeshWifiInterfaceMac::GetFrequencyChannel(), ns3::ApWifiMac::GetHeOperation(), GetHtCapabilities(), ns3::ApWifiMac::GetHtOperation(), ns3::MsduAggregator::GetMaxAmsduSize(), ns3::MeshWifiInterfaceMac::GetSupportedRates(), ns3::ApWifiMac::GetSupportedRates(), ns3::StaWifiMac::GetSupportedRates(), GetVhtCapabilities(), ns3::ApWifiMac::GetVhtOperation(), GetVhtSupported(), ns3::EmlsrManager::NotifyIcfReceived(), ns3::DefaultEmlsrManager::NotifyMainPhySwitch(), ns3::EmlsrManager::NotifyUlTxopStart(), ns3::MeshWifiInterfaceMac::Receive(), ns3::ApWifiMac::ReceiveAssocRequest(), Bug2470TestCase::RunSubtest(), TestMultiUserScheduler::SelectTxFormat(), ns3::ApWifiMac::SendOneBeacon(), ns3::MeshWifiInterfaceMac::SwitchFrequencyChannel(), ns3::RrMultiUserScheduler::TrySendingBasicTf(), ns3::RrMultiUserScheduler::TrySendingBsrpTf(), ns3::StaWifiMac::UpdateApInfo(), and ns3::ApWifiMac::UpdateShortPreambleEnabled().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetWifiRemoteStationManager()

Ptr< WifiRemoteStationManager > ns3::WifiMac::GetWifiRemoteStationManager ( uint8_t linkId = 0 ) const

Parameters

linkId the ID (starting at 0) of the link of the RemoteStationManager object to retrieve

Returns: the remote station manager operating on the given link

Definition at line 906 of file wifi-mac.cc.

References GetLink(), and ns3::WifiMac::LinkEntity::stationManager.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ HasFramesToTransmit()

bool ns3::WifiMac::HasFramesToTransmit ( uint8_t linkId )

virtual

Check if the MAC has frames to transmit over the given link.

Parameters

linkId the ID of the given link.

Returns: whether the MAC has frames to transmit.

Definition at line 552 of file wifi-mac.cc.

References ns3::Txop::HasFramesToTransmit(), m_edca, and m_txop.

Referenced by ns3::StaWifiMac::SetPowerSaveMode().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ NotifyChannelSwitching()

void ns3::WifiMac::NotifyChannelSwitching ( uint8_t linkId )

virtual

Notify that channel on the given link has been switched.

Parameters

linkId the ID of the given link

Reimplemented in ns3::StaWifiMac.

Definition at line 582 of file wifi-mac.cc.

References ConfigurePhyDependentParameters(), GetLink(), NS_LOG_FUNCTION, and ns3::WifiMac::LinkEntity::stationManager.

Referenced by ns3::StaWifiMac::NotifyChannelSwitching(), and ns3::FrameExchangeManager::NotifySwitchingStartNow().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ NotifyPromiscRx()

void ns3::WifiMac::NotifyPromiscRx ( Ptr< const Packet > packet )

Parameters

packet the packet we received promiscuously

Public method used to fire a MacPromiscRx trace. Implemented for encapsulation purposes.

Definition at line 613 of file wifi-mac.cc.

References m_macPromiscRxTrace.

Referenced by ns3::WifiNetDevice::ForwardUp().

Here is the caller graph for this function:

◆ NotifyRx()

void ns3::WifiMac::NotifyRx ( Ptr< const Packet > packet )

Parameters

packet the packet we received

Public method used to fire a MacRx trace. Implemented for encapsulation purposes.

Definition at line 607 of file wifi-mac.cc.

References m_macRxTrace.

Referenced by ns3::WifiNetDevice::ForwardUp().

Here is the caller graph for this function:

◆ NotifyRxDrop()

void ns3::WifiMac::NotifyRxDrop ( Ptr< const Packet > packet )

Parameters

packet the packet we received but is not destined for us

Public method used to fire a MacRxDrop trace. Implemented for encapsulation purposes.

Definition at line 619 of file wifi-mac.cc.

References m_macRxDropTrace.

Referenced by ns3::ApWifiMac::Receive(), and ns3::StaWifiMac::Receive().

Here is the caller graph for this function:

◆ NotifyTx()

void ns3::WifiMac::NotifyTx ( Ptr< const Packet > packet )

Parameters

packet the packet being enqueued

Public method used to fire a MacTx trace. Implemented for encapsulation purposes. Note this trace indicates that the packet was accepted by the device only. The packet may be dropped later (e.g. if the queue is full).

Definition at line 595 of file wifi-mac.cc.

References m_macTxTrace.

Referenced by ns3::WifiNetDevice::Send(), and ns3::WifiNetDevice::SendFrom().

Here is the caller graph for this function:

◆ NotifyTxDrop()

void ns3::WifiMac::NotifyTxDrop ( Ptr< const Packet > packet )

Parameters

packet the packet being dropped

Public method used to fire a MacTxDrop trace. This trace indicates that the packet was dropped before it was queued for transmission (e.g. when a STA is not associated with an AP).

Definition at line 601 of file wifi-mac.cc.

References m_macTxDropTrace.

Referenced by ns3::StaWifiMac::Enqueue(), and ns3::ApWifiMac::Enqueue().

Here is the caller graph for this function:

◆ operator=()

WifiMac& ns3::WifiMac::operator= ( const WifiMac & )

delete

◆ Receive()

void ns3::WifiMac::Receive	(	Ptr< const WifiMpdu >	mpdu,
		uint8_t	linkId
	)

protectedvirtual

This method acts as the MacRxMiddle receive callback and is invoked to notify us that a frame has been received on the given link.

The implementation is intended to capture logic that is going to be common to all (or most) derived classes. Specifically, handling of Block Ack management frames is dealt with here.

This method will need, however, to be overridden by derived classes so that they can perform their data handling before invoking the base version.

The given link may be undefined in some cases (e.g., in case of QoS Data frames received in the context of a Block Ack agreement – because the BlockAckManager does not have to record the link each buffered MPDU has been received on); in such a cases, the value of linkId should be WIFI_LINKID_UNDEFINED.

Parameters

mpdu	the MPDU that has been received.
linkId	the ID of the given link

Reimplemented in ns3::StaWifiMac, ns3::ApWifiMac, ns3::AdhocWifiMac, and ns3::MeshWifiInterfaceMac.

Definition at line 1497 of file wifi-mac.cc.

References ns3::WifiActionHeader::BLOCK_ACK, ns3::WifiActionHeader::BLOCK_ACK_ADDBA_REQUEST, ns3::WifiActionHeader::BLOCK_ACK_ADDBA_RESPONSE, ns3::WifiActionHeader::BLOCK_ACK_DELBA, ns3::WifiActionHeader::ActionValue::blockAck, ns3::Mac48Address::ConvertFrom(), ns3::WifiActionHeader::GetAction(), ns3::WifiMacHeader::GetAddr1(), ns3::WifiMacHeader::GetAddr2(), GetAddress(), ns3::QosTxop::GetBaManager(), ns3::WifiActionHeader::GetCategory(), GetDevice(), GetFrameExchangeManager(), GetLink(), GetQosSupported(), GetQosTxop(), ns3::MgtAddBaResponseHeader::GetTid(), ns3::MgtDelBaHeader::GetTid(), ns3::WifiMacHeader::GetType(), ns3::QosTxop::GotAddBaResponse(), ns3::QosTxop::GotDelBaFrame(), ns3::WifiMacHeader::HasData(), ns3::WifiMacHeader::IsAction(), ns3::MgtDelBaHeader::IsByOriginator(), ns3::WifiMacHeader::IsData(), ns3::WifiMacHeader::IsMgt(), openflow-switch::link, ns3::MakeCallback(), NS_ASSERT, NS_FATAL_ERROR, NS_LOG_FUNCTION, ns3::Packet::RemoveHeader(), and ns3::HtFrameExchangeManager::SendDelbaFrame().

Referenced by WifiMac(), ns3::AdhocWifiMac::Receive(), ns3::ApWifiMac::Receive(), and ns3::StaWifiMac::Receive().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ResetWifiPhys()

void ns3::WifiMac::ResetWifiPhys ( )

Remove currently attached WifiPhy objects from this MAC.

Definition at line 1177 of file wifi-mac.cc.

References openflow-switch::link, m_links, and NS_LOG_FUNCTION.

Referenced by SetWifiPhys().

Here is the caller graph for this function:

◆ SetAddress()

void ns3::WifiMac::SetAddress ( Mac48Address address )

virtual

Parameters

address the current address of this MAC layer.

Definition at line 445 of file wifi-mac.cc.

References first::address, m_address, and NS_LOG_FUNCTION.

Referenced by Bug2831TestCase::DoRun(), AmpduAggregationTest::DoSetup(), and ns3::WifiNetDevice::SetAddress().

Here is the caller graph for this function:

◆ SetBeBlockAckInactivityTimeout()

void ns3::WifiMac::SetBeBlockAckInactivityTimeout ( uint16_t timeout )

private

Set BE block ack inactivity timeout.

Parameters

timeout the BE block ack inactivity timeout.

Definition at line 1928 of file wifi-mac.cc.

References GetBEQueue(), m_qosSupported, NS_LOG_FUNCTION, ns3::QosTxop::SetBlockAckInactivityTimeout(), and timeout.

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetBeBlockAckThreshold()

void ns3::WifiMac::SetBeBlockAckThreshold ( uint8_t threshold )

private

Set the block ack threshold for AC_BE.

Parameters

threshold the block ack threshold for AC_BE.

Definition at line 1888 of file wifi-mac.cc.

References GetBEQueue(), m_qosSupported, NS_LOG_FUNCTION, and ns3::QosTxop::SetBlockAckThreshold().

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetBkBlockAckInactivityTimeout()

void ns3::WifiMac::SetBkBlockAckInactivityTimeout ( uint16_t timeout )

private

Set BK block ack inactivity timeout.

Parameters

timeout the BK block ack inactivity timeout.

Definition at line 1938 of file wifi-mac.cc.

References GetBKQueue(), m_qosSupported, NS_LOG_FUNCTION, ns3::QosTxop::SetBlockAckInactivityTimeout(), and timeout.

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetBkBlockAckThreshold()

void ns3::WifiMac::SetBkBlockAckThreshold ( uint8_t threshold )

private

Set the block ack threshold for AC_BK.

Parameters

threshold the block ack threshold for AC_BK.

Definition at line 1898 of file wifi-mac.cc.

References GetBKQueue(), m_qosSupported, NS_LOG_FUNCTION, and ns3::QosTxop::SetBlockAckThreshold().

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetBssid()

void ns3::WifiMac::SetBssid	(	Mac48Address	bssid,
		uint8_t	linkId
	)

Parameters

bssid	the BSSID of the network that the given link belongs to.
linkId	the ID of the given link

Definition at line 471 of file wifi-mac.cc.

References ns3::WifiMac::LinkEntity::feManager, GetLink(), and NS_LOG_FUNCTION.

Referenced by ns3::StaWifiMac::ReceiveAssocResp().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetCtsToSelfSupported()

void ns3::WifiMac::SetCtsToSelfSupported ( bool enable )

Enable or disable CTS-to-self feature.

Parameters

enable true if CTS-to-self is to be supported, false otherwise

Definition at line 1258 of file wifi-mac.cc.

References m_ctsToSelfSupported, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the caller graph for this function:

◆ SetDevice()

void ns3::WifiMac::SetDevice ( const Ptr< WifiNetDevice > device )

Sets the device this PHY is associated with.

Parameters

device the device this PHY is associated with

Definition at line 428 of file wifi-mac.cc.

References GetHtSupported(), GetMaxBaBufferSize(), m_device, m_mpduBufferSize, and min.

Referenced by DcfImmediateAccessBroadcastTestCase::DoRun(), Bug2831TestCase::DoRun(), and AmpduAggregationTest::DoSetup().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetDsssSupported()

void ns3::WifiMac::SetDsssSupported	(	bool	enable,
		uint8_t	linkId
	)

private

Enable or disable DSSS support for the given link.

Parameters

enable	whether DSSS is supported
linkId	the ID of the given link

Definition at line 1245 of file wifi-mac.cc.

References ns3::WifiMac::LinkEntity::dsssSupported, GetLink(), and NS_LOG_FUNCTION.

Referenced by ConfigurePhyDependentParameters(), and SetErpSupported().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetErpSupported()

void ns3::WifiMac::SetErpSupported	(	bool	enable,
		uint8_t	linkId
	)

private

Enable or disable ERP support for the given link.

Parameters

enable	whether ERP is supported
linkId	the ID of the given link

Definition at line 1234 of file wifi-mac.cc.

References ns3::WifiMac::LinkEntity::erpSupported, GetLink(), NS_LOG_FUNCTION, and SetDsssSupported().

Referenced by ConfigurePhyDependentParameters().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetForwardUpCallback()

void ns3::WifiMac::SetForwardUpCallback ( ForwardUpCallback upCallback )

Parameters

upCallback the callback to invoke when a packet must be forwarded up the stack.

Definition at line 1284 of file wifi-mac.cc.

References m_forwardUp, and NS_LOG_FUNCTION.

Referenced by ns3::WifiNetDevice::CompleteConfig().

Here is the caller graph for this function:

◆ SetLinkDownCallback()

void ns3::WifiMac::SetLinkDownCallback ( Callback< void > linkDown )

Parameters

linkDown the callback to invoke when the link becomes down.

Definition at line 1298 of file wifi-mac.cc.

References m_linkDown, and NS_LOG_FUNCTION.

Referenced by ns3::WifiNetDevice::CompleteConfig().

Here is the caller graph for this function:

◆ SetLinkUpCallback()

void ns3::WifiMac::SetLinkUpCallback ( Callback< void > linkUp )

virtual

Parameters

linkUp the callback to invoke when the link becomes up.

Reimplemented in ns3::ApWifiMac, ns3::AdhocWifiMac, and ns3::MeshWifiInterfaceMac.

Definition at line 1291 of file wifi-mac.cc.

References m_linkUp, and NS_LOG_FUNCTION.

Referenced by ns3::WifiNetDevice::CompleteConfig(), ns3::MeshWifiInterfaceMac::SetLinkUpCallback(), ns3::AdhocWifiMac::SetLinkUpCallback(), and ns3::ApWifiMac::SetLinkUpCallback().

Here is the caller graph for this function:

◆ SetMacQueueScheduler()

void ns3::WifiMac::SetMacQueueScheduler ( Ptr< WifiMacQueueScheduler > scheduler )

virtual

Set the wifi MAC queue scheduler.

Parameters

scheduler the wifi MAC queue scheduler

Definition at line 569 of file wifi-mac.cc.

References m_scheduler.

Referenced by Bug2831TestCase::DoRun(), and AmpduAggregationTest::DoSetup().

Here is the caller graph for this function:

◆ SetMpduBufferSize()

void ns3::WifiMac::SetMpduBufferSize ( uint16_t size )

Parameters

size	the size (in number of MPDUs) of the buffer used for each BlockAck agreement in which this node is a recipient

Definition at line 1853 of file wifi-mac.cc.

References GetMaxBaBufferSize(), m_device, m_mpduBufferSize, min, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetPromisc()

void ns3::WifiMac::SetPromisc ( )

Sets the interface in promiscuous mode.

Enables promiscuous mode on the interface. Note that any further filtering on the incoming frame path may affect the overall behavior.

Definition at line 484 of file wifi-mac.cc.

References openflow-switch::link, and m_links.

Referenced by ns3::WifiNetDevice::SetPromiscReceiveCallback().

Here is the caller graph for this function:

◆ SetQosSupported()

void ns3::WifiMac::SetQosSupported ( bool enable )

protected

Enable or disable QoS support for the device.

Construct a Txop object or QosTxop objects accordingly. This method can only be called before initialization.

Parameters

enable whether QoS is supported

Definition at line 1195 of file wifi-mac.cc.

References ns3::AC_BE, ns3::AC_BK, ns3::AC_VI, ns3::AC_VO, ns3::Object::IsInitialized(), m_droppedMpduCallback, m_qosSupported, m_txMiddle, m_txop, ns3::MakeCallback(), NS_ABORT_IF, NS_LOG_FUNCTION, ns3::Txop::SetDroppedMpduCallback(), ns3::Txop::SetTxMiddle(), and SetupEdcaQueue().

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetShortSlotTimeSupported()

void ns3::WifiMac::SetShortSlotTimeSupported ( bool enable )

protected

Enable or disable short slot time feature.

Parameters

enable true if short slot time is to be supported, false otherwise

Definition at line 1265 of file wifi-mac.cc.

References m_shortSlotTimeSupported, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the caller graph for this function:

◆ SetSsid()

void ns3::WifiMac::SetSsid ( Ssid ssid )

Parameters

ssid	the current SSID of this MAC layer.

Definition at line 458 of file wifi-mac.cc.

References m_ssid, NS_LOG_FUNCTION, and third::ssid.

Referenced by WifiPrimaryChannelsTest::DoRun(), WifiTxopTest::DoRun(), and GetTypeId().

Here is the caller graph for this function:

◆ SetTypeOfStation()

void ns3::WifiMac::SetTypeOfStation ( TypeOfStation type )

This method is invoked by a subclass to specify what type of station it is implementing.

This is something that the channel access functions need to know.

Parameters

type	the type of station.

Definition at line 415 of file wifi-mac.cc.

References m_typeOfStation, NS_LOG_FUNCTION, and check-style-clang-format::type.

Referenced by ns3::AdhocWifiMac::AdhocWifiMac(), ns3::ApWifiMac::ApWifiMac(), ns3::MeshWifiInterfaceMac::MeshWifiInterfaceMac(), and ns3::StaWifiMac::StaWifiMac().

Here is the caller graph for this function:

◆ SetupEdcaQueue()

void ns3::WifiMac::SetupEdcaQueue ( AcIndex ac )

private

This method is a private utility invoked to configure the channel access function for the specified Access Category.

Parameters

ac	the Access Category of the queue to initialise.

Definition at line 625 of file wifi-mac.cc.

References ns3::QosTxop::GetBaManager(), m_ackedMpduCallback, m_droppedMpduCallback, m_edca, m_nackedMpduCallback, m_txMiddle, ns3::MakeCallback(), NS_ASSERT, NS_LOG_FUNCTION, ns3::QosTxop::SetDroppedMpduCallback(), and ns3::Txop::SetTxMiddle().

Referenced by SetQosSupported().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetupFrameExchangeManager()

Ptr< FrameExchangeManager > ns3::WifiMac::SetupFrameExchangeManager ( WifiStandard standard )

private

Create a Frame Exchange Manager depending on the supported version of the standard.

Parameters

standard the supported version of the standard

Returns: the created Frame Exchange Manager

Definition at line 813 of file wifi-mac.cc.

References GetAddress(), m_ackedMpduCallback, m_droppedMpduCallback, m_mpduResponseTimeoutCallback, m_psduMapResponseTimeoutCallback, m_psduResponseTimeoutCallback, m_qosSupported, m_rxMiddle, m_txMiddle, ns3::MakeCallback(), NS_ABORT_MSG_IF, NS_LOG_FUNCTION, ns3::WIFI_STANDARD_80211ac, ns3::WIFI_STANDARD_80211ax, ns3::WIFI_STANDARD_80211be, ns3::WIFI_STANDARD_80211n, and ns3::WIFI_STANDARD_UNSPECIFIED.

Referenced by ConfigureStandard().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetViBlockAckInactivityTimeout()

void ns3::WifiMac::SetViBlockAckInactivityTimeout ( uint16_t timeout )

private

Set VI block ack inactivity timeout.

Parameters

timeout the VI block ack inactivity timeout.

Definition at line 1918 of file wifi-mac.cc.

References GetVIQueue(), m_qosSupported, NS_LOG_FUNCTION, ns3::QosTxop::SetBlockAckInactivityTimeout(), and timeout.

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetViBlockAckThreshold()

void ns3::WifiMac::SetViBlockAckThreshold ( uint8_t threshold )

private

Set the block ack threshold for AC_VI.

Parameters

threshold the block ack threshold for AC_VI.

Definition at line 1878 of file wifi-mac.cc.

References GetVIQueue(), m_qosSupported, NS_LOG_FUNCTION, and ns3::QosTxop::SetBlockAckThreshold().

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetVoBlockAckInactivityTimeout()

void ns3::WifiMac::SetVoBlockAckInactivityTimeout ( uint16_t timeout )

private

Set VO block ack inactivity timeout.

Parameters

timeout the VO block ack inactivity timeout.

Definition at line 1908 of file wifi-mac.cc.

References GetVOQueue(), m_qosSupported, NS_LOG_FUNCTION, ns3::QosTxop::SetBlockAckInactivityTimeout(), and timeout.

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetVoBlockAckThreshold()

void ns3::WifiMac::SetVoBlockAckThreshold ( uint8_t threshold )

private

Set the block ack threshold for AC_VO.

Parameters

threshold the block ack threshold for AC_VO.

Definition at line 1868 of file wifi-mac.cc.

References GetVOQueue(), m_qosSupported, NS_LOG_FUNCTION, and ns3::QosTxop::SetBlockAckThreshold().

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetWifiPhys()

void ns3::WifiMac::SetWifiPhys ( const std::vector< Ptr< WifiPhy >> & phys )

virtual

Parameters

phys	the physical layers attached to this MAC.

Reimplemented in ns3::StaWifiMac.

Definition at line 1146 of file wifi-mac.cc.

References CreateLinkEntity(), m_linkIds, m_links, NS_ABORT_MSG_UNLESS, NS_LOG_FUNCTION, and ResetWifiPhys().

Referenced by ns3::WifiNetDevice::CompleteConfig(), TestUlOfdmaPhyTransmission::DoSetup(), TestPhyPaddingExclusion::DoSetup(), and ns3::StaWifiMac::SetWifiPhys().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetWifiRemoteStationManager()

void ns3::WifiMac::SetWifiRemoteStationManager ( Ptr< WifiRemoteStationManager > stationManager )

Parameters

stationManager the station manager attached to this MAC.

Definition at line 876 of file wifi-mac.cc.

References NS_LOG_FUNCTION, and SetWifiRemoteStationManagers().

Here is the call graph for this function:

◆ SetWifiRemoteStationManagers()

void ns3::WifiMac::SetWifiRemoteStationManagers ( const std::vector< Ptr< WifiRemoteStationManager >> & stationManagers )

Parameters

stationManagers the station managers attached to this MAC.

Definition at line 883 of file wifi-mac.cc.

References CreateLinkEntity(), m_linkIds, m_links, NS_ABORT_MSG_UNLESS, and NS_LOG_FUNCTION.

Referenced by ns3::WifiNetDevice::CompleteConfig(), AmpduAggregationTest::DoSetup(), and SetWifiRemoteStationManager().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SupportsSendFrom()

bool ns3::WifiMac::SupportsSendFrom ( ) const

virtual

Returns: if this MAC supports sending from arbitrary address.

The interface may or may not support sending from arbitrary address. This function returns true if sending from arbitrary address is supported, false otherwise.

Reimplemented in ns3::ApWifiMac, and ns3::MeshWifiInterfaceMac.

Definition at line 1278 of file wifi-mac.cc.

Referenced by ns3::WifiNetDevice::SupportsSendFrom().

Here is the caller graph for this function:

◆ SwapLinks()

void ns3::WifiMac::SwapLinks ( std::map< uint8_t, uint8_t > links )

protected

Swap the links based on the information included in the given map.

This method is normally called by a non-AP MLD upon completing ML setup to have its link IDs match AP MLD's link IDs.

Parameters

links a set of pairs (from, to) each mapping a current link ID to the link ID it has to become (i.e., link 'from' becomes link 'to')

Definition at line 995 of file wifi-mac.cc.

References openflow-switch::link, m_edca, m_linkIds, m_links, m_txop, NS_ASSERT, NS_LOG_FUNCTION, ns3::Txop::SwapLinks(), and UpdateLinkId().

Referenced by ns3::StaWifiMac::ScanningTimeout().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ TidMappedOnLink()

bool ns3::WifiMac::TidMappedOnLink	(	Mac48Address	mldAddr,
		WifiDirection	dir,
		uint8_t	tid,
		uint8_t	linkId
	)		const

Check whether the given TID is mapped on the given link in the given direction for the given MLD.

Parameters

mldAddr	the MLD address of the given MLD
dir	the given direction (DL or UL)
tid	the given TID
linkId	the ID of the given link

Returns: whether the given TID is mapped on the given link in the given direction for the given MLD

Definition at line 1116 of file wifi-mac.cc.

References ns3::BOTH_DIRECTIONS, dir, ns3::DOWNLINK, GetWifiRemoteStationManager(), m_dlTidLinkMappings, m_ulTidLinkMappings, and NS_ABORT_MSG_IF.

Here is the call graph for this function:

◆ UnblockUnicastTxOnLinks()

void ns3::WifiMac::UnblockUnicastTxOnLinks	(	WifiQueueBlockedReason	reason,
		const Mac48Address &	address,
		const std::set< uint8_t > &	linkIds
	)

Unblock the transmission on the given links of all unicast frames addressed to the station with the given address for the given reason.

The given MAC address must be the MLD address in case the addressed device is multi-link.

Parameters

reason	the reason for unblocking transmissions
address	the MAC address of the given device
linkIds	the IDs of the links to unblock

Definition at line 1428 of file wifi-mac.cc.

References first::address, ns3::Txop::CHECK_MEDIUM_BUSY, GetAddress(), GetLink(), GetQosTxop(), ns3::QosTxop::HasFramesToTransmit(), openflow-switch::link, m_scheduler, NS_ASSERT, NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::Simulator::ScheduleNow(), ns3::Txop::StartAccessAfterEvent(), ns3::WIFI_CTL_QUEUE, ns3::WIFI_MGT_QUEUE, ns3::WIFI_QOSDATA_QUEUE, and ns3::wifiAcList.

Referenced by EmlsrDlTxopTest::CheckQosFrames(), ns3::EhtFrameExchangeManager::CtsAfterMuRtsTimeout(), ns3::EhtFrameExchangeManager::EmlsrSwitchToListening(), ns3::EhtFrameExchangeManager::ReceiveMpdu(), ns3::ApWifiMac::StaSwitchingToActiveModeOrDeassociated(), and ns3::StaWifiMac::UnblockTxOnLink().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ UpdateLinkId()

void ns3::WifiMac::UpdateLinkId ( uint8_t id )

private

This method is intended to be called when a link changes ID in order to update the link ID stored by the Frame Exchange Manager and the Channel Access Manager operating on that link.

Parameters

id	the (new) ID of the link that has changed ID

Definition at line 945 of file wifi-mac.cc.

References GetLink(), openflow-switch::link, and NS_LOG_FUNCTION.

Referenced by SwapLinks().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ UpdateTidToLinkMapping()

void ns3::WifiMac::UpdateTidToLinkMapping	(	const Mac48Address &	mldAddr,
		WifiDirection	dir,
		const WifiTidLinkMapping &	mapping
	)

protected

Update the TID-to-Link Mappings for the given MLD in the given direction based on the given negotiated mappings.

An empty mapping indicates the default mapping.

Parameters

mldAddr	the MLD address of the given MLD
dir	the given direction (DL or UL)
mapping	the negotiated TID-to-Link Mapping

Definition at line 1066 of file wifi-mac.cc.

References ns3::BOTH_DIRECTIONS, dir, ns3::DOWNLINK, m_dlTidLinkMappings, m_ulTidLinkMappings, NS_ABORT_MSG_IF, and NS_LOG_FUNCTION.

Referenced by ns3::ApWifiMac::ReceiveAssocRequest(), and ns3::StaWifiMac::ReceiveAssocResp().

Here is the caller graph for this function:

Member Data Documentation

◆ m_ackedMpduCallback

MpduTracedCallback ns3::WifiMac::m_ackedMpduCallback

private

ack'ed MPDU callback

Definition at line 1144 of file wifi-mac.h.

Referenced by GetTypeId(), SetupEdcaQueue(), and SetupFrameExchangeManager().

◆ m_address

Mac48Address ns3::WifiMac::m_address

private

MAC address of this station.

Definition at line 1056 of file wifi-mac.h.

Referenced by DoGetLocalAddress(), GetAddress(), GetLocalAddress(), and SetAddress().

◆ m_beMaxAmpduSize

uint32_t ns3::WifiMac::m_beMaxAmpduSize

private

maximum A-MPDU size for AC_BE (in bytes)

Definition at line 1075 of file wifi-mac.h.

Referenced by GetEhtCapabilities(), GetHeCapabilities(), GetHtCapabilities(), GetMaxAmpduSize(), GetTypeId(), and GetVhtCapabilities().

◆ m_beMaxAmsduSize

uint16_t ns3::WifiMac::m_beMaxAmsduSize

private

maximum A-MSDU size for AC_BE (in bytes)

Definition at line 1070 of file wifi-mac.h.

Referenced by GetEhtCapabilities(), GetHtCapabilities(), GetMaxAmsduSize(), GetTypeId(), and GetVhtCapabilities().

◆ m_bkMaxAmpduSize

uint32_t ns3::WifiMac::m_bkMaxAmpduSize

private

maximum A-MPDU size for AC_BK (in bytes)

Definition at line 1076 of file wifi-mac.h.

Referenced by GetEhtCapabilities(), GetHeCapabilities(), GetHtCapabilities(), GetMaxAmpduSize(), GetTypeId(), and GetVhtCapabilities().

◆ m_bkMaxAmsduSize

uint16_t ns3::WifiMac::m_bkMaxAmsduSize

private

maximum A-MSDU size for AC_BK (in bytes)

Definition at line 1071 of file wifi-mac.h.

Referenced by GetEhtCapabilities(), GetHtCapabilities(), GetMaxAmsduSize(), GetTypeId(), and GetVhtCapabilities().

◆ m_ctsToSelfSupported

bool ns3::WifiMac::m_ctsToSelfSupported

private

flag indicating whether CTS-To-Self is supported

Definition at line 1048 of file wifi-mac.h.

Referenced by SetCtsToSelfSupported().

◆ m_device

Ptr<WifiNetDevice> ns3::WifiMac::m_device

private

Pointer to the device.

Definition at line 1052 of file wifi-mac.h.

Referenced by DoDispose(), GetDevice(), GetLinkForPhy(), SetDevice(), and SetMpduBufferSize().

◆ m_dlTidLinkMappings

std::unordered_map<Mac48Address, WifiTidLinkMapping, WifiAddressHash> ns3::WifiMac::m_dlTidLinkMappings

private

DL TID-to-Link Mapping negotiated with an MLD (identified by its MLD address)

Definition at line 1081 of file wifi-mac.h.

Referenced by ApplyTidLinkMapping(), GetTidToLinkMapping(), TidMappedOnLink(), and UpdateTidToLinkMapping().

◆ m_droppedMpduCallback

DroppedMpduTracedCallback ns3::WifiMac::m_droppedMpduCallback

private

This trace indicates that an MPDU was dropped for the given reason.

Definition at line 1139 of file wifi-mac.h.

Referenced by GetTypeId(), SetQosSupported(), SetupEdcaQueue(), and SetupFrameExchangeManager().

◆ m_edca

EdcaQueues ns3::WifiMac::m_edca

private

This is a map from Access Category index to the corresponding channel access function.

Definition at line 1066 of file wifi-mac.h.

Referenced by ConfigureContentionWindow(), ConfigureStandard(), DoDispose(), DoInitialize(), GetQosTxop(), HasFramesToTransmit(), SetupEdcaQueue(), and SwapLinks().

◆ m_forwardUp

ForwardUpCallback ns3::WifiMac::m_forwardUp

private

Callback to forward packet up the stack.

Definition at line 1085 of file wifi-mac.h.

Referenced by ForwardUp(), and SetForwardUpCallback().

◆ m_linkDown

Callback<void> ns3::WifiMac::m_linkDown

protected

Callback when a link is down.

Definition at line 898 of file wifi-mac.h.

Referenced by SetLinkDownCallback(), and ns3::StaWifiMac::TryToEnsureAssociated().

◆ m_linkIds

std::set<uint8_t> ns3::WifiMac::m_linkIds

private

IDs of the links in use.

Definition at line 1054 of file wifi-mac.h.

Referenced by GetLinkIds(), SetWifiPhys(), SetWifiRemoteStationManagers(), and SwapLinks().

◆ m_links

std::map<uint8_t, std::unique_ptr<LinkEntity> > ns3::WifiMac::m_links

private

ID-indexed map of Link objects.

Definition at line 1053 of file wifi-mac.h.

Referenced by ApplyTidLinkMapping(), ConfigureContentionWindow(), ConfigureDcf(), ConfigurePhyDependentParameters(), ConfigureStandard(), DoDispose(), DoInitialize(), GetEhtSupported(), GetHeSupported(), GetHtSupported(), GetLink(), GetLinkForPhy(), GetLinkIdByAddress(), GetLinks(), GetLocalAddress(), GetMldAddress(), GetNLinks(), GetVhtSupported(), ResetWifiPhys(), SetPromisc(), SetWifiPhys(), SetWifiRemoteStationManagers(), and SwapLinks().

◆ m_linkUp

Callback<void> ns3::WifiMac::m_linkUp

protected

Callback when a link is up.

Definition at line 897 of file wifi-mac.h.

Referenced by ns3::StaWifiMac::ReceiveAssocResp(), and SetLinkUpCallback().

◆ m_macPromiscRxTrace

TracedCallback<Ptr<const Packet> > ns3::WifiMac::m_macPromiscRxTrace

private

The trace source fired for packets successfully received by the device immediately before being forwarded up to higher layers (at the L2/L3 transition).

This is a promiscuous trace.

See also: class CallBackTraceSource

Definition at line 1108 of file wifi-mac.h.

Referenced by GetTypeId(), and NotifyPromiscRx().

◆ m_macRxDropTrace

TracedCallback<Ptr<const Packet> > ns3::WifiMac::m_macRxDropTrace

private

The trace source fired when packets coming into the "top" of the device are dropped at the MAC layer during reception.

See also: class CallBackTraceSource

Definition at line 1123 of file wifi-mac.h.

Referenced by GetTypeId(), and NotifyRxDrop().

◆ m_macRxTrace

TracedCallback<Ptr<const Packet> > ns3::WifiMac::m_macRxTrace

private

The trace source fired for packets successfully received by the device immediately before being forwarded up to higher layers (at the L2/L3 transition).

This is a non- promiscuous trace.

See also: class CallBackTraceSource

Definition at line 1116 of file wifi-mac.h.

Referenced by GetTypeId(), and NotifyRx().

◆ m_macTxDropTrace

TracedCallback<Ptr<const Packet> > ns3::WifiMac::m_macTxDropTrace

private

The trace source fired when packets coming into the "top" of the device are dropped at the MAC layer before being queued for transmission.

See also: class CallBackTraceSource

Definition at line 1100 of file wifi-mac.h.

Referenced by GetTypeId(), and NotifyTxDrop().

◆ m_macTxTrace

TracedCallback<Ptr<const Packet> > ns3::WifiMac::m_macTxTrace

private

The trace source fired when packets come into the "top" of the device at the L3/L2 transition, before being queued for transmission.

See also: class CallBackTraceSource

Definition at line 1093 of file wifi-mac.h.

Referenced by GetTypeId(), and NotifyTx().

◆ m_mpduBufferSize

uint16_t ns3::WifiMac::m_mpduBufferSize

private

BlockAck buffer size (in number of MPDUs)

Definition at line 1078 of file wifi-mac.h.

Referenced by GetMpduBufferSize(), SetDevice(), and SetMpduBufferSize().

◆ m_mpduResponseTimeoutCallback

MpduResponseTimeoutTracedCallback ns3::WifiMac::m_mpduResponseTimeoutCallback

private

MPDU response timeout traced callback.

This trace source is fed by a WifiTxTimer object.

Definition at line 1166 of file wifi-mac.h.

Referenced by GetTypeId(), and SetupFrameExchangeManager().

◆ m_nackedMpduCallback

MpduTracedCallback ns3::WifiMac::m_nackedMpduCallback

private

nack'ed MPDU callback

Definition at line 1145 of file wifi-mac.h.

Referenced by GetTypeId(), and SetupEdcaQueue().

◆ m_psduMapResponseTimeoutCallback

PsduMapResponseTimeoutTracedCallback ns3::WifiMac::m_psduMapResponseTimeoutCallback

private

PSDU map response timeout traced callback.

This trace source is fed by a WifiTxTimer object.

Definition at line 1210 of file wifi-mac.h.

Referenced by GetTypeId(), and SetupFrameExchangeManager().

◆ m_psduResponseTimeoutCallback

PsduResponseTimeoutTracedCallback ns3::WifiMac::m_psduResponseTimeoutCallback

private

PSDU response timeout traced callback.

This trace source is fed by a WifiTxTimer object.

Definition at line 1187 of file wifi-mac.h.

Referenced by GetTypeId(), and SetupFrameExchangeManager().

◆ m_qosSupported

bool ns3::WifiMac::m_qosSupported

private

This Boolean is set true iff this WifiMac is to model 802.11e/WMM style Quality of Service.

It is exposed through the attribute system.

At the moment, this flag is the sole selection between QoS and non-QoS operation for the STA (whether IBSS, AP, or non-AP). Ultimately, we will want a QoS-enabled STA to be able to fall back to non-QoS operation with a non-QoS peer. This'll require further intelligence - i.e., per-association QoS state. Having a big switch seems like a good intermediate stage, however.

Definition at line 1045 of file wifi-mac.h.

Referenced by ConfigureStandard(), GetBEQueue(), GetBKQueue(), GetQosSupported(), GetVIQueue(), GetVOQueue(), SetBeBlockAckInactivityTimeout(), SetBeBlockAckThreshold(), SetBkBlockAckInactivityTimeout(), SetBkBlockAckThreshold(), SetQosSupported(), SetupFrameExchangeManager(), SetViBlockAckInactivityTimeout(), SetViBlockAckThreshold(), SetVoBlockAckInactivityTimeout(), and SetVoBlockAckThreshold().

◆ m_rxMiddle

Ptr<MacRxMiddle> ns3::WifiMac::m_rxMiddle

protected

RX middle (defragmentation etc.)

Definition at line 892 of file wifi-mac.h.

Referenced by WifiMac(), DoDispose(), and SetupFrameExchangeManager().

◆ m_scheduler

Ptr<WifiMacQueueScheduler> ns3::WifiMac::m_scheduler

protected

wifi MAC queue scheduler

Definition at line 895 of file wifi-mac.h.

Referenced by ApplyTidLinkMapping(), BlockUnicastTxOnLinks(), ns3::MeshWifiInterfaceMac::ConfigureContentionWindow(), DoDispose(), GetMacQueueScheduler(), SetMacQueueScheduler(), and UnblockUnicastTxOnLinks().

◆ m_shortSlotTimeSupported

bool ns3::WifiMac::m_shortSlotTimeSupported

private

flag whether short slot time is supported

Definition at line 1047 of file wifi-mac.h.

Referenced by GetShortSlotTimeSupported(), and SetShortSlotTimeSupported().

◆ m_ssid

Ssid ns3::WifiMac::m_ssid

private

Service Set ID (SSID)

Definition at line 1057 of file wifi-mac.h.

Referenced by GetSsid(), and SetSsid().

◆ m_txMiddle

Ptr<MacTxMiddle> ns3::WifiMac::m_txMiddle

protected

TX middle (aggregation etc.)

Definition at line 893 of file wifi-mac.h.

Referenced by ns3::ApWifiMac::ApWifiMac(), WifiMac(), ns3::MeshWifiInterfaceMac::ConfigureContentionWindow(), DoDispose(), AmpduAggregationTest::DoRun(), SetQosSupported(), SetupEdcaQueue(), and SetupFrameExchangeManager().

◆ m_txop

Ptr<Txop> ns3::WifiMac::m_txop

protected

TXOP used for transmission of frames to non-QoS peers.

Definition at line 894 of file wifi-mac.h.

Referenced by ConfigureContentionWindow(), ns3::MeshWifiInterfaceMac::ConfigureContentionWindow(), ConfigureStandard(), DoDispose(), DoInitialize(), GetTxop(), GetTxopQueue(), HasFramesToTransmit(), ns3::MeshWifiInterfaceMac::SendBeacon(), ns3::StaWifiMac::SetPowerSaveMode(), SetQosSupported(), and SwapLinks().

◆ m_typeOfStation

TypeOfStation ns3::WifiMac::m_typeOfStation

private

the type of station

Definition at line 1050 of file wifi-mac.h.

Referenced by GetTypeOfStation(), and SetTypeOfStation().

◆ m_ulTidLinkMappings

std::unordered_map<Mac48Address, WifiTidLinkMapping, WifiAddressHash> ns3::WifiMac::m_ulTidLinkMappings

private

UL TID-to-Link Mapping negotiated with an MLD (identified by its MLD address)

Definition at line 1083 of file wifi-mac.h.

Referenced by ApplyTidLinkMapping(), GetTidToLinkMapping(), TidMappedOnLink(), and UpdateTidToLinkMapping().

◆ m_viMaxAmpduSize

uint32_t ns3::WifiMac::m_viMaxAmpduSize

private

maximum A-MPDU size for AC_VI (in bytes)

Definition at line 1074 of file wifi-mac.h.

Referenced by GetEhtCapabilities(), GetHeCapabilities(), GetHtCapabilities(), GetMaxAmpduSize(), GetTypeId(), and GetVhtCapabilities().

◆ m_viMaxAmsduSize

uint16_t ns3::WifiMac::m_viMaxAmsduSize

private

maximum A-MSDU size for AC_VI (in bytes)

Definition at line 1069 of file wifi-mac.h.

Referenced by GetEhtCapabilities(), GetHtCapabilities(), GetMaxAmsduSize(), GetTypeId(), and GetVhtCapabilities().

◆ m_voMaxAmpduSize

uint32_t ns3::WifiMac::m_voMaxAmpduSize

private

maximum A-MPDU size for AC_VO (in bytes)

Definition at line 1073 of file wifi-mac.h.

Referenced by GetEhtCapabilities(), GetHeCapabilities(), GetHtCapabilities(), GetMaxAmpduSize(), GetTypeId(), and GetVhtCapabilities().

◆ m_voMaxAmsduSize

uint16_t ns3::WifiMac::m_voMaxAmsduSize

private

maximum A-MSDU size for AC_VO (in bytes)

Definition at line 1068 of file wifi-mac.h.

Referenced by GetEhtCapabilities(), GetHtCapabilities(), GetMaxAmsduSize(), GetTypeId(), and GetVhtCapabilities().

The documentation for this class was generated from the following files:

src/wifi/model/wifi-mac.h
src/wifi/model/wifi-mac.cc

Classes

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Private Types

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ DroppedMpduCallback

◆ DroppedMpduTracedCallback

◆ EdcaQueues

◆ ForwardUpCallback

◆ MpduResponseTimeoutCallback

◆ MpduResponseTimeoutTracedCallback

◆ MpduTracedCallback

◆ OriginatorAgreementOptConstRef

◆ PsduMapResponseTimeoutCallback

◆ PsduMapResponseTimeoutTracedCallback

◆ PsduResponseTimeoutCallback

◆ PsduResponseTimeoutTracedCallback

◆ RecipientAgreementOptConstRef

Constructor & Destructor Documentation

◆ WifiMac() [1/2]

◆ ~WifiMac()

◆ WifiMac() [2/2]

Member Function Documentation

◆ ApplyTidLinkMapping()

◆ BlockUnicastTxOnLinks()

◆ CanForwardPacketsTo()

◆ ConfigureContentionWindow()

◆ ConfigureDcf()

◆ ConfigurePhyDependentParameters()

◆ ConfigureStandard()

◆ CreateLinkEntity()

◆ DeaggregateAmsduAndForward()

◆ DoDispose()

◆ DoGetLocalAddress()

◆ DoInitialize()

◆ Enqueue() [1/2]

◆ Enqueue() [2/2]

◆ ForwardUp()

◆ GetAddress()

◆ GetBaAgreementEstablishedAsOriginator()

◆ GetBaAgreementEstablishedAsRecipient()

◆ GetBarTypeAsOriginator()

◆ GetBarTypeAsRecipient()

◆ GetBaTypeAsOriginator()

◆ GetBaTypeAsRecipient()

◆ GetBEQueue()

◆ GetBKQueue()

◆ GetBssid()

◆ GetChannelAccessManager()

◆ GetDevice()

◆ GetDsssSupported()

◆ GetEhtCapabilities()

◆ GetEhtConfiguration()

◆ GetEhtSupported() [1/2]

◆ GetEhtSupported() [2/2]

◆ GetErpSupported()

◆ GetExtendedCapabilities()

◆ GetFrameExchangeManager()

◆ GetHeCapabilities()

◆ GetHeConfiguration()

◆ GetHeSupported() [1/2]

◆ GetHeSupported() [2/2]

◆ GetHtCapabilities()

◆ GetHtConfiguration()

◆ GetHtSupported() [1/2]

◆ GetHtSupported() [2/2]

◆ GetLink()

◆ GetLinkForPhy() [1/2]

◆ GetLinkForPhy() [2/2]

◆ GetLinkIdByAddress()

◆ GetLinkIds()

◆ GetLinks()

◆ GetLocalAddress()
