WifiMacQueueScheduler is an abstract base class defining the public interface for a wifi MAC queue scheduler. More...

#include "wifi-mac-queue-scheduler.h"

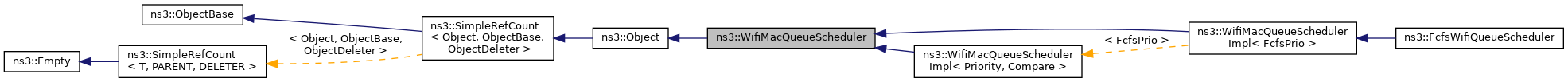

Inheritance diagram for ns3::WifiMacQueueScheduler:

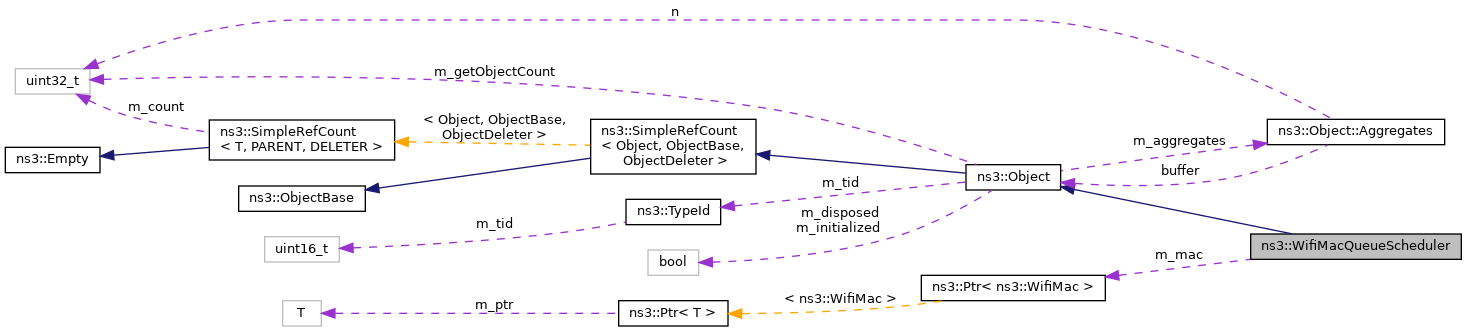

Collaboration diagram for ns3::WifiMacQueueScheduler:

Public Types
using	Mask = std::bitset< static_cast< std::size_t >(WifiQueueBlockedReason::REASONS_COUNT)>
	Bitset identifying the reasons to block individual links for a container queue. More...

Public Member Functions
virtual void	BlockQueues (WifiQueueBlockedReason reason, AcIndex ac, const std::list< WifiContainerQueueType > &types, const Mac48Address &rxAddress, const Mac48Address &txAddress, const std::set< uint8_t > &tids={}, const std::set< uint8_t > &linkIds={})=0
	Block the given set of links for the container queues of the given types and Access Category that hold frames having the given Receiver Address (RA), Transmitter Address (TA) and TID (if needed) for the given reason, such that frames in these queues are not transmitted on the given set of links. More...

virtual std::list< uint8_t >	GetLinkIds (AcIndex ac, Ptr< const WifiMpdu > mpdu)=0
	Get the list of the IDs of the links the given MPDU (belonging to the given Access Category) can be sent over. More...

virtual std::optional< WifiContainerQueueId >	GetNext (AcIndex ac, std::optional< uint8_t > linkId)=0
	Get the next queue to serve, which is guaranteed to contain at least an MPDU whose lifetime has not expired. More...

virtual std::optional< WifiContainerQueueId >	GetNext (AcIndex ac, std::optional< uint8_t > linkId, const WifiContainerQueueId &prevQueueId)=0
	Get the next queue to serve after the given one. More...

virtual std::optional< Mask >	GetQueueLinkMask (AcIndex ac, const WifiContainerQueueId &queueId, uint8_t linkId)=0
	Get the mask associated with the given container queue indicating whether the given link is blocked and for which reason, provided that the given container queue exists and has a mask for the given link. More...

virtual Ptr< WifiMpdu >	HasToDropBeforeEnqueue (AcIndex ac, Ptr< WifiMpdu > mpdu)=0
	Check whether an MPDU has to be dropped before enqueuing the given MPDU. More...

virtual void	NotifyDequeue (AcIndex ac, const std::list< Ptr< WifiMpdu >> &mpdus)=0
	Notify the scheduler that the given list of MPDUs have been dequeued by the given Access Category. More...

virtual void	NotifyEnqueue (AcIndex ac, Ptr< WifiMpdu > mpdu)=0
	Notify the scheduler that the given MPDU has been enqueued by the given Access Category. More...

virtual void	NotifyRemove (AcIndex ac, const std::list< Ptr< WifiMpdu >> &mpdus)=0
	Notify the scheduler that the given list of MPDUs have been removed by the given Access Category. More...

virtual void	SetWifiMac (Ptr< WifiMac > mac)
	Set the wifi MAC. More...

virtual void	UnblockQueues (WifiQueueBlockedReason reason, AcIndex ac, const std::list< WifiContainerQueueType > &types, const Mac48Address &rxAddress, const Mac48Address &txAddress, const std::set< uint8_t > &tids={}, const std::set< uint8_t > &linkIds={})=0
	Unblock the given set of links for the container queues of the given types and Access Category that hold frames having the given Receiver Address (RA), Transmitter Address (TA) and TID (if needed) for the given reason, such that frames in these queues can be transmitted on the given set of links. More...

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

	~Object () override
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose ()
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator () const
	Get an iterator to the Objects aggregated to this one. More...

TypeId	GetInstanceTypeId () const override
	Get the most derived TypeId for this Object. More...

template<typename T >
Ptr< T >	GetObject () const
	Get a pointer to the requested aggregated Object. More...

template<>
Ptr< Object >	GetObject () const
	Specialization of () for objects of type ns3::Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< Object >	GetObject (TypeId tid) const
	Specialization of (TypeId tid) for objects of type ns3::Object. More...

void	Initialize ()
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized () const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
	Copy constructor. More...

uint32_t	GetReferenceCount () const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o[[maybe_unused]])
	Assignment operator. More...

void	Ref () const
	Increment the reference count. More...

void	Unref () const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising errors. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId ()
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId ()
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId ()
	Get the type ID. More...

Protected Member Functions
void	DoDispose () override
	Destructor implementation. More...

Ptr< WifiMac >	GetMac () const
	Get the wifi MAC. More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	DoInitialize ()
	Initialize() implementation. More...

virtual void	NotifyNewAggregate ()
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted ()
	Notifier called once the ObjectBase is fully constructed. More...

Private Attributes
Ptr< WifiMac >	m_mac
	MAC layer. More...

Additional Inherited Members
Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid ()
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

WifiMacQueueScheduler is an abstract base class defining the public interface for a wifi MAC queue scheduler.

Definition at line 88 of file wifi-mac-queue-scheduler.h.

Member Typedef Documentation

◆ Mask

using ns3::WifiMacQueueScheduler::Mask = std::bitset<static_cast<std::size_t>(WifiQueueBlockedReason::REASONS_COUNT)>

Bitset identifying the reasons to block individual links for a container queue.

Definition at line 186 of file wifi-mac-queue-scheduler.h.

Member Function Documentation

◆ BlockQueues()

virtual void ns3::WifiMacQueueScheduler::BlockQueues	(	WifiQueueBlockedReason	reason,
		AcIndex	ac,
		const std::list< WifiContainerQueueType > &	types,
		const Mac48Address &	rxAddress,
		const Mac48Address &	txAddress,
		const std::set< uint8_t > &	tids = `{}`,
		const std::set< uint8_t > &	linkIds = `{}`
	)

pure virtual

Block the given set of links for the container queues of the given types and Access Category that hold frames having the given Receiver Address (RA), Transmitter Address (TA) and TID (if needed) for the given reason, such that frames in these queues are not transmitted on the given set of links.

Parameters

reason	the reason for blocking the queues
ac	the given Access Category
types	the types of the queues to block
rxAddress	the Receiver Address (RA) of the frames
txAddress	the Transmitter Address (TA) of the frames
tids	the TIDs optionally identifying the queues to block
linkIds	set of links to block (empty to block all setup links)

Implemented in ns3::WifiMacQueueSchedulerImpl< Priority, Compare >, and ns3::WifiMacQueueSchedulerImpl< FcfsPrio >.

◆ DoDispose()

void ns3::WifiMacQueueScheduler::DoDispose ( void )

overrideprotectedvirtual

Destructor implementation.

This method is called by Dispose() or by the Object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overridden version of this method and chain up to their parent's implementation once they are done. i.e, for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose() method.

It is safe to call GetObject() from within this method.

Reimplemented from ns3::Object.

Reimplemented in ns3::WifiMacQueueSchedulerImpl< FcfsPrio >.

Definition at line 40 of file wifi-mac-queue-scheduler.cc.

References m_mac.

Referenced by ns3::WifiMacQueueSchedulerImpl< Priority, Compare >::DoDispose().

Here is the caller graph for this function:

◆ GetLinkIds()

virtual std::list<uint8_t> ns3::WifiMacQueueScheduler::GetLinkIds	(	AcIndex	ac,
		Ptr< const WifiMpdu >	mpdu
	)

pure virtual

Get the list of the IDs of the links the given MPDU (belonging to the given Access Category) can be sent over.

Parameters

ac	the given Access Category
mpdu	the given MPDU

Returns: the list of the IDs of the links the given MPDU can be sent over

Implemented in ns3::WifiMacQueueSchedulerImpl< Priority, Compare >, and ns3::WifiMacQueueSchedulerImpl< FcfsPrio >.

◆ GetMac()

Ptr< WifiMac > ns3::WifiMacQueueScheduler::GetMac ( ) const

protected

Get the wifi MAC.

Returns: the wifi MAC

Definition at line 53 of file wifi-mac-queue-scheduler.cc.

References m_mac.

◆ GetNext() [1/2]

virtual std::optional<WifiContainerQueueId> ns3::WifiMacQueueScheduler::GetNext	(	AcIndex	ac,
		std::optional< uint8_t >	linkId
	)

pure virtual

Get the next queue to serve, which is guaranteed to contain at least an MPDU whose lifetime has not expired.

Queues containing MPDUs that cannot be sent over the given link (if any) are ignored.

Parameters

ac	the Access Category that we want to serve
linkId	the ID of the link on which MPDUs contained in the returned queue must be allowed to be sent

Returns: the ID of the selected container queue (if any)

Implemented in ns3::WifiMacQueueSchedulerImpl< Priority, Compare >, and ns3::WifiMacQueueSchedulerImpl< FcfsPrio >.

◆ GetNext() [2/2]

virtual std::optional<WifiContainerQueueId> ns3::WifiMacQueueScheduler::GetNext	(	AcIndex	ac,
		std::optional< uint8_t >	linkId,
		const WifiContainerQueueId &	prevQueueId
	)

pure virtual

Get the next queue to serve after the given one.

The returned queue is guaranteed to contain at least an MPDU whose lifetime has not expired. Queues containing MPDUs that cannot be sent over the given link (if any) are ignored.

Parameters

ac	the Access Category that we want to serve
linkId	the ID of the link on which MPDUs contained in the returned queue must be allowed to be sent
prevQueueId	the ID of the container queue served previously

Returns: the ID of the selected container queue (if any)

Implemented in ns3::WifiMacQueueSchedulerImpl< Priority, Compare >, and ns3::WifiMacQueueSchedulerImpl< FcfsPrio >.

◆ GetQueueLinkMask()

virtual std::optional<Mask> ns3::WifiMacQueueScheduler::GetQueueLinkMask	(	AcIndex	ac,
		const WifiContainerQueueId &	queueId,
		uint8_t	linkId
	)

pure virtual

Get the mask associated with the given container queue indicating whether the given link is blocked and for which reason, provided that the given container queue exists and has a mask for the given link.

Parameters

ac	the given Access Category
queueId	the ID of the given container queue
linkId	the ID of the given link

Returns: the mask associated with the given container queue for the given link

Implemented in ns3::WifiMacQueueSchedulerImpl< Priority, Compare >, and ns3::WifiMacQueueSchedulerImpl< FcfsPrio >.

◆ GetTypeId()

TypeId ns3::WifiMacQueueScheduler::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 32 of file wifi-mac-queue-scheduler.cc.

References ns3::TypeId::SetParent().

Here is the call graph for this function:

◆ HasToDropBeforeEnqueue()

virtual Ptr<WifiMpdu> ns3::WifiMacQueueScheduler::HasToDropBeforeEnqueue	(	AcIndex	ac,
		Ptr< WifiMpdu >	mpdu
	)

pure virtual

Check whether an MPDU has to be dropped before enqueuing the given MPDU.

Parameters

ac	the Access Category of the MPDU being enqueued
mpdu	the MPDU to enqueue

Returns: a pointer to the MPDU to drop, if any, or a null pointer, otherwise

Implemented in ns3::WifiMacQueueSchedulerImpl< Priority, Compare >, and ns3::WifiMacQueueSchedulerImpl< FcfsPrio >.

◆ NotifyDequeue()

virtual void ns3::WifiMacQueueScheduler::NotifyDequeue	(	AcIndex	ac,
		const std::list< Ptr< WifiMpdu >> &	mpdus
	)

pure virtual

Notify the scheduler that the given list of MPDUs have been dequeued by the given Access Category.

The container queues which became empty after dequeuing the MPDUs are removed from the sorted list of queues.

Parameters

ac	the Access Category of the dequeued MPDUs
mpdus	the list of dequeued MPDUs

Implemented in ns3::WifiMacQueueSchedulerImpl< Priority, Compare >, and ns3::WifiMacQueueSchedulerImpl< FcfsPrio >.

◆ NotifyEnqueue()

virtual void ns3::WifiMacQueueScheduler::NotifyEnqueue	(	AcIndex	ac,
		Ptr< WifiMpdu >	mpdu
	)

pure virtual

Notify the scheduler that the given MPDU has been enqueued by the given Access Category.

The container queue in which the MPDU has been enqueued must be assigned a priority value.

Parameters

ac	the Access Category of the enqueued MPDU
mpdu	the enqueued MPDU

Implemented in ns3::WifiMacQueueSchedulerImpl< Priority, Compare >, and ns3::WifiMacQueueSchedulerImpl< FcfsPrio >.

◆ NotifyRemove()

virtual void ns3::WifiMacQueueScheduler::NotifyRemove	(	AcIndex	ac,
		const std::list< Ptr< WifiMpdu >> &	mpdus
	)

pure virtual

Notify the scheduler that the given list of MPDUs have been removed by the given Access Category.

The container queues which became empty after removing the MPDUs are removed from the sorted list of queues.

Parameters

ac	the Access Category of the removed MPDUs
mpdus	the list of removed MPDUs

Implemented in ns3::WifiMacQueueSchedulerImpl< Priority, Compare >, and ns3::WifiMacQueueSchedulerImpl< FcfsPrio >.

◆ SetWifiMac()

void ns3::WifiMacQueueScheduler::SetWifiMac ( Ptr< WifiMac > mac )

virtual

Set the wifi MAC.

Parameters

mac	the wifi MAC

Reimplemented in ns3::WifiMacQueueSchedulerImpl< Priority, Compare >, and ns3::WifiMacQueueSchedulerImpl< FcfsPrio >.

Definition at line 46 of file wifi-mac-queue-scheduler.cc.

References m_mac, third::mac, and NS_LOG_FUNCTION.

Referenced by ns3::WifiMacQueueSchedulerImpl< Priority, Compare >::SetWifiMac().

Here is the caller graph for this function:

◆ UnblockQueues()

virtual void ns3::WifiMacQueueScheduler::UnblockQueues	(	WifiQueueBlockedReason	reason,
		AcIndex	ac,
		const std::list< WifiContainerQueueType > &	types,
		const Mac48Address &	rxAddress,
		const Mac48Address &	txAddress,
		const std::set< uint8_t > &	tids = `{}`,
		const std::set< uint8_t > &	linkIds = `{}`
	)

pure virtual

Unblock the given set of links for the container queues of the given types and Access Category that hold frames having the given Receiver Address (RA), Transmitter Address (TA) and TID (if needed) for the given reason, such that frames in these queues can be transmitted on the given set of links.

Parameters

reason	the reason for unblocking the queues
ac	the given Access Category
types	the types of the queues to unblock
rxAddress	the Receiver Address (RA) of the frames
txAddress	the Transmitter Address (TA) of the frames
tids	the TIDs optionally identifying the queues to unblock
linkIds	set of links to unblock (empty to unblock all setup links)

Implemented in ns3::WifiMacQueueSchedulerImpl< Priority, Compare >, and ns3::WifiMacQueueSchedulerImpl< FcfsPrio >.

Member Data Documentation

◆ m_mac

Ptr<WifiMac> ns3::WifiMacQueueScheduler::m_mac

private

MAC layer.

Definition at line 249 of file wifi-mac-queue-scheduler.h.

Referenced by DoDispose(), GetMac(), and SetWifiMac().

The documentation for this class was generated from the following files:

src/wifi/model/wifi-mac-queue-scheduler.h
src/wifi/model/wifi-mac-queue-scheduler.cc

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ Mask

Member Function Documentation

◆ BlockQueues()

◆ DoDispose()

◆ GetLinkIds()

◆ GetMac()

◆ GetNext() [1/2]

◆ GetNext() [2/2]

◆ GetQueueLinkMask()

◆ GetTypeId()

◆ HasToDropBeforeEnqueue()

◆ NotifyDequeue()

◆ NotifyEnqueue()

◆ NotifyRemove()

◆ SetWifiMac()

◆ UnblockQueues()

Member Data Documentation

◆ m_mac
