The IEEE 802.11 Non-Inheritance Information Element. More...
#include "non-inheritance.h"

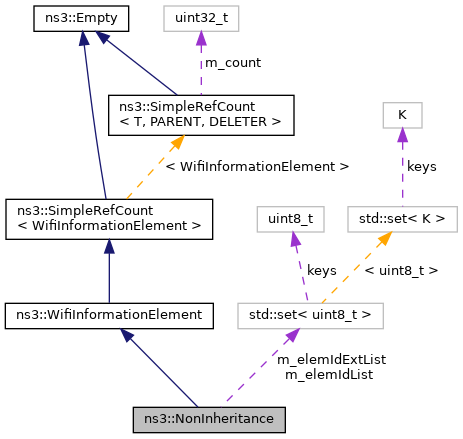

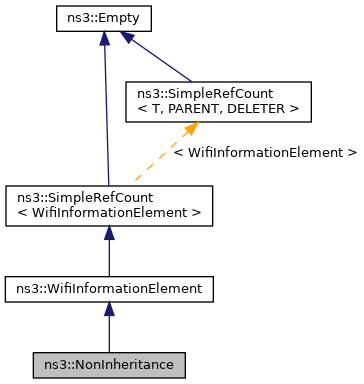

Inheritance diagram for ns3::NonInheritance: Collaboration diagram for ns3::NonInheritance:Public Member Functions | |
| void | Add (uint8_t elemId, uint8_t elemIdExt=0) |
| Add the Information Element specified by the given Element ID and Element ID Extension. More... | |
| WifiInformationElementId | ElementId () const override |
| Get the wifi information element ID. More... | |
| WifiInformationElementId | ElementIdExt () const override |
| Get the wifi information element ID extension. More... | |
| bool | IsPresent (uint8_t elemId, uint8_t elemIdExt=0) const |
| void | Print (std::ostream &os) const override |
| Generate human-readable form of IE. More... | |
| Public Member Functions inherited from ns3::WifiInformationElement | |
| virtual | ~WifiInformationElement () |
| Buffer::Iterator | Deserialize (Buffer::Iterator i) |
| Deserialize entire IE (which may possibly be fragmented into multiple elements), which must be present. More... | |
| Buffer::Iterator | DeserializeIfPresent (Buffer::Iterator i) |
| Deserialize entire IE (which may possibly be fragmented into multiple elements) if it is present. More... | |
| uint16_t | GetSerializedSize () const |
| Get the size of the serialized IE including Element ID and length fields (for every element this IE is possibly fragmented into). More... | |
| virtual bool | operator== (const WifiInformationElement &a) const |
| Compare two IEs for equality by ID & Length, and then through memcmp of serialised version. More... | |
| Buffer::Iterator | Serialize (Buffer::Iterator i) const |
| Serialize entire IE including Element ID and length fields. More... | |
| Public Member Functions inherited from ns3::SimpleRefCount< WifiInformationElement > | |
| SimpleRefCount () | |
| Default constructor. More... | |
| SimpleRefCount (const SimpleRefCount &o[[maybe_unused]]) | |
| Copy constructor. More... | |
| uint32_t | GetReferenceCount () const |
| Get the reference count of the object. More... | |
| SimpleRefCount & | operator= (const SimpleRefCount &o[[maybe_unused]]) |
| Assignment operator. More... | |
| void | Ref () const |
| Increment the reference count. More... | |
| void | Unref () const |
| Decrement the reference count. More... | |
Public Attributes | |
| std::set< uint8_t > | m_elemIdExtList |
| list of unique Element ID Extension values More... | |
| std::set< uint8_t > | m_elemIdList |
| list of unique Element ID values (in increasing order) More... | |
Private Member Functions | |
| uint16_t | DeserializeInformationField (Buffer::Iterator start, uint16_t length) override |
| Deserialize information (i.e., the body of the IE, not including the Element ID and length octets) More... | |
| uint16_t | GetInformationFieldSize () const override |
| Length of serialized information (i.e., the length of the body of the IE, not including the Element ID and length octets. More... | |
| void | SerializeInformationField (Buffer::Iterator start) const override |
| Serialize information (i.e., the body of the IE, not including the Element ID and length octets) More... | |
The IEEE 802.11 Non-Inheritance Information Element.
Definition at line 35 of file non-inheritance.h.
| void ns3::NonInheritance::Add | ( | uint8_t | elemId, |
| uint8_t | elemIdExt = 0 |
||
| ) |
Add the Information Element specified by the given Element ID and Element ID Extension.
| elemId | the given Element ID |
| elemIdExt | the given Element ID Extension |
Definition at line 94 of file non-inheritance.cc.
References IE_EXTENSION, m_elemIdExtList, and m_elemIdList.
|
overrideprivatevirtual |
Deserialize information (i.e., the body of the IE, not including the Element ID and length octets)
| start | an iterator which points to where the information should be written. |
| length | the expected number of bytes to read |
Implements ns3::WifiInformationElement.
Definition at line 77 of file non-inheritance.cc.
References m_elemIdExtList, m_elemIdList, and two-ray-to-three-gpp-ch-calibration::start.
|
overridevirtual |
Get the wifi information element ID.
Implements ns3::WifiInformationElement.
Definition at line 29 of file non-inheritance.cc.
References IE_EXTENSION.
|
overridevirtual |
Get the wifi information element ID extension.
Reimplemented from ns3::WifiInformationElement.
Definition at line 35 of file non-inheritance.cc.
References IE_EXT_NON_INHERITANCE.
|
overrideprivatevirtual |
Length of serialized information (i.e., the length of the body of the IE, not including the Element ID and length octets.
This is the value that will appear in the second octet of the entire IE - the length field - if the IE is not fragmented)
Implements ns3::WifiInformationElement.
Definition at line 53 of file non-inheritance.cc.
References m_elemIdExtList, and m_elemIdList.
| bool ns3::NonInheritance::IsPresent | ( | uint8_t | elemId, |
| uint8_t | elemIdExt = 0 |
||
| ) | const |
| elemId | the given Element ID |
| elemIdExt | the given Element ID Extension |
Definition at line 100 of file non-inheritance.cc.
References IE_EXTENSION, m_elemIdExtList, and m_elemIdList.
Referenced by BasicMultiLinkElementTest::DoRun(), and ns3::internal::RemoveIfNotInherited().
Here is the caller graph for this function:
|
overridevirtual |
Generate human-readable form of IE.
| os | output stream |
Reimplemented from ns3::WifiInformationElement.
Definition at line 41 of file non-inheritance.cc.
References m_elemIdExtList, and m_elemIdList.
|
overrideprivatevirtual |
Serialize information (i.e., the body of the IE, not including the Element ID and length octets)
| start | an iterator which points to where the information should be written. |
Implements ns3::WifiInformationElement.
Definition at line 62 of file non-inheritance.cc.
References m_elemIdExtList, m_elemIdList, and two-ray-to-three-gpp-ch-calibration::start.
| std::set<uint8_t> ns3::NonInheritance::m_elemIdExtList |
list of unique Element ID Extension values
Definition at line 59 of file non-inheritance.h.
Referenced by Add(), DeserializeInformationField(), BasicMultiLinkElementTest::DoRun(), GetInformationFieldSize(), IsPresent(), Print(), and SerializeInformationField().
| std::set<uint8_t> ns3::NonInheritance::m_elemIdList |
list of unique Element ID values (in increasing order)
Definition at line 58 of file non-inheritance.h.
Referenced by Add(), DeserializeInformationField(), BasicMultiLinkElementTest::DoRun(), GetInformationFieldSize(), IsPresent(), Print(), and SerializeInformationField().
