Struct containing all supported rates. More...
#include "supported-rates.h"

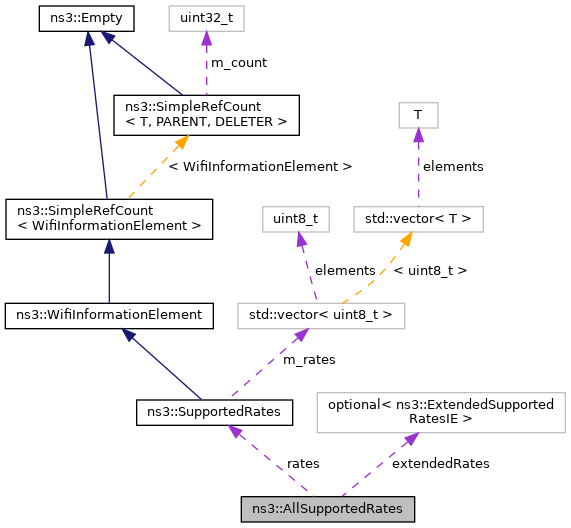

Collaboration diagram for ns3::AllSupportedRates:Public Member Functions | |
| void | AddBssMembershipSelectorRate (uint64_t bs) |
| Add a special value to the supported rate set, corresponding to a BSS membership selector. More... | |
| void | AddSupportedRate (uint64_t bs) |
| Add the given rate to the supported rates. More... | |
| uint8_t | GetNRates () const |
| Return the number of supported rates. More... | |
| bool | IsBasicRate (uint64_t bs) const |
| Check if the given rate is a basic rate. More... | |
| bool | IsBssMembershipSelectorRate (uint64_t bs) const |
| Check if the given rate is a BSS membership selector value. More... | |
| bool | IsSupportedRate (uint64_t bs) const |
| Check if the given rate is supported. More... | |
| void | SetBasicRate (uint64_t bs) |
| Set the given rate to basic rates. More... | |
Public Attributes | |
| std::optional< ExtendedSupportedRatesIE > | extendedRates |
| supported extended rates More... | |
| SupportedRates | rates |
| supported rates More... | |
Struct containing all supported rates.
Definition at line 87 of file supported-rates.h.
| void ns3::AllSupportedRates::AddBssMembershipSelectorRate | ( | uint64_t | bs | ) |
Add a special value to the supported rate set, corresponding to a BSS membership selector.
| bs | the special membership selector value (not a valid rate) |
Definition at line 120 of file supported-rates.cc.
References BSS_MEMBERSHIP_SELECTOR_EHT_PHY, BSS_MEMBERSHIP_SELECTOR_HE_PHY, BSS_MEMBERSHIP_SELECTOR_HT_PHY, BSS_MEMBERSHIP_SELECTOR_VHT_PHY, extendedRates, ns3::SupportedRates::m_rates, NS_ASSERT_MSG, NS_LOG_DEBUG, NS_LOG_FUNCTION, and rates.
Referenced by ns3::ApWifiMac::GetSupportedRates(), and ns3::StaWifiMac::GetSupportedRates().
Here is the caller graph for this function:| void ns3::AllSupportedRates::AddSupportedRate | ( | uint64_t | bs | ) |
Add the given rate to the supported rates.
| bs | the rate to be added in bps |
Definition at line 72 of file supported-rates.cc.
References extendedRates, GetNRates(), IsBssMembershipSelectorRate(), IsSupportedRate(), ns3::SupportedRates::m_rates, NS_ASSERT_MSG, NS_LOG_DEBUG, NS_LOG_FUNCTION, and rates.
Referenced by BasicMultiLinkElementTest::DoRun(), WifiMgtHeaderTest::DoRun(), ns3::MeshWifiInterfaceMac::GetSupportedRates(), ns3::ApWifiMac::GetSupportedRates(), ns3::StaWifiMac::GetSupportedRates(), and SetBasicRate().

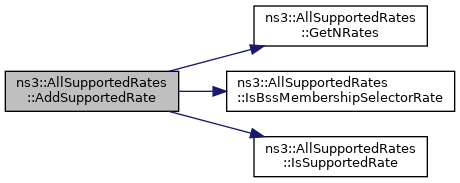

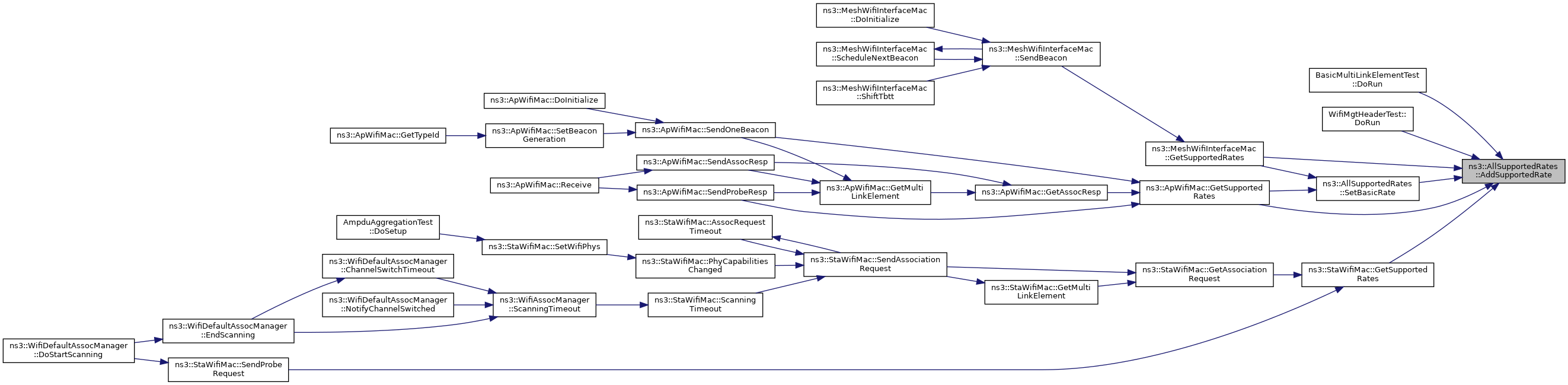

Here is the call graph for this function: Here is the caller graph for this function:| uint8_t ns3::AllSupportedRates::GetNRates | ( | ) | const |
Return the number of supported rates.
Definition at line 195 of file supported-rates.cc.
References extendedRates, ns3::SupportedRates::m_rates, and rates.
Referenced by AddSupportedRate(), and SetBasicRate().
Here is the caller graph for this function:| bool ns3::AllSupportedRates::IsBasicRate | ( | uint64_t | bs | ) | const |
Check if the given rate is a basic rate.
The rate is encoded as it is serialized to the Supported Rates Information Element (i.e. as a multiple of 500 Kbits/sec, with MSB set to 1).
| bs | the rate to be checked in bps |
Definition at line 61 of file supported-rates.cc.
References extendedRates, ns3::SupportedRates::m_rates, NS_LOG_FUNCTION, and rates.
| bool ns3::AllSupportedRates::IsBssMembershipSelectorRate | ( | uint64_t | bs | ) | const |
Check if the given rate is a BSS membership selector value.
The rate is encoded as it is serialized to the Supporting Rates Information Element (i.e. with the MSB set to 1).
| bs | the rate to be checked in bps |
Definition at line 185 of file supported-rates.cc.
References BSS_MEMBERSHIP_SELECTOR_EHT_PHY, BSS_MEMBERSHIP_SELECTOR_HE_PHY, BSS_MEMBERSHIP_SELECTOR_HT_PHY, BSS_MEMBERSHIP_SELECTOR_VHT_PHY, and NS_LOG_FUNCTION.
Referenced by AddSupportedRate(), and SetBasicRate().

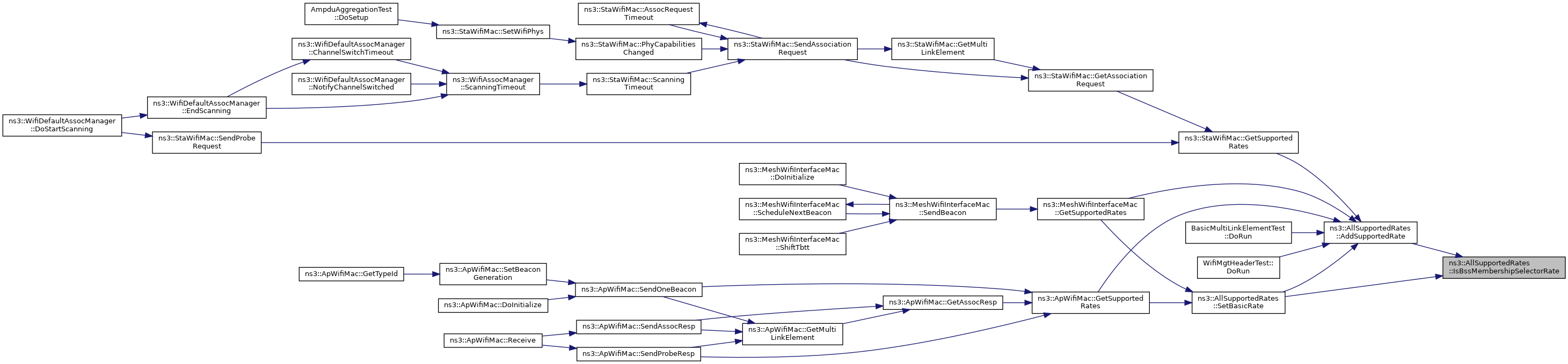

Here is the caller graph for this function:| bool ns3::AllSupportedRates::IsSupportedRate | ( | uint64_t | bs | ) | const |
Check if the given rate is supported.
The rate is encoded as it is serialized to the Supported Rates Information Element (i.e. as a multiple of 500 Kbits/sec, possibly with MSB set to 1).
| bs | the rate to be checked in bps |
Definition at line 160 of file supported-rates.cc.
References extendedRates, ns3::SupportedRates::m_rates, NS_LOG_FUNCTION, and rates.
Referenced by AddSupportedRate(), ns3::MeshWifiInterfaceMac::CheckSupportedRates(), and ns3::WifiMgtHeader< Derived, std::tuple< Elems... > >::InitForDeserialization().

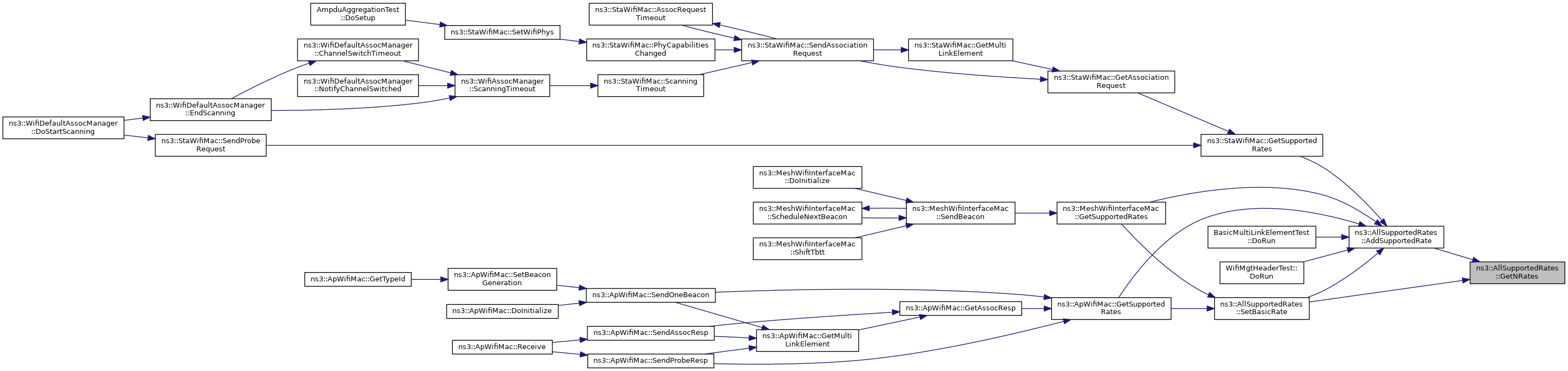

Here is the caller graph for this function:| void ns3::AllSupportedRates::SetBasicRate | ( | uint64_t | bs | ) |
Set the given rate to basic rates.
| bs | the rate to be set in bps |
Definition at line 96 of file supported-rates.cc.
References AddSupportedRate(), extendedRates, GetNRates(), IsBssMembershipSelectorRate(), ns3::SupportedRates::m_rates, NS_ASSERT_MSG, NS_LOG_DEBUG, NS_LOG_FUNCTION, and rates.
Referenced by ns3::MeshWifiInterfaceMac::GetSupportedRates(), and ns3::ApWifiMac::GetSupportedRates().
Here is the call graph for this function: Here is the caller graph for this function:| std::optional<ExtendedSupportedRatesIE> ns3::AllSupportedRates::extendedRates |
supported extended rates
Definition at line 146 of file supported-rates.h.
Referenced by ns3::MeshWifiBeacon::MeshWifiBeacon(), AddBssMembershipSelectorRate(), AddSupportedRate(), BasicMultiLinkElementTest::DoRun(), WifiMgtHeaderTest::DoRun(), GetNRates(), IsBasicRate(), IsSupportedRate(), and SetBasicRate().
| SupportedRates ns3::AllSupportedRates::rates |
supported rates
Definition at line 145 of file supported-rates.h.
Referenced by ns3::MeshWifiBeacon::MeshWifiBeacon(), AddBssMembershipSelectorRate(), AddSupportedRate(), BasicMultiLinkElementTest::DoRun(), WifiMgtHeaderTest::DoRun(), GetNRates(), IsBasicRate(), IsSupportedRate(), and SetBasicRate().
