ns3::MinstrelHtWifiManager Class Reference

Implementation of Minstrel-HT Rate Control Algorithm. More...

#include "minstrel-ht-wifi-manager.h"

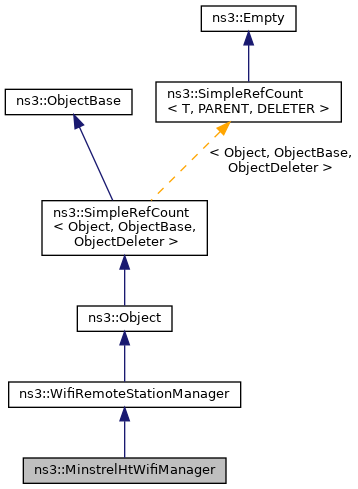

+ Inheritance diagram for ns3::MinstrelHtWifiManager:

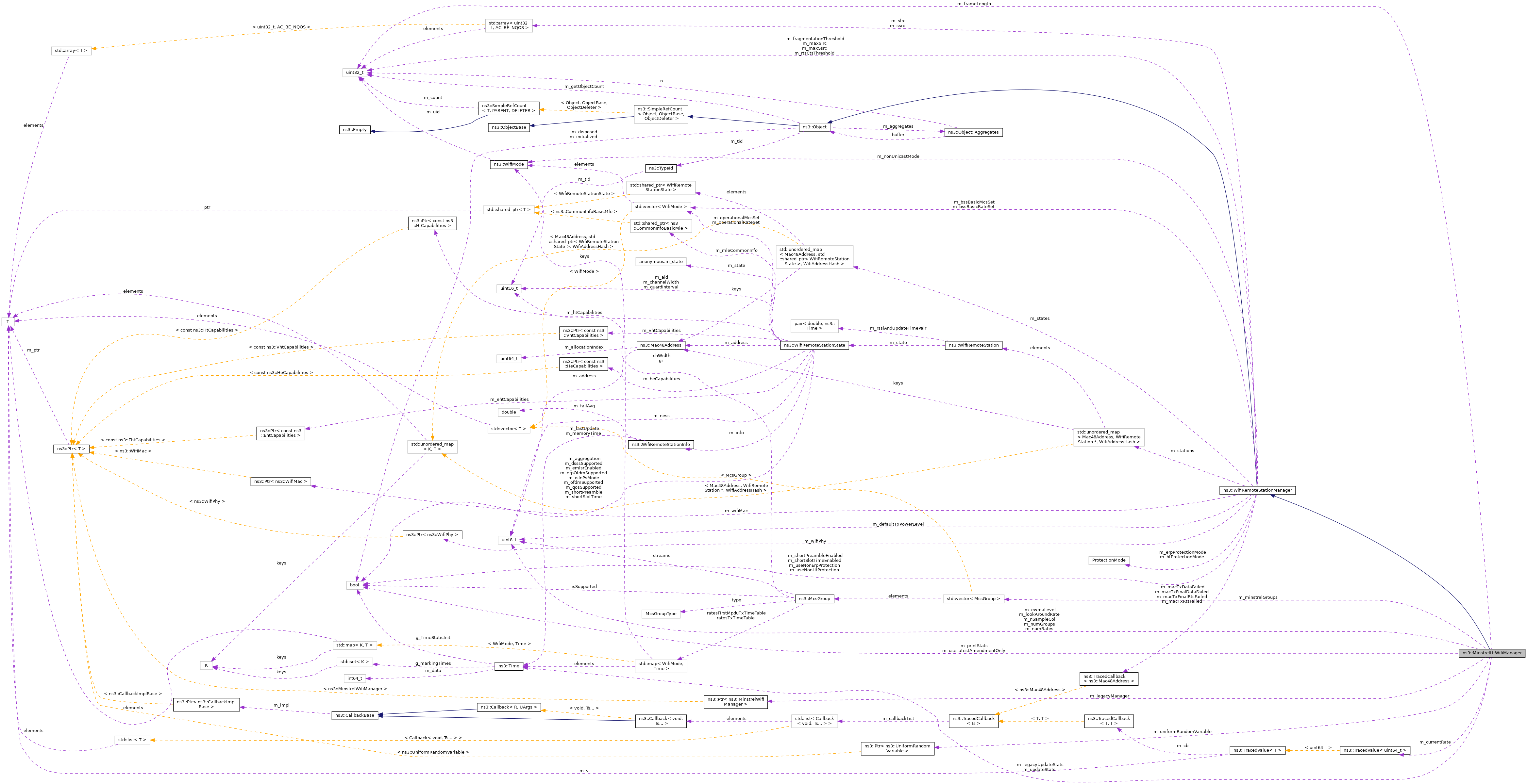

+ Collaboration diagram for ns3::MinstrelHtWifiManager:

Public Types

typedef void(* RateChangeTracedCallback) (const uint64_t rate, const Mac48Address remoteAddress)
 TracedCallback signature for rate change events. More...

- Public Types inherited from ns3::WifiRemoteStationManager
typedef void(* PowerChangeTracedCallback) (double oldPower, double newPower, Mac48Address remoteAddress)
 TracedCallback signature for power change events. More...

enum  ProtectionMode { RTS_CTS , CTS_TO_SELF }
 ProtectionMode enumeration. More...

typedef void(* RateChangeTracedCallback) (DataRate oldRate, DataRate newRate, Mac48Address remoteAddress)
 TracedCallback signature for rate change events. More...

using Stations = std::unordered_map< Mac48Address, WifiRemoteStation *, WifiAddressHash >
 A map of WifiRemoteStations with Mac48Address as key. More...

using StationStates = std::unordered_map< Mac48Address, std::shared_ptr< WifiRemoteStationState >, WifiAddressHash >
 A map of WifiRemoteStationStates with Mac48Address as key. More...


Public Member Functions

 MinstrelHtWifiManager ()

 ~MinstrelHtWifiManager () override

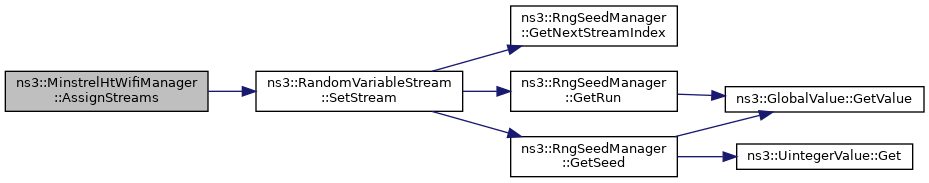

int64_t AssignStreams (int64_t stream) override
 Assign a fixed random variable stream number to the random variables used by this model. More...

void SetupMac (const Ptr< WifiMac > mac) override
 Set up MAC associated with this device since it is the object that knows the full set of timing parameters (e.g. More...

void SetupPhy (const Ptr< WifiPhy > phy) override
 Set up PHY associated with this device since it is the object that knows the full set of transmit rates that are supported. More...

- Public Member Functions inherited from ns3::WifiRemoteStationManager
 WifiRemoteStationManager ()

 ~WifiRemoteStationManager () override

void AddAllSupportedMcs (Mac48Address address)
 Invoked in a STA or AP to store all of the MCS supported by a destination which is also supported locally. More...

void AddAllSupportedModes (Mac48Address address)
 Invoked in a STA or AP to store all of the modes supported by a destination which is also supported locally. More...

void AddBasicMcs (WifiMode mcs)
 Add a given Modulation and Coding Scheme (MCS) index to the set of basic MCS. More...

void AddBasicMode (WifiMode mode)
 Invoked in a STA upon association to store the set of rates which belong to the BSSBasicRateSet of the associated AP and which are supported locally. More...

void AddStationEhtCapabilities (Mac48Address from, EhtCapabilities ehtCapabilities)
 Records EHT capabilities of the remote station. More...

void AddStationHeCapabilities (Mac48Address from, HeCapabilities heCapabilities)
 Records HE capabilities of the remote station. More...

void AddStationHtCapabilities (Mac48Address from, HtCapabilities htCapabilities)
 Records HT capabilities of the remote station. More...

void AddStationMleCommonInfo (Mac48Address from, const std::shared_ptr< CommonInfoBasicMle > &mleCommonInfo)
 Records the Common Info field advertised by the given remote station in a Multi-Link Element. More...

void AddStationVhtCapabilities (Mac48Address from, VhtCapabilities vhtCapabilities)
 Records VHT capabilities of the remote station. More...

void AddSupportedErpSlotTime (Mac48Address address, bool isShortSlotTimeSupported)
 Record whether the short ERP slot time is supported by the station. More...

void AddSupportedMcs (Mac48Address address, WifiMode mcs)
 Record the MCS index supported by the station. More...

void AddSupportedMode (Mac48Address address, WifiMode mode)
 Invoked in a STA or AP to store the set of modes supported by a destination which is also supported locally. More...

void AddSupportedPhyPreamble (Mac48Address address, bool isShortPreambleSupported)
 Record whether the short PHY preamble is supported by the station. More...

void AdjustTxVectorForIcf (WifiTxVector &txVector) const
 Adjust the TXVECTOR for an initial Control frame to ensure that the modulation class is non-HT and the rate is 6 Mbps, 12 Mbps or 24 Mbps. More...

WifiTxVector GetAckTxVector (Mac48Address to, const WifiTxVector &dataTxVector) const
 Return a TXVECTOR for the Ack frame given the destination and the mode of the Data used by the sender. More...

std::optional< Mac48AddressGetAffiliatedStaAddress (const Mac48Address &mldAddress) const
 Get the address of the remote station operating on this link and affiliated with the MLD having the given MAC address, if any. More...

uint16_t GetAssociationId (Mac48Address remoteAddress) const
 Get the AID of a remote station. More...

WifiMode GetBasicMcs (uint8_t i) const
 Return the MCS at the given list index. More...

WifiMode GetBasicMode (uint8_t i) const
 Return a basic mode from the set of basic modes. More...

WifiTxVector GetBlockAckTxVector (Mac48Address to, const WifiTxVector &dataTxVector) const
 Return a TXVECTOR for the BlockAck frame given the destination and the mode of the Data used by the sender. More...

uint16_t GetChannelWidthSupported (Mac48Address address) const
 Return the channel width supported by the station. More...

WifiMode GetControlAnswerMode (WifiMode reqMode) const
 Get control answer mode function. More...

WifiTxVector GetCtsToSelfTxVector ()
 Since CTS-to-self parameters are not dependent on the station, it is implemented in wifi remote station manager. More...

WifiTxVector GetCtsTxVector (Mac48Address to, WifiMode rtsTxMode) const
 Return a TXVECTOR for the CTS frame given the destination and the mode of the RTS used by the sender. More...

WifiTxVector GetDataTxVector (const WifiMacHeader &header, uint16_t allowedWidth)

WifiMode GetDefaultMcs () const
 Return the default Modulation and Coding Scheme (MCS) index. More...

WifiMode GetDefaultMode () const
 Return the default transmission mode. More...

WifiMode GetDefaultModeForSta (const WifiRemoteStation *st) const
 Return the default MCS to use to transmit frames to the given station. More...

uint8_t GetDefaultTxPowerLevel () const

bool GetDsssSupported (const Mac48Address &address) const
 Return whether the station supports DSSS or not. More...

bool GetEhtSupported () const
 Return whether the device has EHT capability support enabled. More...

bool GetEhtSupported (Mac48Address address) const
 Return whether the station supports EHT or not. More...

bool GetEmlsrEnabled (const Mac48Address &address) const

bool GetEmlsrSupported (const Mac48Address &address) const

bool GetErpOfdmSupported (const Mac48Address &address) const
 Return whether the station supports ERP OFDM or not. More...

uint32_t GetFragmentationThreshold () const
 Return the fragmentation threshold. More...

uint32_t GetFragmentOffset (Ptr< const WifiMpdu > mpdu, uint32_t fragmentNumber)

uint32_t GetFragmentSize (Ptr< const WifiMpdu > mpdu, uint32_t fragmentNumber)

uint16_t GetGuardInterval () const
 Return the supported HE guard interval duration (in nanoseconds). More...

bool GetHeSupported () const
 Return whether the device has HE capability support enabled. More...

bool GetHeSupported (Mac48Address address) const
 Return whether the station supports HE or not. More...

bool GetHtSupported () const
 Return whether the device has HT capability support enabled. More...

bool GetHtSupported (Mac48Address address) const
 Return whether the station supports HT or not. More...

WifiRemoteStationInfo GetInfo (Mac48Address address)

bool GetLdpcSupported () const
 Return whether the device has LDPC support enabled. More...

bool GetLdpcSupported (Mac48Address address) const
 Return whether the station supports LDPC or not. More...

Ptr< WifiMacGetMac () const
 Return the WifiMac. More...

uint8_t GetMaxNumberOfTransmitStreams () const

std::optional< Mac48AddressGetMldAddress (const Mac48Address &address) const
 Get the address of the MLD the given station is affiliated with, if any. More...

std::optional< double > GetMostRecentRssi (Mac48Address address) const

uint8_t GetNBasicMcs () const
 Return the number of basic MCS index. More...

uint8_t GetNBasicModes () const
 Return the number of basic modes we support. More...

uint8_t GetNMcsSupported (Mac48Address address) const
 Return the number of MCS supported by the station. More...

uint32_t GetNNonErpBasicModes () const
 Return the number of non-ERP basic modes we support. More...

WifiMode GetNonErpBasicMode (uint8_t i) const
 Return a basic mode from the set of basic modes that is not an ERP mode. More...

WifiMode GetNonUnicastMode () const
 Return a mode for non-unicast packets. More...

uint8_t GetNumberOfAntennas () const

uint8_t GetNumberOfSupportedStreams (Mac48Address address) const
 Return the number of spatial streams supported by the station. More...

bool GetOfdmSupported (const Mac48Address &address) const
 Return whether the station supports OFDM or not. More...

Ptr< WifiPhyGetPhy () const
 Return the WifiPhy. More...

bool GetQosSupported (Mac48Address address) const
 Return whether the given station is QoS capable. More...

WifiTxVector GetRtsTxVector (Mac48Address address, uint16_t allowedWidth)

bool GetShortGuardIntervalSupported () const
 Return whether the device has SGI support enabled. More...

bool GetShortGuardIntervalSupported (Mac48Address address) const
 Return whether the station supports HT/VHT short guard interval. More...

bool GetShortPreambleEnabled () const
 Return whether the device uses short PHY preambles. More...

bool GetShortPreambleSupported (Mac48Address address) const
 Return whether the station supports short PHY preamble or not. More...

bool GetShortSlotTimeEnabled () const
 Return whether the device uses short slot time. More...

bool GetShortSlotTimeSupported (Mac48Address address) const
 Return whether the station supports short ERP slot time or not. More...

Ptr< const EhtCapabilitiesGetStationEhtCapabilities (Mac48Address from)
 Return the EHT capabilities sent by the remote station. More...

std::optional< std::reference_wrapper< CommonInfoBasicMle::EmlCapabilities > > GetStationEmlCapabilities (const Mac48Address &from)

Ptr< const HeCapabilitiesGetStationHeCapabilities (Mac48Address from)
 Return the HE capabilities sent by the remote station. More...

Ptr< const HtCapabilitiesGetStationHtCapabilities (Mac48Address from)
 Return the HT capabilities sent by the remote station. More...

std::optional< std::reference_wrapper< CommonInfoBasicMle::MldCapabilities > > GetStationMldCapabilities (const Mac48Address &from)

Ptr< const VhtCapabilitiesGetStationVhtCapabilities (Mac48Address from)
 Return the VHT capabilities sent by the remote station. More...

bool GetUseNonErpProtection () const
 Return whether the device supports protection of non-ERP stations. More...

bool GetUseNonHtProtection () const
 Return whether the device supports protection of non-HT stations. More...

bool GetVhtSupported () const
 Return whether the device has VHT capability support enabled. More...

bool GetVhtSupported (Mac48Address address) const
 Return whether the station supports VHT or not. More...

bool IsAssociated (Mac48Address address) const
 Return whether the station associated. More...

bool IsAssocRefused (Mac48Address address) const
 Return whether we refused an association request from the given station. More...

bool IsBrandNew (Mac48Address address) const
 Return whether the station state is brand new. More...

bool IsInPsMode (const Mac48Address &address) const
 Return whether the STA is currently in Power Save mode. More...

bool IsLastFragment (Ptr< const WifiMpdu > mpdu, uint32_t fragmentNumber)

bool IsWaitAssocTxOk (Mac48Address address) const
 Return whether we are waiting for an ACK for the association response we sent. More...

bool NeedCtsToSelf (WifiTxVector txVector)
 Return if we need to do CTS-to-self before sending a DATA. More...

bool NeedFragmentation (Ptr< const WifiMpdu > mpdu)

bool NeedRetransmission (Ptr< const WifiMpdu > mpdu)

bool NeedRts (const WifiMacHeader &header, uint32_t size)

void RecordAssocRefused (Mac48Address address)
 Records that association request was refused. More...

void RecordDisassociated (Mac48Address address)
 Records that the STA was disassociated. More...

void RecordGotAssocTxFailed (Mac48Address address)
 Records that we missed an ACK for the association response we sent. More...

void RecordGotAssocTxOk (Mac48Address address)
 Records that we got an ACK for the association response we sent. More...

void RecordWaitAssocTxOk (Mac48Address address)
 Records that we are waiting for an ACK for the association response we sent. More...

void RemoveAllSupportedMcs (Mac48Address address)
 Invoked in a STA or AP to delete all of the supported MCS by a destination. More...

void ReportAmpduTxStatus (Mac48Address address, uint16_t nSuccessfulMpdus, uint16_t nFailedMpdus, double rxSnr, double dataSnr, WifiTxVector dataTxVector)
 Typically called per A-MPDU, either when a Block ACK was successfully received or when a BlockAckTimeout has elapsed. More...

void ReportDataFailed (Ptr< const WifiMpdu > mpdu)
 Should be invoked whenever the AckTimeout associated to a transmission attempt expires. More...

void ReportDataOk (Ptr< const WifiMpdu > mpdu, double ackSnr, WifiMode ackMode, double dataSnr, WifiTxVector dataTxVector)
 Should be invoked whenever we receive the ACK associated to a data packet we just sent. More...

void ReportFinalDataFailed (Ptr< const WifiMpdu > mpdu)
 Should be invoked after calling ReportDataFailed if NeedRetransmission returns false. More...

void ReportFinalRtsFailed (const WifiMacHeader &header)
 Should be invoked after calling ReportRtsFailed if NeedRetransmission returns false. More...

void ReportRtsFailed (const WifiMacHeader &header)
 Should be invoked whenever the RtsTimeout associated to a transmission attempt expires. More...

void ReportRtsOk (const WifiMacHeader &header, double ctsSnr, WifiMode ctsMode, double rtsSnr)
 Should be invoked whenever we receive the CTS associated to an RTS we just sent. More...

void ReportRxOk (Mac48Address address, RxSignalInfo rxSignalInfo, WifiTxVector txVector)

void Reset ()
 Reset the station, invoked in a STA upon dis-association or in an AP upon reboot. More...

void SetAssociationId (Mac48Address remoteAddress, uint16_t aid)
 Record the AID of a remote station. More...

void SetDefaultTxPowerLevel (uint8_t txPower)
 Set the default transmission power level. More...

void SetEmlsrEnabled (const Mac48Address &from, bool emlsrEnabled)

void SetFragmentationThreshold (uint32_t threshold)
 Sets a fragmentation threshold. More...

void SetMaxSlrc (uint32_t maxSlrc)
 Sets the maximum STA long retry count (SLRC). More...

void SetMaxSsrc (uint32_t maxSsrc)
 Sets the maximum STA short retry count (SSRC). More...

void SetPsMode (const Mac48Address &address, bool isInPsMode)
 Register whether the STA is in Power Save mode or not. More...

void SetQosSupport (Mac48Address from, bool qosSupported)
 Records QoS support of the remote station. More...

void SetRtsCtsThreshold (uint32_t threshold)
 Sets the RTS threshold. More...

void SetShortPreambleEnabled (bool enable)
 Enable or disable short PHY preambles. More...

void SetShortSlotTimeEnabled (bool enable)
 Enable or disable short slot time. More...

void SetUseNonErpProtection (bool enable)
 Enable or disable protection for non-ERP stations. More...

void SetUseNonHtProtection (bool enable)
 Enable or disable protection for non-HT stations. More...

bool UseLdpcForDestination (Mac48Address dest) const

- Public Member Functions inherited from ns3::Object
 Object ()
 Constructor. More...

 ~Object () override
 Destructor. More...

void AggregateObject (Ptr< Object > other)
 Aggregate two Objects together. More...

void Dispose ()
 Dispose of this Object. More...

AggregateIterator GetAggregateIterator () const
 Get an iterator to the Objects aggregated to this one. More...

TypeId GetInstanceTypeId () const override
 Get the most derived TypeId for this Object. More...

template<typename T >
Ptr< T > GetObject () const
 Get a pointer to the requested aggregated Object. More...

template<>
Ptr< ObjectGetObject () const
 Specialization of () for objects of type ns3::Object. More...

template<typename T >
Ptr< T > GetObject (TypeId tid) const
 Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< ObjectGetObject (TypeId tid) const
 Specialization of (TypeId tid) for objects of type ns3::Object. More...

void Initialize ()
 Invoke DoInitialize on all Objects aggregated to this one. More...

bool IsInitialized () const
 Check if the object has been initialized. More...

- Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
 SimpleRefCount ()
 Default constructor. More...

 SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
 Copy constructor. More...

uint32_t GetReferenceCount () const
 Get the reference count of the object. More...

SimpleRefCountoperator= (const SimpleRefCount &o[[maybe_unused]])
 Assignment operator. More...

void Ref () const
 Increment the reference count. More...

void Unref () const
 Decrement the reference count. More...

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor. More...

void GetAttribute (std::string name, AttributeValue &value) const
 Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool GetAttributeFailSafe (std::string name, AttributeValue &value) const
 Get the value of an attribute without raising errors. More...

void SetAttribute (std::string name, const AttributeValue &value)
 Set a single attribute, raising fatal errors if unsuccessful. More...

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)
 Set a single attribute without raising errors. More...

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)
 Connect a TraceSource to a Callback with a context. More...

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
 Connect a TraceSource to a Callback without a context. More...

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected with a context. More...

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected without a context. More...


Static Public Member Functions

static TypeId GetTypeId ()
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::WifiRemoteStationManager
static TypeId GetTypeId ()
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::Object
static TypeId GetTypeId ()
 Register this type. More...

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId ()
 Get the type ID. More...


Private Member Functions

void AddFirstMpduTxTime (uint8_t groupId, WifiMode mode, Time t)
 Save a TxTime to the vector of groups. More...

void AddMpduTxTime (uint8_t groupId, WifiMode mode, Time t)
 Save a TxTime to the vector of groups. More...

double CalculateEwmsd (double oldEwmsd, double currentProb, double ewmaProb, double weight)
 Perform EWMSD (Exponentially Weighted Moving Standard Deviation) calculation. More...

Time CalculateMpduTxDuration (Ptr< WifiPhy > phy, uint8_t streams, uint16_t gi, uint16_t chWidth, WifiMode mode, MpduType mpduType)
 Estimates the TxTime of a frame with a given mode and group (stream, guard interval and channel width). More...

void CalculateRetransmits (MinstrelHtWifiRemoteStation *station, uint16_t index)
 Calculate the number of retransmissions to set for the index rate. More...

void CalculateRetransmits (MinstrelHtWifiRemoteStation *station, uint8_t groupId, uint8_t rateId)
 Calculate the number of retransmissions to set for the (groupId, rateId) rate. More...

double CalculateThroughput (MinstrelHtWifiRemoteStation *station, uint8_t groupId, uint8_t rateId, double ewmaProb)
 Return the average throughput of the MCS defined by groupId and rateId. More...

Time CalculateTimeUnicastPacket (Time dataTransmissionTime, uint32_t shortRetries, uint32_t longRetries)
 Estimate the time to transmit the given packet with the given number of retries. More...

void CheckInit (MinstrelHtWifiRemoteStation *station)
 Check for initializations. More...

uint32_t CountRetries (MinstrelHtWifiRemoteStation *station)
 Count retries. More...

WifiRemoteStationDoCreateStation () const override

WifiTxVector DoGetDataTxVector (WifiRemoteStation *station, uint16_t allowedWidth) override

WifiTxVector DoGetRtsTxVector (WifiRemoteStation *station) override

void DoInitialize () override
 Initialize() implementation. More...

bool DoNeedRetransmission (WifiRemoteStation *st, Ptr< const Packet > packet, bool normally) override

void DoReportAmpduTxStatus (WifiRemoteStation *station, uint16_t nSuccessfulMpdus, uint16_t nFailedMpdus, double rxSnr, double dataSnr, uint16_t dataChannelWidth, uint8_t dataNss) override
 Typically called per A-MPDU, either when a Block ACK was successfully received or when a BlockAckTimeout has elapsed. More...

void DoReportDataFailed (WifiRemoteStation *station) override
 This method is a pure virtual method that must be implemented by the sub-class. More...

void DoReportDataOk (WifiRemoteStation *station, double ackSnr, WifiMode ackMode, double dataSnr, uint16_t dataChannelWidth, uint8_t dataNss) override
 This method is a pure virtual method that must be implemented by the sub-class. More...

void DoReportFinalDataFailed (WifiRemoteStation *station) override
 This method is a pure virtual method that must be implemented by the sub-class. More...

void DoReportFinalRtsFailed (WifiRemoteStation *station) override
 This method is a pure virtual method that must be implemented by the sub-class. More...

void DoReportRtsFailed (WifiRemoteStation *station) override
 This method is a pure virtual method that must be implemented by the sub-class. More...

void DoReportRtsOk (WifiRemoteStation *station, double ctsSnr, WifiMode ctsMode, double rtsSnr) override
 This method is a pure virtual method that must be implemented by the sub-class. More...

void DoReportRxOk (WifiRemoteStation *station, double rxSnr, WifiMode txMode) override
 This method is a pure virtual method that must be implemented by the sub-class. More...

uint16_t FindRate (MinstrelHtWifiRemoteStation *station)
 Find a rate to use from Minstrel Table. More...

Time GetFirstMpduTxTime (uint8_t groupId, WifiMode mode) const
 Obtain the TxTime saved in the group information. More...

uint8_t GetGroupId (uint16_t index)
 Return the groupId from the global index. More...

WifiModeList GetHeDeviceMcsList () const
 Returns a list of only the HE MCS supported by the device. More...

uint8_t GetHeGroupId (uint8_t txstreams, uint16_t gi, uint16_t chWidth)
 Returns the groupId of an HE MCS with the given number of streams, GI and channel width used. More...

WifiModeList GetHtDeviceMcsList () const
 Returns a list of only the HT MCS supported by the device. More...

uint8_t GetHtGroupId (uint8_t txstreams, uint16_t gi, uint16_t chWidth)
 Returns the groupId of an HT MCS with the given number of streams, GI and channel width used. More...

uint16_t GetIndex (uint8_t groupId, uint8_t rateId)
 Returns the global index corresponding to the groupId and rateId. More...

uint16_t GetLowestIndex (MinstrelHtWifiRemoteStation *station)
 Returns the lowest global index of the rates supported by the station. More...

uint16_t GetLowestIndex (MinstrelHtWifiRemoteStation *station, uint8_t groupId)
 Returns the lowest global index of the rates supported by in the group. More...

Time GetMpduTxTime (uint8_t groupId, WifiMode mode) const
 Obtain the TxTime saved in the group information. More...

uint16_t GetNextSample (MinstrelHtWifiRemoteStation *station)
 Getting the next sample from Sample Table. More...

uint8_t GetRateId (uint16_t index)
 Return the rateId inside a group, from the global index. More...

WifiModeList GetVhtDeviceMcsList () const
 Returns a list of only the VHT MCS supported by the device. More...

uint8_t GetVhtGroupId (uint8_t txstreams, uint16_t gi, uint16_t chWidth)
 Returns the groupId of a VHT MCS with the given number of streams, GI and channel width used. More...

void InitSampleTable (MinstrelHtWifiRemoteStation *station)
 Initialize Sample Table. More...

bool IsValidMcs (Ptr< WifiPhy > phy, uint8_t streams, uint16_t chWidth, WifiMode mode)
 Check the validity of a combination of number of streams, chWidth and mode. More...

void PrintSampleTable (MinstrelHtWifiRemoteStation *station)
 Printing Sample Table. More...

void PrintTable (MinstrelHtWifiRemoteStation *station)
 Printing Minstrel Table. More...

void RateInit (MinstrelHtWifiRemoteStation *station)
 Initialize Minstrel Table. More...

void SetBestProbabilityRate (MinstrelHtWifiRemoteStation *station, uint16_t index)
 Set index rate as maxProbRate if it is better than current value. More...

void SetBestStationThRates (MinstrelHtWifiRemoteStation *station, uint16_t index)
 Set index rate as maxTpRate or maxTp2Rate if is better than current values. More...

void SetNextSample (MinstrelHtWifiRemoteStation *station)
 Set the next sample from Sample Table. More...

void StatsDump (MinstrelHtWifiRemoteStation *station, uint8_t groupId, std::ofstream &of)
 Print group statistics. More...

void UpdatePacketCounters (MinstrelHtWifiRemoteStation *station, uint16_t nSuccessfulMpdus, uint16_t nFailedMpdus)
 Update the number of sample count variables. More...

void UpdateRate (MinstrelHtWifiRemoteStation *station)
 Update rate. More...

uint16_t UpdateRateAfterAllowedWidth (uint16_t txRate, uint16_t allowedWidth)
 Given the index of the current TX rate, check whether the channel width is not greater than the given allowed width. More...

void UpdateRetry (MinstrelHtWifiRemoteStation *station)
 Update the number of retries and reset accordingly. More...

void UpdateStats (MinstrelHtWifiRemoteStation *station)
 Update the Minstrel Table. More...


Private Attributes

TracedValue< uint64_t > m_currentRate
 Trace rate changes. More...

uint8_t m_ewmaLevel
 Exponential weighted moving average level (or coefficient). More...

uint32_t m_frameLength
 Frame length used to calculate modes TxTime in bytes. More...

Ptr< MinstrelWifiManagerm_legacyManager
 Pointer to an instance of MinstrelWifiManager. More...

Time m_legacyUpdateStats
 How frequent do we calculate the stats for legacy MinstrelWifiManager. More...

uint8_t m_lookAroundRate
 The % to try other rates than our current rate. More...

MinstrelMcsGroups m_minstrelGroups
 Global array for groups information. More...

uint8_t m_nSampleCol
 Number of sample columns. More...

uint8_t m_numGroups
 Number of groups Minstrel should consider. More...

uint8_t m_numRates
 Number of rates per group Minstrel should consider. More...

bool m_printStats
 If statistics table should be printed. More...

Ptr< UniformRandomVariablem_uniformRandomVariable
 Provides uniform random variables. More...

Time m_updateStats
 How frequent do we calculate the stats. More...

bool m_useLatestAmendmentOnly
 Flag if only the latest supported amendment by both peers should be used. More...


Additional Inherited Members

- Protected Member Functions inherited from ns3::WifiRemoteStationManager
void DoDispose () override
 Destructor implementation. More...

Mac48Address GetAddress (const WifiRemoteStation *station) const
 Return the address of the station. More...

bool GetAggregation (const WifiRemoteStation *station) const
 Return whether the given station supports A-MPDU. More...

uint16_t GetChannelWidth (const WifiRemoteStation *station) const
 Return the channel width supported by the station. More...

bool GetEhtSupported (const WifiRemoteStation *station) const
 Return whether the given station is EHT capable. More...

bool GetEmlsrEnabled (const WifiRemoteStation *station) const

bool GetEmlsrSupported (const WifiRemoteStation *station) const

uint16_t GetGuardInterval (const WifiRemoteStation *station) const
 Return the HE guard interval duration supported by the station. More...

bool GetHeSupported (const WifiRemoteStation *station) const
 Return whether the given station is HE capable. More...

bool GetHtSupported (const WifiRemoteStation *station) const
 Return whether the given station is HT capable. More...

WifiMode GetMcsSupported (const WifiRemoteStation *station, uint8_t i) const
 Return the WifiMode supported by the specified station at the specified index. More...

uint8_t GetNess (const WifiRemoteStation *station) const

uint8_t GetNMcsSupported (const WifiRemoteStation *station) const
 Return the number of MCS supported by the given station. More...

uint32_t GetNNonErpSupported (const WifiRemoteStation *station) const
 Return the number of non-ERP modes supported by the given station. More...

WifiMode GetNonErpSupported (const WifiRemoteStation *station, uint8_t i) const
 Return whether non-ERP mode associated with the specified station at the specified index. More...

uint8_t GetNSupported (const WifiRemoteStation *station) const
 Return the number of modes supported by the given station. More...

uint8_t GetNumberOfSupportedStreams (const WifiRemoteStation *station) const
 Return the number of supported streams the station has. More...

bool GetQosSupported (const WifiRemoteStation *station) const
 Return whether the given station is QoS capable. More...

bool GetShortGuardIntervalSupported (const WifiRemoteStation *station) const
 Return whether the given station supports HT/VHT short guard interval. More...

WifiMode GetSupported (const WifiRemoteStation *station, uint8_t i) const
 Return whether mode associated with the specified station at the specified index. More...

bool GetVhtSupported (const WifiRemoteStation *station) const
 Return whether the given station is VHT capable. More...

- Protected Member Functions inherited from ns3::Object
 Object (const Object &o)
 Copy an Object. More...

virtual void NotifyNewAggregate ()
 Notify all Objects aggregated to this one of a new Object being aggregated. More...

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)
 Complete construction of ObjectBase; invoked by derived classes. More...

virtual void NotifyConstructionCompleted ()
 Notifier called once the ObjectBase is fully constructed. More...


Detailed Description

Implementation of Minstrel-HT Rate Control Algorithm.

Minstrel-HT is a rate adaptation mechanism for the 802.11n/ac/ax standards based on Minstrel, and is based on the approach of probing the channel to dynamically learn about working rates that can be supported. Minstrel-HT is designed for high-latency devices that implement a Multiple Rate Retry (MRR) chain. This kind of device does not give feedback for every frame retransmission, but only when a frame was correctly transmitted (an Ack is received) or a frame transmission completely fails (all retransmission attempts fail). The MRR chain is used to advise the hardware about which rate to use when retransmitting a frame.

Minstrel-HT adapts the MCS, channel width, number of streams, and short guard interval (enabled or disabled). For keeping statistics, it arranges MCS in groups, where each group is defined by the tuple (streams, GI, channel width). There is a vector of all groups supported by the PHY layer of the transmitter; for each group, the capabilities and the estimated duration of its rates are maintained.

Each station maintains a table of groups statistics. For each group, a flag indicates if the group is supported by the station. Different stations communicating with an AP can have different capabilities.

Stats are updated per A-MPDU when receiving AmpduTxStatus. If the number of successful or failed MPDUs is greater than zero (a BlockAck was received), the rates are also updated. If the number of successful and failed MPDUs is zero (BlockAck timeout), then the rate selected is based on the MRR chain.

On each update interval, it sets the maxThrRate, the secondmaxThrRate and the maxProbRate for the MRR chain. These rates are only used when an entire A-MPDU fails and is retried.

Differently from legacy minstrel, sampling is not done based on "lookaround ratio", but assuring all rates are sampled at least once each interval. However, it samples less often the low rates and high probability of error rates.

When this rate control is configured but non-legacy modes are not supported, Minstrel-HT uses legacy Minstrel (minstrel-wifi-manager) for rate control.

Definition at line 236 of file minstrel-ht-wifi-manager.h.

Member Typedef Documentation

◆ RateChangeTracedCallback

typedef void(* ns3::MinstrelHtWifiManager::RateChangeTracedCallback) (const uint64_t rate, const Mac48Address remoteAddress)

TracedCallback signature for rate change events.

Parameters
[in]rateThe new rate.
[in]addressThe remote station MAC address.

Definition at line 257 of file minstrel-ht-wifi-manager.h.

Constructor & Destructor Documentation

◆ MinstrelHtWifiManager()

ns3::MinstrelHtWifiManager::MinstrelHtWifiManager ( )

Create the legacy Minstrel manager in case HT is not supported by the device or non-HT stations want to associate.

Definition at line 132 of file minstrel-ht-wifi-manager.cc.

References m_legacyManager, m_uniformRandomVariable, and NS_LOG_FUNCTION.

◆ ~MinstrelHtWifiManager()

ns3::MinstrelHtWifiManager::~MinstrelHtWifiManager ( )
override

Definition at line 146 of file minstrel-ht-wifi-manager.cc.

References m_minstrelGroups, m_numGroups, and NS_LOG_FUNCTION.

Member Function Documentation

◆ AddFirstMpduTxTime()

void ns3::MinstrelHtWifiManager::AddFirstMpduTxTime ( uint8_t  groupId,
WifiMode  mode,
Time  t
)
private

Save a TxTime to the vector of groups.

Parameters
groupIdthe group ID
modethe wifi mode
tthe transmit time

Definition at line 457 of file minstrel-ht-wifi-manager.cc.

References m_minstrelGroups, and NS_LOG_FUNCTION.

Referenced by DoInitialize().

+ Here is the caller graph for this function:

◆ AddMpduTxTime()

void ns3::MinstrelHtWifiManager::AddMpduTxTime ( uint8_t  groupId,
WifiMode  mode,
Time  t
)
private

Save a TxTime to the vector of groups.

Parameters
groupIdthe group ID
modethe wifi mode
tthe transmit time

Definition at line 473 of file minstrel-ht-wifi-manager.cc.

References m_minstrelGroups, and NS_LOG_FUNCTION.

Referenced by DoInitialize().

+ Here is the caller graph for this function:

◆ AssignStreams()

int64_t ns3::MinstrelHtWifiManager::AssignStreams ( int64_t  stream)
overridevirtual

Assign a fixed random variable stream number to the random variables used by this model.

Return the number of streams (possibly zero) that have been assigned.

Parameters
streamfirst stream index to use
Returns
the number of stream indices assigned by this model

Reimplemented from ns3::WifiRemoteStationManager.

Definition at line 157 of file minstrel-ht-wifi-manager.cc.

References m_legacyManager, m_uniformRandomVariable, NS_LOG_FUNCTION, and ns3::RandomVariableStream::SetStream().

+ Here is the call graph for this function:

◆ CalculateEwmsd()

double ns3::MinstrelHtWifiManager::CalculateEwmsd ( double  oldEwmsd,
double  currentProb,
double  ewmaProb,
double  weight
)
private

Perform EWMSD (Exponentially Weighted Moving Standard Deviation) calculation.

Parameters
oldEwmsdthe old EWMSD
currentProbthe current probability
ewmaProbthe EWMA probability
weightthe weight
Returns
the EWMSD

Definition at line 1928 of file minstrel-ht-wifi-manager.cc.

Referenced by UpdateStats().

+ Here is the caller graph for this function:

◆ CalculateMpduTxDuration()

Time ns3::MinstrelHtWifiManager::CalculateMpduTxDuration ( Ptr< WifiPhy phy,
uint8_t  streams,
uint16_t  gi,
uint16_t  chWidth,
WifiMode  mode,
MpduType  mpduType
)
private

Estimates the TxTime of a frame with a given mode and group (stream, guard interval and channel width).

Parameters
phypointer to the wifi PHY
streamsthe number of streams
giguard interval duration (nanoseconds)
chWidththe channel width (MHz)
modethe wifi mode
mpduTypethe type of the MPDU
Returns
the transmit time

Definition at line 427 of file minstrel-ht-wifi-manager.cc.

References ns3::WifiPhy::CalculatePhyPreambleAndHeaderDuration(), ns3::WifiPhy::GetPayloadDuration(), m_frameLength, NS_LOG_FUNCTION, third::phy, ns3::WifiTxVector::SetChannelWidth(), ns3::WifiTxVector::SetGuardInterval(), ns3::WifiTxVector::SetMode(), ns3::WifiTxVector::SetNess(), ns3::WifiTxVector::SetNss(), ns3::WifiTxVector::SetPreambleType(), ns3::WifiTxVector::SetStbc(), and ns3::WIFI_PREAMBLE_HT_MF.

Referenced by DoInitialize().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ CalculateRetransmits() [1/2]

void ns3::MinstrelHtWifiManager::CalculateRetransmits ( MinstrelHtWifiRemoteStation station,
uint16_t  index
)
private

Calculate the number of retransmissions to set for the index rate.

Parameters
stationthe Minstrel-HT wifi remote station
indexthe index

Definition at line 1858 of file minstrel-ht-wifi-manager.cc.

References GetGroupId(), GetRateId(), ns3::MinstrelHtWifiRemoteStation::m_groupsTable, and NS_LOG_FUNCTION.

Referenced by RateInit(), and UpdateStats().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ CalculateRetransmits() [2/2]

void ns3::MinstrelHtWifiManager::CalculateRetransmits ( MinstrelHtWifiRemoteStation station,
uint8_t  groupId,
uint8_t  rateId
)
private

Calculate the number of retransmissions to set for the (groupId, rateId) rate.

Parameters
stationthe Minstrel-HT wifi remote station
groupIdthe group ID
rateIdthe rate ID

Definition at line 1870 of file minstrel-ht-wifi-manager.cc.

References ns3::WifiPhy::GetBlockAckTxTime(), GetFirstMpduTxTime(), ns3::WifiRemoteStationManager::GetMcsSupported(), GetMpduTxTime(), ns3::WifiRemoteStationManager::GetPhy(), ns3::WifiPhy::GetSifs(), ns3::WifiPhy::GetSlot(), ns3::MinstrelHtWifiRemoteStation::m_avgAmpduLen, ns3::MinstrelHtWifiRemoteStation::m_groupsTable, ns3::MilliSeconds(), ns3::Min(), and NS_LOG_FUNCTION.

+ Here is the call graph for this function:

◆ CalculateThroughput()

double ns3::MinstrelHtWifiManager::CalculateThroughput ( MinstrelHtWifiRemoteStation station,
uint8_t  groupId,
uint8_t  rateId,
double  ewmaProb
)
private

Return the average throughput of the MCS defined by groupId and rateId.

Parameters
stationthe Minstrel-HT wifi remote station
groupIdthe group ID
rateIdthe rate ID
ewmaProbthe EWMA probability
Returns
the throughput in bps

Calculating throughput. Do not account throughput if probability of success is below 10% (as done in minstrel_ht linux implementation).

For the throughput calculation, limit the probability value to 90% to account for collision related packet error rate fluctuation.

Definition at line 1538 of file minstrel-ht-wifi-manager.cc.

References ns3::Time::GetSeconds(), and ns3::MinstrelHtWifiRemoteStation::m_groupsTable.

Referenced by StatsDump(), and UpdateStats().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ CalculateTimeUnicastPacket()

Time ns3::MinstrelHtWifiManager::CalculateTimeUnicastPacket ( Time  dataTransmissionTime,
uint32_t  shortRetries,
uint32_t  longRetries
)
private

Estimate the time to transmit the given packet with the given number of retries.

This function is "roughly" the function "calc_usecs_unicast_packet" in minstrel.c in the madwifi implementation.

The basic idea is that, we try to estimate the "average" time used to transmit the packet for the given number of retries while also accounting for the 802.11 congestion window change. The original code in the madwifi seems to estimate the number of backoff slots as the half of the current CW size.

There are four main parts:

  • wait for DIFS (sense idle channel)
  • Ack timeouts
  • Data transmission
  • backoffs according to CW
Parameters
dataTransmissionTimethe data transmission time
shortRetriesthe short retries
longRetriesthe long retries
Returns
the unicast packet time

◆ CheckInit()

void ns3::MinstrelHtWifiManager::CheckInit ( MinstrelHtWifiRemoteStation station)
private

◆ CountRetries()

uint32_t ns3::MinstrelHtWifiManager::CountRetries ( MinstrelHtWifiRemoteStation station)
private

Count retries.

Parameters
stationthe Minstrel-HT wifi remote station
Returns
the count of retries

Definition at line 1219 of file minstrel-ht-wifi-manager.cc.

References GetGroupId(), GetRateId(), ns3::MinstrelHtWifiRemoteStation::m_groupsTable, ns3::MinstrelWifiRemoteStation::m_isSampling, ns3::MinstrelWifiRemoteStation::m_maxProbRate, ns3::MinstrelWifiRemoteStation::m_maxTpRate, and ns3::MinstrelWifiRemoteStation::m_maxTpRate2.

Referenced by DoNeedRetransmission(), DoReportAmpduTxStatus(), and DoReportDataFailed().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ DoCreateStation()

WifiRemoteStation * ns3::MinstrelHtWifiManager::DoCreateStation ( ) const
overrideprivatevirtual
Returns
a new station data structure

Implements ns3::WifiRemoteStationManager.

Definition at line 480 of file minstrel-ht-wifi-manager.cc.

References ns3::WifiRemoteStationManager::GetHtSupported(), m_updateStats, ns3::Simulator::Now(), and NS_LOG_FUNCTION.

+ Here is the call graph for this function:

◆ DoGetDataTxVector()

WifiTxVector ns3::MinstrelHtWifiManager::DoGetDataTxVector ( WifiRemoteStation station,
uint16_t  allowedWidth
)
overrideprivatevirtual
Parameters
stationthe station that we need to communicate
allowedWidththe allowed width in MHz to send a packet to the station
Returns
the TXVECTOR to use to send a packet to the station

Note: This method is called before sending a unicast packet or a fragment of a unicast packet to decide which transmission mode to use.

Implements ns3::WifiRemoteStationManager.

Definition at line 1023 of file minstrel-ht-wifi-manager.cc.

References CheckInit(), ns3::McsGroup::chWidth, ns3::WifiRemoteStationManager::GetAggregation(), ns3::WifiRemoteStationManager::GetChannelWidth(), ns3::WifiMode::GetDataRate(), ns3::WifiRemoteStationManager::GetDefaultTxPowerLevel(), GetGroupId(), ns3::WifiRemoteStationManager::GetGuardInterval(), ns3::WifiRemoteStationManager::GetMcsSupported(), ns3::WifiTxVector::GetMode(), ns3::WifiMode::GetModulationClass(), ns3::WifiRemoteStationManager::GetNess(), ns3::WifiRemoteStationManager::GetNumberOfAntennas(), ns3::WifiRemoteStationManager::GetNumberOfSupportedStreams(), ns3::WifiRemoteStationManager::GetPhy(), ns3::GetPreambleForTransmission(), GetRateId(), ns3::WifiRemoteStationManager::GetShortGuardIntervalSupported(), ns3::WifiRemoteStationManager::GetShortPreambleEnabled(), ns3::WifiPhy::GetTxBandwidth(), ns3::McsGroup::gi, m_currentRate, m_legacyManager, m_minstrelGroups, NS_FATAL_ERROR, NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::McsGroup::streams, ns3::McsGroup::type, UpdateRateAfterAllowedWidth(), ns3::WIFI_MINSTREL_GROUP_HE, ns3::WIFI_MINSTREL_GROUP_HT, and ns3::WIFI_MINSTREL_GROUP_VHT.

+ Here is the call graph for this function:

◆ DoGetRtsTxVector()

◆ DoInitialize()

void ns3::MinstrelHtWifiManager::DoInitialize ( void  )
overrideprivatevirtual

Initialize() implementation.

This method is called only once by Initialize(). If the user calls Initialize() multiple times, DoInitialize() is called only the first time.

Subclasses are expected to override this method and chain up to their parent's implementation once they are done. It is safe to call GetObject() and AggregateObject() from within this method.

Here we initialize m_minstrelGroups with all the possible groups. If a group is not supported by the device, then it is marked as not supported. Then, after all initializations are finished, we check actual support for each receiving station.

Initialize the groups array. The HT groups come first, then the VHT ones, and finally the HE ones. Minstrel maintains different types of indexes:

  • A global continuous index, which identifies all rates within all groups, in [0, m_numGroups * m_numRates]
  • A groupId, which indexes a group in the array, in [0, m_numGroups]
  • A rateId, which identifies a rate within a group, in [0, m_numRates]
  • A deviceIndex, which indexes a MCS in the PHY MCS array.
  • A mcsIndex, which indexes a MCS in the wifi-remote-station-manager supported MCSs array.

Is SGI supported by the transmitter?

Is channel width supported by the transmitter?

Are streams supported by the transmitter?

Is SGI supported by the transmitter?

Is channel width supported by the transmitter?

Are streams supported by the transmitter?

Is GI supported by the transmitter?

Is channel width supported by the transmitter?

Are streams supported by the transmitter?

Reimplemented from ns3::Object.

Definition at line 185 of file minstrel-ht-wifi-manager.cc.

References AddFirstMpduTxTime(), AddMpduTxTime(), CalculateMpduTxDuration(), ns3::FIRST_MPDU_IN_AGGREGATE, ns3::WifiRemoteStationManager::GetChannelWidth(), ns3::WifiRemoteStationManager::GetGuardInterval(), GetHeDeviceMcsList(), GetHeGroupId(), ns3::WifiRemoteStationManager::GetHeSupported(), GetHtDeviceMcsList(), GetHtGroupId(), ns3::WifiRemoteStationManager::GetHtSupported(), ns3::WifiRemoteStationManager::GetPhy(), ns3::WifiRemoteStationManager::GetShortGuardIntervalSupported(), GetVhtDeviceMcsList(), GetVhtGroupId(), ns3::WifiRemoteStationManager::GetVhtSupported(), IsValidMcs(), m_minstrelGroups, m_numGroups, m_numRates, ns3::MAX_HE_GROUP_RATES, ns3::MAX_HE_STREAM_GROUPS, ns3::MAX_HE_SUPPORTED_STREAMS, ns3::MAX_HE_WIDTH, ns3::MAX_HT_GROUP_RATES, ns3::MAX_HT_STREAM_GROUPS, ns3::MAX_HT_SUPPORTED_STREAMS, ns3::MAX_HT_WIDTH, ns3::MAX_VHT_GROUP_RATES, ns3::MAX_VHT_STREAM_GROUPS, ns3::MAX_VHT_SUPPORTED_STREAMS, ns3::MAX_VHT_WIDTH, ns3::MIDDLE_MPDU_IN_AGGREGATE, NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::WIFI_MINSTREL_GROUP_HE, ns3::WIFI_MINSTREL_GROUP_HT, and ns3::WIFI_MINSTREL_GROUP_VHT.

+ Here is the call graph for this function:

◆ DoNeedRetransmission()

bool ns3::MinstrelHtWifiManager::DoNeedRetransmission ( WifiRemoteStation station,
Ptr< const Packet packet,
bool  normally
)
overrideprivatevirtual
Parameters
stationthe station that we need to communicate
packetthe packet to send
normallyindicates whether the normal 802.11 data retransmission mechanism would request that the data is retransmitted or not.
Returns
true if we want to resend a packet after a failed transmission attempt, false otherwise.

Note: This method is called after any unicast packet transmission (control, management, or data) has been attempted and has failed.

Reimplemented from ns3::WifiRemoteStationManager.

Definition at line 1179 of file minstrel-ht-wifi-manager.cc.

References CheckInit(), CountRetries(), m_legacyManager, NS_LOG_DEBUG, and NS_LOG_FUNCTION.

+ Here is the call graph for this function:

◆ DoReportAmpduTxStatus()

void ns3::MinstrelHtWifiManager::DoReportAmpduTxStatus ( WifiRemoteStation station,
uint16_t  nSuccessfulMpdus,
uint16_t  nFailedMpdus,
double  rxSnr,
double  dataSnr,
uint16_t  dataChannelWidth,
uint8_t  dataNss
)
overrideprivatevirtual

Typically called per A-MPDU, either when a Block ACK was successfully received or when a BlockAckTimeout has elapsed.

This method is a virtual method that must be implemented by the sub-class intended to handle A-MPDUs. This allows different types of WifiRemoteStationManager to respond differently.

Parameters
stationthe station that sent the DATA to us
nSuccessfulMpdusnumber of successfully transmitted MPDUs. A value of 0 means that the Block ACK was missed.
nFailedMpdusnumber of unsuccessfuly transmitted MPDUs.
rxSnrreceived SNR of the block ack frame itself
dataSnrdata SNR reported by remote station
dataChannelWidththe channel width (in MHz) of the A-MPDU we sent
dataNssthe number of spatial streams used to send the A-MPDU

Reimplemented from ns3::WifiRemoteStationManager.

Definition at line 763 of file minstrel-ht-wifi-manager.cc.

References CheckInit(), CountRetries(), FindRate(), GetGroupId(), GetRateId(), ns3::Simulator::Now(), NS_ASSERT_MSG, NS_LOG_DEBUG, NS_LOG_FUNCTION, UpdatePacketCounters(), UpdateRate(), UpdateRetry(), and UpdateStats().

+ Here is the call graph for this function:

◆ DoReportDataFailed()

void ns3::MinstrelHtWifiManager::DoReportDataFailed ( WifiRemoteStation station)
overrideprivatevirtual

This method is a pure virtual method that must be implemented by the sub-class.

This allows different types of WifiRemoteStationManager to respond differently,

Parameters
stationthe station that we failed to send DATA

Implements ns3::WifiRemoteStationManager.

Definition at line 609 of file minstrel-ht-wifi-manager.cc.

References CheckInit(), CountRetries(), GetGroupId(), GetRateId(), m_legacyManager, NS_LOG_DEBUG, NS_LOG_FUNCTION, and UpdateRate().

+ Here is the call graph for this function:

◆ DoReportDataOk()

void ns3::MinstrelHtWifiManager::DoReportDataOk ( WifiRemoteStation station,
double  ackSnr,
WifiMode  ackMode,
double  dataSnr,
uint16_t  dataChannelWidth,
uint8_t  dataNss
)
overrideprivatevirtual

This method is a pure virtual method that must be implemented by the sub-class.

This allows different types of WifiRemoteStationManager to respond differently,

Parameters
stationthe station that we successfully sent RTS
ackSnrthe SNR of the ACK we received
ackModethe WifiMode the receiver used to send the ACK
dataSnrthe SNR of the DATA we sent
dataChannelWidththe channel width (in MHz) of the DATA we sent
dataNssthe number of spatial streams used to send the DATA

Implements ns3::WifiRemoteStationManager.

Definition at line 639 of file minstrel-ht-wifi-manager.cc.

References CheckInit(), FindRate(), GetGroupId(), GetRateId(), m_legacyManager, ns3::Simulator::Now(), NS_LOG_DEBUG, NS_LOG_FUNCTION, UpdatePacketCounters(), UpdateRetry(), and UpdateStats().

+ Here is the call graph for this function:

◆ DoReportFinalDataFailed()

void ns3::MinstrelHtWifiManager::DoReportFinalDataFailed ( WifiRemoteStation station)
overrideprivatevirtual

This method is a pure virtual method that must be implemented by the sub-class.

This allows different types of WifiRemoteStationManager to respond differently,

Parameters
stationthe station that we failed to send DATA

Implements ns3::WifiRemoteStationManager.

Definition at line 716 of file minstrel-ht-wifi-manager.cc.

References CheckInit(), FindRate(), m_legacyManager, ns3::Simulator::Now(), NS_LOG_DEBUG, NS_LOG_FUNCTION, UpdatePacketCounters(), UpdateRetry(), and UpdateStats().

+ Here is the call graph for this function:

◆ DoReportFinalRtsFailed()

void ns3::MinstrelHtWifiManager::DoReportFinalRtsFailed ( WifiRemoteStation station)
overrideprivatevirtual

This method is a pure virtual method that must be implemented by the sub-class.

This allows different types of WifiRemoteStationManager to respond differently,

Parameters
stationthe station that we failed to send RTS

Implements ns3::WifiRemoteStationManager.

Definition at line 595 of file minstrel-ht-wifi-manager.cc.

References CheckInit(), NS_LOG_DEBUG, NS_LOG_FUNCTION, and UpdateRetry().

+ Here is the call graph for this function:

◆ DoReportRtsFailed()

void ns3::MinstrelHtWifiManager::DoReportRtsFailed ( WifiRemoteStation station)
overrideprivatevirtual

This method is a pure virtual method that must be implemented by the sub-class.

This allows different types of WifiRemoteStationManager to respond differently,

Parameters
stationthe station that we failed to send RTS

Implements ns3::WifiRemoteStationManager.

Definition at line 572 of file minstrel-ht-wifi-manager.cc.

References CheckInit(), NS_LOG_DEBUG, and NS_LOG_FUNCTION.

+ Here is the call graph for this function:

◆ DoReportRtsOk()

void ns3::MinstrelHtWifiManager::DoReportRtsOk ( WifiRemoteStation station,
double  ctsSnr,
WifiMode  ctsMode,
double  rtsSnr
)
overrideprivatevirtual

This method is a pure virtual method that must be implemented by the sub-class.

This allows different types of WifiRemoteStationManager to respond differently,

Parameters
stationthe station that we successfully sent RTS
ctsSnrthe SNR of the CTS we received
ctsModethe WifiMode the receiver used to send the CTS
rtsSnrthe SNR of the RTS we sent

Implements ns3::WifiRemoteStationManager.

Definition at line 586 of file minstrel-ht-wifi-manager.cc.

References NS_LOG_FUNCTION.

◆ DoReportRxOk()

void ns3::MinstrelHtWifiManager::DoReportRxOk ( WifiRemoteStation station,
double  rxSnr,
WifiMode  txMode
)
overrideprivatevirtual

This method is a pure virtual method that must be implemented by the sub-class.

This allows different types of WifiRemoteStationManager to respond differently,

Parameters
stationthe station that sent the DATA to us
rxSnrthe SNR of the DATA we received
txModethe WifiMode the sender used to send the DATA

Implements ns3::WifiRemoteStationManager.

Definition at line 564 of file minstrel-ht-wifi-manager.cc.

References NS_LOG_DEBUG, and NS_LOG_FUNCTION.

◆ FindRate()

uint16_t ns3::MinstrelHtWifiManager::FindRate ( MinstrelHtWifiRemoteStation station)
private

Find a rate to use from Minstrel Table.

Parameters
stationthe Minstrel-HT wifi remote station
Returns
the rate in bps

Now go through the table and find an index rate.

Sampling might add some overhead to the frame. Hence, don't use sampling for the currently used rates.

Also do not sample if the probability is already higher than 95% to avoid wasting airtime.

Make sure that lower rates get sampled only occasionally, if the link is working perfectly.

Set flag that we are currently sampling.

set the rate that we're currently sampling

Set flag that we are currently sampling.

set the rate that we're currently sampling

Continue using the best rate.

Definition at line 1287 of file minstrel-ht-wifi-manager.cc.

References ns3::MinstrelHtRateInfo::ewmaProb, GetGroupId(), GetNextSample(), GetRateId(), ns3::MinstrelHtWifiRemoteStation::m_groupsTable, ns3::MinstrelWifiRemoteStation::m_isSampling, ns3::MinstrelWifiRemoteStation::m_maxProbRate, ns3::MinstrelWifiRemoteStation::m_maxTpRate, ns3::MinstrelWifiRemoteStation::m_maxTpRate2, m_minstrelGroups, ns3::MinstrelHtWifiRemoteStation::m_numSamplesSlow, ns3::MinstrelWifiRemoteStation::m_samplePacketsCount, ns3::MinstrelWifiRemoteStation::m_sampleRate, ns3::MinstrelHtWifiRemoteStation::m_sampleTries, ns3::MinstrelHtWifiRemoteStation::m_sampleWait, ns3::MinstrelWifiRemoteStation::m_totalPacketsCount, ns3::MinstrelWifiRemoteStation::m_txrate, NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::MinstrelHtRateInfo::numSamplesSkipped, and ns3::MinstrelHtRateInfo::perfectTxTime.

Referenced by DoReportAmpduTxStatus(), DoReportDataOk(), DoReportFinalDataFailed(), and RateInit().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ GetFirstMpduTxTime()

Time ns3::MinstrelHtWifiManager::GetFirstMpduTxTime ( uint8_t  groupId,
WifiMode  mode
) const
private

Obtain the TxTime saved in the group information.

Parameters
groupIdthe group ID
modethe wifi mode
Returns
the transmit time

Definition at line 448 of file minstrel-ht-wifi-manager.cc.

References m_minstrelGroups, NS_ASSERT, and NS_LOG_FUNCTION.

Referenced by CalculateRetransmits(), RateInit(), and StatsDump().

+ Here is the caller graph for this function:

◆ GetGroupId()

uint8_t ns3::MinstrelHtWifiManager::GetGroupId ( uint16_t  index)
private

Return the groupId from the global index.

Parameters
indexthe index
Returns
the group ID

Definition at line 2106 of file minstrel-ht-wifi-manager.cc.

References m_numRates, and NS_LOG_FUNCTION.

Referenced by CalculateRetransmits(), CountRetries(), DoGetDataTxVector(), DoGetRtsTxVector(), DoReportAmpduTxStatus(), DoReportDataFailed(), DoReportDataOk(), FindRate(), SetBestProbabilityRate(), SetBestStationThRates(), UpdateRate(), and UpdateRateAfterAllowedWidth().

+ Here is the caller graph for this function:

◆ GetHeDeviceMcsList()

WifiModeList ns3::MinstrelHtWifiManager::GetHeDeviceMcsList ( ) const
private

Returns a list of only the HE MCS supported by the device.

Returns
the list of the HE MCS supported

Definition at line 2230 of file minstrel-ht-wifi-manager.cc.

References ns3::WifiPhy::GetMcsList(), ns3::WifiRemoteStationManager::GetPhy(), and ns3::WIFI_MOD_CLASS_HE.

Referenced by DoInitialize().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ GetHeGroupId()

uint8_t ns3::MinstrelHtWifiManager::GetHeGroupId ( uint8_t  txstreams,
uint16_t  gi,
uint16_t  chWidth
)
private

Returns the groupId of an HE MCS with the given number of streams, GI and channel width used.

Parameters
txstreamsthe number of streams
giguard interval duration (nanoseconds)
chWidththe channel width (MHz)
Returns
the HE group ID

add all HT groups

This check is needed since we do not support VHT in 2.4 GHz band

add all VHT groups

Definition at line 2151 of file minstrel-ht-wifi-manager.cc.

References ns3::WifiRemoteStationManager::GetVhtSupported(), ns3::MAX_HE_SUPPORTED_STREAMS, ns3::MAX_HT_STREAM_GROUPS, ns3::MAX_HT_SUPPORTED_STREAMS, ns3::MAX_VHT_STREAM_GROUPS, ns3::MAX_VHT_SUPPORTED_STREAMS, and NS_LOG_FUNCTION.

Referenced by DoInitialize(), and UpdateRateAfterAllowedWidth().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ GetHtDeviceMcsList()

WifiModeList ns3::MinstrelHtWifiManager::GetHtDeviceMcsList ( ) const
private

Returns a list of only the HT MCS supported by the device.

Returns
the list of the HT MCS supported

Definition at line 2246 of file minstrel-ht-wifi-manager.cc.

References ns3::WifiPhy::GetMcsList(), ns3::WifiRemoteStationManager::GetPhy(), and ns3::WIFI_MOD_CLASS_HT.

Referenced by DoInitialize().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ GetHtGroupId()

uint8_t ns3::MinstrelHtWifiManager::GetHtGroupId ( uint8_t  txstreams,
uint16_t  gi,
uint16_t  chWidth
)
private

Returns the groupId of an HT MCS with the given number of streams, GI and channel width used.

Parameters
txstreamsthe number of streams
giguard interval duration (nanoseconds)
chWidththe channel width (MHz)
Returns
the HT group ID

Definition at line 2113 of file minstrel-ht-wifi-manager.cc.

References ns3::MAX_HT_SUPPORTED_STREAMS, and NS_LOG_FUNCTION.

Referenced by DoInitialize(), and UpdateRateAfterAllowedWidth().

+ Here is the caller graph for this function:

◆ GetIndex()

uint16_t ns3::MinstrelHtWifiManager::GetIndex ( uint8_t  groupId,
uint8_t  rateId
)
private

Returns the global index corresponding to the groupId and rateId.

For managing rates from different groups, a global index for all rates in all groups is used. The group order is fixed by BW -> SGI -> streams.

Parameters
groupIdthe group ID
rateIdthe rate ID
Returns
the index

Definition at line 2088 of file minstrel-ht-wifi-manager.cc.

References m_numRates, and NS_LOG_FUNCTION.

Referenced by GetLowestIndex(), GetNextSample(), StatsDump(), UpdateRateAfterAllowedWidth(), and UpdateStats().

+ Here is the caller graph for this function:

◆ GetLowestIndex() [1/2]

uint16_t ns3::MinstrelHtWifiManager::GetLowestIndex ( MinstrelHtWifiRemoteStation station)
private

Returns the lowest global index of the rates supported by the station.

Parameters
stationthe Minstrel-HT wifi remote station
Returns
the lowest global index

Definition at line 2195 of file minstrel-ht-wifi-manager.cc.

References GetIndex(), ns3::MinstrelHtWifiRemoteStation::m_groupsTable, NS_ASSERT, and NS_LOG_FUNCTION.

Referenced by UpdateStats().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ GetLowestIndex() [2/2]

uint16_t ns3::MinstrelHtWifiManager::GetLowestIndex ( MinstrelHtWifiRemoteStation station,
uint8_t  groupId
)
private

Returns the lowest global index of the rates supported by in the group.

Parameters
stationthe Minstrel-HT wifi remote station
groupIdthe group ID
Returns
the lowest global index

Definition at line 2215 of file minstrel-ht-wifi-manager.cc.

References GetIndex(), ns3::MinstrelHtWifiRemoteStation::m_groupsTable, NS_ASSERT, and NS_LOG_FUNCTION.

+ Here is the call graph for this function:

◆ GetMpduTxTime()

Time ns3::MinstrelHtWifiManager::GetMpduTxTime ( uint8_t  groupId,
WifiMode  mode
) const
private

Obtain the TxTime saved in the group information.

Parameters
groupIdthe group ID
modethe wifi mode
Returns
the transmit time

Definition at line 464 of file minstrel-ht-wifi-manager.cc.

References m_minstrelGroups, NS_ASSERT, and NS_LOG_FUNCTION.

Referenced by CalculateRetransmits().

+ Here is the caller graph for this function:

◆ GetNextSample()

uint16_t ns3::MinstrelHtWifiManager::GetNextSample ( MinstrelHtWifiRemoteStation station)
private

Getting the next sample from Sample Table.

Parameters
stationthe wifi remote station
Returns
the next sample

Definition at line 1242 of file minstrel-ht-wifi-manager.cc.

References GetIndex(), ns3::MinstrelHtWifiRemoteStation::m_groupsTable, ns3::MinstrelHtWifiRemoteStation::m_sampleGroup, ns3::MinstrelWifiRemoteStation::m_sampleTable, NS_LOG_DEBUG, NS_LOG_FUNCTION, and SetNextSample().

Referenced by FindRate().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ GetRateId()

uint8_t ns3::MinstrelHtWifiManager::GetRateId ( uint16_t  index)
private

Return the rateId inside a group, from the global index.

Parameters
indexthe index
Returns
the rate ID

Definition at line 2097 of file minstrel-ht-wifi-manager.cc.

References m_numRates, and NS_LOG_FUNCTION.

Referenced by CalculateRetransmits(), CountRetries(), DoGetDataTxVector(), DoGetRtsTxVector(), DoReportAmpduTxStatus(), DoReportDataFailed(), DoReportDataOk(), FindRate(), SetBestProbabilityRate(), SetBestStationThRates(), UpdateRate(), and UpdateRateAfterAllowedWidth().

+ Here is the caller graph for this function:

◆ GetTypeId()

◆ GetVhtDeviceMcsList()

WifiModeList ns3::MinstrelHtWifiManager::GetVhtDeviceMcsList ( ) const
private

Returns a list of only the VHT MCS supported by the device.

Returns
the list of the VHT MCS supported

Definition at line 2238 of file minstrel-ht-wifi-manager.cc.

References ns3::WifiPhy::GetMcsList(), ns3::WifiRemoteStationManager::GetPhy(), and ns3::WIFI_MOD_CLASS_VHT.

Referenced by DoInitialize().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ GetVhtGroupId()

uint8_t ns3::MinstrelHtWifiManager::GetVhtGroupId ( uint8_t  txstreams,
uint16_t  gi,
uint16_t  chWidth
)
private

Returns the groupId of a VHT MCS with the given number of streams, GI and channel width used.

Parameters
txstreamsthe number of streams
giguard interval duration (nanoseconds)
chWidththe channel width (MHz)
Returns
the VHT group ID

add all HT groups

Definition at line 2123 of file minstrel-ht-wifi-manager.cc.

References ns3::MAX_HT_STREAM_GROUPS, ns3::MAX_HT_SUPPORTED_STREAMS, ns3::MAX_VHT_SUPPORTED_STREAMS, and NS_LOG_FUNCTION.

Referenced by DoInitialize(), and UpdateRateAfterAllowedWidth().

+ Here is the caller graph for this function:

◆ InitSampleTable()

void ns3::MinstrelHtWifiManager::InitSampleTable ( MinstrelHtWifiRemoteStation station)
private

Initialize Sample Table.

Parameters
stationthe Minstrel-HT wifi remote station

The next two lines basically tries to generate a random number between 0 and the number of available rates

Definition at line 1948 of file minstrel-ht-wifi-manager.cc.

References ns3::UniformRandomVariable::GetInteger(), ns3::MinstrelWifiRemoteStation::m_col, ns3::MinstrelWifiRemoteStation::m_index, m_nSampleCol, m_numRates, ns3::MinstrelWifiRemoteStation::m_sampleTable, m_uniformRandomVariable, and NS_LOG_FUNCTION.

Referenced by CheckInit().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ IsValidMcs()

bool ns3::MinstrelHtWifiManager::IsValidMcs ( Ptr< WifiPhy phy,
uint8_t  streams,
uint16_t  chWidth,
WifiMode  mode
)
private

Check the validity of a combination of number of streams, chWidth and mode.

Parameters
phypointer to the wifi PHY
streamsthe number of streams
chWidththe channel width (MHz)
modethe wifi mode
Returns
true if the combination is valid

Definition at line 413 of file minstrel-ht-wifi-manager.cc.

References ns3::WifiTxVector::IsValid(), NS_LOG_FUNCTION, third::phy, ns3::WifiTxVector::SetChannelWidth(), ns3::WifiTxVector::SetMode(), and ns3::WifiTxVector::SetNss().

Referenced by DoInitialize(), and RateInit().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ PrintSampleTable()

void ns3::MinstrelHtWifiManager::PrintSampleTable ( MinstrelHtWifiRemoteStation station)
private

Printing Sample Table.

Parameters
stationthe Minstrel-HT wifi remote station

◆ PrintTable()

void ns3::MinstrelHtWifiManager::PrintTable ( MinstrelHtWifiRemoteStation station)
private

Printing Minstrel Table.

Parameters
stationthe Minstrel-HT wifi remote station

Definition at line 1979 of file minstrel-ht-wifi-manager.cc.

References ns3::WifiRemoteStationState::m_address, ns3::MinstrelHtWifiRemoteStation::m_avgAmpduLen, m_numGroups, ns3::MinstrelWifiRemoteStation::m_samplePacketsCount, ns3::WifiRemoteStation::m_state, ns3::MinstrelHtWifiRemoteStation::m_statsFile, ns3::MinstrelWifiRemoteStation::m_totalPacketsCount, ns3::Max(), and StatsDump().

Referenced by UpdateStats().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ RateInit()

void ns3::MinstrelHtWifiManager::RateInit ( MinstrelHtWifiRemoteStation station)
private

Initialize Minstrel Table.

Parameters
stationthe Minstrel-HT wifi remote station

Initialize groups supported by the receiver.

Create the rate list for the group.

Use the McsValue as the index in the rate table. This way, MCSs not supported are not initialized.

If it is a HE MCS only add to a HE group.

Check validity of the HE MCS

If it is a VHT MCS only add to a VHT group.

Check validity of the VHT MCS

If it is a HT MCS only add to a HT group.

Check if the HT MCS corresponds to groups number of streams.

Mapping between rateId and operationalMcsSet

make sure at least one group is supported, otherwise we end up with an infinite loop in SetNextSample

Select the initial sample index.

Calculate the initial high throughput rates.

Select the rate to use.

Definition at line 1701 of file minstrel-ht-wifi-manager.cc.

References CalculateRetransmits(), FindRate(), ns3::WifiRemoteStationManager::GetChannelWidth(), GetFirstMpduTxTime(), ns3::WifiRemoteStationManager::GetGuardInterval(), ns3::WifiRemoteStationManager::GetHeSupported(), ns3::WifiRemoteStationManager::GetMcsSupported(), ns3::WifiMode::GetMcsValue(), ns3::WifiMode::GetModulationClass(), ns3::WifiRemoteStationManager::GetNumberOfSupportedStreams(), ns3::WifiRemoteStationManager::GetPhy(), ns3::WifiRemoteStationManager::GetShortGuardIntervalSupported(), ns3::WifiRemoteStationManager::GetVhtSupported(), IsValidMcs(), ns3::MinstrelHtWifiRemoteStation::m_groupsTable, m_minstrelGroups, ns3::MinstrelWifiRemoteStation::m_nModes, m_numGroups, m_numRates, ns3::MinstrelWifiRemoteStation::m_txrate, m_useLatestAmendmentOnly, ns3::MAX_HT_GROUP_RATES, NS_FATAL_ERROR, NS_LOG_DEBUG, NS_LOG_FUNCTION, SetNextSample(), check-style-clang-format::type, UpdateStats(), ns3::WIFI_MINSTREL_GROUP_HE, ns3::WIFI_MINSTREL_GROUP_HT, ns3::WIFI_MINSTREL_GROUP_VHT, ns3::WIFI_MOD_CLASS_HE, ns3::WIFI_MOD_CLASS_HT, and ns3::WIFI_MOD_CLASS_VHT.

Referenced by CheckInit().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ SetBestProbabilityRate()

void ns3::MinstrelHtWifiManager::SetBestProbabilityRate ( MinstrelHtWifiRemoteStation station,
uint16_t  index
)
private

Set index rate as maxProbRate if it is better than current value.

Parameters
stationthe Minstrel-HT wifi remote station
indexthe index

Definition at line 1571 of file minstrel-ht-wifi-manager.cc.

References ns3::MinstrelHtRateInfo::ewmaProb, GetGroupId(), GetRateId(), ns3::MinstrelHtWifiRemoteStation::m_groupsTable, ns3::GroupInfo::m_maxProbRate, ns3::MinstrelWifiRemoteStation::m_maxProbRate, and ns3::GroupInfo::m_ratesTable.

Referenced by UpdateStats().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ SetBestStationThRates()

void ns3::MinstrelHtWifiManager::SetBestStationThRates ( MinstrelHtWifiRemoteStation station,
uint16_t  index
)
private

Set index rate as maxTpRate or maxTp2Rate if is better than current values.

Parameters
stationthe Minstrel-HT wifi remote station
indexthe index

Definition at line 1636 of file minstrel-ht-wifi-manager.cc.

References GetGroupId(), GetRateId(), ns3::MinstrelHtWifiRemoteStation::m_groupsTable, ns3::GroupInfo::m_maxTpRate, ns3::MinstrelWifiRemoteStation::m_maxTpRate, ns3::GroupInfo::m_maxTpRate2, ns3::MinstrelWifiRemoteStation::m_maxTpRate2, and ns3::GroupInfo::m_ratesTable.

Referenced by UpdateStats().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ SetNextSample()

void ns3::MinstrelHtWifiManager::SetNextSample ( MinstrelHtWifiRemoteStation station)
private

Set the next sample from Sample Table.

Parameters
stationthe wifi remote station

Definition at line 1256 of file minstrel-ht-wifi-manager.cc.

References ns3::MinstrelHtWifiRemoteStation::m_groupsTable, m_nSampleCol, m_numGroups, m_numRates, ns3::MinstrelHtWifiRemoteStation::m_sampleGroup, ns3::MinstrelWifiRemoteStation::m_sampleTable, NS_LOG_DEBUG, and NS_LOG_FUNCTION.

Referenced by GetNextSample(), and RateInit().

+ Here is the caller graph for this function:

◆ SetupMac()

void ns3::MinstrelHtWifiManager::SetupMac ( const Ptr< WifiMac mac)
overridevirtual

Set up MAC associated with this device since it is the object that knows the full set of timing parameters (e.g.

IFS).

Parameters
macthe MAC of this device

Reimplemented from ns3::WifiRemoteStationManager.

Definition at line 177 of file minstrel-ht-wifi-manager.cc.

References m_legacyManager, third::mac, NS_LOG_FUNCTION, and ns3::WifiRemoteStationManager::SetupMac().

+ Here is the call graph for this function:

◆ SetupPhy()

void ns3::MinstrelHtWifiManager::SetupPhy ( const Ptr< WifiPhy phy)
overridevirtual

Set up PHY associated with this device since it is the object that knows the full set of transmit rates that are supported.

Parameters
phythe PHY of this device

Reimplemented from ns3::WifiRemoteStationManager.

Definition at line 168 of file minstrel-ht-wifi-manager.cc.

References m_legacyManager, NS_LOG_FUNCTION, third::phy, and ns3::WifiRemoteStationManager::SetupPhy().

+ Here is the call graph for this function:

◆ StatsDump()

void ns3::MinstrelHtWifiManager::StatsDump ( MinstrelHtWifiRemoteStation station,
uint8_t  groupId,
std::ofstream &  of
)
private

◆ UpdatePacketCounters()

void ns3::MinstrelHtWifiManager::UpdatePacketCounters ( MinstrelHtWifiRemoteStation station,
uint16_t  nSuccessfulMpdus,
uint16_t  nFailedMpdus
)
private

Update the number of sample count variables.

Parameters
stationthe wifi remote station
nSuccessfulMpdusthe number of successfully received MPDUs
nFailedMpdusthe number of failed MPDUs

Definition at line 939 of file minstrel-ht-wifi-manager.cc.

References ns3::MinstrelHtWifiRemoteStation::m_avgAmpduLen, ns3::MinstrelWifiRemoteStation::m_isSampling, ns3::MinstrelHtWifiRemoteStation::m_sampleCount, ns3::MinstrelWifiRemoteStation::m_samplePacketsCount, ns3::MinstrelHtWifiRemoteStation::m_sampleTries, ns3::MinstrelHtWifiRemoteStation::m_sampleWait, ns3::MinstrelWifiRemoteStation::m_totalPacketsCount, and NS_LOG_FUNCTION.

Referenced by DoReportAmpduTxStatus(), DoReportDataOk(), and DoReportFinalDataFailed().

+ Here is the caller graph for this function:

◆ UpdateRate()

void ns3::MinstrelHtWifiManager::UpdateRate ( MinstrelHtWifiRemoteStation station)
private

Update rate.

Parameters
stationthe Minstrel-HT wifi remote station

Retry Chain table is implemented here.

FIXME Currently, NS3 does not retransmit an entire A-MPDU when BACK is missing but retransmits each MPDU until MPDUs lifetime expires (or a BACK is received). Then, there is no way to control A-MPDU retries (no call to NeedDataRetransmission). So, it is possible that the A-MPDU keeps retrying after longRetry reaches its limit.

Try | LOOKAROUND RATE | NORMAL RATE

1 | Random rate | Best throughput 2 | Next best throughput | Next best throughput 3 | Best probability | Best probability

Note: For clarity, multiple blocks of if's and else's are used Following implementation in Linux, in MinstrelHT lowest base rate is not used. Explanation can be found here: http://marc.info/?l=linux-wireless&m=144602778611966&w=2

Get the IDs for all rates.

For normal rate, we're not currently sampling random rates.

Use best throughput rate.

< There are still a few retries.

Use second best throughput rate.

Use best probability rate.

We're currently sampling random rates.

Sample rate is used only once Use the best rate.

Use the best probability rate.

Definition at line 823 of file minstrel-ht-wifi-manager.cc.

References CheckInit(), GetGroupId(), GetRateId(), ns3::MinstrelHtWifiRemoteStation::m_groupsTable, ns3::MinstrelWifiRemoteStation::m_initialized, ns3::MinstrelWifiRemoteStation::m_isSampling, ns3::MinstrelWifiRemoteStation::m_longRetry, ns3::MinstrelWifiRemoteStation::m_maxProbRate, ns3::MinstrelWifiRemoteStation::m_maxTpRate, ns3::MinstrelWifiRemoteStation::m_maxTpRate2, ns3::MinstrelWifiRemoteStation::m_txrate, NS_FATAL_ERROR, NS_LOG_DEBUG, and NS_LOG_FUNCTION.

Referenced by DoReportAmpduTxStatus(), and DoReportDataFailed().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ UpdateRateAfterAllowedWidth()

uint16_t ns3::MinstrelHtWifiManager::UpdateRateAfterAllowedWidth ( uint16_t  txRate,
uint16_t  allowedWidth
)
private

Given the index of the current TX rate, check whether the channel width is not greater than the given allowed width.

If so, the index of the current TX rate is returned. Otherwise, try halving the channel width and check if the MCS group with the same number of streams and same GI is supported. If a supported MCS group is found, return the index of the TX rate within such a group with the same MCS as the given TX rate. If no supported MCS group is found, the simulation aborts.

Parameters
txRatethe index of the current TX rate
allowedWidththe allowed width in MHz
Returns
the index of a TX rate whose channel width is not greater than the allowed width, if found (otherwise, the simulation aborts)

Definition at line 965 of file minstrel-ht-wifi-manager.cc.

References ns3::McsGroup::chWidth, GetGroupId(), GetHeGroupId(), GetHtGroupId(), ns3::WifiRemoteStationManager::GetHtSupported(), GetIndex(), GetRateId(), GetVhtGroupId(), ns3::McsGroup::gi, ns3::McsGroup::isSupported, m_minstrelGroups, NS_ABORT_MSG, NS_ABORT_MSG_IF, NS_ASSERT, NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::McsGroup::streams, ns3::McsGroup::type, ns3::WIFI_MINSTREL_GROUP_HE, ns3::WIFI_MINSTREL_GROUP_HT, and ns3::WIFI_MINSTREL_GROUP_VHT.

Referenced by DoGetDataTxVector().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ UpdateRetry()

void ns3::MinstrelHtWifiManager::UpdateRetry ( MinstrelHtWifiRemoteStation station)
private

Update the number of retries and reset accordingly.

Parameters
stationthe wifi remote station

Definition at line 931 of file minstrel-ht-wifi-manager.cc.

References ns3::MinstrelWifiRemoteStation::m_longRetry, ns3::MinstrelWifiRemoteStation::m_shortRetry, and NS_LOG_FUNCTION.

Referenced by DoReportAmpduTxStatus(), DoReportDataOk(), DoReportFinalDataFailed(), and DoReportFinalRtsFailed().

+ Here is the caller graph for this function:

◆ UpdateStats()

Member Data Documentation

◆ m_currentRate

TracedValue<uint64_t> ns3::MinstrelHtWifiManager::m_currentRate
private

Trace rate changes.

Definition at line 677 of file minstrel-ht-wifi-manager.h.

Referenced by DoGetDataTxVector(), and GetTypeId().

◆ m_ewmaLevel

uint8_t ns3::MinstrelHtWifiManager::m_ewmaLevel
private

Exponential weighted moving average level (or coefficient).

Definition at line 661 of file minstrel-ht-wifi-manager.h.

Referenced by CheckInit(), GetTypeId(), and UpdateStats().

◆ m_frameLength

uint32_t ns3::MinstrelHtWifiManager::m_frameLength
private

Frame length used to calculate modes TxTime in bytes.

Definition at line 663 of file minstrel-ht-wifi-manager.h.

Referenced by CalculateMpduTxDuration(), CheckInit(), and GetTypeId().

◆ m_legacyManager

Ptr<MinstrelWifiManager> ns3::MinstrelHtWifiManager::m_legacyManager
private

◆ m_legacyUpdateStats

Time ns3::MinstrelHtWifiManager::m_legacyUpdateStats
private

How frequent do we calculate the stats for legacy MinstrelWifiManager.

Definition at line 658 of file minstrel-ht-wifi-manager.h.

Referenced by CheckInit(), and GetTypeId().

◆ m_lookAroundRate

uint8_t ns3::MinstrelHtWifiManager::m_lookAroundRate
private

The % to try other rates than our current rate.

Definition at line 660 of file minstrel-ht-wifi-manager.h.

Referenced by CheckInit(), and GetTypeId().

◆ m_minstrelGroups

MinstrelMcsGroups ns3::MinstrelHtWifiManager::m_minstrelGroups
private

◆ m_nSampleCol

uint8_t ns3::MinstrelHtWifiManager::m_nSampleCol
private

Number of sample columns.

Definition at line 662 of file minstrel-ht-wifi-manager.h.

Referenced by CheckInit(), GetTypeId(), InitSampleTable(), and SetNextSample().

◆ m_numGroups

uint8_t ns3::MinstrelHtWifiManager::m_numGroups
private

Number of groups Minstrel should consider.

Definition at line 664 of file minstrel-ht-wifi-manager.h.

Referenced by ~MinstrelHtWifiManager(), DoInitialize(), PrintTable(), RateInit(), SetNextSample(), and UpdateStats().

◆ m_numRates

uint8_t ns3::MinstrelHtWifiManager::m_numRates
private

Number of rates per group Minstrel should consider.

Definition at line 665 of file minstrel-ht-wifi-manager.h.

Referenced by CheckInit(), DoInitialize(), GetGroupId(), GetIndex(), GetRateId(), InitSampleTable(), RateInit(), SetNextSample(), StatsDump(), and UpdateStats().

◆ m_printStats

bool ns3::MinstrelHtWifiManager::m_printStats
private

If statistics table should be printed.

Definition at line 668 of file minstrel-ht-wifi-manager.h.

Referenced by CheckInit(), GetTypeId(), and UpdateStats().

◆ m_uniformRandomVariable

Ptr<UniformRandomVariable> ns3::MinstrelHtWifiManager::m_uniformRandomVariable
private

Provides uniform random variables.

Definition at line 675 of file minstrel-ht-wifi-manager.h.

Referenced by MinstrelHtWifiManager(), AssignStreams(), and InitSampleTable().

◆ m_updateStats

Time ns3::MinstrelHtWifiManager::m_updateStats
private

How frequent do we calculate the stats.

Definition at line 657 of file minstrel-ht-wifi-manager.h.

Referenced by DoCreateStation(), GetTypeId(), and UpdateStats().

◆ m_useLatestAmendmentOnly

bool ns3::MinstrelHtWifiManager::m_useLatestAmendmentOnly
private

Flag if only the latest supported amendment by both peers should be used.

Definition at line 666 of file minstrel-ht-wifi-manager.h.

Referenced by GetTypeId(), and RateInit().


The documentation for this class was generated from the following files:
