ns3::TracedValue< T > Class Template Reference

Trace classes with value semantics. More...

#include "traced-value.h"

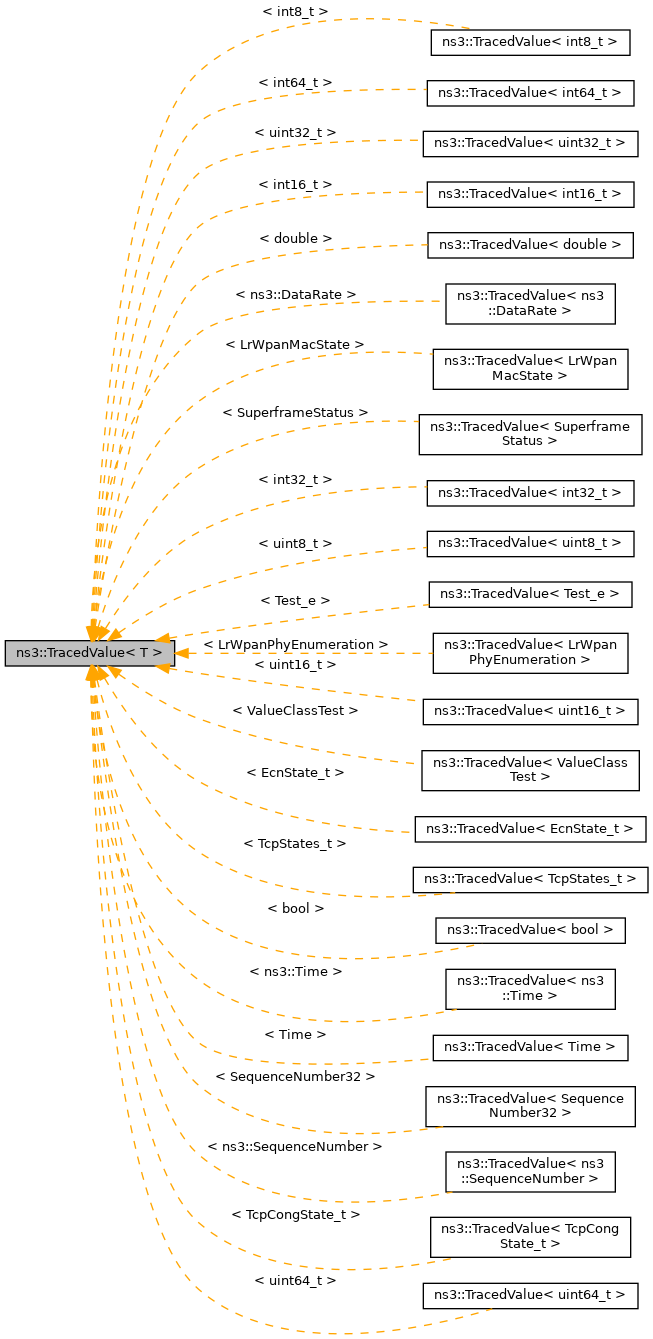

Inheritance diagram for ns3::TracedValue< T >:

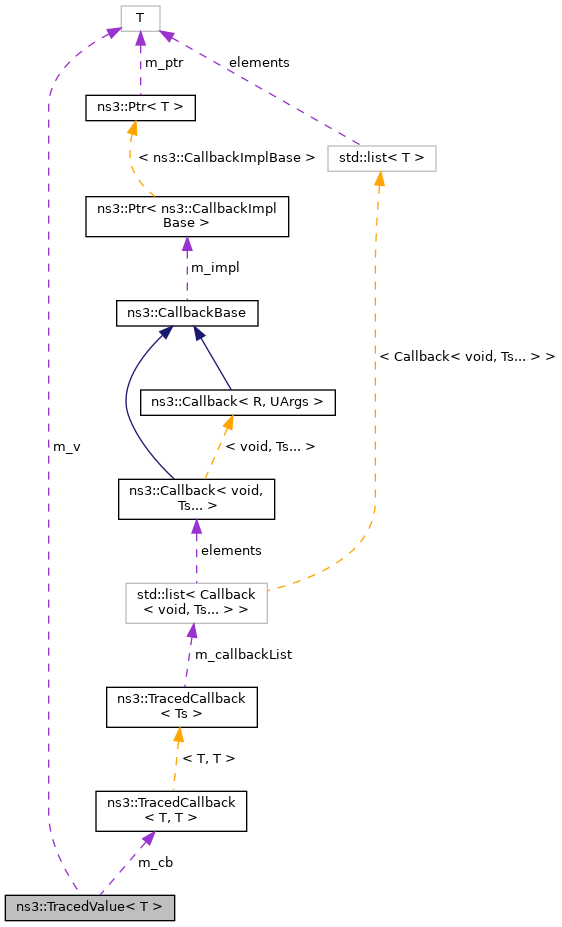

Collaboration diagram for ns3::TracedValue< T >:

Public Member Functions
	TracedValue ()
	Default constructor. More...
	TracedValue (const T &v)
	Construct from an explicit variable. More...
	TracedValue (const TracedValue &o)
	Copy constructor. More...
template<typename U >
	TracedValue (const TracedValue< U > &other)
	Copy from a TracedValue of a compatible type. More...
template<typename U >
	TracedValue (const U &other)
	Copy from a variable type compatible with this underlying type. More...
void	Connect (const CallbackBase &cb, std::string path)
	Connect a Callback with a context string. More...
void	ConnectWithoutContext (const CallbackBase &cb)
	Connect a Callback (without context.) More...
void	Disconnect (const CallbackBase &cb, std::string path)
	Disconnect a Callback which was connected with context. More...
void	DisconnectWithoutContext (const CallbackBase &cb)
	Disconnect a Callback which was connected without context. More...
T	Get () const
	Get the underlying value. More...
	operator T () const
	Cast to the underlying type. More...
TracedValue &	operator= (const TracedValue &o)
	Assignment. More...
void	Set (const T &v)
	Set the value of the underlying variable. More...
TracedValue &	operator++ ()
	Pre/post- increment/decrement operator. More...
TracedValue &	operator-- ()
	Pre/post- increment/decrement operator. More...
TracedValue	operator++ (int)
	Pre/post- increment/decrement operator. More...
TracedValue	operator-- (int)
	Pre/post- increment/decrement operator. More...

Private Attributes
TracedCallback< T, T >	m_cb
	The connected Callback. More...
T	m_v
	The underlying value. More...

Detailed Description

template<typename T>
class ns3::TracedValue< T >

Trace classes with value semantics.

If you want to trace the change of value of a class or primitive type which have value semantics (they must support operator !=), you can wrap them in an instance of this template. This instance will behave just like the original class (if it did not export any special method), and will define Connect/DisconnectWithoutContext methods to work with MakeTraceSourceAccessor.

Template Parameters

T	[explicit] The type of the underlying value being traced.

Definition at line 115 of file traced-value.h.

Constructor & Destructor Documentation

TracedValue() [1/5]

template<typename T >

ns3::TracedValue< T >::TracedValue ( )

inline

Default constructor.

Definition at line 119 of file traced-value.h.

TracedValue() [2/5]

template<typename T >

ns3::TracedValue< T >::TracedValue ( const TracedValue< T > &  o )

inline

Copy constructor.

Parameters

[in]

o

The value to copy.

Definition at line 128 of file traced-value.h.

TracedValue() [3/5]

template<typename T >

ns3::TracedValue< T >::TracedValue ( const T &  v )

inline

Construct from an explicit variable.

Parameters

[in]

v

The variable to trace.

Definition at line 137 of file traced-value.h.

TracedValue() [4/5]

template<typename T >

template<typename U >

ns3::TracedValue< T >::TracedValue ( const TracedValue< U > &  other )

inline

Copy from a TracedValue of a compatible type.

Template Parameters

U	[deduced] The underlying type of the other TracedValue.

Parameters

[in]

other

The other TracedValuet to copy.

Definition at line 169 of file traced-value.h.

TracedValue() [5/5]

template<typename T >

template<typename U >

ns3::TracedValue< T >::TracedValue ( const U &  other )

inline

Copy from a variable type compatible with this underlying type.

Template Parameters

U	[deduced] Type of the other variable.

Parameters

[in]

other

The other variable to copy.

Definition at line 180 of file traced-value.h.

Member Function Documentation

Connect()

template<typename T >

void ns3::TracedValue< T >::Connect ( const CallbackBase &  cb, std::string  path  )

inline

Connect a Callback with a context string.

The context string will be provided as the first argument to the Callback function.

Parameters

[in]	cb	The Callback to connect to the target trace source.
[in]	path	The context to bind to the user callback.

Definition at line 204 of file traced-value.h.

References ns3::TracedCallback< Ts >::Connect(), and ns3::TracedValue< T >::m_cb.

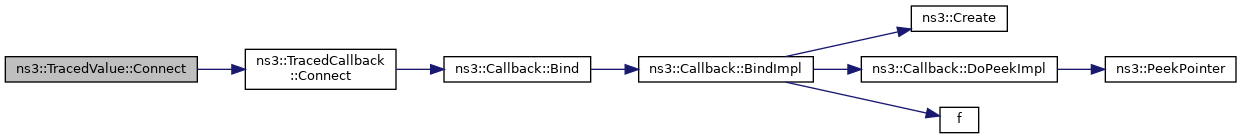

Here is the call graph for this function:

ConnectWithoutContext()

template<typename T >

void ns3::TracedValue< T >::ConnectWithoutContext ( const CallbackBase &  cb )

inline

Connect a Callback (without context.)

Parameters

[in]

cb

The callback to connect.

Definition at line 190 of file traced-value.h.

References ns3::TracedCallback< Ts >::ConnectWithoutContext(), and ns3::TracedValue< T >::m_cb.

Here is the call graph for this function:

Disconnect()

template<typename T >

void ns3::TracedValue< T >::Disconnect ( const CallbackBase &  cb, std::string  path  )

inline

Disconnect a Callback which was connected with context.

Parameters

[in]	cb	The Callback to disconnect.
[in]	path	The context to bind to the user callback.

Definition at line 225 of file traced-value.h.

References ns3::TracedCallback< Ts >::Disconnect(), and ns3::TracedValue< T >::m_cb.

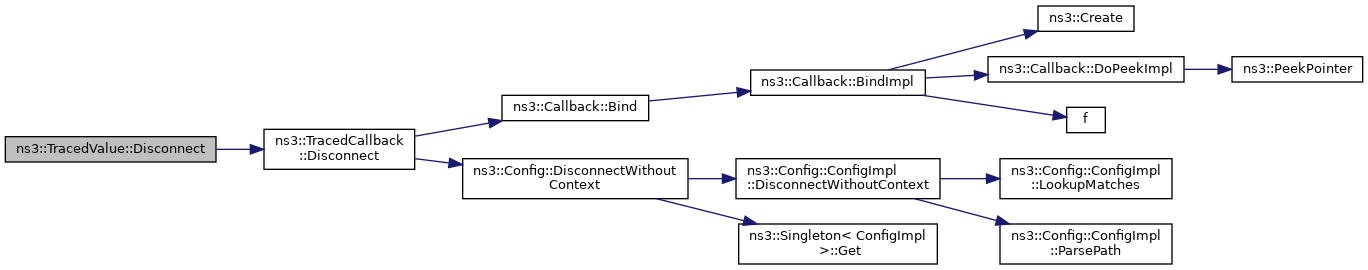

Here is the call graph for this function:

DisconnectWithoutContext()

template<typename T >

void ns3::TracedValue< T >::DisconnectWithoutContext ( const CallbackBase &  cb )

inline

Disconnect a Callback which was connected without context.

Parameters

[in]

cb

The Callback to disconnect.

Definition at line 214 of file traced-value.h.

References ns3::TracedCallback< Ts >::DisconnectWithoutContext(), and ns3::TracedValue< T >::m_cb.

Here is the call graph for this function:

Get()

template<typename T >

T ns3::TracedValue< T >::Get ( ) const

inline

Get the underlying value.

Returns

The value.

Definition at line 249 of file traced-value.h.

References ns3::TracedValue< T >::m_v.

Referenced by ns3::TcpDctcp::CeState1to0(), ns3::TcpNewReno::CongestionAvoidance(), ns3::TcpLedbat::CongestionAvoidance(), ns3::TcpBbr::CongestionStateSet(), ns3::TcpTxBuffer::CopyFromSequence(), ns3::TcpTxBuffer::DiscardUpTo(), ns3::TcpSocketBase::DoForwardUp(), TcpHighSpeedIncrementTest::DoRun(), TcpHtcpIncrementTest::DoRun(), TcpHyblaIncrementTest::DoRun(), TcpIllinoisTest::DoRun(), ns3::TcpLpToNewReno::DoRun(), ns3::TcpLpInferenceTest1::DoRun(), ns3::TcpLpInferenceTest2::DoRun(), PrrRecoveryTest::DoRun(), TcpScalableIncrementTest::DoRun(), TcpVegasTest::DoRun(), TcpVenoTest::DoRun(), TcpYeahIncrementTest::DoRun(), ns3::TcpSocketBase::EstimateRtt(), TcpBicIncrementTest::ExecuteTest(), TcpDctcpToLinuxReno::ExecuteTest(), TcpLedbatToNewReno::ExecuteTest(), TcpLedbatIncrementTest::ExecuteTest(), TcpLedbatDecrementTest::ExecuteTest(), ns3::TcpClassicRecovery::ExitRecovery(), ns3::TcpSocketBase::GetHighRxAck(), ns3::TcpSocketBase::GetRWnd(), ns3::TcpBbr::HandleProbeRTT(), ns3::TcpBbr::HandleRestartFromIdle(), ns3::TcpLedbat::IncreaseWindow(), ns3::QueueBase::IsEmpty(), ns3::TcpBbr::ModulateCwndForProbeRTT(), ns3::TcpBbr::ModulateCwndForRecovery(), ns3::TcpSocketBase::NewAck(), TcpVenoTest::NewReno_CongestionAvoidance(), ns3::operator!(), ns3::operator!=(), ns3::operator%=(), ns3::operator&=(), ns3::operator*=(), ns3::operator+(), ns3::TracedValue< T >::operator++(), ns3::operator+=(), ns3::operator-(), ns3::TracedValue< T >::operator--(), ns3::operator-=(), ns3::operator/=(), ns3::operator<(), ns3::operator<<(), ns3::operator<=(), ns3::operator==(), ns3::operator>(), ns3::operator>=(), ns3::operator>>=(), ns3::operator^=(), ns3::operator|=(), ns3::operator~(), ns3::TcpLp::PktsAcked(), ns3::TcpSocketBase::ProcessAck(), ns3::TcpSocketBase::ReceivedAck(), ns3::TcpBbr::RestoreCwnd(), ns3::TcpSocketBase::ReTxTimeout(), ns3::TcpSocketBase::SendDataPacket(), TcpDctcpCongestedRouter::SendDataPacket(), ns3::TcpSocketCongestedRouter::SendDataPacket(), ns3::TcpSocketBase::SendEmptyPacket(), ns3::TcpSocketSmallAcks::SendEmptyPacket(), ns3::TcpSocketBase::SendPendingData(), ns3::TcpBbr::SetCwnd(), ns3::TcpBbr::UpdateAckAggregation(), ns3::TcpSocketBase::UpdatePacingRate(), and ns3::TcpSocketBase::Window().

operator T()

template<typename T >

ns3::TracedValue< T >::operator T ( ) const

inline

Cast to the underlying type.

Returns

The underlying value.

Definition at line 146 of file traced-value.h.

operator++() [1/2]

template<typename T >

TracedValue& ns3::TracedValue< T >::operator++ ( )

inline

Pre/post- increment/decrement operator.

This invokes the Callback.

Returns

This TracedValue.

Definition at line 261 of file traced-value.h.

References ns3::TracedValue< T >::Get(), ns3::TracedValue< T >::Set(), and TRACED_VALUE_DEBUG.

Here is the call graph for this function:

operator++() [2/2]

template<typename T >

TracedValue ns3::TracedValue< T >::operator++ ( int  )

inline

Pre/post- increment/decrement operator.

This invokes the Callback.

Returns

This TracedValue.

Definition at line 279 of file traced-value.h.

References ns3::TracedValue< T >::Get(), ns3::TracedValue< T >::Set(), and TRACED_VALUE_DEBUG.

Here is the call graph for this function:

operator--() [1/2]

template<typename T >

TracedValue& ns3::TracedValue< T >::operator-- ( )

inline

Pre/post- increment/decrement operator.

This invokes the Callback.

Returns

This TracedValue.

Definition at line 270 of file traced-value.h.

References ns3::TracedValue< T >::Get(), ns3::TracedValue< T >::Set(), and TRACED_VALUE_DEBUG.

Here is the call graph for this function:

operator--() [2/2]

template<typename T >

TracedValue ns3::TracedValue< T >::operator-- ( int  )

inline

Pre/post- increment/decrement operator.

This invokes the Callback.

Returns

This TracedValue.

Definition at line 289 of file traced-value.h.

References ns3::TracedValue< T >::Get(), ns3::TracedValue< T >::Set(), and TRACED_VALUE_DEBUG.

Here is the call graph for this function:

operator=()

template<typename T >

TracedValue& ns3::TracedValue< T >::operator= ( const TracedValue< T > &  o )

inline

Assignment.

Parameters

[in]

o

The value to assign to this instance.

Returns

This TracedValue.

Definition at line 156 of file traced-value.h.

References ns3::TracedValue< T >::m_v, ns3::TracedValue< T >::Set(), and TRACED_VALUE_DEBUG.

Here is the call graph for this function:

Set()

template<typename T >

void ns3::TracedValue< T >::Set ( const T &  v )

inline

Set the value of the underlying variable.

If the new value differs from the old, the Callback will be invoked.

Parameters

[in]

v

The new value.

Definition at line 236 of file traced-value.h.

References ns3::TracedValue< T >::m_cb, and ns3::TracedValue< T >::m_v.

Referenced by ns3::operator%=(), ns3::operator&=(), ns3::operator*=(), ns3::TracedValue< T >::operator++(), ns3::operator+=(), ns3::TracedValue< T >::operator--(), ns3::operator-=(), ns3::operator/=(), ns3::TracedValue< T >::operator=(), ns3::operator>>=(), ns3::operator^=(), and ns3::operator|=().

Here is the caller graph for this function:

Member Data Documentation

m_cb

template<typename T >

TracedCallback<T, T> ns3::TracedValue< T >::m_cb

private

The connected Callback.

Definition at line 305 of file traced-value.h.

Referenced by ns3::TracedValue< T >::Connect(), ns3::TracedValue< T >::ConnectWithoutContext(), ns3::TracedValue< T >::Disconnect(), ns3::TracedValue< T >::DisconnectWithoutContext(), and ns3::TracedValue< T >::Set().

m_v

template<typename T >

T ns3::TracedValue< T >::m_v

private

The underlying value.

Definition at line 303 of file traced-value.h.

Referenced by ns3::TracedValue< T >::Get(), ns3::TracedValue< bool >::operator bool(), ns3::TracedValue< T >::operator=(), and ns3::TracedValue< T >::Set().

---

The documentation for this class was generated from the following file:

• src/core/model/traced-value.h
