WifiTest Class Reference

Wifi Test. More...

Inheritance diagram for WifiTest:

Collaboration diagram for WifiTest:

Public Member Functions
	WifiTest ()
void	DoRun () override
	Implementation to actually run this TestCase. More...
Public Member Functions inherited from ns3::TestCase
	TestCase (const TestCase &)=delete
virtual	~TestCase ()
	Destructor. More...
std::string	GetName () const
TestCase &	operator= (const TestCase &)=delete

Private Member Functions
void	CreateOne (Vector pos, Ptr< YansWifiChannel > channel)
	Create one function. More...
void	RunOne ()
	Run one function. More...
void	SendOnePacket (Ptr< WifiNetDevice > dev)
	Send one packet function. More...

Private Attributes
ObjectFactory	m_mac
	MAC. More...
ObjectFactory	m_manager
	manager More...
ObjectFactory	m_propDelay
	propagation delay More...

Additional Inherited Members
Public Types inherited from ns3::TestCase
enum	TestDuration { QUICK = 1 , EXTENSIVE = 2 , TAKES_FOREVER = 3 }
	How long the test takes to execute. More...
Protected Member Functions inherited from ns3::TestCase
	TestCase (std::string name)
	Constructor. More...
void	AddTestCase (TestCase *testCase, TestDuration duration=QUICK)
	Add an individual child TestCase to this test suite. More...
TestCase *	GetParent () const
	Get the parent of this TestCase. More...
bool	IsStatusFailure () const
	Check if any tests failed. More...
bool	IsStatusSuccess () const
	Check if all tests passed. More...
void	SetDataDir (std::string directory)
	Set the data directory where reference trace files can be found. More...
void	ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
	Log the failure of this TestCase. More...
bool	MustAssertOnFailure () const
	Check if this run should assert on failure. More...
bool	MustContinueOnFailure () const
	Check if this run should continue on failure. More...
std::string	CreateDataDirFilename (std::string filename)
	Construct the full path to a file in the data directory. More...
std::string	CreateTempDirFilename (std::string filename)
	Construct the full path to a file in a temporary directory. More...

Detailed Description

Wifi Test.

Definition at line 103 of file wifi-test.cc.

Constructor & Destructor Documentation

WifiTest()

WifiTest::WifiTest

(

)

Definition at line 130 of file wifi-test.cc.

Member Function Documentation

CreateOne()

void WifiTest::CreateOne ( Vector  pos, Ptr< YansWifiChannel >  channel  )

private

Create one function.

Parameters

pos	the position
channel	the wifi channel

Definition at line 143 of file wifi-test.cc.

References ns3::Node::AddDevice(), ns3::Object::AggregateObject(), third::channel, ns3::ObjectFactory::Create(), m_mac, m_manager, third::mac, third::mobility, third::phy, ns3::Seconds(), SendOnePacket(), ns3::WifiNetDevice::SetMac(), ns3::WifiNetDevice::SetPhy(), ns3::WifiNetDevice::SetRemoteStationManager(), ns3::STA, and ns3::WIFI_STANDARD_80211a.

Referenced by RunOne().

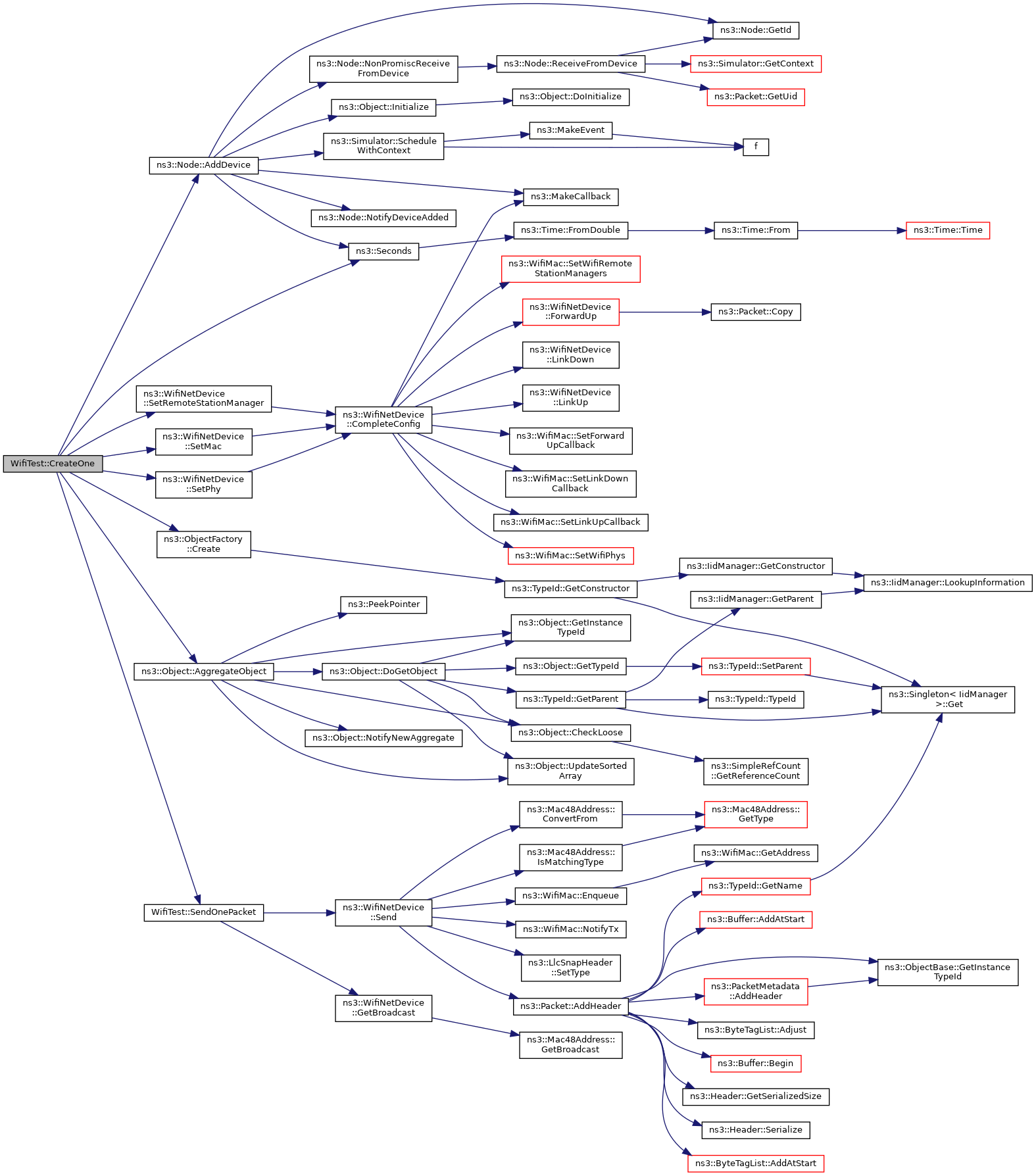

Here is the call graph for this function:

Here is the caller graph for this function:

DoRun()

void WifiTest::DoRun ( )

overridevirtual

Implementation to actually run this TestCase.

Subclasses should override this method to conduct their tests.

Implements ns3::TestCase.

Definition at line 206 of file wifi-test.cc.

References m_mac, m_manager, m_propDelay, RunOne(), and ns3::ObjectFactory::SetTypeId().

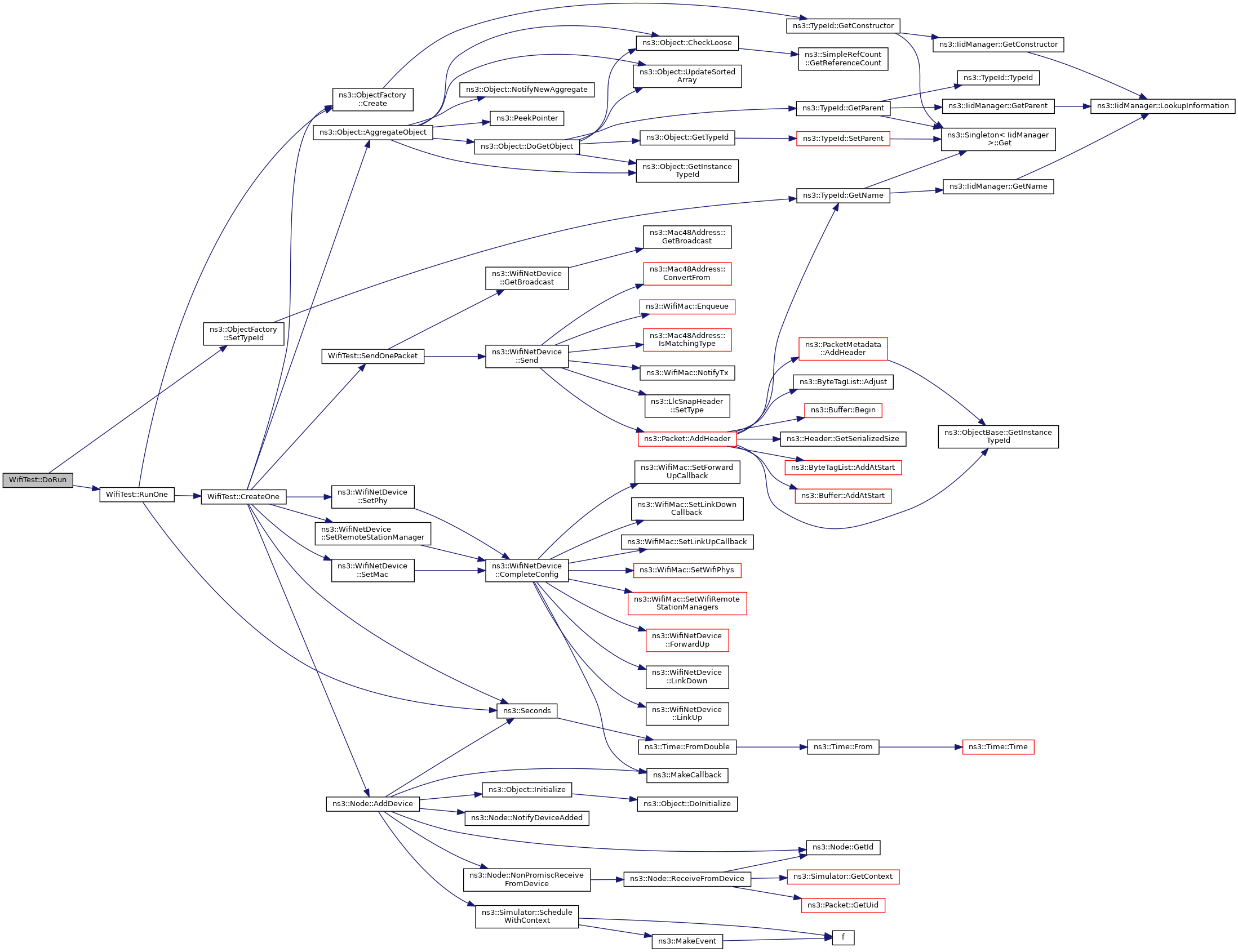

Here is the call graph for this function:

RunOne()

void WifiTest::RunOne ( )

private

Run one function.

Definition at line 187 of file wifi-test.cc.

References third::channel, ns3::ObjectFactory::Create(), CreateOne(), m_propDelay, and ns3::Seconds().

Referenced by DoRun().

Here is the call graph for this function:

Here is the caller graph for this function:

SendOnePacket()

void WifiTest::SendOnePacket ( Ptr< WifiNetDevice >  dev )

private

Send one packet function.

Parameters

dev	the device

Definition at line 136 of file wifi-test.cc.

References ns3::WifiNetDevice::GetBroadcast(), and ns3::WifiNetDevice::Send().

Referenced by CreateOne().

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

m_mac

ObjectFactory WifiTest::m_mac

private

MAC.

Definition at line 126 of file wifi-test.cc.

Referenced by CreateOne(), and DoRun().

m_manager

ObjectFactory WifiTest::m_manager

private

manager

Definition at line 125 of file wifi-test.cc.

Referenced by CreateOne(), and DoRun().

m_propDelay

ObjectFactory WifiTest::m_propDelay

private

propagation delay

Definition at line 127 of file wifi-test.cc.

Referenced by DoRun(), and RunOne().

---

The documentation for this class was generated from the following file:

• src/wifi/test/wifi-test.cc
