Main PacketBB Packet object. More...

#include "packetbb.h"

Inheritance diagram for ns3::PbbPacket:

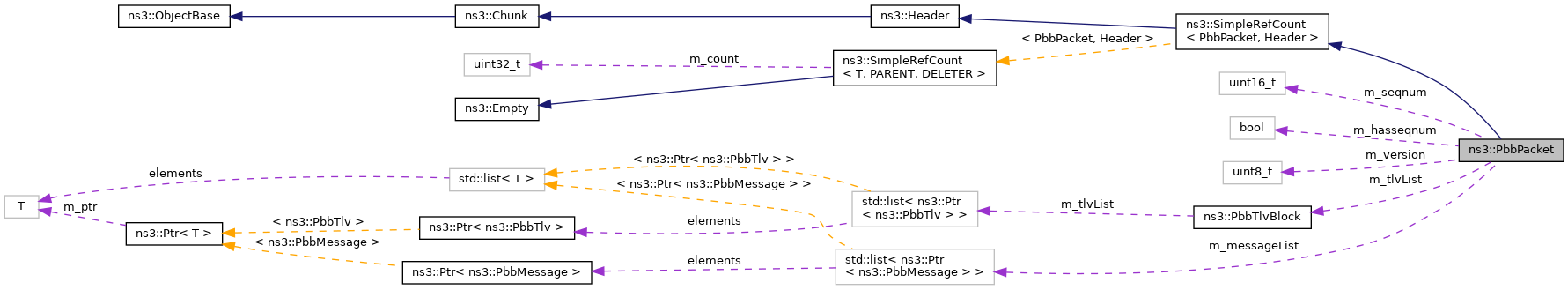

Collaboration diagram for ns3::PbbPacket:

Public Types
typedef std::list< Ptr< PbbMessage > >::const_iterator	ConstMessageIterator
	PbbMessage Const Iterator for PbbPacket. More...

typedef std::list< Ptr< PbbTlv > >::const_iterator	ConstTlvIterator
	PbbTlv const iterator for PbbPacket. More...

typedef std::list< Ptr< PbbMessage > >::iterator	MessageIterator
	PbbMessage Iterator for PbbPacket. More...

typedef std::list< Ptr< PbbTlv > >::iterator	TlvIterator
	PbbTlv iterator for PbbPacket. More...

Public Member Functions
	PbbPacket ()

	~PbbPacket () override

uint32_t	Deserialize (Buffer::Iterator start) override
	Deserializes a packet from the specified buffer. More...

MessageIterator	Erase (MessageIterator first, MessageIterator last)
	Removes all messages from [first, last) (includes first, not includes last). More...

MessageIterator	Erase (MessageIterator position)
	Removes the message at the specified position. More...

TlvIterator	Erase (TlvIterator first, TlvIterator last)
	Removes all packet TLVs from [first, last) (includes first, not includes last). More...

TlvIterator	Erase (TlvIterator position)
	Removes the packet TLV at the specified position. More...

TypeId	GetInstanceTypeId () const override
	Get the most derived TypeId for this Object. More...

uint16_t	GetSequenceNumber () const

uint32_t	GetSerializedSize () const override

uint8_t	GetVersion () const

bool	HasSequenceNumber () const
	Tests whether or not this packet has a sequence number. More...

Ptr< PbbMessage >	MessageBack ()

const Ptr< PbbMessage >	MessageBack () const

MessageIterator	MessageBegin ()

ConstMessageIterator	MessageBegin () const

void	MessageClear ()
	Removes all messages from this packet. More...

bool	MessageEmpty () const

MessageIterator	MessageEnd ()

ConstMessageIterator	MessageEnd () const

Ptr< PbbMessage >	MessageFront ()

const Ptr< PbbMessage >	MessageFront () const

void	MessagePopBack ()
	Removes a message from the back of this packet. More...

void	MessagePopFront ()
	Removes a message from the front of this packet. More...

void	MessagePushBack (Ptr< PbbMessage > message)
	Appends a message to the back of this packet. More...

void	MessagePushFront (Ptr< PbbMessage > message)
	Prepends a message to the front of this packet. More...

int	MessageSize () const

bool	operator!= (const PbbPacket &other) const
	Inequality operator for PbbPacket. More...

bool	operator== (const PbbPacket &other) const
	Equality operator for PbbPacket. More...

void	Print (std::ostream &os) const override
	Pretty-prints the contents of this block. More...

void	Serialize (Buffer::Iterator start) const override
	Serializes this packet into the specified buffer. More...

void	SetSequenceNumber (uint16_t number)
	Sets the sequence number of this packet. More...

Ptr< PbbTlv >	TlvBack ()

const Ptr< PbbTlv >	TlvBack () const

TlvIterator	TlvBegin ()

ConstTlvIterator	TlvBegin () const

void	TlvClear ()
	Removes all packet TLVs from this packet. More...

bool	TlvEmpty () const

TlvIterator	TlvEnd ()

ConstTlvIterator	TlvEnd () const

Ptr< PbbTlv >	TlvFront ()

const Ptr< PbbTlv >	TlvFront () const

void	TlvPopBack ()
	Removes a packet TLV from the back of this block. More...

void	TlvPopFront ()
	Removes a packet TLV from the front of this packet. More...

void	TlvPushBack (Ptr< PbbTlv > tlv)
	Appends a packet TLV to the back of this packet. More...

void	TlvPushFront (Ptr< PbbTlv > tlv)
	Prepends a packet TLV to the front of this packet. More...

int	TlvSize () const

Public Member Functions inherited from ns3::SimpleRefCount< PbbPacket, Header >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
	Copy constructor. More...

uint32_t	GetReferenceCount () const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o[[maybe_unused]])
	Assignment operator. More...

void	Ref () const
	Increment the reference count. More...

void	Unref () const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::Header
	~Header () override

virtual uint32_t	Deserialize (Buffer::Iterator start)=0
	Deserialize the object from a buffer iterator. More...

virtual uint32_t	Deserialize (Buffer::Iterator start, Buffer::Iterator end)
	Deserialize the object from a buffer iterator. More...

Public Member Functions inherited from ns3::Chunk
virtual uint32_t	Deserialize (Buffer::Iterator start, Buffer::Iterator end)
	Deserialize the object from a buffer iterator. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising errors. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId ()
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Header
static TypeId	GetTypeId ()
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Chunk
static TypeId	GetTypeId ()
	Get the type ID. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId ()
	Get the type ID. More...

Private Attributes
bool	m_hasseqnum
	Sequence number present. More...

std::list< Ptr< PbbMessage > >	m_messageList
	PbbTlvBlock container. More...

uint16_t	m_seqnum
	Sequence number. More...

PbbTlvBlock	m_tlvList
	PbbTlv container. More...

uint8_t	m_version
	version More...

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted ()
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid ()
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

Main PacketBB Packet object.

A PacketBB packet is made up of zero or more packet TLVs (PbbTlv), and zero or more messages (PbbMessage).

See: RFC 5444 for details.

Definition at line 390 of file packetbb.h.

Member Typedef Documentation

◆ ConstMessageIterator

typedef std::list<Ptr<PbbMessage> >::const_iterator ns3::PbbPacket::ConstMessageIterator

PbbMessage Const Iterator for PbbPacket.

Definition at line 400 of file packetbb.h.

◆ ConstTlvIterator

typedef std::list<Ptr<PbbTlv> >::const_iterator ns3::PbbPacket::ConstTlvIterator

PbbTlv const iterator for PbbPacket.

Definition at line 396 of file packetbb.h.

◆ MessageIterator

typedef std::list<Ptr<PbbMessage> >::iterator ns3::PbbPacket::MessageIterator

PbbMessage Iterator for PbbPacket.

Definition at line 398 of file packetbb.h.

◆ TlvIterator

typedef std::list<Ptr<PbbTlv> >::iterator ns3::PbbPacket::TlvIterator

PbbTlv iterator for PbbPacket.

Definition at line 394 of file packetbb.h.

Constructor & Destructor Documentation

◆ PbbPacket()

ns3::PbbPacket::PbbPacket ( )

Definition at line 543 of file packetbb.cc.

References m_hasseqnum, m_version, NS_LOG_FUNCTION, and ns3::VERSION.

◆ ~PbbPacket()

ns3::PbbPacket::~PbbPacket ( )

override

Definition at line 550 of file packetbb.cc.

References MessageClear(), and NS_LOG_FUNCTION.

Here is the call graph for this function:

Member Function Documentation

◆ Deserialize()

uint32_t ns3::PbbPacket::Deserialize ( Buffer::Iterator start )

overridevirtual

Deserializes a packet from the specified buffer.

Parameters

start start offset

Returns: the number of bytes deserialized

If this returns a number smaller than the total number of bytes in the buffer, there was an error.

Implements ns3::Header.

Definition at line 907 of file packetbb.cc.

References ns3::PbbTlvBlock::Deserialize(), ns3::PbbMessage::DeserializeMessage(), m_tlvList, m_version, MessagePushBack(), NS_LOG_FUNCTION, PHAS_SEQ_NUM, PHAS_TLV, SetSequenceNumber(), and two-ray-to-three-gpp-ch-calibration::start.

Referenced by PbbTestCase::TestDeserialize().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Erase() [1/4]

MessageIterator ns3::PbbPacket::Erase	(	MessageIterator	first,
		MessageIterator	last
	)

Removes all messages from [first, last) (includes first, not includes last).

Parameters

first	an Iterator pointing to the first message to erase (inclusive).
last	an Iterator pointing to the element past the last message to erase.

Returns: an iterator pointing to the next message in the block.

◆ Erase() [2/4]

MessageIterator ns3::PbbPacket::Erase ( MessageIterator position )

Removes the message at the specified position.

Parameters

position an Iterator pointing to the message to erase.

Returns: an iterator pointing to the next message in the packet.

◆ Erase() [3/4]

PbbPacket::MessageIterator ns3::PbbPacket::Erase	(	PbbPacket::TlvIterator	first,
		PbbPacket::TlvIterator	last
	)

Removes all packet TLVs from [first, last) (includes first, not includes last).

Parameters

first	an Iterator pointing to the first packet TLV to erase (inclusive).
last	an Iterator pointing to the element past the last packet TLV to erase.

Returns: an iterator pointing to the next packet TLV in the block.

Definition at line 694 of file packetbb.cc.

References ns3::PbbTlvBlock::Erase(), m_tlvList, and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ Erase() [4/4]

PbbPacket::MessageIterator ns3::PbbPacket::Erase ( PbbPacket::TlvIterator position )

Removes the packet TLV at the specified position.

Parameters

position an Iterator pointing to the packet TLV to erase.

Returns: an iterator pointing to the next packet TLV in the block.

Definition at line 687 of file packetbb.cc.

References ns3::PbbTlvBlock::Erase(), m_tlvList, and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ GetInstanceTypeId()

TypeId ns3::PbbPacket::GetInstanceTypeId ( ) const

overridevirtual

Get the most derived TypeId for this Object.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Returns: The TypeId associated to the most-derived type of this instance.

Implements ns3::ObjectBase.

Definition at line 843 of file packetbb.cc.

References GetTypeId().

Here is the call graph for this function:

◆ GetSequenceNumber()

uint16_t ns3::PbbPacket::GetSequenceNumber ( ) const

Returns: the sequence number of this packet.

Calling this while HasSequenceNumber is False is undefined. Make sure you check it first. This will be checked by an assert in debug builds.

Definition at line 572 of file packetbb.cc.

References HasSequenceNumber(), m_seqnum, NS_ASSERT, and NS_LOG_FUNCTION.

Referenced by operator==(), Print(), and Serialize().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetSerializedSize()

uint32_t ns3::PbbPacket::GetSerializedSize ( ) const

overridevirtual

Returns: The size (in bytes) needed to serialize this packet.

Implements ns3::Header.

Definition at line 849 of file packetbb.cc.

References ns3::PbbTlvBlock::GetSerializedSize(), HasSequenceNumber(), m_tlvList, MessageBegin(), MessageEnd(), NS_LOG_FUNCTION, and TlvEmpty().

Referenced by PbbTestCase::TestSerialize().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::PbbPacket::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 833 of file packetbb.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

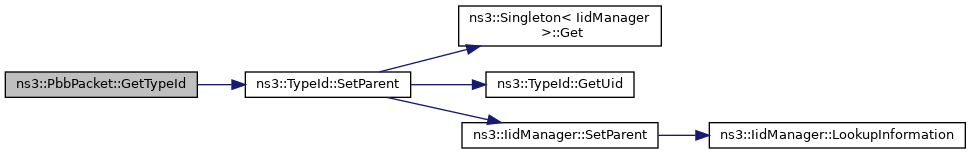

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetVersion()

uint8_t ns3::PbbPacket::GetVersion ( ) const

Returns: the version of PacketBB that constructed this packet.

This will always return 0 for packets constructed using this API.

Definition at line 557 of file packetbb.cc.

References m_version, and NS_LOG_FUNCTION.

Referenced by operator==().

Here is the caller graph for this function:

◆ HasSequenceNumber()

bool ns3::PbbPacket::HasSequenceNumber ( ) const

Tests whether or not this packet has a sequence number.

Returns: true if this packet has a sequence number, false otherwise.

This should be called before calling GetSequenceNumber to make sure there actually is one.

Definition at line 580 of file packetbb.cc.

References m_hasseqnum, and NS_LOG_FUNCTION.

Referenced by GetSequenceNumber(), GetSerializedSize(), operator==(), Print(), and Serialize().

Here is the caller graph for this function:

◆ MessageBack() [1/2]

Ptr< PbbMessage > ns3::PbbPacket::MessageBack ( )

Returns: a smart pointer to the last message in this packet.

Definition at line 766 of file packetbb.cc.

References m_messageList, and NS_LOG_FUNCTION.

◆ MessageBack() [2/2]

const Ptr< PbbMessage > ns3::PbbPacket::MessageBack ( ) const

Returns: a const smart pointer to the last message in this packet.

Definition at line 773 of file packetbb.cc.

References m_messageList, and NS_LOG_FUNCTION.

◆ MessageBegin() [1/2]

PbbPacket::MessageIterator ns3::PbbPacket::MessageBegin ( )

Returns: an iterator to the first message in this packet.

Definition at line 710 of file packetbb.cc.

References m_messageList, and NS_LOG_FUNCTION.

Referenced by GetSerializedSize(), MessageClear(), operator==(), Print(), and Serialize().

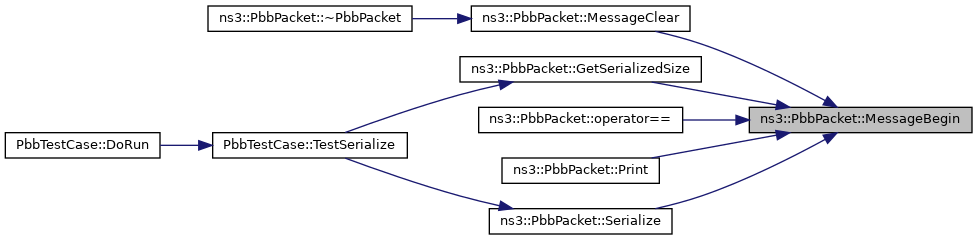

Here is the caller graph for this function:

◆ MessageBegin() [2/2]

PbbPacket::ConstMessageIterator ns3::PbbPacket::MessageBegin ( ) const

Returns: a const iterator to the first message in this packet.

Definition at line 717 of file packetbb.cc.

References m_messageList, and NS_LOG_FUNCTION.

◆ MessageClear()

void ns3::PbbPacket::MessageClear ( )

Removes all messages from this packet.

Definition at line 822 of file packetbb.cc.

References m_messageList, MessageBegin(), MessageEnd(), and NS_LOG_FUNCTION.

Referenced by ~PbbPacket().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ MessageEmpty()

bool ns3::PbbPacket::MessageEmpty ( ) const

Returns: true if there are no messages in this packet, false otherwise.

Definition at line 745 of file packetbb.cc.

References m_messageList, and NS_LOG_FUNCTION.

◆ MessageEnd() [1/2]

PbbPacket::MessageIterator ns3::PbbPacket::MessageEnd ( )

Returns: an iterator to the past-the-end element in this message block.

Definition at line 724 of file packetbb.cc.

References m_messageList, and NS_LOG_FUNCTION.

Referenced by GetSerializedSize(), MessageClear(), operator==(), Print(), and Serialize().

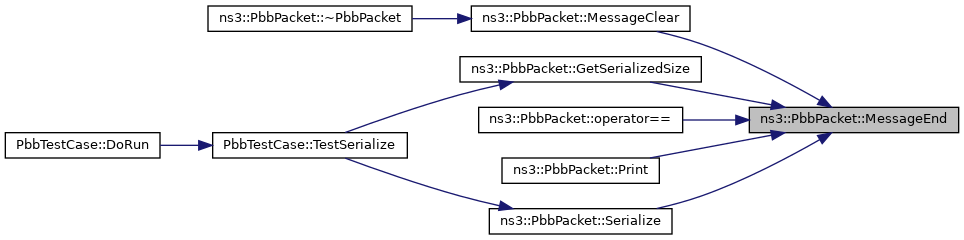

Here is the caller graph for this function:

◆ MessageEnd() [2/2]

PbbPacket::ConstMessageIterator ns3::PbbPacket::MessageEnd ( ) const

Returns: a const iterator to the past-the-end element in this message block.

Definition at line 731 of file packetbb.cc.

References m_messageList, and NS_LOG_FUNCTION.

◆ MessageFront() [1/2]

Ptr< PbbMessage > ns3::PbbPacket::MessageFront ( )

Returns: a smart pointer to the first message in this packet.

Definition at line 752 of file packetbb.cc.

References m_messageList, and NS_LOG_FUNCTION.

◆ MessageFront() [2/2]

const Ptr< PbbMessage > ns3::PbbPacket::MessageFront ( ) const

Returns: a const smart pointer to the first message in this packet.

Definition at line 759 of file packetbb.cc.

References m_messageList, and NS_LOG_FUNCTION.

◆ MessagePopBack()

void ns3::PbbPacket::MessagePopBack ( )

Removes a message from the back of this packet.

Definition at line 801 of file packetbb.cc.

References m_messageList, and NS_LOG_FUNCTION.

◆ MessagePopFront()

void ns3::PbbPacket::MessagePopFront ( )

Removes a message from the front of this packet.

Definition at line 787 of file packetbb.cc.

References m_messageList, and NS_LOG_FUNCTION.

◆ MessagePushBack()

void ns3::PbbPacket::MessagePushBack ( Ptr< PbbMessage > message )

Appends a message to the back of this packet.

Parameters

message a smart pointer to the message to append.

Definition at line 794 of file packetbb.cc.

References m_messageList, and NS_LOG_FUNCTION.

Referenced by PbbTestSuite::PbbTestSuite(), and Deserialize().

Here is the caller graph for this function:

◆ MessagePushFront()

void ns3::PbbPacket::MessagePushFront ( Ptr< PbbMessage > message )

Prepends a message to the front of this packet.

Parameters

message a smart pointer to the message to prepend.

Definition at line 780 of file packetbb.cc.

References m_messageList, and NS_LOG_FUNCTION.

◆ MessageSize()

int ns3::PbbPacket::MessageSize ( ) const

Returns: the number of messages in this packet.

Definition at line 738 of file packetbb.cc.

References m_messageList, and NS_LOG_FUNCTION.

Referenced by operator==().

Here is the caller graph for this function:

◆ operator!=()

bool ns3::PbbPacket::operator!= ( const PbbPacket & other ) const

Inequality operator for PbbPacket.

Parameters

other PbbPacket to compare to this one

Returns: true if PbbPacket are not equal

Definition at line 1009 of file packetbb.cc.

◆ operator==()

bool ns3::PbbPacket::operator== ( const PbbPacket & other ) const

Equality operator for PbbPacket.

Parameters

other PbbPacket to compare to this one

Returns: true if PbbPacket are equal

Definition at line 964 of file packetbb.cc.

References GetSequenceNumber(), GetVersion(), HasSequenceNumber(), m_tlvList, MessageBegin(), MessageEnd(), and MessageSize().

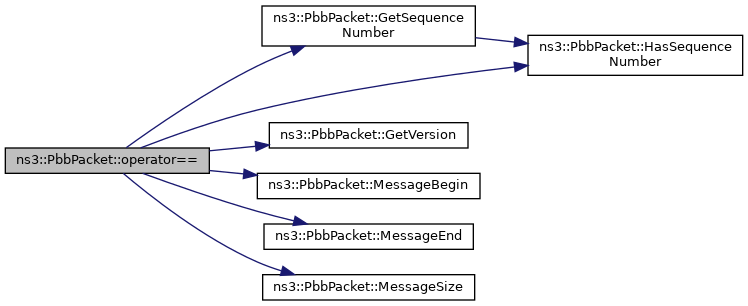

Here is the call graph for this function:

◆ Print()

void ns3::PbbPacket::Print ( std::ostream & os ) const

overridevirtual

Pretty-prints the contents of this block.

Parameters

os	a stream object to print to.

Implements ns3::Header.

Definition at line 941 of file packetbb.cc.

References GetSequenceNumber(), HasSequenceNumber(), m_tlvList, MessageBegin(), MessageEnd(), NS_LOG_FUNCTION, and ns3::PbbTlvBlock::Print().

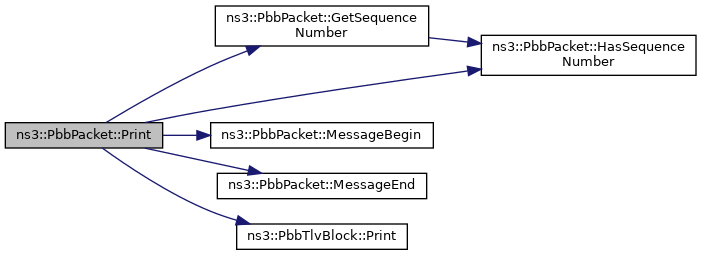

Here is the call graph for this function:

◆ Serialize()

void ns3::PbbPacket::Serialize ( Buffer::Iterator start ) const

overridevirtual

Serializes this packet into the specified buffer.

Parameters

start a reference to the point in a buffer to begin serializing.

Implements ns3::Header.

Definition at line 874 of file packetbb.cc.

References GetSequenceNumber(), HasSequenceNumber(), m_tlvList, MessageBegin(), MessageEnd(), NS_LOG_FUNCTION, PHAS_SEQ_NUM, PHAS_TLV, ns3::PbbTlvBlock::Serialize(), two-ray-to-three-gpp-ch-calibration::start, TlvEmpty(), ns3::VERSION, and ns3::Buffer::Iterator::WriteU8().

Referenced by PbbTestCase::TestSerialize().

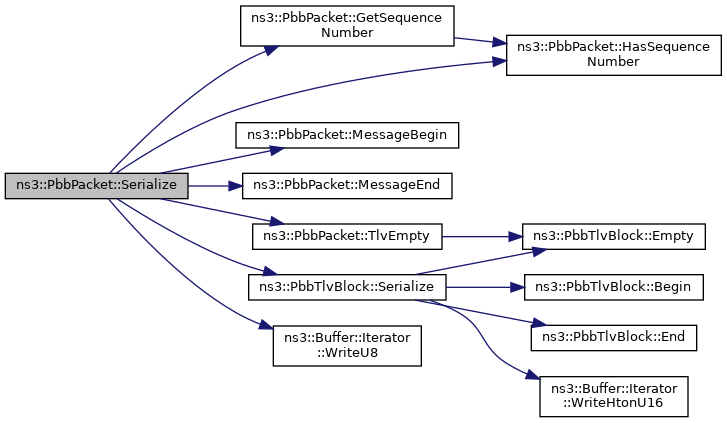

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetSequenceNumber()

void ns3::PbbPacket::SetSequenceNumber ( uint16_t number )

Sets the sequence number of this packet.

Parameters

number the sequence number.

Definition at line 564 of file packetbb.cc.

References m_hasseqnum, m_seqnum, and NS_LOG_FUNCTION.

Referenced by PbbTestSuite::PbbTestSuite(), and Deserialize().

Here is the caller graph for this function:

◆ TlvBack() [1/2]

Ptr< PbbTlv > ns3::PbbPacket::TlvBack ( )

Returns: a smart pointer to the last packet TLV in this packet.

Definition at line 645 of file packetbb.cc.

References ns3::PbbTlvBlock::Back(), m_tlvList, and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ TlvBack() [2/2]

const Ptr< PbbTlv > ns3::PbbPacket::TlvBack ( ) const

Returns: a const smart pointer to the last packet TLV in this packet.

Definition at line 652 of file packetbb.cc.

References ns3::PbbTlvBlock::Back(), m_tlvList, and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ TlvBegin() [1/2]

PbbPacket::TlvIterator ns3::PbbPacket::TlvBegin ( )

Returns: an iterator to the first Packet TLV in this packet.

Definition at line 589 of file packetbb.cc.

References ns3::PbbTlvBlock::Begin(), m_tlvList, and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ TlvBegin() [2/2]

PbbPacket::ConstTlvIterator ns3::PbbPacket::TlvBegin ( ) const

Returns: a const iterator to the first Packet TLV in this packet.

Definition at line 596 of file packetbb.cc.

References ns3::PbbTlvBlock::Begin(), m_tlvList, and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ TlvClear()

void ns3::PbbPacket::TlvClear ( )

Removes all packet TLVs from this packet.

Definition at line 701 of file packetbb.cc.

References ns3::PbbTlvBlock::Clear(), m_tlvList, and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ TlvEmpty()

bool ns3::PbbPacket::TlvEmpty ( ) const

Returns: true if there are no packet TLVs in this packet, false otherwise.

Definition at line 624 of file packetbb.cc.

References ns3::PbbTlvBlock::Empty(), m_tlvList, and NS_LOG_FUNCTION.

Referenced by GetSerializedSize(), and Serialize().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ TlvEnd() [1/2]

PbbPacket::TlvIterator ns3::PbbPacket::TlvEnd ( )

Returns: an iterator to the past-the-end element in this packet TLV block.

Definition at line 603 of file packetbb.cc.

References ns3::PbbTlvBlock::End(), m_tlvList, and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ TlvEnd() [2/2]

PbbPacket::ConstTlvIterator ns3::PbbPacket::TlvEnd ( ) const

Returns: a const iterator to the past-the-end element in this packet TLV block.

Definition at line 610 of file packetbb.cc.

References ns3::PbbTlvBlock::End(), m_tlvList, and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ TlvFront() [1/2]

Ptr< PbbTlv > ns3::PbbPacket::TlvFront ( )

Returns: a smart pointer to the first packet TLV in this packet.

Definition at line 631 of file packetbb.cc.

References ns3::PbbTlvBlock::Front(), m_tlvList, and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ TlvFront() [2/2]

const Ptr< PbbTlv > ns3::PbbPacket::TlvFront ( ) const

Returns: a const smart pointer to the first packet TLV in this packet.

Definition at line 638 of file packetbb.cc.

References ns3::PbbTlvBlock::Front(), m_tlvList, and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ TlvPopBack()

void ns3::PbbPacket::TlvPopBack ( )

Removes a packet TLV from the back of this block.

Definition at line 680 of file packetbb.cc.

References m_tlvList, NS_LOG_FUNCTION, and ns3::PbbTlvBlock::PopBack().

Here is the call graph for this function:

◆ TlvPopFront()

void ns3::PbbPacket::TlvPopFront ( )

Removes a packet TLV from the front of this packet.

Definition at line 666 of file packetbb.cc.

References m_tlvList, NS_LOG_FUNCTION, and ns3::PbbTlvBlock::PopFront().

Here is the call graph for this function:

◆ TlvPushBack()

void ns3::PbbPacket::TlvPushBack ( Ptr< PbbTlv > tlv )

Appends a packet TLV to the back of this packet.

Parameters

tlv	a smart pointer to the packet TLV to append.

Definition at line 673 of file packetbb.cc.

References m_tlvList, NS_LOG_FUNCTION, and ns3::PbbTlvBlock::PushBack().

Referenced by PbbTestSuite::PbbTestSuite().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ TlvPushFront()

void ns3::PbbPacket::TlvPushFront ( Ptr< PbbTlv > tlv )

Prepends a packet TLV to the front of this packet.

Parameters

tlv	a smart pointer to the packet TLV to prepend.

Definition at line 659 of file packetbb.cc.

References m_tlvList, NS_LOG_FUNCTION, and ns3::PbbTlvBlock::PushFront().

Here is the call graph for this function:

◆ TlvSize()

int ns3::PbbPacket::TlvSize ( ) const

Returns: the number of packet TLVs in this packet.

Definition at line 617 of file packetbb.cc.

References m_tlvList, NS_LOG_FUNCTION, and ns3::PbbTlvBlock::Size().

Here is the call graph for this function:

Member Data Documentation

◆ m_hasseqnum

bool ns3::PbbPacket::m_hasseqnum

private

Sequence number present.

Definition at line 684 of file packetbb.h.

Referenced by PbbPacket(), HasSequenceNumber(), and SetSequenceNumber().

◆ m_messageList

std::list<Ptr<PbbMessage> > ns3::PbbPacket::m_messageList

private

PbbTlvBlock container.

Definition at line 680 of file packetbb.h.

Referenced by MessageBack(), MessageBegin(), MessageClear(), MessageEmpty(), MessageEnd(), MessageFront(), MessagePopBack(), MessagePopFront(), MessagePushBack(), MessagePushFront(), and MessageSize().

◆ m_seqnum

uint16_t ns3::PbbPacket::m_seqnum

private

Sequence number.

Definition at line 685 of file packetbb.h.

Referenced by GetSequenceNumber(), and SetSequenceNumber().

◆ m_tlvList

PbbTlvBlock ns3::PbbPacket::m_tlvList

private

PbbTlv container.

Definition at line 679 of file packetbb.h.

Referenced by Deserialize(), Erase(), GetSerializedSize(), operator==(), Print(), Serialize(), TlvBack(), TlvBegin(), TlvClear(), TlvEmpty(), TlvEnd(), TlvFront(), TlvPopBack(), TlvPopFront(), TlvPushBack(), TlvPushFront(), and TlvSize().

◆ m_version

uint8_t ns3::PbbPacket::m_version

private

version

Definition at line 682 of file packetbb.h.

Referenced by PbbPacket(), Deserialize(), and GetVersion().

The documentation for this class was generated from the following files:

src/network/utils/packetbb.h
src/network/utils/packetbb.cc

Public Types

Public Member Functions

Static Public Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ ConstMessageIterator

◆ ConstTlvIterator

◆ MessageIterator

◆ TlvIterator

Constructor & Destructor Documentation

◆ PbbPacket()

◆ ~PbbPacket()

Member Function Documentation

◆ Deserialize()

◆ Erase() [1/4]

◆ Erase() [2/4]

◆ Erase() [3/4]

◆ Erase() [4/4]

◆ GetInstanceTypeId()

◆ GetSequenceNumber()

◆ GetSerializedSize()

◆ GetTypeId()

◆ GetVersion()

◆ HasSequenceNumber()

◆ MessageBack() [1/2]

◆ MessageBack() [2/2]

◆ MessageBegin() [1/2]

◆ MessageBegin() [2/2]

◆ MessageClear()

◆ MessageEmpty()

◆ MessageEnd() [1/2]

◆ MessageEnd() [2/2]

◆ MessageFront() [1/2]

◆ MessageFront() [2/2]

◆ MessagePopBack()

◆ MessagePopFront()

◆ MessagePushBack()

◆ MessagePushFront()

◆ MessageSize()

◆ operator!=()

◆ operator==()

◆ Print()

◆ Serialize()

◆ SetSequenceNumber()

◆ TlvBack() [1/2]

◆ TlvBack() [2/2]

◆ TlvBegin() [1/2]

◆ TlvBegin() [2/2]

◆ TlvClear()

◆ TlvEmpty()

◆ TlvEnd() [1/2]

◆ TlvEnd() [2/2]

◆ TlvFront() [1/2]

◆ TlvFront() [2/2]

◆ TlvPopBack()

◆ TlvPopFront()

◆ TlvPushBack()

◆ TlvPushFront()

◆ TlvSize()

Member Data Documentation

◆ m_hasseqnum

◆ m_messageList

◆ m_seqnum

◆ m_tlvList

◆ m_version
