Takes care of storing the information generated at PHY layer regarding reception. More...

#include "phy-rx-stats-calculator.h"

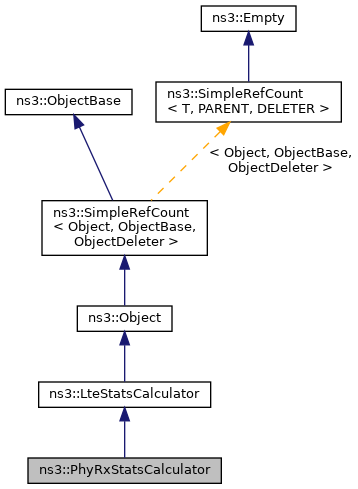

Inheritance diagram for ns3::PhyRxStatsCalculator:

Collaboration diagram for ns3::PhyRxStatsCalculator:

Public Member Functions
	PhyRxStatsCalculator ()
	Constructor. More...

	~PhyRxStatsCalculator () override
	Destructor. More...

void	DlPhyReception (PhyReceptionStatParameters params)
	Notifies the stats calculator that an downlink reception has occurred. More...

std::string	GetDlRxOutputFilename ()
	Get the name of the file where the DL RX PHY statistics will be stored. More...

std::string	GetUlRxOutputFilename ()
	Get the name of the file where the UL RX PHY statistics will be stored. More...

void	SetDlRxOutputFilename (std::string outputFilename)
	Set the name of the file where the DL RX PHY statistics will be stored. More...

void	SetUlRxOutputFilename (std::string outputFilename)
	Set the name of the file where the UL Rx PHY statistics will be stored. More...

void	UlPhyReception (PhyReceptionStatParameters params)
	Notifies the stats calculator that an uplink reception has occurred. More...

Public Member Functions inherited from ns3::LteStatsCalculator
	LteStatsCalculator ()
	Constructor. More...

	~LteStatsCalculator () override
	Destructor. More...

bool	ExistsCellIdPath (std::string path)
	Checks if there is an already stored cell id for the given path. More...

bool	ExistsImsiPath (std::string path)
	Checks if there is an already stored IMSI for the given path. More...

uint16_t	GetCellIdPath (std::string path)
	Retrieves the cell id information for the given path. More...

std::string	GetDlOutputFilename ()
	Get the name of the file where the downlink statistics will be stored. More...

uint64_t	GetImsiPath (std::string path)
	Retrieves the imsi information for the given path. More...

std::string	GetUlOutputFilename ()
	Get the name of the file where the uplink statistics will be stored. More...

void	SetCellIdPath (std::string path, uint16_t cellId)
	Stores the (path, cellId) pairs in a map. More...

void	SetDlOutputFilename (std::string outputFilename)
	Set the name of the file where the downlink statistics will be stored. More...

void	SetImsiPath (std::string path, uint64_t imsi)
	Stores the (path, imsi) pairs in a map. More...

void	SetUlOutputFilename (std::string outputFilename)
	Set the name of the file where the uplink statistics will be stored. More...

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

	~Object () override
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose ()
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator () const
	Get an iterator to the Objects aggregated to this one. More...

TypeId	GetInstanceTypeId () const override
	Get the most derived TypeId for this Object. More...

template<typename T >
Ptr< T >	GetObject () const
	Get a pointer to the requested aggregated Object. More...

template<>
Ptr< Object >	GetObject () const
	Specialization of () for objects of type ns3::Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< Object >	GetObject (TypeId tid) const
	Specialization of (TypeId tid) for objects of type ns3::Object. More...

void	Initialize ()
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized () const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
	Copy constructor. More...

uint32_t	GetReferenceCount () const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o[[maybe_unused]])
	Assignment operator. More...

void	Ref () const
	Increment the reference count. More...

void	Unref () const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising errors. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static void	DlPhyReceptionCallback (Ptr< PhyRxStatsCalculator > phyRxStats, std::string path, PhyReceptionStatParameters params)
	trace sink More...

static TypeId	GetTypeId ()
	Register this type. More...

static void	UlPhyReceptionCallback (Ptr< PhyRxStatsCalculator > phyRxStats, std::string path, PhyReceptionStatParameters params)
	trace sink More...

Static Public Member Functions inherited from ns3::LteStatsCalculator
static TypeId	GetTypeId ()
	Register this type. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId ()
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId ()
	Get the type ID. More...

Private Attributes
bool	m_dlRxFirstWrite
	When writing DL RX PHY statistics first time to file, columns description is added. More...

std::ofstream	m_dlRxOutFile
	DL RX PHY output trace file. More...

bool	m_ulRxFirstWrite
	When writing UL RX PHY statistics first time to file, columns description is added. More...

std::ofstream	m_ulRxOutFile
	UL RX PHY output trace file. More...

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	DoDispose ()
	Destructor implementation. More...

virtual void	DoInitialize ()
	Initialize() implementation. More...

virtual void	NotifyNewAggregate ()
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted ()
	Notifier called once the ObjectBase is fully constructed. More...

Static Protected Member Functions inherited from ns3::LteStatsCalculator
static uint16_t	FindCellIdFromEnbMac (std::string path, uint16_t rnti)
	Retrieves CellId from Enb MAC path in the attribute system. More...

static uint16_t	FindCellIdFromEnbRlcPath (std::string path)
	Retrieves CellId from Enb RLC path in the attribute system. More...

static uint64_t	FindImsiForEnb (std::string path, uint16_t rnti)
	Retrieves IMSI from path for Enb in the attribute system. More...

static uint64_t	FindImsiForUe (std::string path, uint16_t rnti)
	Retrieves IMSI from path for Ue in the attribute system. More...

static uint64_t	FindImsiFromEnbMac (std::string path, uint16_t rnti)
	Retrieves IMSI from Enb MAC path in the attribute system. More...

static uint64_t	FindImsiFromEnbRlcPath (std::string path)
	Retrieves IMSI from Enb RLC path in the attribute system. More...

static uint64_t	FindImsiFromLteNetDevice (std::string path)
	Retrieves IMSI from LteNetDevice path in the attribute system. More...

static uint64_t	FindImsiFromUePhy (std::string path)
	Retrieves IMSI from Ue PHY path in the attribute system. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid ()
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

Takes care of storing the information generated at PHY layer regarding reception.

Metrics saved are:

Timestamp (in seconds)
Frame index
Subframe index
C-RNTI
MCS for transport block 1
Size of transport block 1
MCS for transport block 2 (0 if not used)
Size of transport block 2 (0 if not used)

Definition at line 52 of file phy-rx-stats-calculator.h.

Constructor & Destructor Documentation

◆ PhyRxStatsCalculator()

ns3::PhyRxStatsCalculator::PhyRxStatsCalculator ( )

Constructor.

Definition at line 35 of file phy-rx-stats-calculator.cc.

References NS_LOG_FUNCTION.

◆ ~PhyRxStatsCalculator()

ns3::PhyRxStatsCalculator::~PhyRxStatsCalculator ( )

override

Destructor.

Definition at line 42 of file phy-rx-stats-calculator.cc.

References m_dlRxOutFile, m_ulRxOutFile, and NS_LOG_FUNCTION.

Member Function Documentation

◆ DlPhyReception()

void ns3::PhyRxStatsCalculator::DlPhyReception ( PhyReceptionStatParameters params )

Notifies the stats calculator that an downlink reception has occurred.

Parameters

params Trace information regarding PHY reception stats

Definition at line 102 of file phy-rx-stats-calculator.cc.

References GetDlRxOutputFilename(), m_dlRxFirstWrite, m_dlRxOutFile, NS_LOG_ERROR, NS_LOG_FUNCTION, NS_LOG_INFO, and two-ray-to-three-gpp-ch-calibration::params.

Here is the call graph for this function:

◆ DlPhyReceptionCallback()

void ns3::PhyRxStatsCalculator::DlPhyReceptionCallback	(	Ptr< PhyRxStatsCalculator >	phyRxStats,
		std::string	path,
		PhyReceptionStatParameters	params
	)

static

trace sink

Parameters

phyRxStats
path
params

Definition at line 172 of file phy-rx-stats-calculator.cc.

References ns3::LteStatsCalculator::FindImsiFromLteNetDevice(), NS_LOG_FUNCTION, and two-ray-to-three-gpp-ch-calibration::params.

Referenced by ns3::LteHelper::EnableDlRxPhyTraces().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetDlRxOutputFilename()

std::string ns3::PhyRxStatsCalculator::GetDlRxOutputFilename ( )

Get the name of the file where the DL RX PHY statistics will be stored.

Returns: the name of the file where the DL RX PHY statistics will be stored

Definition at line 96 of file phy-rx-stats-calculator.cc.

References ns3::LteStatsCalculator::GetDlOutputFilename().

Referenced by DlPhyReception().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::PhyRxStatsCalculator::GetTypeId ( void )

static

Register this type.

Returns: The object TypeId.

Definition at line 57 of file phy-rx-stats-calculator.cc.

References ns3::MakeStringAccessor(), ns3::MakeStringChecker(), SetDlRxOutputFilename(), ns3::TypeId::SetParent(), and SetUlRxOutputFilename().

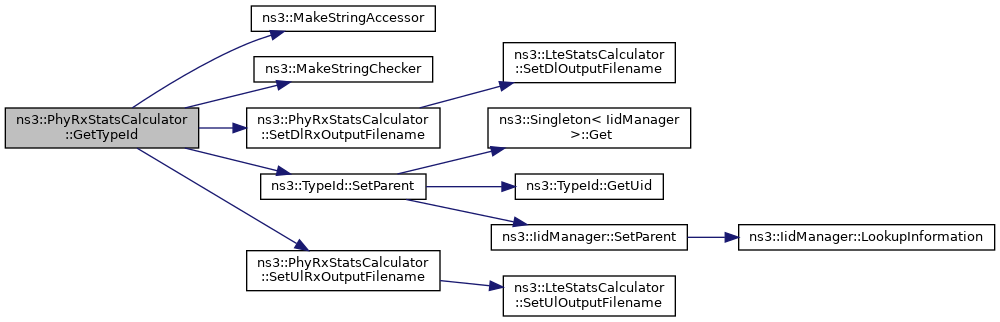

Here is the call graph for this function:

◆ GetUlRxOutputFilename()

std::string ns3::PhyRxStatsCalculator::GetUlRxOutputFilename ( )

Get the name of the file where the UL RX PHY statistics will be stored.

Returns: the name of the file where the UL RX PHY statistics will be stored

Definition at line 84 of file phy-rx-stats-calculator.cc.

References ns3::LteStatsCalculator::GetUlOutputFilename().

Referenced by UlPhyReception().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetDlRxOutputFilename()

void ns3::PhyRxStatsCalculator::SetDlRxOutputFilename ( std::string outputFilename )

Set the name of the file where the DL RX PHY statistics will be stored.

Parameters

outputFilename string with the name of the file

Definition at line 90 of file phy-rx-stats-calculator.cc.

References ns3::LteStatsCalculator::SetDlOutputFilename().

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetUlRxOutputFilename()

void ns3::PhyRxStatsCalculator::SetUlRxOutputFilename ( std::string outputFilename )

Set the name of the file where the UL Rx PHY statistics will be stored.

Parameters

outputFilename string with the name of the file

Definition at line 78 of file phy-rx-stats-calculator.cc.

References ns3::LteStatsCalculator::SetUlOutputFilename().

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ UlPhyReception()

void ns3::PhyRxStatsCalculator::UlPhyReception ( PhyReceptionStatParameters params )

Notifies the stats calculator that an uplink reception has occurred.

Parameters

params Trace information regarding PHY reception stats

Definition at line 138 of file phy-rx-stats-calculator.cc.

References GetUlRxOutputFilename(), m_ulRxFirstWrite, m_ulRxOutFile, NS_LOG_ERROR, NS_LOG_FUNCTION, NS_LOG_INFO, and two-ray-to-three-gpp-ch-calibration::params.

Here is the call graph for this function:

◆ UlPhyReceptionCallback()

void ns3::PhyRxStatsCalculator::UlPhyReceptionCallback	(	Ptr< PhyRxStatsCalculator >	phyRxStats,
		std::string	path,
		PhyReceptionStatParameters	params
	)

static

trace sink

Parameters

phyRxStats
path
params

Definition at line 196 of file phy-rx-stats-calculator.cc.

References ns3::LteStatsCalculator::FindImsiFromEnbRlcPath(), NS_LOG_FUNCTION, and two-ray-to-three-gpp-ch-calibration::params.

Referenced by ns3::LteHelper::EnableUlRxPhyTraces().

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

◆ m_dlRxFirstWrite

bool ns3::PhyRxStatsCalculator::m_dlRxFirstWrite

private

When writing DL RX PHY statistics first time to file, columns description is added.

Then next lines are appended to file. This value is true if output files have not been opened yet

Definition at line 139 of file phy-rx-stats-calculator.h.

Referenced by DlPhyReception().

◆ m_dlRxOutFile

std::ofstream ns3::PhyRxStatsCalculator::m_dlRxOutFile

private

DL RX PHY output trace file.

Definition at line 152 of file phy-rx-stats-calculator.h.

Referenced by ~PhyRxStatsCalculator(), and DlPhyReception().

◆ m_ulRxFirstWrite

bool ns3::PhyRxStatsCalculator::m_ulRxFirstWrite

private

When writing UL RX PHY statistics first time to file, columns description is added.

Then next lines are appended to file. This value is true if output files have not been opened yet

Definition at line 147 of file phy-rx-stats-calculator.h.

Referenced by UlPhyReception().

◆ m_ulRxOutFile

std::ofstream ns3::PhyRxStatsCalculator::m_ulRxOutFile

private

UL RX PHY output trace file.

Definition at line 157 of file phy-rx-stats-calculator.h.

Referenced by ~PhyRxStatsCalculator(), and UlPhyReception().

The documentation for this class was generated from the following files:

src/lte/helper/phy-rx-stats-calculator.h
src/lte/helper/phy-rx-stats-calculator.cc

Public Member Functions

Static Public Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ PhyRxStatsCalculator()

◆ ~PhyRxStatsCalculator()

Member Function Documentation

◆ DlPhyReception()

◆ DlPhyReceptionCallback()

◆ GetDlRxOutputFilename()

◆ GetTypeId()

◆ GetUlRxOutputFilename()

◆ SetDlRxOutputFilename()

◆ SetUlRxOutputFilename()

◆ UlPhyReception()

◆ UlPhyReceptionCallback()

Member Data Documentation

◆ m_dlRxFirstWrite

◆ m_dlRxOutFile

◆ m_ulRxFirstWrite

◆ m_ulRxOutFile
