LteNetDevice provides basic implementation for all LTE network devices. More...

#include "lte-net-device.h"

Inheritance diagram for ns3::LteNetDevice:

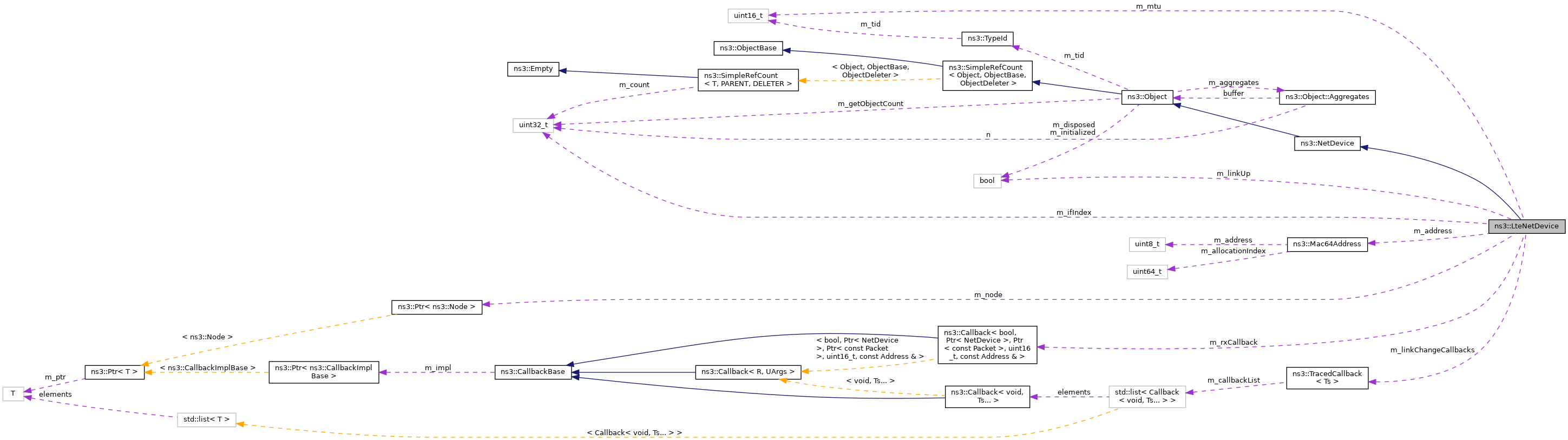

Collaboration diagram for ns3::LteNetDevice:

Public Member Functions
	LteNetDevice ()

	LteNetDevice (const LteNetDevice &)=delete

	~LteNetDevice () override

void	AddLinkChangeCallback (Callback< void > callback) override

void	DoDispose () override
	Destructor implementation. More...

Address	GetAddress () const override

Address	GetBroadcast () const override

Ptr< Channel >	GetChannel () const override

uint32_t	GetIfIndex () const override

uint16_t	GetMtu () const override

Address	GetMulticast (Ipv4Address addr) const override
	Make and return a MAC multicast address using the provided multicast group. More...

Address	GetMulticast (Ipv6Address addr) const override
	Get the MAC multicast address corresponding to the IPv6 address provided. More...

Ptr< Node >	GetNode () const override

bool	IsBridge () const override
	Return true if the net device is acting as a bridge. More...

bool	IsBroadcast () const override

bool	IsLinkUp () const override

bool	IsMulticast () const override

bool	IsPointToPoint () const override
	Return true if the net device is on a point-to-point link. More...

bool	NeedsArp () const override

LteNetDevice &	operator= (const LteNetDevice &)=delete

void	Receive (Ptr< Packet > p)
	receive a packet from the lower layers in order to forward it to the upper layers More...

bool	SendFrom (Ptr< Packet > packet, const Address &source, const Address &dest, uint16_t protocolNumber) override

void	SetAddress (Address address) override
	Set the address of this interface. More...

void	SetIfIndex (const uint32_t index) override

bool	SetMtu (const uint16_t mtu) override

void	SetNode (Ptr< Node > node) override

void	SetPromiscReceiveCallback (PromiscReceiveCallback cb) override

void	SetReceiveCallback (NetDevice::ReceiveCallback cb) override

bool	SupportsSendFrom () const override

Public Member Functions inherited from ns3::NetDevice
	~NetDevice () override

virtual bool	Send (Ptr< Packet > packet, const Address &dest, uint16_t protocolNumber)=0

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

	~Object () override
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose ()
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator () const
	Get an iterator to the Objects aggregated to this one. More...

TypeId	GetInstanceTypeId () const override
	Get the most derived TypeId for this Object. More...

template<typename T >
Ptr< T >	GetObject () const
	Get a pointer to the requested aggregated Object. More...

template<>
Ptr< Object >	GetObject () const
	Specialization of () for objects of type ns3::Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< Object >	GetObject (TypeId tid) const
	Specialization of (TypeId tid) for objects of type ns3::Object. More...

void	Initialize ()
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized () const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
	Copy constructor. More...

uint32_t	GetReferenceCount () const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o[[maybe_unused]])
	Assignment operator. More...

void	Ref () const
	Increment the reference count. More...

void	Unref () const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising errors. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId ()
	Get the type ID. More...

Static Public Member Functions inherited from ns3::NetDevice
static TypeId	GetTypeId ()
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId ()
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId ()
	Get the type ID. More...

Protected Attributes
NetDevice::ReceiveCallback	m_rxCallback
	receive callback More...

Private Attributes
Mac64Address	m_address
	MAC address - only relevant for UEs. More...

uint32_t	m_ifIndex
	interface index More...

TracedCallback	m_linkChangeCallbacks
	link change callback More...

bool	m_linkUp
	link uo More...

uint16_t	m_mtu
	MTU. More...

Ptr< Node >	m_node
	the node More...

Additional Inherited Members
Public Types inherited from ns3::NetDevice
typedef void(*	LinkChangeTracedCallback) ()
	TracedCallback signature for link changed event. More...

enum	PacketType { PACKET_HOST = 1 , NS3_PACKET_HOST = PACKET_HOST , PACKET_BROADCAST , NS3_PACKET_BROADCAST = PACKET_BROADCAST , PACKET_MULTICAST , NS3_PACKET_MULTICAST = PACKET_MULTICAST , PACKET_OTHERHOST , NS3_PACKET_OTHERHOST = PACKET_OTHERHOST }
	Packet types are used as they are in Linux. More...

typedef Callback< bool, Ptr< NetDevice >, Ptr< const Packet >, uint16_t, const Address &, const Address &, PacketType >	PromiscReceiveCallback

typedef Callback< bool, Ptr< NetDevice >, Ptr< const Packet >, uint16_t, const Address & >	ReceiveCallback

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	DoInitialize ()
	Initialize() implementation. More...

virtual void	NotifyNewAggregate ()
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted ()
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid ()
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

LteNetDevice provides basic implementation for all LTE network devices.

Definition at line 46 of file lte-net-device.h.

Constructor & Destructor Documentation

◆ LteNetDevice() [1/2]

ns3::LteNetDevice::LteNetDevice ( )

Definition at line 66 of file lte-net-device.cc.

References NS_LOG_FUNCTION.

◆ ~LteNetDevice()

ns3::LteNetDevice::~LteNetDevice ( )

override

Definition at line 71 of file lte-net-device.cc.

References NS_LOG_FUNCTION.

◆ LteNetDevice() [2/2]

ns3::LteNetDevice::LteNetDevice ( const LteNetDevice & )

delete

Member Function Documentation

◆ AddLinkChangeCallback()

void ns3::LteNetDevice::AddLinkChangeCallback ( Callback< void > callback )

overridevirtual

Parameters

callback the callback to invoke

Add a callback invoked whenever the link status changes to UP. This callback is typically used by the IP/ARP layer to flush the ARP cache and by IPv6 stack to flush NDISC cache whenever the link goes up.

Implements ns3::NetDevice.

Definition at line 252 of file lte-net-device.cc.

References ns3::TracedCallback< Ts >::ConnectWithoutContext(), m_linkChangeCallbacks, and NS_LOG_FUNCTION.

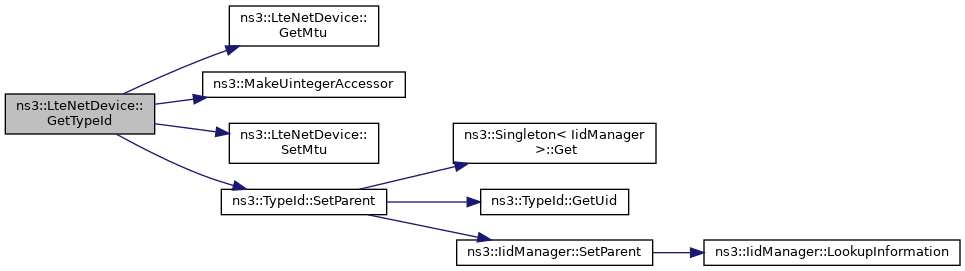

Here is the call graph for this function:

◆ DoDispose()

void ns3::LteNetDevice::DoDispose ( void )

overridevirtual

Destructor implementation.

This method is called by Dispose() or by the Object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overridden version of this method and chain up to their parent's implementation once they are done. i.e, for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose() method.

It is safe to call GetObject() from within this method.

Reimplemented from ns3::Object.

Reimplemented in ns3::LteUeNetDevice.

Definition at line 77 of file lte-net-device.cc.

References ns3::Object::DoDispose(), m_node, and NS_LOG_FUNCTION.

Referenced by ns3::LteEnbNetDevice::DoDispose(), and ns3::LteUeNetDevice::DoDispose().

Here is the call graph for this function:

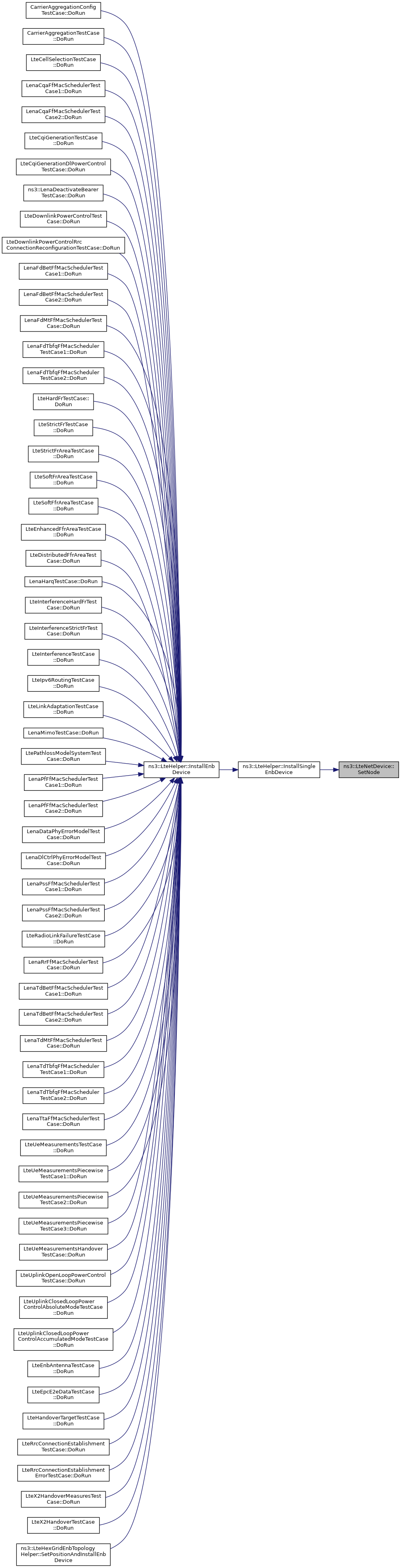

Here is the caller graph for this function:

◆ GetAddress()

Address ns3::LteNetDevice::GetAddress ( ) const

overridevirtual

Returns: the current Address of this interface.

Implements ns3::NetDevice.

Definition at line 102 of file lte-net-device.cc.

References m_address, and NS_LOG_FUNCTION.

◆ GetBroadcast()

Address ns3::LteNetDevice::GetBroadcast ( ) const

overridevirtual

Returns: the broadcast address supported by this netdevice.

Calling this method is invalid if IsBroadcast returns not true.

Implements ns3::NetDevice.

Definition at line 190 of file lte-net-device.cc.

References ns3::Mac48Address::GetBroadcast(), and NS_LOG_FUNCTION.

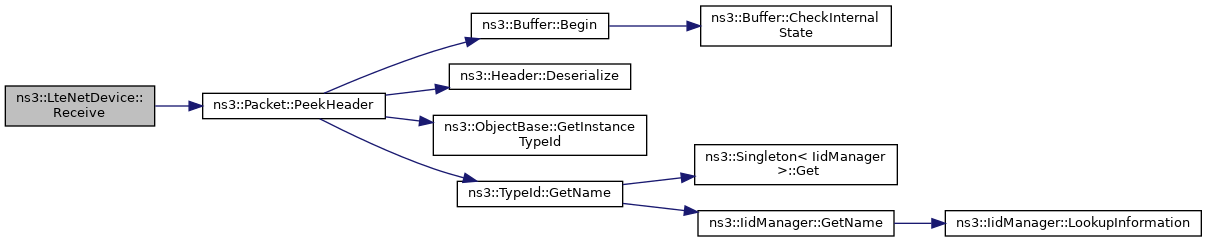

Here is the call graph for this function:

◆ GetChannel()

Ptr< Channel > ns3::LteNetDevice::GetChannel ( ) const

overridevirtual

Returns: the channel this NetDevice is connected to. The value returned can be zero if the NetDevice is not yet connected to any channel or if the underlying NetDevice has no concept of a channel. i.e., callers must check for zero and be ready to handle it.

Implements ns3::NetDevice.

Definition at line 86 of file lte-net-device.cc.

References NS_LOG_FUNCTION.

◆ GetIfIndex()

uint32_t ns3::LteNetDevice::GetIfIndex ( ) const

overridevirtual

Returns: index ifIndex of the device

Implements ns3::NetDevice.

Definition at line 169 of file lte-net-device.cc.

References m_ifIndex, and NS_LOG_FUNCTION.

Referenced by ns3::LteHelper::ActivateDataRadioBearer().

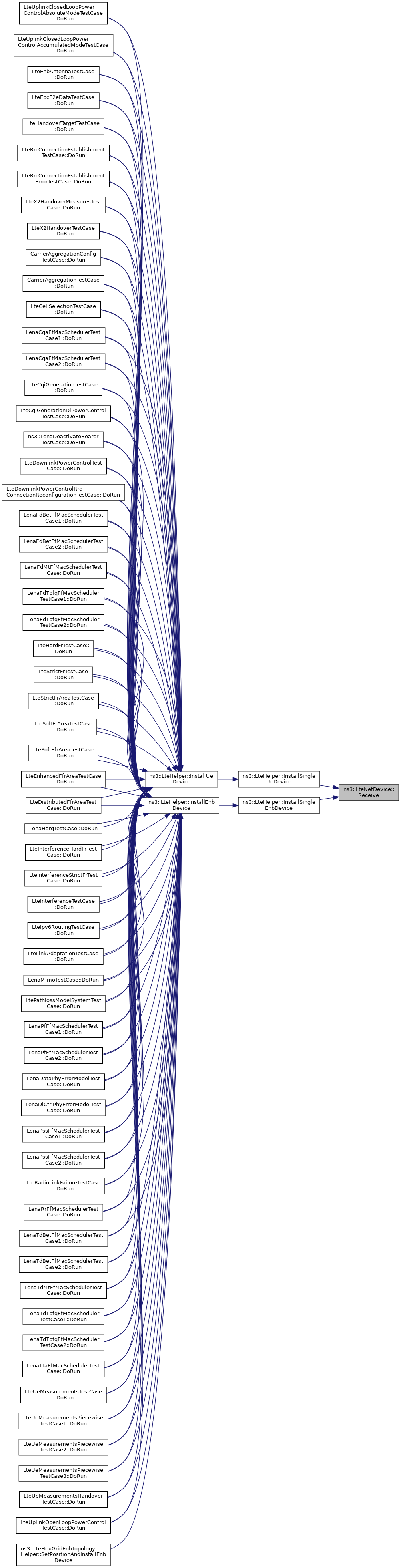

Here is the caller graph for this function:

◆ GetMtu()

uint16_t ns3::LteNetDevice::GetMtu ( ) const

overridevirtual

Returns: the link-level MTU in bytes for this interface.

This value is typically used by the IP layer to perform IP fragmentation when needed.

Implements ns3::NetDevice.

Definition at line 155 of file lte-net-device.cc.

References m_mtu, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the caller graph for this function:

◆ GetMulticast() [1/2]

Address ns3::LteNetDevice::GetMulticast ( Ipv4Address multicastGroup ) const

overridevirtual

Make and return a MAC multicast address using the provided multicast group.

RFC 1112 says that an Ipv4 host group address is mapped to an Ethernet multicast address by placing the low-order 23-bits of the IP address into the low-order 23 bits of the Ethernet multicast address 01-00-5E-00-00-00 (hex). Similar RFCs exist for Ipv6 and Eui64 mappings. This method performs the multicast address creation function appropriate to the underlying MAC address of the device. This MAC address is encapsulated in an abstract Address to avoid dependencies on the exact MAC address format.

In the case of net devices that do not support multicast, clients are expected to test NetDevice::IsMulticast and avoid attempting to map multicast packets. Subclasses of NetDevice that do support multicasting are expected to override this method and provide an implementation appropriate to the particular device.

Parameters

multicastGroup The IP address for the multicast group destination of the packet.

Returns: The MAC multicast Address used to send packets to the provided multicast group.

Warning: Calling this method is invalid if IsMulticast returns not true.

See also: IsMulticast()

Implements ns3::NetDevice.

Definition at line 225 of file lte-net-device.cc.

References ns3::Mac48Address::GetMulticast(), NS_LOG_FUNCTION, and NS_LOG_LOGIC.

Here is the call graph for this function:

◆ GetMulticast() [2/2]

Address ns3::LteNetDevice::GetMulticast ( Ipv6Address addr ) const

overridevirtual

Get the MAC multicast address corresponding to the IPv6 address provided.

Parameters

addr	IPv6 address

Returns: the MAC multicast address

Warning: Calling this method is invalid if IsMulticast returns not true.

Implements ns3::NetDevice.

Definition at line 242 of file lte-net-device.cc.

References ns3::Mac48Address::GetMulticast(), NS_LOG_FUNCTION, and NS_LOG_LOGIC.

Here is the call graph for this function:

◆ GetNode()

Ptr< Node > ns3::LteNetDevice::GetNode ( ) const

overridevirtual

Returns: the node base class which contains this network interface.

When a subclass needs to get access to the underlying node base class to print the nodeid for example, it can invoke this method.

Implements ns3::NetDevice.

Definition at line 116 of file lte-net-device.cc.

References m_node, and NS_LOG_FUNCTION.

Referenced by ns3::LteHelper::ActivateDataRadioBearer().

Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::LteNetDevice::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 52 of file lte-net-device.cc.

References GetMtu(), ns3::MakeUintegerAccessor(), SetMtu(), and ns3::TypeId::SetParent().

Here is the call graph for this function:

◆ IsBridge()

bool ns3::LteNetDevice::IsBridge ( ) const

overridevirtual

Return true if the net device is acting as a bridge.

Returns: value of m_isBridge flag

Implements ns3::NetDevice.

Definition at line 218 of file lte-net-device.cc.

References NS_LOG_FUNCTION.

◆ IsBroadcast()

bool ns3::LteNetDevice::IsBroadcast ( ) const

overridevirtual

Returns: true if this interface supports a broadcast address, false otherwise.

Implements ns3::NetDevice.

Definition at line 183 of file lte-net-device.cc.

References NS_LOG_FUNCTION.

◆ IsLinkUp()

bool ns3::LteNetDevice::IsLinkUp ( ) const

overridevirtual

Returns: true if link is up; false otherwise

Implements ns3::NetDevice.

Definition at line 176 of file lte-net-device.cc.

References m_linkUp, and NS_LOG_FUNCTION.

◆ IsMulticast()

bool ns3::LteNetDevice::IsMulticast ( ) const

overridevirtual

Returns: value of m_isMulticast flag

Implements ns3::NetDevice.

Definition at line 197 of file lte-net-device.cc.

References NS_LOG_FUNCTION.

◆ IsPointToPoint()

bool ns3::LteNetDevice::IsPointToPoint ( ) const

overridevirtual

Return true if the net device is on a point-to-point link.

Returns: value of m_isPointToPoint flag

Implements ns3::NetDevice.

Definition at line 204 of file lte-net-device.cc.

References NS_LOG_FUNCTION.

◆ NeedsArp()

bool ns3::LteNetDevice::NeedsArp ( ) const

overridevirtual

Returns: true if ARP is needed, false otherwise.

Called by higher-layers to check if this NetDevice requires ARP to be used.

Implements ns3::NetDevice.

Definition at line 211 of file lte-net-device.cc.

References NS_LOG_FUNCTION.

◆ operator=()

LteNetDevice& ns3::LteNetDevice::operator= ( const LteNetDevice & )

delete

◆ Receive()

void ns3::LteNetDevice::Receive ( Ptr< Packet > p )

receive a packet from the lower layers in order to forward it to the upper layers

Parameters

p	the packet

Definition at line 266 of file lte-net-device.cc.

References m_rxCallback, NS_ABORT_MSG, NS_LOG_FUNCTION, NS_LOG_LOGIC, ns3::Packet::PeekHeader(), ns3::Ipv4L3Protocol::PROT_NUMBER, and ns3::Ipv6L3Protocol::PROT_NUMBER.

Referenced by ns3::LteHelper::InstallSingleEnbDevice(), and ns3::LteHelper::InstallSingleUeDevice().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SendFrom()

bool ns3::LteNetDevice::SendFrom	(	Ptr< Packet >	packet,
		const Address &	source,
		const Address &	dest,
		uint16_t	protocolNumber
	)

overridevirtual

Parameters

packet	packet sent from above down to Network Device
source	source mac address (so called "MAC spoofing")
dest	mac address of the destination (already resolved)
protocolNumber	identifies the type of payload contained in this packet. Used to call the right L3Protocol when the packet is received.

Called from higher layer to send packet into Network Device with the specified source and destination Addresses.

Returns: whether the Send operation succeeded

Implements ns3::NetDevice.

Definition at line 130 of file lte-net-device.cc.

References NS_FATAL_ERROR.

◆ SetAddress()

void ns3::LteNetDevice::SetAddress ( Address address )

overridevirtual

Set the address of this interface.

Parameters

address address to set

Implements ns3::NetDevice.

Definition at line 95 of file lte-net-device.cc.

References first::address, ns3::Mac64Address::ConvertFrom(), m_address, and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ SetIfIndex()

void ns3::LteNetDevice::SetIfIndex ( const uint32_t index )

overridevirtual

Parameters

index ifIndex of the device

Implements ns3::NetDevice.

Definition at line 162 of file lte-net-device.cc.

References m_ifIndex, and NS_LOG_FUNCTION.

◆ SetMtu()

bool ns3::LteNetDevice::SetMtu ( const uint16_t mtu )

overridevirtual

Parameters

mtu	MTU value, in bytes, to set for the device

Returns: whether the MTU value was within legal bounds

Override for default MTU defined on a per-type basis.

Implements ns3::NetDevice.

Definition at line 147 of file lte-net-device.cc.

References m_mtu, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the caller graph for this function:

◆ SetNode()

void ns3::LteNetDevice::SetNode ( Ptr< Node > node )

overridevirtual

Parameters

node	the node associated to this netdevice.

This method is called from ns3::Node::AddDevice.

Implements ns3::NetDevice.

Definition at line 109 of file lte-net-device.cc.

References m_node, and NS_LOG_FUNCTION.

Referenced by ns3::LteHelper::InstallSingleEnbDevice().

Here is the caller graph for this function:

◆ SetPromiscReceiveCallback()

void ns3::LteNetDevice::SetPromiscReceiveCallback ( PromiscReceiveCallback cb )

overridevirtual

Parameters

cb	callback to invoke whenever a packet has been received in promiscuous mode and must be forwarded to the higher layers.

Enables netdevice promiscuous mode and sets the callback that will handle promiscuous mode packets. Note, promiscuous mode packets means all packets, including those packets that can be sensed by the netdevice but which are intended to be received by other hosts.

Implements ns3::NetDevice.

Definition at line 259 of file lte-net-device.cc.

References NS_LOG_FUNCTION, and NS_LOG_WARN.

◆ SetReceiveCallback()

void ns3::LteNetDevice::SetReceiveCallback ( NetDevice::ReceiveCallback cb )

overridevirtual

Parameters

cb	callback to invoke whenever a packet has been received and must be forwarded to the higher layers.

Set the callback to be used to notify higher layers when a packet has been received.

Implements ns3::NetDevice.

Definition at line 123 of file lte-net-device.cc.

References m_rxCallback, and NS_LOG_FUNCTION.

◆ SupportsSendFrom()

bool ns3::LteNetDevice::SupportsSendFrom ( ) const

overridevirtual

Returns: true if this interface supports a bridging mode, false otherwise.

Implements ns3::NetDevice.

Definition at line 140 of file lte-net-device.cc.

References NS_LOG_FUNCTION.

Member Data Documentation

◆ m_address

Mac64Address ns3::LteNetDevice::m_address

private

MAC address - only relevant for UEs.

Definition at line 111 of file lte-net-device.h.

Referenced by GetAddress(), and SetAddress().

◆ m_ifIndex

uint32_t ns3::LteNetDevice::m_ifIndex

private

interface index

Definition at line 107 of file lte-net-device.h.

Referenced by GetIfIndex(), and SetIfIndex().

◆ m_linkChangeCallbacks

TracedCallback ns3::LteNetDevice::m_linkChangeCallbacks

private

link change callback

Definition at line 105 of file lte-net-device.h.

Referenced by AddLinkChangeCallback().

◆ m_linkUp

bool ns3::LteNetDevice::m_linkUp

private

link uo

Definition at line 108 of file lte-net-device.h.

Referenced by IsLinkUp().

◆ m_mtu

uint16_t ns3::LteNetDevice::m_mtu

mutableprivate

MTU.

Definition at line 109 of file lte-net-device.h.

Referenced by GetMtu(), and SetMtu().

◆ m_node

Ptr<Node> ns3::LteNetDevice::m_node

private

the node

Definition at line 103 of file lte-net-device.h.

Referenced by DoDispose(), GetNode(), and SetNode().

◆ m_rxCallback

NetDevice::ReceiveCallback ns3::LteNetDevice::m_rxCallback

protected

receive callback

Definition at line 100 of file lte-net-device.h.

Referenced by Receive(), and SetReceiveCallback().

The documentation for this class was generated from the following files:

src/lte/model/lte-net-device.h
src/lte/model/lte-net-device.cc

Public Member Functions

Static Public Member Functions

Protected Attributes

Private Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ LteNetDevice() [1/2]

◆ ~LteNetDevice()

◆ LteNetDevice() [2/2]

Member Function Documentation

◆ AddLinkChangeCallback()

◆ DoDispose()

◆ GetAddress()

◆ GetBroadcast()

◆ GetChannel()

◆ GetIfIndex()

◆ GetMtu()

◆ GetMulticast() [1/2]

◆ GetMulticast() [2/2]

◆ GetNode()

◆ GetTypeId()

◆ IsBridge()

◆ IsBroadcast()

◆ IsLinkUp()

◆ IsMulticast()

◆ IsPointToPoint()

◆ NeedsArp()

◆ operator=()

◆ Receive()

◆ SendFrom()

◆ SetAddress()

◆ SetIfIndex()

◆ SetMtu()

◆ SetNode()

◆ SetPromiscReceiveCallback()

◆ SetReceiveCallback()

◆ SupportsSendFrom()

Member Data Documentation

◆ m_address

◆ m_ifIndex

◆ m_linkChangeCallbacks

◆ m_linkUp

◆ m_mtu

◆ m_node

◆ m_rxCallback
