ns3::Ipv6 Class Reference

Access to the IPv6 forwarding table, interfaces, and configuration. More...

#include "ipv6.h"

Inheritance diagram for ns3::Ipv6:

Collaboration diagram for ns3::Ipv6:

Public Member Functions
	Ipv6 ()
	Constructor. More...
	~Ipv6 () override
	Destructor. More...
virtual bool	AddAddress (uint32_t interface, Ipv6InterfaceAddress address, bool addOnLinkRoute=true)=0
	Add an address on the specified IPv6 interface. More...
virtual uint32_t	AddInterface (Ptr< NetDevice > device)=0
	Add a NetDevice interface. More...
virtual Ipv6InterfaceAddress	GetAddress (uint32_t interface, uint32_t addressIndex) const =0
	Get IPv6 address on specified IPv6 interface. More...
virtual int32_t	GetInterfaceForAddress (Ipv6Address address) const =0
	Return the interface number of the interface that has been assigned the specified IP address. More...
virtual int32_t	GetInterfaceForDevice (Ptr< const NetDevice > device) const =0
	Get the interface index of the specified NetDevice. More...
virtual int32_t	GetInterfaceForPrefix (Ipv6Address address, Ipv6Prefix mask) const =0
	Return the interface number of first interface found that has an IPv6 address within the prefix specified by the input address and mask parameters. More...
virtual uint16_t	GetMetric (uint32_t interface) const =0
	Get metric for the specified IPv6 interface. More...
virtual uint16_t	GetMtu (uint32_t interface) const =0
	Get MTU for the specified IPv6 interface. More...
virtual uint32_t	GetNAddresses (uint32_t interface) const =0
	Get number of addresses on specified IPv6 interface. More...
virtual Ptr< NetDevice >	GetNetDevice (uint32_t interface)=0
	Get the NetDevice of the specified interface number. More...
virtual uint32_t	GetNInterfaces () const =0
	Get number of interfaces. More...
virtual Ptr< IpL4Protocol >	GetProtocol (int protocolNumber) const =0
	Get L4 protocol by protocol number. More...
virtual Ptr< IpL4Protocol >	GetProtocol (int protocolNumber, int32_t interfaceIndex) const =0
	Get L4 protocol by protocol number for the specified interface. More...
virtual Ptr< Ipv6RoutingProtocol >	GetRoutingProtocol () const =0
	Get the routing protocol to be used by this IPv6 stack. More...
virtual void	Insert (Ptr< IpL4Protocol > protocol)=0
	Add a L4 protocol. More...
virtual void	Insert (Ptr< IpL4Protocol > protocol, uint32_t interfaceIndex)=0
	Add a L4 protocol to a specific interface. More...
virtual bool	IsForwarding (uint32_t interface) const =0
	If the specified IPv6 interface has forwarding enabled. More...
virtual bool	IsUp (uint32_t interface) const =0
	If the specified interface index is in "up" state. More...
virtual void	RegisterExtensions ()=0
	Register the IPv6 Extensions. More...
virtual void	RegisterOptions ()=0
	Register the IPv6 Options. More...
virtual void	Remove (Ptr< IpL4Protocol > protocol)=0
	Remove a L4 protocol. More...
virtual void	Remove (Ptr< IpL4Protocol > protocol, uint32_t interfaceIndex)=0
	Remove a L4 protocol from a specific interface. More...
virtual bool	RemoveAddress (uint32_t interface, Ipv6Address address)=0
	Remove the given address on named Ipv6 interface. More...
virtual bool	RemoveAddress (uint32_t interface, uint32_t addressIndex)=0
	Remove an address on specified IPv6 interface. More...
virtual void	Send (Ptr< Packet > packet, Ipv6Address source, Ipv6Address destination, uint8_t protocol, Ptr< Ipv6Route > route)=0
	Higher-level layers call this method to send a packet down the stack to the MAC and PHY layers. More...
virtual void	SetDown (uint32_t interface)=0
	Set the interface into the "down" state. More...
virtual void	SetForwarding (uint32_t interface, bool val)=0
	Set forwarding on specified IPv6 interface. More...
virtual void	SetMetric (uint32_t interface, uint16_t metric)=0
	Set metric on specified Ipv6 interface. More...
virtual void	SetPmtu (Ipv6Address dst, uint32_t pmtu)=0
	Set the Path MTU for the specified IPv6 destination address. More...
virtual void	SetRoutingProtocol (Ptr< Ipv6RoutingProtocol > routingProtocol)=0
	Register a new routing protocol to be used by this IPv6 stack. More...
virtual void	SetUp (uint32_t interface)=0
	Set the interface into the "up" state. More...
virtual Ipv6Address	SourceAddressSelection (uint32_t interface, Ipv6Address dest)=0
	Choose the source address to use with destination address. More...
Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...
	~Object () override
	Destructor. More...
void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...
void	Dispose ()
	Dispose of this Object. More...
AggregateIterator	GetAggregateIterator () const
	Get an iterator to the Objects aggregated to this one. More...
TypeId	GetInstanceTypeId () const override
	Get the most derived TypeId for this Object. More...
template<typename T >
Ptr< T >	GetObject () const
	Get a pointer to the requested aggregated Object. More...
template<>
Ptr< Object >	GetObject () const
	Specialization of () for objects of type ns3::Object. More...
template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...
template<>
Ptr< Object >	GetObject (TypeId tid) const
	Specialization of (TypeId tid) for objects of type ns3::Object. More...
void	Initialize ()
	Invoke DoInitialize on all Objects aggregated to this one. More...
bool	IsInitialized () const
	Check if the object has been initialized. More...
Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...
	SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
	Copy constructor. More...
uint32_t	GetReferenceCount () const
	Get the reference count of the object. More...
SimpleRefCount &	operator= (const SimpleRefCount &o[[maybe_unused]])
	Assignment operator. More...
void	Ref () const
	Increment the reference count. More...
void	Unref () const
	Decrement the reference count. More...
Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...
void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...
bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising errors. More...
void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...
bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...
bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...
bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...
bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...
bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId ()
	Get the type ID. More...
Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId ()
	Register this type. More...
Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId ()
	Get the type ID. More...

Static Public Attributes
static const uint32_t	IF_ANY = 0xffffffff
	Any interface magic number. More...

Private Member Functions
virtual bool	GetIpForward () const =0
	Get IPv6 forwarding state. More...
virtual bool	GetMtuDiscover () const =0
	Get IPv6 MTU discover state. More...
virtual bool	GetStrongEndSystemModel () const =0
	Get the Strong End System Model status. More...
virtual void	SetIpForward (bool forward)=0
	Set IPv6 forwarding state. More...
virtual void	SetMtuDiscover (bool mtuDiscover)=0
	Set IPv6 MTU discover state. More...
virtual void	SetStrongEndSystemModel (bool model)=0
	Set or unset the Strong End System Model. More...

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...
virtual void	DoDispose ()
	Destructor implementation. More...
virtual void	DoInitialize ()
	Initialize() implementation. More...
virtual void	NotifyNewAggregate ()
	Notify all Objects aggregated to this one of a new Object being aggregated. More...
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...
virtual void	NotifyConstructionCompleted ()
	Notifier called once the ObjectBase is fully constructed. More...
Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid ()
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

Access to the IPv6 forwarding table, interfaces, and configuration.

This class defines the API to manipulate the following aspects of the IPv6 implementation:

1. set/get an Ipv6RoutingProtocol
2. register a NetDevice for use by the IPv6 layer (basically, to create IPv6-related state such as addressing and neighbor cache that is associated with a NetDevice)
3. manipulate the status of the NetDevice from the IPv6 perspective, such as marking it as Up or Down,
4. adding, deleting, and getting addresses associated to the IPv6 interfaces.
5. exporting IPv6 configuration attributes

Each NetDevice has conceptually a single IPv6 interface associated with it (the corresponding structure in the Linux IPv6 implementation is struct in_device). Each interface may have one or more IPv6 addresses associated with it. Each IPv6 address may have different subnet mask, scope, etc., so all of this per-address information is stored in an Ipv6InterfaceAddress class (the corresponding structure in Linux is struct in6_ifaddr)

IPv6 attributes such as whether IP forwarding is enabled and disabled are also stored in this class

TO DO: Add API to allow access to the IPv6 neighbor table

See also

Ipv6RoutingProtocol

Ipv6InterfaceAddress

Definition at line 81 of file ipv6.h.

Constructor & Destructor Documentation

Ipv6()

ns3::Ipv6::Ipv6

(

)

Constructor.

Definition at line 61 of file ipv6.cc.

~Ipv6()

ns3::Ipv6::~Ipv6 ( )

override

Destructor.

Definition at line 65 of file ipv6.cc.

Member Function Documentation

AddAddress()

virtual bool ns3::Ipv6::AddAddress ( uint32_t  interface, Ipv6InterfaceAddress  address, bool  addOnLinkRoute = true  )

pure virtual

Add an address on the specified IPv6 interface.

Parameters

interface	Interface number of an IPv6 interface
address	Ipv6InterfaceAddress address to associate with the underlying IPv6 interface
addOnLinkRoute	add on-link route to the network (default true)

Returns

true if the operation succeeded

Implemented in ns3::Ipv6L3Protocol.

AddInterface()

virtual uint32_t ns3::Ipv6::AddInterface ( Ptr< NetDevice >  device )

pure virtual

Add a NetDevice interface.

Once a device has been added, it can never be removed: if you want to disable it, you can invoke Ipv6::SetDown which will make sure that it is never used during packet forwarding.

Parameters

device

device to add to the list of IPv6 interfaces which can be used as output interfaces during packet forwarding.

Returns

the index of the IPv6 interface added.

Implemented in ns3::Ipv6L3Protocol.

GetAddress()

virtual Ipv6InterfaceAddress ns3::Ipv6::GetAddress ( uint32_t  interface, uint32_t  addressIndex  ) const

pure virtual

Get IPv6 address on specified IPv6 interface.

Because addresses can be removed, the addressIndex is not guaranteed to be static across calls to this method.

Parameters

interface	Interface number of an IPv6 interface
addressIndex	index of Ipv6InterfaceAddress

Returns

the Ipv6InterfaceAddress associated to the interface and addressIndex

Implemented in ns3::Ipv6L3Protocol.

Referenced by ns3::NoBackhaulEpcHelper::GetUeDefaultGatewayAddress6().

Here is the caller graph for this function:

GetInterfaceForAddress()

virtual int32_t ns3::Ipv6::GetInterfaceForAddress ( Ipv6Address  address ) const

pure virtual

Return the interface number of the interface that has been assigned the specified IP address.

Parameters

address

The IP address being searched for

Returns

The interface number of the IPv6 interface with the given address or -1 if not found.

Each IP interface has one or more IP addresses associated with it. This method searches the list of interfaces for one that holds a particular address. This call takes an IP address as a parameter and returns the interface number of the first interface that has been assigned that address, or -1 if not found. There must be an exact match.

Implemented in ns3::Ipv6L3Protocol.

GetInterfaceForDevice()

virtual int32_t ns3::Ipv6::GetInterfaceForDevice ( Ptr< const NetDevice >  device ) const

pure virtual

Get the interface index of the specified NetDevice.

Parameters

device

The NetDevice for an Ipv6Interface

Returns

The interface number of an IPv6 interface or -1 if not found.

Implemented in ns3::Ipv6L3Protocol.

GetInterfaceForPrefix()

virtual int32_t ns3::Ipv6::GetInterfaceForPrefix ( Ipv6Address  address, Ipv6Prefix  mask  ) const

pure virtual

Return the interface number of first interface found that has an IPv6 address within the prefix specified by the input address and mask parameters.

Parameters

address	The IP address assigned to the interface of interest.
mask	The IP prefix to use in the mask

Returns

The interface number of the IPv6 interface with the given address or -1 if not found.

Each IP interface has one or more IP addresses associated with it. This method searches the list of interfaces for the first one found that holds an address that is included within the prefix formed by the input address and mask parameters. The value -1 is returned if no match is found.

Implemented in ns3::Ipv6L3Protocol.

GetIpForward()

virtual bool ns3::Ipv6::GetIpForward ( ) const

privatepure virtual

Get IPv6 forwarding state.

Returns

forwarding state (enabled or not)

Implemented in ns3::Ipv6L3Protocol.

Referenced by GetTypeId().

Here is the caller graph for this function:

GetMetric()

virtual uint16_t ns3::Ipv6::GetMetric ( uint32_t  interface ) const

pure virtual

Get metric for the specified IPv6 interface.

Parameters

interface

The interface number of an IPv6 interface

Returns

routing metric (cost) associated to the underlying IPv6 interface

Implemented in ns3::Ipv6L3Protocol.

GetMtu()

virtual uint16_t ns3::Ipv6::GetMtu ( uint32_t  interface ) const

pure virtual

Get MTU for the specified IPv6 interface.

Parameters

interface

Interface number of IPv6 interface

Returns

the Maximum Transmission Unit (in bytes) associated to the underlying IPv6 interface

Implemented in ns3::Ipv6L3Protocol.

GetMtuDiscover()

virtual bool ns3::Ipv6::GetMtuDiscover ( ) const

privatepure virtual

Get IPv6 MTU discover state.

Returns

MTU discover state (enabled or not)

Implemented in ns3::Ipv6L3Protocol.

Referenced by GetTypeId().

Here is the caller graph for this function:

GetNAddresses()

virtual uint32_t ns3::Ipv6::GetNAddresses ( uint32_t  interface ) const

pure virtual

Get number of addresses on specified IPv6 interface.

Parameters

interface

Interface number of an IPv6 interface

Returns

the number of Ipv6InterfaceAddress entries for the interface.

Implemented in ns3::Ipv6L3Protocol.

GetNetDevice()

virtual Ptr<NetDevice> ns3::Ipv6::GetNetDevice ( uint32_t  interface )

pure virtual

Get the NetDevice of the specified interface number.

Parameters

interface

The interface number of an IPv6 interface.

Returns

The NetDevice associated with the IPv6 interface number.

Implemented in ns3::Ipv6L3Protocol.

GetNInterfaces()

virtual uint32_t ns3::Ipv6::GetNInterfaces ( ) const

pure virtual

Get number of interfaces.

Returns

the number of interfaces added by the user.

Implemented in ns3::Ipv6L3Protocol.

GetProtocol() [1/2]

virtual Ptr<IpL4Protocol> ns3::Ipv6::GetProtocol ( int  protocolNumber ) const

pure virtual

Get L4 protocol by protocol number.

Parameters

protocolNumber

protocol number

Returns

corresponding IpL4Protocol or 0 if not found

Implemented in ns3::Ipv6L3Protocol.

Referenced by ns3::Ipv6Interface::AddAddress(), ns3::Ipv6Interface::DoSetup(), and ns3::Ipv6Interface::Send().

Here is the caller graph for this function:

GetProtocol() [2/2]

virtual Ptr<IpL4Protocol> ns3::Ipv6::GetProtocol ( int  protocolNumber, int32_t  interfaceIndex  ) const

pure virtual

Get L4 protocol by protocol number for the specified interface.

Parameters

protocolNumber	protocol number
interfaceIndex	interface index, -1 means "any" interface.

Returns

corresponding IpL4Protocol or 0 if not found

Implemented in ns3::Ipv6L3Protocol.

GetRoutingProtocol()

virtual Ptr<Ipv6RoutingProtocol> ns3::Ipv6::GetRoutingProtocol ( ) const

pure virtual

Get the routing protocol to be used by this IPv6 stack.

Returns

smart pointer to Ipv6RoutingProtocol object, or null pointer if none

Implemented in ns3::Ipv6L3Protocol.

Referenced by Ipv6ForwardingTest::DoRun().

Here is the caller graph for this function:

GetStrongEndSystemModel()

virtual bool ns3::Ipv6::GetStrongEndSystemModel ( ) const

privatepure virtual

Get the Strong End System Model status.

RFC1122 term for whether host rejects datagram with a dest. address on another interface

Returns

true for Strong End System Model activated

Implemented in ns3::Ipv6L3Protocol.

Referenced by GetTypeId().

Here is the caller graph for this function:

GetTypeId()

TypeId ns3::Ipv6::GetTypeId ( void  )

static

Get the type ID.

Returns

the object TypeId

Definition at line 34 of file ipv6.cc.

References GetIpForward(), GetMtuDiscover(), GetStrongEndSystemModel(), ns3::MakeBooleanAccessor(), ns3::MakeBooleanChecker(), SetIpForward(), SetMtuDiscover(), ns3::TypeId::SetParent(), and SetStrongEndSystemModel().

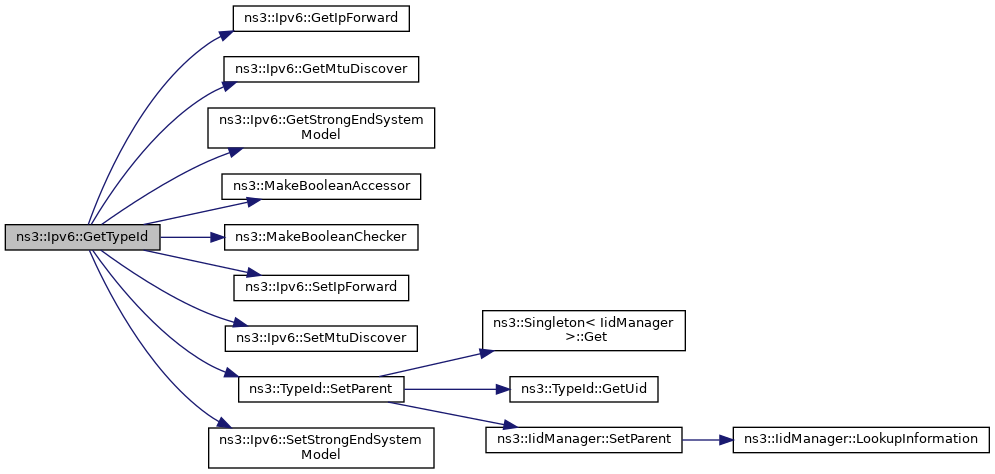

Here is the call graph for this function:

Insert() [1/2]

virtual void ns3::Ipv6::Insert ( Ptr< IpL4Protocol >  protocol )

pure virtual

Add a L4 protocol.

Parameters

protocol

L4 protocol

Implemented in ns3::Ipv6L3Protocol.

Insert() [2/2]

virtual void ns3::Ipv6::Insert ( Ptr< IpL4Protocol >  protocol, uint32_t  interfaceIndex  )

pure virtual

Add a L4 protocol to a specific interface.

This may be called multiple times for multiple interfaces for the same protocol. To insert for all interfaces, use the separate Insert (Ptr<IpL4Protocol> protocol) method.

Setting a protocol on a specific interface will overwrite the previously bound protocol.

Parameters

protocol	L4 protocol.
interfaceIndex	interface index.

Implemented in ns3::Ipv6L3Protocol.

IsForwarding()

virtual bool ns3::Ipv6::IsForwarding ( uint32_t  interface ) const

pure virtual

If the specified IPv6 interface has forwarding enabled.

Parameters

interface

Interface number of IPv6 interface

Returns

true if IPv6 forwarding enabled for input datagrams on this device

Implemented in ns3::Ipv6L3Protocol.

IsUp()

virtual bool ns3::Ipv6::IsUp ( uint32_t  interface ) const

pure virtual

If the specified interface index is in "up" state.

Parameters

interface

Interface number of IPv6 interface

Returns

true if the underlying interface is in the "up" state, false otherwise.

Implemented in ns3::Ipv6L3Protocol.

RegisterExtensions()

virtual void ns3::Ipv6::RegisterExtensions ( )

pure virtual

Register the IPv6 Extensions.

Does nothing if the Extensions have been already registered.

Implemented in ns3::Ipv6L3Protocol.

RegisterOptions()

virtual void ns3::Ipv6::RegisterOptions ( )

pure virtual

Register the IPv6 Options.

Does nothing if the Options have been already registered.

Implemented in ns3::Ipv6L3Protocol.

Remove() [1/2]

virtual void ns3::Ipv6::Remove ( Ptr< IpL4Protocol >  protocol )

pure virtual

Remove a L4 protocol.

Parameters

protocol

L4 protocol to remove.

Implemented in ns3::Ipv6L3Protocol.

Remove() [2/2]

virtual void ns3::Ipv6::Remove ( Ptr< IpL4Protocol >  protocol, uint32_t  interfaceIndex  )

pure virtual

Remove a L4 protocol from a specific interface.

Parameters

protocol	L4 protocol to remove.
interfaceIndex	interface index.

Implemented in ns3::Ipv6L3Protocol.

RemoveAddress() [1/2]

virtual bool ns3::Ipv6::RemoveAddress ( uint32_t  interface, Ipv6Address  address  )

pure virtual

Remove the given address on named Ipv6 interface.

Parameters

interface	Interface number of an IPv6 interface
address	the address to remove

Returns

true if the operation succeeded

Implemented in ns3::Ipv6L3Protocol.

RemoveAddress() [2/2]

virtual bool ns3::Ipv6::RemoveAddress ( uint32_t  interface, uint32_t  addressIndex  )

pure virtual

Remove an address on specified IPv6 interface.

Remove the address at addressIndex on named interface. The addressIndex for all higher indices will decrement by one after this method is called; so, for example, to remove 5 addresses from an interface i, one could call RemoveAddress (i, 0); 5 times.

Parameters

interface	Interface number of an IPv6 interface
addressIndex	index of Ipv6InterfaceAddress to remove

Returns

true if the operation succeeded

Implemented in ns3::Ipv6L3Protocol.

Send()

virtual void ns3::Ipv6::Send ( Ptr< Packet >  packet, Ipv6Address  source, Ipv6Address  destination, uint8_t  protocol, Ptr< Ipv6Route >  route  )

pure virtual

Higher-level layers call this method to send a packet down the stack to the MAC and PHY layers.

All PMTU values are stored at this level, so packet size calculations should be done mathematically at higher levels.

Parameters

packet	packet to send
source	source address of packet
destination	address of packet
protocol	number of packet
route	route to take

Implemented in ns3::Ipv6L3Protocol.

Referenced by ns3::Icmpv6L4Protocol::NotifyNewAggregate(), ns3::TcpL4Protocol::NotifyNewAggregate(), and ns3::UdpL4Protocol::NotifyNewAggregate().

Here is the caller graph for this function:

SetDown()

virtual void ns3::Ipv6::SetDown ( uint32_t  interface )

pure virtual

Set the interface into the "down" state.

In this state, it is ignored during IPv6 forwarding.

Parameters

interface

Interface number of IPv6 interface

Implemented in ns3::Ipv6L3Protocol.

SetForwarding()

virtual void ns3::Ipv6::SetForwarding ( uint32_t  interface, bool  val  )

pure virtual

Set forwarding on specified IPv6 interface.

Parameters

interface	Interface number of IPv6 interface
val	Value to set the forwarding flag

If set to true, IPv6 forwarding is enabled for input datagrams on this device

Implemented in ns3::Ipv6L3Protocol.

SetIpForward()

virtual void ns3::Ipv6::SetIpForward ( bool  forward )

privatepure virtual

Set IPv6 forwarding state.

Parameters

forward

IPv6 forwarding enabled or not

Implemented in ns3::Ipv6L3Protocol.

Referenced by GetTypeId().

Here is the caller graph for this function:

SetMetric()

virtual void ns3::Ipv6::SetMetric ( uint32_t  interface, uint16_t  metric  )

pure virtual

Set metric on specified Ipv6 interface.

Parameters

interface	The interface number of an IPv6 interface
metric	routing metric (cost) associated to the underlying IPv6 interface

Implemented in ns3::Ipv6L3Protocol.

SetMtuDiscover()

virtual void ns3::Ipv6::SetMtuDiscover ( bool  mtuDiscover )

privatepure virtual

Set IPv6 MTU discover state.

Parameters

mtuDiscover

IPv6 MTU discover enabled or not

Implemented in ns3::Ipv6L3Protocol.

Referenced by GetTypeId().

Here is the caller graph for this function:

SetPmtu()

virtual void ns3::Ipv6::SetPmtu ( Ipv6Address  dst, uint32_t  pmtu  )

pure virtual

Set the Path MTU for the specified IPv6 destination address.

Parameters

dst	Ipv6 destination address
pmtu	the Path MTU

Implemented in ns3::Ipv6L3Protocol.

SetRoutingProtocol()

virtual void ns3::Ipv6::SetRoutingProtocol ( Ptr< Ipv6RoutingProtocol >  routingProtocol )

pure virtual

Register a new routing protocol to be used by this IPv6 stack.

This call will replace any routing protocol that has been previously registered. If you want to add multiple routing protocols, you must add them to a Ipv6ListRoutingProtocol directly.

Parameters

routingProtocol

smart pointer to Ipv6RoutingProtocol object

Implemented in ns3::Ipv6L3Protocol.

SetStrongEndSystemModel()

virtual void ns3::Ipv6::SetStrongEndSystemModel ( bool  model )

privatepure virtual

Set or unset the Strong End System Model.

RFC1122 term for whether host rejects datagram with a dest. address on another interface

Parameters

model

true for Strong End System Model

Implemented in ns3::Ipv6L3Protocol.

Referenced by GetTypeId().

Here is the caller graph for this function:

SetUp()

virtual void ns3::Ipv6::SetUp ( uint32_t  interface )

pure virtual

Set the interface into the "up" state.

In this state, it is considered valid during IPv6 forwarding.

Parameters

interface

Interface number of IPv6 interface

Implemented in ns3::Ipv6L3Protocol.

SourceAddressSelection()

virtual Ipv6Address ns3::Ipv6::SourceAddressSelection ( uint32_t  interface, Ipv6Address  dest  )

pure virtual

Choose the source address to use with destination address.

Parameters

interface	interface index
dest	IPv6 destination address

Returns

IPv6 source address to use

Implemented in ns3::Ipv6L3Protocol.

Member Data Documentation

IF_ANY

const uint32_t ns3::Ipv6::IF_ANY = 0xffffffff

static

Any interface magic number.

Definition at line 400 of file ipv6.h.

Referenced by ns3::Ipv6StaticRouting::LookupStatic().

---

The documentation for this class was generated from the following files:

• src/internet/model/ipv6.h
• src/internet/model/ipv6.cc
