Network layer to device interface. More...

#include "net-device.h"

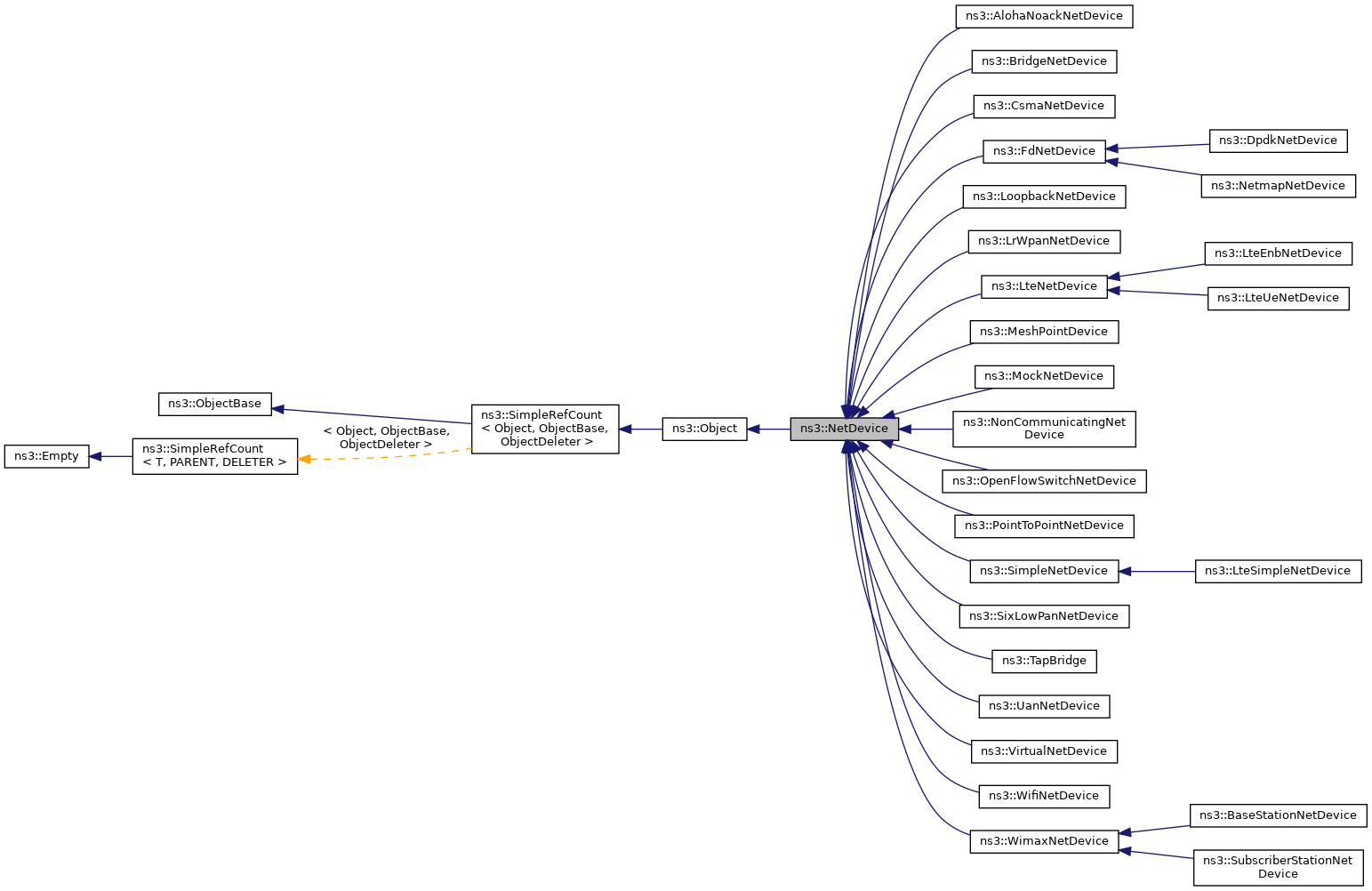

Inheritance diagram for ns3::NetDevice:

Collaboration diagram for ns3::NetDevice:

Public Types
typedef void(*	LinkChangeTracedCallback) ()
	TracedCallback signature for link changed event. More...

enum	PacketType { PACKET_HOST = 1 , NS3_PACKET_HOST = PACKET_HOST , PACKET_BROADCAST , NS3_PACKET_BROADCAST = PACKET_BROADCAST , PACKET_MULTICAST , NS3_PACKET_MULTICAST = PACKET_MULTICAST , PACKET_OTHERHOST , NS3_PACKET_OTHERHOST = PACKET_OTHERHOST }
	Packet types are used as they are in Linux. More...

typedef Callback< bool, Ptr< NetDevice >, Ptr< const Packet >, uint16_t, const Address &, const Address &, PacketType >	PromiscReceiveCallback

typedef Callback< bool, Ptr< NetDevice >, Ptr< const Packet >, uint16_t, const Address & >	ReceiveCallback

Public Member Functions
	~NetDevice () override

virtual void	AddLinkChangeCallback (Callback< void > callback)=0

virtual Address	GetAddress () const =0

virtual Address	GetBroadcast () const =0

virtual Ptr< Channel >	GetChannel () const =0

virtual uint32_t	GetIfIndex () const =0

virtual uint16_t	GetMtu () const =0

virtual Address	GetMulticast (Ipv4Address multicastGroup) const =0
	Make and return a MAC multicast address using the provided multicast group. More...

virtual Address	GetMulticast (Ipv6Address addr) const =0
	Get the MAC multicast address corresponding to the IPv6 address provided. More...

virtual Ptr< Node >	GetNode () const =0

virtual bool	IsBridge () const =0
	Return true if the net device is acting as a bridge. More...

virtual bool	IsBroadcast () const =0

virtual bool	IsLinkUp () const =0

virtual bool	IsMulticast () const =0

virtual bool	IsPointToPoint () const =0
	Return true if the net device is on a point-to-point link. More...

virtual bool	NeedsArp () const =0

virtual bool	Send (Ptr< Packet > packet, const Address &dest, uint16_t protocolNumber)=0

virtual bool	SendFrom (Ptr< Packet > packet, const Address &source, const Address &dest, uint16_t protocolNumber)=0

virtual void	SetAddress (Address address)=0
	Set the address of this interface. More...

virtual void	SetIfIndex (const uint32_t index)=0

virtual bool	SetMtu (const uint16_t mtu)=0

virtual void	SetNode (Ptr< Node > node)=0

virtual void	SetPromiscReceiveCallback (PromiscReceiveCallback cb)=0

virtual void	SetReceiveCallback (ReceiveCallback cb)=0

virtual bool	SupportsSendFrom () const =0

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

	~Object () override
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose ()
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator () const
	Get an iterator to the Objects aggregated to this one. More...

TypeId	GetInstanceTypeId () const override
	Get the most derived TypeId for this Object. More...

template<typename T >
Ptr< T >	GetObject () const
	Get a pointer to the requested aggregated Object. More...

template<>
Ptr< Object >	GetObject () const
	Specialization of () for objects of type ns3::Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< Object >	GetObject (TypeId tid) const
	Specialization of (TypeId tid) for objects of type ns3::Object. More...

void	Initialize ()
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized () const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
	Copy constructor. More...

uint32_t	GetReferenceCount () const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o[[maybe_unused]])
	Assignment operator. More...

void	Ref () const
	Increment the reference count. More...

void	Unref () const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising errors. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId ()
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId ()
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId ()
	Get the type ID. More...

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	DoDispose ()
	Destructor implementation. More...

virtual void	DoInitialize ()
	Initialize() implementation. More...

virtual void	NotifyNewAggregate ()
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted ()
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid ()
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

Network layer to device interface.

This interface defines the API which the IP and ARP layers need to access to manage an instance of a network device layer. It currently does not support MAC-level multicast but this should not be too hard to add by adding extra methods to register MAC multicast addresses to filter out unwanted packets before handing them to the higher layers.

In Linux, this interface is analogous to the interface just above dev_queue_xmit() (i.e., IP packet is fully constructed with destination MAC address already selected).

If you want to write a new MAC layer, you need to subclass this base class and implement your own version of the pure virtual methods in this class.

This class was designed to hide as many MAC-level details as possible from the perspective of layer 3 to allow a single layer 3 to work with any kind of MAC layer. Specifically, this class encapsulates the specific format of MAC addresses used by a device such that the layer 3 does not need any modification to handle new address formats. This means obviously that the NetDevice class must know about the address format of all potential layer 3 protocols through its GetMulticast methods: the current API has been optimized to make it easy to add new MAC protocols, not to add new layer 3 protocols.

Devices aiming to support flow control and dynamic queue limits must perform the following operations:

in the NotifyNewAggregate method
- cache the pointer to the netdevice queue interface aggregated to the device
- set the select queue callback through the netdevice queue interface, if the device is multi-queue
anytime before initialization
- set the number of device transmission queues (and optionally create them) through the netdevice queue interface, if the device is multi-queue
when the device queues have been created, invoke NetDeviceQueueInterface::ConnectQueueTraces, which
- connects the Enqueue traced callback of the device queues to the PacketEnqueued static method of the NetDeviceQueue class
- connects the Dequeue and DropAfterDequeue traced callback of the device queues to the PacketDequeued static method of the NetDeviceQueue class
- connects the DropBeforeEnqueue traced callback of the device queues to the PacketDiscarded static method of the NetDeviceQueue class

Definition at line 97 of file net-device.h.

Member Typedef Documentation

◆ LinkChangeTracedCallback

typedef void(* ns3::NetDevice::LinkChangeTracedCallback) ()

TracedCallback signature for link changed event.

Definition at line 157 of file net-device.h.

◆ PromiscReceiveCallback

typedef Callback<bool, Ptr<NetDevice>, Ptr<const Packet>, uint16_t, const Address&, const Address&, PacketType> ns3::NetDevice::PromiscReceiveCallback

Parameters

device	a pointer to the net device which is calling this callback
packet	the packet received
protocol	the 16 bit protocol number associated with this packet. This protocol number is expected to be the same protocol number given to the Send method by the user on the sender side.
sender	the address of the sender
receiver	the address of the receiver
packetType	type of packet received (broadcast/multicast/unicast/otherhost)

Returns: true if the callback could handle the packet successfully, false otherwise.

Definition at line 352 of file net-device.h.

◆ ReceiveCallback

typedef Callback<bool, Ptr<NetDevice>, Ptr<const Packet>, uint16_t, const Address&> ns3::NetDevice::ReceiveCallback

Parameters

device	a pointer to the net device which is calling this callback
packet	the packet received
protocol	the 16 bit protocol number associated with this packet. This protocol number is expected to be the same protocol number given to the Send method by the user on the sender side.
sender	the address of the sender

Returns: true if the callback could handle the packet successfully, false otherwise.

Definition at line 322 of file net-device.h.

Member Enumeration Documentation

◆ PacketType

enum ns3::NetDevice::PacketType

Packet types are used as they are in Linux.

GCC name resolution on typedef enum {} PacketType is broken for the foreseeable future, so if you need to use ns-3 PacketType in a driver that also uses the Linux packet types you're hosed unless we define a shadow type, which we do here.

Enumerator
PACKET_HOST	Packet addressed to us.
NS3_PACKET_HOST
PACKET_BROADCAST	Packet addressed to all.
NS3_PACKET_BROADCAST
PACKET_MULTICAST	Packet addressed to multicast group.
NS3_PACKET_MULTICAST
PACKET_OTHERHOST	Packet addressed to someone else.
NS3_PACKET_OTHERHOST

Definition at line 299 of file net-device.h.

Constructor & Destructor Documentation

◆ ~NetDevice()

ns3::NetDevice::~NetDevice ( )

override

Definition at line 38 of file net-device.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

◆ AddLinkChangeCallback()

virtual void ns3::NetDevice::AddLinkChangeCallback ( Callback< void > callback )

pure virtual

Parameters

callback the callback to invoke

Add a callback invoked whenever the link status changes to UP. This callback is typically used by the IP/ARP layer to flush the ARP cache and by IPv6 stack to flush NDISC cache whenever the link goes up.

Implemented in ns3::WimaxNetDevice, ns3::WifiNetDevice, ns3::VirtualNetDevice, ns3::UanNetDevice, ns3::TapBridge, ns3::NonCommunicatingNetDevice, ns3::AlohaNoackNetDevice, ns3::MockNetDevice, ns3::SixLowPanNetDevice, ns3::PointToPointNetDevice, ns3::OpenFlowSwitchNetDevice, ns3::SimpleNetDevice, ns3::MeshPointDevice, ns3::LteNetDevice, ns3::LrWpanNetDevice, ns3::LoopbackNetDevice, ns3::FdNetDevice, ns3::CsmaNetDevice, and ns3::BridgeNetDevice.

◆ GetAddress()

virtual Address ns3::NetDevice::GetAddress ( ) const

pure virtual

Returns: the current Address of this interface.

Implemented in ns3::WimaxNetDevice, ns3::WifiNetDevice, ns3::VirtualNetDevice, ns3::UanNetDevice, ns3::TapBridge, ns3::NonCommunicatingNetDevice, ns3::AlohaNoackNetDevice, ns3::MockNetDevice, ns3::SixLowPanNetDevice, ns3::PointToPointNetDevice, ns3::OpenFlowSwitchNetDevice, ns3::SimpleNetDevice, ns3::MeshPointDevice, ns3::LteNetDevice, ns3::LrWpanNetDevice, ns3::LoopbackNetDevice, ns3::FdNetDevice, ns3::CsmaNetDevice, and ns3::BridgeNetDevice.

Referenced by ns3::aodv::RoutingProtocol::RouteInput(), and ns3::dsdv::RoutingProtocol::RouteInput().

Here is the caller graph for this function:

◆ GetBroadcast()

virtual Address ns3::NetDevice::GetBroadcast ( ) const

pure virtual

Returns: the broadcast address supported by this netdevice.

Calling this method is invalid if IsBroadcast returns not true.

Implemented in ns3::WimaxNetDevice, ns3::WifiNetDevice, ns3::VirtualNetDevice, ns3::UanNetDevice, ns3::TapBridge, ns3::NonCommunicatingNetDevice, ns3::AlohaNoackNetDevice, ns3::MockNetDevice, ns3::SixLowPanNetDevice, ns3::PointToPointNetDevice, ns3::OpenFlowSwitchNetDevice, ns3::SimpleNetDevice, ns3::MeshPointDevice, ns3::LteNetDevice, ns3::LrWpanNetDevice, ns3::LoopbackNetDevice, ns3::FdNetDevice, ns3::CsmaNetDevice, and ns3::BridgeNetDevice.

◆ GetChannel()

virtual Ptr<Channel> ns3::NetDevice::GetChannel ( ) const

pure virtual

Returns: the channel this NetDevice is connected to. The value returned can be zero if the NetDevice is not yet connected to any channel or if the underlying NetDevice has no concept of a channel. i.e., callers must check for zero and be ready to handle it.

Implemented in ns3::WimaxNetDevice, ns3::WifiNetDevice, ns3::VirtualNetDevice, ns3::UanNetDevice, ns3::TapBridge, ns3::NonCommunicatingNetDevice, ns3::AlohaNoackNetDevice, ns3::MockNetDevice, ns3::SixLowPanNetDevice, ns3::PointToPointNetDevice, ns3::OpenFlowSwitchNetDevice, ns3::SimpleNetDevice, ns3::MeshPointDevice, ns3::LteNetDevice, ns3::LrWpanNetDevice, ns3::LoopbackNetDevice, ns3::FdNetDevice, ns3::CsmaNetDevice, and ns3::BridgeNetDevice.

◆ GetIfIndex()

virtual uint32_t ns3::NetDevice::GetIfIndex ( ) const

pure virtual

Returns: index ifIndex of the device

Implemented in ns3::WimaxNetDevice, ns3::WifiNetDevice, ns3::VirtualNetDevice, ns3::UanNetDevice, ns3::TapBridge, ns3::NonCommunicatingNetDevice, ns3::AlohaNoackNetDevice, ns3::MockNetDevice, ns3::SixLowPanNetDevice, ns3::PointToPointNetDevice, ns3::OpenFlowSwitchNetDevice, ns3::SimpleNetDevice, ns3::MeshPointDevice, ns3::LteNetDevice, ns3::LrWpanNetDevice, ns3::LoopbackNetDevice, ns3::FdNetDevice, ns3::CsmaNetDevice, and ns3::BridgeNetDevice.

Referenced by ns3::Ipv4L3ClickProtocol::GetInterfaceForDevice().

Here is the caller graph for this function:

◆ GetMtu()

virtual uint16_t ns3::NetDevice::GetMtu ( ) const

pure virtual

Returns: the link-level MTU in bytes for this interface.

This value is typically used by the IP layer to perform IP fragmentation when needed.

Implemented in ns3::WimaxNetDevice, ns3::WifiNetDevice, ns3::VirtualNetDevice, ns3::UanNetDevice, ns3::TapBridge, ns3::NonCommunicatingNetDevice, ns3::AlohaNoackNetDevice, ns3::MockNetDevice, ns3::SixLowPanNetDevice, ns3::PointToPointNetDevice, ns3::OpenFlowSwitchNetDevice, ns3::SimpleNetDevice, ns3::MeshPointDevice, ns3::LteNetDevice, ns3::LrWpanNetDevice, ns3::LoopbackNetDevice, ns3::FdNetDevice, ns3::CsmaNetDevice, and ns3::BridgeNetDevice.

◆ GetMulticast() [1/2]

virtual Address ns3::NetDevice::GetMulticast ( Ipv4Address multicastGroup ) const

pure virtual

Make and return a MAC multicast address using the provided multicast group.

RFC 1112 says that an Ipv4 host group address is mapped to an Ethernet multicast address by placing the low-order 23-bits of the IP address into the low-order 23 bits of the Ethernet multicast address 01-00-5E-00-00-00 (hex). Similar RFCs exist for Ipv6 and Eui64 mappings. This method performs the multicast address creation function appropriate to the underlying MAC address of the device. This MAC address is encapsulated in an abstract Address to avoid dependencies on the exact MAC address format.

In the case of net devices that do not support multicast, clients are expected to test NetDevice::IsMulticast and avoid attempting to map multicast packets. Subclasses of NetDevice that do support multicasting are expected to override this method and provide an implementation appropriate to the particular device.

Parameters

multicastGroup The IP address for the multicast group destination of the packet.

Returns: The MAC multicast Address used to send packets to the provided multicast group.

Warning: Calling this method is invalid if IsMulticast returns not true.

See also: IsMulticast()

Implemented in ns3::WimaxNetDevice, ns3::WifiNetDevice, ns3::VirtualNetDevice, ns3::UanNetDevice, ns3::TapBridge, ns3::MockNetDevice, ns3::SixLowPanNetDevice, ns3::PointToPointNetDevice, ns3::OpenFlowSwitchNetDevice, ns3::SimpleNetDevice, ns3::MeshPointDevice, ns3::LrWpanNetDevice, ns3::LoopbackNetDevice, ns3::FdNetDevice, ns3::CsmaNetDevice, ns3::BridgeNetDevice, ns3::NonCommunicatingNetDevice, ns3::AlohaNoackNetDevice, and ns3::LteNetDevice.

◆ GetMulticast() [2/2]

virtual Address ns3::NetDevice::GetMulticast ( Ipv6Address addr ) const

pure virtual

Get the MAC multicast address corresponding to the IPv6 address provided.

Parameters

addr	IPv6 address

Returns: the MAC multicast address

Warning: Calling this method is invalid if IsMulticast returns not true.

Implemented in ns3::WimaxNetDevice, ns3::WifiNetDevice, ns3::VirtualNetDevice, ns3::UanNetDevice, ns3::TapBridge, ns3::NonCommunicatingNetDevice, ns3::AlohaNoackNetDevice, ns3::MockNetDevice, ns3::SixLowPanNetDevice, ns3::PointToPointNetDevice, ns3::OpenFlowSwitchNetDevice, ns3::SimpleNetDevice, ns3::MeshPointDevice, ns3::LteNetDevice, ns3::LrWpanNetDevice, ns3::LoopbackNetDevice, ns3::FdNetDevice, ns3::CsmaNetDevice, and ns3::BridgeNetDevice.

◆ GetNode()

virtual Ptr<Node> ns3::NetDevice::GetNode ( ) const

pure virtual

Returns: the node base class which contains this network interface.

When a subclass needs to get access to the underlying node base class to print the nodeid for example, it can invoke this method.

Implemented in ns3::WimaxNetDevice, ns3::WifiNetDevice, ns3::VirtualNetDevice, ns3::UanNetDevice, ns3::TapBridge, ns3::NonCommunicatingNetDevice, ns3::AlohaNoackNetDevice, ns3::MockNetDevice, ns3::SixLowPanNetDevice, ns3::PointToPointNetDevice, ns3::OpenFlowSwitchNetDevice, ns3::SimpleNetDevice, ns3::MeshPointDevice, ns3::LteNetDevice, ns3::LrWpanNetDevice, ns3::LoopbackNetDevice, ns3::FdNetDevice, ns3::CsmaNetDevice, and ns3::BridgeNetDevice.

Referenced by ns3::AnimationInterface::OutputCsmaPacket(), ns3::AnimationInterface::OutputWirelessPacketRxInfo(), ns3::AnimationInterface::OutputWirelessPacketTxInfo(), and ns3::AnimationInterface::AnimPacketInfo::ProcessRxBegin().

Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::NetDevice::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 32 of file net-device.cc.

References ns3::TypeId::SetParent().

Here is the call graph for this function:

◆ IsBridge()

virtual bool ns3::NetDevice::IsBridge ( ) const

pure virtual

Return true if the net device is acting as a bridge.

Returns: value of m_isBridge flag

Implemented in ns3::WimaxNetDevice, ns3::WifiNetDevice, ns3::VirtualNetDevice, ns3::UanNetDevice, ns3::TapBridge, ns3::NonCommunicatingNetDevice, ns3::AlohaNoackNetDevice, ns3::MockNetDevice, ns3::SixLowPanNetDevice, ns3::PointToPointNetDevice, ns3::OpenFlowSwitchNetDevice, ns3::SimpleNetDevice, ns3::MeshPointDevice, ns3::LteNetDevice, ns3::LrWpanNetDevice, ns3::LoopbackNetDevice, ns3::FdNetDevice, ns3::CsmaNetDevice, and ns3::BridgeNetDevice.

◆ IsBroadcast()

virtual bool ns3::NetDevice::IsBroadcast ( ) const

pure virtual

Returns: true if this interface supports a broadcast address, false otherwise.

Implemented in ns3::WimaxNetDevice, ns3::WifiNetDevice, ns3::VirtualNetDevice, ns3::UanNetDevice, ns3::TapBridge, ns3::NonCommunicatingNetDevice, ns3::AlohaNoackNetDevice, ns3::MockNetDevice, ns3::SixLowPanNetDevice, ns3::PointToPointNetDevice, ns3::OpenFlowSwitchNetDevice, ns3::SimpleNetDevice, ns3::MeshPointDevice, ns3::LteNetDevice, ns3::LrWpanNetDevice, ns3::LoopbackNetDevice, ns3::FdNetDevice, ns3::CsmaNetDevice, and ns3::BridgeNetDevice.

◆ IsLinkUp()

virtual bool ns3::NetDevice::IsLinkUp ( ) const

pure virtual

Returns: true if link is up; false otherwise

Implemented in ns3::WimaxNetDevice, ns3::WifiNetDevice, ns3::VirtualNetDevice, ns3::UanNetDevice, ns3::TapBridge, ns3::NonCommunicatingNetDevice, ns3::AlohaNoackNetDevice, ns3::MockNetDevice, ns3::SixLowPanNetDevice, ns3::PointToPointNetDevice, ns3::OpenFlowSwitchNetDevice, ns3::SimpleNetDevice, ns3::MeshPointDevice, ns3::LteNetDevice, ns3::LrWpanNetDevice, ns3::LoopbackNetDevice, ns3::FdNetDevice, ns3::DpdkNetDevice, ns3::CsmaNetDevice, and ns3::BridgeNetDevice.

◆ IsMulticast()

virtual bool ns3::NetDevice::IsMulticast ( ) const

pure virtual

Returns: value of m_isMulticast flag

Implemented in ns3::WimaxNetDevice, ns3::WifiNetDevice, ns3::VirtualNetDevice, ns3::UanNetDevice, ns3::TapBridge, ns3::NonCommunicatingNetDevice, ns3::AlohaNoackNetDevice, ns3::MockNetDevice, ns3::SixLowPanNetDevice, ns3::PointToPointNetDevice, ns3::OpenFlowSwitchNetDevice, ns3::SimpleNetDevice, ns3::MeshPointDevice, ns3::LteNetDevice, ns3::LrWpanNetDevice, ns3::LoopbackNetDevice, ns3::FdNetDevice, ns3::CsmaNetDevice, and ns3::BridgeNetDevice.

◆ IsPointToPoint()

virtual bool ns3::NetDevice::IsPointToPoint ( ) const

pure virtual

Return true if the net device is on a point-to-point link.

Returns: value of m_isPointToPoint flag

Implemented in ns3::WimaxNetDevice, ns3::WifiNetDevice, ns3::VirtualNetDevice, ns3::UanNetDevice, ns3::TapBridge, ns3::NonCommunicatingNetDevice, ns3::AlohaNoackNetDevice, ns3::MockNetDevice, ns3::SixLowPanNetDevice, ns3::PointToPointNetDevice, ns3::OpenFlowSwitchNetDevice, ns3::SimpleNetDevice, ns3::MeshPointDevice, ns3::LteNetDevice, ns3::LrWpanNetDevice, ns3::LoopbackNetDevice, ns3::FdNetDevice, ns3::CsmaNetDevice, and ns3::BridgeNetDevice.

◆ NeedsArp()

virtual bool ns3::NetDevice::NeedsArp ( ) const

pure virtual

Returns: true if ARP is needed, false otherwise.

Called by higher-layers to check if this NetDevice requires ARP to be used.

Implemented in ns3::WimaxNetDevice, ns3::WifiNetDevice, ns3::VirtualNetDevice, ns3::UanNetDevice, ns3::TapBridge, ns3::NonCommunicatingNetDevice, ns3::AlohaNoackNetDevice, ns3::MockNetDevice, ns3::SixLowPanNetDevice, ns3::PointToPointNetDevice, ns3::OpenFlowSwitchNetDevice, ns3::SimpleNetDevice, ns3::MeshPointDevice, ns3::LteNetDevice, ns3::LrWpanNetDevice, ns3::LoopbackNetDevice, ns3::FdNetDevice, ns3::CsmaNetDevice, and ns3::BridgeNetDevice.

◆ Send()

virtual bool ns3::NetDevice::Send	(	Ptr< Packet >	packet,
		const Address &	dest,
		uint16_t	protocolNumber
	)

pure virtual

Parameters

packet	packet sent from above down to Network Device
dest	mac address of the destination (already resolved)
protocolNumber	identifies the type of payload contained in this packet. Used to call the right L3Protocol when the packet is received.

Called from higher layer to send packet into Network Device to the specified destination Address

Returns: whether the Send operation succeeded

Implemented in ns3::WimaxNetDevice, ns3::WifiNetDevice, ns3::VirtualNetDevice, ns3::UanNetDevice, ns3::TapBridge, ns3::NonCommunicatingNetDevice, ns3::AlohaNoackNetDevice, ns3::MockNetDevice, ns3::SixLowPanNetDevice, ns3::PointToPointNetDevice, ns3::OpenFlowSwitchNetDevice, ns3::SimpleNetDevice, ns3::MeshPointDevice, ns3::LteSimpleNetDevice, ns3::LteUeNetDevice, ns3::LteEnbNetDevice, ns3::LrWpanNetDevice, ns3::LoopbackNetDevice, ns3::FdNetDevice, ns3::CsmaNetDevice, and ns3::BridgeNetDevice.

Referenced by ns3::SixLowPanNetDevice::ReceiveFromDevice().

Here is the caller graph for this function:

◆ SendFrom()

virtual bool ns3::NetDevice::SendFrom	(	Ptr< Packet >	packet,
		const Address &	source,
		const Address &	dest,
		uint16_t	protocolNumber
	)

pure virtual

Parameters

packet	packet sent from above down to Network Device
source	source mac address (so called "MAC spoofing")
dest	mac address of the destination (already resolved)
protocolNumber	identifies the type of payload contained in this packet. Used to call the right L3Protocol when the packet is received.

Called from higher layer to send packet into Network Device with the specified source and destination Addresses.

Returns: whether the Send operation succeeded

Implemented in ns3::WimaxNetDevice, ns3::WifiNetDevice, ns3::VirtualNetDevice, ns3::UanNetDevice, ns3::TapBridge, ns3::NonCommunicatingNetDevice, ns3::AlohaNoackNetDevice, ns3::MockNetDevice, ns3::SixLowPanNetDevice, ns3::PointToPointNetDevice, ns3::OpenFlowSwitchNetDevice, ns3::SimpleNetDevice, ns3::MeshPointDevice, ns3::LteNetDevice, ns3::LrWpanNetDevice, ns3::LoopbackNetDevice, ns3::FdNetDevice, ns3::CsmaNetDevice, and ns3::BridgeNetDevice.

◆ SetAddress()

virtual void ns3::NetDevice::SetAddress ( Address address )

pure virtual

Set the address of this interface.

Parameters

address address to set

Implemented in ns3::WimaxNetDevice, ns3::WifiNetDevice, ns3::VirtualNetDevice, ns3::UanNetDevice, ns3::TapBridge, ns3::NonCommunicatingNetDevice, ns3::AlohaNoackNetDevice, ns3::MockNetDevice, ns3::SixLowPanNetDevice, ns3::PointToPointNetDevice, ns3::OpenFlowSwitchNetDevice, ns3::SimpleNetDevice, ns3::LteNetDevice, ns3::LrWpanNetDevice, ns3::LoopbackNetDevice, ns3::FdNetDevice, ns3::CsmaNetDevice, ns3::BridgeNetDevice, and ns3::MeshPointDevice.

◆ SetIfIndex()

virtual void ns3::NetDevice::SetIfIndex ( const uint32_t index )

pure virtual

Parameters

index ifIndex of the device

Implemented in ns3::WimaxNetDevice, ns3::WifiNetDevice, ns3::VirtualNetDevice, ns3::UanNetDevice, ns3::TapBridge, ns3::NonCommunicatingNetDevice, ns3::AlohaNoackNetDevice, ns3::MockNetDevice, ns3::SixLowPanNetDevice, ns3::PointToPointNetDevice, ns3::OpenFlowSwitchNetDevice, ns3::SimpleNetDevice, ns3::MeshPointDevice, ns3::LteNetDevice, ns3::LrWpanNetDevice, ns3::LoopbackNetDevice, ns3::FdNetDevice, ns3::CsmaNetDevice, and ns3::BridgeNetDevice.

◆ SetMtu()

virtual bool ns3::NetDevice::SetMtu ( const uint16_t mtu )

pure virtual

Parameters

mtu	MTU value, in bytes, to set for the device

Returns: whether the MTU value was within legal bounds

Override for default MTU defined on a per-type basis.

Implemented in ns3::WimaxNetDevice, ns3::WifiNetDevice, ns3::VirtualNetDevice, ns3::UanNetDevice, ns3::TapBridge, ns3::NonCommunicatingNetDevice, ns3::AlohaNoackNetDevice, ns3::MockNetDevice, ns3::SixLowPanNetDevice, ns3::PointToPointNetDevice, ns3::OpenFlowSwitchNetDevice, ns3::SimpleNetDevice, ns3::MeshPointDevice, ns3::LteNetDevice, ns3::LrWpanNetDevice, ns3::LoopbackNetDevice, ns3::FdNetDevice, ns3::CsmaNetDevice, and ns3::BridgeNetDevice.

◆ SetNode()

virtual void ns3::NetDevice::SetNode ( Ptr< Node > node )

pure virtual

Parameters

node	the node associated to this netdevice.

This method is called from ns3::Node::AddDevice.

Implemented in ns3::WimaxNetDevice, ns3::VirtualNetDevice, ns3::UanNetDevice, ns3::TapBridge, ns3::NonCommunicatingNetDevice, ns3::AlohaNoackNetDevice, ns3::MockNetDevice, ns3::SixLowPanNetDevice, ns3::PointToPointNetDevice, ns3::OpenFlowSwitchNetDevice, ns3::SimpleNetDevice, ns3::MeshPointDevice, ns3::LteNetDevice, ns3::LrWpanNetDevice, ns3::LoopbackNetDevice, ns3::FdNetDevice, ns3::CsmaNetDevice, ns3::BridgeNetDevice, and ns3::WifiNetDevice.

◆ SetPromiscReceiveCallback()

virtual void ns3::NetDevice::SetPromiscReceiveCallback ( PromiscReceiveCallback cb )

pure virtual

Parameters

cb	callback to invoke whenever a packet has been received in promiscuous mode and must be forwarded to the higher layers.

Enables netdevice promiscuous mode and sets the callback that will handle promiscuous mode packets. Note, promiscuous mode packets means all packets, including those packets that can be sensed by the netdevice but which are intended to be received by other hosts.

Implemented in ns3::WimaxNetDevice, ns3::WifiNetDevice, ns3::UanNetDevice, ns3::NonCommunicatingNetDevice, ns3::AlohaNoackNetDevice, ns3::MockNetDevice, ns3::PointToPointNetDevice, ns3::SimpleNetDevice, ns3::LteNetDevice, ns3::LrWpanNetDevice, ns3::LoopbackNetDevice, ns3::CsmaNetDevice, ns3::VirtualNetDevice, ns3::TapBridge, ns3::SixLowPanNetDevice, ns3::OpenFlowSwitchNetDevice, ns3::MeshPointDevice, ns3::FdNetDevice, and ns3::BridgeNetDevice.

◆ SetReceiveCallback()

virtual void ns3::NetDevice::SetReceiveCallback ( ReceiveCallback cb )

pure virtual

Parameters

cb	callback to invoke whenever a packet has been received and must be forwarded to the higher layers.

Set the callback to be used to notify higher layers when a packet has been received.

Implemented in ns3::WimaxNetDevice, ns3::WifiNetDevice, ns3::VirtualNetDevice, ns3::UanNetDevice, ns3::TapBridge, ns3::NonCommunicatingNetDevice, ns3::AlohaNoackNetDevice, ns3::MockNetDevice, ns3::SixLowPanNetDevice, ns3::PointToPointNetDevice, ns3::OpenFlowSwitchNetDevice, ns3::SimpleNetDevice, ns3::MeshPointDevice, ns3::LteNetDevice, ns3::LrWpanNetDevice, ns3::LoopbackNetDevice, ns3::FdNetDevice, ns3::CsmaNetDevice, and ns3::BridgeNetDevice.

◆ SupportsSendFrom()

virtual bool ns3::NetDevice::SupportsSendFrom ( ) const

pure virtual

Returns: true if this interface supports a bridging mode, false otherwise.

Implemented in ns3::WimaxNetDevice, ns3::WifiNetDevice, ns3::VirtualNetDevice, ns3::UanNetDevice, ns3::TapBridge, ns3::NonCommunicatingNetDevice, ns3::AlohaNoackNetDevice, ns3::MockNetDevice, ns3::SixLowPanNetDevice, ns3::PointToPointNetDevice, ns3::OpenFlowSwitchNetDevice, ns3::SimpleNetDevice, ns3::MeshPointDevice, ns3::LteNetDevice, ns3::LrWpanNetDevice, ns3::LoopbackNetDevice, ns3::FdNetDevice, ns3::CsmaNetDevice, and ns3::BridgeNetDevice.

The documentation for this class was generated from the following files:

src/network/model/net-device.h
src/network/model/net-device.cc

Public Types

Public Member Functions

Static Public Member Functions

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ LinkChangeTracedCallback

◆ PromiscReceiveCallback

◆ ReceiveCallback

Member Enumeration Documentation

◆ PacketType

Constructor & Destructor Documentation

◆ ~NetDevice()

Member Function Documentation

◆ AddLinkChangeCallback()

◆ GetAddress()

◆ GetBroadcast()

◆ GetChannel()

◆ GetIfIndex()

◆ GetMtu()

◆ GetMulticast() [1/2]

◆ GetMulticast() [2/2]

◆ GetNode()

◆ GetTypeId()

◆ IsBridge()

◆ IsBroadcast()

◆ IsLinkUp()

◆ IsMulticast()

◆ IsPointToPoint()

◆ NeedsArp()

◆ Send()

◆ SendFrom()

◆ SetAddress()

◆ SetIfIndex()

◆ SetMtu()

◆ SetNode()

◆ SetPromiscReceiveCallback()

◆ SetReceiveCallback()

◆ SupportsSendFrom()
