The LteUeNetDevice class implements the UE net device. More...

#include "lte-ue-net-device.h"

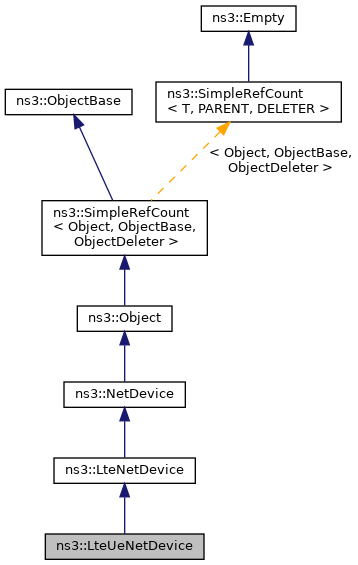

Inheritance diagram for ns3::LteUeNetDevice:

Collaboration diagram for ns3::LteUeNetDevice:

Public Member Functions
	LteUeNetDevice ()

	~LteUeNetDevice () override

void	DoDispose () override
	Destructor implementation. More...

std::map< uint8_t, Ptr< ComponentCarrierUe > >	GetCcMap ()
	Get the ComponentCarrier Map for the UE. More...

Ptr< LteUeComponentCarrierManager >	GetComponentCarrierManager () const
	Get the componentn carrier manager. More...

uint32_t	GetCsgId () const
	Returns the CSG ID the UE is currently a member of. More...

uint32_t	GetDlEarfcn () const

uint64_t	GetImsi () const
	Get the IMSI. More...

Ptr< LteUeMac >	GetMac () const
	Get the MAC. More...

Ptr< EpcUeNas >	GetNas () const
	Get the NAS. More...

Ptr< LteUePhy >	GetPhy () const
	Get the Phy. More...

Ptr< LteUeRrc >	GetRrc () const
	Get the RRC. More...

Ptr< LteEnbNetDevice >	GetTargetEnb ()
	Get the target eNB where the UE is registered. More...

bool	Send (Ptr< Packet > packet, const Address &dest, uint16_t protocolNumber) override

void	SetCcMap (std::map< uint8_t, Ptr< ComponentCarrierUe >> ccm)
	Set the ComponentCarrier Map for the UE. More...

void	SetCsgId (uint32_t csgId)
	Enlist the UE device as a member of a particular CSG. More...

void	SetDlEarfcn (uint32_t earfcn)

void	SetTargetEnb (Ptr< LteEnbNetDevice > enb)
	Set the target eNB where the UE is registered. More...

Public Member Functions inherited from ns3::LteNetDevice
	LteNetDevice ()

	LteNetDevice (const LteNetDevice &)=delete

	~LteNetDevice () override

void	AddLinkChangeCallback (Callback< void > callback) override

Address	GetAddress () const override

Address	GetBroadcast () const override

Ptr< Channel >	GetChannel () const override

uint32_t	GetIfIndex () const override

uint16_t	GetMtu () const override

Address	GetMulticast (Ipv4Address addr) const override
	Make and return a MAC multicast address using the provided multicast group. More...

Address	GetMulticast (Ipv6Address addr) const override
	Get the MAC multicast address corresponding to the IPv6 address provided. More...

Ptr< Node >	GetNode () const override

bool	IsBridge () const override
	Return true if the net device is acting as a bridge. More...

bool	IsBroadcast () const override

bool	IsLinkUp () const override

bool	IsMulticast () const override

bool	IsPointToPoint () const override
	Return true if the net device is on a point-to-point link. More...

bool	NeedsArp () const override

LteNetDevice &	operator= (const LteNetDevice &)=delete

void	Receive (Ptr< Packet > p)
	receive a packet from the lower layers in order to forward it to the upper layers More...

bool	SendFrom (Ptr< Packet > packet, const Address &source, const Address &dest, uint16_t protocolNumber) override

void	SetAddress (Address address) override
	Set the address of this interface. More...

void	SetIfIndex (const uint32_t index) override

bool	SetMtu (const uint16_t mtu) override

void	SetNode (Ptr< Node > node) override

void	SetPromiscReceiveCallback (PromiscReceiveCallback cb) override

void	SetReceiveCallback (NetDevice::ReceiveCallback cb) override

bool	SupportsSendFrom () const override

Public Member Functions inherited from ns3::NetDevice
	~NetDevice () override

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

	~Object () override
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose ()
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator () const
	Get an iterator to the Objects aggregated to this one. More...

TypeId	GetInstanceTypeId () const override
	Get the most derived TypeId for this Object. More...

template<typename T >
Ptr< T >	GetObject () const
	Get a pointer to the requested aggregated Object. More...

template<>
Ptr< Object >	GetObject () const
	Specialization of () for objects of type ns3::Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< Object >	GetObject (TypeId tid) const
	Specialization of (TypeId tid) for objects of type ns3::Object. More...

void	Initialize ()
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized () const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
	Copy constructor. More...

uint32_t	GetReferenceCount () const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o[[maybe_unused]])
	Assignment operator. More...

void	Ref () const
	Increment the reference count. More...

void	Unref () const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising errors. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId ()
	Get the type ID. More...

Static Public Member Functions inherited from ns3::LteNetDevice
static TypeId	GetTypeId ()
	Get the type ID. More...

Static Public Member Functions inherited from ns3::NetDevice
static TypeId	GetTypeId ()
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId ()
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId ()
	Get the type ID. More...

Protected Member Functions
void	DoInitialize () override
	Initialize() implementation. More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	NotifyNewAggregate ()
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted ()
	Notifier called once the ObjectBase is fully constructed. More...

Private Member Functions
void	UpdateConfig ()
	Propagate attributes and configuration to sub-modules. More...

Private Attributes
std::map< uint8_t, Ptr< ComponentCarrierUe > >	m_ccMap
	CC map. More...

Ptr< LteUeComponentCarrierManager >	m_componentCarrierManager
	the component carrier manager More...

uint32_t	m_csgId
	the CSG ID More...

uint32_t	m_dlEarfcn
	downlink carrier frequency More...

uint64_t	m_imsi
	the IMSI More...

bool	m_isConstructed
	is constructed? More...

Ptr< EpcUeNas >	m_nas
	the NAS More...

Ptr< LteUeRrc >	m_rrc
	the RRC More...

Ptr< LteEnbNetDevice >	m_targetEnb
	target ENB More...

Additional Inherited Members
Public Types inherited from ns3::NetDevice
typedef void(*	LinkChangeTracedCallback) ()
	TracedCallback signature for link changed event. More...

enum	PacketType { PACKET_HOST = 1 , NS3_PACKET_HOST = PACKET_HOST , PACKET_BROADCAST , NS3_PACKET_BROADCAST = PACKET_BROADCAST , PACKET_MULTICAST , NS3_PACKET_MULTICAST = PACKET_MULTICAST , PACKET_OTHERHOST , NS3_PACKET_OTHERHOST = PACKET_OTHERHOST }
	Packet types are used as they are in Linux. More...

typedef Callback< bool, Ptr< NetDevice >, Ptr< const Packet >, uint16_t, const Address &, const Address &, PacketType >	PromiscReceiveCallback

typedef Callback< bool, Ptr< NetDevice >, Ptr< const Packet >, uint16_t, const Address & >	ReceiveCallback

Protected Attributes inherited from ns3::LteNetDevice
NetDevice::ReceiveCallback	m_rxCallback
	receive callback More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid ()
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

The LteUeNetDevice class implements the UE net device.

Definition at line 56 of file lte-ue-net-device.h.

Constructor & Destructor Documentation

◆ LteUeNetDevice()

ns3::LteUeNetDevice::LteUeNetDevice ( )

Definition at line 115 of file lte-ue-net-device.cc.

References NS_LOG_FUNCTION.

◆ ~LteUeNetDevice()

ns3::LteUeNetDevice::~LteUeNetDevice ( )

override

Definition at line 121 of file lte-ue-net-device.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

◆ DoDispose()

void ns3::LteUeNetDevice::DoDispose ( void )

overridevirtual

Destructor implementation.

This method is called by Dispose() or by the Object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overridden version of this method and chain up to their parent's implementation once they are done. i.e, for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose() method.

It is safe to call GetObject() from within this method.

Reimplemented from ns3::LteNetDevice.

Definition at line 127 of file lte-ue-net-device.cc.

References ns3::LteNetDevice::DoDispose(), m_ccMap, m_componentCarrierManager, m_nas, m_rrc, m_targetEnb, and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ DoInitialize()

void ns3::LteUeNetDevice::DoInitialize ( void )

overrideprotectedvirtual

Initialize() implementation.

This method is called only once by Initialize(). If the user calls Initialize() multiple times, DoInitialize() is called only the first time.

Subclasses are expected to override this method and chain up to their parent's implementation once they are done. It is safe to call GetObject() and AggregateObject() from within this method.

Reimplemented from ns3::Object.

Definition at line 264 of file lte-ue-net-device.cc.

References m_ccMap, m_isConstructed, m_rrc, NS_LOG_FUNCTION, and UpdateConfig().

Here is the call graph for this function:

◆ GetCcMap()

std::map< uint8_t, Ptr< ComponentCarrierUe > > ns3::LteUeNetDevice::GetCcMap ( )

Get the ComponentCarrier Map for the UE.

Returns: the map of ComponentCarrierUe

Definition at line 252 of file lte-ue-net-device.cc.

References m_ccMap.

◆ GetComponentCarrierManager()

Ptr< LteUeComponentCarrierManager > ns3::LteUeNetDevice::GetComponentCarrierManager ( ) const

Get the componentn carrier manager.

Returns: the LTE UE component carrier manager

Definition at line 188 of file lte-ue-net-device.cc.

References m_componentCarrierManager, and NS_LOG_FUNCTION.

◆ GetCsgId()

uint32_t ns3::LteUeNetDevice::GetCsgId ( ) const

Returns the CSG ID the UE is currently a member of.

Returns: the Closed Subscriber Group identity

Definition at line 223 of file lte-ue-net-device.cc.

References m_csgId, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the caller graph for this function:

◆ GetDlEarfcn()

uint32_t ns3::LteUeNetDevice::GetDlEarfcn ( ) const

Returns: the downlink carrier frequency (EARFCN)

Note that real-life handset typically supports more than one EARFCN, but the sake of simplicity we assume only one EARFCN is supported.

Definition at line 209 of file lte-ue-net-device.cc.

References m_dlEarfcn, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the caller graph for this function:

◆ GetImsi()

uint64_t ns3::LteUeNetDevice::GetImsi ( ) const

Get the IMSI.

Returns: the IMSI

Definition at line 202 of file lte-ue-net-device.cc.

References m_imsi, and NS_LOG_FUNCTION.

Referenced by ns3::LteStatsCalculator::FindImsiFromLteNetDevice().

Here is the caller graph for this function:

◆ GetMac()

Ptr< LteUeMac > ns3::LteUeNetDevice::GetMac ( ) const

Get the MAC.

Returns: the LTE UE MAC

Definition at line 167 of file lte-ue-net-device.cc.

References m_ccMap, and NS_LOG_FUNCTION.

◆ GetNas()

Ptr< EpcUeNas > ns3::LteUeNetDevice::GetNas ( ) const

Get the NAS.

Returns: the LTE UE NAS

Definition at line 195 of file lte-ue-net-device.cc.

References m_nas, and NS_LOG_FUNCTION.

◆ GetPhy()

Ptr< LteUePhy > ns3::LteUeNetDevice::GetPhy ( ) const

Get the Phy.

Returns: the LTE UE Phy

Definition at line 181 of file lte-ue-net-device.cc.

References m_ccMap, and NS_LOG_FUNCTION.

Referenced by LteUplinkOpenLoopPowerControlTestCase::DoRun(), LteUplinkClosedLoopPowerControlAbsoluteModeTestCase::DoRun(), and LteUplinkClosedLoopPowerControlAccumulatedModeTestCase::DoRun().

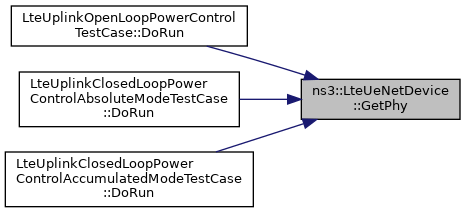

Here is the caller graph for this function:

◆ GetRrc()

Ptr< LteUeRrc > ns3::LteUeNetDevice::GetRrc ( ) const

Get the RRC.

Returns: the LTE UE RRC

Definition at line 174 of file lte-ue-net-device.cc.

References m_rrc, and NS_LOG_FUNCTION.

◆ GetTargetEnb()

Ptr< LteEnbNetDevice > ns3::LteUeNetDevice::GetTargetEnb ( )

Get the target eNB where the UE is registered.

Returns: the pointer to the enb

Definition at line 245 of file lte-ue-net-device.cc.

References m_targetEnb, and NS_LOG_FUNCTION.

◆ GetTypeId()

TypeId ns3::LteUeNetDevice::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 63 of file lte-ue-net-device.cc.

References GetCsgId(), GetDlEarfcn(), m_ccMap, m_componentCarrierManager, m_imsi, m_nas, m_rrc, ns3::MakeObjectMapAccessor(), ns3::MakePointerAccessor(), ns3::MakeUintegerAccessor(), SetCsgId(), SetDlEarfcn(), and ns3::TypeId::SetParent().

Referenced by ns3::LteHelper::LteHelper().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Send()

bool ns3::LteUeNetDevice::Send	(	Ptr< Packet >	packet,
		const Address &	dest,
		uint16_t	protocolNumber
	)

overridevirtual

Parameters

packet	packet sent from above down to Network Device
dest	mac address of the destination (already resolved)
protocolNumber	identifies the type of payload contained in this packet. Used to call the right L3Protocol when the packet is received.

Called from higher layer to send packet into Network Device to the specified destination Address

Returns: whether the Send operation succeeded

Implements ns3::NetDevice.

Definition at line 279 of file lte-ue-net-device.cc.

References m_nas, NS_ABORT_MSG_IF, NS_LOG_FUNCTION, ns3::Ipv4L3Protocol::PROT_NUMBER, and ns3::Ipv6L3Protocol::PROT_NUMBER.

◆ SetCcMap()

void ns3::LteUeNetDevice::SetCcMap ( std::map< uint8_t, Ptr< ComponentCarrierUe >> ccm )

Set the ComponentCarrier Map for the UE.

Parameters

ccm	the map of ComponentCarrierUe

Definition at line 258 of file lte-ue-net-device.cc.

References m_ccMap.

◆ SetCsgId()

void ns3::LteUeNetDevice::SetCsgId ( uint32_t csgId )

Enlist the UE device as a member of a particular CSG.

Parameters

csgId the intended Closed Subscriber Group identity

UE is associated with a single CSG identity, and thus becoming a member of this particular CSG. As a result, the UE may gain access to cells which belong to this CSG. This does not revoke the UE's access to non-CSG cells.

Note: This restriction only applies to initial cell selection and EPC-enabled simulation.

Definition at line 230 of file lte-ue-net-device.cc.

References m_csgId, NS_LOG_FUNCTION, and UpdateConfig().

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetDlEarfcn()

void ns3::LteUeNetDevice::SetDlEarfcn ( uint32_t earfcn )

Parameters

earfcn the downlink carrier frequency (EARFCN)

Note that real-life handset typically supports more than one EARFCN, but the sake of simplicity we assume only one EARFCN is supported.

Definition at line 216 of file lte-ue-net-device.cc.

References m_dlEarfcn, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the caller graph for this function:

◆ SetTargetEnb()

void ns3::LteUeNetDevice::SetTargetEnb ( Ptr< LteEnbNetDevice > enb )

Set the target eNB where the UE is registered.

Parameters

enb

Definition at line 238 of file lte-ue-net-device.cc.

References m_targetEnb, and NS_LOG_FUNCTION.

◆ UpdateConfig()

void ns3::LteUeNetDevice::UpdateConfig ( )

private

Propagate attributes and configuration to sub-modules.

Several attributes (e.g., the IMSI) are exported as the attributes of the LteUeNetDevice from a user perspective, but are actually used also in other sub-modules (the RRC, the PHY, etc.). This method takes care of updating the configuration of all these sub-modules so that their copy of attribute values are in sync with the one in the LteUeNetDevice.

Definition at line 146 of file lte-ue-net-device.cc.

References m_csgId, m_imsi, m_isConstructed, m_nas, m_rrc, NS_LOG_FUNCTION, and NS_LOG_LOGIC.

Referenced by DoInitialize(), and SetCsgId().

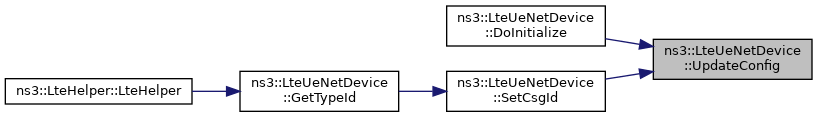

Here is the caller graph for this function:

Member Data Documentation

◆ m_ccMap

std::map<uint8_t, Ptr<ComponentCarrierUe> > ns3::LteUeNetDevice::m_ccMap

private

CC map.

Definition at line 197 of file lte-ue-net-device.h.

Referenced by DoDispose(), DoInitialize(), GetCcMap(), GetMac(), GetPhy(), GetTypeId(), and SetCcMap().

◆ m_componentCarrierManager

Ptr<LteUeComponentCarrierManager> ns3::LteUeNetDevice::m_componentCarrierManager

private

the component carrier manager

Definition at line 189 of file lte-ue-net-device.h.

Referenced by DoDispose(), GetComponentCarrierManager(), and GetTypeId().

◆ m_csgId

uint32_t ns3::LteUeNetDevice::m_csgId

private

the CSG ID

Definition at line 195 of file lte-ue-net-device.h.

Referenced by GetCsgId(), SetCsgId(), and UpdateConfig().

◆ m_dlEarfcn

uint32_t ns3::LteUeNetDevice::m_dlEarfcn

private

downlink carrier frequency

Definition at line 193 of file lte-ue-net-device.h.

Referenced by GetDlEarfcn(), and SetDlEarfcn().

◆ m_imsi

uint64_t ns3::LteUeNetDevice::m_imsi

private

the IMSI

Definition at line 191 of file lte-ue-net-device.h.

Referenced by GetImsi(), GetTypeId(), and UpdateConfig().

◆ m_isConstructed

bool ns3::LteUeNetDevice::m_isConstructed

private

is constructed?

Definition at line 172 of file lte-ue-net-device.h.

Referenced by DoInitialize(), and UpdateConfig().

◆ m_nas

Ptr<EpcUeNas> ns3::LteUeNetDevice::m_nas

private

the NAS

Definition at line 188 of file lte-ue-net-device.h.

Referenced by DoDispose(), GetNas(), GetTypeId(), Send(), and UpdateConfig().

◆ m_rrc

Ptr<LteUeRrc> ns3::LteUeNetDevice::m_rrc

private

the RRC

Definition at line 187 of file lte-ue-net-device.h.

Referenced by DoDispose(), DoInitialize(), GetRrc(), GetTypeId(), and UpdateConfig().

◆ m_targetEnb

Ptr<LteEnbNetDevice> ns3::LteUeNetDevice::m_targetEnb

private

target ENB

Definition at line 185 of file lte-ue-net-device.h.

Referenced by DoDispose(), GetTargetEnb(), and SetTargetEnb().

The documentation for this class was generated from the following files:

src/lte/model/lte-ue-net-device.h
src/lte/model/lte-ue-net-device.cc

Public Member Functions

Static Public Member Functions

Protected Member Functions

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ LteUeNetDevice()

◆ ~LteUeNetDevice()

Member Function Documentation

◆ DoDispose()

◆ DoInitialize()

◆ GetCcMap()

◆ GetComponentCarrierManager()

◆ GetCsgId()

◆ GetDlEarfcn()

◆ GetImsi()

◆ GetMac()

◆ GetNas()

◆ GetPhy()

◆ GetRrc()

◆ GetTargetEnb()

◆ GetTypeId()

◆ Send()

◆ SetCcMap()

◆ SetCsgId()

◆ SetDlEarfcn()

◆ SetTargetEnb()

◆ UpdateConfig()

Member Data Documentation

◆ m_ccMap

◆ m_componentCarrierManager

◆ m_csgId

◆ m_dlEarfcn

◆ m_imsi

◆ m_isConstructed

◆ m_nas

◆ m_rrc

◆ m_targetEnb
