#include "lte-ue-mac.h"

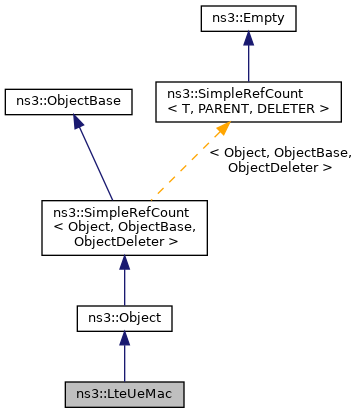

Inheritance diagram for ns3::LteUeMac:

Collaboration diagram for ns3::LteUeMac:

Classes
struct	LcInfo
	LcInfo structure. More...

Public Types
typedef void(*	RaResponseTimeoutTracedCallback) (uint64_t imsi, bool contention, uint8_t preambleTxCounter, uint8_t maxPreambleTxLimit)
	TracedCallback signature for RA response timeout events exporting IMSI, contention flag, preamble transmission counter and the max limit of preamble transmission. More...

Public Member Functions
	LteUeMac ()

	~LteUeMac () override

int64_t	AssignStreams (int64_t stream)
	Assign a fixed random variable stream number to the random variables used by this model. More...

void	DoDispose () override
	Destructor implementation. More...

void	DoSubframeIndication (uint32_t frameNo, uint32_t subframeNo)
	Forwarded from LteUePhySapUser: trigger the start from a new frame. More...

LteMacSapProvider *	GetLteMacSapProvider ()
	Get the LTE MAC SAP provider. More...

LteUeCmacSapProvider *	GetLteUeCmacSapProvider ()
	Get the LTE CMAC SAP provider. More...

LteUePhySapUser *	GetLteUePhySapUser ()
	Get the PHY SAP user. More...

void	SetComponentCarrierId (uint8_t index)
	Set the component carried ID. More...

void	SetLteUeCmacSapUser (LteUeCmacSapUser *s)
	Set the LTE UE CMAC SAP user. More...

void	SetLteUePhySapProvider (LteUePhySapProvider *s)
	Set the PHY SAP Provider. More...

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

	~Object () override
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose ()
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator () const
	Get an iterator to the Objects aggregated to this one. More...

TypeId	GetInstanceTypeId () const override
	Get the most derived TypeId for this Object. More...

template<typename T >
Ptr< T >	GetObject () const
	Get a pointer to the requested aggregated Object. More...

template<>
Ptr< Object >	GetObject () const
	Specialization of () for objects of type ns3::Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< Object >	GetObject (TypeId tid) const
	Specialization of (TypeId tid) for objects of type ns3::Object. More...

void	Initialize ()
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized () const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
	Copy constructor. More...

uint32_t	GetReferenceCount () const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o[[maybe_unused]])
	Assignment operator. More...

void	Ref () const
	Increment the reference count. More...

void	Unref () const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising errors. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId ()
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId ()
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId ()
	Get the type ID. More...

Private Member Functions
void	DoAddLc (uint8_t lcId, LteUeCmacSapProvider::LogicalChannelConfig lcConfig, LteMacSapUser *msu)
	Add LC function. More...

void	DoConfigureRach (LteUeCmacSapProvider::RachConfig rc)
	Configure RACH function. More...

void	DoNotifyConnectionSuccessful ()
	Notify MAC about the successful RRC connection establishment. More...

void	DoReceiveLteControlMessage (Ptr< LteControlMessage > msg)
	Receive LTE control message function. More...

void	DoReceivePhyPdu (Ptr< Packet > p)
	Receive Phy PDU function. More...

void	DoRemoveLc (uint8_t lcId)
	Remove LC function. More...

void	DoReportBufferStatus (LteMacSapProvider::ReportBufferStatusParameters params)
	Report buffers status function. More...

void	DoReset ()
	Reset function. More...

void	DoSetImsi (uint64_t imsi)
	Set IMSI. More...

void	DoSetRnti (uint16_t rnti)
	Set RNTI. More...

void	DoStartContentionBasedRandomAccessProcedure ()
	Start contention based random access procedure function. More...

void	DoStartNonContentionBasedRandomAccessProcedure (uint16_t rnti, uint8_t rapId, uint8_t prachMask)
	Start non contention based random access procedure function. More...

void	DoTransmitPdu (LteMacSapProvider::TransmitPduParameters params)
	Transmit PDU function. More...

void	RandomlySelectAndSendRaPreamble ()
	Randomly select and send RA preamble function. More...

void	RaResponseTimeout (bool contention)
	RA response timeout function. More...

void	RecvRaResponse (BuildRarListElement_s raResponse)
	Receive the RA response function. More...

void	RefreshHarqProcessesPacketBuffer ()
	Refresh HARQ processes packet buffer function. More...

void	SendRaPreamble (bool contention)
	Send RA preamble function. More...

void	SendReportBufferStatus ()
	Send report buffer status. More...

void	StartWaitingForRaResponse ()
	Start waiting for RA response function. More...

Private Attributes
uint16_t	m_backoffParameter
	backoff parameter More...

Time	m_bsrLast
	BSR last. More...

Time	m_bsrPeriodicity
	BSR periodicity. More...

LteUeCmacSapProvider *	m_cmacSapProvider
	CMAC SAP provider. More...

LteUeCmacSapUser *	m_cmacSapUser
	CMAC SAP user. More...

uint8_t	m_componentCarrierId
	component carrier Id --> used to address sap More...

uint32_t	m_frameNo
	frame number More...

bool	m_freshUlBsr
	true when a BSR has been received in the last TTI More...

uint8_t	m_harqProcessId
	HARQ process ID. More...

uint16_t	m_imsi
	IMSI. More...

std::map< uint8_t, LcInfo >	m_lcInfoMap
	logical channel info map More...

LteMacSapProvider *	m_macSapProvider
	MAC SAP provider. More...

std::vector< Ptr< PacketBurst > >	m_miUlHarqProcessesPacket
	Packets under transmission of the UL HARQ processes. More...

std::vector< uint8_t >	m_miUlHarqProcessesPacketTimer
	timer for packet life in the buffer More...

EventId	m_noRaResponseReceivedEvent
	no RA response received event ID More...

uint8_t	m_preambleTransmissionCounter
	preamble tranamission counter More...

LteUeCmacSapProvider::RachConfig	m_rachConfig
	RACH configuration. More...

bool	m_rachConfigured
	is RACH configured? More...

uint8_t	m_raPreambleId
	RA preamble ID. More...

Ptr< UniformRandomVariable >	m_raPreambleUniformVariable
	RA preamble random variable. More...

TracedCallback< uint64_t, bool, uint8_t, uint8_t >	m_raResponseTimeoutTrace
	The `RaResponseTimeout` trace source. More...

uint8_t	m_raRnti
	RA RNTI. More...

uint16_t	m_rnti
	RNTI. More...

uint32_t	m_subframeNo
	subframe number More...

LteUePhySapProvider *	m_uePhySapProvider
	UE Phy SAP provider. More...

LteUePhySapUser *	m_uePhySapUser
	UE Phy SAP user. More...

std::map< uint8_t, LteMacSapProvider::ReportBufferStatusParameters >	m_ulBsrReceived
	BSR received from RLC (the last one) More...

bool	m_waitingForRaResponse
	waiting for RA response More...

Friends
class	UeMemberLteMacSapProvider
	allow UeMemberLteMacSapProvider class friend access More...

class	UeMemberLteUeCmacSapProvider
	allow UeMemberLteUeCmacSapProvider class friend access More...

class	UeMemberLteUePhySapUser
	allow UeMemberLteUePhySapUser class friend access More...

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	DoInitialize ()
	Initialize() implementation. More...

virtual void	NotifyNewAggregate ()
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted ()
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid ()
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

Definition at line 43 of file lte-ue-mac.h.

Member Typedef Documentation

◆ RaResponseTimeoutTracedCallback

typedef void(* ns3::LteUeMac::RaResponseTimeoutTracedCallback) (uint64_t imsi, bool contention, uint8_t preambleTxCounter, uint8_t maxPreambleTxLimit)

TracedCallback signature for RA response timeout events exporting IMSI, contention flag, preamble transmission counter and the max limit of preamble transmission.

Parameters

[in]	imsi
[in]	contention
[in]	preambleTxCounter
[in]	maxPreambleTxLimit

Definition at line 73 of file lte-ue-mac.h.

Constructor & Destructor Documentation

◆ LteUeMac()

ns3::LteUeMac::LteUeMac ( )

Definition at line 239 of file lte-ue-mac.cc.

References HARQ_PERIOD, m_cmacSapProvider, m_componentCarrierId, m_macSapProvider, m_miUlHarqProcessesPacket, m_miUlHarqProcessesPacketTimer, m_raPreambleUniformVariable, m_uePhySapUser, NS_LOG_FUNCTION, UeMemberLteMacSapProvider, UeMemberLteUeCmacSapProvider, and UeMemberLteUePhySapUser.

◆ ~LteUeMac()

ns3::LteUeMac::~LteUeMac ( )

override

Definition at line 266 of file lte-ue-mac.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

◆ AssignStreams()

int64_t ns3::LteUeMac::AssignStreams ( int64_t stream )

Assign a fixed random variable stream number to the random variables used by this model.

Return the number of streams (possibly zero) that have been assigned.

Parameters

stream first stream index to use

Returns: the number of stream indices assigned by this model

Definition at line 927 of file lte-ue-mac.cc.

References m_raPreambleUniformVariable, NS_LOG_FUNCTION, and ns3::RandomVariableStream::SetStream().

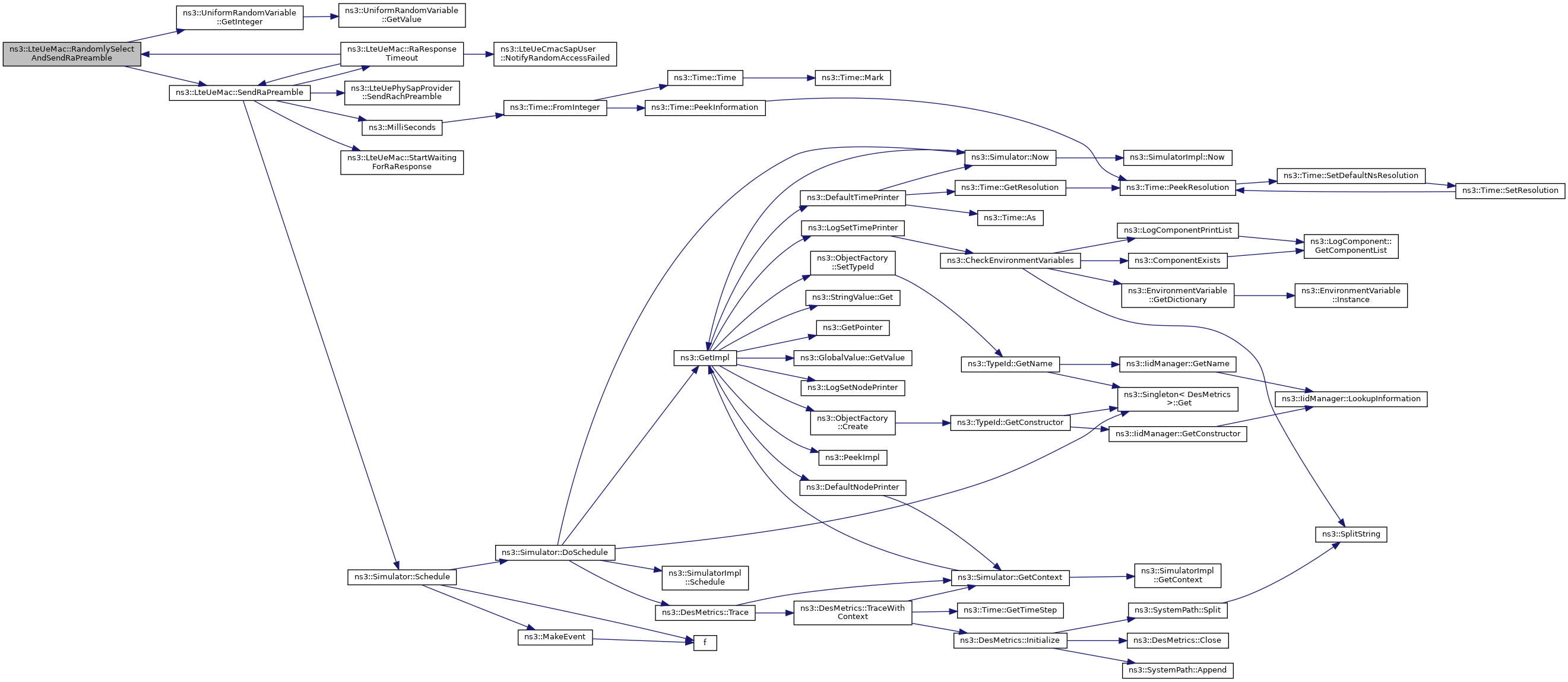

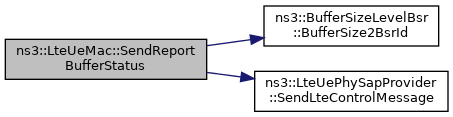

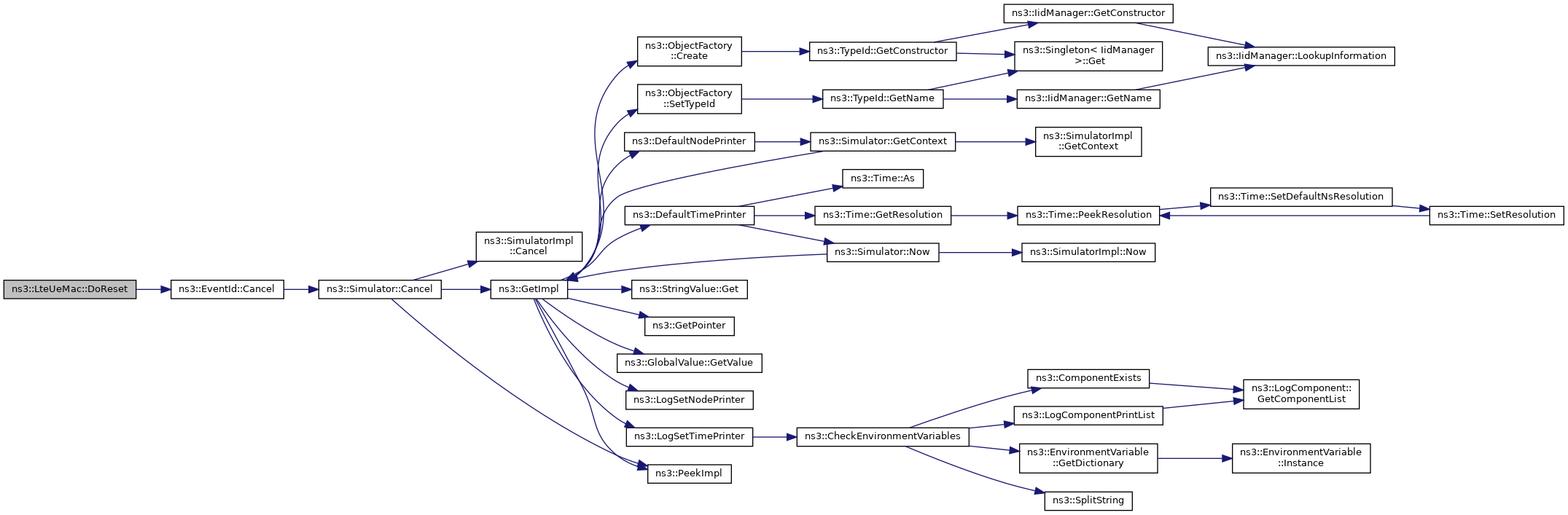

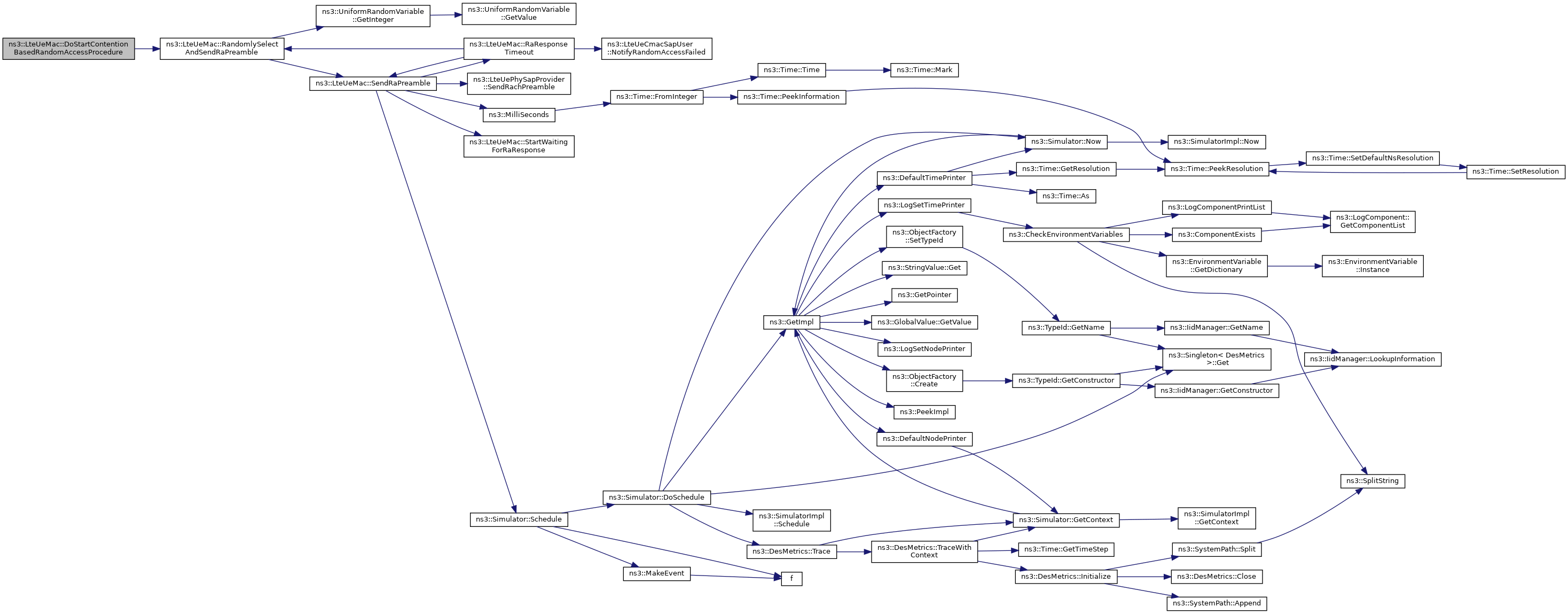

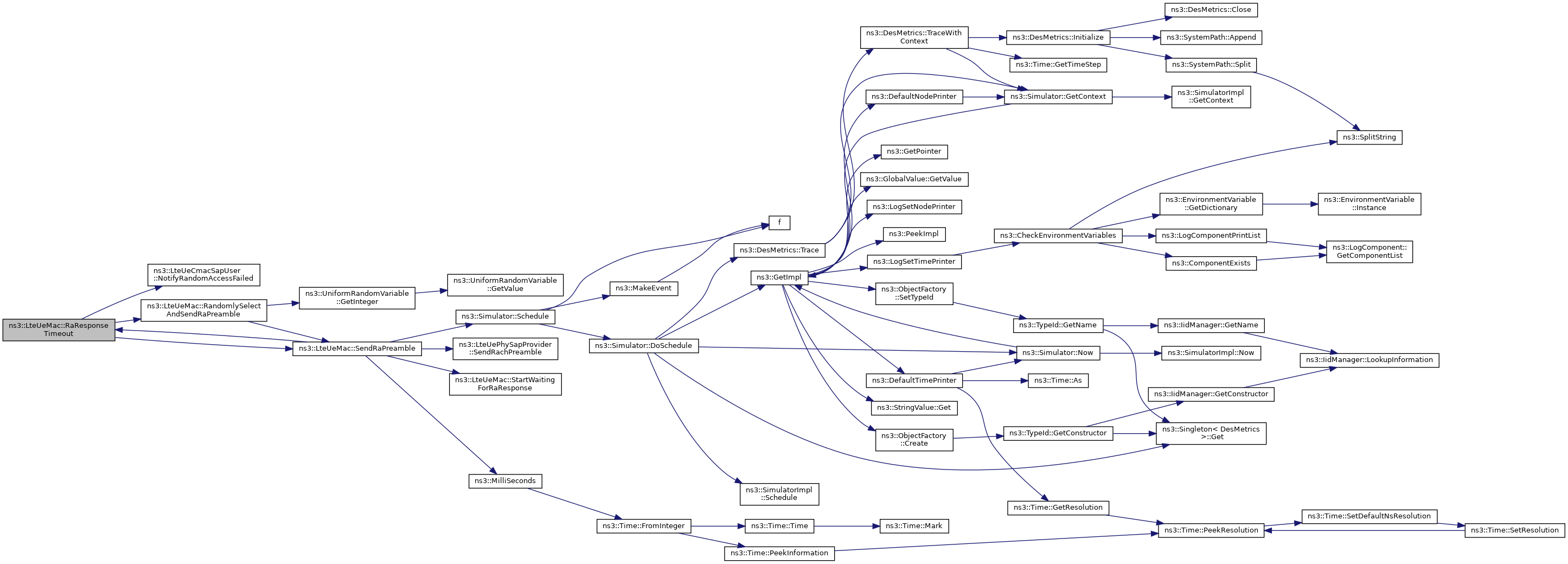

Here is the call graph for this function:

◆ DoAddLc()

void ns3::LteUeMac::DoAddLc	(	uint8_t	lcId,
		LteUeCmacSapProvider::LogicalChannelConfig	lcConfig,
		LteMacSapUser *	msu
	)

private

Add LC function.

Parameters

lcId	the LCID
lcConfig	the logical channel config
msu	the MSU

Definition at line 567 of file lte-ue-mac.cc.

References ns3::LteUeMac::LcInfo::lcConfig, m_lcInfoMap, ns3::LteUeMac::LcInfo::macSapUser, NS_ASSERT_MSG, and NS_LOG_FUNCTION.

Referenced by ns3::UeMemberLteUeCmacSapProvider::AddLc().

Here is the caller graph for this function:

◆ DoConfigureRach()

void ns3::LteUeMac::DoConfigureRach ( LteUeCmacSapProvider::RachConfig rc )

private

Configure RACH function.

Parameters

rc	LteUeCmacSapProvider::RachConfig

Definition at line 517 of file lte-ue-mac.cc.

References m_rachConfig, m_rachConfigured, NS_LOG_FUNCTION, and two-ray-to-three-gpp-ch-calibration::rc.

Referenced by ns3::UeMemberLteUeCmacSapProvider::ConfigureRach().

Here is the caller graph for this function:

◆ DoDispose()

void ns3::LteUeMac::DoDispose ( void )

overridevirtual

Destructor implementation.

This method is called by Dispose() or by the Object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overridden version of this method and chain up to their parent's implementation once they are done. i.e, for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose() method.

It is safe to call GetObject() from within this method.

Reimplemented from ns3::Object.

Definition at line 272 of file lte-ue-mac.cc.

References ns3::Object::DoDispose(), m_cmacSapProvider, m_macSapProvider, m_miUlHarqProcessesPacket, m_uePhySapUser, and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ DoNotifyConnectionSuccessful()

void ns3::LteUeMac::DoNotifyConnectionSuccessful ( )

private

Notify MAC about the successful RRC connection establishment.

Definition at line 617 of file lte-ue-mac.cc.

References m_uePhySapProvider, ns3::LteUePhySapProvider::NotifyConnectionSuccessful(), and NS_LOG_FUNCTION.

Referenced by ns3::UeMemberLteUeCmacSapProvider::NotifyConnectionSuccessful().

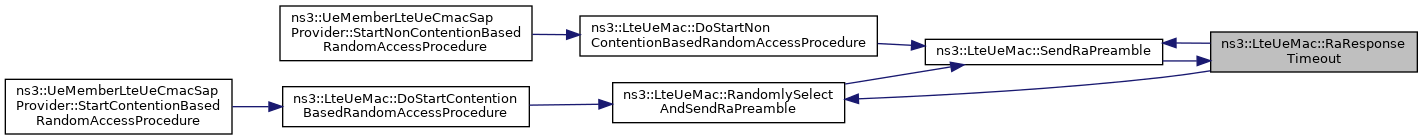

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DoReceiveLteControlMessage()

void ns3::LteUeMac::DoReceiveLteControlMessage ( Ptr< LteControlMessage > msg )

private

Receive LTE control message function.

Parameters

msg	the LTE control message

Todo:: RRC generates the RecvRaResponse messaged for avoiding holes in transmission at PHY layer (which produce erroneous UL CQI evaluation)

Definition at line 648 of file lte-ue-mac.cc.

References ns3::LteMacSapUser::TxOpportunityParameters::bytes, ns3::LteMacSapUser::TxOpportunityParameters::componentCarrierId, ns3::Packet::Copy(), HARQ_PERIOD, ns3::LteMacSapUser::TxOpportunityParameters::harqId, ns3::LteMacSapUser::TxOpportunityParameters::layer, ns3::LteMacSapUser::TxOpportunityParameters::lcid, m_componentCarrierId, m_freshUlBsr, m_harqProcessId, m_lcInfoMap, m_miUlHarqProcessesPacket, m_miUlHarqProcessesPacketTimer, ns3::UlDciListElement_s::m_ndi, m_raPreambleId, m_raRnti, m_rnti, ns3::UlDciListElement_s::m_tbSize, m_uePhySapProvider, m_ulBsrReceived, m_waitingForRaResponse, NS_FATAL_ERROR, NS_LOG_DEBUG, NS_LOG_ERROR, NS_LOG_FUNCTION, NS_LOG_LOGIC, NS_LOG_WARN, ns3::LteControlMessage::RAR, RecvRaResponse(), ns3::LteMacSapUser::TxOpportunityParameters::rnti, ns3::LteUePhySapProvider::SendMacPdu(), and ns3::LteControlMessage::UL_DCI.

Referenced by ns3::UeMemberLteUePhySapUser::ReceiveLteControlMessage().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DoReceivePhyPdu()

void ns3::LteUeMac::DoReceivePhyPdu ( Ptr< Packet > p )

private

Receive Phy PDU function.

Parameters

p	the packet

Definition at line 624 of file lte-ue-mac.cc.

References ns3::LteRadioBearerTag::GetLcid(), ns3::LteRadioBearerTag::GetRnti(), ns3::LteMacSapUser::ReceivePduParameters::lcid, m_lcInfoMap, m_rnti, NS_LOG_WARN, ns3::LteMacSapUser::ReceivePduParameters::p, ns3::Packet::RemovePacketTag(), and ns3::LteMacSapUser::ReceivePduParameters::rnti.

Referenced by ns3::UeMemberLteUePhySapUser::ReceivePhyPdu().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DoRemoveLc()

void ns3::LteUeMac::DoRemoveLc ( uint8_t lcId )

private

Remove LC function.

Parameters

lcId the LCID

Definition at line 582 of file lte-ue-mac.cc.

References m_lcInfoMap, m_ulBsrReceived, NS_ASSERT_MSG, and NS_LOG_FUNCTION.

Referenced by ns3::UeMemberLteUeCmacSapProvider::RemoveLc().

Here is the caller graph for this function:

◆ DoReportBufferStatus()

void ns3::LteUeMac::DoReportBufferStatus ( LteMacSapProvider::ReportBufferStatusParameters params )

private

Report buffers status function.

Parameters

params LteMacSapProvider::ReportBufferStatusParameters

Definition at line 332 of file lte-ue-mac.cc.

References m_freshUlBsr, m_ulBsrReceived, NS_LOG_FUNCTION, and two-ray-to-three-gpp-ch-calibration::params.

Referenced by ns3::UeMemberLteMacSapProvider::ReportBufferStatus().

Here is the caller graph for this function:

◆ DoReset()

void ns3::LteUeMac::DoReset ( )

private

Reset function.

Definition at line 591 of file lte-ue-mac.cc.

References ns3::EventId::Cancel(), m_freshUlBsr, m_lcInfoMap, m_noRaResponseReceivedEvent, m_rachConfigured, m_rnti, m_ulBsrReceived, and NS_LOG_FUNCTION.

Referenced by ns3::UeMemberLteUeCmacSapProvider::Reset().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DoSetImsi()

void ns3::LteUeMac::DoSetImsi ( uint64_t imsi )

private

Set IMSI.

Parameters

imsi	the IMSI of the UE

Definition at line 544 of file lte-ue-mac.cc.

References m_imsi, and NS_LOG_FUNCTION.

Referenced by ns3::UeMemberLteUeCmacSapProvider::SetImsi().

Here is the caller graph for this function:

◆ DoSetRnti()

void ns3::LteUeMac::DoSetRnti ( uint16_t rnti )

private

Set RNTI.

Parameters

rnti the RNTI

Definition at line 537 of file lte-ue-mac.cc.

References m_rnti, and NS_LOG_FUNCTION.

Referenced by ns3::UeMemberLteUeCmacSapProvider::SetRnti().

Here is the caller graph for this function:

◆ DoStartContentionBasedRandomAccessProcedure()

void ns3::LteUeMac::DoStartContentionBasedRandomAccessProcedure ( )

private

Start contention based random access procedure function.

Definition at line 525 of file lte-ue-mac.cc.

References m_backoffParameter, m_preambleTransmissionCounter, m_rachConfigured, NS_ASSERT_MSG, NS_LOG_FUNCTION, and RandomlySelectAndSendRaPreamble().

Referenced by ns3::UeMemberLteUeCmacSapProvider::StartContentionBasedRandomAccessProcedure().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DoStartNonContentionBasedRandomAccessProcedure()

void ns3::LteUeMac::DoStartNonContentionBasedRandomAccessProcedure	(	uint16_t	rnti,
		uint8_t	rapId,
		uint8_t	prachMask
	)

private

Start non contention based random access procedure function.

Parameters

rnti	the RNTI
rapId	the RAPID
prachMask	the PRACH mask

Definition at line 551 of file lte-ue-mac.cc.

References m_preambleTransmissionCounter, m_raPreambleId, m_rnti, NS_ASSERT_MSG, NS_LOG_FUNCTION, and SendRaPreamble().

Referenced by ns3::UeMemberLteUeCmacSapProvider::StartNonContentionBasedRandomAccessProcedure().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DoSubframeIndication()

void ns3::LteUeMac::DoSubframeIndication	(	uint32_t	frameNo,
		uint32_t	subframeNo
	)

Forwarded from LteUePhySapUser: trigger the start from a new frame.

Parameters

frameNo	frame number
subframeNo	subframe number

Definition at line 907 of file lte-ue-mac.cc.

References HARQ_PERIOD, m_bsrLast, m_bsrPeriodicity, m_componentCarrierId, m_frameNo, m_freshUlBsr, m_harqProcessId, m_subframeNo, ns3::Simulator::Now(), NS_LOG_FUNCTION, RefreshHarqProcessesPacketBuffer(), and SendReportBufferStatus().

Referenced by ns3::UeMemberLteUePhySapUser::SubframeIndication().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DoTransmitPdu()

void ns3::LteUeMac::DoTransmitPdu ( LteMacSapProvider::TransmitPduParameters params )

private

Transmit PDU function.

Parameters

params LteMacSapProvider::TransmitPduParameters

Definition at line 319 of file lte-ue-mac.cc.

References HARQ_PERIOD, m_harqProcessId, m_miUlHarqProcessesPacket, m_miUlHarqProcessesPacketTimer, m_rnti, m_uePhySapProvider, NS_ASSERT_MSG, NS_LOG_FUNCTION, two-ray-to-three-gpp-ch-calibration::params, and ns3::LteUePhySapProvider::SendMacPdu().

Referenced by ns3::UeMemberLteMacSapProvider::TransmitPdu().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetLteMacSapProvider()

LteMacSapProvider * ns3::LteUeMac::GetLteMacSapProvider ( )

Get the LTE MAC SAP provider.

Returns: a pointer to the LTE MAC SAP provider

Definition at line 295 of file lte-ue-mac.cc.

References m_macSapProvider.

◆ GetLteUeCmacSapProvider()

LteUeCmacSapProvider * ns3::LteUeMac::GetLteUeCmacSapProvider ( )

Get the LTE CMAC SAP provider.

Returns: a pointer to the LTE CMAC SAP provider

Definition at line 307 of file lte-ue-mac.cc.

References m_cmacSapProvider.

◆ GetLteUePhySapUser()

LteUePhySapUser * ns3::LteUeMac::GetLteUePhySapUser ( )

Get the PHY SAP user.

Returns: a pointer to the SAP user of the PHY

Definition at line 283 of file lte-ue-mac.cc.

References m_uePhySapUser.

◆ GetTypeId()

TypeId ns3::LteUeMac::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 223 of file lte-ue-mac.cc.

References m_raResponseTimeoutTrace, ns3::MakeTraceSourceAccessor(), and ns3::TypeId::SetParent().

Here is the call graph for this function:

◆ RandomlySelectAndSendRaPreamble()

void ns3::LteUeMac::RandomlySelectAndSendRaPreamble ( )

private

Randomly select and send RA preamble function.

Definition at line 400 of file lte-ue-mac.cc.

References ns3::UniformRandomVariable::GetInteger(), m_rachConfig, m_rachConfigured, m_raPreambleId, m_raPreambleUniformVariable, NS_ASSERT_MSG, NS_LOG_FUNCTION, ns3::LteUeCmacSapProvider::RachConfig::numberOfRaPreambles, and SendRaPreamble().

Referenced by DoStartContentionBasedRandomAccessProcedure(), and RaResponseTimeout().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ RaResponseTimeout()

void ns3::LteUeMac::RaResponseTimeout ( bool contention )

private

RA response timeout function.

Parameters

contention if true randomly select and send the RA preamble

Definition at line 486 of file lte-ue-mac.cc.

References m_cmacSapUser, m_imsi, m_preambleTransmissionCounter, m_rachConfig, m_raResponseTimeoutTrace, m_waitingForRaResponse, ns3::LteUeCmacSapUser::NotifyRandomAccessFailed(), NS_LOG_FUNCTION, NS_LOG_INFO, ns3::LteUeCmacSapProvider::RachConfig::preambleTransMax, RandomlySelectAndSendRaPreamble(), and SendRaPreamble().

Referenced by SendRaPreamble().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ RecvRaResponse()

void ns3::LteUeMac::RecvRaResponse ( BuildRarListElement_s raResponse )

private

Receive the RA response function.

Parameters

raResponse RA response received

Definition at line 444 of file lte-ue-mac.cc.

References ns3::LteMacSapUser::TxOpportunityParameters::bytes, ns3::EventId::Cancel(), ns3::LteMacSapUser::TxOpportunityParameters::componentCarrierId, ns3::LteMacSapUser::TxOpportunityParameters::harqId, ns3::LteMacSapUser::TxOpportunityParameters::layer, ns3::LteMacSapUser::TxOpportunityParameters::lcid, m_cmacSapUser, m_componentCarrierId, ns3::BuildRarListElement_s::m_grant, m_lcInfoMap, m_noRaResponseReceivedEvent, m_raPreambleId, ns3::BuildRarListElement_s::m_rnti, m_rnti, ns3::UlGrant_s::m_tbSize, m_ulBsrReceived, m_waitingForRaResponse, ns3::LteUeCmacSapUser::NotifyRandomAccessSuccessful(), NS_ASSERT, NS_ASSERT_MSG, NS_FATAL_ERROR, NS_LOG_FUNCTION, NS_LOG_INFO, ns3::LteMacSapUser::TxOpportunityParameters::rnti, and ns3::LteUeCmacSapUser::SetTemporaryCellRnti().

Referenced by DoReceiveLteControlMessage().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ RefreshHarqProcessesPacketBuffer()

void ns3::LteUeMac::RefreshHarqProcessesPacketBuffer ( )

private

Refresh HARQ processes packet buffer function.

Definition at line 883 of file lte-ue-mac.cc.

References m_miUlHarqProcessesPacket, m_miUlHarqProcessesPacketTimer, NS_LOG_FUNCTION, and NS_LOG_INFO.

Referenced by DoSubframeIndication().

Here is the caller graph for this function:

◆ SendRaPreamble()

void ns3::LteUeMac::SendRaPreamble ( bool contention )

private

Send RA preamble function.

Parameters

contention if true randomly select and send the RA preamble

Definition at line 413 of file lte-ue-mac.cc.

References m_noRaResponseReceivedEvent, m_rachConfig, m_raPreambleId, m_raRnti, m_subframeNo, m_uePhySapProvider, ns3::MilliSeconds(), NS_ASSERT, NS_LOG_FUNCTION, NS_LOG_INFO, RaResponseTimeout(), ns3::LteUeCmacSapProvider::RachConfig::raResponseWindowSize, ns3::Simulator::Schedule(), ns3::LteUePhySapProvider::SendRachPreamble(), and StartWaitingForRaResponse().

Referenced by DoStartNonContentionBasedRandomAccessProcedure(), RandomlySelectAndSendRaPreamble(), and RaResponseTimeout().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SendReportBufferStatus()

void ns3::LteUeMac::SendReportBufferStatus ( )

private

Send report buffer status.

Definition at line 352 of file lte-ue-mac.cc.

References ns3::MacCeListElement_s::BSR, ns3::BufferSizeLevelBsr::BufferSize2BsrId(), ns3::MacCeValue_u::m_bufferStatus, m_lcInfoMap, ns3::MacCeListElement_s::m_macCeValue, ns3::MacCeListElement_s::m_rnti, m_rnti, m_uePhySapProvider, m_ulBsrReceived, NS_ASSERT, NS_ASSERT_MSG, NS_LOG_FUNCTION, NS_LOG_INFO, and ns3::LteUePhySapProvider::SendLteControlMessage().

Referenced by DoSubframeIndication().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetComponentCarrierId()

void ns3::LteUeMac::SetComponentCarrierId ( uint8_t index )

Set the component carried ID.

Parameters

index the component carrier ID

Definition at line 313 of file lte-ue-mac.cc.

References m_componentCarrierId.

◆ SetLteUeCmacSapUser()

void ns3::LteUeMac::SetLteUeCmacSapUser ( LteUeCmacSapUser * s )

Set the LTE UE CMAC SAP user.

Parameters

s	the LTE UE CMAC SAP User

Definition at line 301 of file lte-ue-mac.cc.

References m_cmacSapUser.

◆ SetLteUePhySapProvider()

void ns3::LteUeMac::SetLteUePhySapProvider ( LteUePhySapProvider * s )

Set the PHY SAP Provider.

Parameters

s	a pointer to the PHY SAP Provider

Definition at line 289 of file lte-ue-mac.cc.

References m_uePhySapProvider.

◆ StartWaitingForRaResponse()

void ns3::LteUeMac::StartWaitingForRaResponse ( )

private

Start waiting for RA response function.

Definition at line 437 of file lte-ue-mac.cc.

References m_waitingForRaResponse, and NS_LOG_FUNCTION.

Referenced by SendRaPreamble().

Here is the caller graph for this function:

Friends And Related Function Documentation

◆ UeMemberLteMacSapProvider

friend class UeMemberLteMacSapProvider

friend

allow UeMemberLteMacSapProvider class friend access

Definition at line 48 of file lte-ue-mac.h.

Referenced by LteUeMac().

◆ UeMemberLteUeCmacSapProvider

friend class UeMemberLteUeCmacSapProvider

friend

allow UeMemberLteUeCmacSapProvider class friend access

Definition at line 46 of file lte-ue-mac.h.

Referenced by LteUeMac().

◆ UeMemberLteUePhySapUser

friend class UeMemberLteUePhySapUser

friend

allow UeMemberLteUePhySapUser class friend access

Definition at line 50 of file lte-ue-mac.h.

Referenced by LteUeMac().

Member Data Documentation

◆ m_backoffParameter

uint16_t ns3::LteUeMac::m_backoffParameter

private

backoff parameter

Definition at line 287 of file lte-ue-mac.h.

Referenced by DoStartContentionBasedRandomAccessProcedure().

◆ m_bsrLast

Time ns3::LteUeMac::m_bsrLast

private

BSR last.

Definition at line 271 of file lte-ue-mac.h.

Referenced by DoSubframeIndication().

◆ m_bsrPeriodicity

Time ns3::LteUeMac::m_bsrPeriodicity

private

BSR periodicity.

Definition at line 270 of file lte-ue-mac.h.

Referenced by DoSubframeIndication().

◆ m_cmacSapProvider

LteUeCmacSapProvider* ns3::LteUeMac::m_cmacSapProvider

private

CMAC SAP provider.

Definition at line 262 of file lte-ue-mac.h.

Referenced by LteUeMac(), DoDispose(), and GetLteUeCmacSapProvider().

◆ m_cmacSapUser

LteUeCmacSapUser* ns3::LteUeMac::m_cmacSapUser

private

CMAC SAP user.

Definition at line 261 of file lte-ue-mac.h.

Referenced by RaResponseTimeout(), RecvRaResponse(), and SetLteUeCmacSapUser().

◆ m_componentCarrierId

uint8_t ns3::LteUeMac::m_componentCarrierId

private

component carrier Id --> used to address sap

Definition at line 247 of file lte-ue-mac.h.

Referenced by LteUeMac(), DoReceiveLteControlMessage(), DoSubframeIndication(), RecvRaResponse(), and SetComponentCarrierId().

◆ m_frameNo

uint32_t ns3::LteUeMac::m_frameNo

private

frame number

Definition at line 291 of file lte-ue-mac.h.

Referenced by DoSubframeIndication().

◆ m_freshUlBsr

bool ns3::LteUeMac::m_freshUlBsr

private

true when a BSR has been received in the last TTI

Definition at line 273 of file lte-ue-mac.h.

Referenced by DoReceiveLteControlMessage(), DoReportBufferStatus(), DoReset(), and DoSubframeIndication().

◆ m_harqProcessId

uint8_t ns3::LteUeMac::m_harqProcessId

private

HARQ process ID.

Definition at line 275 of file lte-ue-mac.h.

Referenced by DoReceiveLteControlMessage(), DoSubframeIndication(), and DoTransmitPdu().

◆ m_imsi

uint16_t ns3::LteUeMac::m_imsi

private

IMSI.

Definition at line 281 of file lte-ue-mac.h.

Referenced by DoSetImsi(), and RaResponseTimeout().

◆ m_lcInfoMap

std::map<uint8_t, LcInfo> ns3::LteUeMac::m_lcInfoMap

private

logical channel info map

Definition at line 257 of file lte-ue-mac.h.

Referenced by DoAddLc(), DoReceiveLteControlMessage(), DoReceivePhyPdu(), DoRemoveLc(), DoReset(), RecvRaResponse(), and SendReportBufferStatus().

◆ m_macSapProvider

LteMacSapProvider* ns3::LteUeMac::m_macSapProvider

private

MAC SAP provider.

Definition at line 259 of file lte-ue-mac.h.

Referenced by LteUeMac(), DoDispose(), and GetLteMacSapProvider().

◆ m_miUlHarqProcessesPacket

std::vector<Ptr<PacketBurst> > ns3::LteUeMac::m_miUlHarqProcessesPacket

private

Packets under transmission of the UL HARQ processes.

Definition at line 277 of file lte-ue-mac.h.

Referenced by LteUeMac(), DoDispose(), DoReceiveLteControlMessage(), DoTransmitPdu(), and RefreshHarqProcessesPacketBuffer().

◆ m_miUlHarqProcessesPacketTimer

std::vector<uint8_t> ns3::LteUeMac::m_miUlHarqProcessesPacketTimer

private

timer for packet life in the buffer

Definition at line 278 of file lte-ue-mac.h.

Referenced by LteUeMac(), DoReceiveLteControlMessage(), DoTransmitPdu(), and RefreshHarqProcessesPacketBuffer().

◆ m_noRaResponseReceivedEvent

EventId ns3::LteUeMac::m_noRaResponseReceivedEvent

private

no RA response received event ID

Definition at line 288 of file lte-ue-mac.h.

Referenced by DoReset(), RecvRaResponse(), and SendRaPreamble().

◆ m_preambleTransmissionCounter

uint8_t ns3::LteUeMac::m_preambleTransmissionCounter

private

preamble tranamission counter

Definition at line 286 of file lte-ue-mac.h.

Referenced by DoStartContentionBasedRandomAccessProcedure(), DoStartNonContentionBasedRandomAccessProcedure(), and RaResponseTimeout().

◆ m_rachConfig

LteUeCmacSapProvider::RachConfig ns3::LteUeMac::m_rachConfig

private

RACH configuration.

Definition at line 284 of file lte-ue-mac.h.

Referenced by DoConfigureRach(), RandomlySelectAndSendRaPreamble(), RaResponseTimeout(), and SendRaPreamble().

◆ m_rachConfigured

bool ns3::LteUeMac::m_rachConfigured

private

is RACH configured?

Definition at line 283 of file lte-ue-mac.h.

Referenced by DoConfigureRach(), DoReset(), DoStartContentionBasedRandomAccessProcedure(), and RandomlySelectAndSendRaPreamble().

◆ m_raPreambleId

uint8_t ns3::LteUeMac::m_raPreambleId

private

RA preamble ID.

Definition at line 285 of file lte-ue-mac.h.

Referenced by DoReceiveLteControlMessage(), DoStartNonContentionBasedRandomAccessProcedure(), RandomlySelectAndSendRaPreamble(), RecvRaResponse(), and SendRaPreamble().

◆ m_raPreambleUniformVariable

Ptr<UniformRandomVariable> ns3::LteUeMac::m_raPreambleUniformVariable

private

RA preamble random variable.

Definition at line 289 of file lte-ue-mac.h.

Referenced by LteUeMac(), AssignStreams(), and RandomlySelectAndSendRaPreamble().

◆ m_raResponseTimeoutTrace

TracedCallback<uint64_t, bool, uint8_t, uint8_t> ns3::LteUeMac::m_raResponseTimeoutTrace

private

The RaResponseTimeout trace source.

Fired RA response timeout. Exporting IMSI, contention flag, preamble transmission counter and the max limit of preamble transmission.

Definition at line 301 of file lte-ue-mac.h.

Referenced by GetTypeId(), and RaResponseTimeout().

◆ m_raRnti

uint8_t ns3::LteUeMac::m_raRnti

private

RA RNTI.

Definition at line 293 of file lte-ue-mac.h.

Referenced by DoReceiveLteControlMessage(), and SendRaPreamble().

◆ m_rnti

uint16_t ns3::LteUeMac::m_rnti

private

RNTI.

Definition at line 280 of file lte-ue-mac.h.

Referenced by DoReceiveLteControlMessage(), DoReceivePhyPdu(), DoReset(), DoSetRnti(), DoStartNonContentionBasedRandomAccessProcedure(), DoTransmitPdu(), RecvRaResponse(), and SendReportBufferStatus().

◆ m_subframeNo

uint32_t ns3::LteUeMac::m_subframeNo

private

subframe number

Definition at line 292 of file lte-ue-mac.h.

Referenced by DoSubframeIndication(), and SendRaPreamble().

◆ m_uePhySapProvider

LteUePhySapProvider* ns3::LteUeMac::m_uePhySapProvider

private

UE Phy SAP provider.

Definition at line 264 of file lte-ue-mac.h.

Referenced by DoNotifyConnectionSuccessful(), DoReceiveLteControlMessage(), DoTransmitPdu(), SendRaPreamble(), SendReportBufferStatus(), and SetLteUePhySapProvider().

◆ m_uePhySapUser

LteUePhySapUser* ns3::LteUeMac::m_uePhySapUser

private

UE Phy SAP user.

Definition at line 265 of file lte-ue-mac.h.

Referenced by LteUeMac(), DoDispose(), and GetLteUePhySapUser().

◆ m_ulBsrReceived

std::map<uint8_t, LteMacSapProvider::ReportBufferStatusParameters> ns3::LteUeMac::m_ulBsrReceived

private

BSR received from RLC (the last one)

Definition at line 268 of file lte-ue-mac.h.

Referenced by DoReceiveLteControlMessage(), DoRemoveLc(), DoReportBufferStatus(), DoReset(), RecvRaResponse(), and SendReportBufferStatus().

◆ m_waitingForRaResponse

bool ns3::LteUeMac::m_waitingForRaResponse

private

waiting for RA response

Definition at line 294 of file lte-ue-mac.h.

Referenced by DoReceiveLteControlMessage(), RaResponseTimeout(), RecvRaResponse(), and StartWaitingForRaResponse().

The documentation for this class was generated from the following files:

src/lte/model/lte-ue-mac.h
src/lte/model/lte-ue-mac.cc

Classes

Public Types

Public Member Functions

Static Public Member Functions

Private Member Functions

Private Attributes

Friends

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ RaResponseTimeoutTracedCallback

Constructor & Destructor Documentation

◆ LteUeMac()

◆ ~LteUeMac()

Member Function Documentation

◆ AssignStreams()

◆ DoAddLc()

◆ DoConfigureRach()

◆ DoDispose()

◆ DoNotifyConnectionSuccessful()

◆ DoReceiveLteControlMessage()

◆ DoReceivePhyPdu()

◆ DoRemoveLc()

◆ DoReportBufferStatus()

◆ DoReset()

◆ DoSetImsi()

◆ DoSetRnti()

◆ DoStartContentionBasedRandomAccessProcedure()

◆ DoStartNonContentionBasedRandomAccessProcedure()

◆ DoSubframeIndication()

◆ DoTransmitPdu()

◆ GetLteMacSapProvider()

◆ GetLteUeCmacSapProvider()

◆ GetLteUePhySapUser()

◆ GetTypeId()

◆ RandomlySelectAndSendRaPreamble()

◆ RaResponseTimeout()

◆ RecvRaResponse()

◆ RefreshHarqProcessesPacketBuffer()

◆ SendRaPreamble()

◆ SendReportBufferStatus()

◆ SetComponentCarrierId()

◆ SetLteUeCmacSapUser()

◆ SetLteUePhySapProvider()

◆ StartWaitingForRaResponse()

Friends And Related Function Documentation

◆ UeMemberLteMacSapProvider

◆ UeMemberLteUeCmacSapProvider

◆ UeMemberLteUePhySapUser

Member Data Documentation

◆ m_backoffParameter

◆ m_bsrLast

◆ m_bsrPeriodicity

◆ m_cmacSapProvider

◆ m_cmacSapUser

◆ m_componentCarrierId

◆ m_frameNo

◆ m_freshUlBsr

◆ m_harqProcessId

◆ m_imsi

◆ m_lcInfoMap

◆ m_macSapProvider

◆ m_miUlHarqProcessesPacket

◆ m_miUlHarqProcessesPacketTimer

◆ m_noRaResponseReceivedEvent

◆ m_preambleTransmissionCounter

◆ m_rachConfig

◆ m_rachConfigured

◆ m_raPreambleId

◆ m_raPreambleUniformVariable

◆ m_raResponseTimeoutTrace

◆ m_raRnti

◆ m_rnti

◆ m_subframeNo

◆ m_uePhySapProvider

◆ m_uePhySapUser

◆ m_ulBsrReceived

◆ m_waitingForRaResponse
