Virtual net device modeling mesh point. More...

#include "mesh-point-device.h"

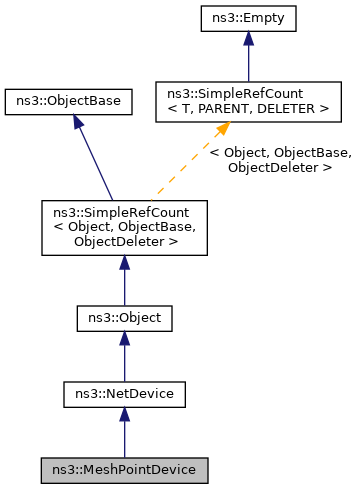

Inheritance diagram for ns3::MeshPointDevice:

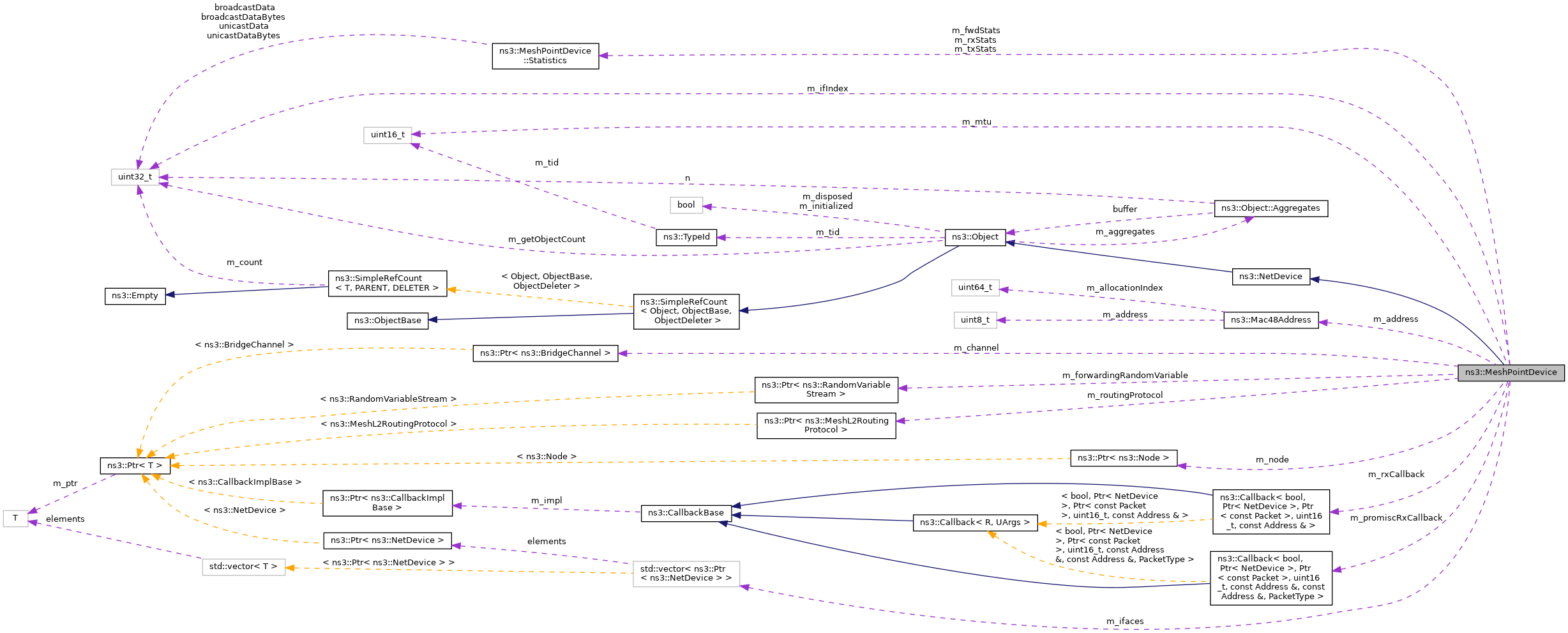

Collaboration diagram for ns3::MeshPointDevice:

Classes
struct	Statistics
	statistics counters More...

Public Member Functions
	MeshPointDevice ()
	C-tor create empty (without interfaces and protocols) mesh point. More...

	~MeshPointDevice () override
	D-tor. More...

void	AddLinkChangeCallback (Callback< void > callback) override

int64_t	AssignStreams (int64_t stream)
	Assign a fixed random variable stream number to the random variables used by this model. More...

void	DoDispose () override
	Destructor implementation. More...

Address	GetAddress () const override

Address	GetBroadcast () const override

Ptr< Channel >	GetChannel () const override

Time	GetForwardingDelay () const
	Return a (random) forwarding delay value from the random variable ForwardingDelay attribute. More...

uint32_t	GetIfIndex () const override

uint16_t	GetMtu () const override

Address	GetMulticast (Ipv4Address multicastGroup) const override
	Make and return a MAC multicast address using the provided multicast group. More...

Address	GetMulticast (Ipv6Address addr) const override
	Get the MAC multicast address corresponding to the IPv6 address provided. More...

Ptr< Node >	GetNode () const override

bool	IsBridge () const override
	Return true if the net device is acting as a bridge. More...

bool	IsBroadcast () const override

bool	IsLinkUp () const override

bool	IsMulticast () const override

bool	IsPointToPoint () const override
	Return true if the net device is on a point-to-point link. More...

bool	NeedsArp () const override

bool	Send (Ptr< Packet > packet, const Address &dest, uint16_t protocolNumber) override

bool	SendFrom (Ptr< Packet > packet, const Address &source, const Address &dest, uint16_t protocolNumber) override

void	SetAddress (Address a) override
	Set the address of this interface. More...

void	SetIfIndex (const uint32_t index) override

bool	SetMtu (const uint16_t mtu) override

void	SetNode (Ptr< Node > node) override

void	SetPromiscReceiveCallback (NetDevice::PromiscReceiveCallback cb) override

void	SetReceiveCallback (NetDevice::ReceiveCallback cb) override

bool	SupportsSendFrom () const override

Interfaces
void	AddInterface (Ptr< NetDevice > port)
	Attach new interface to the station. More...

uint32_t	GetNInterfaces () const

Ptr< NetDevice >	GetInterface (uint32_t id) const

std::vector< Ptr< NetDevice > >	GetInterfaces () const

Protocols
void	SetRoutingProtocol (Ptr< MeshL2RoutingProtocol > protocol)
	Register routing protocol to be used. More...

Ptr< MeshL2RoutingProtocol >	GetRoutingProtocol () const
	Access current routing protocol. More...

Statistics
void	Report (std::ostream &os) const
	Print statistics counters. More...

void	ResetStats ()
	Reset statistics counters. More...

Public Member Functions inherited from ns3::NetDevice
	~NetDevice () override

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

	~Object () override
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose ()
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator () const
	Get an iterator to the Objects aggregated to this one. More...

TypeId	GetInstanceTypeId () const override
	Get the most derived TypeId for this Object. More...

template<typename T >
Ptr< T >	GetObject () const
	Get a pointer to the requested aggregated Object. More...

template<>
Ptr< Object >	GetObject () const
	Specialization of () for objects of type ns3::Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< Object >	GetObject (TypeId tid) const
	Specialization of (TypeId tid) for objects of type ns3::Object. More...

void	Initialize ()
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized () const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
	Copy constructor. More...

uint32_t	GetReferenceCount () const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o[[maybe_unused]])
	Assignment operator. More...

void	Ref () const
	Increment the reference count. More...

void	Unref () const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising errors. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId ()
	Get the type ID. More...

Static Public Member Functions inherited from ns3::NetDevice
static TypeId	GetTypeId ()
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId ()
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId ()
	Get the type ID. More...

Private Member Functions
void	DoSend (bool success, Ptr< Packet > packet, Mac48Address src, Mac48Address dst, uint16_t protocol, uint32_t iface)
	Response callback for L2 routing protocol. More...

void	Forward (Ptr< NetDevice > incomingPort, Ptr< const Packet > packet, uint16_t protocol, const Mac48Address src, const Mac48Address dst)
	Forward packet down to interfaces. More...

void	ReceiveFromDevice (Ptr< NetDevice > device, Ptr< const Packet > packet, uint16_t protocol, const Address &source, const Address &destination, PacketType packetType)
	Receive packet from interface. More...

Private Attributes
Mac48Address	m_address
	Mesh point MAC address, supposed to be the address of the first added interface. More...

Ptr< BridgeChannel >	m_channel
	Virtual channel for upper layers. More...

Ptr< RandomVariableStream >	m_forwardingRandomVariable
	Random variable used for forwarding delay and jitter. More...

Statistics	m_fwdStats
	forward statistics More...

std::vector< Ptr< NetDevice > >	m_ifaces
	List of interfaces. More...

uint32_t	m_ifIndex
	If index. More...

uint16_t	m_mtu
	MTU in bytes. More...

Ptr< Node >	m_node
	Parent node. More...

NetDevice::PromiscReceiveCallback	m_promiscRxCallback
	Promisc receive action. More...

Ptr< MeshL2RoutingProtocol >	m_routingProtocol
	Current routing protocol, used mainly by GetRoutingProtocol. More...

NetDevice::ReceiveCallback	m_rxCallback
	Receive action. More...

Statistics	m_rxStats
	receive statistics More...

Statistics	m_txStats
	transmit statistics More...

Additional Inherited Members
Public Types inherited from ns3::NetDevice
typedef void(*	LinkChangeTracedCallback) ()
	TracedCallback signature for link changed event. More...

enum	PacketType { PACKET_HOST = 1 , NS3_PACKET_HOST = PACKET_HOST , PACKET_BROADCAST , NS3_PACKET_BROADCAST = PACKET_BROADCAST , PACKET_MULTICAST , NS3_PACKET_MULTICAST = PACKET_MULTICAST , PACKET_OTHERHOST , NS3_PACKET_OTHERHOST = PACKET_OTHERHOST }
	Packet types are used as they are in Linux. More...

typedef Callback< bool, Ptr< NetDevice >, Ptr< const Packet >, uint16_t, const Address &, const Address &, PacketType >	PromiscReceiveCallback

typedef Callback< bool, Ptr< NetDevice >, Ptr< const Packet >, uint16_t, const Address & >	ReceiveCallback

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	DoInitialize ()
	Initialize() implementation. More...

virtual void	NotifyNewAggregate ()
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted ()
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid ()
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

Virtual net device modeling mesh point.

Mesh point is a virtual net device which is responsible for

Aggregating and coordinating 1..* real devices – mesh interfaces, see MeshInterfaceDevice class.
Hosting all mesh-related level 2 protocols.

One of hosted L2 protocols must implement L2RoutingProtocol interface and is used for packets forwarding.

From the level 3 point of view MeshPointDevice is similar to BridgeNetDevice, but the packets, which going through may be changed (because L2 protocols may require their own headers or tags).

Attributes:

Todo:

Definition at line 53 of file mesh-point-device.h.

Constructor & Destructor Documentation

◆ MeshPointDevice()

ns3::MeshPointDevice::MeshPointDevice ( )

C-tor create empty (without interfaces and protocols) mesh point.

Definition at line 67 of file mesh-point-device.cc.

References m_channel, and NS_LOG_FUNCTION.

◆ ~MeshPointDevice()

ns3::MeshPointDevice::~MeshPointDevice ( )

override

D-tor.

Definition at line 74 of file mesh-point-device.cc.

References m_channel, m_node, m_routingProtocol, and NS_LOG_FUNCTION.

Member Function Documentation

◆ AddInterface()

void ns3::MeshPointDevice::AddInterface ( Ptr< NetDevice > port )

Attach new interface to the station.

Interface must support 48-bit MAC address and SendFrom method.

Parameters

port	the port used

Attention: Only MeshPointDevice can have IP address, but not individual interfaces.

Definition at line 419 of file mesh-point-device.cc.

References ns3::Mac48Address::ConvertFrom(), ns3::WifiNetDevice::GetMac(), ns3::Object::GetObject(), ns3::Mac48Address::IsMatchingType(), m_address, m_channel, m_ifaces, m_node, ns3::MakeCallback(), NS_ASSERT, NS_FATAL_ERROR, NS_LOG_FUNCTION, ReceiveFromDevice(), and ns3::Node::RegisterProtocolHandler().

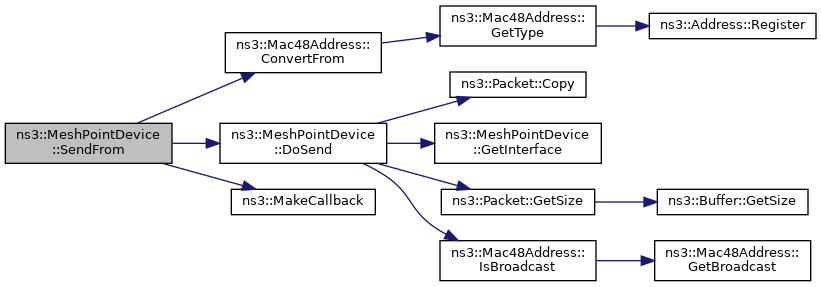

Here is the call graph for this function:

◆ AddLinkChangeCallback()

void ns3::MeshPointDevice::AddLinkChangeCallback ( Callback< void > callback )

overridevirtual

Parameters

callback the callback to invoke

Add a callback invoked whenever the link status changes to UP. This callback is typically used by the IP/ARP layer to flush the ARP cache and by IPv6 stack to flush NDISC cache whenever the link goes up.

Implements ns3::NetDevice.

Definition at line 258 of file mesh-point-device.cc.

References NS_LOG_FUNCTION, and NS_LOG_WARN.

◆ AssignStreams()

int64_t ns3::MeshPointDevice::AssignStreams ( int64_t stream )

Assign a fixed random variable stream number to the random variables used by this model.

Return the number of streams (possibly zero) that have been assigned.

Parameters

stream first stream index to use

Returns: the number of stream indices assigned by this model

Definition at line 564 of file mesh-point-device.cc.

References m_forwardingRandomVariable, NS_LOG_FUNCTION, and ns3::RandomVariableStream::SetStream().

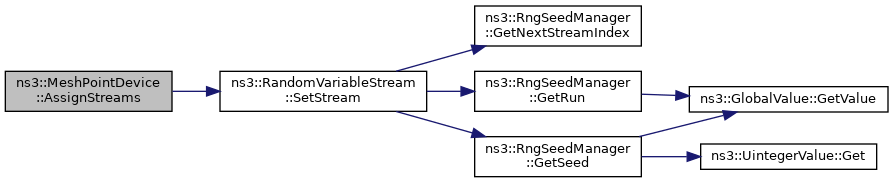

Here is the call graph for this function:

◆ DoDispose()

void ns3::MeshPointDevice::DoDispose ( void )

overridevirtual

Destructor implementation.

This method is called by Dispose() or by the Object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overridden version of this method and chain up to their parent's implementation once they are done. i.e, for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose() method.

It is safe to call GetObject() from within this method.

Reimplemented from ns3::Object.

Definition at line 83 of file mesh-point-device.cc.

References ns3::Object::DoDispose(), m_channel, m_ifaces, m_node, m_routingProtocol, and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ DoSend()

void ns3::MeshPointDevice::DoSend	(	bool	success,
		Ptr< Packet >	packet,
		Mac48Address	src,
		Mac48Address	dst,
		uint16_t	protocol,
		uint32_t	iface
	)

private

Response callback for L2 routing protocol.

This will be executed when routing information is ready.

Parameters

success	True is route found.
packet	Packet to send
src	Source MAC address
dst	Destination MAC address
protocol	Protocol ID
iface	Interface to use (ID) for send (decided by routing protocol). All interfaces will be used if outIface = 0xffffffff

Todo:: diagnose routing errors

Definition at line 483 of file mesh-point-device.cc.

References ns3::MeshPointDevice::Statistics::broadcastData, ns3::MeshPointDevice::Statistics::broadcastDataBytes, ns3::Packet::Copy(), GetInterface(), ns3::Packet::GetSize(), ns3::Mac48Address::IsBroadcast(), m_address, m_fwdStats, m_ifaces, m_txStats, NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::MeshPointDevice::Statistics::unicastData, and ns3::MeshPointDevice::Statistics::unicastDataBytes.

Referenced by Forward(), Send(), and SendFrom().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Forward()

void ns3::MeshPointDevice::Forward	(	Ptr< NetDevice >	incomingPort,
		Ptr< const Packet >	packet,
		uint16_t	protocol,
		const Mac48Address	src,
		const Mac48Address	dst
	)

private

Forward packet down to interfaces.

Parameters

incomingPort	the incoming port
packet	the packet to forward
protocol	the protocol
src	the source MAC address
dst	the destination MAC address

Definition at line 177 of file mesh-point-device.cc.

References DoSend(), m_address, m_routingProtocol, ns3::MakeCallback(), NS_LOG_DEBUG, and NS_LOG_FUNCTION.

Referenced by ReceiveFromDevice().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetAddress()

Address ns3::MeshPointDevice::GetAddress ( ) const

overridevirtual

Returns: the current Address of this interface.

Implements ns3::NetDevice.

Definition at line 221 of file mesh-point-device.cc.

References m_address, and NS_LOG_FUNCTION.

◆ GetBroadcast()

Address ns3::MeshPointDevice::GetBroadcast ( ) const

overridevirtual

Returns: the broadcast address supported by this netdevice.

Calling this method is invalid if IsBroadcast returns not true.

Implements ns3::NetDevice.

Definition at line 273 of file mesh-point-device.cc.

References NS_LOG_FUNCTION.

◆ GetChannel()

Ptr< Channel > ns3::MeshPointDevice::GetChannel ( ) const

overridevirtual

Returns: the channel this NetDevice is connected to. The value returned can be zero if the NetDevice is not yet connected to any channel or if the underlying NetDevice has no concept of a channel. i.e., callers must check for zero and be ready to handle it.

Implements ns3::NetDevice.

Definition at line 214 of file mesh-point-device.cc.

References m_channel, and NS_LOG_FUNCTION.

◆ GetForwardingDelay()

Time ns3::MeshPointDevice::GetForwardingDelay ( ) const

Return a (random) forwarding delay value from the random variable ForwardingDelay attribute.

Returns: A Time value from the ForwardingDelay random variable

Definition at line 572 of file mesh-point-device.cc.

References ns3::RandomVariableStream::GetInteger(), m_forwardingRandomVariable, and ns3::MicroSeconds().

Referenced by ReceiveFromDevice().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetIfIndex()

uint32_t ns3::MeshPointDevice::GetIfIndex ( ) const

overridevirtual

Returns: index ifIndex of the device

Implements ns3::NetDevice.

Definition at line 207 of file mesh-point-device.cc.

References m_ifIndex, and NS_LOG_FUNCTION.

◆ GetInterface()

Ptr< NetDevice > ns3::MeshPointDevice::GetInterface ( uint32_t id ) const

Returns: interface device by its index (aka ID)

Parameters

id	is interface id, 0 <= id < GetNInterfaces

Definition at line 398 of file mesh-point-device.cc.

References m_ifaces, NS_FATAL_ERROR, and NS_LOG_FUNCTION.

Referenced by DoSend().

Here is the caller graph for this function:

◆ GetInterfaces()

std::vector< Ptr< NetDevice > > ns3::MeshPointDevice::GetInterfaces ( ) const

Returns: vector of interfaces

Definition at line 413 of file mesh-point-device.cc.

References m_ifaces.

◆ GetMtu()

uint16_t ns3::MeshPointDevice::GetMtu ( ) const

overridevirtual

Returns: the link-level MTU in bytes for this interface.

This value is typically used by the IP layer to perform IP fragmentation when needed.

Implements ns3::NetDevice.

Definition at line 244 of file mesh-point-device.cc.

References m_mtu, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the caller graph for this function:

◆ GetMulticast() [1/2]

Address ns3::MeshPointDevice::GetMulticast ( Ipv4Address multicastGroup ) const

overridevirtual

Make and return a MAC multicast address using the provided multicast group.

RFC 1112 says that an Ipv4 host group address is mapped to an Ethernet multicast address by placing the low-order 23-bits of the IP address into the low-order 23 bits of the Ethernet multicast address 01-00-5E-00-00-00 (hex). Similar RFCs exist for Ipv6 and Eui64 mappings. This method performs the multicast address creation function appropriate to the underlying MAC address of the device. This MAC address is encapsulated in an abstract Address to avoid dependencies on the exact MAC address format.

In the case of net devices that do not support multicast, clients are expected to test NetDevice::IsMulticast and avoid attempting to map multicast packets. Subclasses of NetDevice that do support multicasting are expected to override this method and provide an implementation appropriate to the particular device.

Parameters

multicastGroup The IP address for the multicast group destination of the packet.

Returns: The MAC multicast Address used to send packets to the provided multicast group.

Warning: Calling this method is invalid if IsMulticast returns not true.

See also: IsMulticast()

Implements ns3::NetDevice.

Definition at line 287 of file mesh-point-device.cc.

References ns3::Mac48Address::GetMulticast(), and NS_LOG_FUNCTION.

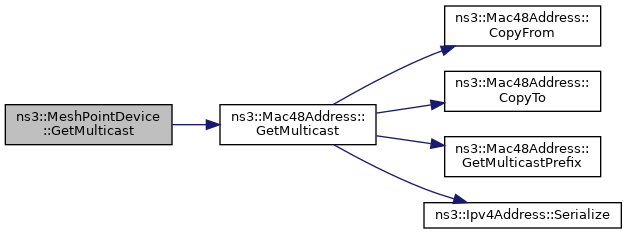

Here is the call graph for this function:

◆ GetMulticast() [2/2]

Address ns3::MeshPointDevice::GetMulticast ( Ipv6Address addr ) const

overridevirtual

Get the MAC multicast address corresponding to the IPv6 address provided.

Parameters

addr	IPv6 address

Returns: the MAC multicast address

Warning: Calling this method is invalid if IsMulticast returns not true.

Implements ns3::NetDevice.

Definition at line 381 of file mesh-point-device.cc.

References ns3::Mac48Address::GetMulticast(), and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ GetNInterfaces()

uint32_t ns3::MeshPointDevice::GetNInterfaces ( ) const

Returns: number of interfaces

Definition at line 391 of file mesh-point-device.cc.

References m_ifaces, and NS_LOG_FUNCTION.

◆ GetNode()

Ptr< Node > ns3::MeshPointDevice::GetNode ( ) const

overridevirtual

Returns: the node base class which contains this network interface.

When a subclass needs to get access to the underlying node base class to print the nodeid for example, it can invoke this method.

Implements ns3::NetDevice.

Definition at line 339 of file mesh-point-device.cc.

References m_node, and NS_LOG_FUNCTION.

◆ GetRoutingProtocol()

Ptr< MeshL2RoutingProtocol > ns3::MeshPointDevice::GetRoutingProtocol ( ) const

Access current routing protocol.

Returns: the current routing protocol

Definition at line 476 of file mesh-point-device.cc.

References m_routingProtocol, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::MeshPointDevice::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 40 of file mesh-point-device.cc.

References GetMtu(), GetRoutingProtocol(), m_forwardingRandomVariable, ns3::MakePointerAccessor(), ns3::MakeUintegerAccessor(), SetMtu(), ns3::TypeId::SetParent(), and SetRoutingProtocol().

Here is the call graph for this function:

◆ IsBridge()

bool ns3::MeshPointDevice::IsBridge ( ) const

overridevirtual

Return true if the net device is acting as a bridge.

Returns: value of m_isBridge flag

Implements ns3::NetDevice.

Definition at line 302 of file mesh-point-device.cc.

References NS_LOG_FUNCTION.

◆ IsBroadcast()

bool ns3::MeshPointDevice::IsBroadcast ( ) const

overridevirtual

Returns: true if this interface supports a broadcast address, false otherwise.

Implements ns3::NetDevice.

Definition at line 266 of file mesh-point-device.cc.

References NS_LOG_FUNCTION.

◆ IsLinkUp()

bool ns3::MeshPointDevice::IsLinkUp ( ) const

overridevirtual

Returns: true if link is up; false otherwise

Implements ns3::NetDevice.

Definition at line 251 of file mesh-point-device.cc.

References NS_LOG_FUNCTION.

◆ IsMulticast()

bool ns3::MeshPointDevice::IsMulticast ( ) const

overridevirtual

Returns: value of m_isMulticast flag

Implements ns3::NetDevice.

Definition at line 280 of file mesh-point-device.cc.

References NS_LOG_FUNCTION.

◆ IsPointToPoint()

bool ns3::MeshPointDevice::IsPointToPoint ( ) const

overridevirtual

Return true if the net device is on a point-to-point link.

Returns: value of m_isPointToPoint flag

Implements ns3::NetDevice.

Definition at line 295 of file mesh-point-device.cc.

References NS_LOG_FUNCTION.

◆ NeedsArp()

bool ns3::MeshPointDevice::NeedsArp ( ) const

overridevirtual

Returns: true if ARP is needed, false otherwise.

Called by higher-layers to check if this NetDevice requires ARP to be used.

Implements ns3::NetDevice.

Definition at line 353 of file mesh-point-device.cc.

References NS_LOG_FUNCTION.

◆ ReceiveFromDevice()

void ns3::MeshPointDevice::ReceiveFromDevice	(	Ptr< NetDevice >	device,
		Ptr< const Packet >	packet,
		uint16_t	protocol,
		const Address &	source,
		const Address &	destination,
		PacketType	packetType
	)

private

Receive packet from interface.

Parameters

device	the device to receive from
packet	the received packet
protocol	the protocol
source	the source address
destination	the destination address
packetType	the packet type

Definition at line 102 of file mesh-point-device.cc.

References ns3::Time::As(), ns3::MeshPointDevice::Statistics::broadcastData, ns3::MeshPointDevice::Statistics::broadcastDataBytes, ns3::Mac48Address::ConvertFrom(), ns3::Packet::Copy(), Forward(), GetForwardingDelay(), ns3::Packet::GetSize(), ns3::Packet::GetUid(), ns3::Mac48Address::IsGroup(), ns3::Callback< R, UArgs >::IsNull(), m_address, m_promiscRxCallback, m_routingProtocol, m_rxCallback, m_rxStats, NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::Simulator::Schedule(), ns3::MeshPointDevice::Statistics::unicastData, ns3::MeshPointDevice::Statistics::unicastDataBytes, and ns3::Time::US.

Referenced by AddInterface().

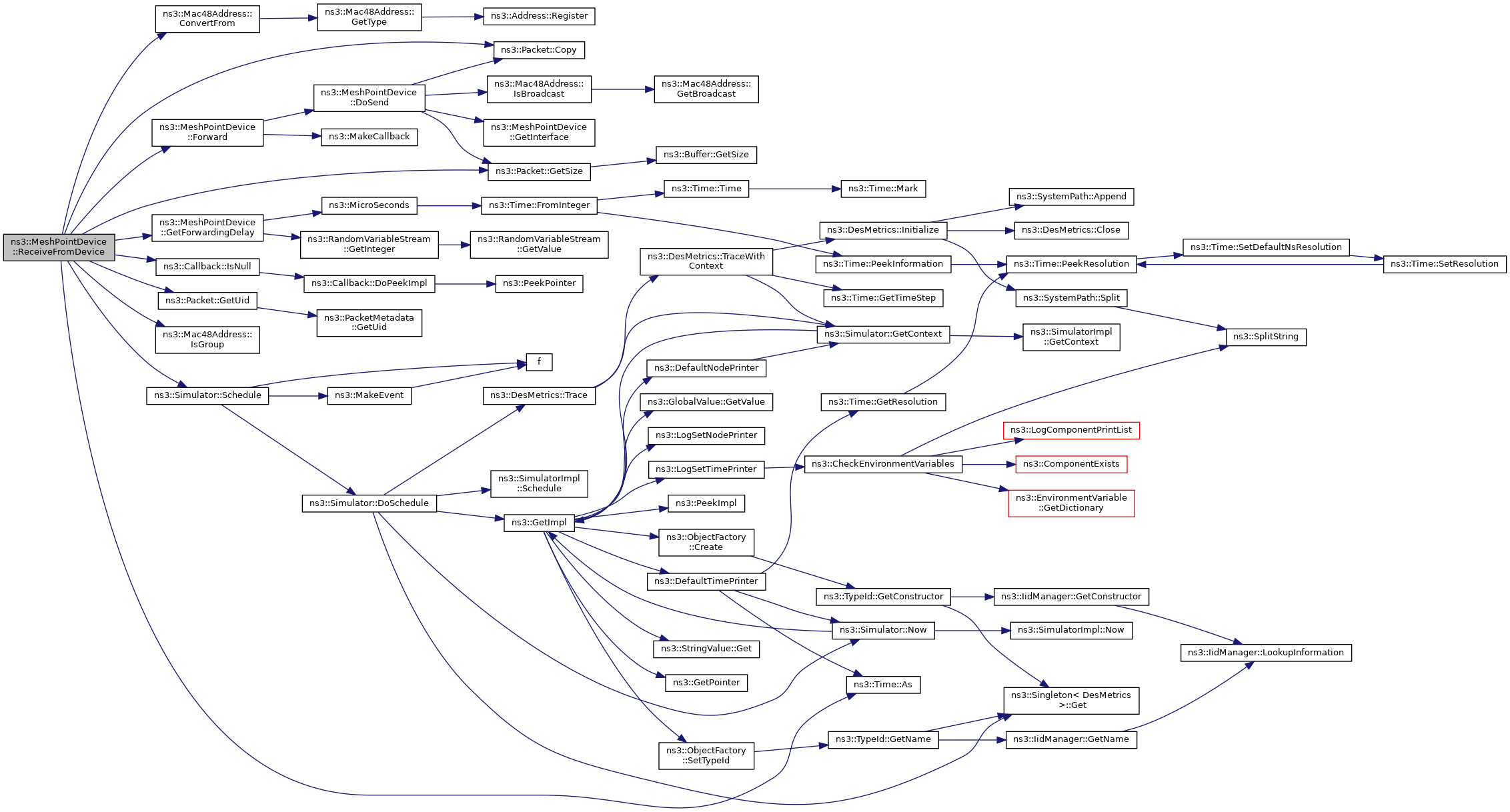

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Report()

void ns3::MeshPointDevice::Report ( std::ostream & os ) const

Print statistics counters.

Parameters

os	the output stream

Definition at line 535 of file mesh-point-device.cc.

References ns3::MeshPointDevice::Statistics::broadcastData, ns3::MeshPointDevice::Statistics::broadcastDataBytes, m_fwdStats, m_rxStats, m_txStats, NS_LOG_FUNCTION, ns3::MeshPointDevice::Statistics::unicastData, and ns3::MeshPointDevice::Statistics::unicastDataBytes.

◆ ResetStats()

void ns3::MeshPointDevice::ResetStats ( )

Reset statistics counters.

Definition at line 555 of file mesh-point-device.cc.

References m_fwdStats, m_rxStats, m_txStats, and NS_LOG_FUNCTION.

◆ Send()

bool ns3::MeshPointDevice::Send	(	Ptr< Packet >	packet,
		const Address &	dest,
		uint16_t	protocolNumber
	)

overridevirtual

Parameters

packet	packet sent from above down to Network Device
dest	mac address of the destination (already resolved)
protocolNumber	identifies the type of payload contained in this packet. Used to call the right L3Protocol when the packet is received.

Called from higher layer to send packet into Network Device to the specified destination Address

Returns: whether the Send operation succeeded

Implements ns3::NetDevice.

Definition at line 309 of file mesh-point-device.cc.

References ns3::Mac48Address::ConvertFrom(), DoSend(), m_address, m_ifIndex, m_routingProtocol, ns3::MakeCallback(), and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ SendFrom()

bool ns3::MeshPointDevice::SendFrom	(	Ptr< Packet >	packet,
		const Address &	source,
		const Address &	dest,
		uint16_t	protocolNumber
	)

overridevirtual

Parameters

packet	packet sent from above down to Network Device
source	source mac address (so called "MAC spoofing")
dest	mac address of the destination (already resolved)
protocolNumber	identifies the type of payload contained in this packet. Used to call the right L3Protocol when the packet is received.

Called from higher layer to send packet into Network Device with the specified source and destination Addresses.

Returns: whether the Send operation succeeded

Implements ns3::NetDevice.

Definition at line 322 of file mesh-point-device.cc.

References ns3::Mac48Address::ConvertFrom(), DoSend(), m_ifIndex, m_routingProtocol, ns3::MakeCallback(), and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ SetAddress()

void ns3::MeshPointDevice::SetAddress ( Address address )

overridevirtual

Set the address of this interface.

Parameters

address address to set

Implements ns3::NetDevice.

Definition at line 228 of file mesh-point-device.cc.

References ns3::Mac48Address::ConvertFrom(), m_address, NS_LOG_FUNCTION, and NS_LOG_WARN.

Here is the call graph for this function:

◆ SetIfIndex()

void ns3::MeshPointDevice::SetIfIndex ( const uint32_t index )

overridevirtual

Parameters

index ifIndex of the device

Implements ns3::NetDevice.

Definition at line 200 of file mesh-point-device.cc.

References m_ifIndex, and NS_LOG_FUNCTION.

◆ SetMtu()

bool ns3::MeshPointDevice::SetMtu ( const uint16_t mtu )

overridevirtual

Parameters

mtu	MTU value, in bytes, to set for the device

Returns: whether the MTU value was within legal bounds

Override for default MTU defined on a per-type basis.

Implements ns3::NetDevice.

Definition at line 236 of file mesh-point-device.cc.

References m_mtu, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the caller graph for this function:

◆ SetNode()

void ns3::MeshPointDevice::SetNode ( Ptr< Node > node )

overridevirtual

Parameters

node	the node associated to this netdevice.

This method is called from ns3::Node::AddDevice.

Implements ns3::NetDevice.

Definition at line 346 of file mesh-point-device.cc.

References m_node, and NS_LOG_FUNCTION.

◆ SetPromiscReceiveCallback()

void ns3::MeshPointDevice::SetPromiscReceiveCallback ( NetDevice::PromiscReceiveCallback cb )

overridevirtual

Parameters

cb	callback to invoke whenever a packet has been received in promiscuous mode and must be forwarded to the higher layers.

Enables netdevice promiscuous mode and sets the callback that will handle promiscuous mode packets. Note, promiscuous mode packets means all packets, including those packets that can be sensed by the netdevice but which are intended to be received by other hosts.

Implements ns3::NetDevice.

Definition at line 367 of file mesh-point-device.cc.

References m_promiscRxCallback, and NS_LOG_FUNCTION.

◆ SetReceiveCallback()

void ns3::MeshPointDevice::SetReceiveCallback ( NetDevice::ReceiveCallback cb )

overridevirtual

Parameters

cb	callback to invoke whenever a packet has been received and must be forwarded to the higher layers.

Set the callback to be used to notify higher layers when a packet has been received.

Implements ns3::NetDevice.

Definition at line 360 of file mesh-point-device.cc.

References m_rxCallback, and NS_LOG_FUNCTION.

◆ SetRoutingProtocol()

void ns3::MeshPointDevice::SetRoutingProtocol ( Ptr< MeshL2RoutingProtocol > protocol )

Register routing protocol to be used.

Protocol must be already installed on this mesh point.

Parameters

protocol the routing protocol

Definition at line 467 of file mesh-point-device.cc.

References m_routingProtocol, NS_ASSERT_MSG, NS_LOG_FUNCTION, and ns3::PeekPointer().

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SupportsSendFrom()

bool ns3::MeshPointDevice::SupportsSendFrom ( ) const

overridevirtual

Returns: true if this interface supports a bridging mode, false otherwise.

Implements ns3::NetDevice.

Definition at line 374 of file mesh-point-device.cc.

References NS_LOG_FUNCTION.

Member Data Documentation

◆ m_address

Mac48Address ns3::MeshPointDevice::m_address

private

Mesh point MAC address, supposed to be the address of the first added interface.

Definition at line 222 of file mesh-point-device.h.

Referenced by AddInterface(), DoSend(), Forward(), GetAddress(), ReceiveFromDevice(), Send(), and SetAddress().

◆ m_channel

Ptr<BridgeChannel> ns3::MeshPointDevice::m_channel

private

Virtual channel for upper layers.

Definition at line 232 of file mesh-point-device.h.

Referenced by MeshPointDevice(), ~MeshPointDevice(), AddInterface(), DoDispose(), and GetChannel().

◆ m_forwardingRandomVariable

Ptr<RandomVariableStream> ns3::MeshPointDevice::m_forwardingRandomVariable

private

Random variable used for forwarding delay and jitter.

Definition at line 236 of file mesh-point-device.h.

Referenced by AssignStreams(), GetForwardingDelay(), and GetTypeId().

◆ m_fwdStats

Statistics ns3::MeshPointDevice::m_fwdStats

private

forward statistics

Definition at line 253 of file mesh-point-device.h.

Referenced by DoSend(), Report(), and ResetStats().

◆ m_ifaces

std::vector<Ptr<NetDevice> > ns3::MeshPointDevice::m_ifaces

private

List of interfaces.

Definition at line 226 of file mesh-point-device.h.

Referenced by AddInterface(), DoDispose(), DoSend(), GetInterface(), GetInterfaces(), and GetNInterfaces().

◆ m_ifIndex

uint32_t ns3::MeshPointDevice::m_ifIndex

private

If index.

Definition at line 228 of file mesh-point-device.h.

Referenced by GetIfIndex(), Send(), SendFrom(), and SetIfIndex().

◆ m_mtu

uint16_t ns3::MeshPointDevice::m_mtu

private

MTU in bytes.

Definition at line 230 of file mesh-point-device.h.

Referenced by GetMtu(), and SetMtu().

◆ m_node

Ptr<Node> ns3::MeshPointDevice::m_node

private

Parent node.

Definition at line 224 of file mesh-point-device.h.

Referenced by ~MeshPointDevice(), AddInterface(), DoDispose(), GetNode(), and SetNode().

◆ m_promiscRxCallback

NetDevice::PromiscReceiveCallback ns3::MeshPointDevice::m_promiscRxCallback

private

Promisc receive action.

Definition at line 220 of file mesh-point-device.h.

Referenced by ReceiveFromDevice(), and SetPromiscReceiveCallback().

◆ m_routingProtocol

Ptr<MeshL2RoutingProtocol> ns3::MeshPointDevice::m_routingProtocol

private

Current routing protocol, used mainly by GetRoutingProtocol.

Definition at line 234 of file mesh-point-device.h.

Referenced by ~MeshPointDevice(), DoDispose(), Forward(), GetRoutingProtocol(), ReceiveFromDevice(), Send(), SendFrom(), and SetRoutingProtocol().

◆ m_rxCallback

NetDevice::ReceiveCallback ns3::MeshPointDevice::m_rxCallback

private

Receive action.

Definition at line 218 of file mesh-point-device.h.

Referenced by ReceiveFromDevice(), and SetReceiveCallback().

◆ m_rxStats

Statistics ns3::MeshPointDevice::m_rxStats

private

receive statistics

Definition at line 251 of file mesh-point-device.h.

Referenced by ReceiveFromDevice(), Report(), and ResetStats().

◆ m_txStats

Statistics ns3::MeshPointDevice::m_txStats

private

transmit statistics

Definition at line 252 of file mesh-point-device.h.

Referenced by DoSend(), Report(), and ResetStats().

The documentation for this class was generated from the following files:

src/mesh/model/mesh-point-device.h
src/mesh/model/mesh-point-device.cc

Classes

Public Member Functions

Static Public Member Functions

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ MeshPointDevice()

◆ ~MeshPointDevice()

Member Function Documentation

◆ AddInterface()

◆ AddLinkChangeCallback()

◆ AssignStreams()

◆ DoDispose()

◆ DoSend()

◆ Forward()

◆ GetAddress()

◆ GetBroadcast()

◆ GetChannel()

◆ GetForwardingDelay()

◆ GetIfIndex()

◆ GetInterface()

◆ GetInterfaces()

◆ GetMtu()

◆ GetMulticast() [1/2]

◆ GetMulticast() [2/2]

◆ GetNInterfaces()

◆ GetNode()

◆ GetRoutingProtocol()

◆ GetTypeId()

◆ IsBridge()

◆ IsBroadcast()

◆ IsLinkUp()

◆ IsMulticast()

◆ IsPointToPoint()

◆ NeedsArp()

◆ ReceiveFromDevice()

◆ Report()

◆ ResetStats()

◆ Send()

◆ SendFrom()

◆ SetAddress()

◆ SetIfIndex()

◆ SetMtu()

◆ SetNode()

◆ SetPromiscReceiveCallback()

◆ SetReceiveCallback()

◆ SetRoutingProtocol()

◆ SupportsSendFrom()

Member Data Documentation

◆ m_address

◆ m_channel

◆ m_forwardingRandomVariable

◆ m_fwdStats

◆ m_ifaces

◆ m_ifIndex

◆ m_mtu

◆ m_node

◆ m_promiscRxCallback

◆ m_routingProtocol

◆ m_rxCallback

◆ m_rxStats

◆ m_txStats
