This devices implements the following features: More...

#include "aloha-noack-net-device.h"

Inheritance diagram for ns3::AlohaNoackNetDevice:

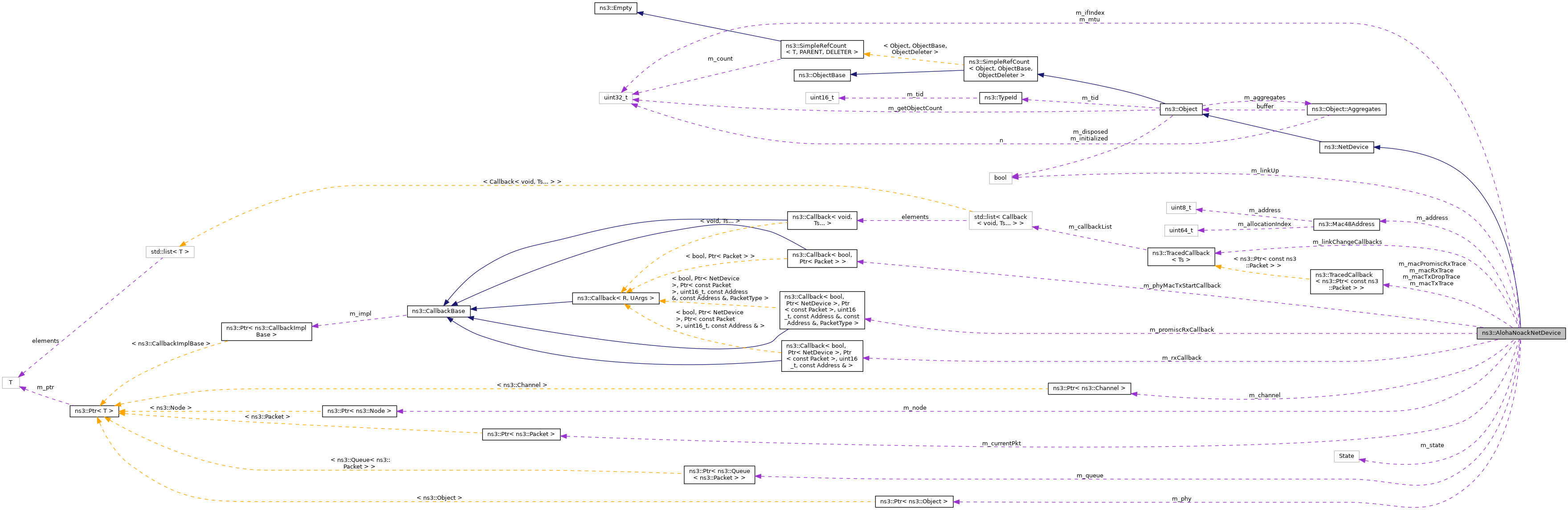

Collaboration diagram for ns3::AlohaNoackNetDevice:

Public Types
enum	State { IDLE , TX , RX }
	State of the NetDevice. More...

Public Types inherited from ns3::NetDevice
typedef void(*	LinkChangeTracedCallback) ()
	TracedCallback signature for link changed event. More...

enum	PacketType { PACKET_HOST = 1 , NS3_PACKET_HOST = PACKET_HOST , PACKET_BROADCAST , NS3_PACKET_BROADCAST = PACKET_BROADCAST , PACKET_MULTICAST , NS3_PACKET_MULTICAST = PACKET_MULTICAST , PACKET_OTHERHOST , NS3_PACKET_OTHERHOST = PACKET_OTHERHOST }
	Packet types are used as they are in Linux. More...

typedef Callback< bool, Ptr< NetDevice >, Ptr< const Packet >, uint16_t, const Address &, const Address &, PacketType >	PromiscReceiveCallback

typedef Callback< bool, Ptr< NetDevice >, Ptr< const Packet >, uint16_t, const Address & >	ReceiveCallback

Public Member Functions
	AlohaNoackNetDevice ()

	~AlohaNoackNetDevice () override

void	AddLinkChangeCallback (Callback< void > callback) override

Address	GetAddress () const override

Address	GetBroadcast () const override

Ptr< Channel >	GetChannel () const override

uint32_t	GetIfIndex () const override

uint16_t	GetMtu () const override

Address	GetMulticast (Ipv4Address addr) const override
	Make and return a MAC multicast address using the provided multicast group. More...

Address	GetMulticast (Ipv6Address addr) const override
	Get the MAC multicast address corresponding to the IPv6 address provided. More...

Ptr< Node >	GetNode () const override

Ptr< Object >	GetPhy () const

bool	IsBridge () const override
	Return true if the net device is acting as a bridge. More...

bool	IsBroadcast () const override

bool	IsLinkUp () const override

bool	IsMulticast () const override

bool	IsPointToPoint () const override
	Return true if the net device is on a point-to-point link. More...

bool	NeedsArp () const override

void	NotifyReceptionEndError ()
	Notify the MAC that the PHY finished a reception with an error. More...

void	NotifyReceptionEndOk (Ptr< Packet > p)
	Notify the MAC that the PHY finished a reception successfully. More...

void	NotifyReceptionStart ()
	Notify the MAC that the PHY has started a reception. More...

void	NotifyTransmissionEnd (Ptr< const Packet >)
	Notify the MAC that the PHY has finished a previously started transmission. More...

bool	Send (Ptr< Packet > packet, const Address &dest, uint16_t protocolNumber) override

bool	SendFrom (Ptr< Packet > packet, const Address &source, const Address &dest, uint16_t protocolNumber) override

void	SetAddress (Address address) override
	Set the address of this interface. More...

void	SetChannel (Ptr< Channel > c)
	This class doesn't talk directly with the underlying channel (a dedicated PHY class is expected to do it), however the NetDevice specification features a GetChannel() method. More...

void	SetGenericPhyTxStartCallback (GenericPhyTxStartCallback c)
	set the callback used to instruct the lower layer to start a TX More...

void	SetIfIndex (const uint32_t index) override

bool	SetMtu (const uint16_t mtu) override

void	SetNode (Ptr< Node > node) override

void	SetPhy (Ptr< Object > phy)
	Set the Phy object which is attached to this device. More...

void	SetPromiscReceiveCallback (PromiscReceiveCallback cb) override

virtual void	SetQueue (Ptr< Queue< Packet >> queue)
	set the queue which is going to be used by this device More...

void	SetReceiveCallback (NetDevice::ReceiveCallback cb) override

bool	SupportsSendFrom () const override

Public Member Functions inherited from ns3::NetDevice
	~NetDevice () override

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

	~Object () override
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose ()
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator () const
	Get an iterator to the Objects aggregated to this one. More...

TypeId	GetInstanceTypeId () const override
	Get the most derived TypeId for this Object. More...

template<typename T >
Ptr< T >	GetObject () const
	Get a pointer to the requested aggregated Object. More...

template<>
Ptr< Object >	GetObject () const
	Specialization of () for objects of type ns3::Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< Object >	GetObject (TypeId tid) const
	Specialization of (TypeId tid) for objects of type ns3::Object. More...

void	Initialize ()
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized () const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
	Copy constructor. More...

uint32_t	GetReferenceCount () const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o[[maybe_unused]])
	Assignment operator. More...

void	Ref () const
	Increment the reference count. More...

void	Unref () const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising errors. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId ()
	Get the type ID. More...

Static Public Member Functions inherited from ns3::NetDevice
static TypeId	GetTypeId ()
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId ()
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId ()
	Get the type ID. More...

Private Member Functions
void	DoDispose () override
	Destructor implementation. More...

void	NotifyGuardIntervalEnd ()
	Notification of Guard Interval end. More...

void	StartTransmission ()
	start the transmission of a packet by contacting the PHY layer More...

Private Attributes
Mac48Address	m_address
	MAC address. More...

Ptr< Channel >	m_channel
	Channel. More...

Ptr< Packet >	m_currentPkt
	Current packet. More...

uint32_t	m_ifIndex
	Interface index. More...

TracedCallback	m_linkChangeCallbacks
	List of callbacks to fire if the link changes state (up or down). More...

bool	m_linkUp
	true if the link is up More...

TracedCallback< Ptr< const Packet > >	m_macPromiscRxTrace
	Promiscuous Rx trace. More...

TracedCallback< Ptr< const Packet > >	m_macRxTrace
	Rx trace. More...

TracedCallback< Ptr< const Packet > >	m_macTxDropTrace
	Tx Drop trace. More...

TracedCallback< Ptr< const Packet > >	m_macTxTrace
	Tx trace. More...

uint32_t	m_mtu
	NetDevice MTU. More...

Ptr< Node >	m_node
	Node owning this NetDevice. More...

Ptr< Object >	m_phy
	PHY object. More...

GenericPhyTxStartCallback	m_phyMacTxStartCallback
	Tx Start callback. More...

NetDevice::PromiscReceiveCallback	m_promiscRxCallback
	Promiscuous Rx callback. More...

Ptr< Queue< Packet > >	m_queue
	packet queue More...

NetDevice::ReceiveCallback	m_rxCallback
	Rx callback. More...

State	m_state
	State of the NetDevice. More...

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	DoInitialize ()
	Initialize() implementation. More...

virtual void	NotifyNewAggregate ()
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted ()
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid ()
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

This devices implements the following features:

layer 3 protocol multiplexing
MAC addressing
Aloha MAC:
- packets transmitted as soon as possible
- a new packet is queued if previous one is still being transmitted
- no acknowledgements, hence no retransmissions
can support any PHY layer compatible with the API defined in generic-phy.h

Definition at line 57 of file aloha-noack-net-device.h.

Member Enumeration Documentation

◆ State

enum ns3::AlohaNoackNetDevice::State

State of the NetDevice.

Enumerator
IDLE	Idle state.
TX	Transmitting state.
RX	Receiving state.

Definition at line 63 of file aloha-noack-net-device.h.

Constructor & Destructor Documentation

◆ AlohaNoackNetDevice()

ns3::AlohaNoackNetDevice::AlohaNoackNetDevice ( )

Definition at line 123 of file aloha-noack-net-device.cc.

References NS_LOG_FUNCTION.

◆ ~AlohaNoackNetDevice()

ns3::AlohaNoackNetDevice::~AlohaNoackNetDevice ( )

override

Definition at line 129 of file aloha-noack-net-device.cc.

References m_queue, and NS_LOG_FUNCTION.

Member Function Documentation

◆ AddLinkChangeCallback()

void ns3::AlohaNoackNetDevice::AddLinkChangeCallback ( Callback< void > callback )

overridevirtual

Parameters

callback the callback to invoke

Add a callback invoked whenever the link status changes to UP. This callback is typically used by the IP/ARP layer to flush the ARP cache and by IPv6 stack to flush NDISC cache whenever the link goes up.

Implements ns3::NetDevice.

Definition at line 307 of file aloha-noack-net-device.cc.

References ns3::TracedCallback< Ts >::ConnectWithoutContext(), m_linkChangeCallbacks, and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ DoDispose()

void ns3::AlohaNoackNetDevice::DoDispose ( void )

overrideprivatevirtual

Destructor implementation.

This method is called by Dispose() or by the Object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overridden version of this method and chain up to their parent's implementation once they are done. i.e, for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose() method.

It is safe to call GetObject() from within this method.

Reimplemented from ns3::Object.

Definition at line 136 of file aloha-noack-net-device.cc.

References ns3::Object::DoDispose(), m_channel, m_currentPkt, m_node, m_phy, m_phyMacTxStartCallback, m_queue, and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ GetAddress()

Address ns3::AlohaNoackNetDevice::GetAddress ( ) const

overridevirtual

Returns: the current Address of this interface.

Implements ns3::NetDevice.

Definition at line 192 of file aloha-noack-net-device.cc.

References m_address, and NS_LOG_FUNCTION.

◆ GetBroadcast()

Address ns3::AlohaNoackNetDevice::GetBroadcast ( ) const

overridevirtual

Returns: the broadcast address supported by this netdevice.

Calling this method is invalid if IsBroadcast returns not true.

Implements ns3::NetDevice.

Definition at line 206 of file aloha-noack-net-device.cc.

References NS_LOG_FUNCTION.

◆ GetChannel()

Ptr< Channel > ns3::AlohaNoackNetDevice::GetChannel ( ) const

overridevirtual

Returns: the channel this NetDevice is connected to. The value returned can be zero if the NetDevice is not yet connected to any channel or if the underlying NetDevice has no concept of a channel. i.e., callers must check for zero and be ready to handle it.

Implements ns3::NetDevice.

Definition at line 286 of file aloha-noack-net-device.cc.

References m_channel, and NS_LOG_FUNCTION.

◆ GetIfIndex()

uint32_t ns3::AlohaNoackNetDevice::GetIfIndex ( ) const

overridevirtual

Returns: index ifIndex of the device

Implements ns3::NetDevice.

Definition at line 156 of file aloha-noack-net-device.cc.

References m_ifIndex, and NS_LOG_FUNCTION.

◆ GetMtu()

uint16_t ns3::AlohaNoackNetDevice::GetMtu ( ) const

overridevirtual

Returns: the link-level MTU in bytes for this interface.

This value is typically used by the IP layer to perform IP fragmentation when needed.

Implements ns3::NetDevice.

Definition at line 171 of file aloha-noack-net-device.cc.

References m_mtu, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the caller graph for this function:

◆ GetMulticast() [1/2]

Address ns3::AlohaNoackNetDevice::GetMulticast ( Ipv4Address multicastGroup ) const

overridevirtual

Make and return a MAC multicast address using the provided multicast group.

RFC 1112 says that an Ipv4 host group address is mapped to an Ethernet multicast address by placing the low-order 23-bits of the IP address into the low-order 23 bits of the Ethernet multicast address 01-00-5E-00-00-00 (hex). Similar RFCs exist for Ipv6 and Eui64 mappings. This method performs the multicast address creation function appropriate to the underlying MAC address of the device. This MAC address is encapsulated in an abstract Address to avoid dependencies on the exact MAC address format.

In the case of net devices that do not support multicast, clients are expected to test NetDevice::IsMulticast and avoid attempting to map multicast packets. Subclasses of NetDevice that do support multicasting are expected to override this method and provide an implementation appropriate to the particular device.

Parameters

multicastGroup The IP address for the multicast group destination of the packet.

Returns: The MAC multicast Address used to send packets to the provided multicast group.

Warning: Calling this method is invalid if IsMulticast returns not true.

See also: IsMulticast()

Implements ns3::NetDevice.

Definition at line 220 of file aloha-noack-net-device.cc.

References ns3::Mac48Address::GetMulticast(), and NS_LOG_FUNCTION.

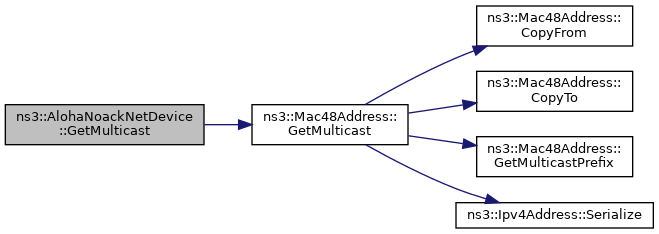

Here is the call graph for this function:

◆ GetMulticast() [2/2]

Address ns3::AlohaNoackNetDevice::GetMulticast ( Ipv6Address addr ) const

overridevirtual

Get the MAC multicast address corresponding to the IPv6 address provided.

Parameters

addr	IPv6 address

Returns: the MAC multicast address

Warning: Calling this method is invalid if IsMulticast returns not true.

Implements ns3::NetDevice.

Definition at line 228 of file aloha-noack-net-device.cc.

References ns3::Mac48Address::GetMulticast(), and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ GetNode()

Ptr< Node > ns3::AlohaNoackNetDevice::GetNode ( ) const

overridevirtual

Returns: the node base class which contains this network interface.

When a subclass needs to get access to the underlying node base class to print the nodeid for example, it can invoke this method.

Implements ns3::NetDevice.

Definition at line 250 of file aloha-noack-net-device.cc.

References m_node, and NS_LOG_FUNCTION.

◆ GetPhy()

Ptr< Object > ns3::AlohaNoackNetDevice::GetPhy ( ) const

Returns: a reference to the PHY object embedded in this NetDevice.

Definition at line 272 of file aloha-noack-net-device.cc.

References m_phy, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::AlohaNoackNetDevice::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 67 of file aloha-noack-net-device.cc.

References GetMtu(), GetPhy(), m_address, m_macPromiscRxTrace, m_macRxTrace, m_macTxDropTrace, m_macTxTrace, m_queue, ns3::MakePointerAccessor(), ns3::MakeTraceSourceAccessor(), ns3::MakeUintegerAccessor(), SetMtu(), ns3::TypeId::SetParent(), and SetPhy().

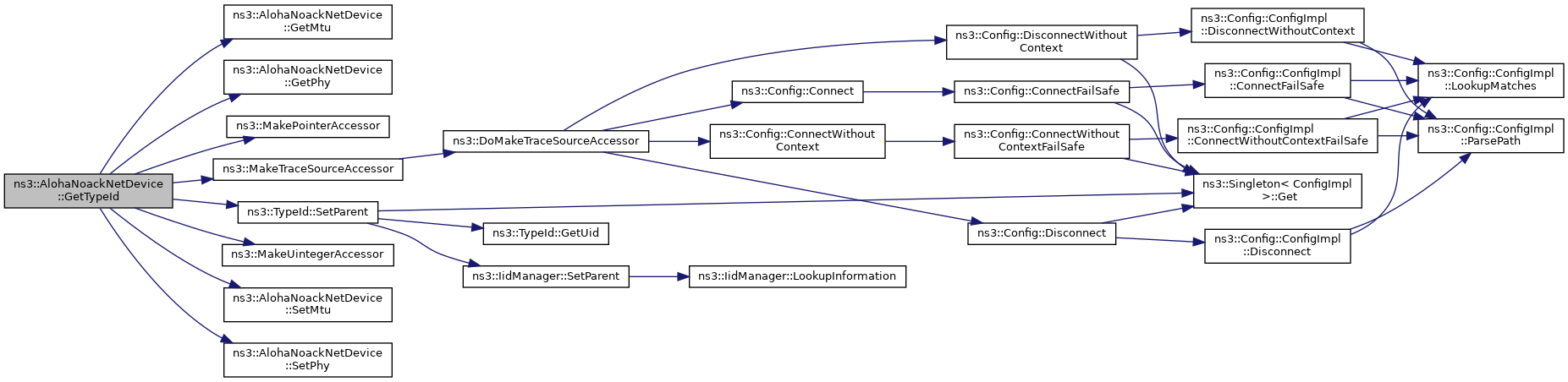

Here is the call graph for this function:

◆ IsBridge()

bool ns3::AlohaNoackNetDevice::IsBridge ( ) const

overridevirtual

Return true if the net device is acting as a bridge.

Returns: value of m_isBridge flag

Implements ns3::NetDevice.

Definition at line 243 of file aloha-noack-net-device.cc.

References NS_LOG_FUNCTION.

◆ IsBroadcast()

bool ns3::AlohaNoackNetDevice::IsBroadcast ( ) const

overridevirtual

Returns: true if this interface supports a broadcast address, false otherwise.

Implements ns3::NetDevice.

Definition at line 199 of file aloha-noack-net-device.cc.

References NS_LOG_FUNCTION.

◆ IsLinkUp()

bool ns3::AlohaNoackNetDevice::IsLinkUp ( ) const

overridevirtual

Returns: true if link is up; false otherwise

Implements ns3::NetDevice.

Definition at line 300 of file aloha-noack-net-device.cc.

References m_linkUp, and NS_LOG_FUNCTION.

◆ IsMulticast()

bool ns3::AlohaNoackNetDevice::IsMulticast ( ) const

overridevirtual

Returns: value of m_isMulticast flag

Implements ns3::NetDevice.

Definition at line 213 of file aloha-noack-net-device.cc.

References NS_LOG_FUNCTION.

◆ IsPointToPoint()

bool ns3::AlohaNoackNetDevice::IsPointToPoint ( ) const

overridevirtual

Return true if the net device is on a point-to-point link.

Returns: value of m_isPointToPoint flag

Implements ns3::NetDevice.

Definition at line 236 of file aloha-noack-net-device.cc.

References NS_LOG_FUNCTION.

◆ NeedsArp()

bool ns3::AlohaNoackNetDevice::NeedsArp ( ) const

overridevirtual

Returns: true if ARP is needed, false otherwise.

Called by higher-layers to check if this NetDevice requires ARP to be used.

Implements ns3::NetDevice.

Definition at line 293 of file aloha-noack-net-device.cc.

References NS_LOG_FUNCTION.

◆ NotifyGuardIntervalEnd()

void ns3::AlohaNoackNetDevice::NotifyGuardIntervalEnd ( )

private

Notification of Guard Interval end.

◆ NotifyReceptionEndError()

void ns3::AlohaNoackNetDevice::NotifyReceptionEndError ( )

Notify the MAC that the PHY finished a reception with an error.

Definition at line 446 of file aloha-noack-net-device.cc.

References NS_LOG_FUNCTION.

◆ NotifyReceptionEndOk()

void ns3::AlohaNoackNetDevice::NotifyReceptionEndOk ( Ptr< Packet > p )

Notify the MAC that the PHY finished a reception successfully.

Parameters

p	the received packet

Definition at line 452 of file aloha-noack-net-device.cc.

References ns3::Packet::Copy(), ns3::AlohaNoackMacHeader::GetDestination(), ns3::AlohaNoackMacHeader::GetSource(), ns3::LlcSnapHeader::GetType(), ns3::Mac48Address::IsBroadcast(), ns3::Mac48Address::IsGroup(), ns3::Callback< R, UArgs >::IsNull(), m_address, m_promiscRxCallback, m_rxCallback, NS_LOG_FUNCTION, NS_LOG_LOGIC, ns3::NetDevice::PACKET_BROADCAST, ns3::NetDevice::PACKET_HOST, ns3::NetDevice::PACKET_MULTICAST, ns3::NetDevice::PACKET_OTHERHOST, and ns3::Packet::RemoveHeader().

Referenced by ns3::AdhocAlohaNoackIdealPhyHelper::Install().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ NotifyReceptionStart()

void ns3::AlohaNoackNetDevice::NotifyReceptionStart ( )

Notify the MAC that the PHY has started a reception.

Definition at line 440 of file aloha-noack-net-device.cc.

References NS_LOG_FUNCTION.

Referenced by ns3::AdhocAlohaNoackIdealPhyHelper::Install().

Here is the caller graph for this function:

◆ NotifyTransmissionEnd()

void ns3::AlohaNoackNetDevice::NotifyTransmissionEnd ( Ptr< const Packet > )

Notify the MAC that the PHY has finished a previously started transmission.

Definition at line 423 of file aloha-noack-net-device.cc.

References IDLE, m_currentPkt, m_queue, m_state, NS_ASSERT, NS_ASSERT_MSG, NS_LOG_FUNCTION, NS_LOG_LOGIC, ns3::Simulator::ScheduleNow(), StartTransmission(), and TX.

Referenced by ns3::AdhocAlohaNoackIdealPhyHelper::Install().

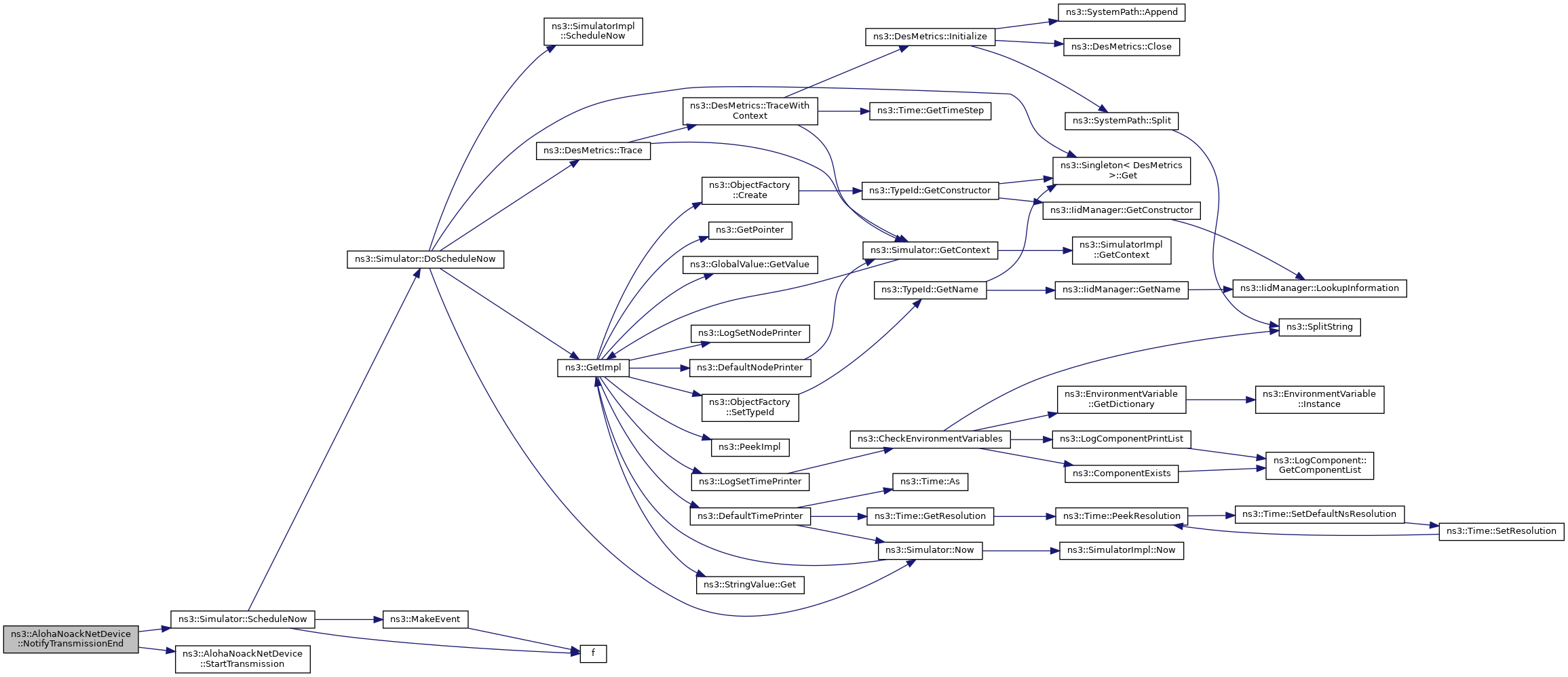

Here is the call graph for this function:

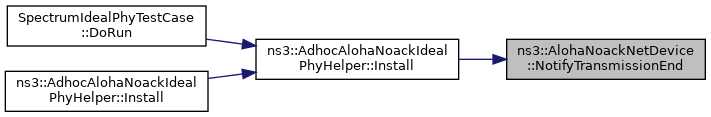

Here is the caller graph for this function:

◆ Send()

bool ns3::AlohaNoackNetDevice::Send	(	Ptr< Packet >	packet,
		const Address &	dest,
		uint16_t	protocolNumber
	)

overridevirtual

Parameters

packet	packet sent from above down to Network Device
dest	mac address of the destination (already resolved)
protocolNumber	identifies the type of payload contained in this packet. Used to call the right L3Protocol when the packet is received.

Called from higher layer to send packet into Network Device to the specified destination Address

Returns: whether the Send operation succeeded

Implements ns3::NetDevice.

Definition at line 335 of file aloha-noack-net-device.cc.

References m_address, NS_LOG_FUNCTION, and SendFrom().

Here is the call graph for this function:

◆ SendFrom()

bool ns3::AlohaNoackNetDevice::SendFrom	(	Ptr< Packet >	packet,
		const Address &	source,
		const Address &	dest,
		uint16_t	protocolNumber
	)

overridevirtual

Parameters

packet	packet sent from above down to Network Device
source	source mac address (so called "MAC spoofing")
dest	mac address of the destination (already resolved)
protocolNumber	identifies the type of payload contained in this packet. Used to call the right L3Protocol when the packet is received.

Called from higher layer to send packet into Network Device with the specified source and destination Addresses.

Returns: whether the Send operation succeeded

Implements ns3::NetDevice.

Definition at line 342 of file aloha-noack-net-device.cc.

References ns3::Packet::AddHeader(), ns3::Mac48Address::ConvertFrom(), IDLE, m_currentPkt, m_macTxDropTrace, m_macTxTrace, m_queue, m_state, NS_ASSERT, NS_LOG_FUNCTION, NS_LOG_LOGIC, ns3::AlohaNoackMacHeader::SetDestination(), ns3::AlohaNoackMacHeader::SetSource(), ns3::LlcSnapHeader::SetType(), and StartTransmission().

Referenced by Send().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetAddress()

void ns3::AlohaNoackNetDevice::SetAddress ( Address address )

overridevirtual

Set the address of this interface.

Parameters

address address to set

Implements ns3::NetDevice.

Definition at line 185 of file aloha-noack-net-device.cc.

References first::address, ns3::Mac48Address::ConvertFrom(), m_address, and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ SetChannel()

void ns3::AlohaNoackNetDevice::SetChannel ( Ptr< Channel > c )

This class doesn't talk directly with the underlying channel (a dedicated PHY class is expected to do it), however the NetDevice specification features a GetChannel() method.

This method here is therefore provide to allow AlohaNoackNetDevice::GetChannel() to have something meaningful to return.

Parameters

c	the underlying channel

Definition at line 279 of file aloha-noack-net-device.cc.

References m_channel, and NS_LOG_FUNCTION.

◆ SetGenericPhyTxStartCallback()

void ns3::AlohaNoackNetDevice::SetGenericPhyTxStartCallback ( GenericPhyTxStartCallback c )

set the callback used to instruct the lower layer to start a TX

Parameters

c

Definition at line 398 of file aloha-noack-net-device.cc.

References m_phyMacTxStartCallback, and NS_LOG_FUNCTION.

◆ SetIfIndex()

void ns3::AlohaNoackNetDevice::SetIfIndex ( const uint32_t index )

overridevirtual

Parameters

index ifIndex of the device

Implements ns3::NetDevice.

Definition at line 149 of file aloha-noack-net-device.cc.

References m_ifIndex, and NS_LOG_FUNCTION.

◆ SetMtu()

bool ns3::AlohaNoackNetDevice::SetMtu ( const uint16_t mtu )

overridevirtual

Parameters

mtu	MTU value, in bytes, to set for the device

Returns: whether the MTU value was within legal bounds

Override for default MTU defined on a per-type basis.

Implements ns3::NetDevice.

Definition at line 163 of file aloha-noack-net-device.cc.

References m_mtu, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the caller graph for this function:

◆ SetNode()

void ns3::AlohaNoackNetDevice::SetNode ( Ptr< Node > node )

overridevirtual

Parameters

node	the node associated to this netdevice.

This method is called from ns3::Node::AddDevice.

Implements ns3::NetDevice.

Definition at line 257 of file aloha-noack-net-device.cc.

References m_node, and NS_LOG_FUNCTION.

◆ SetPhy()

void ns3::AlohaNoackNetDevice::SetPhy ( Ptr< Object > phy )

Set the Phy object which is attached to this device.

This object is needed so that we can set/get attributes and connect to trace sources of the PHY from the net device.

Parameters

phy	the Phy object attached to the device. Note that the API between the PHY and the above (this NetDevice which also implements the MAC) is implemented entirely by callbacks, so we do not require that the PHY inherits by any specific class.

Definition at line 265 of file aloha-noack-net-device.cc.

References m_phy, NS_LOG_FUNCTION, and third::phy.

Referenced by GetTypeId().

Here is the caller graph for this function:

◆ SetPromiscReceiveCallback()

void ns3::AlohaNoackNetDevice::SetPromiscReceiveCallback ( PromiscReceiveCallback cb )

overridevirtual

Parameters

cb	callback to invoke whenever a packet has been received in promiscuous mode and must be forwarded to the higher layers.

Enables netdevice promiscuous mode and sets the callback that will handle promiscuous mode packets. Note, promiscuous mode packets means all packets, including those packets that can be sensed by the netdevice but which are intended to be received by other hosts.

Implements ns3::NetDevice.

Definition at line 321 of file aloha-noack-net-device.cc.

References m_promiscRxCallback, and NS_LOG_FUNCTION.

◆ SetQueue()

void ns3::AlohaNoackNetDevice::SetQueue ( Ptr< Queue< Packet >> queue )

virtual

set the queue which is going to be used by this device

Parameters

queue

Definition at line 178 of file aloha-noack-net-device.cc.

References m_queue, and NS_LOG_FUNCTION.

◆ SetReceiveCallback()

void ns3::AlohaNoackNetDevice::SetReceiveCallback ( NetDevice::ReceiveCallback cb )

overridevirtual

Parameters

cb	callback to invoke whenever a packet has been received and must be forwarded to the higher layers.

Set the callback to be used to notify higher layers when a packet has been received.

Implements ns3::NetDevice.

Definition at line 314 of file aloha-noack-net-device.cc.

References m_rxCallback, and NS_LOG_FUNCTION.

◆ StartTransmission()

void ns3::AlohaNoackNetDevice::StartTransmission ( )

private

start the transmission of a packet by contacting the PHY layer

Definition at line 405 of file aloha-noack-net-device.cc.

References IDLE, m_currentPkt, m_phyMacTxStartCallback, m_state, NS_ASSERT, NS_LOG_FUNCTION, NS_LOG_WARN, and TX.

Referenced by NotifyTransmissionEnd(), and SendFrom().

Here is the caller graph for this function:

◆ SupportsSendFrom()

bool ns3::AlohaNoackNetDevice::SupportsSendFrom ( ) const

overridevirtual

Returns: true if this interface supports a bridging mode, false otherwise.

Implements ns3::NetDevice.

Definition at line 328 of file aloha-noack-net-device.cc.

References NS_LOG_FUNCTION.

Member Data Documentation

◆ m_address

Mac48Address ns3::AlohaNoackNetDevice::m_address

private

MAC address.

Definition at line 198 of file aloha-noack-net-device.h.

Referenced by GetAddress(), GetTypeId(), NotifyReceptionEndOk(), Send(), and SetAddress().

◆ m_channel

Ptr<Channel> ns3::AlohaNoackNetDevice::m_channel

private

Channel.

Definition at line 196 of file aloha-noack-net-device.h.

Referenced by DoDispose(), GetChannel(), and SetChannel().

◆ m_currentPkt

Ptr<Packet> ns3::AlohaNoackNetDevice::m_currentPkt

private

Current packet.

Definition at line 215 of file aloha-noack-net-device.h.

Referenced by DoDispose(), NotifyTransmissionEnd(), SendFrom(), and StartTransmission().

◆ m_ifIndex

uint32_t ns3::AlohaNoackNetDevice::m_ifIndex

private

Interface index.

Definition at line 210 of file aloha-noack-net-device.h.

Referenced by GetIfIndex(), and SetIfIndex().

◆ m_linkChangeCallbacks

TracedCallback ns3::AlohaNoackNetDevice::m_linkChangeCallbacks

private

List of callbacks to fire if the link changes state (up or down).

Definition at line 208 of file aloha-noack-net-device.h.

Referenced by AddLinkChangeCallback().

◆ m_linkUp

bool ns3::AlohaNoackNetDevice::m_linkUp

private

true if the link is up

Definition at line 212 of file aloha-noack-net-device.h.

Referenced by IsLinkUp().

◆ m_macPromiscRxTrace

TracedCallback<Ptr<const Packet> > ns3::AlohaNoackNetDevice::m_macPromiscRxTrace

private

Promiscuous Rx trace.

Definition at line 192 of file aloha-noack-net-device.h.

Referenced by GetTypeId().

◆ m_macRxTrace

TracedCallback<Ptr<const Packet> > ns3::AlohaNoackNetDevice::m_macRxTrace

private

Rx trace.

Definition at line 193 of file aloha-noack-net-device.h.

Referenced by GetTypeId().

◆ m_macTxDropTrace

TracedCallback<Ptr<const Packet> > ns3::AlohaNoackNetDevice::m_macTxDropTrace

private

Tx Drop trace.

Definition at line 191 of file aloha-noack-net-device.h.

Referenced by GetTypeId(), and SendFrom().

◆ m_macTxTrace

TracedCallback<Ptr<const Packet> > ns3::AlohaNoackNetDevice::m_macTxTrace

private

Tx trace.

Definition at line 190 of file aloha-noack-net-device.h.

Referenced by GetTypeId(), and SendFrom().

◆ m_mtu

uint32_t ns3::AlohaNoackNetDevice::m_mtu

mutableprivate

NetDevice MTU.

Definition at line 211 of file aloha-noack-net-device.h.

Referenced by GetMtu(), and SetMtu().

◆ m_node

Ptr<Node> ns3::AlohaNoackNetDevice::m_node

private

Node owning this NetDevice.

Definition at line 195 of file aloha-noack-net-device.h.

Referenced by DoDispose(), GetNode(), and SetNode().

◆ m_phy

Ptr<Object> ns3::AlohaNoackNetDevice::m_phy

private

PHY object.

Definition at line 216 of file aloha-noack-net-device.h.

Referenced by DoDispose(), GetPhy(), and SetPhy().

◆ m_phyMacTxStartCallback

GenericPhyTxStartCallback ns3::AlohaNoackNetDevice::m_phyMacTxStartCallback

private

Tx Start callback.

Definition at line 203 of file aloha-noack-net-device.h.

Referenced by DoDispose(), SetGenericPhyTxStartCallback(), and StartTransmission().

◆ m_promiscRxCallback

NetDevice::PromiscReceiveCallback ns3::AlohaNoackNetDevice::m_promiscRxCallback

private

Promiscuous Rx callback.

Definition at line 201 of file aloha-noack-net-device.h.

Referenced by NotifyReceptionEndOk(), and SetPromiscReceiveCallback().

◆ m_queue

Ptr<Queue<Packet> > ns3::AlohaNoackNetDevice::m_queue

private

packet queue

Definition at line 188 of file aloha-noack-net-device.h.

Referenced by ~AlohaNoackNetDevice(), DoDispose(), GetTypeId(), NotifyTransmissionEnd(), SendFrom(), and SetQueue().

◆ m_rxCallback

NetDevice::ReceiveCallback ns3::AlohaNoackNetDevice::m_rxCallback

private

Rx callback.

Definition at line 200 of file aloha-noack-net-device.h.

Referenced by NotifyReceptionEndOk(), and SetReceiveCallback().

◆ m_state

State ns3::AlohaNoackNetDevice::m_state

private

State of the NetDevice.

Definition at line 214 of file aloha-noack-net-device.h.

Referenced by NotifyTransmissionEnd(), SendFrom(), and StartTransmission().

The documentation for this class was generated from the following files:

src/spectrum/model/aloha-noack-net-device.h
src/spectrum/model/aloha-noack-net-device.cc

Public Types

Public Member Functions

Static Public Member Functions

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Member Enumeration Documentation

◆ State

Constructor & Destructor Documentation

◆ AlohaNoackNetDevice()

◆ ~AlohaNoackNetDevice()

Member Function Documentation

◆ AddLinkChangeCallback()

◆ DoDispose()

◆ GetAddress()

◆ GetBroadcast()

◆ GetChannel()

◆ GetIfIndex()

◆ GetMtu()

◆ GetMulticast() [1/2]

◆ GetMulticast() [2/2]

◆ GetNode()

◆ GetPhy()

◆ GetTypeId()

◆ IsBridge()

◆ IsBroadcast()

◆ IsLinkUp()

◆ IsMulticast()

◆ IsPointToPoint()

◆ NeedsArp()

◆ NotifyGuardIntervalEnd()

◆ NotifyReceptionEndError()

◆ NotifyReceptionEndOk()

◆ NotifyReceptionStart()

◆ NotifyTransmissionEnd()

◆ Send()

◆ SendFrom()

◆ SetAddress()

◆ SetChannel()

◆ SetGenericPhyTxStartCallback()

◆ SetIfIndex()

◆ SetMtu()

◆ SetNode()

◆ SetPhy()

◆ SetPromiscReceiveCallback()

◆ SetQueue()

◆ SetReceiveCallback()

◆ StartTransmission()

◆ SupportsSendFrom()

Member Data Documentation

◆ m_address

◆ m_channel

◆ m_currentPkt

◆ m_ifIndex

◆ m_linkChangeCallbacks

◆ m_linkUp

◆ m_macPromiscRxTrace

◆ m_macRxTrace

◆ m_macTxDropTrace

◆ m_macTxTrace

◆ m_mtu

◆ m_node

◆ m_phy

◆ m_phyMacTxStartCallback

◆ m_promiscRxCallback

◆ m_queue

◆ m_rxCallback

◆ m_state
