Template class for packet Queues. More...

#include "queue.h"

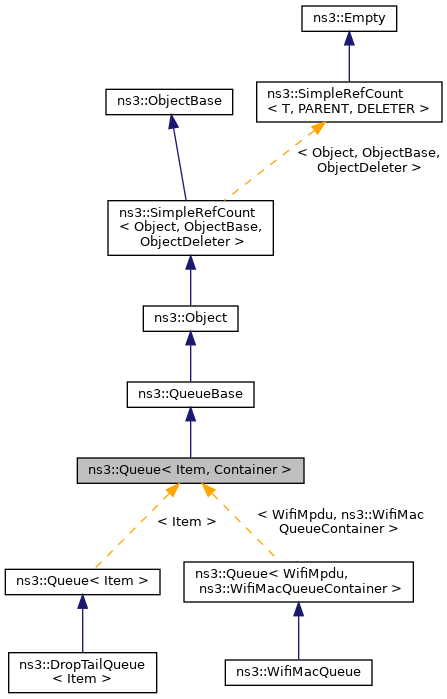

Inheritance diagram for ns3::Queue< Item, Container >:

Collaboration diagram for ns3::Queue< Item, Container >:

Classes
struct	MakeGetItem
	Struct providing a static method returning the object stored within the queue that is included in the container element pointed to by the given const iterator. More...

struct	MakeGetItem< T, std::void_t< decltype(std::declval< T >().GetItem(std::declval< ConstIterator >()))> >
	Struct providing a static method returning the object stored within the queue that is included in the container element pointed to by the given const iterator. More...

Public Types
typedef Item	ItemType
	Define ItemType as the type of the stored elements. More...

Public Member Functions
	Queue ()

	~Queue () override

virtual Ptr< Item >	Dequeue ()=0
	Remove an item from the Queue (each subclass defines the position), counting it and tracing it as dequeued. More...

virtual bool	Enqueue (Ptr< Item > item)=0
	Place an item into the Queue (each subclass defines the position) More...

void	Flush ()
	Flush the queue by calling Remove() on each item enqueued. More...

virtual Ptr< const Item >	Peek () const =0
	Get a copy of an item in the queue (each subclass defines the position) without removing it. More...

virtual Ptr< Item >	Remove ()=0
	Remove an item from the Queue (each subclass defines the position), counting it and tracing it as both dequeued and dropped. More...

Public Member Functions inherited from ns3::QueueBase
	QueueBase ()

	~QueueBase () override

QueueSize	GetCurrentSize () const

QueueSize	GetMaxSize () const

uint32_t	GetNBytes () const

uint32_t	GetNPackets () const

uint32_t	GetTotalDroppedBytes () const

uint32_t	GetTotalDroppedBytesAfterDequeue () const

uint32_t	GetTotalDroppedBytesBeforeEnqueue () const

uint32_t	GetTotalDroppedPackets () const

uint32_t	GetTotalDroppedPacketsAfterDequeue () const

uint32_t	GetTotalDroppedPacketsBeforeEnqueue () const

uint32_t	GetTotalReceivedBytes () const

uint32_t	GetTotalReceivedPackets () const

bool	IsEmpty () const

void	ResetStatistics ()
	Resets the counts for dropped packets, dropped bytes, received packets, and received bytes. More...

void	SetMaxSize (QueueSize size)
	Set the maximum size of this queue. More...

bool	WouldOverflow (uint32_t nPackets, uint32_t nBytes) const
	Check if the queue would overflow with additional bytes or packets Note: the check is performed according to the queue's operating mode (bytes or packets). More...

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

	~Object () override
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose ()
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator () const
	Get an iterator to the Objects aggregated to this one. More...

TypeId	GetInstanceTypeId () const override
	Get the most derived TypeId for this Object. More...

template<typename T >
Ptr< T >	GetObject () const
	Get a pointer to the requested aggregated Object. More...

template<>
Ptr< Object >	GetObject () const
	Specialization of () for objects of type ns3::Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< Object >	GetObject (TypeId tid) const
	Specialization of (TypeId tid) for objects of type ns3::Object. More...

void	Initialize ()
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized () const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
	Copy constructor. More...

uint32_t	GetReferenceCount () const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o[[maybe_unused]])
	Assignment operator. More...

void	Ref () const
	Increment the reference count. More...

void	Unref () const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising errors. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId ()
	Get the type ID. More...

Static Public Member Functions inherited from ns3::QueueBase
static void	AppendItemTypeIfNotPresent (std::string &typeId, const std::string &itemType)
	Append the item type to the provided type ID if the latter does not end with '>'. More...

static TypeId	GetTypeId ()
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId ()
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId ()
	Get the type ID. More...

Protected Types
typedef Container::const_iterator	ConstIterator
	Const iterator. More...

typedef Container::iterator	Iterator
	Iterator. More...

Protected Member Functions
Ptr< Item >	DoDequeue (ConstIterator pos)
	Pull the item to dequeue from the queue. More...

void	DoDispose () override
	Destructor implementation. More...

bool	DoEnqueue (ConstIterator pos, Ptr< Item > item)
	Push an item in the queue. More...

bool	DoEnqueue (ConstIterator pos, Ptr< Item > item, Iterator &ret)
	Push an item in the queue. More...

Ptr< const Item >	DoPeek (ConstIterator pos) const
	Peek the front item in the queue. More...

Ptr< Item >	DoRemove (ConstIterator pos)
	Pull the item to drop from the queue. More...

void	DropAfterDequeue (Ptr< Item > item)
	Drop a packet after dequeue. More...

void	DropBeforeEnqueue (Ptr< Item > item)
	Drop a packet before enqueue. More...

const Container &	GetContainer () const
	Get a const reference to the container of queue items. More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	DoInitialize ()
	Initialize() implementation. More...

virtual void	NotifyNewAggregate ()
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted ()
	Notifier called once the ObjectBase is fully constructed. More...

Private Attributes
Container	m_packets
	the items in the queue More...

TracedCallback< Ptr< const Item > >	m_traceDequeue
	Traced callback: fired when a packet is dequeued. More...

TracedCallback< Ptr< const Item > >	m_traceDrop
	Traced callback: fired when a packet is dropped. More...

TracedCallback< Ptr< const Item > >	m_traceDropAfterDequeue
	Traced callback: fired when a packet is dropped after dequeue. More...

TracedCallback< Ptr< const Item > >	m_traceDropBeforeEnqueue
	Traced callback: fired when a packet is dropped before enqueue. More...

TracedCallback< Ptr< const Item > >	m_traceEnqueue
	Traced callback: fired when a packet is enqueued. More...

	NS_LOG_TEMPLATE_DECLARE
	the log component More...

Additional Inherited Members
Protected Attributes inherited from ns3::QueueBase
QueueSize	m_maxSize
	max queue size More...

TracedValue< uint32_t >	m_nBytes
	Number of bytes in the queue. More...

TracedValue< uint32_t >	m_nPackets
	Number of packets in the queue. More...

uint32_t	m_nTotalDroppedBytes
	Total dropped bytes. More...

uint32_t	m_nTotalDroppedBytesAfterDequeue
	Total dropped bytes after dequeue. More...

uint32_t	m_nTotalDroppedBytesBeforeEnqueue
	Total dropped bytes before enqueue. More...

uint32_t	m_nTotalDroppedPackets
	Total dropped packets. More...

uint32_t	m_nTotalDroppedPacketsAfterDequeue
	Total dropped packets after dequeue. More...

uint32_t	m_nTotalDroppedPacketsBeforeEnqueue
	Total dropped packets before enqueue. More...

uint32_t	m_nTotalReceivedBytes
	Total received bytes. More...

uint32_t	m_nTotalReceivedPackets
	Total received packets. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid ()
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

template<typename Item, typename Container>
class ns3::Queue< Item, Container >

Template class for packet Queues.

This class defines the subset of the base APIs for packet queues in the ns-3 system that is dependent on the type of enqueued objects.

Queue is a template class. The type of the objects stored within the queue is specified by the type parameter, which can be any class providing a GetSize () method (e.g., Packet, QueueDiscItem, etc.). Subclasses need to implement the Enqueue, Dequeue, Remove and Peek methods, and are encouraged to leverage the DoEnqueue, DoDequeue, DoRemove, and DoPeek methods in doing so, to ensure that appropriate trace sources are called and statistics are maintained. The template parameter specifies the type of container used internally to store queue items. The container type must provide the methods insert(), erase() and clear() and define the iterator and const_iterator types, following the usual syntax of C++ containers. The default container type is std::list (as defined in queue-fwd.h). In case the container is such that an object stored within the queue is obtained from a container element through an operation other than dereferencing an iterator pointing to the container element, the container has to provide a public method named GetItem that returns the object stored within the queue that is included in the container element pointed to by a given const iterator.

Users of the Queue template class usually hold a queue through a smart pointer, hence forward declaration is recommended to avoid pulling the implementation of the templates included in this file. Thus, include queue-fwd.h, which provides a forward declaration for the Queue class that defines the default value for the template template parameter, instead of queue.h in your .h file. Then, include queue.h in the corresponding .cc file.

Template Parameters

Item	[explicit] Type of the objects stored within the queue
Container	[explicit] Type of the container that stores queue items

Definition at line 267 of file queue.h.

Member Typedef Documentation

◆ ConstIterator

template<typename Item , typename Container >

typedef Container::const_iterator ns3::Queue< Item, Container >::ConstIterator

protected

Const iterator.

Definition at line 319 of file queue.h.

◆ ItemType

template<typename Item , typename Container >

typedef Item ns3::Queue< Item, Container >::ItemType

Define ItemType as the type of the stored elements.

Definition at line 315 of file queue.h.

◆ Iterator

template<typename Item , typename Container >

typedef Container::iterator ns3::Queue< Item, Container >::Iterator

protected

Iterator.

Definition at line 321 of file queue.h.

Constructor & Destructor Documentation

◆ Queue()

template<typename Item , typename Container >

ns3::Queue< Item, Container >::Queue

Definition at line 492 of file queue.h.

◆ ~Queue()

template<typename Item , typename Container >

ns3::Queue< Item, Container >::~Queue

override

Definition at line 498 of file queue.h.

Member Function Documentation

◆ Dequeue()

template<typename Item , typename Container >

virtual Ptr<Item> ns3::Queue< Item, Container >::Dequeue ( )

pure virtual

Remove an item from the Queue (each subclass defines the position), counting it and tracing it as dequeued.

Returns: 0 if the operation was not successful; the item otherwise.

Implemented in ns3::WifiMacQueue, and ns3::DropTailQueue< Item >.

◆ DoDequeue()

template<typename Item , typename Container >

Ptr< Item > ns3::Queue< Item, Container >::DoDequeue ( ConstIterator pos )

protected

Pull the item to dequeue from the queue.

Parameters

pos	the position of the item to dequeue

Returns: the item.

Definition at line 547 of file queue.h.

References NS_ASSERT, NS_LOG_FUNCTION, and NS_LOG_LOGIC.

◆ DoDispose()

template<typename Item , typename Container >

void ns3::Queue< Item, Container >::DoDispose ( void )

overrideprotectedvirtual

Destructor implementation.

This method is called by Dispose() or by the Object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overridden version of this method and chain up to their parent's implementation once they are done. i.e, for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose() method.

It is safe to call GetObject() from within this method.

Reimplemented from ns3::Object.

Definition at line 619 of file queue.h.

References ns3::Object::DoDispose(), and NS_LOG_FUNCTION.

Referenced by ns3::WifiMacQueue::DoDispose().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DoEnqueue() [1/2]

template<typename Item , typename Container >

bool ns3::Queue< Item, Container >::DoEnqueue	(	ConstIterator	pos,
		Ptr< Item >	item
	)

protected

Push an item in the queue.

Parameters

pos	the position before which the item will be inserted
item	the item to enqueue

Returns: true if success, false if the packet has been dropped.

Definition at line 511 of file queue.h.

◆ DoEnqueue() [2/2]

template<typename Item , typename Container >

bool ns3::Queue< Item, Container >::DoEnqueue	(	ConstIterator	pos,
		Ptr< Item >	item,
		Iterator &	ret
	)

protected

Push an item in the queue.

Parameters

	pos	the position before which the item will be inserted
	item	the item to enqueue
[out]	ret	an iterator pointing to the inserted value

Returns: true if success, false if the packet has been dropped.

Definition at line 519 of file queue.h.

References NS_LOG_FUNCTION, and NS_LOG_LOGIC.

◆ DoPeek()

template<typename Item , typename Container >

Ptr< const Item > ns3::Queue< Item, Container >::DoPeek ( ConstIterator pos ) const

protected

Peek the front item in the queue.

Parameters

pos	the position of the item to peek

Returns: the item.

Definition at line 628 of file queue.h.

References NS_LOG_FUNCTION, and NS_LOG_LOGIC.

◆ DoRemove()

template<typename Item , typename Container >

Ptr< Item > ns3::Queue< Item, Container >::DoRemove ( ConstIterator pos )

protected

Pull the item to drop from the queue.

Parameters

pos	the position of the item to remove

Returns: the item.

Definition at line 576 of file queue.h.

References NS_ASSERT, NS_LOG_FUNCTION, and NS_LOG_LOGIC.

Referenced by ns3::WifiMacQueue::DoRemove(), and ns3::WifiMacQueue::WipeAllExpiredMpdus().

Here is the caller graph for this function:

◆ DropAfterDequeue()

template<typename Item , typename Container >

void ns3::Queue< Item, Container >::DropAfterDequeue ( Ptr< Item > item )

protected

Drop a packet after dequeue.

Parameters

item	item that was dropped

This method is called by the base class when a Remove operation is requested and by the subclasses to notify parent (this class) that a packet has been dropped for other reasons after being dequeued.

Definition at line 659 of file queue.h.

References NS_LOG_FUNCTION, and NS_LOG_LOGIC.

◆ DropBeforeEnqueue()

template<typename Item , typename Container >

void ns3::Queue< Item, Container >::DropBeforeEnqueue ( Ptr< Item > item )

protected

Drop a packet before enqueue.

Parameters

item	item that was dropped

This method is called by the base class when a packet is dropped because the queue is full and by the subclasses to notify parent (this class) that a packet has been dropped for other reasons before being enqueued.

Definition at line 643 of file queue.h.

References NS_LOG_FUNCTION, and NS_LOG_LOGIC.

◆ Enqueue()

template<typename Item , typename Container >

virtual bool ns3::Queue< Item, Container >::Enqueue ( Ptr< Item > item )

pure virtual

Place an item into the Queue (each subclass defines the position)

Parameters

item	item to enqueue

Returns: True if the operation was successful; false otherwise

Implemented in ns3::WifiMacQueue, and ns3::DropTailQueue< Item >.

◆ Flush()

template<typename Item , typename Container >

void ns3::Queue< Item, Container >::Flush

Flush the queue by calling Remove() on each item enqueued.

Note that this operation will cause dequeue and drop counts to be incremented and traces to be triggered for each Remove() action.

Definition at line 608 of file queue.h.

References NS_LOG_FUNCTION.

Referenced by ns3::WifiMacQueue::Flush().

Here is the caller graph for this function:

◆ GetContainer()

template<typename Item , typename Container >

const Container & ns3::Queue< Item, Container >::GetContainer

protected

Get a const reference to the container of queue items.

Returns: a const reference to the container of queue items

Definition at line 504 of file queue.h.

◆ GetTypeId()

template<typename Item , typename Container >

TypeId ns3::Queue< Item, Container >::GetTypeId ( void )

static

Get the type ID.

Implementation of the templates declared above.

Returns: the object TypeId

Definition at line 455 of file queue.h.

References ns3::MakeTraceSourceAccessor(), and ns3::TypeId::SetParent().

Here is the call graph for this function:

◆ Peek()

template<typename Item , typename Container >

virtual Ptr<const Item> ns3::Queue< Item, Container >::Peek ( ) const

pure virtual

Get a copy of an item in the queue (each subclass defines the position) without removing it.

Returns: 0 if the operation was not successful; the item otherwise.

Implemented in ns3::WifiMacQueue, and ns3::DropTailQueue< Item >.

◆ Remove()

template<typename Item , typename Container >

virtual Ptr<Item> ns3::Queue< Item, Container >::Remove ( )

pure virtual

Remove an item from the Queue (each subclass defines the position), counting it and tracing it as both dequeued and dropped.

Returns: 0 if the operation was not successful; the item otherwise.

Implemented in ns3::WifiMacQueue, and ns3::DropTailQueue< Item >.

Member Data Documentation

◆ m_packets

template<typename Item , typename Container >

Container ns3::Queue< Item, Container >::m_packets

private

the items in the queue

Definition at line 434 of file queue.h.

◆ m_traceDequeue

template<typename Item , typename Container >

TracedCallback<Ptr<const Item> > ns3::Queue< Item, Container >::m_traceDequeue

private

Traced callback: fired when a packet is dequeued.

Definition at line 440 of file queue.h.

◆ m_traceDrop

template<typename Item , typename Container >

TracedCallback<Ptr<const Item> > ns3::Queue< Item, Container >::m_traceDrop

private

Traced callback: fired when a packet is dropped.

Definition at line 442 of file queue.h.

◆ m_traceDropAfterDequeue

template<typename Item , typename Container >

TracedCallback<Ptr<const Item> > ns3::Queue< Item, Container >::m_traceDropAfterDequeue

private

Traced callback: fired when a packet is dropped after dequeue.

Definition at line 446 of file queue.h.

◆ m_traceDropBeforeEnqueue

template<typename Item , typename Container >

TracedCallback<Ptr<const Item> > ns3::Queue< Item, Container >::m_traceDropBeforeEnqueue

private

Traced callback: fired when a packet is dropped before enqueue.

Definition at line 444 of file queue.h.

◆ m_traceEnqueue

template<typename Item , typename Container >

TracedCallback<Ptr<const Item> > ns3::Queue< Item, Container >::m_traceEnqueue

private

Traced callback: fired when a packet is enqueued.

Definition at line 438 of file queue.h.

◆ NS_LOG_TEMPLATE_DECLARE

template<typename Item , typename Container >

ns3::Queue< Item, Container >::NS_LOG_TEMPLATE_DECLARE

private

the log component

Definition at line 435 of file queue.h.

The documentation for this class was generated from the following files:

src/network/utils/queue-fwd.h
src/network/utils/queue.h

Classes

Public Types

Public Member Functions

Static Public Member Functions

Protected Types

Protected Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

template<typename Item, typename Container> class ns3::Queue< Item, Container >

Member Typedef Documentation

◆ ConstIterator

◆ ItemType

◆ Iterator

Constructor & Destructor Documentation

◆ Queue()

◆ ~Queue()

Member Function Documentation

◆ Dequeue()

◆ DoDequeue()

◆ DoDispose()

◆ DoEnqueue() [1/2]

◆ DoEnqueue() [2/2]

◆ DoPeek()

◆ DoRemove()

◆ DropAfterDequeue()

◆ DropBeforeEnqueue()

◆ Enqueue()

◆ Flush()

◆ GetContainer()

◆ GetTypeId()

◆ Peek()

◆ Remove()

Member Data Documentation

◆ m_packets

◆ m_traceDequeue

◆ m_traceDrop

◆ m_traceDropAfterDequeue

◆ m_traceDropBeforeEnqueue

◆ m_traceEnqueue

◆ NS_LOG_TEMPLATE_DECLARE

template<typename Item, typename Container>
class ns3::Queue< Item, Container >
