A Device for a Point to Point Network Link. More...

#include "point-to-point-net-device.h"

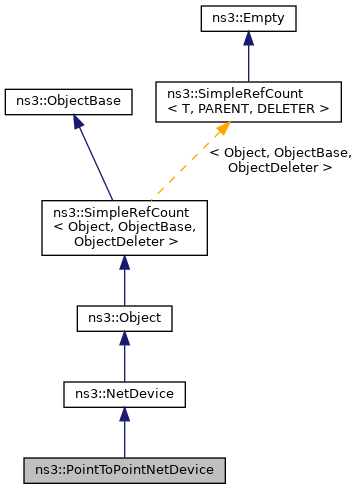

Inheritance diagram for ns3::PointToPointNetDevice:

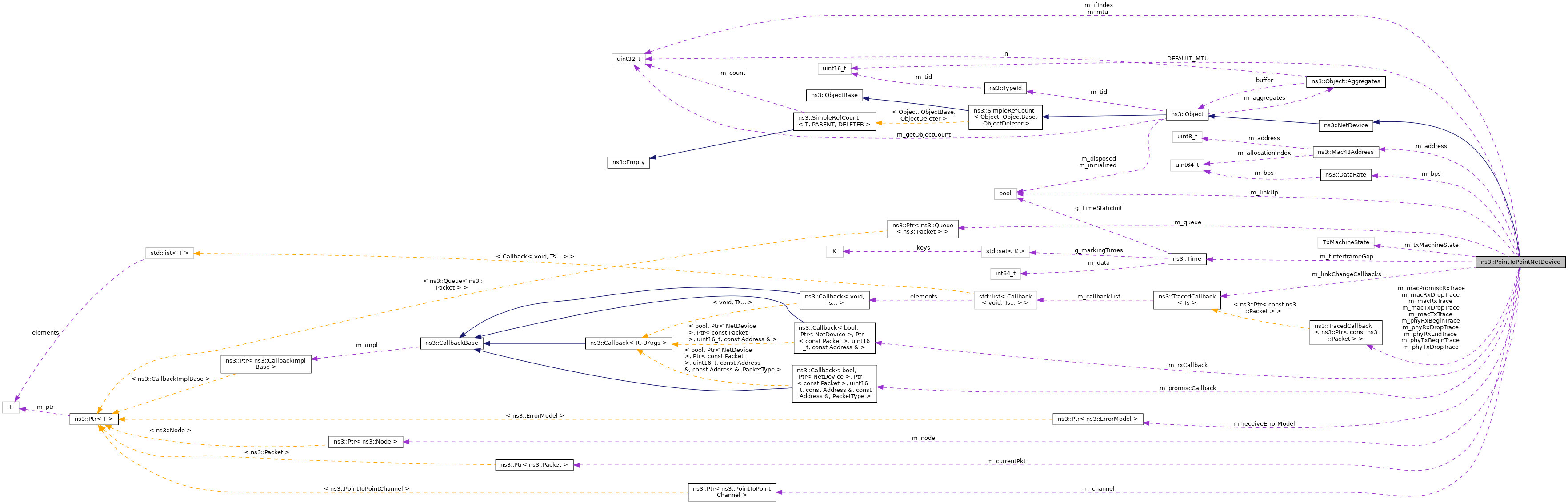

Collaboration diagram for ns3::PointToPointNetDevice:

Public Member Functions
	PointToPointNetDevice ()
	Construct a PointToPointNetDevice. More...

	PointToPointNetDevice (const PointToPointNetDevice &)=delete

	~PointToPointNetDevice () override
	Destroy a PointToPointNetDevice. More...

void	AddLinkChangeCallback (Callback< void > callback) override

bool	Attach (Ptr< PointToPointChannel > ch)
	Attach the device to a channel. More...

Address	GetAddress () const override

Address	GetBroadcast () const override

Ptr< Channel >	GetChannel () const override

uint32_t	GetIfIndex () const override

uint16_t	GetMtu () const override

Address	GetMulticast (Ipv4Address multicastGroup) const override
	Make and return a MAC multicast address using the provided multicast group. More...

Address	GetMulticast (Ipv6Address addr) const override
	Get the MAC multicast address corresponding to the IPv6 address provided. More...

Ptr< Node >	GetNode () const override

Ptr< Queue< Packet > >	GetQueue () const
	Get a copy of the attached Queue. More...

bool	IsBridge () const override
	Return true if the net device is acting as a bridge. More...

bool	IsBroadcast () const override

bool	IsLinkUp () const override

bool	IsMulticast () const override

bool	IsPointToPoint () const override
	Return true if the net device is on a point-to-point link. More...

bool	NeedsArp () const override

PointToPointNetDevice &	operator= (const PointToPointNetDevice &)=delete

void	Receive (Ptr< Packet > p)
	Receive a packet from a connected PointToPointChannel. More...

bool	Send (Ptr< Packet > packet, const Address &dest, uint16_t protocolNumber) override

bool	SendFrom (Ptr< Packet > packet, const Address &source, const Address &dest, uint16_t protocolNumber) override

void	SetAddress (Address address) override
	Set the address of this interface. More...

void	SetDataRate (DataRate bps)
	Set the Data Rate used for transmission of packets. More...

void	SetIfIndex (const uint32_t index) override

void	SetInterframeGap (Time t)
	Set the interframe gap used to separate packets. More...

bool	SetMtu (const uint16_t mtu) override

void	SetNode (Ptr< Node > node) override

void	SetPromiscReceiveCallback (PromiscReceiveCallback cb) override

void	SetQueue (Ptr< Queue< Packet >> queue)
	Attach a queue to the PointToPointNetDevice. More...

void	SetReceiveCallback (NetDevice::ReceiveCallback cb) override

void	SetReceiveErrorModel (Ptr< ErrorModel > em)
	Attach a receive ErrorModel to the PointToPointNetDevice. More...

bool	SupportsSendFrom () const override

Public Member Functions inherited from ns3::NetDevice
	~NetDevice () override

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

	~Object () override
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose ()
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator () const
	Get an iterator to the Objects aggregated to this one. More...

TypeId	GetInstanceTypeId () const override
	Get the most derived TypeId for this Object. More...

template<typename T >
Ptr< T >	GetObject () const
	Get a pointer to the requested aggregated Object. More...

template<>
Ptr< Object >	GetObject () const
	Specialization of () for objects of type ns3::Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< Object >	GetObject (TypeId tid) const
	Specialization of (TypeId tid) for objects of type ns3::Object. More...

void	Initialize ()
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized () const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
	Copy constructor. More...

uint32_t	GetReferenceCount () const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o[[maybe_unused]])
	Assignment operator. More...

void	Ref () const
	Increment the reference count. More...

void	Unref () const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising errors. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId ()
	Get the TypeId. More...

Static Public Member Functions inherited from ns3::NetDevice
static TypeId	GetTypeId ()
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId ()
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId ()
	Get the type ID. More...

Protected Member Functions
void	DoMpiReceive (Ptr< Packet > p)
	Handler for MPI receive event. More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	DoInitialize ()
	Initialize() implementation. More...

virtual void	NotifyNewAggregate ()
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted ()
	Notifier called once the ObjectBase is fully constructed. More...

Private Types
enum	TxMachineState { READY , BUSY }
	Enumeration of the states of the transmit machine of the net device. More...

Private Member Functions
void	AddHeader (Ptr< Packet > p, uint16_t protocolNumber)
	Adds the necessary headers and trailers to a packet of data in order to respect the protocol implemented by the agent. More...

void	DoDispose () override
	Dispose of the object. More...

Address	GetRemote () const

void	NotifyLinkUp ()
	Make the link up and running. More...

bool	ProcessHeader (Ptr< Packet > p, uint16_t &param)
	Removes, from a packet of data, all headers and trailers that relate to the protocol implemented by the agent. More...

void	TransmitComplete ()
	Stop Sending a Packet Down the Wire and Begin the Interframe Gap. More...

bool	TransmitStart (Ptr< Packet > p)
	Start Sending a Packet Down the Wire. More...

Static Private Member Functions
static uint16_t	EtherToPpp (uint16_t protocol)
	Ethernet to PPP protocol number mapping. More...

static uint16_t	PppToEther (uint16_t protocol)
	PPP to Ethernet protocol number mapping. More...

Private Attributes
Mac48Address	m_address
	Mac48Address of this NetDevice. More...

DataRate	m_bps
	The data rate that the Net Device uses to simulate packet transmission timing. More...

Ptr< PointToPointChannel >	m_channel
	The PointToPointChannel to which this PointToPointNetDevice has been attached. More...

Ptr< Packet >	m_currentPkt
	Current packet processed. More...

uint32_t	m_ifIndex
	Index of the interface. More...

TracedCallback	m_linkChangeCallbacks
	Callback for the link change event. More...

bool	m_linkUp
	Identify if the link is up or not. More...

TracedCallback< Ptr< const Packet > >	m_macPromiscRxTrace
	The trace source fired for packets successfully received by the device immediately before being forwarded up to higher layers (at the L2/L3 transition). More...

TracedCallback< Ptr< const Packet > >	m_macRxDropTrace
	The trace source fired for packets successfully received by the device but are dropped before being forwarded up to higher layers (at the L2/L3 transition). More...

TracedCallback< Ptr< const Packet > >	m_macRxTrace
	The trace source fired for packets successfully received by the device immediately before being forwarded up to higher layers (at the L2/L3 transition). More...

TracedCallback< Ptr< const Packet > >	m_macTxDropTrace
	The trace source fired when packets coming into the "top" of the device at the L3/L2 transition are dropped before being queued for transmission. More...

TracedCallback< Ptr< const Packet > >	m_macTxTrace
	The trace source fired when packets come into the "top" of the device at the L3/L2 transition, before being queued for transmission. More...

uint32_t	m_mtu
	The Maximum Transmission Unit. More...

Ptr< Node >	m_node
	Node owning this NetDevice. More...

TracedCallback< Ptr< const Packet > >	m_phyRxBeginTrace
	The trace source fired when a packet begins the reception process from the medium – when the simulated first bit(s) arrive. More...

TracedCallback< Ptr< const Packet > >	m_phyRxDropTrace
	The trace source fired when the phy layer drops a packet it has received. More...

TracedCallback< Ptr< const Packet > >	m_phyRxEndTrace
	The trace source fired when a packet ends the reception process from the medium. More...

TracedCallback< Ptr< const Packet > >	m_phyTxBeginTrace
	The trace source fired when a packet begins the transmission process on the medium. More...

TracedCallback< Ptr< const Packet > >	m_phyTxDropTrace
	The trace source fired when the phy layer drops a packet before it tries to transmit it. More...

TracedCallback< Ptr< const Packet > >	m_phyTxEndTrace
	The trace source fired when a packet ends the transmission process on the medium. More...

NetDevice::PromiscReceiveCallback	m_promiscCallback
	Receive callback. More...

TracedCallback< Ptr< const Packet > >	m_promiscSnifferTrace
	A trace source that emulates a promiscuous mode protocol sniffer connected to the device. More...

Ptr< Queue< Packet > >	m_queue
	The Queue which this PointToPointNetDevice uses as a packet source. More...

Ptr< ErrorModel >	m_receiveErrorModel
	Error model for receive packet events. More...

NetDevice::ReceiveCallback	m_rxCallback
	Receive callback. More...

TracedCallback< Ptr< const Packet > >	m_snifferTrace
	A trace source that emulates a non-promiscuous protocol sniffer connected to the device. More...

Time	m_tInterframeGap
	The interframe gap that the Net Device uses to throttle packet transmission. More...

TxMachineState	m_txMachineState
	The state of the Net Device transmit state machine. More...

Static Private Attributes
static const uint16_t	DEFAULT_MTU = 1500
	Default MTU. More...

Additional Inherited Members
Public Types inherited from ns3::NetDevice
typedef void(*	LinkChangeTracedCallback) ()
	TracedCallback signature for link changed event. More...

enum	PacketType { PACKET_HOST = 1 , NS3_PACKET_HOST = PACKET_HOST , PACKET_BROADCAST , NS3_PACKET_BROADCAST = PACKET_BROADCAST , PACKET_MULTICAST , NS3_PACKET_MULTICAST = PACKET_MULTICAST , PACKET_OTHERHOST , NS3_PACKET_OTHERHOST = PACKET_OTHERHOST }
	Packet types are used as they are in Linux. More...

typedef Callback< bool, Ptr< NetDevice >, Ptr< const Packet >, uint16_t, const Address &, const Address &, PacketType >	PromiscReceiveCallback

typedef Callback< bool, Ptr< NetDevice >, Ptr< const Packet >, uint16_t, const Address & >	ReceiveCallback

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid ()
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

A Device for a Point to Point Network Link.

This PointToPointNetDevice class specializes the NetDevice abstract base class. Together with a PointToPointChannel (and a peer PointToPointNetDevice), the class models, with some level of abstraction, a generic point-to-point or serial link. Key parameters or objects that can be specified for this device include a queue, data rate, and interframe transmission gap (the propagation delay is set in the PointToPointChannel).

Definition at line 63 of file point-to-point-net-device.h.

Member Enumeration Documentation

◆ TxMachineState

enum ns3::PointToPointNetDevice::TxMachineState

private

Enumeration of the states of the transmit machine of the net device.

Enumerator
READY	The transmitter is ready to begin transmission of a packet.
BUSY	The transmitter is busy transmitting a packet.

Definition at line 274 of file point-to-point-net-device.h.

Constructor & Destructor Documentation

◆ PointToPointNetDevice() [1/2]

ns3::PointToPointNetDevice::PointToPointNetDevice ( )

Construct a PointToPointNetDevice.

This is the constructor for the PointToPointNetDevice. It takes as a parameter a pointer to the Node to which this device is connected, as well as an optional DataRate object.

Definition at line 177 of file point-to-point-net-device.cc.

References NS_LOG_FUNCTION.

◆ ~PointToPointNetDevice()

ns3::PointToPointNetDevice::~PointToPointNetDevice ( )

override

Destroy a PointToPointNetDevice.

This is the destructor for the PointToPointNetDevice.

Definition at line 186 of file point-to-point-net-device.cc.

References NS_LOG_FUNCTION.

◆ PointToPointNetDevice() [2/2]

ns3::PointToPointNetDevice::PointToPointNetDevice ( const PointToPointNetDevice & )

delete

Member Function Documentation

◆ AddHeader()

void ns3::PointToPointNetDevice::AddHeader	(	Ptr< Packet >	p,
		uint16_t	protocolNumber
	)

private

Adds the necessary headers and trailers to a packet of data in order to respect the protocol implemented by the agent.

Parameters

p	packet
protocolNumber	protocol number

Definition at line 192 of file point-to-point-net-device.cc.

References ns3::Packet::AddHeader(), EtherToPpp(), NS_LOG_FUNCTION, and ns3::PppHeader::SetProtocol().

Referenced by Send().

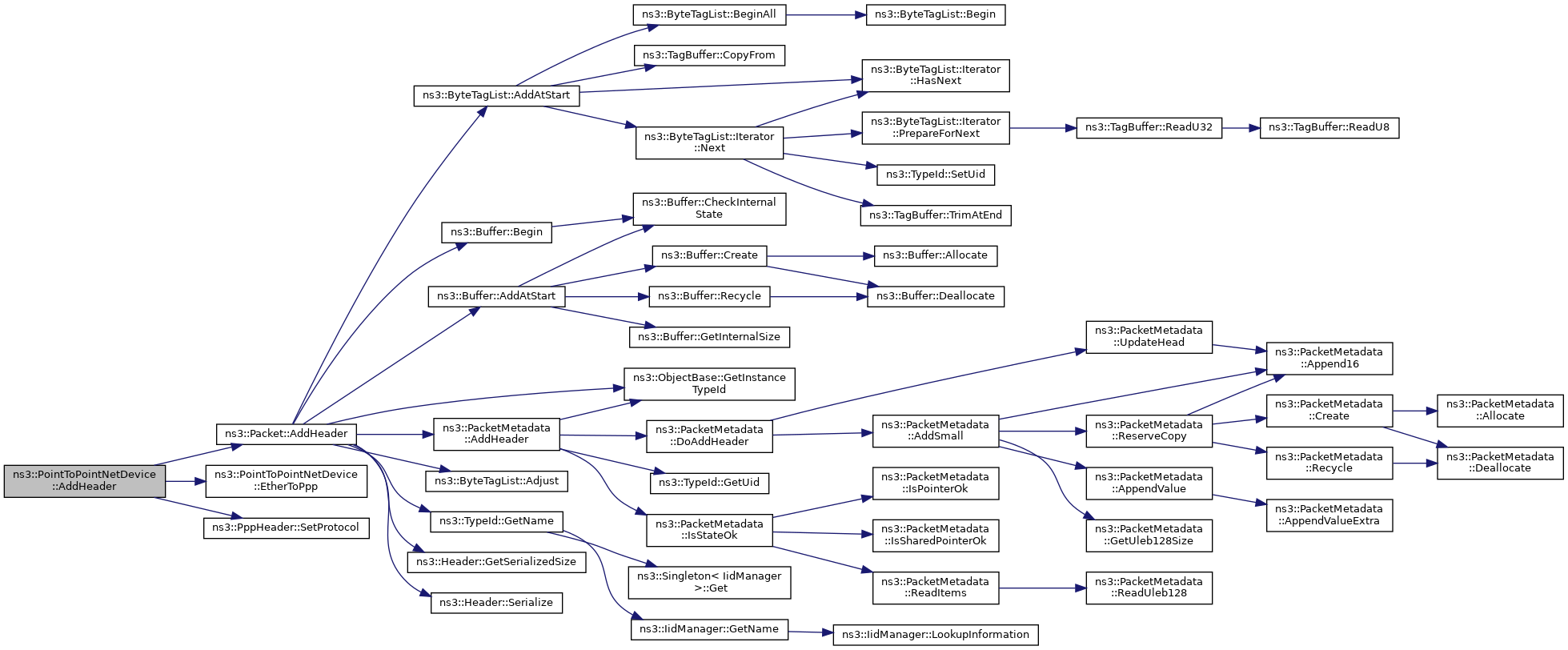

Here is the call graph for this function:

Here is the caller graph for this function:

◆ AddLinkChangeCallback()

void ns3::PointToPointNetDevice::AddLinkChangeCallback ( Callback< void > callback )

overridevirtual

Parameters

callback the callback to invoke

Add a callback invoked whenever the link status changes to UP. This callback is typically used by the IP/ARP layer to flush the ARP cache and by IPv6 stack to flush NDISC cache whenever the link goes up.

Implements ns3::NetDevice.

Definition at line 448 of file point-to-point-net-device.cc.

References ns3::TracedCallback< Ts >::ConnectWithoutContext(), m_linkChangeCallbacks, and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ Attach()

bool ns3::PointToPointNetDevice::Attach ( Ptr< PointToPointChannel > ch )

Attach the device to a channel.

Parameters

ch	Ptr to the channel to which this object is being attached.

Returns: true if the operation was successful (always true actually)

Definition at line 301 of file point-to-point-net-device.cc.

References m_channel, NotifyLinkUp(), and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ DoDispose()

void ns3::PointToPointNetDevice::DoDispose ( void )

overrideprivatevirtual

Dispose of the object.

Reimplemented from ns3::Object.

Definition at line 211 of file point-to-point-net-device.cc.

References ns3::Object::DoDispose(), m_channel, m_currentPkt, m_node, m_queue, m_receiveErrorModel, and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ DoMpiReceive()

void ns3::PointToPointNetDevice::DoMpiReceive ( Ptr< Packet > p )

protected

Handler for MPI receive event.

Parameters

p	Packet received

Definition at line 612 of file point-to-point-net-device.cc.

References NS_LOG_FUNCTION, and Receive().

Here is the call graph for this function:

◆ EtherToPpp()

uint16_t ns3::PointToPointNetDevice::EtherToPpp ( uint16_t protocol )

staticprivate

Ethernet to PPP protocol number mapping.

Parameters

protocol An Ethernet protocol number

Returns: The corresponding PPP protocol number

Definition at line 668 of file point-to-point-net-device.cc.

References NS_ASSERT_MSG, and NS_LOG_FUNCTION_NOARGS.

Referenced by AddHeader().

Here is the caller graph for this function:

◆ GetAddress()

Address ns3::PointToPointNetDevice::GetAddress ( ) const

overridevirtual

Returns: the current Address of this interface.

Implements ns3::NetDevice.

Definition at line 435 of file point-to-point-net-device.cc.

References m_address.

Referenced by Receive().

Here is the caller graph for this function:

◆ GetBroadcast()

Address ns3::PointToPointNetDevice::GetBroadcast ( ) const

overridevirtual

Returns: the broadcast address supported by this netdevice.

Calling this method is invalid if IsBroadcast returns not true.

Implements ns3::NetDevice.

Definition at line 471 of file point-to-point-net-device.cc.

References NS_LOG_FUNCTION.

◆ GetChannel()

Ptr< Channel > ns3::PointToPointNetDevice::GetChannel ( ) const

overridevirtual

Returns: the channel this NetDevice is connected to. The value returned can be zero if the NetDevice is not yet connected to any channel or if the underlying NetDevice has no concept of a channel. i.e., callers must check for zero and be ready to handle it.

Implements ns3::NetDevice.

Definition at line 416 of file point-to-point-net-device.cc.

References m_channel.

◆ GetIfIndex()

uint32_t ns3::PointToPointNetDevice::GetIfIndex ( ) const

overridevirtual

Returns: index ifIndex of the device

Implements ns3::NetDevice.

Definition at line 410 of file point-to-point-net-device.cc.

References m_ifIndex.

◆ GetMtu()

uint16_t ns3::PointToPointNetDevice::GetMtu ( ) const

overridevirtual

Returns: the link-level MTU in bytes for this interface.

This value is typically used by the IP layer to perform IP fragmentation when needed.

Implements ns3::NetDevice.

Definition at line 645 of file point-to-point-net-device.cc.

References m_mtu, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the caller graph for this function:

◆ GetMulticast() [1/2]

Address ns3::PointToPointNetDevice::GetMulticast ( Ipv4Address multicastGroup ) const

overridevirtual

Make and return a MAC multicast address using the provided multicast group.

RFC 1112 says that an Ipv4 host group address is mapped to an Ethernet multicast address by placing the low-order 23-bits of the IP address into the low-order 23 bits of the Ethernet multicast address 01-00-5E-00-00-00 (hex). Similar RFCs exist for Ipv6 and Eui64 mappings. This method performs the multicast address creation function appropriate to the underlying MAC address of the device. This MAC address is encapsulated in an abstract Address to avoid dependencies on the exact MAC address format.

In the case of net devices that do not support multicast, clients are expected to test NetDevice::IsMulticast and avoid attempting to map multicast packets. Subclasses of NetDevice that do support multicasting are expected to override this method and provide an implementation appropriate to the particular device.

Parameters

multicastGroup The IP address for the multicast group destination of the packet.

Returns: The MAC multicast Address used to send packets to the provided multicast group.

Warning: Calling this method is invalid if IsMulticast returns not true.

See also: IsMulticast()

Implements ns3::NetDevice.

Definition at line 485 of file point-to-point-net-device.cc.

References NS_LOG_FUNCTION.

◆ GetMulticast() [2/2]

Address ns3::PointToPointNetDevice::GetMulticast ( Ipv6Address addr ) const

overridevirtual

Get the MAC multicast address corresponding to the IPv6 address provided.

Parameters

addr	IPv6 address

Returns: the MAC multicast address

Warning: Calling this method is invalid if IsMulticast returns not true.

Implements ns3::NetDevice.

Definition at line 492 of file point-to-point-net-device.cc.

References NS_LOG_FUNCTION.

◆ GetNode()

Ptr< Node > ns3::PointToPointNetDevice::GetNode ( ) const

overridevirtual

Returns: the node base class which contains this network interface.

When a subclass needs to get access to the underlying node base class to print the nodeid for example, it can invoke this method.

Implements ns3::NetDevice.

Definition at line 573 of file point-to-point-net-device.cc.

References m_node.

◆ GetQueue()

Ptr< Queue< Packet > > ns3::PointToPointNetDevice::GetQueue ( ) const

Get a copy of the attached Queue.

Returns: Ptr to the queue.

Definition at line 388 of file point-to-point-net-device.cc.

References m_queue, and NS_LOG_FUNCTION.

Referenced by ns3::PointToPointHelper::EnableAsciiInternal().

Here is the caller graph for this function:

◆ GetRemote()

Address ns3::PointToPointNetDevice::GetRemote ( ) const

private

Returns: the address of the remote device connected to this device through the point to point channel.

Definition at line 619 of file point-to-point-net-device.cc.

References m_channel, NS_ASSERT, and NS_LOG_FUNCTION.

Referenced by Receive().

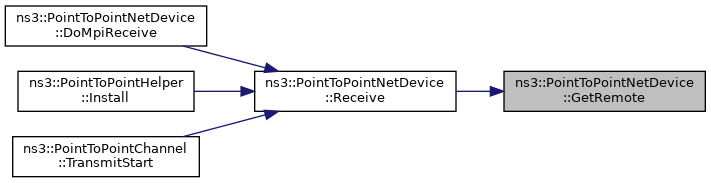

Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::PointToPointNetDevice::GetTypeId ( void )

static

Get the TypeId.

Returns: The TypeId for this class

Definition at line 41 of file point-to-point-net-device.cc.

References DEFAULT_MTU, GetMtu(), m_address, m_bps, m_macPromiscRxTrace, m_macRxDropTrace, m_macRxTrace, m_macTxDropTrace, m_macTxTrace, m_phyRxBeginTrace, m_phyRxDropTrace, m_phyRxEndTrace, m_phyTxBeginTrace, m_phyTxDropTrace, m_phyTxEndTrace, m_promiscSnifferTrace, m_queue, m_receiveErrorModel, m_snifferTrace, m_tInterframeGap, ns3::MakePointerAccessor(), ns3::MakeTimeAccessor(), ns3::MakeTimeChecker(), ns3::MakeTraceSourceAccessor(), ns3::MakeUintegerAccessor(), ns3::Seconds(), SetMtu(), and ns3::TypeId::SetParent().

Here is the call graph for this function:

◆ IsBridge()

bool ns3::PointToPointNetDevice::IsBridge ( ) const

overridevirtual

Return true if the net device is acting as a bridge.

Returns: value of m_isBridge flag

Implements ns3::NetDevice.

Definition at line 506 of file point-to-point-net-device.cc.

References NS_LOG_FUNCTION.

◆ IsBroadcast()

bool ns3::PointToPointNetDevice::IsBroadcast ( ) const

overridevirtual

Returns: true if this interface supports a broadcast address, false otherwise.

Implements ns3::NetDevice.

Definition at line 459 of file point-to-point-net-device.cc.

References NS_LOG_FUNCTION.

◆ IsLinkUp()

bool ns3::PointToPointNetDevice::IsLinkUp ( ) const

overridevirtual

Returns: true if link is up; false otherwise

Implements ns3::NetDevice.

Definition at line 441 of file point-to-point-net-device.cc.

References m_linkUp, and NS_LOG_FUNCTION.

Referenced by Send().

Here is the caller graph for this function:

◆ IsMulticast()

bool ns3::PointToPointNetDevice::IsMulticast ( ) const

overridevirtual

Returns: value of m_isMulticast flag

Implements ns3::NetDevice.

Definition at line 478 of file point-to-point-net-device.cc.

References NS_LOG_FUNCTION.

◆ IsPointToPoint()

bool ns3::PointToPointNetDevice::IsPointToPoint ( ) const

overridevirtual

Return true if the net device is on a point-to-point link.

Returns: value of m_isPointToPoint flag

Implements ns3::NetDevice.

Definition at line 499 of file point-to-point-net-device.cc.

References NS_LOG_FUNCTION.

◆ NeedsArp()

bool ns3::PointToPointNetDevice::NeedsArp ( ) const

overridevirtual

Returns: true if ARP is needed, false otherwise.

Called by higher-layers to check if this NetDevice requires ARP to be used.

Implements ns3::NetDevice.

Definition at line 586 of file point-to-point-net-device.cc.

References NS_LOG_FUNCTION.

◆ NotifyLinkUp()

void ns3::PointToPointNetDevice::NotifyLinkUp ( )

private

Make the link up and running.

It calls also the linkChange callback.

Definition at line 395 of file point-to-point-net-device.cc.

References m_linkChangeCallbacks, m_linkUp, and NS_LOG_FUNCTION.

Referenced by Attach().

Here is the caller graph for this function:

◆ operator=()

PointToPointNetDevice& ns3::PointToPointNetDevice::operator= ( const PointToPointNetDevice & )

delete

◆ PppToEther()

uint16_t ns3::PointToPointNetDevice::PppToEther ( uint16_t protocol )

staticprivate

PPP to Ethernet protocol number mapping.

Parameters

protocol A PPP protocol number

Returns: The corresponding Ethernet protocol number

Definition at line 652 of file point-to-point-net-device.cc.

References NS_ASSERT_MSG, and NS_LOG_FUNCTION_NOARGS.

Referenced by ProcessHeader().

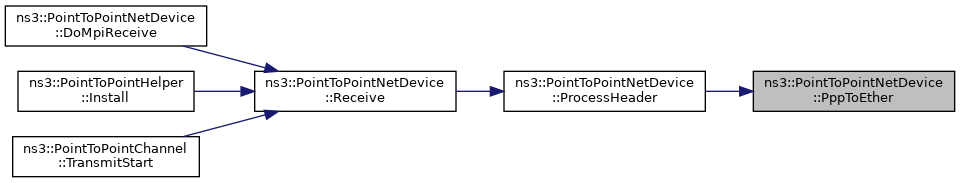

Here is the caller graph for this function:

◆ ProcessHeader()

bool ns3::PointToPointNetDevice::ProcessHeader	(	Ptr< Packet >	p,
		uint16_t &	param
	)

private

Removes, from a packet of data, all headers and trailers that relate to the protocol implemented by the agent.

Parameters

p	Packet whose headers need to be processed
param	An integer parameter that can be set by the function

Returns: Returns true if the packet should be forwarded up the protocol stack.

Definition at line 201 of file point-to-point-net-device.cc.

References ns3::PppHeader::GetProtocol(), NS_LOG_FUNCTION, PppToEther(), and ns3::Packet::RemoveHeader().

Referenced by Receive().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Receive()

void ns3::PointToPointNetDevice::Receive ( Ptr< Packet > p )

Receive a packet from a connected PointToPointChannel.

The PointToPointNetDevice receives packets from its connected channel and forwards them up the protocol stack. This is the public method used by the channel to indicate that the last bit of a packet has arrived at the device.

Parameters

p	Ptr to the received packet.

Definition at line 333 of file point-to-point-net-device.cc.

References ns3::Packet::Copy(), GetAddress(), GetRemote(), ns3::Callback< R, UArgs >::IsNull(), m_macPromiscRxTrace, m_macRxTrace, m_phyRxDropTrace, m_phyRxEndTrace, m_promiscCallback, m_promiscSnifferTrace, m_receiveErrorModel, m_rxCallback, m_snifferTrace, NS_LOG_FUNCTION, ns3::NetDevice::PACKET_HOST, and ProcessHeader().

Referenced by DoMpiReceive(), ns3::PointToPointHelper::Install(), and ns3::PointToPointChannel::TransmitStart().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Send()

bool ns3::PointToPointNetDevice::Send	(	Ptr< Packet >	packet,
		const Address &	dest,
		uint16_t	protocolNumber
	)

overridevirtual

Parameters

packet	packet sent from above down to Network Device
dest	mac address of the destination (already resolved)
protocolNumber	identifies the type of payload contained in this packet. Used to call the right L3Protocol when the packet is received.

Called from higher layer to send packet into Network Device to the specified destination Address

Returns: whether the Send operation succeeded

Implements ns3::NetDevice.

Definition at line 513 of file point-to-point-net-device.cc.

References AddHeader(), ns3::Packet::GetUid(), IsLinkUp(), m_macTxDropTrace, m_macTxTrace, m_promiscSnifferTrace, m_queue, m_snifferTrace, m_txMachineState, NS_LOG_FUNCTION, NS_LOG_LOGIC, READY, and TransmitStart().

Here is the call graph for this function:

◆ SendFrom()

bool ns3::PointToPointNetDevice::SendFrom	(	Ptr< Packet >	packet,
		const Address &	source,
		const Address &	dest,
		uint16_t	protocolNumber
	)

overridevirtual

Parameters

packet	packet sent from above down to Network Device
source	source mac address (so called "MAC spoofing")
dest	mac address of the destination (already resolved)
protocolNumber	identifies the type of payload contained in this packet. Used to call the right L3Protocol when the packet is received.

Called from higher layer to send packet into Network Device with the specified source and destination Addresses.

Returns: whether the Send operation succeeded

Implements ns3::NetDevice.

Definition at line 563 of file point-to-point-net-device.cc.

References NS_LOG_FUNCTION.

◆ SetAddress()

void ns3::PointToPointNetDevice::SetAddress ( Address address )

overridevirtual

Set the address of this interface.

Parameters

address address to set

Implements ns3::NetDevice.

Definition at line 428 of file point-to-point-net-device.cc.

References first::address, ns3::Mac48Address::ConvertFrom(), m_address, and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ SetDataRate()

void ns3::PointToPointNetDevice::SetDataRate ( DataRate bps )

Set the Data Rate used for transmission of packets.

The data rate is set in the Attach () method from the corresponding field in the channel to which the device is attached. It can be overridden using this method.

Parameters

bps	the data rate at which this object operates

Definition at line 223 of file point-to-point-net-device.cc.

References m_bps, and NS_LOG_FUNCTION.

◆ SetIfIndex()

void ns3::PointToPointNetDevice::SetIfIndex ( const uint32_t index )

overridevirtual

Parameters

index ifIndex of the device

Implements ns3::NetDevice.

Definition at line 403 of file point-to-point-net-device.cc.

References m_ifIndex, and NS_LOG_FUNCTION.

◆ SetInterframeGap()

void ns3::PointToPointNetDevice::SetInterframeGap ( Time t )

Set the interframe gap used to separate packets.

The interframe gap defines the minimum space required between packets sent by this device.

Parameters

t	the interframe gap time

Definition at line 230 of file point-to-point-net-device.cc.

References ns3::Time::As(), m_tInterframeGap, NS_LOG_FUNCTION, and ns3::Time::S.

Here is the call graph for this function:

◆ SetMtu()

bool ns3::PointToPointNetDevice::SetMtu ( const uint16_t mtu )

overridevirtual

Parameters

mtu	MTU value, in bytes, to set for the device

Returns: whether the MTU value was within legal bounds

Override for default MTU defined on a per-type basis.

Implements ns3::NetDevice.

Definition at line 637 of file point-to-point-net-device.cc.

References m_mtu, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the caller graph for this function:

◆ SetNode()

void ns3::PointToPointNetDevice::SetNode ( Ptr< Node > node )

overridevirtual

Parameters

node	the node associated to this netdevice.

This method is called from ns3::Node::AddDevice.

Implements ns3::NetDevice.

Definition at line 579 of file point-to-point-net-device.cc.

References m_node, and NS_LOG_FUNCTION.

◆ SetPromiscReceiveCallback()

void ns3::PointToPointNetDevice::SetPromiscReceiveCallback ( PromiscReceiveCallback cb )

overridevirtual

Parameters

cb	callback to invoke whenever a packet has been received in promiscuous mode and must be forwarded to the higher layers.

Enables netdevice promiscuous mode and sets the callback that will handle promiscuous mode packets. Note, promiscuous mode packets means all packets, including those packets that can be sensed by the netdevice but which are intended to be received by other hosts.

Implements ns3::NetDevice.

Definition at line 599 of file point-to-point-net-device.cc.

References m_promiscCallback.

◆ SetQueue()

void ns3::PointToPointNetDevice::SetQueue ( Ptr< Queue< Packet >> queue )

Attach a queue to the PointToPointNetDevice.

The PointToPointNetDevice "owns" a queue that implements a queueing method such as DropTailQueue or RedQueue

Parameters

queue Ptr to the new queue.

Definition at line 319 of file point-to-point-net-device.cc.

References m_queue, and NS_LOG_FUNCTION.

◆ SetReceiveCallback()

void ns3::PointToPointNetDevice::SetReceiveCallback ( NetDevice::ReceiveCallback cb )

overridevirtual

Parameters

cb	callback to invoke whenever a packet has been received and must be forwarded to the higher layers.

Set the callback to be used to notify higher layers when a packet has been received.

Implements ns3::NetDevice.

Definition at line 593 of file point-to-point-net-device.cc.

References m_rxCallback.

◆ SetReceiveErrorModel()

void ns3::PointToPointNetDevice::SetReceiveErrorModel ( Ptr< ErrorModel > em )

Attach a receive ErrorModel to the PointToPointNetDevice.

The PointToPointNetDevice may optionally include an ErrorModel in the packet receive chain.

Parameters

em	Ptr to the ErrorModel.

Definition at line 326 of file point-to-point-net-device.cc.

References m_receiveErrorModel, and NS_LOG_FUNCTION.

◆ SupportsSendFrom()

bool ns3::PointToPointNetDevice::SupportsSendFrom ( ) const

overridevirtual

Returns: true if this interface supports a bridging mode, false otherwise.

Implements ns3::NetDevice.

Definition at line 605 of file point-to-point-net-device.cc.

References NS_LOG_FUNCTION.

◆ TransmitComplete()

void ns3::PointToPointNetDevice::TransmitComplete ( )

private

Stop Sending a Packet Down the Wire and Begin the Interframe Gap.

The TransmitComplete method is used internally to finish the process of sending a packet out on the channel.

Definition at line 267 of file point-to-point-net-device.cc.

References BUSY, m_currentPkt, m_phyTxEndTrace, m_promiscSnifferTrace, m_queue, m_snifferTrace, m_txMachineState, NS_ASSERT_MSG, NS_LOG_FUNCTION, NS_LOG_LOGIC, READY, and TransmitStart().

Referenced by TransmitStart().

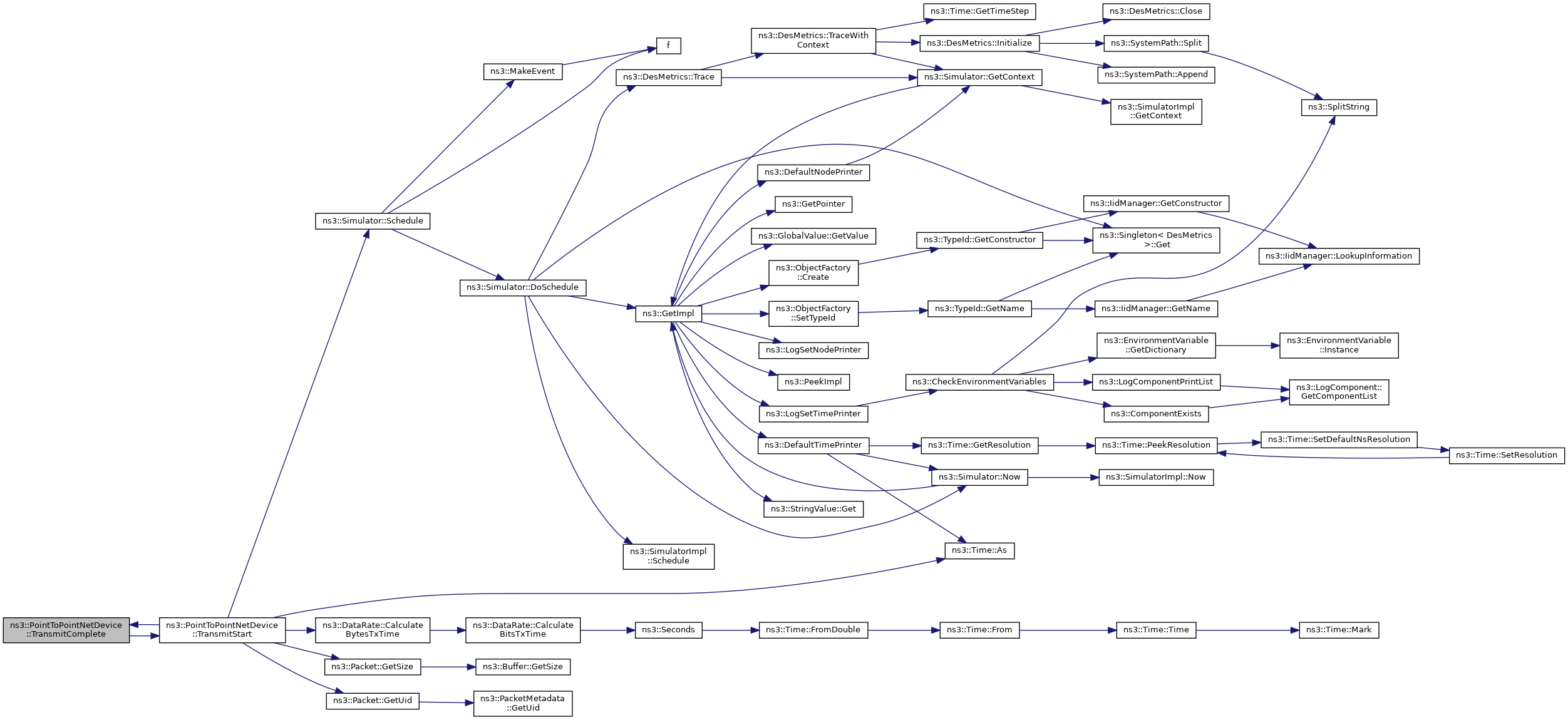

Here is the call graph for this function:

Here is the caller graph for this function:

◆ TransmitStart()

bool ns3::PointToPointNetDevice::TransmitStart ( Ptr< Packet > p )

private

Start Sending a Packet Down the Wire.

The TransmitStart method is the method that is used internally in the PointToPointNetDevice to begin the process of sending a packet out on the channel. The corresponding method is called on the channel to let it know that the physical device this class represents has virtually started sending signals. An event is scheduled for the time at which the bits have been completely transmitted.

See also: PointToPointChannel::TransmitStart (); TransmitComplete()

Parameters

p	a reference to the packet to send

Returns: true if success, false on failure

Definition at line 237 of file point-to-point-net-device.cc.

References ns3::Time::As(), BUSY, ns3::DataRate::CalculateBytesTxTime(), ns3::Packet::GetSize(), ns3::Packet::GetUid(), m_bps, m_channel, m_currentPkt, m_phyTxBeginTrace, m_phyTxDropTrace, m_tInterframeGap, m_txMachineState, NS_ASSERT_MSG, NS_LOG_FUNCTION, NS_LOG_LOGIC, READY, ns3::Time::S, ns3::Simulator::Schedule(), and TransmitComplete().

Referenced by Send(), and TransmitComplete().

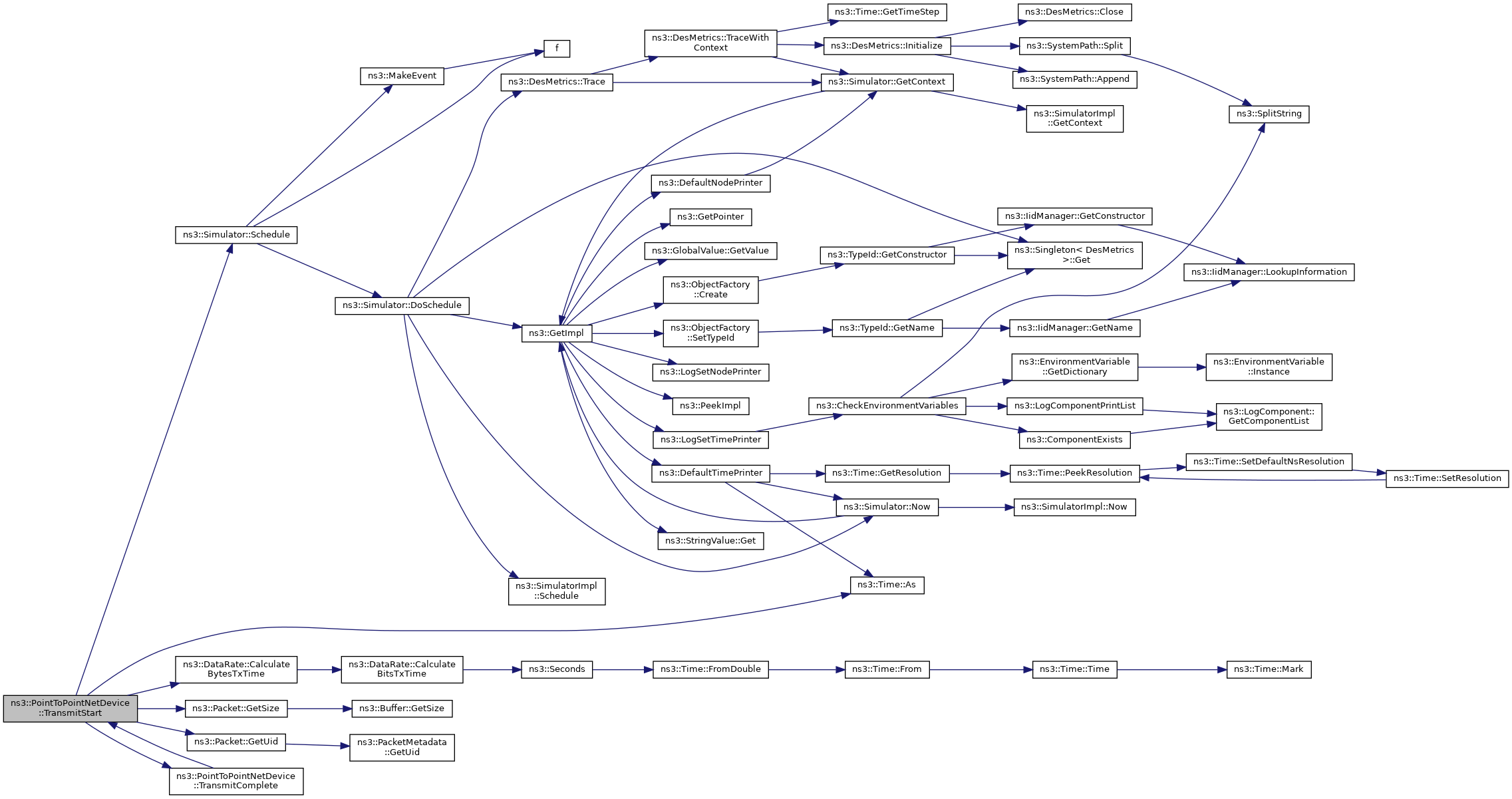

Here is the call graph for this function:

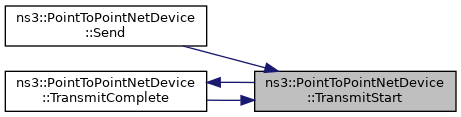

Here is the caller graph for this function:

Member Data Documentation

◆ DEFAULT_MTU

const uint16_t ns3::PointToPointNetDevice::DEFAULT_MTU = 1500

staticprivate

Default MTU.

Definition at line 433 of file point-to-point-net-device.h.

Referenced by GetTypeId().

◆ m_address

Mac48Address ns3::PointToPointNetDevice::m_address

private

Mac48Address of this NetDevice.

Definition at line 425 of file point-to-point-net-device.h.

Referenced by GetAddress(), GetTypeId(), and SetAddress().

◆ m_bps

DataRate ns3::PointToPointNetDevice::m_bps

private

The data rate that the Net Device uses to simulate packet transmission timing.

Definition at line 289 of file point-to-point-net-device.h.

Referenced by GetTypeId(), SetDataRate(), and TransmitStart().

◆ m_channel

Ptr<PointToPointChannel> ns3::PointToPointNetDevice::m_channel

private

The PointToPointChannel to which this PointToPointNetDevice has been attached.

Definition at line 301 of file point-to-point-net-device.h.

Referenced by Attach(), DoDispose(), GetChannel(), GetRemote(), and TransmitStart().

◆ m_currentPkt

Ptr<Packet> ns3::PointToPointNetDevice::m_currentPkt

private

Current packet processed.

Definition at line 445 of file point-to-point-net-device.h.

Referenced by DoDispose(), TransmitComplete(), and TransmitStart().

◆ m_ifIndex

uint32_t ns3::PointToPointNetDevice::m_ifIndex

private

Index of the interface.

Definition at line 429 of file point-to-point-net-device.h.

Referenced by GetIfIndex(), and SetIfIndex().

◆ m_linkChangeCallbacks

TracedCallback ns3::PointToPointNetDevice::m_linkChangeCallbacks

private

Callback for the link change event.

Definition at line 431 of file point-to-point-net-device.h.

Referenced by AddLinkChangeCallback(), and NotifyLinkUp().

◆ m_linkUp

bool ns3::PointToPointNetDevice::m_linkUp

private

Identify if the link is up or not.

Definition at line 430 of file point-to-point-net-device.h.

Referenced by IsLinkUp(), and NotifyLinkUp().

◆ m_macPromiscRxTrace

TracedCallback<Ptr<const Packet> > ns3::PointToPointNetDevice::m_macPromiscRxTrace

private

The trace source fired for packets successfully received by the device immediately before being forwarded up to higher layers (at the L2/L3 transition).

This is a promiscuous trace (which doesn't mean a lot here in the point-to-point device).

Definition at line 334 of file point-to-point-net-device.h.

Referenced by GetTypeId(), and Receive().

◆ m_macRxDropTrace

TracedCallback<Ptr<const Packet> > ns3::PointToPointNetDevice::m_macRxDropTrace

private

The trace source fired for packets successfully received by the device but are dropped before being forwarded up to higher layers (at the L2/L3 transition).

Definition at line 349 of file point-to-point-net-device.h.

Referenced by GetTypeId().

◆ m_macRxTrace

TracedCallback<Ptr<const Packet> > ns3::PointToPointNetDevice::m_macRxTrace

private

The trace source fired for packets successfully received by the device immediately before being forwarded up to higher layers (at the L2/L3 transition).

This is a non-promiscuous trace (which doesn't mean a lot here in the point-to-point device).

Definition at line 342 of file point-to-point-net-device.h.

Referenced by GetTypeId(), and Receive().

◆ m_macTxDropTrace

TracedCallback<Ptr<const Packet> > ns3::PointToPointNetDevice::m_macTxDropTrace

private

The trace source fired when packets coming into the "top" of the device at the L3/L2 transition are dropped before being queued for transmission.

Definition at line 326 of file point-to-point-net-device.h.

Referenced by GetTypeId(), and Send().

◆ m_macTxTrace

TracedCallback<Ptr<const Packet> > ns3::PointToPointNetDevice::m_macTxTrace

private

The trace source fired when packets come into the "top" of the device at the L3/L2 transition, before being queued for transmission.

Definition at line 320 of file point-to-point-net-device.h.

Referenced by GetTypeId(), and Send().

◆ m_mtu

uint32_t ns3::PointToPointNetDevice::m_mtu

private

The Maximum Transmission Unit.

This corresponds to the maximum number of bytes that can be transmitted as seen from higher layers. This corresponds to the 1500 byte MTU size often seen on IP over Ethernet.

Definition at line 443 of file point-to-point-net-device.h.

Referenced by GetMtu(), and SetMtu().

◆ m_node

Ptr<Node> ns3::PointToPointNetDevice::m_node

private

Node owning this NetDevice.

Definition at line 424 of file point-to-point-net-device.h.

Referenced by DoDispose(), GetNode(), and SetNode().

◆ m_phyRxBeginTrace

TracedCallback<Ptr<const Packet> > ns3::PointToPointNetDevice::m_phyRxBeginTrace

private

The trace source fired when a packet begins the reception process from the medium – when the simulated first bit(s) arrive.

Definition at line 373 of file point-to-point-net-device.h.

Referenced by GetTypeId().

◆ m_phyRxDropTrace

TracedCallback<Ptr<const Packet> > ns3::PointToPointNetDevice::m_phyRxDropTrace

private

The trace source fired when the phy layer drops a packet it has received.

This happens if the receiver is not enabled or the error model is active and indicates that the packet is corrupt.

Definition at line 386 of file point-to-point-net-device.h.

Referenced by GetTypeId(), and Receive().

◆ m_phyRxEndTrace

TracedCallback<Ptr<const Packet> > ns3::PointToPointNetDevice::m_phyRxEndTrace

private

The trace source fired when a packet ends the reception process from the medium.

Definition at line 379 of file point-to-point-net-device.h.

Referenced by GetTypeId(), and Receive().

◆ m_phyTxBeginTrace

TracedCallback<Ptr<const Packet> > ns3::PointToPointNetDevice::m_phyTxBeginTrace

private

The trace source fired when a packet begins the transmission process on the medium.

Definition at line 355 of file point-to-point-net-device.h.

Referenced by GetTypeId(), and TransmitStart().

◆ m_phyTxDropTrace

TracedCallback<Ptr<const Packet> > ns3::PointToPointNetDevice::m_phyTxDropTrace

private

The trace source fired when the phy layer drops a packet before it tries to transmit it.

Definition at line 367 of file point-to-point-net-device.h.

Referenced by GetTypeId(), and TransmitStart().

◆ m_phyTxEndTrace

TracedCallback<Ptr<const Packet> > ns3::PointToPointNetDevice::m_phyTxEndTrace

private

The trace source fired when a packet ends the transmission process on the medium.

Definition at line 361 of file point-to-point-net-device.h.

Referenced by GetTypeId(), and TransmitComplete().

◆ m_promiscCallback

NetDevice::PromiscReceiveCallback ns3::PointToPointNetDevice::m_promiscCallback

private

Receive callback.

Definition at line 427 of file point-to-point-net-device.h.

Referenced by Receive(), and SetPromiscReceiveCallback().

◆ m_promiscSnifferTrace

TracedCallback<Ptr<const Packet> > ns3::PointToPointNetDevice::m_promiscSnifferTrace

private

A trace source that emulates a promiscuous mode protocol sniffer connected to the device.

This trace source fire on packets destined for any host just like your average everyday packet sniffer.

On the transmit size, this trace hook will fire after a packet is dequeued from the device queue for transmission. In Linux, for example, this would correspond to the point just before a device hard_start_xmit where dev_queue_xmit_nit is called to dispatch the packet to the PF_PACKET ETH_P_ALL handlers.

On the receive side, this trace hook will fire when a packet is received, just before the receive callback is executed. In Linux, for example, this would correspond to the point at which the packet is dispatched to packet sniffers in netif_receive_skb.

Definition at line 422 of file point-to-point-net-device.h.

Referenced by GetTypeId(), Receive(), Send(), and TransmitComplete().

◆ m_queue

Ptr<Queue<Packet> > ns3::PointToPointNetDevice::m_queue

private

The Queue which this PointToPointNetDevice uses as a packet source.

Management of this Queue has been delegated to the PointToPointNetDevice and it has the responsibility for deletion.

See also: class DropTailQueue

Definition at line 309 of file point-to-point-net-device.h.

Referenced by DoDispose(), GetQueue(), GetTypeId(), Send(), SetQueue(), and TransmitComplete().

◆ m_receiveErrorModel

Ptr<ErrorModel> ns3::PointToPointNetDevice::m_receiveErrorModel

private

Error model for receive packet events.

Definition at line 314 of file point-to-point-net-device.h.

Referenced by DoDispose(), GetTypeId(), Receive(), and SetReceiveErrorModel().

◆ m_rxCallback

NetDevice::ReceiveCallback ns3::PointToPointNetDevice::m_rxCallback

private

Receive callback.

Definition at line 426 of file point-to-point-net-device.h.

Referenced by Receive(), and SetReceiveCallback().

◆ m_snifferTrace

TracedCallback<Ptr<const Packet> > ns3::PointToPointNetDevice::m_snifferTrace

private

A trace source that emulates a non-promiscuous protocol sniffer connected to the device.

Unlike your average everyday sniffer, this trace source will not fire on PACKET_OTHERHOST events.

On the transmit size, this trace hook will fire after a packet is dequeued from the device queue for transmission. In Linux, for example, this would correspond to the point just before a device hard_start_xmit where dev_queue_xmit_nit is called to dispatch the packet to the PF_PACKET ETH_P_ALL handlers.

On the receive side, this trace hook will fire when a packet is received, just before the receive callback is executed. In Linux, for example, this would correspond to the point at which the packet is dispatched to packet sniffers in netif_receive_skb.

Definition at line 404 of file point-to-point-net-device.h.

Referenced by GetTypeId(), Receive(), Send(), and TransmitComplete().

◆ m_tInterframeGap

Time ns3::PointToPointNetDevice::m_tInterframeGap

private

The interframe gap that the Net Device uses to throttle packet transmission.

Definition at line 295 of file point-to-point-net-device.h.

Referenced by GetTypeId(), SetInterframeGap(), and TransmitStart().

◆ m_txMachineState

TxMachineState ns3::PointToPointNetDevice::m_txMachineState

private

The state of the Net Device transmit state machine.

Definition at line 283 of file point-to-point-net-device.h.

Referenced by Send(), TransmitComplete(), and TransmitStart().

The documentation for this class was generated from the following files:

src/point-to-point/model/point-to-point-net-device.h
src/point-to-point/model/point-to-point-net-device.cc

Public Member Functions

Static Public Member Functions

Protected Member Functions

Private Types

Private Member Functions

Static Private Member Functions

Private Attributes

Static Private Attributes

Additional Inherited Members

Detailed Description

Member Enumeration Documentation

◆ TxMachineState

Constructor & Destructor Documentation

◆ PointToPointNetDevice() [1/2]

◆ ~PointToPointNetDevice()

◆ PointToPointNetDevice() [2/2]

Member Function Documentation

◆ AddHeader()

◆ AddLinkChangeCallback()

◆ Attach()

◆ DoDispose()

◆ DoMpiReceive()

◆ EtherToPpp()

◆ GetAddress()

◆ GetBroadcast()

◆ GetChannel()

◆ GetIfIndex()

◆ GetMtu()

◆ GetMulticast() [1/2]

◆ GetMulticast() [2/2]

◆ GetNode()

◆ GetQueue()

◆ GetRemote()

◆ GetTypeId()

◆ IsBridge()

◆ IsBroadcast()

◆ IsLinkUp()

◆ IsMulticast()

◆ IsPointToPoint()

◆ NeedsArp()

◆ NotifyLinkUp()

◆ operator=()

◆ PppToEther()

◆ ProcessHeader()

◆ Receive()

◆ Send()

◆ SendFrom()

◆ SetAddress()

◆ SetDataRate()

◆ SetIfIndex()

◆ SetInterframeGap()

◆ SetMtu()

◆ SetNode()

◆ SetPromiscReceiveCallback()

◆ SetQueue()

◆ SetReceiveCallback()

◆ SetReceiveErrorModel()

◆ SupportsSendFrom()

◆ TransmitComplete()

◆ TransmitStart()

Member Data Documentation

◆ DEFAULT_MTU

◆ m_address

◆ m_bps

◆ m_channel

◆ m_currentPkt

◆ m_ifIndex

◆ m_linkChangeCallbacks

◆ m_linkUp

◆ m_macPromiscRxTrace

◆ m_macRxDropTrace

◆ m_macRxTrace

◆ m_macTxDropTrace

◆ m_macTxTrace

◆ m_mtu

◆ m_node

◆ m_phyRxBeginTrace

◆ m_phyRxDropTrace

◆ m_phyRxEndTrace

◆ m_phyTxBeginTrace
