This class is designed to probe an underlying ns3 TraceSource exporting a packet, an IPv6 object, and an interface. More...

#include "ipv6-packet-probe.h"

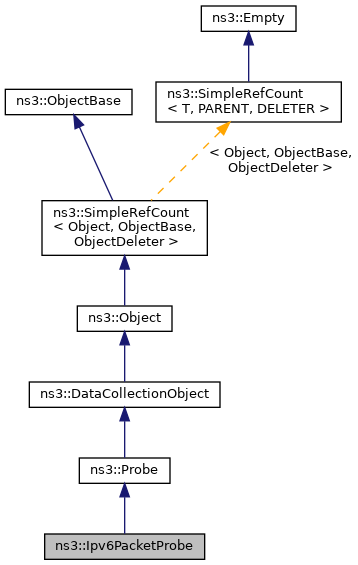

Inheritance diagram for ns3::Ipv6PacketProbe:

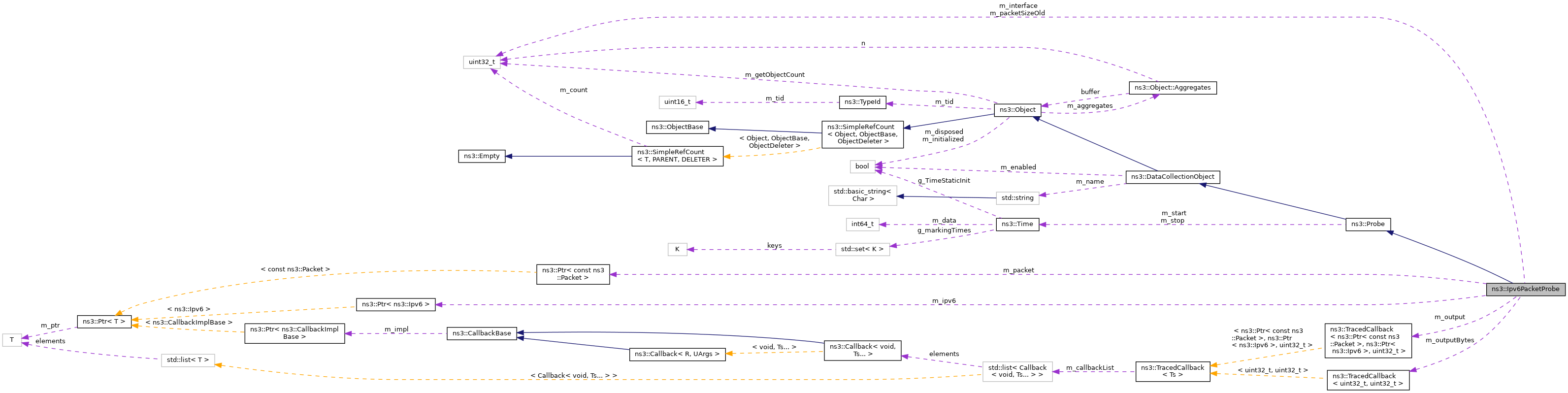

Collaboration diagram for ns3::Ipv6PacketProbe:

Public Member Functions
	Ipv6PacketProbe ()

	~Ipv6PacketProbe () override

bool	ConnectByObject (std::string traceSource, Ptr< Object > obj) override
	connect to a trace source attribute provided by a given object More...

void	ConnectByPath (std::string path) override
	connect to a trace source provided by a config path More...

void	SetValue (Ptr< const Packet > packet, Ptr< Ipv6 > ipv6, uint32_t interface)
	Set a probe value. More...

Public Member Functions inherited from ns3::Probe
	Probe ()

	~Probe () override

bool	IsEnabled () const override

Public Member Functions inherited from ns3::DataCollectionObject
	DataCollectionObject ()

	~DataCollectionObject () override

void	Disable ()
	Unset the status of an individual object. More...

void	Enable ()
	Set the status of an individual object. More...

std::string	GetName () const
	Get the object's name. More...

void	SetName (std::string name)
	Set the object's name. More...

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

	~Object () override
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose ()
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator () const
	Get an iterator to the Objects aggregated to this one. More...

TypeId	GetInstanceTypeId () const override
	Get the most derived TypeId for this Object. More...

template<typename T >
Ptr< T >	GetObject () const
	Get a pointer to the requested aggregated Object. More...

template<>
Ptr< Object >	GetObject () const
	Specialization of () for objects of type ns3::Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< Object >	GetObject (TypeId tid) const
	Specialization of (TypeId tid) for objects of type ns3::Object. More...

void	Initialize ()
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized () const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
	Copy constructor. More...

uint32_t	GetReferenceCount () const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o[[maybe_unused]])
	Assignment operator. More...

void	Ref () const
	Increment the reference count. More...

void	Unref () const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising errors. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId ()
	Get the type ID. More...

static void	SetValueByPath (std::string path, Ptr< const Packet > packet, Ptr< Ipv6 > ipv6, uint32_t interface)
	Set a probe value by its name in the Config system. More...

Static Public Member Functions inherited from ns3::Probe
static TypeId	GetTypeId ()
	Get the type ID. More...

Static Public Member Functions inherited from ns3::DataCollectionObject
static TypeId	GetTypeId ()
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId ()
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId ()
	Get the type ID. More...

Private Member Functions
void	TraceSink (Ptr< const Packet > packet, Ptr< Ipv6 > ipv6, uint32_t interface)
	Method to connect to an underlying ns3::TraceSource with arguments of type Ptr<const Packet>, Ptr<Ipv6>, and uint32_t. More...

Private Attributes
uint32_t	m_interface
	The IPv6 interface for the traced packet. More...

Ptr< Ipv6 >	m_ipv6
	The IPv6 object for the traced packet. More...

ns3::TracedCallback< Ptr< const Packet >, Ptr< Ipv6 >, uint32_t >	m_output
	Traced Callback: the packet, the Ipv6 object and the interface. More...

ns3::TracedCallback< uint32_t, uint32_t >	m_outputBytes
	Traced Callback: the previous packet's size and the actual packet's size. More...

Ptr< const Packet >	m_packet
	The traced packet. More...

uint32_t	m_packetSizeOld
	The size of the traced packet. More...

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	DoDispose ()
	Destructor implementation. More...

virtual void	DoInitialize ()
	Initialize() implementation. More...

virtual void	NotifyNewAggregate ()
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted ()
	Notifier called once the ObjectBase is fully constructed. More...

Protected Attributes inherited from ns3::Probe
Time	m_start
	Time when logging starts. More...

Time	m_stop
	Time when logging stops. More...

Protected Attributes inherited from ns3::DataCollectionObject
bool	m_enabled
	Object's activation state. More...

std::string	m_name
	Name of the object within the data collection framework. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid ()
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

This class is designed to probe an underlying ns3 TraceSource exporting a packet, an IPv6 object, and an interface.

This probe exports a trace source "Output" with arguments of type Ptr<const Packet>, Ptr<Ipv6>, and uint32_t. The Output trace source emits a value when either the trace source emits a new value, or when SetValue () is called.

Definition at line 51 of file ipv6-packet-probe.h.

Constructor & Destructor Documentation

◆ Ipv6PacketProbe()

ns3::Ipv6PacketProbe::Ipv6PacketProbe ( )

Definition at line 59 of file ipv6-packet-probe.cc.

References m_interface, m_ipv6, m_packet, m_packetSizeOld, and NS_LOG_FUNCTION.

◆ ~Ipv6PacketProbe()

ns3::Ipv6PacketProbe::~Ipv6PacketProbe ( )

override

Definition at line 68 of file ipv6-packet-probe.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

◆ ConnectByObject()

bool ns3::Ipv6PacketProbe::ConnectByObject	(	std::string	traceSource,
		Ptr< Object >	obj
	)

overridevirtual

connect to a trace source attribute provided by a given object

Parameters

traceSource	the name of the attribute TraceSource to connect to
obj	ns3::Object to connect to

Returns: true if the trace source was successfully connected

Implements ns3::Probe.

Definition at line 100 of file ipv6-packet-probe.cc.

References ns3::Names::FindPath(), ns3::MakeCallback(), NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::ObjectBase::TraceConnectWithoutContext(), and TraceSink().

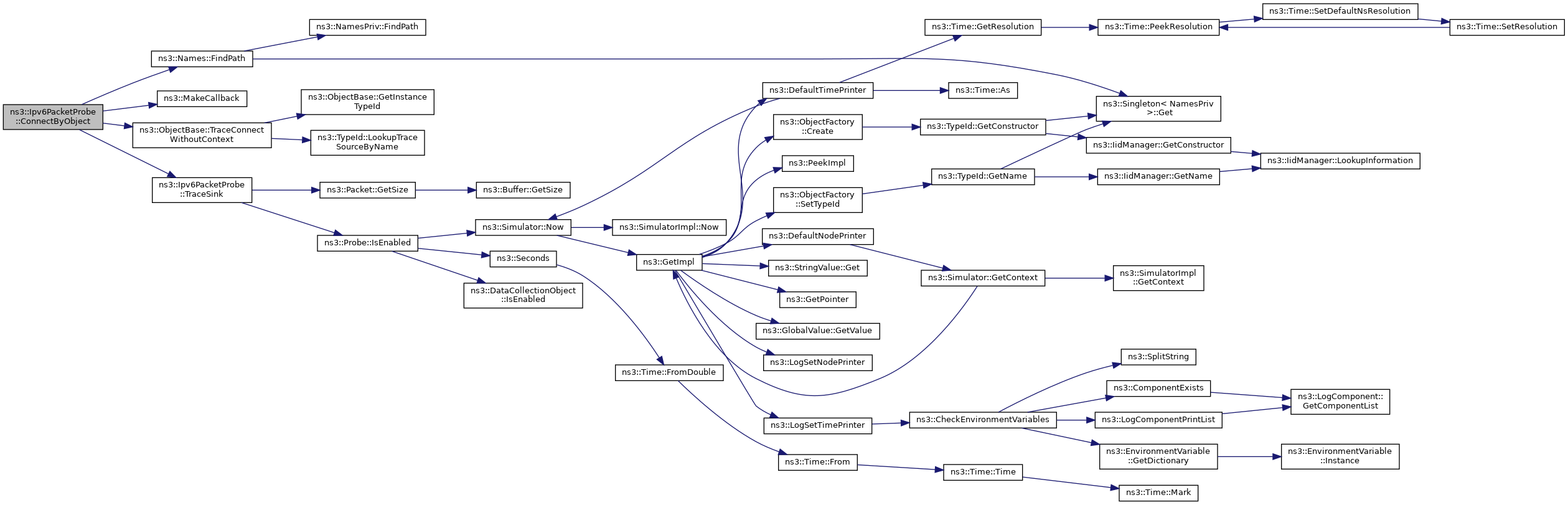

Here is the call graph for this function:

◆ ConnectByPath()

void ns3::Ipv6PacketProbe::ConnectByPath ( std::string path )

overridevirtual

connect to a trace source provided by a config path

Parameters

path	Config path to bind to

Note, if an invalid path is provided, the probe will not be connected to anything.

Implements ns3::Probe.

Definition at line 111 of file ipv6-packet-probe.cc.

References ns3::Config::ConnectWithoutContext(), ns3::MakeCallback(), NS_LOG_DEBUG, NS_LOG_FUNCTION, and TraceSink().

Here is the call graph for this function:

◆ GetTypeId()

TypeId ns3::Ipv6PacketProbe::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 40 of file ipv6-packet-probe.cc.

References m_output, m_outputBytes, ns3::MakeTraceSourceAccessor(), and ns3::TypeId::SetParent().

Here is the call graph for this function:

◆ SetValue()

void ns3::Ipv6PacketProbe::SetValue	(	Ptr< const Packet >	packet,
		Ptr< Ipv6 >	ipv6,
		uint32_t	interface
	)

Set a probe value.

Parameters

packet	set the traced packet equal to this
ipv6	set the IPv6 object for the traced packet equal to this
interface	set the IPv6 interface for the traced packet equal to this

Definition at line 74 of file ipv6-packet-probe.cc.

References ns3::Packet::GetSize(), m_interface, m_ipv6, m_output, m_outputBytes, m_packet, m_packetSizeOld, and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ SetValueByPath()

void ns3::Ipv6PacketProbe::SetValueByPath	(	std::string	path,
		Ptr< const Packet >	packet,
		Ptr< Ipv6 >	ipv6,
		uint32_t	interface
	)

static

Set a probe value by its name in the Config system.

Parameters

path	config path to access the probe
packet	set the traced packet equal to this
ipv6	set the IPv6 object for the traced packet equal to this
interface	set the IPv6 interface for the traced packet equal to this

Definition at line 88 of file ipv6-packet-probe.cc.

References NS_ASSERT_MSG, and NS_LOG_FUNCTION.

◆ TraceSink()

void ns3::Ipv6PacketProbe::TraceSink	(	Ptr< const Packet >	packet,
		Ptr< Ipv6 >	ipv6,
		uint32_t	interface
	)

private

Method to connect to an underlying ns3::TraceSource with arguments of type Ptr<const Packet>, Ptr<Ipv6>, and uint32_t.

Parameters

packet	the traced packet
ipv6	the IPv6 object for the traced packet
interface	the IPv6 interface for the traced packet

Definition at line 119 of file ipv6-packet-probe.cc.

References ns3::Packet::GetSize(), ns3::Probe::IsEnabled(), m_interface, m_ipv6, m_output, m_outputBytes, m_packet, m_packetSizeOld, and NS_LOG_FUNCTION.

Referenced by ConnectByObject(), and ConnectByPath().

Here is the call graph for this function:

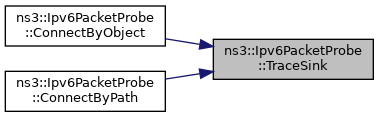

Here is the caller graph for this function:

Member Data Documentation

◆ m_interface

uint32_t ns3::Ipv6PacketProbe::m_interface

private

The IPv6 interface for the traced packet.

Definition at line 127 of file ipv6-packet-probe.h.

Referenced by Ipv6PacketProbe(), SetValue(), and TraceSink().

◆ m_ipv6

Ptr<Ipv6> ns3::Ipv6PacketProbe::m_ipv6

private

The IPv6 object for the traced packet.

Definition at line 124 of file ipv6-packet-probe.h.

Referenced by Ipv6PacketProbe(), SetValue(), and TraceSink().

◆ m_output

ns3::TracedCallback<Ptr<const Packet>, Ptr<Ipv6>, uint32_t> ns3::Ipv6PacketProbe::m_output

private

Traced Callback: the packet, the Ipv6 object and the interface.

Definition at line 116 of file ipv6-packet-probe.h.

Referenced by GetTypeId(), SetValue(), and TraceSink().

◆ m_outputBytes

ns3::TracedCallback<uint32_t, uint32_t> ns3::Ipv6PacketProbe::m_outputBytes

private

Traced Callback: the previous packet's size and the actual packet's size.

Definition at line 118 of file ipv6-packet-probe.h.

Referenced by GetTypeId(), SetValue(), and TraceSink().

◆ m_packet

Ptr<const Packet> ns3::Ipv6PacketProbe::m_packet

private

The traced packet.

Definition at line 121 of file ipv6-packet-probe.h.

Referenced by Ipv6PacketProbe(), SetValue(), and TraceSink().

◆ m_packetSizeOld

uint32_t ns3::Ipv6PacketProbe::m_packetSizeOld

private

The size of the traced packet.

Definition at line 130 of file ipv6-packet-probe.h.

Referenced by Ipv6PacketProbe(), SetValue(), and TraceSink().

The documentation for this class was generated from the following files:

src/internet/model/ipv6-packet-probe.h
src/internet/model/ipv6-packet-probe.cc

Public Member Functions

Static Public Member Functions

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ Ipv6PacketProbe()

◆ ~Ipv6PacketProbe()

Member Function Documentation

◆ ConnectByObject()

◆ ConnectByPath()

◆ GetTypeId()

◆ SetValue()

◆ SetValueByPath()

◆ TraceSink()

Member Data Documentation

◆ m_interface

◆ m_ipv6

◆ m_output

◆ m_outputBytes

◆ m_packet

◆ m_packetSizeOld
