WifiIeFragmentationTest Class Reference

Test fragmentation of Information Elements. More...

Inheritance diagram for WifiIeFragmentationTest:

Collaboration diagram for WifiIeFragmentationTest:

Public Member Functions
	WifiIeFragmentationTest (bool extended)
	Constructor. More...
	~WifiIeFragmentationTest () override=default
void	CheckSerializedByte (const Buffer &buffer, uint32_t position, uint8_t value)
	Check that the given buffer contains the given value at the given position. More...
Buffer	SerializeIntoBuffer (const WifiInformationElement &element)
	Serialize the given element in a buffer. More...
Public Member Functions inherited from ns3::HeaderSerializationTestCase
template<typename T , typename... Args>
void	TestHeaderSerialization (const T &hdr, Args &&... args)
	Serialize the given header in a buffer, then create a new header by deserializing from the buffer and serialize the new header into a new buffer. More...
Public Member Functions inherited from ns3::TestCase
	TestCase (const TestCase &)=delete
virtual	~TestCase ()
	Destructor. More...
std::string	GetName () const
TestCase &	operator= (const TestCase &)=delete

Private Member Functions
void	DoRun () override
	Implementation to actually run this TestCase. More...

Private Attributes
bool	m_extended
	whether the IE includes an Element ID Extension field More...

Additional Inherited Members
Public Types inherited from ns3::TestCase
enum	TestDuration { QUICK = 1 , EXTENSIVE = 2 , TAKES_FOREVER = 3 }
	How long the test takes to execute. More...
Protected Member Functions inherited from ns3::HeaderSerializationTestCase
	HeaderSerializationTestCase (std::string name)
	Constructor. More...
Protected Member Functions inherited from ns3::TestCase
	TestCase (std::string name)
	Constructor. More...
void	AddTestCase (TestCase *testCase, TestDuration duration=QUICK)
	Add an individual child TestCase to this test suite. More...
TestCase *	GetParent () const
	Get the parent of this TestCase. More...
bool	IsStatusFailure () const
	Check if any tests failed. More...
bool	IsStatusSuccess () const
	Check if all tests passed. More...
void	SetDataDir (std::string directory)
	Set the data directory where reference trace files can be found. More...
void	ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
	Log the failure of this TestCase. More...
bool	MustAssertOnFailure () const
	Check if this run should assert on failure. More...
bool	MustContinueOnFailure () const
	Check if this run should continue on failure. More...
std::string	CreateDataDirFilename (std::string filename)
	Construct the full path to a file in the data directory. More...
std::string	CreateTempDirFilename (std::string filename)
	Construct the full path to a file in a temporary directory. More...

Detailed Description

Test fragmentation of Information Elements.

Definition at line 271 of file wifi-ie-fragment-test.cc.

Constructor & Destructor Documentation

WifiIeFragmentationTest()

WifiIeFragmentationTest::WifiIeFragmentationTest

(

bool

extended

)

Constructor.

Parameters

extended

whether this IE includes an Element ID Extension field

Definition at line 304 of file wifi-ie-fragment-test.cc.

~WifiIeFragmentationTest()

WifiIeFragmentationTest::~WifiIeFragmentationTest ( )

overridedefault

Member Function Documentation

CheckSerializedByte()

void WifiIeFragmentationTest::CheckSerializedByte	(	const Buffer &	buffer,
		uint32_t	position,
		uint8_t	value
	)

Check that the given buffer contains the given value at the given position.

Parameters

buffer	the given buffer
position	the given position (starting at 0)
value	the given value

Definition at line 320 of file wifi-ie-fragment-test.cc.

References ns3::Buffer::Begin(), ns3::Buffer::Iterator::Next(), NS_TEST_EXPECT_MSG_EQ, ns3::Buffer::Iterator::ReadU8(), and second::value.

Referenced by DoRun().

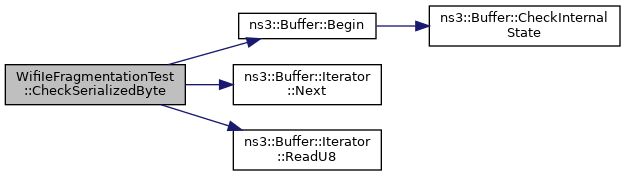

Here is the call graph for this function:

Here is the caller graph for this function:

DoRun()

void WifiIeFragmentationTest::DoRun ( )

overrideprivatevirtual

Implementation to actually run this TestCase.

Subclasses should override this method to conduct their tests.

Implements ns3::TestCase.

Definition at line 329 of file wifi-ie-fragment-test.cc.

References CheckSerializedByte(), g_extendedIe, IE_FRAGMENT, m_extended, NS_TEST_EXPECT_MSG_EQ, SerializeIntoBuffer(), and ns3::HeaderSerializationTestCase::TestHeaderSerialization().

Here is the call graph for this function:

SerializeIntoBuffer()

Buffer WifiIeFragmentationTest::SerializeIntoBuffer

(

const WifiInformationElement &

element

)

Serialize the given element in a buffer.

Parameters

element

the given element

Returns

the buffer in which the given element has been serialized

Definition at line 311 of file wifi-ie-fragment-test.cc.

References ns3::Buffer::AddAtStart(), ns3::Buffer::Begin(), ns3::WifiInformationElement::GetSerializedSize(), and ns3::WifiInformationElement::Serialize().

Referenced by DoRun().

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

m_extended

bool WifiIeFragmentationTest::m_extended

private

whether the IE includes an Element ID Extension field

Definition at line 301 of file wifi-ie-fragment-test.cc.

Referenced by DoRun().

---

The documentation for this class was generated from the following file:

• src/wifi/test/wifi-ie-fragment-test.cc
