IdealRateManagerMimoTest Class Reference

Test to validate that Ideal rate manager properly selects TXVECTOR in scenarios where MIMO is used. More...

Inheritance diagram for IdealRateManagerMimoTest:

Collaboration diagram for IdealRateManagerMimoTest:

Public Member Functions
	IdealRateManagerMimoTest ()
	~IdealRateManagerMimoTest () override
void	DoRun () override
	Implementation to actually run this TestCase. More...
Public Member Functions inherited from ns3::TestCase
	TestCase (const TestCase &)=delete
virtual	~TestCase ()
	Destructor. More...
std::string	GetName () const
TestCase &	operator= (const TestCase &)=delete

Private Member Functions
void	CheckLastSelectedMode (WifiMode expectedMode)
	Check if the selected WifiMode is correct. More...
void	CheckLastSelectedNss (uint8_t expectedNss)
	Check if the selected Nss is correct. More...
void	SendPacket (Ptr< NetDevice > sourceDevice, Address &destination)
	Triggers the transmission of a 1000 Byte-long data packet from the source device. More...
void	SetApMimoSettings (uint8_t antennas, uint8_t maxStreams)
	Change the configured MIMO settings for AP node. More...
void	SetStaMimoSettings (uint8_t antennas, uint8_t maxStreams)
	Change the configured MIMO settings for STA node. More...
void	TxCallback (std::string context, WifiConstPsduMap psdus, WifiTxVector txVector, double txPowerW)
	Callback that indicates a PSDU is being transmitted. More...

Private Attributes
WifiTxVector	m_txVector
	Store the last TXVECTOR used to transmit Data. More...

Additional Inherited Members
Public Types inherited from ns3::TestCase
enum	TestDuration { QUICK = 1 , EXTENSIVE = 2 , TAKES_FOREVER = 3 }
	How long the test takes to execute. More...
Protected Member Functions inherited from ns3::TestCase
	TestCase (std::string name)
	Constructor. More...
void	AddTestCase (TestCase *testCase, TestDuration duration=QUICK)
	Add an individual child TestCase to this test suite. More...
TestCase *	GetParent () const
	Get the parent of this TestCase. More...
bool	IsStatusFailure () const
	Check if any tests failed. More...
bool	IsStatusSuccess () const
	Check if all tests passed. More...
void	SetDataDir (std::string directory)
	Set the data directory where reference trace files can be found. More...
void	ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
	Log the failure of this TestCase. More...
bool	MustAssertOnFailure () const
	Check if this run should assert on failure. More...
bool	MustContinueOnFailure () const
	Check if this run should continue on failure. More...
std::string	CreateDataDirFilename (std::string filename)
	Construct the full path to a file in the data directory. More...
std::string	CreateTempDirFilename (std::string filename)
	Construct the full path to a file in a temporary directory. More...

Detailed Description

Test to validate that Ideal rate manager properly selects TXVECTOR in scenarios where MIMO is used.

The test consider both balanced and unbalanced MIMO settings, and verify ideal picks the correct number of spatial streams and the correct MCS, taking into account potential diversity in AWGN channels when the number of antenna at the receiver is higher than the number of spatial streams used for the transmission.

Definition at line 3133 of file wifi-test.cc.

Constructor & Destructor Documentation

IdealRateManagerMimoTest()

IdealRateManagerMimoTest::IdealRateManagerMimoTest

(

)

Definition at line 3186 of file wifi-test.cc.

~IdealRateManagerMimoTest()

IdealRateManagerMimoTest::~IdealRateManagerMimoTest ( )

override

Definition at line 3191 of file wifi-test.cc.

Member Function Documentation

CheckLastSelectedMode()

void IdealRateManagerMimoTest::CheckLastSelectedMode ( WifiMode  expectedMode )

private

Check if the selected WifiMode is correct.

Parameters

expectedMode

the expected WifiMode

Definition at line 3246 of file wifi-test.cc.

References ns3::WifiTxVector::GetMode(), m_txVector, and NS_TEST_ASSERT_MSG_EQ.

Referenced by DoRun().

Here is the call graph for this function:

Here is the caller graph for this function:

CheckLastSelectedNss()

void IdealRateManagerMimoTest::CheckLastSelectedNss ( uint8_t  expectedNss )

private

Check if the selected Nss is correct.

Parameters

expectedNss

the expected Nss

Definition at line 3237 of file wifi-test.cc.

References ns3::WifiTxVector::GetNss(), m_txVector, and NS_TEST_ASSERT_MSG_EQ.

Referenced by DoRun().

Here is the call graph for this function:

Here is the caller graph for this function:

DoRun()

void IdealRateManagerMimoTest::DoRun ( )

overridevirtual

Implementation to actually run this TestCase.

Subclasses should override this method to conduct their tests.

Implements ns3::TestCase.

Definition at line 3256 of file wifi-test.cc.

References third::channel, CheckLastSelectedMode(), CheckLastSelectedNss(), ns3::Config::Connect(), ns3::NodeContainer::Create(), ns3::NetDeviceContainer::Get(), third::mac, ns3::MakeCallback(), third::mobility, third::phy, ns3::Seconds(), SendPacket(), SetApMimoSettings(), SetStaMimoSettings(), TxCallback(), third::wifi, ns3::WIFI_STANDARD_80211ac, and third::wifiApNode.

Here is the call graph for this function:

SendPacket()

void IdealRateManagerMimoTest::SendPacket ( Ptr< NetDevice >  sourceDevice, Address &  destination  )

private

Triggers the transmission of a 1000 Byte-long data packet from the source device.

Parameters

sourceDevice	pointer to the source NetDevice
destination	address of the destination device

Definition at line 3218 of file wifi-test.cc.

Referenced by DoRun().

Here is the caller graph for this function:

SetApMimoSettings()

void IdealRateManagerMimoTest::SetApMimoSettings ( uint8_t  antennas, uint8_t  maxStreams  )

private

Change the configured MIMO settings for AP node.

Parameters

antennas	the number of active antennas
maxStreams	the maximum number of allowed spatial streams

Definition at line 3196 of file wifi-test.cc.

References ns3::Config::Set().

Referenced by DoRun().

Here is the call graph for this function:

Here is the caller graph for this function:

SetStaMimoSettings()

void IdealRateManagerMimoTest::SetStaMimoSettings ( uint8_t  antennas, uint8_t  maxStreams  )

private

Change the configured MIMO settings for STA node.

Parameters

antennas	the number of active antennas
maxStreams	the maximum number of allowed spatial streams

Definition at line 3207 of file wifi-test.cc.

References ns3::Config::Set().

Referenced by DoRun().

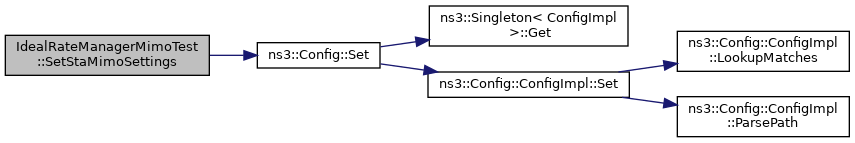

Here is the call graph for this function:

Here is the caller graph for this function:

TxCallback()

void IdealRateManagerMimoTest::TxCallback ( std::string  context, WifiConstPsduMap  psdus, WifiTxVector  txVector, double  txPowerW  )

private

Callback that indicates a PSDU is being transmitted.

Parameters

context	the context
psdus	the PSDU map to transmit
txVector	the TX vector
txPowerW	the TX power (W)

Definition at line 3225 of file wifi-test.cc.

References m_txVector.

Referenced by DoRun().

Here is the caller graph for this function:

Member Data Documentation

m_txVector

WifiTxVector IdealRateManagerMimoTest::m_txVector

private

Store the last TXVECTOR used to transmit Data.

Definition at line 3183 of file wifi-test.cc.

Referenced by CheckLastSelectedMode(), CheckLastSelectedNss(), and TxCallback().

---

The documentation for this class was generated from the following file:

• src/wifi/test/wifi-test.cc
