ns-3: ns3::PointToPointStarHelper Class Reference

A Discrete-Event Network Simulator

API

A helper to make it easier to create a star topology with PointToPoint links. More...

#include "point-to-point-star.h"

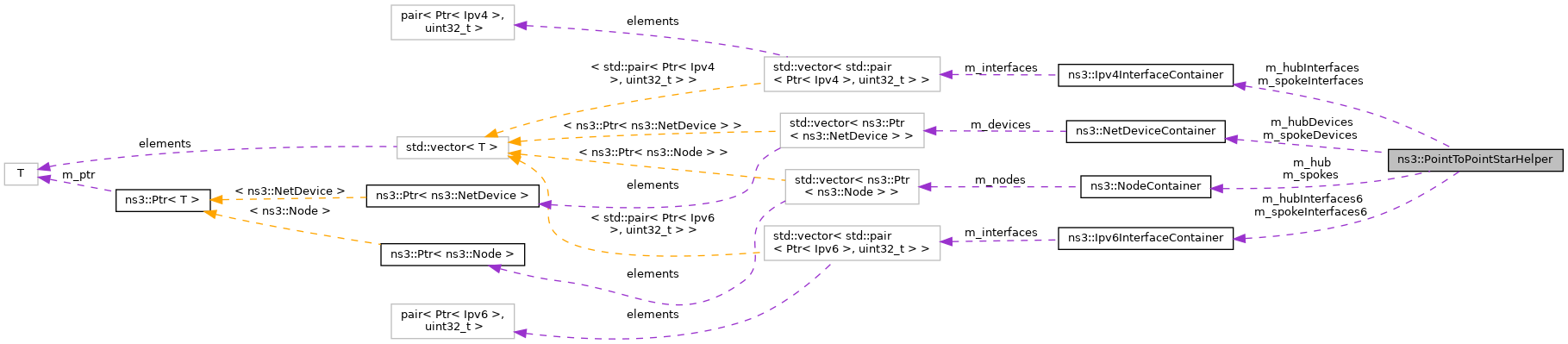

Collaboration diagram for ns3::PointToPointStarHelper:

Public Member Functions
	PointToPointStarHelper (uint32_t numSpokes, PointToPointHelper p2pHelper)
	Create a PointToPointStarHelper in order to easily create star topologies using p2p links. More...

	~PointToPointStarHelper ()

void	AssignIpv4Addresses (Ipv4AddressHelper address)

void	AssignIpv6Addresses (Ipv6Address network, Ipv6Prefix prefix)

void	BoundingBox (double ulx, double uly, double lrx, double lry)
	Sets up the node canvas locations for every node in the star. More...

Ptr< Node >	GetHub () const

Ipv4Address	GetHubIpv4Address (uint32_t i) const

Ipv6Address	GetHubIpv6Address (uint32_t i) const

Ipv4Address	GetSpokeIpv4Address (uint32_t i) const

Ipv6Address	GetSpokeIpv6Address (uint32_t i) const

Ptr< Node >	GetSpokeNode (uint32_t i) const

void	InstallStack (InternetStackHelper stack)

uint32_t	SpokeCount () const

Private Attributes
NodeContainer	m_hub
	Hub node. More...

NetDeviceContainer	m_hubDevices
	Hub node NetDevices. More...

Ipv4InterfaceContainer	m_hubInterfaces
	IPv4 hub interfaces. More...

Ipv6InterfaceContainer	m_hubInterfaces6
	IPv6 hub interfaces. More...

NetDeviceContainer	m_spokeDevices
	Spoke nodes NetDevices. More...

Ipv4InterfaceContainer	m_spokeInterfaces
	IPv4 spoke nodes interfaces. More...

Ipv6InterfaceContainer	m_spokeInterfaces6
	IPv6 spoke nodes interfaces. More...

NodeContainer	m_spokes
	Spoke nodes. More...

Detailed Description

A helper to make it easier to create a star topology with PointToPoint links.

Definition at line 44 of file point-to-point-star.h.

Constructor & Destructor Documentation

◆ PointToPointStarHelper()

ns3::PointToPointStarHelper::PointToPointStarHelper	(	uint32_t	numSpokes,
		PointToPointHelper	p2pHelper
	)

Create a PointToPointStarHelper in order to easily create star topologies using p2p links.

Parameters

numSpokes	the number of links attached to the hub node, creating a total of numSpokes + 1 nodes
p2pHelper	the link helper for p2p links, used to link nodes together

Definition at line 36 of file point-to-point-star.cc.

References ns3::NetDeviceContainer::Add(), ns3::NodeContainer::Create(), ns3::NetDeviceContainer::Get(), ns3::NodeContainer::Get(), ns3::NodeContainer::GetN(), ns3::PointToPointHelper::Install(), m_hub, m_hubDevices, m_spokeDevices, and m_spokes.

Here is the call graph for this function:

◆ ~PointToPointStarHelper()

ns3::PointToPointStarHelper::~PointToPointStarHelper ( )

Definition at line 49 of file point-to-point-star.cc.

Member Function Documentation

◆ AssignIpv4Addresses()

void ns3::PointToPointStarHelper::AssignIpv4Addresses ( Ipv4AddressHelper address )

Parameters

address an Ipv4AddressHelper which is used to install Ipv4 addresses on all the node interfaces in the star

Definition at line 103 of file point-to-point-star.cc.

References ns3::Ipv4InterfaceContainer::Add(), first::address, ns3::NetDeviceContainer::Get(), ns3::NodeContainer::GetN(), m_hubDevices, m_hubInterfaces, m_spokeDevices, m_spokeInterfaces, and m_spokes.

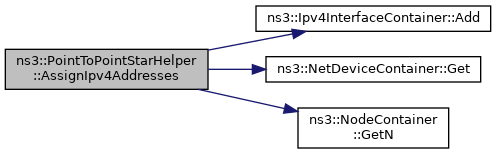

Here is the call graph for this function:

◆ AssignIpv6Addresses()

void ns3::PointToPointStarHelper::AssignIpv6Addresses	(	Ipv6Address	network,
		Ipv6Prefix	prefix
	)

Parameters

network	an IPv6 address representing the network portion of the IPv6 Address
prefix	the prefix length

Definition at line 114 of file point-to-point-star.cc.

References ns3::Ipv6InterfaceContainer::Add(), ns3::Ipv6AddressHelper::Assign(), ns3::NetDeviceContainer::Get(), ns3::NodeContainer::GetN(), ns3::Ipv6AddressGenerator::GetNetwork(), ns3::Ipv6AddressGenerator::Init(), m_hubDevices, m_hubInterfaces6, m_spokeDevices, m_spokeInterfaces6, m_spokes, ns3::Ipv6AddressGenerator::NextNetwork(), and ns3::Ipv6AddressHelper::SetBase().

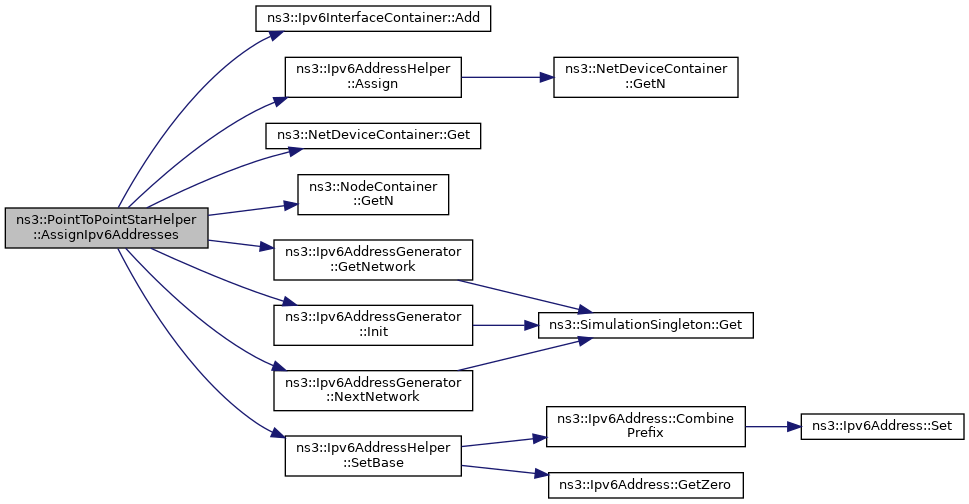

Here is the call graph for this function:

◆ BoundingBox()

void ns3::PointToPointStarHelper::BoundingBox	(	double	ulx,
		double	uly,
		double	lrx,
		double	lry
	)

Sets up the node canvas locations for every node in the star.

This is needed for use with the animation interface

Parameters

ulx	upper left x value
uly	upper left y value
lrx	lower right x value
lry	lower right y value

Definition at line 135 of file point-to-point-star.cc.

References ns3::Object::AggregateObject(), ns3::NodeContainer::Get(), ns3::NodeContainer::GetN(), ns3::Object::GetObject(), m_hub, and m_spokes.

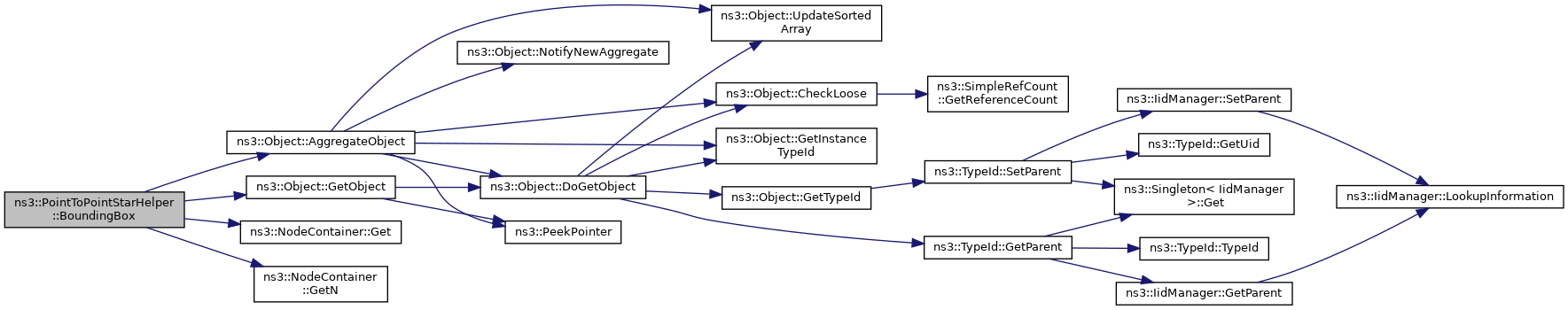

Here is the call graph for this function:

◆ GetHub()

Ptr< Node > ns3::PointToPointStarHelper::GetHub ( ) const

Returns: a node pointer to the hub node in the star, i.e., the center node

Definition at line 54 of file point-to-point-star.cc.

References ns3::NodeContainer::Get(), and m_hub.

Here is the call graph for this function:

◆ GetHubIpv4Address()

Ipv4Address ns3::PointToPointStarHelper::GetHubIpv4Address ( uint32_t i ) const

Parameters

i	index into the hub interfaces

Returns: Ipv4Address according to indexed hub interface

Definition at line 66 of file point-to-point-star.cc.

References ns3::Ipv4InterfaceContainer::GetAddress(), and m_hubInterfaces.

Here is the call graph for this function:

◆ GetHubIpv6Address()

Ipv6Address ns3::PointToPointStarHelper::GetHubIpv6Address ( uint32_t i ) const

Parameters

i	index into the hub interfaces

Returns: Ipv6Address according to indexed hub interface

Definition at line 78 of file point-to-point-star.cc.

References ns3::Ipv6InterfaceContainer::GetAddress(), and m_hubInterfaces6.

Here is the call graph for this function:

◆ GetSpokeIpv4Address()

Ipv4Address ns3::PointToPointStarHelper::GetSpokeIpv4Address ( uint32_t i ) const

Parameters

i	index into the spoke interfaces

Returns: Ipv4Address according to indexed spoke interface

Definition at line 72 of file point-to-point-star.cc.

References ns3::Ipv4InterfaceContainer::GetAddress(), and m_spokeInterfaces.

Here is the call graph for this function:

◆ GetSpokeIpv6Address()

Ipv6Address ns3::PointToPointStarHelper::GetSpokeIpv6Address ( uint32_t i ) const

Parameters

i	index into the spoke interfaces

Returns: Ipv6Address according to indexed spoke interface

Definition at line 84 of file point-to-point-star.cc.

References ns3::Ipv6InterfaceContainer::GetAddress(), and m_spokeInterfaces6.

Here is the call graph for this function:

◆ GetSpokeNode()

Ptr< Node > ns3::PointToPointStarHelper::GetSpokeNode ( uint32_t i ) const

Parameters

i	an index into the spokes of the star

Returns: a node pointer to the node at the indexed spoke

Definition at line 60 of file point-to-point-star.cc.

References ns3::NodeContainer::Get(), and m_spokes.

Here is the call graph for this function:

◆ InstallStack()

void ns3::PointToPointStarHelper::InstallStack ( InternetStackHelper stack )

Parameters

stack an InternetStackHelper which is used to install on every node in the star

Definition at line 96 of file point-to-point-star.cc.

References m_hub, m_spokes, and first::stack.

◆ SpokeCount()

uint32_t ns3::PointToPointStarHelper::SpokeCount ( ) const

Returns: the total number of spokes in the star

Definition at line 90 of file point-to-point-star.cc.

References ns3::NodeContainer::GetN(), and m_spokes.

Here is the call graph for this function:

Member Data Documentation

◆ m_hub

NodeContainer ns3::PointToPointStarHelper::m_hub

private

Hub node.

Definition at line 141 of file point-to-point-star.h.

Referenced by PointToPointStarHelper(), BoundingBox(), GetHub(), and InstallStack().

◆ m_hubDevices

NetDeviceContainer ns3::PointToPointStarHelper::m_hubDevices

private

Hub node NetDevices.

Definition at line 142 of file point-to-point-star.h.

Referenced by PointToPointStarHelper(), AssignIpv4Addresses(), and AssignIpv6Addresses().

◆ m_hubInterfaces

Ipv4InterfaceContainer ns3::PointToPointStarHelper::m_hubInterfaces

private

IPv4 hub interfaces.

Definition at line 145 of file point-to-point-star.h.

Referenced by AssignIpv4Addresses(), and GetHubIpv4Address().

◆ m_hubInterfaces6

Ipv6InterfaceContainer ns3::PointToPointStarHelper::m_hubInterfaces6

private

IPv6 hub interfaces.

Definition at line 147 of file point-to-point-star.h.

Referenced by AssignIpv6Addresses(), and GetHubIpv6Address().

◆ m_spokeDevices

NetDeviceContainer ns3::PointToPointStarHelper::m_spokeDevices

private

Spoke nodes NetDevices.

Definition at line 144 of file point-to-point-star.h.

Referenced by PointToPointStarHelper(), AssignIpv4Addresses(), and AssignIpv6Addresses().

◆ m_spokeInterfaces

Ipv4InterfaceContainer ns3::PointToPointStarHelper::m_spokeInterfaces

private

IPv4 spoke nodes interfaces.

Definition at line 146 of file point-to-point-star.h.

Referenced by AssignIpv4Addresses(), and GetSpokeIpv4Address().

◆ m_spokeInterfaces6

Ipv6InterfaceContainer ns3::PointToPointStarHelper::m_spokeInterfaces6

private

IPv6 spoke nodes interfaces.

Definition at line 148 of file point-to-point-star.h.

Referenced by AssignIpv6Addresses(), and GetSpokeIpv6Address().

◆ m_spokes

NodeContainer ns3::PointToPointStarHelper::m_spokes

private

Spoke nodes.

Definition at line 143 of file point-to-point-star.h.

Referenced by PointToPointStarHelper(), AssignIpv4Addresses(), AssignIpv6Addresses(), BoundingBox(), GetSpokeNode(), InstallStack(), and SpokeCount().

The documentation for this class was generated from the following files:

src/point-to-point-layout/model/point-to-point-star.h
src/point-to-point-layout/model/point-to-point-star.cc
