ns3::MlmeScanRequestParams Struct Reference

MLME-SCAN.request params. More...

#include "lr-wpan-mac-base.h"

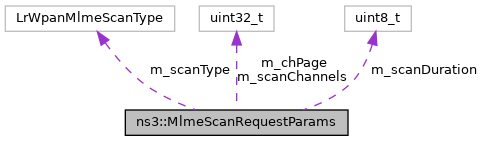

Collaboration diagram for ns3::MlmeScanRequestParams:

Public Attributes
uint32_t	m_chPage {0}
	The channel page on which to perform scan. More...
uint32_t	m_scanChannels {0x7FFF800}
	The channel numbers to be scanned. More...
uint8_t	m_scanDuration {14}
	The factor (0-14) used to calculate the length of time to spend scanning. More...
LrWpanMlmeScanType	m_scanType {MLMESCAN_PASSIVE}
	Indicates the type of scan performed as described in IEEE 802.15.4-2011 (5.1.2.1). More...

Detailed Description

MLME-SCAN.request params.

See IEEE 802.15.4-2011 Section 6.2.10.1 Table 30

Definition at line 161 of file lr-wpan-mac-base.h.

Member Data Documentation

m_chPage

uint32_t ns3::MlmeScanRequestParams::m_chPage {0}

The channel page on which to perform scan.

Definition at line 172 of file lr-wpan-mac-base.h.

Referenced by TestActiveScanPanDescriptors::DoRun(), TestOrphanScan::DoRun(), ns3::LrWpanMac::EndChannelScan(), ns3::LrWpanMac::PdDataIndication(), and ns3::LrWpanMac::PlmeSetAttributeConfirm().

m_scanChannels

uint32_t ns3::MlmeScanRequestParams::m_scanChannels {0x7FFF800}

The channel numbers to be scanned.

Default: (0x7FFF800 = Ch11-Ch26) 27 LSB (b0,b1,...,b26) = channels

Definition at line 165 of file lr-wpan-mac-base.h.

Referenced by TestActiveScanPanDescriptors::DoRun(), TestOrphanScan::DoRun(), ns3::LrWpanMac::EndChannelEnergyScan(), ns3::LrWpanMac::EndChannelScan(), and ns3::LrWpanMac::PlmeSetAttributeConfirm().

m_scanDuration

uint8_t ns3::MlmeScanRequestParams::m_scanDuration {14}

The factor (0-14) used to calculate the length of time to spend scanning.

scanDurationSymbols = [aBaseSuperframeDuration * (2^m_scanDuration + 1)].

Definition at line 168 of file lr-wpan-mac-base.h.

Referenced by TestActiveScanPanDescriptors::DoRun(), and ns3::LrWpanMac::PlmeSetAttributeConfirm().

m_scanType

LrWpanMlmeScanType ns3::MlmeScanRequestParams::m_scanType {MLMESCAN_PASSIVE}

Indicates the type of scan performed as described in IEEE 802.15.4-2011 (5.1.2.1).

Definition at line 163 of file lr-wpan-mac-base.h.

Referenced by TestActiveScanPanDescriptors::DoRun(), TestOrphanScan::DoRun(), ns3::LrWpanMac::EndChannelEnergyScan(), ns3::LrWpanMac::EndChannelScan(), ns3::LrWpanMac::PdDataIndication(), and ns3::LrWpanMac::PlmeSetAttributeConfirm().

---

The documentation for this struct was generated from the following file:

• src/lr-wpan/model/lr-wpan-mac-base.h
