Unsupported Bandwidth Reception Test This test checks whether a PHY receiving a PPDU sent over a channel width larger than the one supported by the PHY is getting dropped at the expected time. More...

Inheritance diagram for TestUnsupportedBandwidthReception:

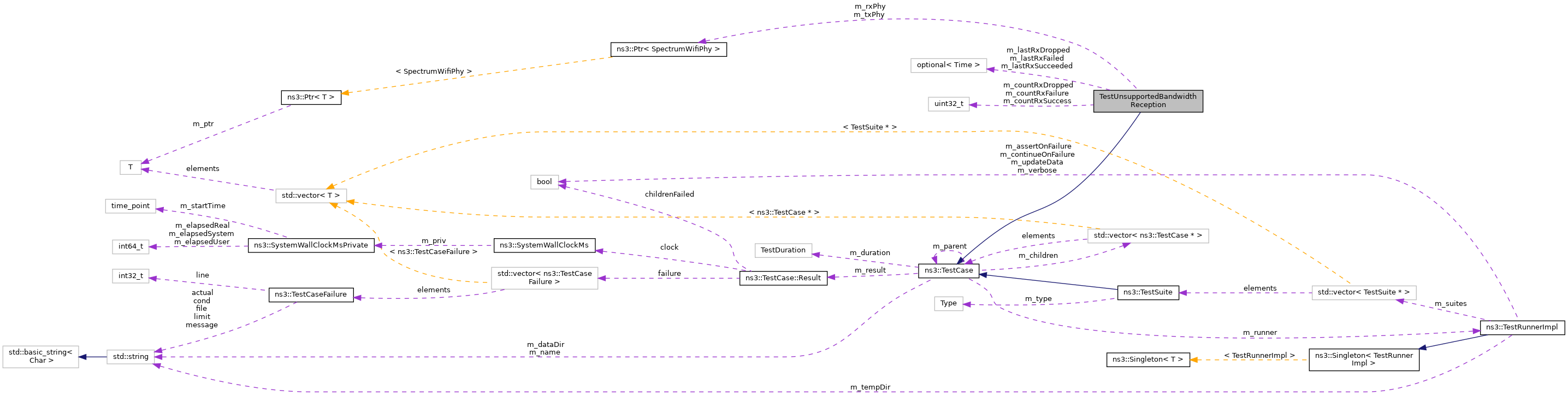

Collaboration diagram for TestUnsupportedBandwidthReception:

Public Member Functions
	TestUnsupportedBandwidthReception ()

Public Member Functions inherited from ns3::TestCase
	TestCase (const TestCase &)=delete

virtual	~TestCase ()
	Destructor. More...

std::string	GetName () const

TestCase &	operator= (const TestCase &)=delete

Private Member Functions
void	CheckRx (uint32_t expectedCountRxSuccess, uint32_t expectedCountRxFailure, uint32_t expectedCountRxDropped, std::optional< Time > expectedLastRxSucceeded, std::optional< Time > expectedLastRxFailed, std::optional< Time > expectedLastRxDropped)
	Check the reception results. More...

void	DoRun () override
	Implementation to actually run this TestCase. More...

void	DoSetup () override
	Implementation to do any local setup required for this TestCase. More...

void	DoTeardown () override
	Implementation to do any local setup required for this TestCase. More...

void	RxDropped (Ptr< const Packet > packet, WifiPhyRxfailureReason reason)
	Function called upon a PSDU dropped by the PHY. More...

void	RxFailure (Ptr< const WifiPsdu > psdu)
	Function called upon a PSDU received unsuccessfuly. More...

void	RxSuccess (Ptr< const WifiPsdu > psdu, RxSignalInfo rxSignalInfo, WifiTxVector txVector, std::vector< bool > statusPerMpdu)
	Function called upon a PSDU received successfully. More...

void	SendPpdu (uint16_t centerFreqMhz, uint16_t bandwidthMhz)
	Function to create a PPDU. More...

Private Attributes
uint32_t	m_countRxDropped
	count RX drop More...

uint32_t	m_countRxFailure
	count RX failure More...

uint32_t	m_countRxSuccess
	count RX success More...

std::optional< Time >	m_lastRxDropped
	time of last RX drop, if any More...

std::optional< Time >	m_lastRxFailed
	time of last RX failure, if any More...

std::optional< Time >	m_lastRxSucceeded
	time of last RX success, if any More...

Ptr< SpectrumWifiPhy >	m_rxPhy
	RX PHY. More...

Ptr< SpectrumWifiPhy >	m_txPhy
	TX PHY. More...

Additional Inherited Members
Public Types inherited from ns3::TestCase
enum	TestDuration { QUICK = 1 , EXTENSIVE = 2 , TAKES_FOREVER = 3 }
	How long the test takes to execute. More...

Protected Member Functions inherited from ns3::TestCase
	TestCase (std::string name)
	Constructor. More...

void	AddTestCase (TestCase *testCase, TestDuration duration=QUICK)
	Add an individual child TestCase to this test suite. More...

TestCase *	GetParent () const
	Get the parent of this TestCase. More...

bool	IsStatusFailure () const
	Check if any tests failed. More...

bool	IsStatusSuccess () const
	Check if all tests passed. More...

void	SetDataDir (std::string directory)
	Set the data directory where reference trace files can be found. More...

void	ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
	Log the failure of this TestCase. More...

bool	MustAssertOnFailure () const
	Check if this run should assert on failure. More...

bool	MustContinueOnFailure () const
	Check if this run should continue on failure. More...

std::string	CreateDataDirFilename (std::string filename)
	Construct the full path to a file in the data directory. More...

std::string	CreateTempDirFilename (std::string filename)
	Construct the full path to a file in a temporary directory. More...

Detailed Description

Unsupported Bandwidth Reception Test This test checks whether a PHY receiving a PPDU sent over a channel width larger than the one supported by the PHY is getting dropped at the expected time.

The expected time corresponds to the moment the PHY header indicating the channel width used to transmit the PPDU is received. Since we are considering 802.11ax for this test, this corresponds to the time HE-SIG-A is received.

Definition at line 4215 of file wifi-phy-reception-test.cc.

Constructor & Destructor Documentation

◆ TestUnsupportedBandwidthReception()

TestUnsupportedBandwidthReception::TestUnsupportedBandwidthReception ( )

Definition at line 4288 of file wifi-phy-reception-test.cc.

Member Function Documentation

◆ CheckRx()

void TestUnsupportedBandwidthReception::CheckRx	(	uint32_t	expectedCountRxSuccess,
		uint32_t	expectedCountRxFailure,
		uint32_t	expectedCountRxDropped,
		std::optional< Time >	expectedLastRxSucceeded,
		std::optional< Time >	expectedLastRxFailed,
		std::optional< Time >	expectedLastRxDropped
	)

private

Check the reception results.

Parameters

expectedCountRxSuccess	the expected number of RX success
expectedCountRxFailure	the expected number of RX failure
expectedCountRxDropped	the expected number of RX drop
expectedLastRxSucceeded	the expected time the last RX success occurred or std::nullopt if the expected number of RX success is not strictly positive
expectedLastRxFailed	the expected time the last RX failure occurred or std::nullopt if the expected number of RX failure is not strictly positive
expectedLastRxDropped	the expected time the last RX drop occurred or std::nullopt if the expected number of RX drop is not strictly positive

Definition at line 4362 of file wifi-phy-reception-test.cc.

References m_countRxDropped, m_countRxFailure, m_countRxSuccess, m_lastRxDropped, m_lastRxFailed, m_lastRxSucceeded, NS_ASSERT, and NS_TEST_ASSERT_MSG_EQ.

Referenced by DoRun().

Here is the caller graph for this function:

◆ DoRun()

void TestUnsupportedBandwidthReception::DoRun ( )

overrideprivatevirtual

Implementation to actually run this TestCase.

Subclasses should override this method to conduct their tests.

Implements ns3::TestCase.

Definition at line 4454 of file wifi-phy-reception-test.cc.

References ns3::WifiPhy::AssignStreams(), CheckRx(), m_rxPhy, m_txPhy, ns3::MicroSeconds(), ns3::Seconds(), SendPpdu(), ns3::WifiPhy::SetOperatingChannel(), and ns3::WIFI_PHY_BAND_5GHZ.

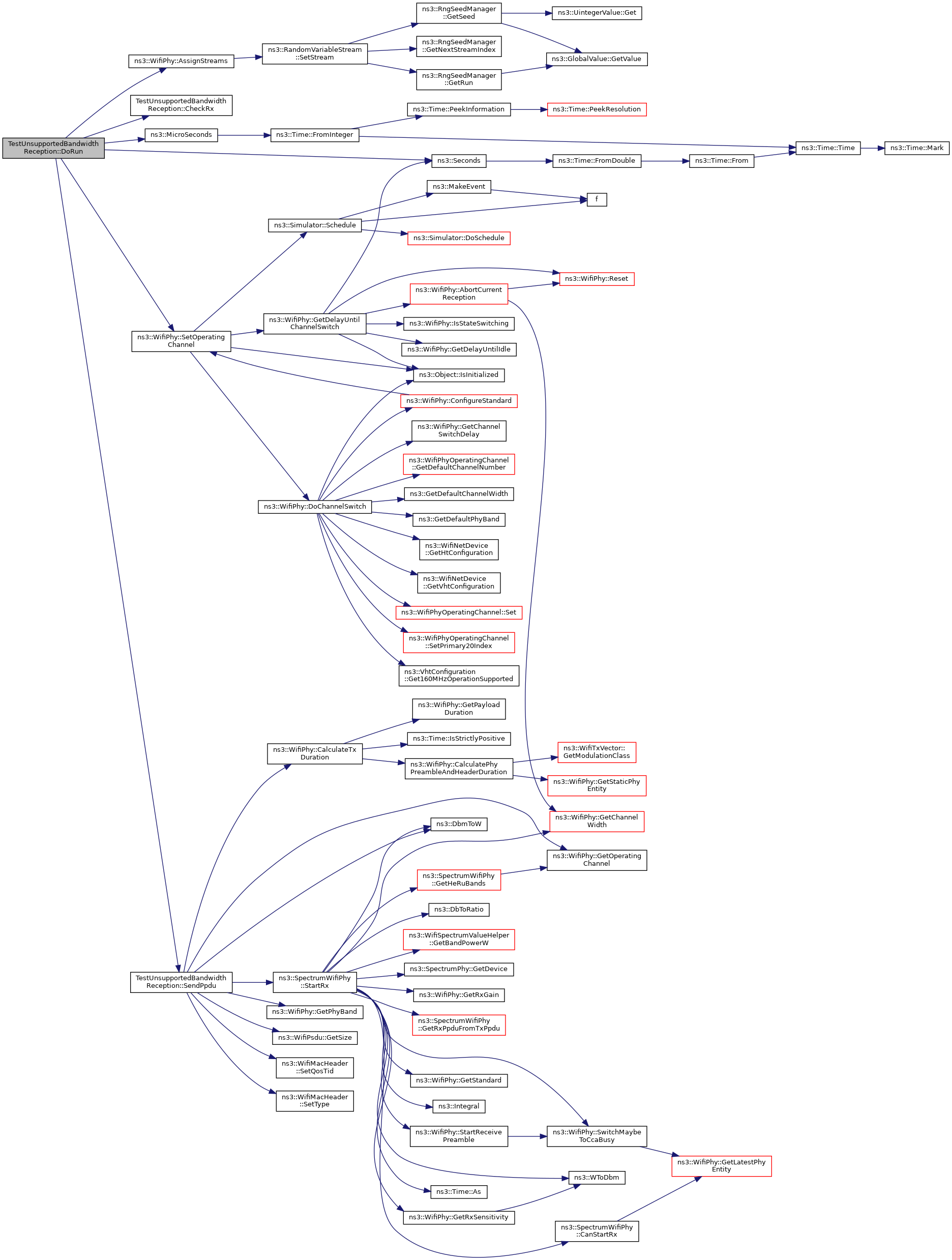

Here is the call graph for this function:

◆ DoSetup()

void TestUnsupportedBandwidthReception::DoSetup ( )

overrideprivatevirtual

Implementation to do any local setup required for this TestCase.

Subclasses should override this method to perform any costly per-test setup before DoRun is invoked.

Reimplemented from ns3::TestCase.

Definition at line 4410 of file wifi-phy-reception-test.cc.

References ns3::SpectrumWifiPhy::AddChannel(), ns3::Node::AddDevice(), ns3::WifiPhy::ConfigureStandard(), m_rxPhy, m_txPhy, ns3::MakeCallback(), RxDropped(), RxFailure(), RxSuccess(), ns3::SpectrumWifiPhy::SetDevice(), ns3::WifiPhy::SetErrorRateModel(), ns3::WifiPhy::SetInterferenceHelper(), ns3::WifiNetDevice::SetPhy(), ns3::WifiPhy::SetReceiveErrorCallback(), ns3::WifiPhy::SetReceiveOkCallback(), ns3::ObjectBase::TraceConnectWithoutContext(), and ns3::WIFI_STANDARD_80211ax.

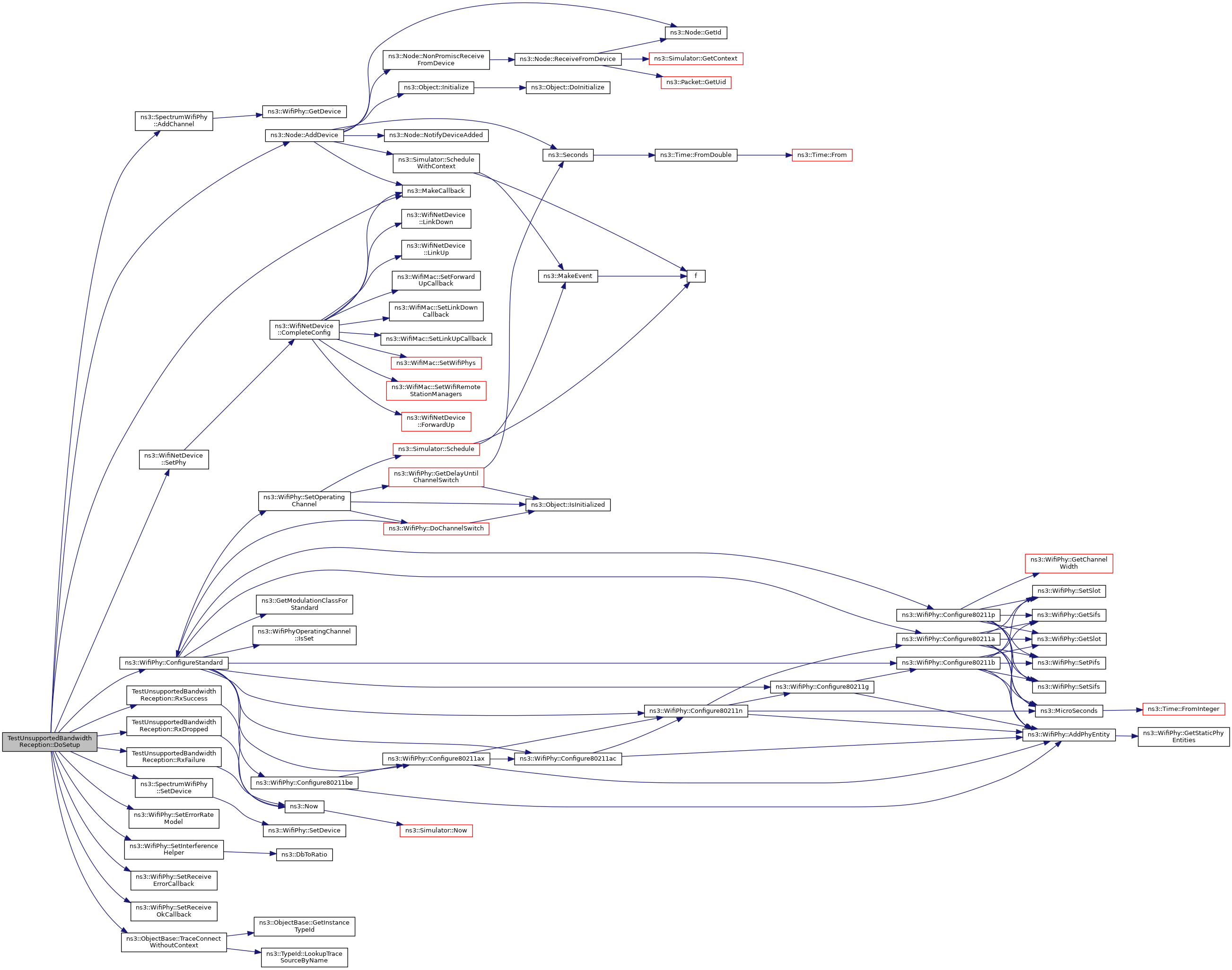

Here is the call graph for this function:

◆ DoTeardown()

void TestUnsupportedBandwidthReception::DoTeardown ( )

overrideprivatevirtual

Implementation to do any local setup required for this TestCase.

Subclasses should override this method to perform any costly per-test teardown

Reimplemented from ns3::TestCase.

Definition at line 4444 of file wifi-phy-reception-test.cc.

References ns3::Object::Dispose(), m_rxPhy, and m_txPhy.

Here is the call graph for this function:

◆ RxDropped()

void TestUnsupportedBandwidthReception::RxDropped	(	Ptr< const Packet >	packet,
		WifiPhyRxfailureReason	reason
	)

private

Function called upon a PSDU dropped by the PHY.

Parameters

packet	the packet that was dropped
reason	the reason the packet was dropped

Definition at line 4353 of file wifi-phy-reception-test.cc.

References m_countRxDropped, m_lastRxDropped, ns3::Now(), NS_ASSERT, NS_LOG_FUNCTION, and ns3::UNSUPPORTED_SETTINGS.

Referenced by DoSetup().

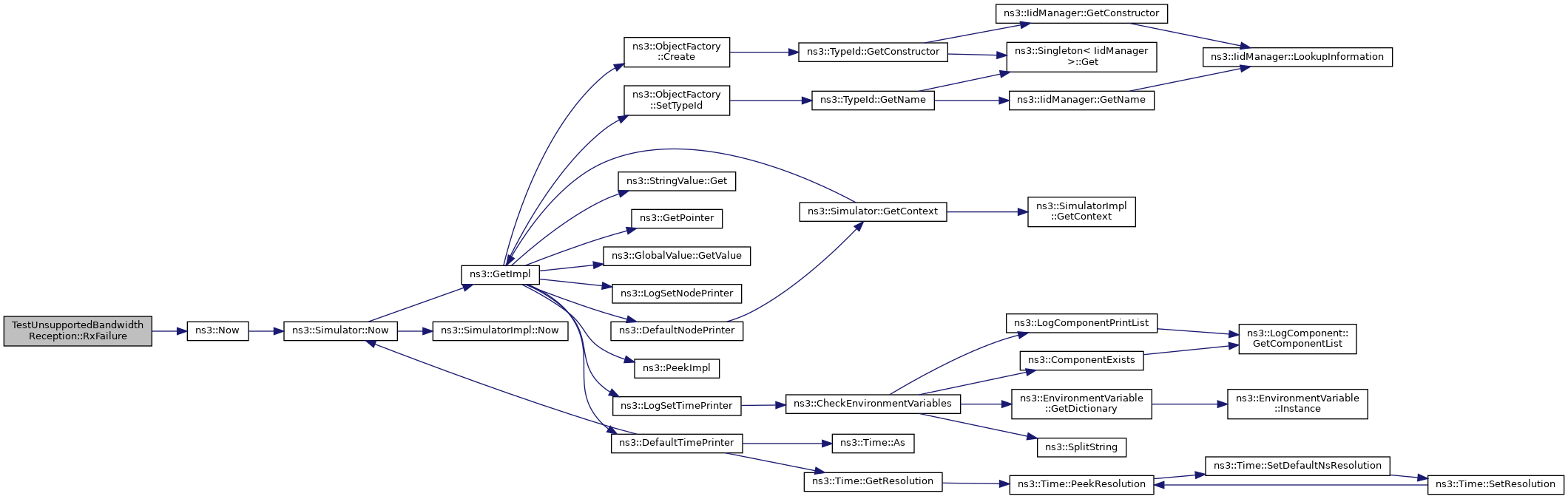

Here is the call graph for this function:

Here is the caller graph for this function:

◆ RxFailure()

void TestUnsupportedBandwidthReception::RxFailure ( Ptr< const WifiPsdu > psdu )

private

Function called upon a PSDU received unsuccessfuly.

Parameters

psdu the PSDU

Definition at line 4345 of file wifi-phy-reception-test.cc.

References m_countRxFailure, m_lastRxFailed, ns3::Now(), and NS_LOG_FUNCTION.

Referenced by DoSetup().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ RxSuccess()

void TestUnsupportedBandwidthReception::RxSuccess	(	Ptr< const WifiPsdu >	psdu,
		RxSignalInfo	rxSignalInfo,
		WifiTxVector	txVector,
		std::vector< bool >	statusPerMpdu
	)

private

Function called upon a PSDU received successfully.

Parameters

psdu	the PSDU
rxSignalInfo	the info on the received signal (

See also: RxSignalInfo)

Parameters

txVector	the transmit vector
statusPerMpdu	reception status per MPDU

Definition at line 4334 of file wifi-phy-reception-test.cc.

References m_countRxSuccess, m_lastRxSucceeded, ns3::Now(), and NS_LOG_FUNCTION.

Referenced by DoSetup().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SendPpdu()

void TestUnsupportedBandwidthReception::SendPpdu	(	uint16_t	centerFreqMhz,
		uint16_t	bandwidthMhz
	)

private

Function to create a PPDU.

Parameters

centerFreqMhz	the center frequency used for the transmission of the PPDU (in MHz)
bandwidthMhz	the bandwidth used for the transmission of the PPDU (in MHz)

Definition at line 4301 of file wifi-phy-reception-test.cc.

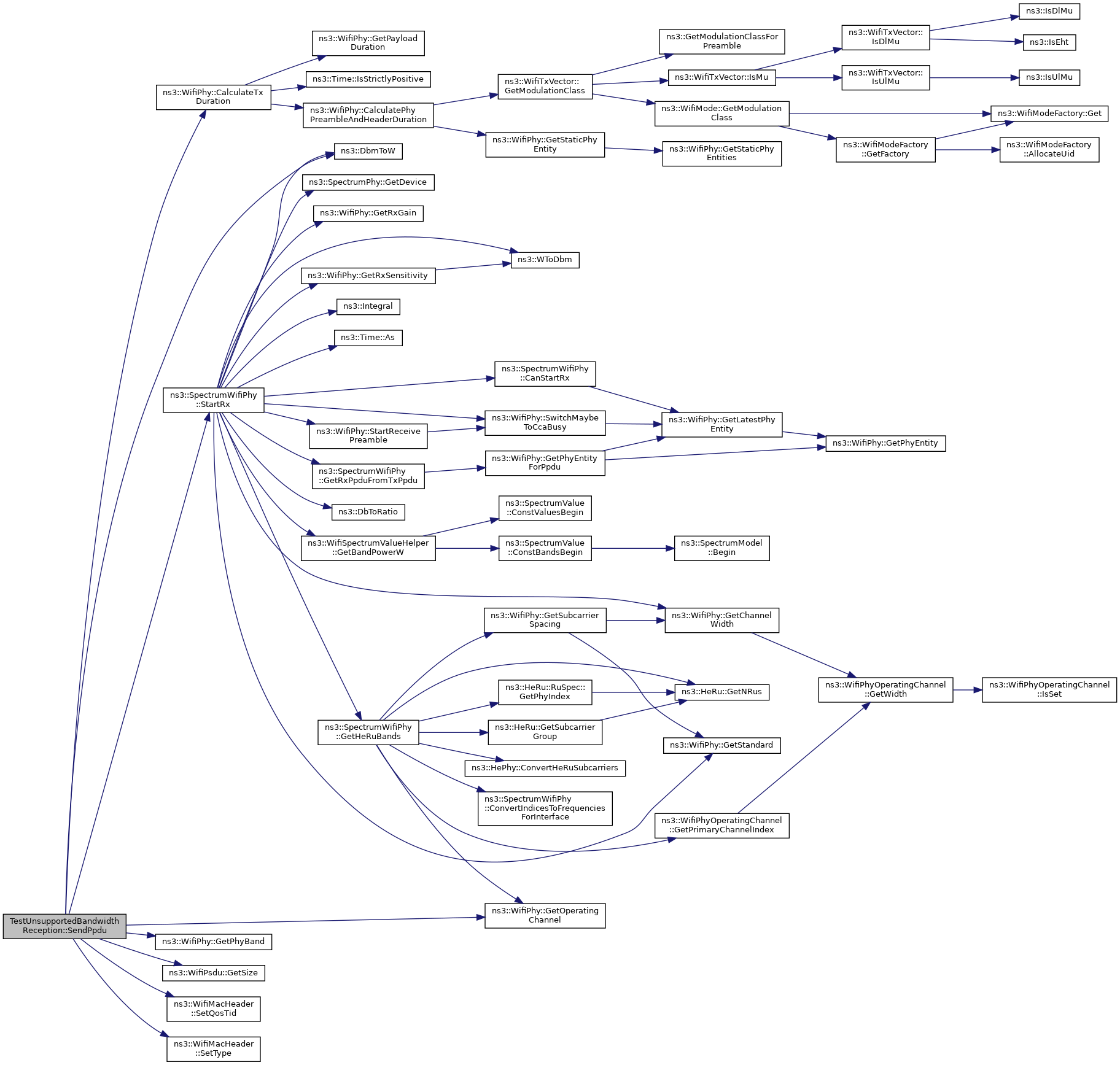

References ns3::WifiPhy::CalculateTxDuration(), ns3::DbmToW(), ns3::WifiPhy::GetOperatingChannel(), ns3::WifiPhy::GetPhyBand(), ns3::WifiPsdu::GetSize(), m_rxPhy, m_txPhy, ns3::WifiMacHeader::SetQosTid(), ns3::WifiMacHeader::SetType(), ns3::SpectrumWifiPhy::StartRx(), ns3::WIFI_MAC_QOSDATA, and ns3::WIFI_PREAMBLE_HE_SU.
