DualStackTestCase Class Reference

IPv6 dual stack Test. More...

Inheritance diagram for DualStackTestCase:

Collaboration diagram for DualStackTestCase:

Public Member Functions
	DualStackTestCase ()
Public Member Functions inherited from ns3::TestCase
	TestCase (const TestCase &)=delete
virtual	~TestCase ()
	Destructor. More...
std::string	GetName () const
TestCase &	operator= (const TestCase &)=delete

Private Member Functions
void	DoRun () override
	Implementation to actually run this TestCase. More...
void	DoTeardown () override
	Implementation to do any local setup required for this TestCase. More...
void	ServerHandleConnectionCreated1 (Ptr< Socket > s, const Address &addr)
	Handle connection created (1). More...
void	ServerHandleConnectionCreated2 (Ptr< Socket > s, const Address &addr)
	Handle connection created (2). More...
void	ServerHandleConnectionCreated3 (Ptr< Socket > s, const Address &addr)
	Handle connection created (3). More...
void	ServerHandleConnectionCreated4 (Ptr< Socket > s, const Address &addr)
	Handle connection created (4). More...
void	SetUpSim ()
	Setup the test. More...

Private Attributes
Ptr< Node >	node0
	Node 0. More...
Ptr< Node >	node1
	Node 1. More...
Address	receivedAddr1
	Received address (1). More...
Address	receivedAddr2
	Received address (2). More...
Address	receivedAddr3
	Received address (3). More...
Address	receivedAddr4
	Received address (4). More...
Ptr< Socket >	server1
	Server socket (1). More...
Ptr< Socket >	server2
	Server socket (2). More...
Ptr< Socket >	server3
	Server socket (3). More...
Ptr< Socket >	server4
	Server socket (4). More...
Ptr< Socket >	source1
	Sending socket (1). More...
Ptr< Socket >	source2
	Sending socket (2). More...
Ptr< Socket >	source3
	Sending socket (3). More...
Ptr< Socket >	source4
	Sending socket (4). More...

Additional Inherited Members
Public Types inherited from ns3::TestCase
enum	TestDuration { QUICK = 1 , EXTENSIVE = 2 , TAKES_FOREVER = 3 }
	How long the test takes to execute. More...
Protected Member Functions inherited from ns3::TestCase
	TestCase (std::string name)
	Constructor. More...
void	AddTestCase (TestCase *testCase, TestDuration duration=QUICK)
	Add an individual child TestCase to this test suite. More...
TestCase *	GetParent () const
	Get the parent of this TestCase. More...
bool	IsStatusFailure () const
	Check if any tests failed. More...
bool	IsStatusSuccess () const
	Check if all tests passed. More...
void	SetDataDir (std::string directory)
	Set the data directory where reference trace files can be found. More...
void	ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
	Log the failure of this TestCase. More...
bool	MustAssertOnFailure () const
	Check if this run should assert on failure. More...
bool	MustContinueOnFailure () const
	Check if this run should continue on failure. More...
std::string	CreateDataDirFilename (std::string filename)
	Construct the full path to a file in the data directory. More...
std::string	CreateTempDirFilename (std::string filename)
	Construct the full path to a file in a temporary directory. More...

Detailed Description

IPv6 dual stack Test.

Definition at line 58 of file ipv6-dual-stack-test-suite.cc.

Constructor & Destructor Documentation

DualStackTestCase()

DualStackTestCase::DualStackTestCase

(

)

Definition at line 257 of file ipv6-dual-stack-test-suite.cc.

References receivedAddr1, receivedAddr2, receivedAddr3, and receivedAddr4.

Member Function Documentation

DoRun()

void DualStackTestCase::DoRun ( )

overrideprivatevirtual

Implementation to actually run this TestCase.

Subclasses should override this method to conduct their tests.

Implements ns3::TestCase.

Definition at line 267 of file ipv6-dual-stack-test-suite.cc.

References ns3::Socket::Bind(), ns3::Socket::Connect(), ns3::Address::IsInvalid(), ns3::Socket::Listen(), ns3::MakeCallback(), ns3::MakeNullCallback(), NS_TEST_EXPECT_MSG_EQ, receivedAddr1, receivedAddr2, receivedAddr3, receivedAddr4, server1, server2, server3, server4, ServerHandleConnectionCreated1(), ServerHandleConnectionCreated2(), ServerHandleConnectionCreated3(), ServerHandleConnectionCreated4(), ns3::Socket::SetAcceptCallback(), SetUpSim(), source1, source2, source3, and source4.

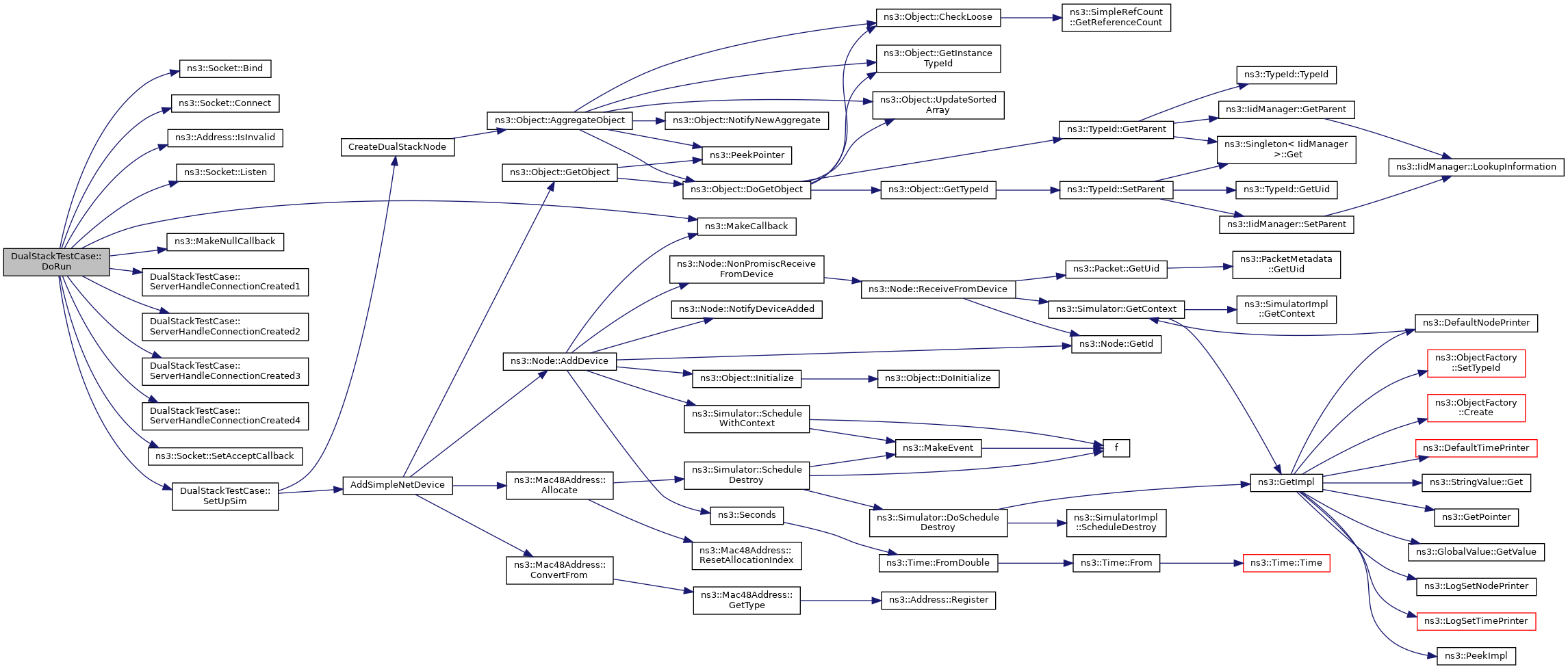

Here is the call graph for this function:

DoTeardown()

void DualStackTestCase::DoTeardown ( )

overrideprivatevirtual

Implementation to do any local setup required for this TestCase.

Subclasses should override this method to perform any costly per-test teardown

Reimplemented from ns3::TestCase.

Definition at line 349 of file ipv6-dual-stack-test-suite.cc.

ServerHandleConnectionCreated1()

void DualStackTestCase::ServerHandleConnectionCreated1 ( Ptr< Socket >  s, const Address &  addr  )

private

Handle connection created (1).

Parameters

s	The socket.
addr	The peer address.

Definition at line 234 of file ipv6-dual-stack-test-suite.cc.

Referenced by DoRun().

Here is the caller graph for this function:

ServerHandleConnectionCreated2()

void DualStackTestCase::ServerHandleConnectionCreated2 ( Ptr< Socket >  s, const Address &  addr  )

private

Handle connection created (2).

Parameters

s	The socket.
addr	The peer address.

Definition at line 240 of file ipv6-dual-stack-test-suite.cc.

Referenced by DoRun().

Here is the caller graph for this function:

ServerHandleConnectionCreated3()

void DualStackTestCase::ServerHandleConnectionCreated3 ( Ptr< Socket >  s, const Address &  addr  )

private

Handle connection created (3).

Parameters

s	The socket.
addr	The peer address.

Definition at line 246 of file ipv6-dual-stack-test-suite.cc.

Referenced by DoRun().

Here is the caller graph for this function:

ServerHandleConnectionCreated4()

void DualStackTestCase::ServerHandleConnectionCreated4 ( Ptr< Socket >  s, const Address &  addr  )

private

Handle connection created (4).

Parameters

s	The socket.
addr	The peer address.

Definition at line 252 of file ipv6-dual-stack-test-suite.cc.

Referenced by DoRun().

Here is the caller graph for this function:

SetUpSim()

void DualStackTestCase::SetUpSim ( )

private

Setup the test.

Definition at line 199 of file ipv6-dual-stack-test-suite.cc.

References AddSimpleNetDevice(), third::channel, and CreateDualStackNode().

Referenced by DoRun().

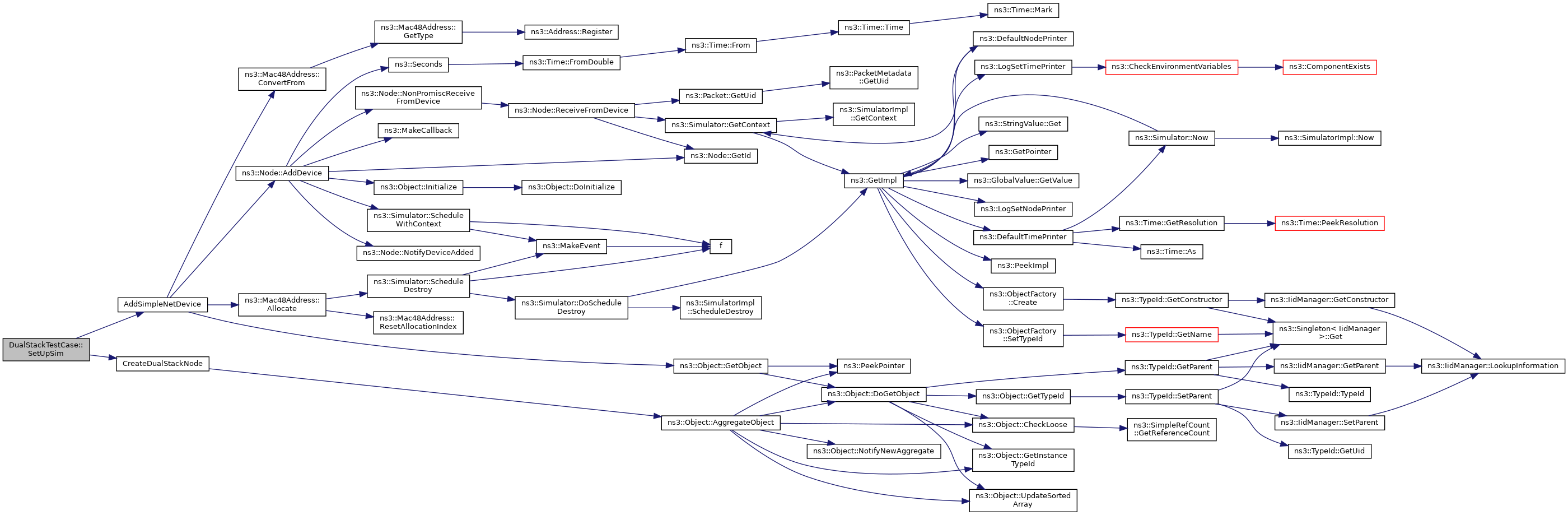

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

node0

Ptr<Node> DualStackTestCase::node0

private

Node 0.

Definition at line 72 of file ipv6-dual-stack-test-suite.cc.

node1

Ptr<Node> DualStackTestCase::node1

private

Node 1.

Definition at line 73 of file ipv6-dual-stack-test-suite.cc.

Referenced by wifi_intrastructure_link.WifiLink::destroy(), wifi_intrastructure_link.WifiLink::tooltip_query(), visualizer.core.WiredLink::update_points(), and wifi_intrastructure_link.WifiLink::update_points().

receivedAddr1

Address DualStackTestCase::receivedAddr1

private

Received address (1).

Definition at line 110 of file ipv6-dual-stack-test-suite.cc.

Referenced by DualStackTestCase(), and DoRun().

receivedAddr2

Address DualStackTestCase::receivedAddr2

private

Received address (2).

Definition at line 111 of file ipv6-dual-stack-test-suite.cc.

Referenced by DualStackTestCase(), and DoRun().

receivedAddr3

Address DualStackTestCase::receivedAddr3

private

Received address (3).

Definition at line 112 of file ipv6-dual-stack-test-suite.cc.

Referenced by DualStackTestCase(), and DoRun().

receivedAddr4

Address DualStackTestCase::receivedAddr4

private

Received address (4).

Definition at line 113 of file ipv6-dual-stack-test-suite.cc.

Referenced by DualStackTestCase(), and DoRun().

server1

Ptr<Socket> DualStackTestCase::server1

private

Server socket (1).

Definition at line 100 of file ipv6-dual-stack-test-suite.cc.

Referenced by DoRun().

server2

Ptr<Socket> DualStackTestCase::server2

private

Server socket (2).

Definition at line 101 of file ipv6-dual-stack-test-suite.cc.

Referenced by DoRun().

server3

Ptr<Socket> DualStackTestCase::server3

private

Server socket (3).

Definition at line 102 of file ipv6-dual-stack-test-suite.cc.

Referenced by DoRun().

server4

Ptr<Socket> DualStackTestCase::server4

private

Server socket (4).

Definition at line 103 of file ipv6-dual-stack-test-suite.cc.

Referenced by DoRun().

source1

Ptr<Socket> DualStackTestCase::source1

private

Sending socket (1).

Definition at line 105 of file ipv6-dual-stack-test-suite.cc.

Referenced by DoRun().

source2

Ptr<Socket> DualStackTestCase::source2

private

Sending socket (2).

Definition at line 106 of file ipv6-dual-stack-test-suite.cc.

Referenced by DoRun().

source3

Ptr<Socket> DualStackTestCase::source3

private

Sending socket (3).

Definition at line 107 of file ipv6-dual-stack-test-suite.cc.

Referenced by DoRun().

source4

Ptr<Socket> DualStackTestCase::source4

private

Sending socket (4).

Definition at line 108 of file ipv6-dual-stack-test-suite.cc.

Referenced by DoRun().

---

The documentation for this class was generated from the following file:

• src/internet/test/ipv6-dual-stack-test-suite.cc
