A low-level Socket API based loosely on the BSD Socket API. More...

#include "socket.h"

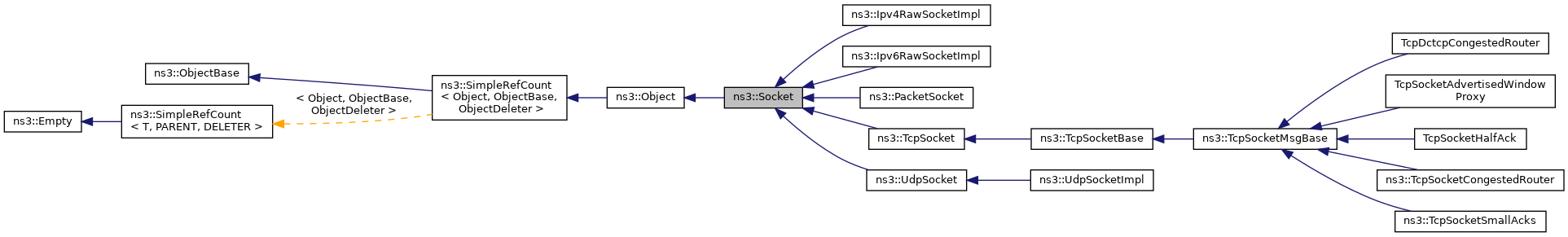

Inheritance diagram for ns3::Socket:

Collaboration diagram for ns3::Socket:

Public Types
enum	Ipv6MulticastFilterMode { INCLUDE = 1 , EXCLUDE }
	Enumeration of the possible filter of a socket. More...

enum	SocketErrno { ERROR_NOTERROR , ERROR_ISCONN , ERROR_NOTCONN , ERROR_MSGSIZE , ERROR_AGAIN , ERROR_SHUTDOWN , ERROR_OPNOTSUPP , ERROR_AFNOSUPPORT , ERROR_INVAL , ERROR_BADF , ERROR_NOROUTETOHOST , ERROR_NODEV , ERROR_ADDRNOTAVAIL , ERROR_ADDRINUSE , SOCKET_ERRNO_LAST }
	Enumeration of the possible errors returned by a socket. More...

enum	SocketPriority { NS3_PRIO_BESTEFFORT = 0 , NS3_PRIO_FILLER = 1 , NS3_PRIO_BULK = 2 , NS3_PRIO_INTERACTIVE_BULK = 4 , NS3_PRIO_INTERACTIVE = 6 , NS3_PRIO_CONTROL = 7 }
	Enumeration of the possible socket priorities. More...

enum	SocketType { NS3_SOCK_STREAM , NS3_SOCK_SEQPACKET , NS3_SOCK_DGRAM , NS3_SOCK_RAW }
	Enumeration of the possible socket types. More...

Public Member Functions
	Socket ()

	~Socket () override

virtual int	Bind ()=0
	Allocate a local IPv4 endpoint for this socket. More...

virtual int	Bind (const Address &address)=0
	Allocate a local endpoint for this socket. More...

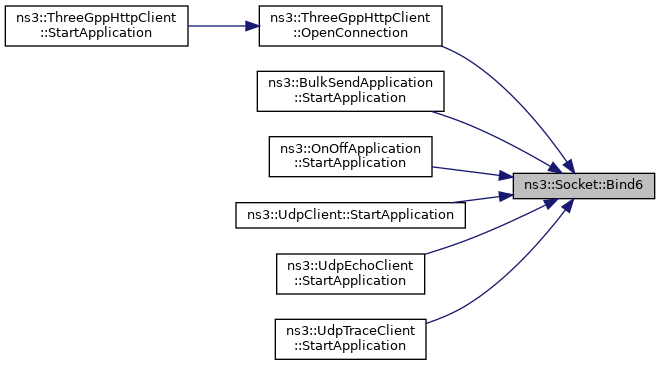

virtual int	Bind6 ()=0
	Allocate a local IPv6 endpoint for this socket. More...

virtual void	BindToNetDevice (Ptr< NetDevice > netdevice)
	Bind a socket to specific device. More...

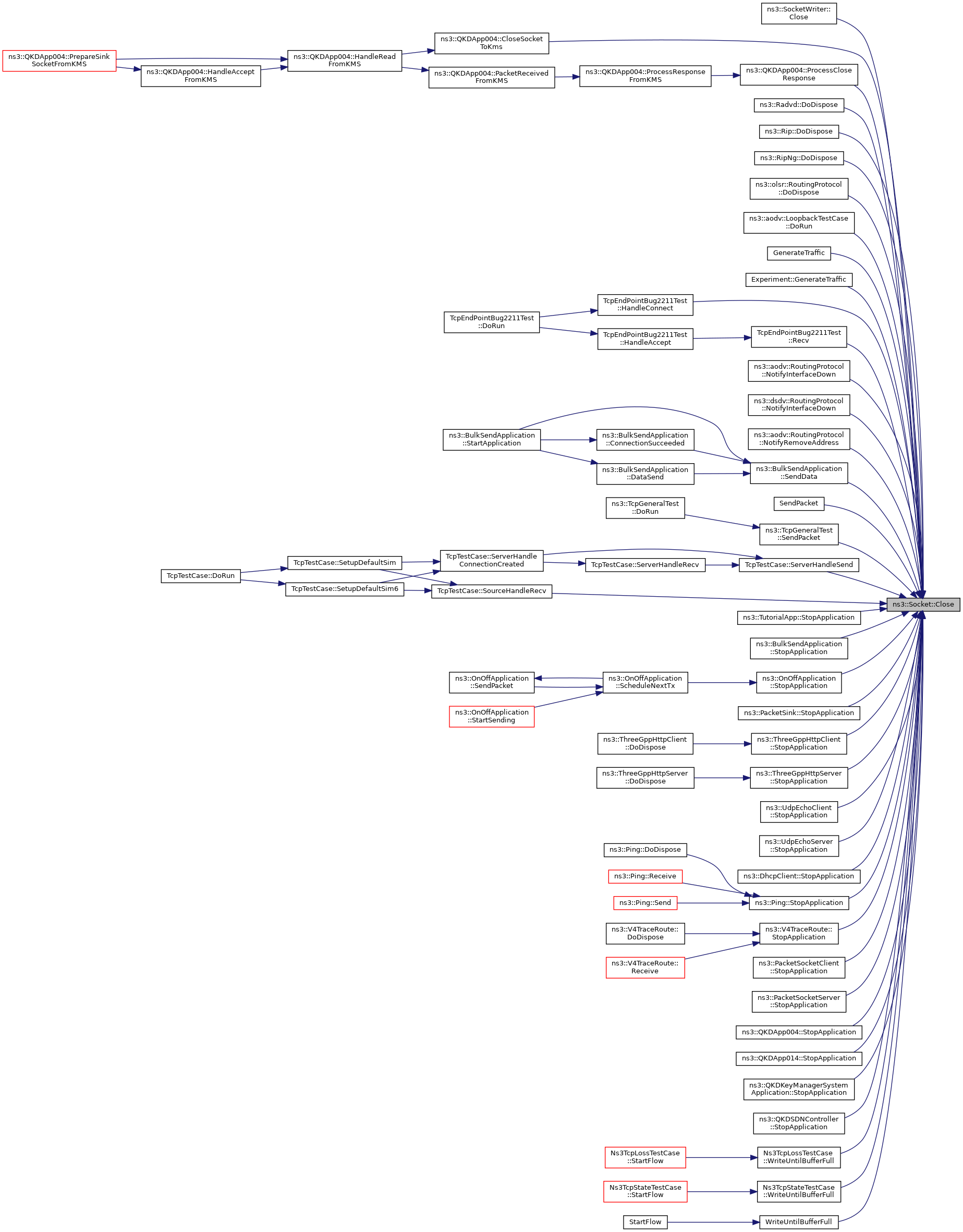

virtual int	Close ()=0
	Close a socket. More...

virtual int	Connect (const Address &address)=0
	Initiate a connection to a remote host. More...

virtual bool	GetAllowBroadcast () const =0
	Query whether broadcast datagram transmissions are allowed. More...

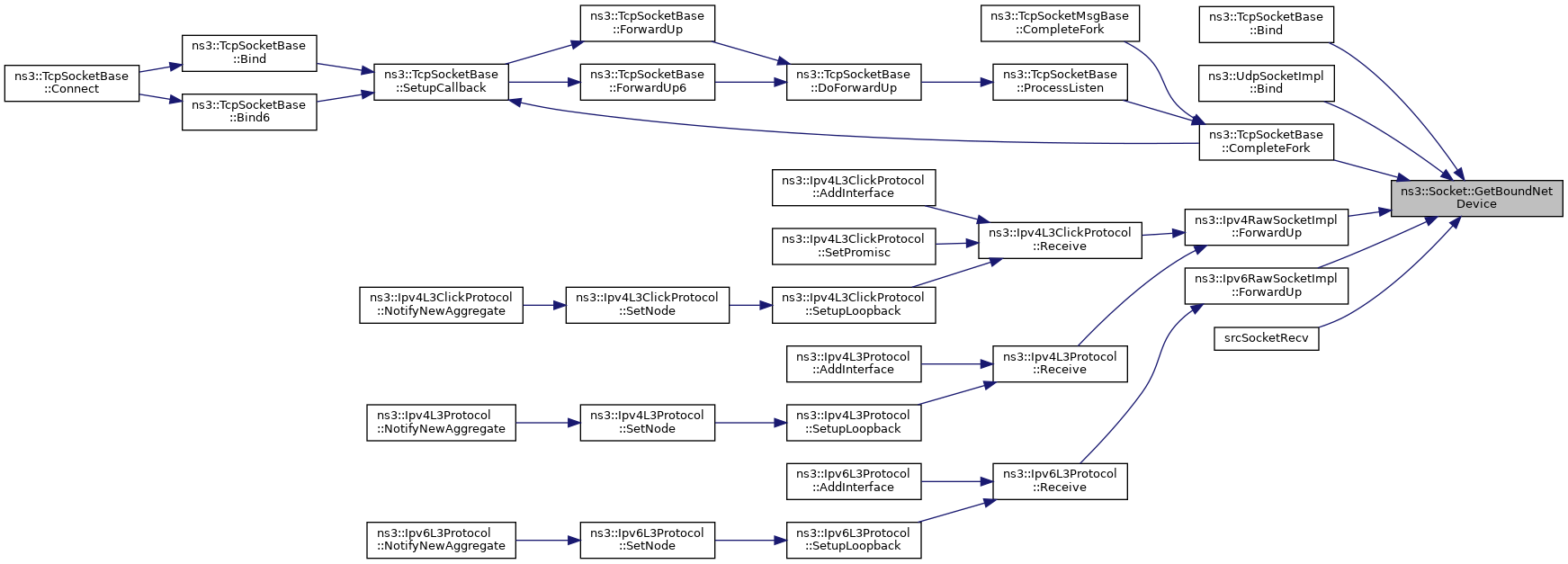

Ptr< NetDevice >	GetBoundNetDevice ()
	Returns socket's bound NetDevice, if any. More...

virtual Socket::SocketErrno	GetErrno () const =0
	Get last error number. More...

uint8_t	GetIpTos () const
	Query the value of IP Type of Service of this socket. More...

virtual uint8_t	GetIpTtl () const
	Query the value of IP Time to Live field of this socket. More...

virtual uint8_t	GetIpv6HopLimit () const
	Query the value of IP Hop Limit field of this socket. More...

uint8_t	GetIpv6Tclass () const
	Query the value of IPv6 Traffic Class field of this socket. More...

virtual Ptr< Node >	GetNode () const =0
	Return the node this socket is associated with. More...

virtual int	GetPeerName (Address &address) const =0
	Get the peer address of a connected socket. More...

uint8_t	GetPriority () const
	Query the priority value of this socket. More...

virtual uint32_t	GetRxAvailable () const =0
	Return number of bytes which can be returned from one or multiple calls to Recv. More...

virtual Socket::SocketType	GetSocketType () const =0

virtual int	GetSockName (Address &address) const =0
	Get socket address. More...

virtual uint32_t	GetTxAvailable () const =0
	Returns the number of bytes which can be sent in a single call to Send. More...

virtual void	Ipv6JoinGroup (Ipv6Address address)
	Joins a IPv6 multicast group without filters. More...

virtual void	Ipv6JoinGroup (Ipv6Address address, Ipv6MulticastFilterMode filterMode, std::vector< Ipv6Address > sourceAddresses)
	Joins a IPv6 multicast group. More...

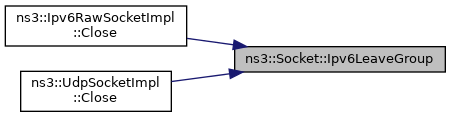

virtual void	Ipv6LeaveGroup ()
	Leaves IPv6 multicast group this socket is joined to. More...

bool	IsIpRecvTos () const
	Ask if the socket is currently passing information about IP Type of Service up the stack. More...

bool	IsIpRecvTtl () const
	Ask if the socket is currently passing information about IP_TTL up the stack. More...

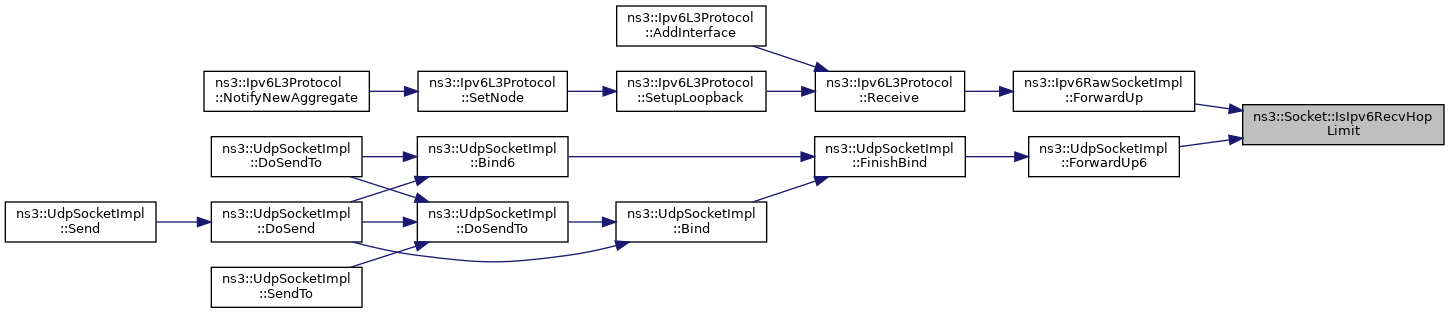

bool	IsIpv6RecvHopLimit () const
	Ask if the socket is currently passing information about IPv6 Hop Limit up the stack. More...

bool	IsIpv6RecvTclass () const
	Ask if the socket is currently passing information about IPv6 Traffic Class up the stack. More...

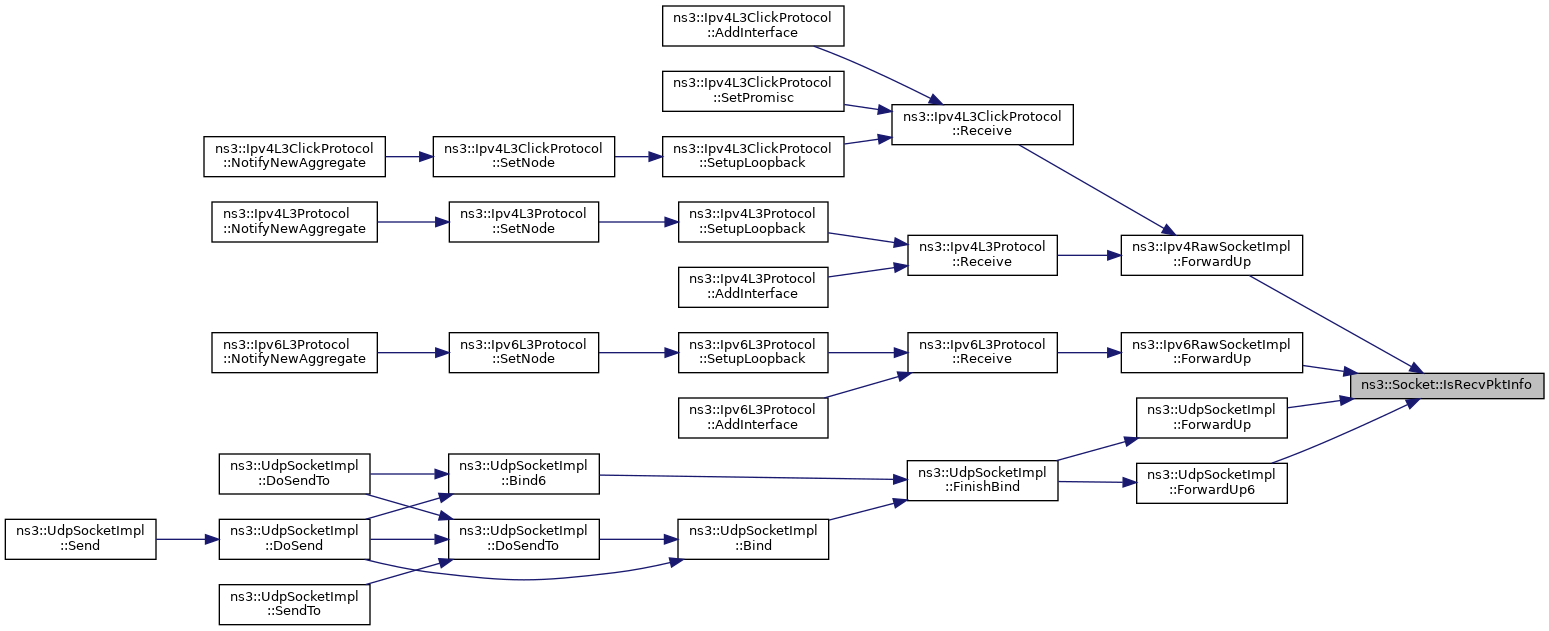

bool	IsRecvPktInfo () const
	Get status indicating whether enable/disable packet information to socket. More...

virtual int	Listen ()=0
	Listen for incoming connections. More...

Ptr< Packet >	Recv ()
	Read a single packet from the socket. More...

virtual Ptr< Packet >	Recv (uint32_t maxSize, uint32_t flags)=0
	Read data from the socket. More...

int	Recv (uint8_t *buf, uint32_t size, uint32_t flags)
	Recv data (or dummy data) from the remote host. More...

Ptr< Packet >	RecvFrom (Address &fromAddress)
	Read a single packet from the socket and retrieve the sender address. More...

virtual Ptr< Packet >	RecvFrom (uint32_t maxSize, uint32_t flags, Address &fromAddress)=0
	Read a single packet from the socket and retrieve the sender address. More...

int	RecvFrom (uint8_t *buf, uint32_t size, uint32_t flags, Address &fromAddress)
	Read a single packet from the socket and retrieve the sender address. More...

int	Send (const uint8_t *buf, uint32_t size, uint32_t flags)
	Send data (or dummy data) to the remote host. More...

int	Send (Ptr< Packet > p)
	Send data (or dummy data) to the remote host. More...

virtual int	Send (Ptr< Packet > p, uint32_t flags)=0
	Send data (or dummy data) to the remote host. More...

int	SendTo (const uint8_t *buf, uint32_t size, uint32_t flags, const Address &address)
	Send data to a specified peer. More...

virtual int	SendTo (Ptr< Packet > p, uint32_t flags, const Address &toAddress)=0
	Send data to a specified peer. More...

void	SetAcceptCallback (Callback< bool, Ptr< Socket >, const Address & > connectionRequest, Callback< void, Ptr< Socket >, const Address & > newConnectionCreated)
	Accept connection requests from remote hosts. More...

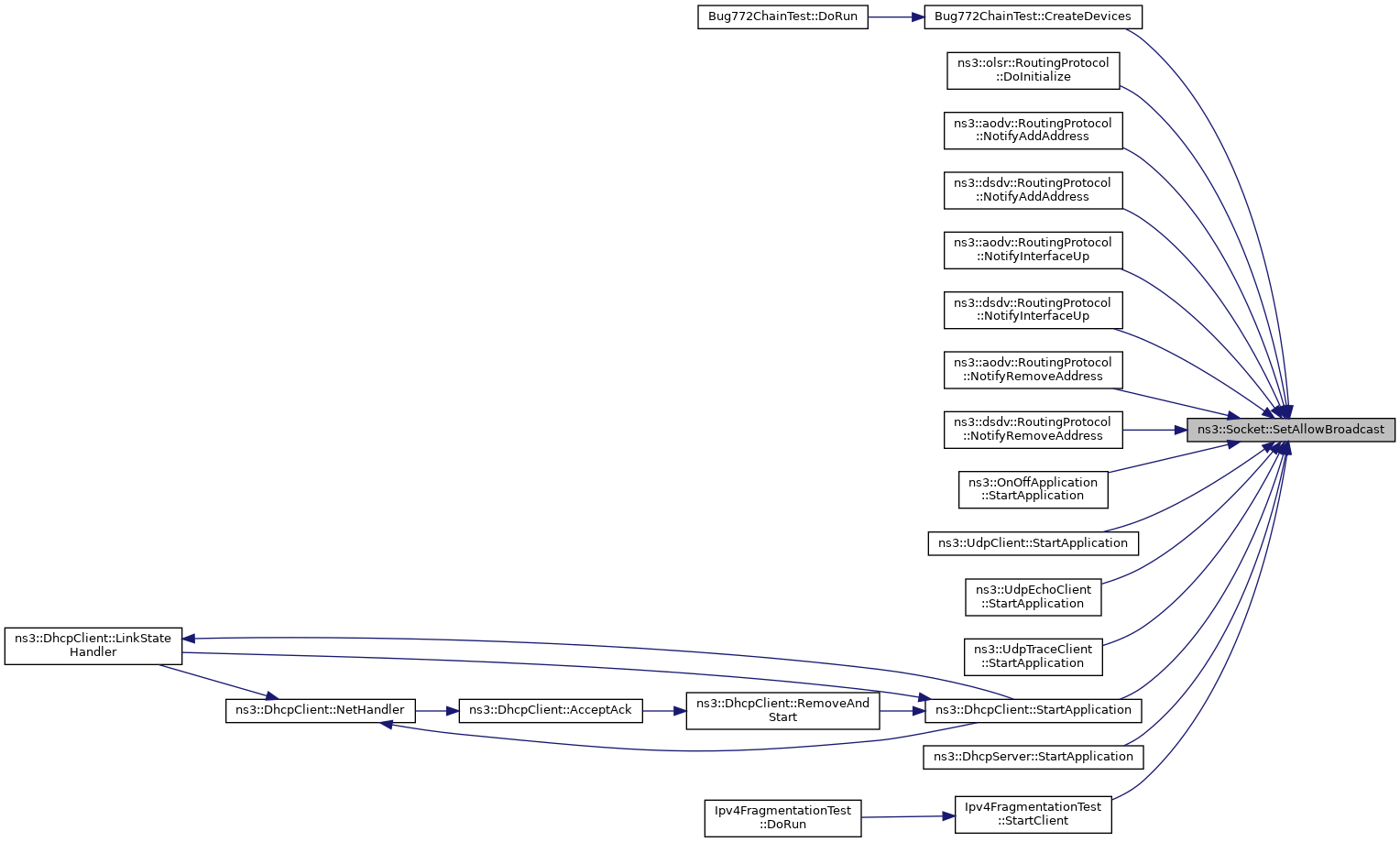

virtual bool	SetAllowBroadcast (bool allowBroadcast)=0
	Configure whether broadcast datagram transmissions are allowed. More...

void	SetCloseCallbacks (Callback< void, Ptr< Socket >> normalClose, Callback< void, Ptr< Socket >> errorClose)
	Detect socket recv() events such as graceful shutdown or error. More...

void	SetConnectCallback (Callback< void, Ptr< Socket >> connectionSucceeded, Callback< void, Ptr< Socket >> connectionFailed)
	Specify callbacks to allow the caller to determine if the connection succeeds of fails. More...

void	SetDataSentCallback (Callback< void, Ptr< Socket >, uint32_t > dataSent)
	Notify application when a packet has been sent from transport protocol (non-standard socket call) More...

void	SetIpRecvTos (bool ipv4RecvTos)
	Tells a socket to pass information about IP Type of Service up the stack. More...

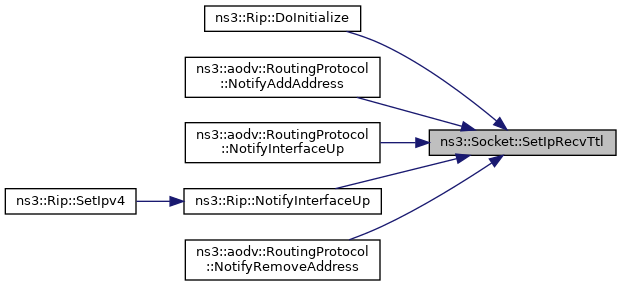

void	SetIpRecvTtl (bool ipv4RecvTtl)
	Tells a socket to pass information about IP_TTL up the stack. More...

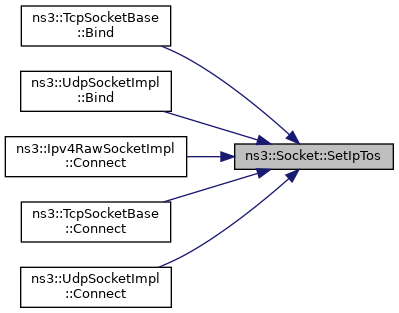

void	SetIpTos (uint8_t ipTos)
	Manually set IP Type of Service field. More...

virtual void	SetIpTtl (uint8_t ipTtl)
	Manually set IP Time to Live field. More...

virtual void	SetIpv6HopLimit (uint8_t ipHopLimit)
	Manually set IPv6 Hop Limit. More...

void	SetIpv6RecvHopLimit (bool ipv6RecvHopLimit)
	Tells a socket to pass information about IPv6 Hop Limit up the stack. More...

void	SetIpv6RecvTclass (bool ipv6RecvTclass)
	Tells a socket to pass information about IPv6 Traffic Class up the stack. More...

void	SetIpv6Tclass (int ipTclass)
	Manually set IPv6 Traffic Class field. More...

void	SetPriority (uint8_t priority)
	Manually set the socket priority. More...

void	SetRecvCallback (Callback< void, Ptr< Socket >> receivedData)
	Notify application when new data is available to be read. More...

void	SetRecvPktInfo (bool flag)
	Enable/Disable receive packet information to socket. More...

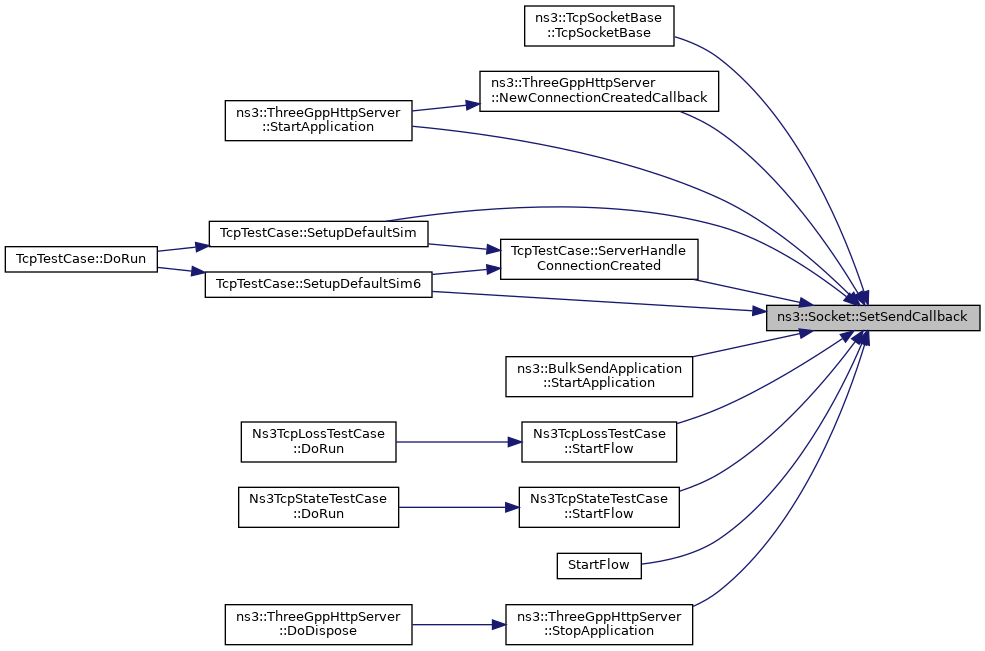

void	SetSendCallback (Callback< void, Ptr< Socket >, uint32_t > sendCb)
	Notify application when space in transmit buffer is added. More...

virtual int	ShutdownRecv ()=0

virtual int	ShutdownSend ()=0

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

	~Object () override
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose ()
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator () const
	Get an iterator to the Objects aggregated to this one. More...

TypeId	GetInstanceTypeId () const override
	Get the most derived TypeId for this Object. More...

template<typename T >
Ptr< T >	GetObject () const
	Get a pointer to the requested aggregated Object. More...

template<>
Ptr< Object >	GetObject () const
	Specialization of () for objects of type ns3::Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< Object >	GetObject (TypeId tid) const
	Specialization of (TypeId tid) for objects of type ns3::Object. More...

void	Initialize ()
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized () const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
	Copy constructor. More...

uint32_t	GetReferenceCount () const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o[[maybe_unused]])
	Assignment operator. More...

void	Ref () const
	Increment the reference count. More...

void	Unref () const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising errors. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static Ptr< Socket >	CreateSocket (Ptr< Node > node, TypeId tid)
	This method wraps the creation of sockets that is performed on a given node by a SocketFactory specified by TypeId. More...

static TypeId	GetTypeId ()
	Get the type ID. More...

static uint8_t	IpTos2Priority (uint8_t ipTos)
	Return the priority corresponding to a given TOS value. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId ()
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId ()
	Get the type ID. More...

Protected Member Functions
void	DoDispose () override
	Destructor implementation. More...

bool	IsManualIpTtl () const
	Checks if the socket has a specific IPv4 TTL set. More...

bool	IsManualIpv6HopLimit () const
	Checks if the socket has a specific IPv6 Hop Limit set. More...

bool	IsManualIpv6Tclass () const
	Checks if the socket has a specific IPv6 Tclass set. More...

void	NotifyConnectionFailed ()
	Notify through the callback (if set) that the connection has not been established due to an error. More...

bool	NotifyConnectionRequest (const Address &from)
	Notify through the callback (if set) that an incoming connection is being requested by a remote host. More...

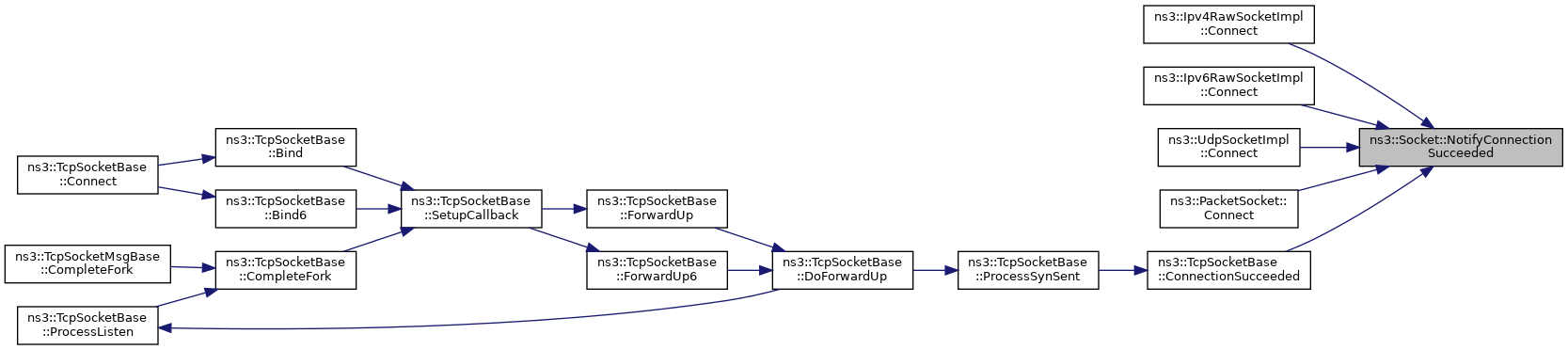

void	NotifyConnectionSucceeded ()
	Notify through the callback (if set) that the connection has been established. More...

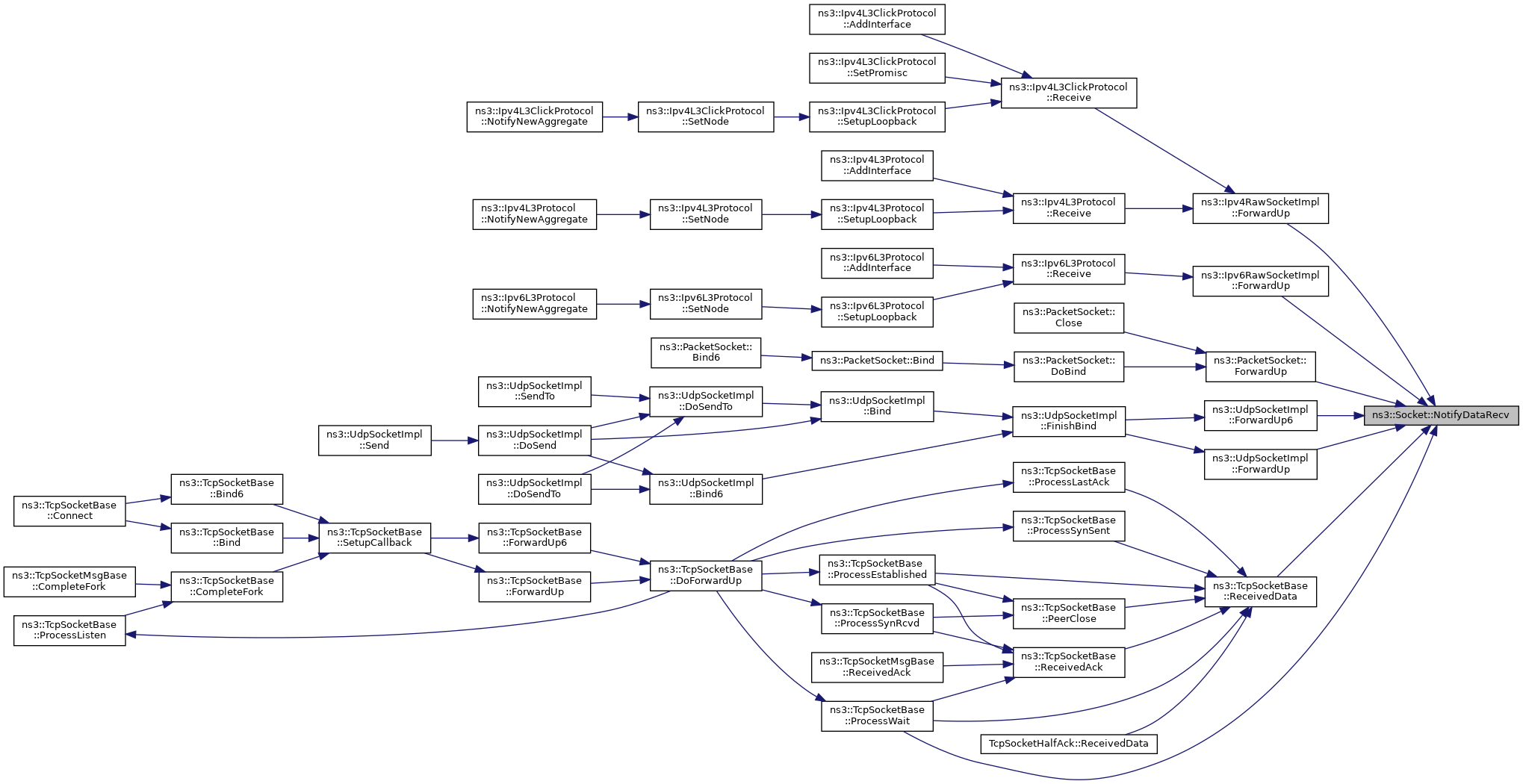

void	NotifyDataRecv ()
	Notify through the callback (if set) that some data have been received. More...

void	NotifyDataSent (uint32_t size)
	Notify through the callback (if set) that some data have been sent. More...

void	NotifyErrorClose ()
	Notify through the callback (if set) that the connection has been closed due to an error. More...

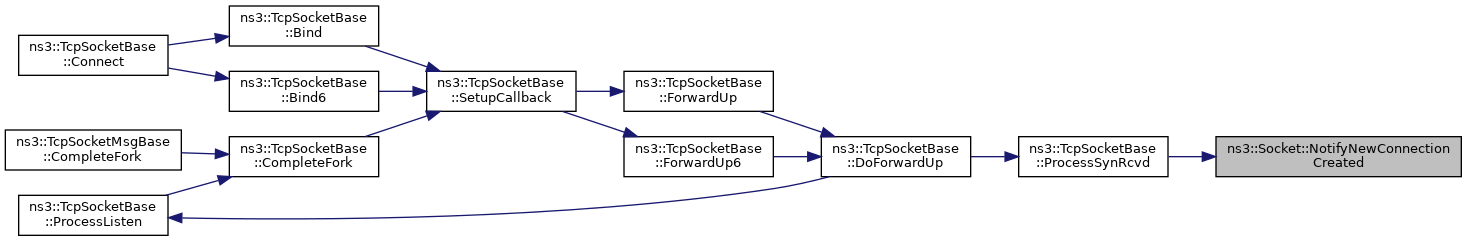

void	NotifyNewConnectionCreated (Ptr< Socket > socket, const Address &from)
	Notify through the callback (if set) that a new connection has been created. More...

void	NotifyNormalClose ()
	Notify through the callback (if set) that the connection has been closed. More...

void	NotifySend (uint32_t spaceAvailable)
	Notify through the callback (if set) that some data have been sent. More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	DoInitialize ()
	Initialize() implementation. More...

virtual void	NotifyNewAggregate ()
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted ()
	Notifier called once the ObjectBase is fully constructed. More...

Protected Attributes
Ptr< NetDevice >	m_boundnetdevice
	the device this socket is bound to (might be null). More...

Ipv6Address	m_ipv6MulticastGroupAddress
	IPv6 multicast group address. More...

bool	m_recvPktInfo
	if the socket should add packet info tags to the packet forwarded to L4. More...

Private Attributes
Callback< void, Ptr< Socket > >	m_connectionFailed
	connection failed callback More...

Callback< bool, Ptr< Socket >, const Address & >	m_connectionRequest
	connection request callback More...

Callback< void, Ptr< Socket > >	m_connectionSucceeded
	connection succeeded callback More...

Callback< void, Ptr< Socket >, uint32_t >	m_dataSent
	data sent callback More...

Callback< void, Ptr< Socket > >	m_errorClose
	connection closed due to errors callback More...

bool	m_ipRecvTos
	socket forwards IPv4 TOS tag to L4 More...

bool	m_ipRecvTtl
	socket forwards IPv4 TTL tag to L4 More...

uint8_t	m_ipTos
	the socket IPv4 TOS More...

uint8_t	m_ipTtl
	the socket IPv4 TTL More...

uint8_t	m_ipv6HopLimit
	the socket IPv6 Hop Limit More...

bool	m_ipv6RecvHopLimit
	socket forwards IPv6 Hop Limit tag to L4 More...

bool	m_ipv6RecvTclass
	socket forwards IPv6 Tclass tag to L4 More...

uint8_t	m_ipv6Tclass
	the socket IPv6 Tclass More...

bool	m_manualIpTtl
	socket has IPv4 TTL set More...

bool	m_manualIpv6HopLimit
	socket has IPv6 Hop Limit set More...

bool	m_manualIpv6Tclass
	socket has IPv6 Tclass set More...

Callback< void, Ptr< Socket >, const Address & >	m_newConnectionCreated
	connection created callback More...

Callback< void, Ptr< Socket > >	m_normalClose
	connection closed callback More...

uint8_t	m_priority
	the socket priority More...

Callback< void, Ptr< Socket > >	m_receivedData
	data received callback More...

Callback< void, Ptr< Socket >, uint32_t >	m_sendCb
	packet sent callback More...

Additional Inherited Members
Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid ()
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

A low-level Socket API based loosely on the BSD Socket API.

A few things to keep in mind about this type of socket:

it uses ns-3 API constructs such as class ns3::Address instead of C-style structs
in contrast to the original BSD socket API, this API is asynchronous: it does not contain blocking calls. Sending and receiving operations must make use of the callbacks provided.
It also uses class ns3::Packet as a fancy byte buffer, allowing data to be passed across the API using an ns-3 Packet instead of a raw data pointer.
Not all of the full POSIX sockets API is supported

Other than that, it tries to stick to the BSD API to make it easier for those who know the BSD API to use this API. More details are provided in the ns-3 tutorial.

Definition at line 67 of file socket.h.

Member Enumeration Documentation

◆ Ipv6MulticastFilterMode

enum ns3::Socket::Ipv6MulticastFilterMode

Enumeration of the possible filter of a socket.

A socket can have filters on specific sources to include only packets incoming from them, or to exclude packets incoming from specific sources. Moreover, inclusion and exclusion also works as a leave, since "joining" a group without allowed sources is equivalent to leaving it.

Enumerator
INCLUDE
EXCLUDE

Definition at line 142 of file socket.h.

◆ SocketErrno

enum ns3::Socket::SocketErrno

Enumeration of the possible errors returned by a socket.

Enumerator
ERROR_NOTERROR
ERROR_ISCONN
ERROR_NOTCONN
ERROR_MSGSIZE
ERROR_AGAIN
ERROR_SHUTDOWN
ERROR_OPNOTSUPP
ERROR_AFNOSUPPORT
ERROR_INVAL
ERROR_BADF
ERROR_NOROUTETOHOST
ERROR_NODEV
ERROR_ADDRNOTAVAIL
ERROR_ADDRINUSE
SOCKET_ERRNO_LAST

Definition at line 83 of file socket.h.

◆ SocketPriority

enum ns3::Socket::SocketPriority

Enumeration of the possible socket priorities.

Names and corresponding values are derived from the Linux TC_PRIO_* macros

Enumerator
NS3_PRIO_BESTEFFORT
NS3_PRIO_FILLER
NS3_PRIO_BULK
NS3_PRIO_INTERACTIVE_BULK
NS3_PRIO_INTERACTIVE
NS3_PRIO_CONTROL

Definition at line 121 of file socket.h.

◆ SocketType

enum ns3::Socket::SocketType

Enumeration of the possible socket types.

Enumerator
NS3_SOCK_STREAM
NS3_SOCK_SEQPACKET
NS3_SOCK_DGRAM
NS3_SOCK_RAW

Definition at line 106 of file socket.h.

Constructor & Destructor Documentation

◆ Socket()

ns3::Socket::Socket ( )

Definition at line 46 of file socket.cc.

References m_boundnetdevice, m_ipTos, m_ipTtl, m_ipv6HopLimit, m_ipv6Tclass, m_priority, m_recvPktInfo, and NS_LOG_FUNCTION_NOARGS.

◆ ~Socket()

ns3::Socket::~Socket ( )

override

Definition at line 66 of file socket.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

◆ Bind() [1/2]

virtual int ns3::Socket::Bind ( )

pure virtual

Allocate a local IPv4 endpoint for this socket.

Returns: 0 on success, -1 on failure.

Implemented in ns3::PacketSocket, ns3::UdpSocketImpl, ns3::TcpSocketBase, ns3::Ipv6RawSocketImpl, and ns3::Ipv4RawSocketImpl.

◆ Bind() [2/2]

virtual int ns3::Socket::Bind ( const Address & address )

pure virtual

Allocate a local endpoint for this socket.

Parameters

address the address to try to allocate

Returns: 0 on success, -1 on failure.

Implemented in ns3::PacketSocket, ns3::UdpSocketImpl, ns3::TcpSocketBase, ns3::Ipv6RawSocketImpl, and ns3::Ipv4RawSocketImpl.

◆ Bind6()

virtual int ns3::Socket::Bind6 ( )

pure virtual

Allocate a local IPv6 endpoint for this socket.

Returns: 0 on success, -1 on failure.

Implemented in ns3::PacketSocket, ns3::UdpSocketImpl, ns3::TcpSocketBase, ns3::Ipv6RawSocketImpl, and ns3::Ipv4RawSocketImpl.

Referenced by ns3::ThreeGppHttpClient::OpenConnection(), ns3::BulkSendApplication::StartApplication(), ns3::OnOffApplication::StartApplication(), ns3::UdpClient::StartApplication(), ns3::UdpEchoClient::StartApplication(), and ns3::UdpTraceClient::StartApplication().

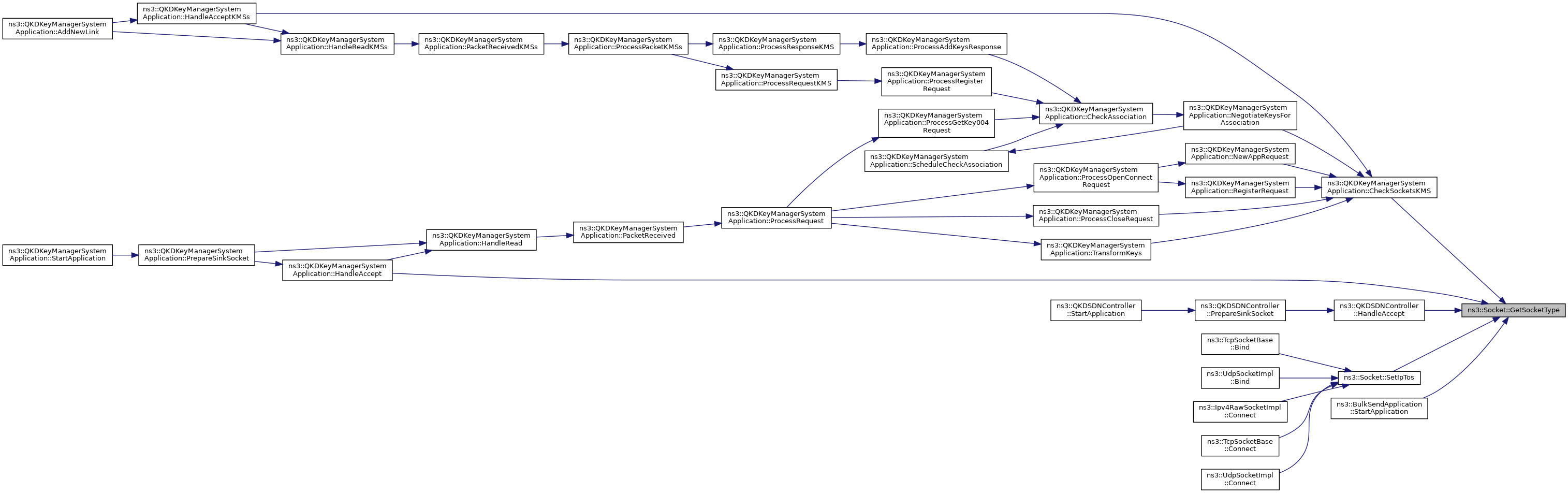

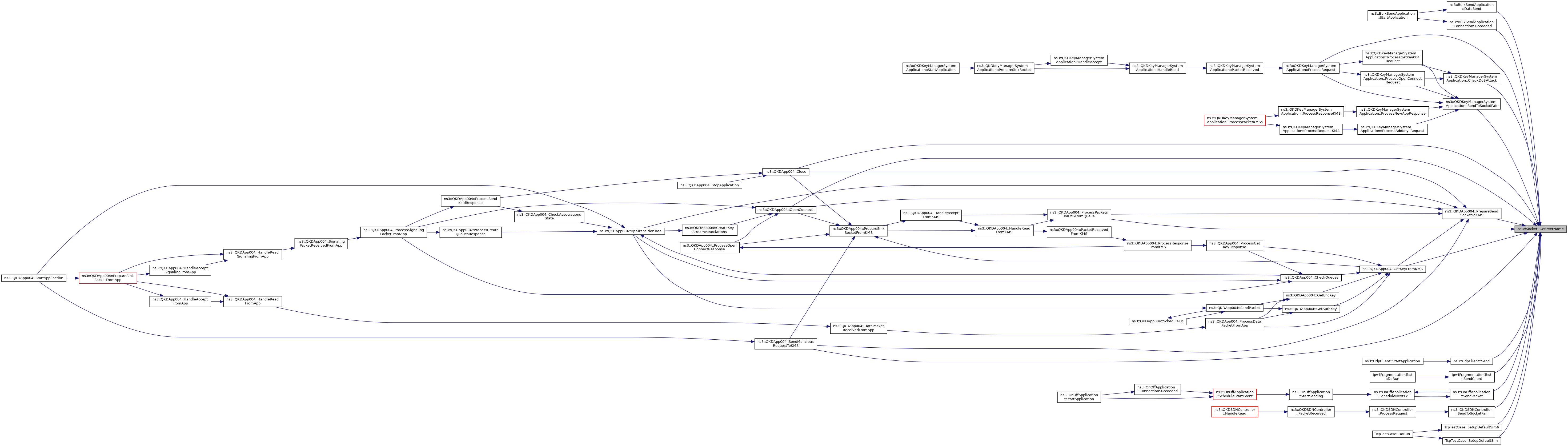

Here is the caller graph for this function:

◆ BindToNetDevice()

void ns3::Socket::BindToNetDevice ( Ptr< NetDevice > netdevice )

virtual

Bind a socket to specific device.

This method corresponds to using setsockopt() SO_BINDTODEVICE of real network or BSD sockets. If set on a socket, this option will force packets to leave the bound device regardless of the device that IP routing would naturally choose. In the receive direction, only packets received from the bound interface will be delivered.

This option has no particular relationship to binding sockets to an address via Socket::Bind (). It is possible to bind sockets to a specific IP address on the bound interface by calling both Socket::Bind (address) and Socket::BindToNetDevice (device), but it is also possible to bind to mismatching device and address, even if the socket can not receive any packets as a result.

Parameters

netdevice Pointer to NetDevice of desired interface

Reimplemented in ns3::UdpSocketImpl, and ns3::TcpSocketBase.

Definition at line 327 of file socket.cc.

References ns3::Node::GetDevice(), ns3::Node::GetNDevices(), GetNode(), m_boundnetdevice, NS_ASSERT_MSG, and NS_LOG_FUNCTION.

Referenced by BindSock(), ns3::TcpSocketBase::BindToNetDevice(), ns3::UdpSocketImpl::BindToNetDevice(), ns3::Rip::DoInitialize(), ns3::RipNg::DoInitialize(), ns3::olsr::RoutingProtocol::DoInitialize(), ns3::aodv::RoutingProtocol::NotifyAddAddress(), ns3::dsdv::RoutingProtocol::NotifyAddAddress(), ns3::aodv::RoutingProtocol::NotifyInterfaceUp(), ns3::dsdv::RoutingProtocol::NotifyInterfaceUp(), ns3::Rip::NotifyInterfaceUp(), ns3::RipNg::NotifyInterfaceUp(), ns3::aodv::RoutingProtocol::NotifyRemoveAddress(), ns3::DhcpClient::StartApplication(), and ns3::DhcpServer::StartApplication().

Here is the call graph for this function:

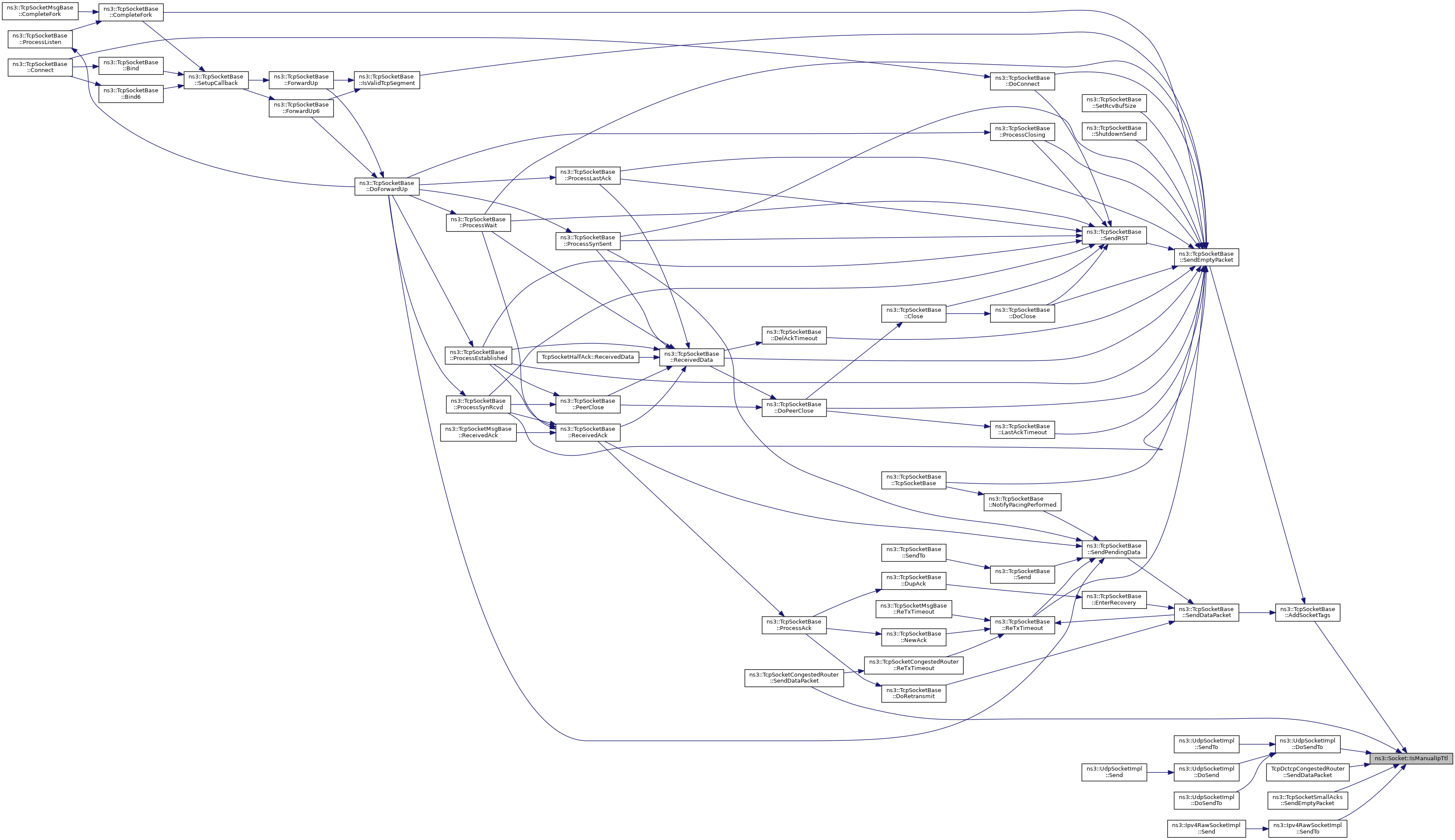

Here is the caller graph for this function:

◆ Close()

virtual int ns3::Socket::Close ( )

pure virtual

Close a socket.

Returns: zero on success, -1 on failure.

After the Close call, the socket is no longer valid, and cannot safely be used for subsequent operations.

Implemented in ns3::PacketSocket, ns3::UdpSocketImpl, ns3::TcpSocketBase, ns3::Ipv6RawSocketImpl, and ns3::Ipv4RawSocketImpl.

Here is the caller graph for this function:

◆ Connect()

virtual int ns3::Socket::Connect ( const Address & address )

pure virtual

Initiate a connection to a remote host.

Parameters

address Address of remote.

Returns: 0 on success, -1 on error (in which case errno is set).

Implemented in ns3::PacketSocket, ns3::UdpSocketImpl, ns3::TcpSocketBase, ns3::Ipv6RawSocketImpl, and ns3::Ipv4RawSocketImpl.

Here is the caller graph for this function:

◆ CreateSocket()

Ptr< Socket > ns3::Socket::CreateSocket	(	Ptr< Node >	node,
		TypeId	tid
	)

static

This method wraps the creation of sockets that is performed on a given node by a SocketFactory specified by TypeId.

Returns: A smart pointer to a newly created socket.

Parameters

node	The node on which to create the socket
tid	The TypeId of a SocketFactory class to use

Definition at line 72 of file socket.cc.

References ns3::TypeId::GetName(), ns3::Object::GetObject(), NS_ASSERT, NS_ASSERT_MSG, and NS_LOG_FUNCTION.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DoDispose()

void ns3::Socket::DoDispose ( void )

overrideprotectedvirtual

Destructor implementation.

This method is called by Dispose() or by the Object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overridden version of this method and chain up to their parent's implementation once they are done. i.e, for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose() method.

It is safe to call GetObject() from within this method.

Reimplemented from ns3::Object.

Reimplemented in ns3::PacketSocket.

Definition at line 312 of file socket.cc.

References m_connectionFailed, m_connectionRequest, m_connectionSucceeded, m_dataSent, m_errorClose, m_newConnectionCreated, m_normalClose, m_receivedData, m_sendCb, and NS_LOG_FUNCTION.

Referenced by ns3::Ipv4RawSocketImpl::DoDispose(), and ns3::Ipv6RawSocketImpl::DoDispose().

Here is the caller graph for this function:

◆ GetAllowBroadcast()

virtual bool ns3::Socket::GetAllowBroadcast ( ) const

pure virtual

Query whether broadcast datagram transmissions are allowed.

This method corresponds to using getsockopt() SO_BROADCAST of real network or BSD sockets.

Returns: true if broadcast is allowed, false otherwise

Implemented in ns3::PacketSocket, ns3::UdpSocketImpl, ns3::TcpSocketBase, ns3::Ipv6RawSocketImpl, and ns3::Ipv4RawSocketImpl.

◆ GetBoundNetDevice()

Ptr< NetDevice > ns3::Socket::GetBoundNetDevice ( )

Returns socket's bound NetDevice, if any.

This method corresponds to using getsockopt() SO_BINDTODEVICE of real network or BSD sockets.

Returns: Pointer to interface.

Definition at line 347 of file socket.cc.

References m_boundnetdevice, and NS_LOG_FUNCTION.

Referenced by ns3::TcpSocketBase::Bind(), ns3::UdpSocketImpl::Bind(), ns3::TcpSocketBase::CompleteFork(), ns3::Ipv4RawSocketImpl::ForwardUp(), ns3::Ipv6RawSocketImpl::ForwardUp(), and srcSocketRecv().

Here is the caller graph for this function:

◆ GetErrno()

virtual Socket::SocketErrno ns3::Socket::GetErrno ( ) const

pure virtual

Get last error number.

Returns: the errno associated to the last call which failed in this socket. Each socket's errno is initialized to zero when the socket is created.

Implemented in ns3::PacketSocket, ns3::UdpSocketImpl, ns3::TcpSocketBase, ns3::Ipv6RawSocketImpl, and ns3::Ipv4RawSocketImpl.

Referenced by ns3::ThreeGppHttpClient::ErrorCloseCallback(), ns3::ThreeGppHttpClient::NormalCloseCallback(), ns3::ThreeGppHttpClient::OpenConnection(), ns3::ThreeGppHttpClient::RequestEmbeddedObject(), ns3::ThreeGppHttpClient::RequestMainObject(), ns3::ThreeGppHttpServer::ServeFromTxBuffer(), TcpTestCase::ServerHandleRecv(), TcpTestCase::SetupDefaultSim(), TcpTestCase::SetupDefaultSim6(), TcpTestCase::SourceHandleRecv(), and ns3::ThreeGppHttpServer::StartApplication().

Here is the caller graph for this function:

◆ GetIpTos()

uint8_t ns3::Socket::GetIpTos ( ) const

Query the value of IP Type of Service of this socket.

This method corresponds to using getsockopt () IP_TOS of real network or BSD sockets.

Returns: The raw IP TOS value

Definition at line 450 of file socket.cc.

References m_ipTos.

Referenced by ns3::TcpSocketBase::AddSocketTags(), ns3::UdpSocketImpl::DoSend(), ns3::UdpSocketImpl::GetPeerName(), ns3::Ipv4RawSocketImpl::Send(), TcpDctcpCongestedRouter::SendDataPacket(), ns3::TcpSocketCongestedRouter::SendDataPacket(), and ns3::TcpSocketSmallAcks::SendEmptyPacket().

Here is the caller graph for this function:

◆ GetIpTtl()

uint8_t ns3::Socket::GetIpTtl ( ) const

virtual

Query the value of IP Time to Live field of this socket.

This method corresponds to using getsockopt () IP_TTL of real network or BSD sockets.

Returns: The raw IP TTL value

Definition at line 517 of file socket.cc.

References m_ipTtl.

Referenced by ns3::TcpSocketBase::AddSocketTags(), ns3::UdpSocketImpl::DoSendTo(), ns3::UdpSocket::GetTypeId(), TcpDctcpCongestedRouter::SendDataPacket(), ns3::TcpSocketCongestedRouter::SendDataPacket(), ns3::TcpSocketSmallAcks::SendEmptyPacket(), and ns3::Ipv4RawSocketImpl::SendTo().

Here is the caller graph for this function:

◆ GetIpv6HopLimit()

uint8_t ns3::Socket::GetIpv6HopLimit ( ) const

virtual

Query the value of IP Hop Limit field of this socket.

This method corresponds to using getsockopt () IPV6_HOPLIMIT of real network or BSD sockets.

Returns: The raw IPv6 Hop Limit value

Definition at line 542 of file socket.cc.

References m_ipv6HopLimit.

Referenced by ns3::TcpSocketBase::AddSocketTags(), ns3::UdpSocketImpl::DoSendTo(), TcpDctcpCongestedRouter::SendDataPacket(), ns3::TcpSocketCongestedRouter::SendDataPacket(), ns3::TcpSocketSmallAcks::SendEmptyPacket(), and ns3::Ipv6RawSocketImpl::SendTo().

Here is the caller graph for this function:

◆ GetIpv6Tclass()

uint8_t ns3::Socket::GetIpv6Tclass ( ) const

Query the value of IPv6 Traffic Class field of this socket.

This method corresponds to using getsockopt () IPV6_TCLASS of real network or BSD sockets.

Returns: The raw IPV6_TCLASS value

Definition at line 492 of file socket.cc.

References m_ipv6Tclass.

Referenced by ns3::TcpSocketBase::AddSocketTags(), ns3::UdpSocketImpl::DoSendTo(), TcpDctcpCongestedRouter::SendDataPacket(), ns3::TcpSocketCongestedRouter::SendDataPacket(), ns3::TcpSocketSmallAcks::SendEmptyPacket(), and ns3::Ipv6RawSocketImpl::SendTo().

Here is the caller graph for this function:

◆ GetNode()

virtual Ptr<Node> ns3::Socket::GetNode ( ) const

pure virtual

Return the node this socket is associated with.

Returns: the node

Implemented in ns3::PacketSocket, ns3::UdpSocketImpl, ns3::TcpSocketBase, ns3::Ipv6RawSocketImpl, and ns3::Ipv4RawSocketImpl.

Referenced by BindToNetDevice(), Bug772ChainTest::CreateDevices(), ns3::TcpGeneralTest::DataSentCb(), ns3::aodv::LoopbackTestCase::DoRun(), IcmpEchoReplyTestCase::DoRun(), IcmpTimeExceedTestCase::DoRun(), IcmpV6EchoReplyTestCase::DoRun(), IcmpV6TimeExceedTestCase::DoRun(), Ipv4FragmentationTest::DoRun(), Ipv6FragmentationTest::DoRun(), SixlowpanFragmentationTest::DoRun(), ns3::TcpGeneralTest::ErrorCloseCb(), HwmpProactiveRegressionTest::InstallApplications(), HwmpReactiveRegressionTest::InstallApplications(), HwmpSimplestRegressionTest::InstallApplications(), HwmpDoRfRegressionTest::InstallApplications(), FlameRegressionTest::InstallApplications(), ns3::TcpGeneralTest::NormalCloseCb(), PrintReceivedPacket(), Ipv4DeduplicationTest::ReceivePkt(), Bug772ChainTest::SendData(), ns3::aodv::LoopbackTestCase::SendData(), UdpSocketImplTest::SendData(), HwmpProactiveRegressionTest::SendData(), HwmpReactiveRegressionTest::SendData(), HwmpSimplestRegressionTest::SendData(), FlameRegressionTest::SendData(), DynamicNeighborCacheTest::SendData(), Ipv4ForwardingTest::SendData(), Ipv4GlobalRoutingSlash32TestCase::SendData(), Ipv4RawSocketImplTest::SendData(), Ipv4RipTest::SendData(), Ipv4RipCountToInfinityTest::SendData(), Ipv4StaticRoutingSlash32TestCase::SendData(), Ipv6ForwardingTest::SendData(), Ipv6RawSocketImplTest::SendData(), Ipv6RipngTest::SendData(), Ipv6RipngCountToInfinityTest::SendData(), SixlowpanHc1ImplTest::SendData(), SixlowpanIphcImplTest::SendData(), NixVectorRoutingTest::SendData(), Ipv4RawSocketImplTest::SendData_IpHdr(), Ipv4HeaderTest::SendData_IpHdr_Dscp(), HwmpDoRfRegressionTest::SendDataA(), HwmpDoRfRegressionTest::SendDataB(), HwmpDoRfRegressionTest::SendDataC(), UdpSocketImplTest::SendDataTo(), Udp6SocketImplTest::SendDataTo(), and Ipv4DeduplicationTest::SendPacket().

Here is the caller graph for this function:

◆ GetPeerName()

virtual int ns3::Socket::GetPeerName ( Address & address ) const

pure virtual

Get the peer address of a connected socket.

Parameters

address the address this socket is connected to.

Returns: 0 if success, -1 otherwise

Implemented in ns3::PacketSocket, ns3::UdpSocketImpl, ns3::TcpSocketBase, ns3::Ipv6RawSocketImpl, and ns3::Ipv4RawSocketImpl.

Referenced by ns3::QKDKeyManagerSystemApplication::CheckDoSAttack(), ns3::QKDApp004::Close(), ns3::BulkSendApplication::ConnectionSucceeded(), ns3::BulkSendApplication::DataSend(), ns3::QKDApp004::GetKeyFromKMS(), ns3::QKDApp004::OpenConnect(), ns3::QKDApp004::PrepareSendSocketToKMS(), ns3::QKDApp004::ProcessPacketsToKMSFromQueue(), ns3::QKDKeyManagerSystemApplication::ProcessRequest(), ns3::UdpClient::Send(), Ipv4FragmentationTest::SendClient(), ns3::QKDApp004::SendMaliciousRequestToKMS(), ns3::OnOffApplication::SendPacket(), ns3::QKDKeyManagerSystemApplication::SendToSocketPair(), ns3::QKDSDNController::SendToSocketPair(), TcpTestCase::SetupDefaultSim(), and TcpTestCase::SetupDefaultSim6().

Here is the caller graph for this function:

◆ GetPriority()

uint8_t ns3::Socket::GetPriority ( ) const

Query the priority value of this socket.

This method corresponds to using getsockopt () SO_PRIORITY of real network or BSD sockets.

Returns: The priority value

Definition at line 393 of file socket.cc.

References m_priority.

Referenced by ns3::TcpSocketBase::AddSocketTags(), ns3::UdpSocketImpl::DoSendTo(), TcpDctcpCongestedRouter::SendDataPacket(), ns3::TcpSocketCongestedRouter::SendDataPacket(), ns3::Ipv4RawSocketImpl::SendTo(), and ns3::PacketSocket::SendTo().

Here is the caller graph for this function:

◆ GetRxAvailable()

virtual uint32_t ns3::Socket::GetRxAvailable ( ) const

pure virtual

Return number of bytes which can be returned from one or multiple calls to Recv.

Must be possible to call this method from the Recv callback.

Returns: the number of bytes which can be returned from one or multiple Recv calls.

Implemented in ns3::PacketSocket, ns3::UdpSocketImpl, ns3::TcpSocketBase, ns3::Ipv6RawSocketImpl, and ns3::Ipv4RawSocketImpl.

Here is the caller graph for this function:

◆ GetSocketType()

virtual Socket::SocketType ns3::Socket::GetSocketType ( ) const

pure virtual

Returns: the socket type, analogous to getsockopt (SO_TYPE)

Implemented in ns3::PacketSocket, ns3::UdpSocketImpl, ns3::TcpSocketBase, ns3::Ipv6RawSocketImpl, and ns3::Ipv4RawSocketImpl.

Referenced by ns3::QKDKeyManagerSystemApplication::CheckSocketsKMS(), ns3::QKDKeyManagerSystemApplication::HandleAccept(), ns3::QKDSDNController::HandleAccept(), SetIpTos(), and ns3::BulkSendApplication::StartApplication().

Here is the caller graph for this function:

◆ GetSockName()

virtual int ns3::Socket::GetSockName ( Address & address ) const

pure virtual

Get socket address.

Parameters

address the address name this socket is associated with.

Returns: 0 if success, -1 otherwise

Implemented in ns3::PacketSocket, ns3::UdpSocketImpl, ns3::TcpSocketBase, ns3::Ipv6RawSocketImpl, and ns3::Ipv4RawSocketImpl.

Referenced by ns3::BulkSendApplication::ConnectionSucceeded(), ns3::BulkSendApplication::DataSend(), ns3::PacketSink::HandleRead(), ns3::UdpEchoClient::HandleRead(), ns3::UdpEchoServer::HandleRead(), ns3::UdpServer::HandleRead(), PrintReceivedPacket(), ns3::UdpClient::Send(), ns3::UdpEchoClient::Send(), ns3::OnOffApplication::SendPacket(), SetIpTos(), SetIpv6Tclass(), and ns3::BulkSendApplication::StartApplication().

Here is the caller graph for this function:

◆ GetTxAvailable()

virtual uint32_t ns3::Socket::GetTxAvailable ( ) const

pure virtual

Returns the number of bytes which can be sent in a single call to Send.

For datagram sockets, this returns the number of bytes that can be passed atomically through the underlying protocol.

For stream sockets, this returns the available space in bytes left in the transmit buffer.

Returns: The number of bytes which can be sent in a single Send call.

Implemented in ns3::PacketSocket, ns3::UdpSocketImpl, ns3::TcpSocketBase, ns3::Ipv6RawSocketImpl, and ns3::Ipv4RawSocketImpl.

Referenced by ns3::ThreeGppHttpServer::ServeFromTxBuffer(), TcpTestCase::ServerHandleRecv(), TcpTestCase::ServerHandleSend(), TcpTestCase::SourceHandleSend(), Ns3TcpLossTestCase::StartFlow(), Ns3TcpStateTestCase::StartFlow(), StartFlow(), Ns3TcpLossTestCase::WriteUntilBufferFull(), Ns3TcpStateTestCase::WriteUntilBufferFull(), and WriteUntilBufferFull().

Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::Socket::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 40 of file socket.cc.

References ns3::TypeId::SetParent().

Here is the call graph for this function:

◆ IpTos2Priority()

uint8_t ns3::Socket::IpTos2Priority ( uint8_t ipTos )

static

Return the priority corresponding to a given TOS value.

This function is implemented after the Linux rt_tos2priority function. The usage of the TOS byte has been originally defined by RFC 1349 (http://www.ietf.org/rfc/rfc1349.txt):

          0     1     2     3     4     5     6     7
      +-----+-----+-----+-----+-----+-----+-----+-----+
      |   PRECEDENCE    |          TOS          | MBZ |
      +-----+-----+-----+-----+-----+-----+-----+-----+

where MBZ stands for 'must be zero'.

The Linux rt_tos2priority function ignores the precedence bits and maps each of the 16 values coded in bits 3-6 as follows:

Bits 3-6	Means	Linux Priority
0	Normal Service	Best Effort (0)
1	Minimize Monetary Cost	Best Effort (0)
2	Maximize Reliability	Best Effort (0)
3	mmc+mr	Best Effort (0)
4	Maximize Throughput	Bulk (2)
5	mmc+mt	Bulk (2)
6	mr+mt	Bulk (2)
7	mmc+mr+mt	Bulk (2)
8	Minimize Delay	Interactive (6)
9	mmc+md	Interactive (6)
10	mr+md	Interactive (6)
11	mmc+mr+md	Interactive (6)
12	mt+md	Int. Bulk (4)
13	mmc+mt+md	Int. Bulk (4)
14	mr+mt+md	Int. Bulk (4)
15	mmc+mr+mt+md	Int. Bulk (4)

RFC 2474 (http://www.ietf.org/rfc/rfc2474.txt) redefines the TOS byte:

          0     1     2     3     4     5     6     7
      +-----+-----+-----+-----+-----+-----+-----+-----+
      |              DSCP                 |     CU    |
      +-----+-----+-----+-----+-----+-----+-----+-----+

where DSCP is the Differentiated Services Code Point and CU stands for 'currently unused' (actually, RFC 3168 proposes to use these two bits for ECN purposes). The table above allows to determine how the Linux rt_tos2priority function maps each DSCP value to a priority value. Such a mapping is shown below.

DSCP	Hex	TOS (binary)	bits 3-6	Linux Priority
EF	0x2E	101110xx	12-13	Int. Bulk (4)
AF11	0x0A	001010xx	4-5	Bulk (2)
AF21	0x12	010010xx	4-5	Bulk (2)
AF31	0x1A	011010xx	4-5	Bulk (2)
AF41	0x22	100010xx	4-5	Bulk (2)
AF12	0x0C	001100xx	8-9	Interactive (6)
AF22	0x14	010100xx	8-9	Interactive (6)
AF32	0x1C	011100xx	8-9	Interactive (6)
AF42	0x24	100100xx	8-9	Interactive (6)
AF13	0x0E	001110xx	12-13	Int. Bulk (4)
AF23	0x16	010110xx	12-13	Int. Bulk (4)
AF33	0x1E	011110xx	12-13	Int. Bulk (4)
AF43	0x26	100110xx	12-13	Int. Bulk (4)
CS0	0x00	000000xx	0-1	Best Effort (0)
CS1	0x08	001000xx	0-1	Best Effort (0)
CS2	0x10	010000xx	0-1	Best Effort (0)
CS3	0x18	011000xx	0-1	Best Effort (0)
CS4	0x20	100000xx	0-1	Best Effort (0)
CS5	0x28	101000xx	0-1	Best Effort (0)
CS6	0x30	110000xx	0-1	Best Effort (0)
CS7	0x38	111000xx	0-1	Best Effort (0)

Parameters

ipTos the TOS value (in the range 0..255)

Returns: The priority value corresponding to the given TOS value

Definition at line 399 of file socket.cc.

References NS3_PRIO_BESTEFFORT, NS3_PRIO_BULK, NS3_PRIO_INTERACTIVE, and NS3_PRIO_INTERACTIVE_BULK.

Referenced by ns3::UdpSocketImpl::DoSendTo(), ns3::Ipv4L3Protocol::IpForward(), ns3::Ipv4RawSocketImpl::SendTo(), and SetIpTos().

Here is the caller graph for this function:

◆ Ipv6JoinGroup() [1/2]

void ns3::Socket::Ipv6JoinGroup ( Ipv6Address address )

virtual

Joins a IPv6 multicast group without filters.

A socket can join only one multicast group. Any attempt to join another group will remove the old one.

Parameters

address Group address on which socket wants to join.

Definition at line 569 of file socket.cc.

References first::address, EXCLUDE, Ipv6JoinGroup(), and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ Ipv6JoinGroup() [2/2]

void ns3::Socket::Ipv6JoinGroup	(	Ipv6Address	address,
		Ipv6MulticastFilterMode	filterMode,
		std::vector< Ipv6Address >	sourceAddresses
	)

virtual

Joins a IPv6 multicast group.

Based on the filter mode and source addresses this can be interpreted as a join, leave, or modification to source filtering on a multicast group.

Mind that a socket can join only one multicast group. Any attempt to join another group will remove the old one.

Parameters

address	Requested multicast address.
filterMode	Socket filtering mode (INCLUDE \| EXCLUDE).
sourceAddresses	All the source addresses on which socket is interested or not interested.

Reimplemented in ns3::UdpSocketImpl, and ns3::Ipv6RawSocketImpl.

Definition at line 560 of file socket.cc.

References first::address, NS_ASSERT_MSG, and NS_LOG_FUNCTION.

Referenced by Ipv6JoinGroup(), and Ipv6LeaveGroup().

Here is the caller graph for this function:

◆ Ipv6LeaveGroup()

void ns3::Socket::Ipv6LeaveGroup ( )

virtual

Leaves IPv6 multicast group this socket is joined to.

Definition at line 580 of file socket.cc.

References ns3::Ipv6Address::GetAny(), INCLUDE, Ipv6JoinGroup(), ns3::Ipv6Address::IsAny(), m_ipv6MulticastGroupAddress, NS_LOG_FUNCTION, and NS_LOG_INFO.

Referenced by ns3::Ipv6RawSocketImpl::Close(), and ns3::UdpSocketImpl::Close().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ IsIpRecvTos()

bool ns3::Socket::IsIpRecvTos ( ) const

Ask if the socket is currently passing information about IP Type of Service up the stack.

This method corresponds to using getsockopt () IP_RECVTOS of real network or BSD sockets.

Returns: Whether the IP_RECVTOS is set

Definition at line 462 of file socket.cc.

References m_ipRecvTos.

Referenced by ns3::Ipv4RawSocketImpl::ForwardUp(), and ns3::UdpSocketImpl::ForwardUp().

Here is the caller graph for this function:

◆ IsIpRecvTtl()

bool ns3::Socket::IsIpRecvTtl ( ) const

Ask if the socket is currently passing information about IP_TTL up the stack.

This method corresponds to using getsockopt () IP_RECVTTL of real network or BSD sockets.

Returns: Whether the IP_RECVTTL is set

Definition at line 529 of file socket.cc.

References m_ipRecvTtl.

Referenced by ns3::Ipv4RawSocketImpl::ForwardUp(), and ns3::UdpSocketImpl::ForwardUp().

Here is the caller graph for this function:

◆ IsIpv6RecvHopLimit()

bool ns3::Socket::IsIpv6RecvHopLimit ( ) const

Ask if the socket is currently passing information about IPv6 Hop Limit up the stack.

This method corresponds to using getsockopt () IPV6_RECVHOPLIMIT of real network or BSD sockets.

Returns: Whether the IPV6_RECVHOPLIMIT is set

Definition at line 554 of file socket.cc.

References m_ipv6RecvHopLimit.

Referenced by ns3::Ipv6RawSocketImpl::ForwardUp(), and ns3::UdpSocketImpl::ForwardUp6().

Here is the caller graph for this function:

◆ IsIpv6RecvTclass()

bool ns3::Socket::IsIpv6RecvTclass ( ) const

Ask if the socket is currently passing information about IPv6 Traffic Class up the stack.

This method corresponds to using getsockopt () IPV6_RECVTCLASS of real network or BSD sockets.

Returns: Whether the IPV6_RECVTCLASS is set

Definition at line 504 of file socket.cc.

References m_ipv6RecvTclass.

Referenced by ns3::Ipv6RawSocketImpl::ForwardUp(), and ns3::UdpSocketImpl::ForwardUp6().

Here is the caller graph for this function:

◆ IsManualIpTtl()

bool ns3::Socket::IsManualIpTtl ( ) const

protected

Checks if the socket has a specific IPv4 TTL set.

Returns: true if the socket has a IPv4 TTL set, false otherwise.

Definition at line 374 of file socket.cc.

References m_manualIpTtl.

Referenced by ns3::TcpSocketBase::AddSocketTags(), ns3::UdpSocketImpl::DoSendTo(), TcpDctcpCongestedRouter::SendDataPacket(), ns3::TcpSocketCongestedRouter::SendDataPacket(), ns3::TcpSocketSmallAcks::SendEmptyPacket(), and ns3::Ipv4RawSocketImpl::SendTo().

Here is the caller graph for this function:

◆ IsManualIpv6HopLimit()

bool ns3::Socket::IsManualIpv6HopLimit ( ) const

protected

Checks if the socket has a specific IPv6 Hop Limit set.

Returns: true if the socket has a IPv6 Hop Limit set, false otherwise.

Definition at line 380 of file socket.cc.

References m_manualIpv6HopLimit.

Referenced by ns3::TcpSocketBase::AddSocketTags(), ns3::UdpSocketImpl::DoSendTo(), TcpDctcpCongestedRouter::SendDataPacket(), ns3::TcpSocketCongestedRouter::SendDataPacket(), ns3::TcpSocketSmallAcks::SendEmptyPacket(), and ns3::Ipv6RawSocketImpl::SendTo().

Here is the caller graph for this function:

◆ IsManualIpv6Tclass()

bool ns3::Socket::IsManualIpv6Tclass ( ) const

protected

Checks if the socket has a specific IPv6 Tclass set.

Returns: true if the socket has a IPv6 Tclass set, false otherwise.

Definition at line 368 of file socket.cc.

References m_manualIpv6Tclass.

Referenced by ns3::TcpSocketBase::AddSocketTags(), ns3::UdpSocketImpl::DoSendTo(), TcpDctcpCongestedRouter::SendDataPacket(), ns3::TcpSocketCongestedRouter::SendDataPacket(), ns3::TcpSocketSmallAcks::SendEmptyPacket(), and ns3::Ipv6RawSocketImpl::SendTo().

Here is the caller graph for this function:

◆ IsRecvPktInfo()

bool ns3::Socket::IsRecvPktInfo ( ) const

Get status indicating whether enable/disable packet information to socket.

Returns: True if packet information should be sent to socket

Definition at line 361 of file socket.cc.

References m_recvPktInfo, and NS_LOG_FUNCTION.

Referenced by ns3::Ipv4RawSocketImpl::ForwardUp(), ns3::Ipv6RawSocketImpl::ForwardUp(), ns3::UdpSocketImpl::ForwardUp(), and ns3::UdpSocketImpl::ForwardUp6().

Here is the caller graph for this function:

◆ Listen()

virtual int ns3::Socket::Listen ( )

pure virtual

Listen for incoming connections.

Returns: 0 on success, -1 on error (in which case errno is set).

Implemented in ns3::PacketSocket, ns3::UdpSocketImpl, ns3::TcpSocketBase, ns3::Ipv6RawSocketImpl, and ns3::Ipv4RawSocketImpl.

Referenced by ns3::QKDKeyManagerSystemApplication::AddNewLink(), ns3::QKDKeyManagerSystemApplication::ConnectToSDNController(), Bug772ChainTest::CreateDevices(), Ipv4DynamicGlobalRoutingTestCase::DoRun(), DualStackTestCase::DoRun(), ns3::QKDKeyManagerSystemApplication::PrepareSinkSocket(), ns3::QKDSDNController::PrepareSinkSocket(), ns3::QKDApp004::PrepareSinkSocketFromApp(), ns3::QKDApp014::PrepareSinkSocketFromApp(), ns3::QKDApp004::PrepareSinkSocketFromKMS(), ns3::QKDApp014::PrepareSinkSocketFromKMS(), ns3::PacketSink::StartApplication(), ns3::ThreeGppHttpServer::StartApplication(), and ns3::QKDPostprocessingApplication::StartApplication().

Here is the caller graph for this function:

◆ NotifyConnectionFailed()

void ns3::Socket::NotifyConnectionFailed ( )

protected

Notify through the callback (if set) that the connection has not been established due to an error.

Definition at line 224 of file socket.cc.

References m_connectionFailed, and NS_LOG_FUNCTION.

Referenced by ns3::Ipv4RawSocketImpl::Connect(), ns3::Ipv6RawSocketImpl::Connect(), ns3::UdpSocketImpl::Connect(), ns3::PacketSocket::Connect(), and ns3::TcpSocketBase::SendEmptyPacket().

Here is the caller graph for this function:

◆ NotifyConnectionRequest()

bool ns3::Socket::NotifyConnectionRequest ( const Address & from )

protected

Notify through the callback (if set) that an incoming connection is being requested by a remote host.

This function returns true by default (i.e., accept all the incoming connections). The callback (if set) might restrict this behaviour by returning zero for a connection that should be refused.

Parameters

from	the address the connection is incoming from

Returns: true if the connection must be accepted, false otherwise.

Definition at line 254 of file socket.cc.

References m_connectionRequest, and NS_LOG_FUNCTION.

Referenced by ns3::TcpSocketBase::ProcessListen().

Here is the caller graph for this function:

◆ NotifyConnectionSucceeded()

void ns3::Socket::NotifyConnectionSucceeded ( )

protected

Notify through the callback (if set) that the connection has been established.

Definition at line 214 of file socket.cc.

References m_connectionSucceeded, and NS_LOG_FUNCTION.

Referenced by ns3::Ipv4RawSocketImpl::Connect(), ns3::Ipv6RawSocketImpl::Connect(), ns3::UdpSocketImpl::Connect(), ns3::PacketSocket::Connect(), and ns3::TcpSocketBase::ConnectionSucceeded().

Here is the caller graph for this function:

◆ NotifyDataRecv()

void ns3::Socket::NotifyDataRecv ( )

protected

Notify through the callback (if set) that some data have been received.

Definition at line 302 of file socket.cc.

References m_receivedData, and NS_LOG_FUNCTION.

Referenced by ns3::Ipv4RawSocketImpl::ForwardUp(), ns3::Ipv6RawSocketImpl::ForwardUp(), ns3::PacketSocket::ForwardUp(), ns3::UdpSocketImpl::ForwardUp(), ns3::UdpSocketImpl::ForwardUp6(), ns3::TcpSocketBase::ProcessWait(), and ns3::TcpSocketBase::ReceivedData().

Here is the caller graph for this function:

◆ NotifyDataSent()

void ns3::Socket::NotifyDataSent ( uint32_t size )

protected

Notify through the callback (if set) that some data have been sent.

Parameters

size	number of sent bytes.

Definition at line 282 of file socket.cc.

References m_dataSent, and NS_LOG_FUNCTION.

Referenced by ns3::UdpSocketImpl::DoSendTo(), ns3::TcpSocketBase::SendDataPacket(), TcpDctcpCongestedRouter::SendDataPacket(), ns3::TcpSocketCongestedRouter::SendDataPacket(), ns3::Ipv4RawSocketImpl::SendTo(), ns3::Ipv6RawSocketImpl::SendTo(), and ns3::PacketSocket::SendTo().

Here is the caller graph for this function:

◆ NotifyErrorClose()

void ns3::Socket::NotifyErrorClose ( )

protected

Notify through the callback (if set) that the connection has been closed due to an error.

Definition at line 244 of file socket.cc.

References m_errorClose, and NS_LOG_FUNCTION.

Referenced by ns3::TcpSocketBase::LastAckTimeout(), ns3::TcpSocketBase::ReTxTimeout(), and ns3::TcpSocketBase::SendRST().

Here is the caller graph for this function:

◆ NotifyNewConnectionCreated()

void ns3::Socket::NotifyNewConnectionCreated	(	Ptr< Socket >	socket,
		const Address &	from
	)

protected

Notify through the callback (if set) that a new connection has been created.

Parameters

socket	The socket receiving the new connection.
from	The address of the node initiating the connection.

Definition at line 272 of file socket.cc.

References m_newConnectionCreated, and NS_LOG_FUNCTION.

Referenced by ns3::TcpSocketBase::ProcessSynRcvd().

Here is the caller graph for this function:

◆ NotifyNormalClose()

void ns3::Socket::NotifyNormalClose ( )

protected

Notify through the callback (if set) that the connection has been closed.

Definition at line 234 of file socket.cc.

References m_normalClose, and NS_LOG_FUNCTION.

Referenced by ns3::TcpSocketBase::CloseAndNotify(), ns3::TcpSocketBase::DoPeerClose(), and ns3::TcpSocketBase::TimeWait().

Here is the caller graph for this function:

◆ NotifySend()

void ns3::Socket::NotifySend ( uint32_t spaceAvailable )

protected

Notify through the callback (if set) that some data have been sent.

Parameters

spaceAvailable the number of bytes available in the transmission buffer.

Definition at line 292 of file socket.cc.

References m_sendCb, and NS_LOG_FUNCTION.

Referenced by ns3::TcpSocketBase::ConnectionSucceeded(), ns3::UdpSocketImpl::DoSendTo(), ns3::TcpSocketBase::NewAck(), ns3::TcpSocketBase::ProcessSynRcvd(), ns3::TcpSocketBase::SendPendingData(), ns3::Ipv4RawSocketImpl::SendTo(), ns3::Ipv6RawSocketImpl::SendTo(), and ns3::PacketSocket::SendTo().

Here is the caller graph for this function:

◆ Recv() [1/3]

Ptr< Packet > ns3::Socket::Recv ( )

Read a single packet from the socket.

Overloaded version of Recv(maxSize, flags) with maxSize implicitly set to maximum sized integer, and flags set to zero.

Returns: Ptr<Packet> of the next in-sequence packet. Returns 0 if the socket cannot return a next in-sequence packet.

Definition at line 174 of file socket.cc.

References max, and NS_LOG_FUNCTION.

Referenced by Recv(), and ns3::TcpSocketBase::RecvFrom().

Here is the caller graph for this function:

◆ Recv() [2/3]

virtual Ptr<Packet> ns3::Socket::Recv	(	uint32_t	maxSize,
		uint32_t	flags
	)

pure virtual

Read data from the socket.

This function matches closely in semantics to the recv() function call in the standard C library (libc): ssize_t recv (int s, void *buf, size_t len, int flags); except that the receive I/O is asynchronous. This is the primary Recv method at this low-level API and must be implemented by subclasses.

This method is normally used only on a connected socket. In a typical blocking sockets model, this call would block until at least one byte is returned or the connection closes. In ns-3 at this API, the call returns immediately in such a case and returns 0 if nothing is available to be read. However, an application can set a callback, ns3::SetRecvCallback, to be notified of data being available to be read (when it conceptually unblocks); this is an asynchronous I/O model for recv().

This variant of Recv() uses class ns3::Packet to encapsulate data, rather than providing a raw pointer and length field. This allows an ns-3 application to attach tags if desired (such as a flow ID) and may allow the simulator to avoid some data copies. Despite the appearance of receiving Packets on a stream socket, just think of it as a fancy byte buffer with streaming semantics.

The semantics depend on the type of socket. For a datagram socket, each Recv() returns the data from at most one Send(), and order is not necessarily preserved. For a stream socket, the bytes are delivered in order, and on-the-wire packet boundaries are not preserved.

The flags argument is formed by or'ing one or more of the values: MSG_OOB process out-of-band data MSG_PEEK peek at incoming message None of these flags are supported for now.

Some variants of Recv() are supported as additional API, including RecvFrom(), overloaded Recv() without arguments, and variants that use raw character buffers.

Parameters

maxSize	reader will accept packet up to maxSize
flags	Socket control flags

Returns: Ptr<Packet> of the next in-sequence packet. Returns 0 if the socket cannot return a next in-sequence packet conforming to the maxSize and flags.

See also: SetRecvCallback

Implemented in ns3::PacketSocket, ns3::UdpSocketImpl, ns3::TcpSocketBase, ns3::Ipv6RawSocketImpl, and ns3::Ipv4RawSocketImpl.

Here is the caller graph for this function:

◆ Recv() [3/3]

int ns3::Socket::Recv	(	uint8_t *	buf,
		uint32_t	size,
		uint32_t	flags
	)

Recv data (or dummy data) from the remote host.

This method is provided so as to have an API which is closer in appearance to that of real network or BSD sockets.

If the underlying packet was carring null (fake) data, this buffer will be zeroed up to the length specified by the return value.

Parameters

buf	A pointer to a raw byte buffer to write the data to.
size	Number of bytes (at most) to copy to buf
flags	any flags to pass to the socket

Returns: number of bytes copied into buf

Definition at line 181 of file socket.cc.

References ns3::Packet::CopyData(), ns3::Packet::GetSize(), NS_LOG_FUNCTION, and Recv().

Here is the call graph for this function:

◆ RecvFrom() [1/3]

Ptr< Packet > ns3::Socket::RecvFrom ( Address & fromAddress )

Read a single packet from the socket and retrieve the sender address.

Calls RecvFrom (maxSize, flags, fromAddress) with maxSize implicitly set to maximum sized integer, and flags set to zero.

Parameters

fromAddress output parameter that will return the address of the sender of the received packet, if any. Remains untouched if no packet is received.

Returns: Ptr<Packet> of the next in-sequence packet. Returns 0 if the socket cannot return a next in-sequence packet.

Definition at line 194 of file socket.cc.

References max, NS_LOG_FUNCTION, and RecvFrom().

Here is the call graph for this function:

◆ RecvFrom() [2/3]

virtual Ptr<Packet> ns3::Socket::RecvFrom	(	uint32_t	maxSize,
		uint32_t	flags,
		Address &	fromAddress
	)

pure virtual

Read a single packet from the socket and retrieve the sender address.

Calls Recv(maxSize, flags) with maxSize implicitly set to maximum sized integer, and flags set to zero.

This method has similar semantics to Recv () but subclasses may want to provide checks on socket state, so the implementation is pushed to subclasses.

Parameters

maxSize	reader will accept packet up to maxSize
flags	Socket control flags
fromAddress	output parameter that will return the address of the sender of the received packet, if any. Remains untouched if no packet is received.

Returns: Ptr<Packet> of the next in-sequence packet. Returns 0 if the socket cannot return a next in-sequence packet.

Implemented in ns3::PacketSocket, ns3::UdpSocketImpl, ns3::TcpSocketBase, ns3::Ipv6RawSocketImpl, and ns3::Ipv4RawSocketImpl.

Here is the caller graph for this function:

◆ RecvFrom() [3/3]

int ns3::Socket::RecvFrom	(	uint8_t *	buf,
		uint32_t	size,
		uint32_t	flags,
		Address &	fromAddress
	)

Read a single packet from the socket and retrieve the sender address.

This method is provided so as to have an API which is closer in appearance to that of real network or BSD sockets.

Parameters

buf	A pointer to a raw byte buffer to write the data to. If the underlying packet was carring null (fake) data, this buffer will be zeroed up to the length specified by the return value.
size	Number of bytes (at most) to copy to buf
flags	any flags to pass to the socket
fromAddress	output parameter that will return the address of the sender of the received packet, if any. Remains untouched if no packet is received.

Returns: number of bytes copied into buf

Definition at line 201 of file socket.cc.

References ns3::Packet::CopyData(), ns3::Packet::GetSize(), NS_LOG_FUNCTION, and RecvFrom().

Here is the call graph for this function:

◆ Send() [1/3]

int ns3::Socket::Send	(	const uint8_t *	buf,
		uint32_t	size,
		uint32_t	flags
	)

Send data (or dummy data) to the remote host.

This method is provided so as to have an API which is closer in appearance to that of real network or BSD sockets.

Parameters

buf	A pointer to a raw byte buffer of some data to send. If this buffer is 0, we send dummy data whose size is specified by the second parameter
size	the number of bytes to copy from the buffer
flags	Socket control flags

Returns: the number of bytes accepted for transmission if no error occurs, and -1 otherwise.

Definition at line 142 of file socket.cc.

References NS_LOG_FUNCTION, and Send().

Here is the call graph for this function:

◆ Send() [2/3]

int ns3::Socket::Send ( Ptr< Packet > p )

Send data (or dummy data) to the remote host.

Overloaded version of Send(..., flags) with flags set to zero.

Parameters

p	ns3::Packet to send

Returns: the number of bytes accepted for transmission if no error occurs, and -1 otherwise.

Definition at line 135 of file socket.cc.

References NS_LOG_FUNCTION, and Send().

Here is the call graph for this function:

◆ Send() [3/3]

virtual int ns3::Socket::Send	(	Ptr< Packet >	p,
		uint32_t	flags
	)

pure virtual

Send data (or dummy data) to the remote host.

This function matches closely in semantics to the send() function call in the standard C library (libc): ssize_t send (int s, const void *msg, size_t len, int flags); except that the send I/O is asynchronous. This is the primary Send method at this low-level API and must be implemented by subclasses.

In a typical blocking sockets model, this call would block upon lack of space to hold the message to be sent. In ns-3 at this API, the call returns immediately in such a case, but the callback registered with SetSendCallback() is invoked when the socket has space (when it conceptually unblocks); this is an asynchronous I/O model for send().

This variant of Send() uses class ns3::Packet to encapsulate data, rather than providing a raw pointer and length field. This allows an ns-3 application to attach tags if desired (such as a flow ID) and may allow the simulator to avoid some data copies. Despite the appearance of sending Packets on a stream socket, just think of it as a fancy byte buffer with streaming semantics.

If either the message buffer within the Packet is too long to pass atomically through the underlying protocol (for datagram sockets), or the message buffer cannot entirely fit in the transmit buffer (for stream sockets), -1 is returned and SocketErrno is set to ERROR_MSGSIZE. If the packet does not fit, the caller can split the Packet (based on information obtained from GetTxAvailable) and reattempt to send the data.

The flags argument is formed by or'ing one or more of the values: MSG_OOB process out-of-band data MSG_DONTROUTE bypass routing, use direct interface These flags are unsupported as of ns-3.1.

Parameters

p	ns3::Packet to send
flags	Socket control flags

Returns: the number of bytes accepted for transmission if no error occurs, and -1 otherwise.

See also: SetSendCallback

Implemented in ns3::PacketSocket, ns3::UdpSocketImpl, ns3::TcpSocketBase, ns3::Ipv6RawSocketImpl, and ns3::Ipv4RawSocketImpl.

Here is the caller graph for this function:

◆ SendTo() [1/2]

int ns3::Socket::SendTo	(	const uint8_t *	buf,
		uint32_t	size,
		uint32_t	flags,
		const Address &	address
	)

Send data to a specified peer.

This method is provided so as to have an API which is closer in appearance to that of real network or BSD sockets.

Parameters

buf	A pointer to a raw byte buffer of some data to send. If this is 0, we send dummy data whose size is specified by the third parameter
size	the number of bytes to copy from the buffer
flags	Socket control flags
address	IP Address of remote host

Returns: -1 in case of error or the number of bytes copied in the internal buffer and accepted for transmission.

Definition at line 158 of file socket.cc.

References NS_LOG_FUNCTION, and SendTo().

Here is the call graph for this function:

◆ SendTo() [2/2]

virtual int ns3::Socket::SendTo	(	Ptr< Packet >	p,
		uint32_t	flags,
		const Address &	toAddress
	)

pure virtual

Send data to a specified peer.

This method has similar semantics to Send () but subclasses may want to provide checks on socket state, so the implementation is pushed to subclasses.

Parameters

p	packet to send
flags	Socket control flags
toAddress	IP Address of remote host

Returns: -1 in case of error or the number of bytes copied in the internal buffer and accepted for transmission.

Implemented in ns3::PacketSocket, ns3::TcpSocketBase, ns3::Ipv6RawSocketImpl, ns3::Ipv4RawSocketImpl, and ns3::UdpSocketImpl.

◆ SetAcceptCallback()

void ns3::Socket::SetAcceptCallback	(	Callback< bool, Ptr< Socket >, const Address & >	connectionRequest,
		Callback< void, Ptr< Socket >, const Address & >	newConnectionCreated
	)

Accept connection requests from remote hosts.

Parameters

connectionRequest Callback for connection request from peer. This user callback is passed a pointer to this socket, the ip address and the port number of the connection originator. This callback must return true to accept the incoming connection, false otherwise. If the connection is accepted, the "newConnectionCreated" callback will be invoked later to give access to the user to the socket created to match this new connection. If the user does not explicitly specify this callback, all incoming connections will be refused.

newConnectionCreated Callback for new connection: when a new is accepted, it is created and the corresponding socket is passed back to the user through this callback. This user callback is passed a pointer to the new socket, and the ip address and port number of the connection originator.

Definition at line 105 of file socket.cc.

References m_connectionRequest, m_newConnectionCreated, and NS_LOG_FUNCTION.

Referenced by ns3::QKDKeyManagerSystemApplication::AddNewLink(), ns3::QKDKeyManagerSystemApplication::ConnectToSDNController(), DualStackTestCase::DoRun(), ns3::QKDKeyManagerSystemApplication::PrepareSinkSocket(), ns3::QKDSDNController::PrepareSinkSocket(), ns3::QKDApp004::PrepareSinkSocketFromApp(), ns3::QKDApp014::PrepareSinkSocketFromApp(), ns3::QKDApp004::PrepareSinkSocketFromKMS(), ns3::QKDApp014::PrepareSinkSocketFromKMS(), ns3::PacketSink::StartApplication(), ns3::ThreeGppHttpServer::StartApplication(), ns3::QKDPostprocessingApplication::StartApplication(), and ns3::ThreeGppHttpServer::StopApplication().

Here is the caller graph for this function:

◆ SetAllowBroadcast()

virtual bool ns3::Socket::SetAllowBroadcast ( bool allowBroadcast )

pure virtual

Configure whether broadcast datagram transmissions are allowed.

This method corresponds to using setsockopt() SO_BROADCAST of real network or BSD sockets. If set on a socket, this option will enable or disable packets to be transmitted to broadcast destination addresses.

Parameters

allowBroadcast Whether broadcast is allowed

Returns: true if operation succeeds

Implemented in ns3::PacketSocket, ns3::UdpSocketImpl, ns3::TcpSocketBase, ns3::Ipv6RawSocketImpl, and ns3::Ipv4RawSocketImpl.

Referenced by Bug772ChainTest::CreateDevices(), ns3::olsr::RoutingProtocol::DoInitialize(), ns3::aodv::RoutingProtocol::NotifyAddAddress(), ns3::dsdv::RoutingProtocol::NotifyAddAddress(), ns3::aodv::RoutingProtocol::NotifyInterfaceUp(), ns3::dsdv::RoutingProtocol::NotifyInterfaceUp(), ns3::aodv::RoutingProtocol::NotifyRemoveAddress(), ns3::dsdv::RoutingProtocol::NotifyRemoveAddress(), ns3::OnOffApplication::StartApplication(), ns3::UdpClient::StartApplication(), ns3::UdpEchoClient::StartApplication(), ns3::UdpTraceClient::StartApplication(), ns3::DhcpClient::StartApplication(), ns3::DhcpServer::StartApplication(), and Ipv4FragmentationTest::StartClient().

Here is the caller graph for this function:

◆ SetCloseCallbacks()

void ns3::Socket::SetCloseCallbacks	(	Callback< void, Ptr< Socket >>	normalClose,
		Callback< void, Ptr< Socket >>	errorClose
	)

Detect socket recv() events such as graceful shutdown or error.

For connection-oriented sockets, the first callback is used to signal that the remote side has gracefully shut down the connection, and the second callback denotes an error corresponding to cases in which a traditional recv() socket call might return -1 (error), such as a connection reset. For datagram sockets, these callbacks may never be invoked.

Parameters

normalClose	this callback is invoked when the peer closes the connection gracefully
errorClose	this callback is invoked when the connection closes abnormally

Definition at line 96 of file socket.cc.

References m_errorClose, m_normalClose, and NS_LOG_FUNCTION.

Referenced by ns3::QKDKeyManagerSystemApplication::AddNewLink(), ns3::QKDKeyManagerSystemApplication::ConnectToSDNController(), ns3::TcpGeneralTest::HandleAccept(), ns3::QKDApp004::HandlePeerCloseToKMS(), ns3::QKDApp004::HandlePeerErrorToKMS(), ns3::ThreeGppHttpServer::NewConnectionCreatedCallback(), ns3::ThreeGppHttpClient::NormalCloseCallback(), ns3::ThreeGppHttpClient::OpenConnection(), ns3::QKDApp004::PrepareSendSocketToKMS(), ns3::QKDKeyManagerSystemApplication::PrepareSinkSocket(), ns3::QKDSDNController::PrepareSinkSocket(), ns3::QKDApp004::PrepareSinkSocketFromApp(), ns3::QKDApp014::PrepareSinkSocketFromApp(), ns3::QKDApp004::PrepareSinkSocketFromKMS(), ns3::QKDApp014::PrepareSinkSocketFromKMS(), ns3::PacketSink::StartApplication(), ns3::ThreeGppHttpServer::StartApplication(), ns3::QKDPostprocessingApplication::StartApplication(), and ns3::ThreeGppHttpServer::StopApplication().

Here is the caller graph for this function:

◆ SetConnectCallback()

void ns3::Socket::SetConnectCallback	(	Callback< void, Ptr< Socket >>	connectionSucceeded,
		Callback< void, Ptr< Socket >>	connectionFailed
	)

Specify callbacks to allow the caller to determine if the connection succeeds of fails.

Parameters

connectionSucceeded	this callback is invoked when the connection request initiated by the user is successfully completed. The callback is passed back a pointer to the same socket object.
connectionFailed	this callback is invoked when the connection request initiated by the user is unsuccessfuly completed. The callback is passed back a pointer to the same socket object.

Definition at line 87 of file socket.cc.

References m_connectionFailed, m_connectionSucceeded, and NS_LOG_FUNCTION.

Referenced by ns3::TcpSocketBase::TcpSocketBase(), ns3::QKDKeyManagerSystemApplication::CheckSocketsKMS(), ns3::QKDKeyManagerSystemApplication::ConnectToSDNController(), TcpEndPointBug2211Test::DoRun(), TcpSynConnectionFailedTest::DoRun(), ns3::QKDKeyManagerSystemApplication::HandleAccept(), ns3::QKDSDNController::HandleAccept(), ns3::QKDApp004::HandlePeerCloseToKMS(), ns3::QKDApp004::HandlePeerErrorToKMS(), ns3::ThreeGppHttpClient::OpenConnection(), ns3::QKDApp004::PrepareSendSocketToApp(), ns3::QKDApp014::PrepareSendSocketToApp(), ns3::QKDApp004::PrepareSendSocketToKMS(), ns3::QKDApp014::PrepareSendSocketToKMS(), ns3::BulkSendApplication::StartApplication(), ns3::OnOffApplication::StartApplication(), and ns3::ThreeGppHttpClient::StopApplication().

Here is the caller graph for this function:

◆ SetDataSentCallback()

void ns3::Socket::SetDataSentCallback ( Callback< void, Ptr< Socket >, uint32_t > dataSent )

Notify application when a packet has been sent from transport protocol (non-standard socket call)

Parameters

dataSent Callback for the event that data is sent from the underlying transport protocol. This callback is passed a pointer to the socket, and the number of bytes sent.

Definition at line 114 of file socket.cc.

References m_dataSent, and NS_LOG_FUNCTION.

Referenced by ns3::TcpSocketBase::TcpSocketBase(), ns3::QKDKeyManagerSystemApplication::CheckSocketsKMS(), ns3::QKDKeyManagerSystemApplication::ConnectToSDNController(), ns3::QKDKeyManagerSystemApplication::HandleAccept(), ns3::QKDSDNController::HandleAccept(), ns3::QKDApp004::PrepareSendSocketToKMS(), and ns3::QKDApp014::PrepareSendSocketToKMS().

Here is the caller graph for this function:

◆ SetIpRecvTos()

void ns3::Socket::SetIpRecvTos ( bool ipv4RecvTos )

Tells a socket to pass information about IP Type of Service up the stack.

This method corresponds to using setsockopt () IP_RECVTOS of real network or BSD sockets. In our implementation, the socket simply adds a SocketIpTosTag tag to the packet before passing the packet up the stack.

Parameters

ipv4RecvTos Whether the socket should add SocketIpv4TosTag tag to the packet

Definition at line 456 of file socket.cc.

References m_ipRecvTos.

◆ SetIpRecvTtl()

void ns3::Socket::SetIpRecvTtl ( bool ipv4RecvTtl )

Tells a socket to pass information about IP_TTL up the stack.

This method corresponds to using setsockopt () IP_RECVTTL of real network or BSD sockets. In our implementation, the socket simply adds a SocketIpTtlTag tag to the packet before passing the packet up the stack.

Parameters

ipv4RecvTtl Whether the socket should add SocketIpv4TtlTag tag to the packet

Definition at line 523 of file socket.cc.

References m_ipRecvTtl.

Referenced by ns3::Rip::DoInitialize(), ns3::aodv::RoutingProtocol::NotifyAddAddress(), ns3::aodv::RoutingProtocol::NotifyInterfaceUp(), ns3::Rip::NotifyInterfaceUp(), and ns3::aodv::RoutingProtocol::NotifyRemoveAddress().

Here is the caller graph for this function:

◆ SetIpTos()

void ns3::Socket::SetIpTos ( uint8_t ipTos )

Manually set IP Type of Service field.

This method corresponds to using setsockopt () IP_TOS of real network or BSD sockets. This option is for IPv4 only. Setting the IP TOS also changes the socket priority as stated in the man page.

Parameters

ipTos The desired TOS value for IP headers

Definition at line 434 of file socket.cc.

References first::address, GetSocketType(), GetSockName(), IpTos2Priority(), m_ipTos, m_priority, and NS3_SOCK_STREAM.

Referenced by ns3::TcpSocketBase::Bind(), ns3::UdpSocketImpl::Bind(), ns3::Ipv4RawSocketImpl::Connect(), ns3::TcpSocketBase::Connect(), and ns3::UdpSocketImpl::Connect().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetIpTtl()

void ns3::Socket::SetIpTtl ( uint8_t ipTtl )

virtual

Manually set IP Time to Live field.

This method corresponds to using setsockopt () IP_TTL of real network or BSD sockets.

Parameters

ipTtl The desired TTL value for IP headers

Definition at line 510 of file socket.cc.

References m_ipTtl, and m_manualIpTtl.

Referenced by ns3::olsr::RoutingProtocol::DoInitialize(), IcmpEchoReplyTestCase::DoRun(), IcmpTimeExceedTestCase::DoRun(), IcmpV6EchoReplyTestCase::DoRun(), ns3::UdpSocket::GetTypeId(), and ns3::V4TraceRoute::Send().

Here is the caller graph for this function:

◆ SetIpv6HopLimit()

void ns3::Socket::SetIpv6HopLimit ( uint8_t ipHopLimit )

virtual

Manually set IPv6 Hop Limit.

This method corresponds to using setsockopt () IPV6_HOPLIMIT of real network or BSD sockets.

Parameters

ipHopLimit The desired Hop Limit value for IPv6 headers

Definition at line 535 of file socket.cc.

References m_ipv6HopLimit, and m_manualIpv6HopLimit.

Referenced by IcmpV6TimeExceedTestCase::DoRun().

Here is the caller graph for this function:

◆ SetIpv6RecvHopLimit()

void ns3::Socket::SetIpv6RecvHopLimit ( bool ipv6RecvHopLimit )

Tells a socket to pass information about IPv6 Hop Limit up the stack.

This method corresponds to using setsockopt () IPV6_RECVHOPLIMIT of real network or BSD sockets. In our implementation, the socket simply adds a SocketIpv6HopLimitTag tag to the packet before passing the packet up the stack.

Parameters

ipv6RecvHopLimit Whether the socket should add SocketIpv6HopLimitTag tag to the packet

Definition at line 548 of file socket.cc.

References m_ipv6RecvHopLimit.

Referenced by ns3::RipNg::DoInitialize(), and ns3::RipNg::NotifyInterfaceUp().

Here is the caller graph for this function:

◆ SetIpv6RecvTclass()

void ns3::Socket::SetIpv6RecvTclass ( bool ipv6RecvTclass )

Tells a socket to pass information about IPv6 Traffic Class up the stack.

This method corresponds to using setsockopt () IPV6_RECVTCLASS of real network or BSD sockets. In our implementation, the socket simply adds a SocketIpv6TclasssTag tag to the packet before passing the packet up the stack.

Parameters

ipv6RecvTclass Whether the socket should add SocketIpv6TclassTag tag to the packet

Definition at line 498 of file socket.cc.

References m_ipv6RecvTclass.

◆ SetIpv6Tclass()

void ns3::Socket::SetIpv6Tclass ( int ipTclass )

Manually set IPv6 Traffic Class field.

This method corresponds to using setsockopt () IPV6_TCLASS of real network or BSD sockets. This option is for IPv6 only. Setting the IPV6_TCLASSS to -1 clears the option and let the socket uses the default value.

Parameters

ipTclass The desired TCLASS value for IPv6 headers

Definition at line 468 of file socket.cc.

References first::address, GetSockName(), m_ipv6Tclass, m_manualIpv6Tclass, and NS_LOG_WARN.

Here is the call graph for this function:

◆ SetPriority()

void ns3::Socket::SetPriority ( uint8_t priority )

Manually set the socket priority.

This method corresponds to using setsockopt () SO_PRIORITY of real network or BSD sockets. On Linux, the socket priority can be set to a value in the range [0..6], unless the user process has the CAP_NET_ADMIN capability (see the man page for socket). ns-3 allows users to set the socket priority to any 8-bit non-negative value, which is equivalent to assuming that the CAP_NET_ADMIN capability is set.

Parameters

priority The socket priority

Definition at line 386 of file socket.cc.

References m_priority, and NS_LOG_FUNCTION.

Referenced by ns3::PacketSocketClient::SetPriority(), and ns3::PacketSocketClient::StartApplication().

Here is the caller graph for this function:

◆ SetRecvCallback()

void ns3::Socket::SetRecvCallback ( Callback< void, Ptr< Socket >> receivedData )

Notify application when new data is available to be read.

   This callback is intended to notify a socket that would
   have been blocked in a blocking socket model that data
   is available to be read.

Parameters

receivedData Callback for the event that data is received from the underlying transport protocol. This callback is passed a pointer to the socket.

Definition at line 128 of file socket.cc.

References m_receivedData, and NS_LOG_FUNCTION.

◆ SetRecvPktInfo()

void ns3::Socket::SetRecvPktInfo ( bool flag )

Enable/Disable receive packet information to socket.

For IP_PKTINFO/IP6_PKTINFO. This method is only usable for Raw socket and Datagram Socket. Not supported for Stream socket.

Method doesn't make distinction between IPv4 and IPv6. If it is enabled, it is enabled for all types of sockets that supports packet information

Parameters

flag	Enable/Disable receive information

Definition at line 354 of file socket.cc.

References m_recvPktInfo, and NS_LOG_FUNCTION.

Referenced by ns3::Rip::DoInitialize(), ns3::RipNg::DoInitialize(), ns3::olsr::RoutingProtocol::DoInitialize(), Ipv4DynamicGlobalRoutingTestCase::DoRun(), ns3::Rip::NotifyInterfaceUp(), ns3::RipNg::NotifyInterfaceUp(), ns3::PacketSink::StartApplication(), ns3::DhcpServer::StartApplication(), ns3::Ping::StartApplication(), and ns3::Radvd::StartApplication().

Here is the caller graph for this function:

◆ SetSendCallback()

void ns3::Socket::SetSendCallback ( Callback< void, Ptr< Socket >, uint32_t > sendCb )

Notify application when space in transmit buffer is added.

   This callback is intended to notify a
   socket that would have been blocked in a blocking socket model
   that space is available in the transmit buffer and that it
   can call Send() again.

Parameters

sendCb Callback for the event that the socket transmit buffer fill level has decreased. This callback is passed a pointer to the socket, and the number of bytes available for writing into the buffer (an absolute value). If there is no transmit buffer limit, a maximum-sized integer is always returned.

Definition at line 121 of file socket.cc.

References m_sendCb, and NS_LOG_FUNCTION.

Referenced by ns3::TcpSocketBase::TcpSocketBase(), ns3::ThreeGppHttpServer::NewConnectionCreatedCallback(), TcpTestCase::ServerHandleConnectionCreated(), TcpTestCase::SetupDefaultSim(), TcpTestCase::SetupDefaultSim6(), ns3::BulkSendApplication::StartApplication(), ns3::ThreeGppHttpServer::StartApplication(), Ns3TcpLossTestCase::StartFlow(), Ns3TcpStateTestCase::StartFlow(), StartFlow(), and ns3::ThreeGppHttpServer::StopApplication().

Here is the caller graph for this function:

◆ ShutdownRecv()

virtual int ns3::Socket::ShutdownRecv ( )

pure virtual

Returns: zero on success, -1 on failure.

Do not allow any further Recv calls. This method is typically implemented for Tcp sockets by a half close.

Implemented in ns3::PacketSocket, ns3::UdpSocketImpl, ns3::TcpSocketBase, ns3::Ipv6RawSocketImpl, and ns3::Ipv4RawSocketImpl.

Referenced by ns3::QKDKeyManagerSystemApplication::CheckSocketsKMS(), ns3::QKDKeyManagerSystemApplication::ConnectToSDNController(), ns3::QKDKeyManagerSystemApplication::HandleAccept(), ns3::QKDSDNController::HandleAccept(), ns3::QKDApp014::PrepareSendSocketToKMS(), ns3::BulkSendApplication::StartApplication(), and ns3::OnOffApplication::StartApplication().

Here is the caller graph for this function:

◆ ShutdownSend()

virtual int ns3::Socket::ShutdownSend ( )

pure virtual

Returns: zero on success, -1 on failure.

Do not allow any further Send calls. This method is typically implemented for Tcp sockets by a half close.

Implemented in ns3::PacketSocket, ns3::UdpSocketImpl, ns3::TcpSocketBase, ns3::Ipv6RawSocketImpl, and ns3::Ipv4RawSocketImpl.

Referenced by ns3::QKDKeyManagerSystemApplication::AddNewLink(), ns3::QKDKeyManagerSystemApplication::ConnectToSDNController(), Bug772ChainTest::CreateDevices(), ns3::olsr::RoutingProtocol::DoInitialize(), Ipv4DynamicGlobalRoutingTestCase::DoRun(), ns3::ThreeGppHttpServer::NormalCloseCallback(), ns3::QKDKeyManagerSystemApplication::PrepareSinkSocket(), ns3::QKDSDNController::PrepareSinkSocket(), ns3::QKDApp004::PrepareSinkSocketFromApp(), ns3::QKDApp014::PrepareSinkSocketFromApp(), ns3::QKDApp004::PrepareSinkSocketFromKMS(), ns3::QKDApp014::PrepareSinkSocketFromKMS(), ns3::PacketSink::StartApplication(), ns3::Radvd::StartApplication(), and ns3::QKDPostprocessingApplication::StartApplication().

Here is the caller graph for this function:

Member Data Documentation

◆ m_boundnetdevice

Ptr<NetDevice> ns3::Socket::m_boundnetdevice

protected

◆ m_connectionFailed

Callback<void, Ptr<Socket> > ns3::Socket::m_connectionFailed

private

connection failed callback

Definition at line 1086 of file socket.h.

Referenced by DoDispose(), NotifyConnectionFailed(), and SetConnectCallback().

◆ m_connectionRequest

Callback<bool, Ptr<Socket>, const Address&> ns3::Socket::m_connectionRequest

private

connection request callback

Definition at line 1090 of file socket.h.

Referenced by DoDispose(), NotifyConnectionRequest(), and SetAcceptCallback().

◆ m_connectionSucceeded

Callback<void, Ptr<Socket> > ns3::Socket::m_connectionSucceeded

private

connection succeeded callback

Definition at line 1085 of file socket.h.

Referenced by DoDispose(), NotifyConnectionSucceeded(), and SetConnectCallback().

◆ m_dataSent

Callback<void, Ptr<Socket>, uint32_t> ns3::Socket::m_dataSent

private

data sent callback

Definition at line 1093 of file socket.h.

Referenced by DoDispose(), NotifyDataSent(), and SetDataSentCallback().

◆ m_errorClose

Callback<void, Ptr<Socket> > ns3::Socket::m_errorClose

private

connection closed due to errors callback

Definition at line 1088 of file socket.h.

Referenced by DoDispose(), NotifyErrorClose(), and SetCloseCallbacks().

◆ m_ipRecvTos

bool ns3::Socket::m_ipRecvTos

private

socket forwards IPv4 TOS tag to L4

Definition at line 1101 of file socket.h.

Referenced by IsIpRecvTos(), and SetIpRecvTos().

◆ m_ipRecvTtl

bool ns3::Socket::m_ipRecvTtl

private

socket forwards IPv4 TTL tag to L4

Definition at line 1102 of file socket.h.

Referenced by IsIpRecvTtl(), and SetIpRecvTtl().

◆ m_ipTos

uint8_t ns3::Socket::m_ipTos

private

the socket IPv4 TOS

Definition at line 1104 of file socket.h.

Referenced by Socket(), GetIpTos(), and SetIpTos().

◆ m_ipTtl

uint8_t ns3::Socket::m_ipTtl

private

the socket IPv4 TTL

Definition at line 1105 of file socket.h.

Referenced by Socket(), GetIpTtl(), and SetIpTtl().

◆ m_ipv6HopLimit

uint8_t ns3::Socket::m_ipv6HopLimit

private

the socket IPv6 Hop Limit

Definition at line 1114 of file socket.h.

Referenced by Socket(), GetIpv6HopLimit(), and SetIpv6HopLimit().

◆ m_ipv6MulticastGroupAddress

Ipv6Address ns3::Socket::m_ipv6MulticastGroupAddress

protected

IPv6 multicast group address.

Definition at line 1082 of file socket.h.

Referenced by ns3::Ipv6RawSocketImpl::Ipv6JoinGroup(), ns3::UdpSocketImpl::Ipv6JoinGroup(), and Ipv6LeaveGroup().

◆ m_ipv6RecvHopLimit

bool ns3::Socket::m_ipv6RecvHopLimit

private

socket forwards IPv6 Hop Limit tag to L4

Definition at line 1111 of file socket.h.

Referenced by IsIpv6RecvHopLimit(), and SetIpv6RecvHopLimit().

◆ m_ipv6RecvTclass

bool ns3::Socket::m_ipv6RecvTclass

private

socket forwards IPv6 Tclass tag to L4

Definition at line 1110 of file socket.h.

Referenced by IsIpv6RecvTclass(), and SetIpv6RecvTclass().

◆ m_ipv6Tclass

uint8_t ns3::Socket::m_ipv6Tclass

private

the socket IPv6 Tclass

Definition at line 1113 of file socket.h.

Referenced by Socket(), GetIpv6Tclass(), and SetIpv6Tclass().

◆ m_manualIpTtl

bool ns3::Socket::m_manualIpTtl

private

socket has IPv4 TTL set

Definition at line 1100 of file socket.h.

Referenced by IsManualIpTtl(), and SetIpTtl().

◆ m_manualIpv6HopLimit

bool ns3::Socket::m_manualIpv6HopLimit

private

socket has IPv6 Hop Limit set

Definition at line 1109 of file socket.h.

Referenced by IsManualIpv6HopLimit(), and SetIpv6HopLimit().

◆ m_manualIpv6Tclass

bool ns3::Socket::m_manualIpv6Tclass

private

socket has IPv6 Tclass set

Definition at line 1108 of file socket.h.

Referenced by IsManualIpv6Tclass(), and SetIpv6Tclass().

◆ m_newConnectionCreated

Callback<void, Ptr<Socket>, const Address&> ns3::Socket::m_newConnectionCreated

private

connection created callback

Definition at line 1092 of file socket.h.

Referenced by DoDispose(), NotifyNewConnectionCreated(), and SetAcceptCallback().

◆ m_normalClose

Callback<void, Ptr<Socket> > ns3::Socket::m_normalClose

private

connection closed callback

Definition at line 1087 of file socket.h.

Referenced by DoDispose(), NotifyNormalClose(), and SetCloseCallbacks().

◆ m_priority

uint8_t ns3::Socket::m_priority

private

the socket priority

Definition at line 1097 of file socket.h.

Referenced by Socket(), GetPriority(), SetIpTos(), and SetPriority().

◆ m_receivedData

Callback<void, Ptr<Socket> > ns3::Socket::m_receivedData

private

data received callback

Definition at line 1095 of file socket.h.

Referenced by DoDispose(), NotifyDataRecv(), and SetRecvCallback().

◆ m_recvPktInfo

bool ns3::Socket::m_recvPktInfo

protected

if the socket should add packet info tags to the packet forwarded to L4.

Definition at line 1081 of file socket.h.

Referenced by Socket(), IsRecvPktInfo(), and SetRecvPktInfo().

◆ m_sendCb

Callback<void, Ptr<Socket>, uint32_t> ns3::Socket::m_sendCb

private

packet sent callback

Definition at line 1094 of file socket.h.

Referenced by DoDispose(), NotifySend(), and SetSendCallback().

The documentation for this class was generated from the following files:

src/network/model/socket.h
src/network/model/socket.cc

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Private Attributes

Additional Inherited Members

Detailed Description

Member Enumeration Documentation

◆ Ipv6MulticastFilterMode

◆ SocketErrno

◆ SocketPriority

◆ SocketType

Constructor & Destructor Documentation

◆ Socket()

◆ ~Socket()

Member Function Documentation

◆ Bind() [1/2]

◆ Bind() [2/2]

◆ Bind6()

◆ BindToNetDevice()

◆ Close()

◆ Connect()

◆ CreateSocket()

◆ DoDispose()

◆ GetAllowBroadcast()

◆ GetBoundNetDevice()

◆ GetErrno()

◆ GetIpTos()

◆ GetIpTtl()

◆ GetIpv6HopLimit()

◆ GetIpv6Tclass()

◆ GetNode()

◆ GetPeerName()

◆ GetPriority()

◆ GetRxAvailable()

◆ GetSocketType()

◆ GetSockName()

◆ GetTxAvailable()

◆ GetTypeId()

◆ IpTos2Priority()

◆ Ipv6JoinGroup() [1/2]

◆ Ipv6JoinGroup() [2/2]

◆ Ipv6LeaveGroup()

◆ IsIpRecvTos()

◆ IsIpRecvTtl()

◆ IsIpv6RecvHopLimit()

◆ IsIpv6RecvTclass()

◆ IsManualIpTtl()

◆ IsManualIpv6HopLimit()

◆ IsManualIpv6Tclass()

◆ IsRecvPktInfo()

◆ Listen()

◆ NotifyConnectionFailed()

◆ NotifyConnectionRequest()

◆ NotifyConnectionSucceeded()

◆ NotifyDataRecv()

◆ NotifyDataSent()

◆ NotifyErrorClose()

◆ NotifyNewConnectionCreated()

◆ NotifyNormalClose()

◆ NotifySend()

◆ Recv() [1/3]

◆ Recv() [2/3]

◆ Recv() [3/3]

◆ RecvFrom() [1/3]

◆ RecvFrom() [2/3]

◆ RecvFrom() [3/3]

◆ Send() [1/3]

◆ Send() [2/3]

◆ Send() [3/3]

◆ SendTo() [1/2]

◆ SendTo() [2/2]

◆ SetAcceptCallback()

◆ SetAllowBroadcast()

◆ SetCloseCallbacks()

◆ SetConnectCallback()

◆ SetDataSentCallback()

◆ SetIpRecvTos()

◆ SetIpRecvTtl()
