IPv4 raw socket. More...

#include "ipv4-raw-socket-impl.h"

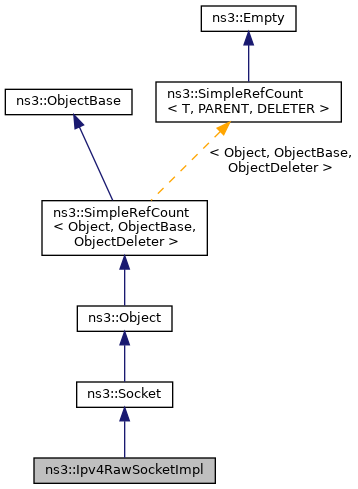

Inheritance diagram for ns3::Ipv4RawSocketImpl:

Collaboration diagram for ns3::Ipv4RawSocketImpl:

Classes
struct	Data
	IPv4 raw data and additional information. More...

Public Member Functions
	Ipv4RawSocketImpl ()

int	Bind () override
	Allocate a local IPv4 endpoint for this socket. More...

int	Bind (const Address &address) override
	Allocate a local endpoint for this socket. More...

int	Bind6 () override
	Allocate a local IPv6 endpoint for this socket. More...

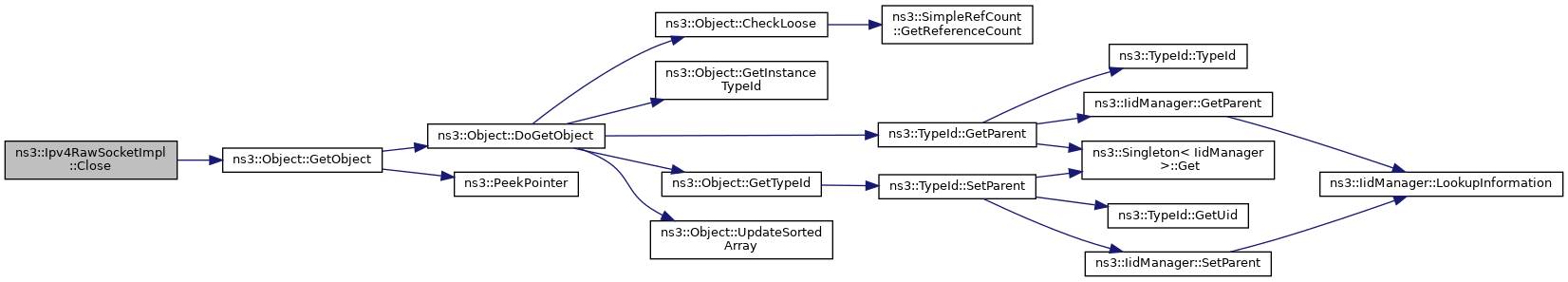

int	Close () override
	Close a socket. More...

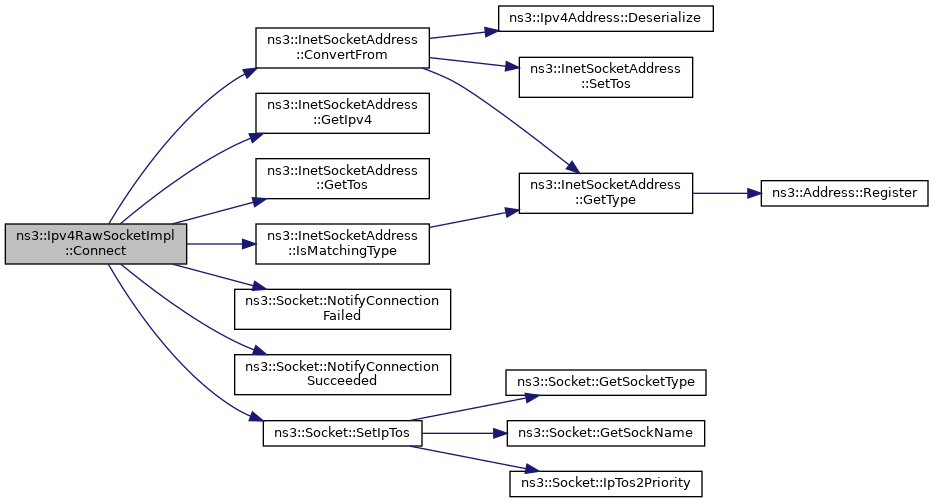

int	Connect (const Address &address) override
	Initiate a connection to a remote host. More...

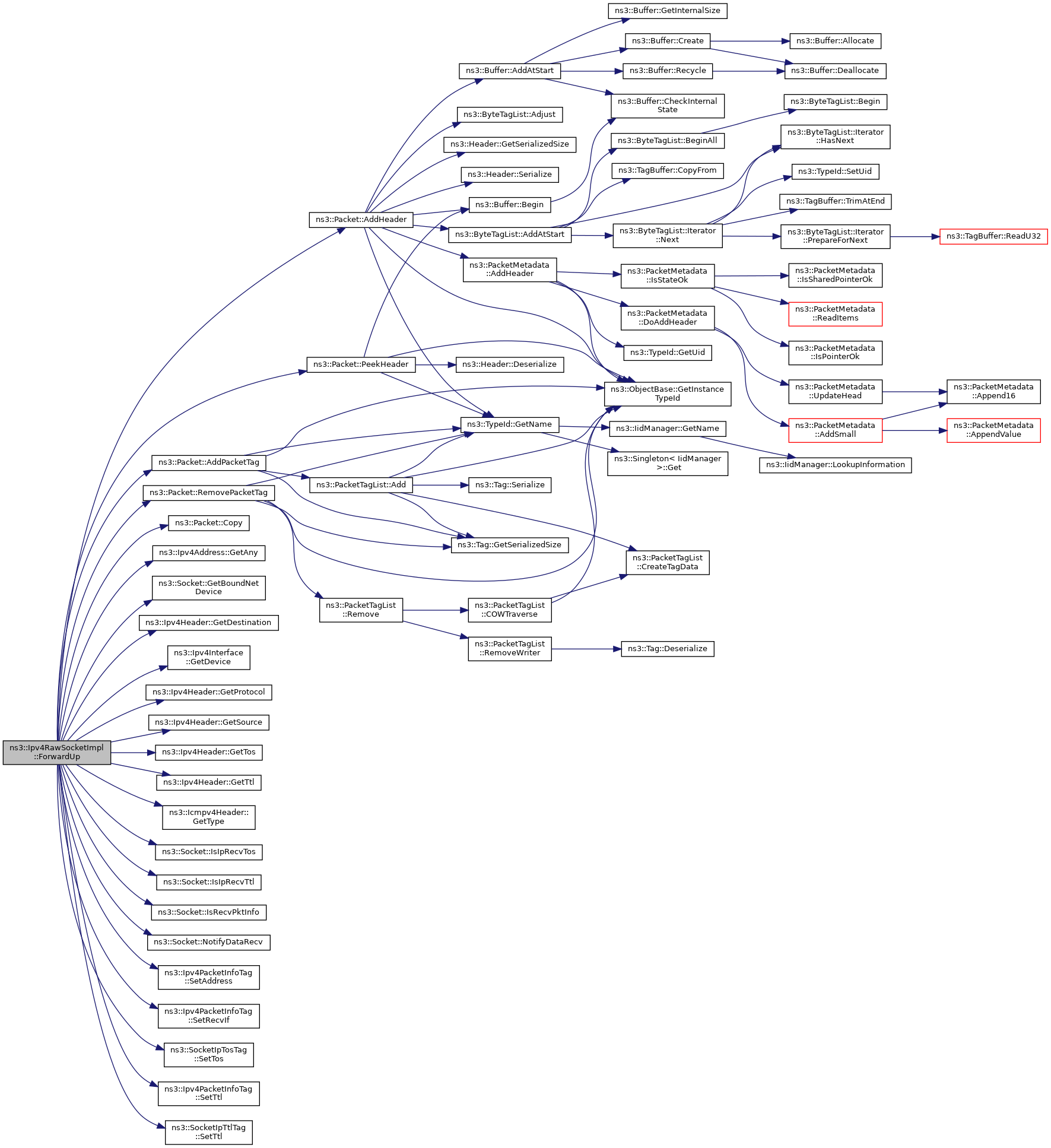

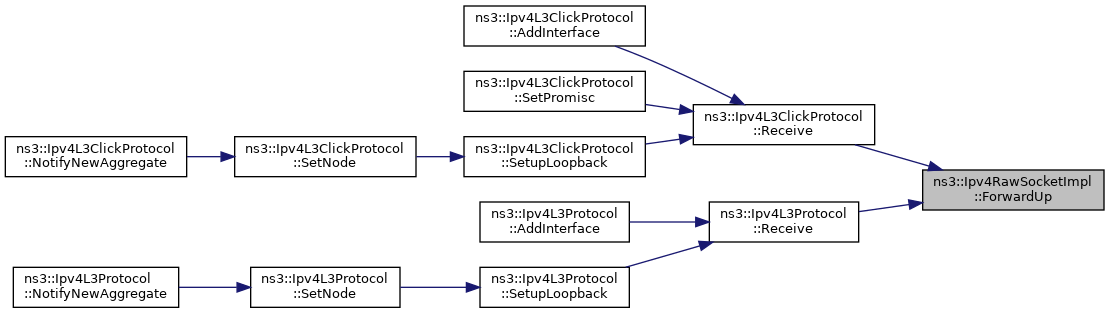

bool	ForwardUp (Ptr< const Packet > p, Ipv4Header ipHeader, Ptr< Ipv4Interface > incomingInterface)
	Forward up to receive method. More...

bool	GetAllowBroadcast () const override
	Query whether broadcast datagram transmissions are allowed. More...

Socket::SocketErrno	GetErrno () const override
	Get last error number. More...

Ptr< Node >	GetNode () const override
	Return the node this socket is associated with. More...

int	GetPeerName (Address &address) const override
	Get the peer address of a connected socket. More...

uint32_t	GetRxAvailable () const override
	Return number of bytes which can be returned from one or multiple calls to Recv. More...

Socket::SocketType	GetSocketType () const override
	Get socket type (NS3_SOCK_RAW) More...

int	GetSockName (Address &address) const override
	Get socket address. More...

uint32_t	GetTxAvailable () const override
	Returns the number of bytes which can be sent in a single call to Send. More...

int	Listen () override
	Listen for incoming connections. More...

Ptr< Packet >	Recv (uint32_t maxSize, uint32_t flags) override
	Read data from the socket. More...

Ptr< Packet >	RecvFrom (uint32_t maxSize, uint32_t flags, Address &fromAddress) override
	Read a single packet from the socket and retrieve the sender address. More...

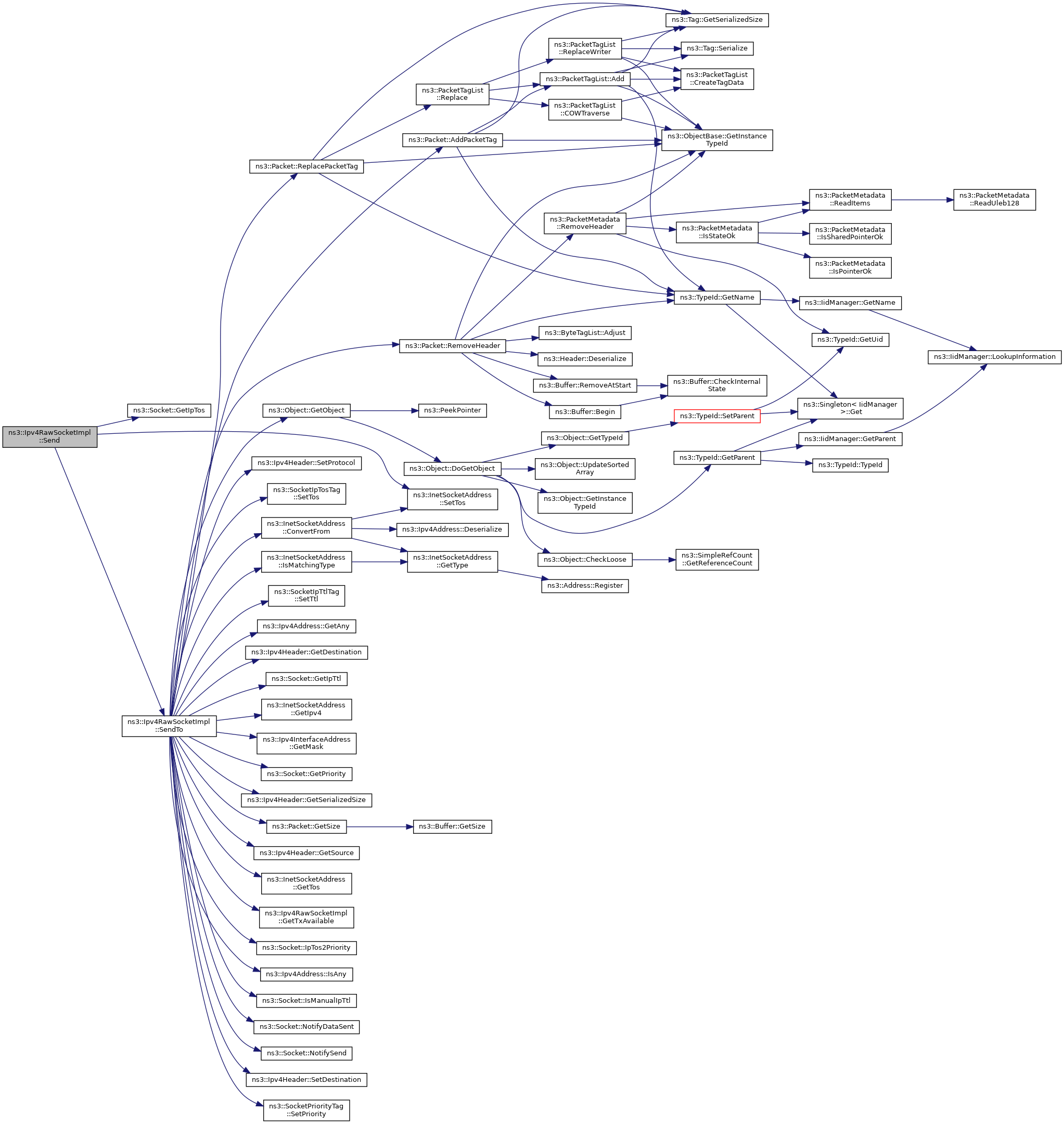

int	Send (Ptr< Packet > p, uint32_t flags) override
	Send data (or dummy data) to the remote host. More...

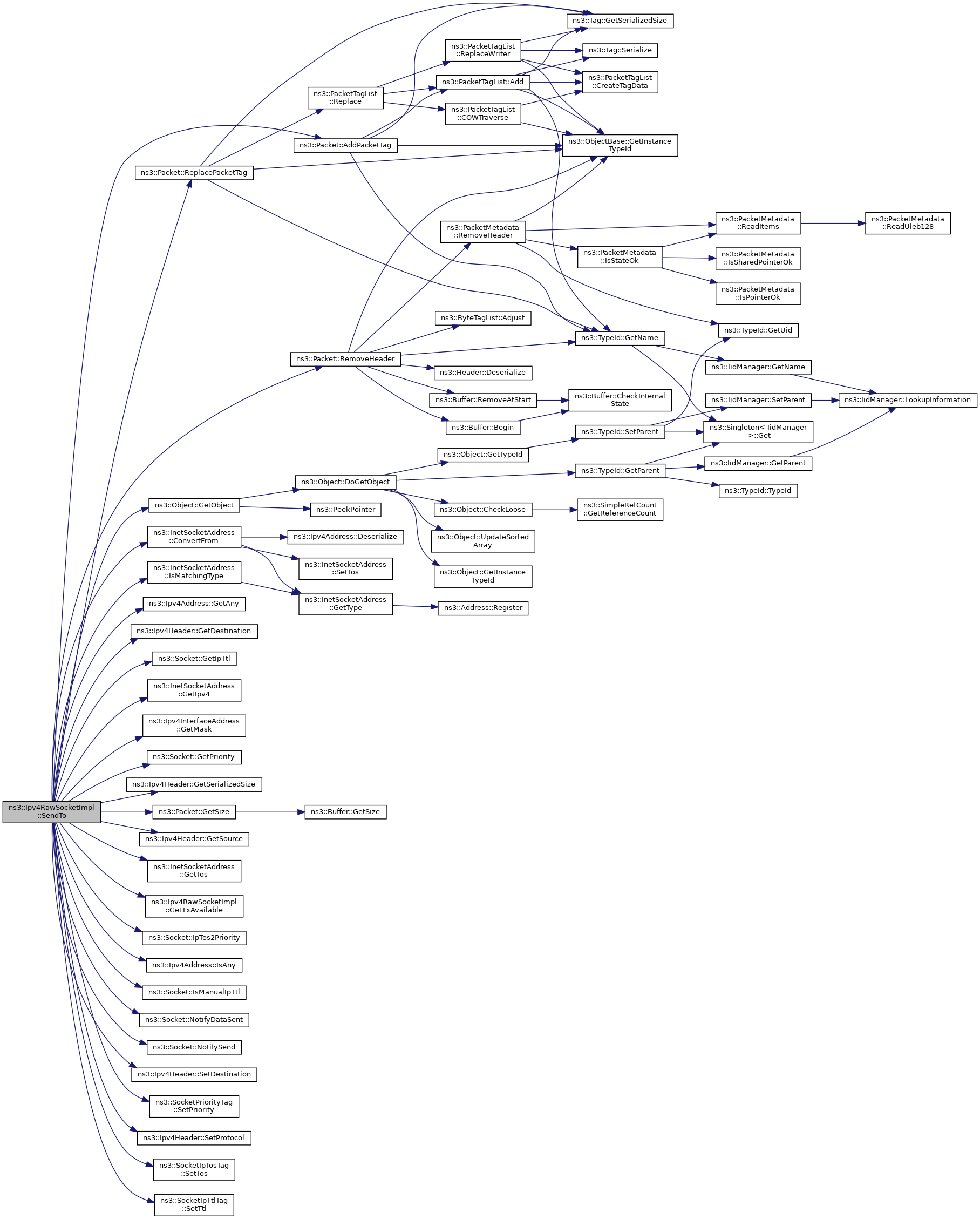

int	SendTo (Ptr< Packet > p, uint32_t flags, const Address &toAddress) override
	Send data to a specified peer. More...

bool	SetAllowBroadcast (bool allowBroadcast) override
	Configure whether broadcast datagram transmissions are allowed. More...

void	SetNode (Ptr< Node > node)
	Set the node associated with this socket. More...

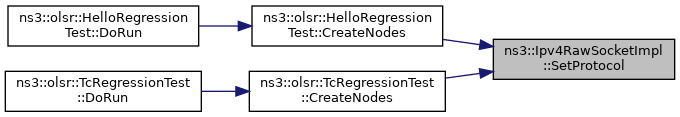

void	SetProtocol (uint16_t protocol)
	Set protocol field. More...

int	ShutdownRecv () override

int	ShutdownSend () override

Public Member Functions inherited from ns3::Socket
	Socket ()

	~Socket () override

virtual void	BindToNetDevice (Ptr< NetDevice > netdevice)
	Bind a socket to specific device. More...

Ptr< NetDevice >	GetBoundNetDevice ()
	Returns socket's bound NetDevice, if any. More...

uint8_t	GetIpTos () const
	Query the value of IP Type of Service of this socket. More...

virtual uint8_t	GetIpTtl () const
	Query the value of IP Time to Live field of this socket. More...

virtual uint8_t	GetIpv6HopLimit () const
	Query the value of IP Hop Limit field of this socket. More...

uint8_t	GetIpv6Tclass () const
	Query the value of IPv6 Traffic Class field of this socket. More...

uint8_t	GetPriority () const
	Query the priority value of this socket. More...

virtual void	Ipv6JoinGroup (Ipv6Address address)
	Joins a IPv6 multicast group without filters. More...

virtual void	Ipv6JoinGroup (Ipv6Address address, Ipv6MulticastFilterMode filterMode, std::vector< Ipv6Address > sourceAddresses)
	Joins a IPv6 multicast group. More...

virtual void	Ipv6LeaveGroup ()
	Leaves IPv6 multicast group this socket is joined to. More...

bool	IsIpRecvTos () const
	Ask if the socket is currently passing information about IP Type of Service up the stack. More...

bool	IsIpRecvTtl () const
	Ask if the socket is currently passing information about IP_TTL up the stack. More...

bool	IsIpv6RecvHopLimit () const
	Ask if the socket is currently passing information about IPv6 Hop Limit up the stack. More...

bool	IsIpv6RecvTclass () const
	Ask if the socket is currently passing information about IPv6 Traffic Class up the stack. More...

bool	IsRecvPktInfo () const
	Get status indicating whether enable/disable packet information to socket. More...

Ptr< Packet >	Recv ()
	Read a single packet from the socket. More...

int	Recv (uint8_t *buf, uint32_t size, uint32_t flags)
	Recv data (or dummy data) from the remote host. More...

Ptr< Packet >	RecvFrom (Address &fromAddress)
	Read a single packet from the socket and retrieve the sender address. More...

int	RecvFrom (uint8_t *buf, uint32_t size, uint32_t flags, Address &fromAddress)
	Read a single packet from the socket and retrieve the sender address. More...

int	Send (const uint8_t *buf, uint32_t size, uint32_t flags)
	Send data (or dummy data) to the remote host. More...

int	Send (Ptr< Packet > p)
	Send data (or dummy data) to the remote host. More...

int	SendTo (const uint8_t *buf, uint32_t size, uint32_t flags, const Address &address)
	Send data to a specified peer. More...

void	SetAcceptCallback (Callback< bool, Ptr< Socket >, const Address & > connectionRequest, Callback< void, Ptr< Socket >, const Address & > newConnectionCreated)
	Accept connection requests from remote hosts. More...

void	SetCloseCallbacks (Callback< void, Ptr< Socket >> normalClose, Callback< void, Ptr< Socket >> errorClose)
	Detect socket recv() events such as graceful shutdown or error. More...

void	SetConnectCallback (Callback< void, Ptr< Socket >> connectionSucceeded, Callback< void, Ptr< Socket >> connectionFailed)
	Specify callbacks to allow the caller to determine if the connection succeeds of fails. More...

void	SetDataSentCallback (Callback< void, Ptr< Socket >, uint32_t > dataSent)
	Notify application when a packet has been sent from transport protocol (non-standard socket call) More...

void	SetIpRecvTos (bool ipv4RecvTos)
	Tells a socket to pass information about IP Type of Service up the stack. More...

void	SetIpRecvTtl (bool ipv4RecvTtl)
	Tells a socket to pass information about IP_TTL up the stack. More...

void	SetIpTos (uint8_t ipTos)
	Manually set IP Type of Service field. More...

virtual void	SetIpTtl (uint8_t ipTtl)
	Manually set IP Time to Live field. More...

virtual void	SetIpv6HopLimit (uint8_t ipHopLimit)
	Manually set IPv6 Hop Limit. More...

void	SetIpv6RecvHopLimit (bool ipv6RecvHopLimit)
	Tells a socket to pass information about IPv6 Hop Limit up the stack. More...

void	SetIpv6RecvTclass (bool ipv6RecvTclass)
	Tells a socket to pass information about IPv6 Traffic Class up the stack. More...

void	SetIpv6Tclass (int ipTclass)
	Manually set IPv6 Traffic Class field. More...

void	SetPriority (uint8_t priority)
	Manually set the socket priority. More...

void	SetRecvCallback (Callback< void, Ptr< Socket >> receivedData)
	Notify application when new data is available to be read. More...

void	SetRecvPktInfo (bool flag)
	Enable/Disable receive packet information to socket. More...

void	SetSendCallback (Callback< void, Ptr< Socket >, uint32_t > sendCb)
	Notify application when space in transmit buffer is added. More...

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

	~Object () override
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose ()
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator () const
	Get an iterator to the Objects aggregated to this one. More...

TypeId	GetInstanceTypeId () const override
	Get the most derived TypeId for this Object. More...

template<typename T >
Ptr< T >	GetObject () const
	Get a pointer to the requested aggregated Object. More...

template<>
Ptr< Object >	GetObject () const
	Specialization of () for objects of type ns3::Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< Object >	GetObject (TypeId tid) const
	Specialization of (TypeId tid) for objects of type ns3::Object. More...

void	Initialize ()
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized () const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
	Copy constructor. More...

uint32_t	GetReferenceCount () const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o[[maybe_unused]])
	Assignment operator. More...

void	Ref () const
	Increment the reference count. More...

void	Unref () const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising errors. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId ()
	Get the type ID of this class. More...

Static Public Member Functions inherited from ns3::Socket
static Ptr< Socket >	CreateSocket (Ptr< Node > node, TypeId tid)
	This method wraps the creation of sockets that is performed on a given node by a SocketFactory specified by TypeId. More...

static TypeId	GetTypeId ()
	Get the type ID. More...

static uint8_t	IpTos2Priority (uint8_t ipTos)
	Return the priority corresponding to a given TOS value. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId ()
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId ()
	Get the type ID. More...

Private Member Functions
void	DoDispose () override
	Destructor implementation. More...

Private Attributes
Ipv4Address	m_dst
	Destination address. More...

Socket::SocketErrno	m_err
	Last error number. More...

uint32_t	m_icmpFilter
	ICMPv4 filter specification. More...

bool	m_iphdrincl
	Include IP Header information (a.k.a setsockopt (IP_HDRINCL)) More...

Ptr< Node >	m_node
	Node. More...

uint16_t	m_protocol
	Protocol. More...

std::list< Data >	m_recv
	Packet waiting to be processed. More...

bool	m_shutdownRecv
	Flag to shutdown receive capability. More...

bool	m_shutdownSend
	Flag to shutdown send capability. More...

Ipv4Address	m_src
	Source address. More...

Additional Inherited Members
Public Types inherited from ns3::Socket
enum	Ipv6MulticastFilterMode { INCLUDE = 1 , EXCLUDE }
	Enumeration of the possible filter of a socket. More...

enum	SocketErrno { ERROR_NOTERROR , ERROR_ISCONN , ERROR_NOTCONN , ERROR_MSGSIZE , ERROR_AGAIN , ERROR_SHUTDOWN , ERROR_OPNOTSUPP , ERROR_AFNOSUPPORT , ERROR_INVAL , ERROR_BADF , ERROR_NOROUTETOHOST , ERROR_NODEV , ERROR_ADDRNOTAVAIL , ERROR_ADDRINUSE , SOCKET_ERRNO_LAST }
	Enumeration of the possible errors returned by a socket. More...

enum	SocketPriority { NS3_PRIO_BESTEFFORT = 0 , NS3_PRIO_FILLER = 1 , NS3_PRIO_BULK = 2 , NS3_PRIO_INTERACTIVE_BULK = 4 , NS3_PRIO_INTERACTIVE = 6 , NS3_PRIO_CONTROL = 7 }
	Enumeration of the possible socket priorities. More...

enum	SocketType { NS3_SOCK_STREAM , NS3_SOCK_SEQPACKET , NS3_SOCK_DGRAM , NS3_SOCK_RAW }
	Enumeration of the possible socket types. More...

Protected Member Functions inherited from ns3::Socket
void	DoDispose () override
	Destructor implementation. More...

bool	IsManualIpTtl () const
	Checks if the socket has a specific IPv4 TTL set. More...

bool	IsManualIpv6HopLimit () const
	Checks if the socket has a specific IPv6 Hop Limit set. More...

bool	IsManualIpv6Tclass () const
	Checks if the socket has a specific IPv6 Tclass set. More...

void	NotifyConnectionFailed ()
	Notify through the callback (if set) that the connection has not been established due to an error. More...

bool	NotifyConnectionRequest (const Address &from)
	Notify through the callback (if set) that an incoming connection is being requested by a remote host. More...

void	NotifyConnectionSucceeded ()
	Notify through the callback (if set) that the connection has been established. More...

void	NotifyDataRecv ()
	Notify through the callback (if set) that some data have been received. More...

void	NotifyDataSent (uint32_t size)
	Notify through the callback (if set) that some data have been sent. More...

void	NotifyErrorClose ()
	Notify through the callback (if set) that the connection has been closed due to an error. More...

void	NotifyNewConnectionCreated (Ptr< Socket > socket, const Address &from)
	Notify through the callback (if set) that a new connection has been created. More...

void	NotifyNormalClose ()
	Notify through the callback (if set) that the connection has been closed. More...

void	NotifySend (uint32_t spaceAvailable)
	Notify through the callback (if set) that some data have been sent. More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	DoInitialize ()
	Initialize() implementation. More...

virtual void	NotifyNewAggregate ()
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted ()
	Notifier called once the ObjectBase is fully constructed. More...

Protected Attributes inherited from ns3::Socket
Ptr< NetDevice >	m_boundnetdevice
	the device this socket is bound to (might be null). More...

Ipv6Address	m_ipv6MulticastGroupAddress
	IPv6 multicast group address. More...

bool	m_recvPktInfo
	if the socket should add packet info tags to the packet forwarded to L4. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid ()
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

IPv4 raw socket.

A RAW Socket typically is used to access specific IP layers not usually available through L4 sockets, e.g., ICMP. The implementer should take particular care to define the Ipv4RawSocketImpl Attributes, and in particular the Protocol attribute.

Definition at line 29 of file ipv4-raw-socket-impl.h.

Constructor & Destructor Documentation

◆ Ipv4RawSocketImpl()

ns3::Ipv4RawSocketImpl::Ipv4RawSocketImpl ( )

Definition at line 64 of file ipv4-raw-socket-impl.cc.

References ns3::Socket::ERROR_NOTERROR, ns3::Ipv4Address::GetAny(), m_dst, m_err, m_node, m_protocol, m_shutdownRecv, m_shutdownSend, m_src, and NS_LOG_FUNCTION.

Here is the call graph for this function:

Member Function Documentation

◆ Bind() [1/2]

int ns3::Ipv4RawSocketImpl::Bind ( )

overridevirtual

Allocate a local IPv4 endpoint for this socket.

Returns: 0 on success, -1 on failure.

Implements ns3::Socket.

Definition at line 127 of file ipv4-raw-socket-impl.cc.

References ns3::Ipv4Address::GetAny(), m_src, and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ Bind() [2/2]

int ns3::Ipv4RawSocketImpl::Bind ( const Address & address )

overridevirtual

Allocate a local endpoint for this socket.

Parameters

address the address to try to allocate

Returns: 0 on success, -1 on failure.

Implements ns3::Socket.

Definition at line 113 of file ipv4-raw-socket-impl.cc.

References first::address, ns3::InetSocketAddress::ConvertFrom(), ns3::Socket::ERROR_INVAL, ns3::InetSocketAddress::GetIpv4(), ns3::InetSocketAddress::IsMatchingType(), m_err, m_src, and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ Bind6()

int ns3::Ipv4RawSocketImpl::Bind6 ( )

overridevirtual

Allocate a local IPv6 endpoint for this socket.

Returns: 0 on success, -1 on failure.

Implements ns3::Socket.

Definition at line 135 of file ipv4-raw-socket-impl.cc.

References NS_LOG_FUNCTION.

◆ Close()

int ns3::Ipv4RawSocketImpl::Close ( )

overridevirtual

Close a socket.

Returns: zero on success, -1 on failure.

After the Close call, the socket is no longer valid, and cannot safely be used for subsequent operations.

Implements ns3::Socket.

Definition at line 166 of file ipv4-raw-socket-impl.cc.

References ns3::Object::GetObject(), nsclick-simple-lan::ipv4, m_node, and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ Connect()

int ns3::Ipv4RawSocketImpl::Connect ( const Address & address )

overridevirtual

Initiate a connection to a remote host.

Parameters

address Address of remote.

Returns: 0 on success, -1 on error (in which case errno is set).

Implements ns3::Socket.

Definition at line 194 of file ipv4-raw-socket-impl.cc.

References first::address, ns3::InetSocketAddress::ConvertFrom(), ns3::Socket::ERROR_INVAL, ns3::InetSocketAddress::GetIpv4(), ns3::InetSocketAddress::GetTos(), ns3::InetSocketAddress::IsMatchingType(), m_dst, m_err, ns3::Socket::NotifyConnectionFailed(), ns3::Socket::NotifyConnectionSucceeded(), NS_LOG_FUNCTION, and ns3::Socket::SetIpTos().

Here is the call graph for this function:

◆ DoDispose()

void ns3::Ipv4RawSocketImpl::DoDispose ( void )

overrideprivatevirtual

Destructor implementation.

This method is called by Dispose() or by the Object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overridden version of this method and chain up to their parent's implementation once they are done. i.e, for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose() method.

It is safe to call GetObject() from within this method.

Reimplemented from ns3::Object.

Definition at line 84 of file ipv4-raw-socket-impl.cc.

References ns3::Socket::DoDispose(), m_node, and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ ForwardUp()

bool ns3::Ipv4RawSocketImpl::ForwardUp	(	Ptr< const Packet >	p,
		Ipv4Header	ipHeader,
		Ptr< Ipv4Interface >	incomingInterface
	)

Forward up to receive method.

Parameters

p	packet
ipHeader	IPv4 header
incomingInterface	incoming interface

Returns: true if forwarded, false otherwise

Definition at line 451 of file ipv4-raw-socket-impl.cc.

References ns3::Packet::AddHeader(), ns3::Packet::AddPacketTag(), ns3::Packet::Copy(), data, ns3::Ipv4Address::GetAny(), ns3::Socket::GetBoundNetDevice(), ns3::Ipv4Header::GetDestination(), ns3::Ipv4Interface::GetDevice(), ns3::Ipv4Header::GetProtocol(), ns3::Ipv4Header::GetSource(), ns3::Ipv4Header::GetTos(), ns3::Ipv4Header::GetTtl(), ns3::Icmpv4Header::GetType(), ns3::Socket::IsIpRecvTos(), ns3::Socket::IsIpRecvTtl(), ns3::Socket::IsRecvPktInfo(), m_dst, m_icmpFilter, m_protocol, m_recv, m_shutdownRecv, m_src, ns3::Socket::NotifyDataRecv(), NS_LOG_FUNCTION, NS_LOG_LOGIC, ns3::Packet::PeekHeader(), ns3::Packet::RemovePacketTag(), ns3::Ipv4PacketInfoTag::SetAddress(), ns3::Ipv4PacketInfoTag::SetRecvIf(), ns3::SocketIpTosTag::SetTos(), ns3::Ipv4PacketInfoTag::SetTtl(), ns3::SocketIpTtlTag::SetTtl(), and check-style-clang-format::type.

Referenced by ns3::Ipv4L3ClickProtocol::Receive(), and ns3::Ipv4L3Protocol::Receive().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetAllowBroadcast()

bool ns3::Ipv4RawSocketImpl::GetAllowBroadcast ( ) const

overridevirtual

Query whether broadcast datagram transmissions are allowed.

This method corresponds to using getsockopt() SO_BROADCAST of real network or BSD sockets.

Returns: true if broadcast is allowed, false otherwise

Implements ns3::Socket.

Definition at line 533 of file ipv4-raw-socket-impl.cc.

References NS_LOG_FUNCTION.

◆ GetErrno()

Socket::SocketErrno ns3::Ipv4RawSocketImpl::GetErrno ( ) const

overridevirtual

Get last error number.

Returns: the errno associated to the last call which failed in this socket. Each socket's errno is initialized to zero when the socket is created.

Implements ns3::Socket.

Definition at line 92 of file ipv4-raw-socket-impl.cc.

References m_err, and NS_LOG_FUNCTION.

◆ GetNode()

Ptr< Node > ns3::Ipv4RawSocketImpl::GetNode ( ) const

overridevirtual

Return the node this socket is associated with.

Returns: the node

Implements ns3::Socket.

Definition at line 106 of file ipv4-raw-socket-impl.cc.

References m_node, and NS_LOG_FUNCTION.

◆ GetPeerName()

int ns3::Ipv4RawSocketImpl::GetPeerName ( Address & address ) const

overridevirtual

Get the peer address of a connected socket.

Parameters

address the address this socket is connected to.

Returns: 0 if success, -1 otherwise

Implements ns3::Socket.

Definition at line 150 of file ipv4-raw-socket-impl.cc.

References first::address, ns3::Socket::ERROR_NOTCONN, ns3::Ipv4Address::GetAny(), m_dst, m_err, and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ GetRxAvailable()

uint32_t ns3::Ipv4RawSocketImpl::GetRxAvailable ( ) const

overridevirtual

Return number of bytes which can be returned from one or multiple calls to Recv.

Must be possible to call this method from the Recv callback.

Returns: the number of bytes which can be returned from one or multiple Recv calls.

Implements ns3::Socket.

Definition at line 399 of file ipv4-raw-socket-impl.cc.

References ns3::GetSize(), m_recv, and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ GetSocketType()

Socket::SocketType ns3::Ipv4RawSocketImpl::GetSocketType ( ) const

overridevirtual

Get socket type (NS3_SOCK_RAW)

Returns: socket type

Implements ns3::Socket.

Definition at line 99 of file ipv4-raw-socket-impl.cc.

References ns3::Socket::NS3_SOCK_RAW, and NS_LOG_FUNCTION.

◆ GetSockName()

int ns3::Ipv4RawSocketImpl::GetSockName ( Address & address ) const

overridevirtual

Get socket address.

Parameters

address the address name this socket is associated with.

Returns: 0 if success, -1 otherwise

Implements ns3::Socket.

Definition at line 142 of file ipv4-raw-socket-impl.cc.

References first::address, m_src, and NS_LOG_FUNCTION.

◆ GetTxAvailable()

uint32_t ns3::Ipv4RawSocketImpl::GetTxAvailable ( ) const

overridevirtual

Returns the number of bytes which can be sent in a single call to Send.

For datagram sockets, this returns the number of bytes that can be passed atomically through the underlying protocol.

For stream sockets, this returns the available space in bytes left in the transmit buffer.

Returns: The number of bytes which can be sent in a single Send call.

Implements ns3::Socket.

Definition at line 220 of file ipv4-raw-socket-impl.cc.

References NS_LOG_FUNCTION.

Referenced by SendTo().

Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::Ipv4RawSocketImpl::GetTypeId ( void )

static

Get the type ID of this class.

Returns: type ID

Definition at line 31 of file ipv4-raw-socket-impl.cc.

References m_icmpFilter, m_iphdrincl, m_protocol, ns3::MakeBooleanAccessor(), ns3::MakeBooleanChecker(), ns3::MakeUintegerAccessor(), and ns3::TypeId::SetParent().

Here is the call graph for this function:

◆ Listen()

int ns3::Ipv4RawSocketImpl::Listen ( )

overridevirtual

Listen for incoming connections.

Returns: 0 on success, -1 on error (in which case errno is set).

Implements ns3::Socket.

Definition at line 212 of file ipv4-raw-socket-impl.cc.

References ns3::Socket::ERROR_OPNOTSUPP, m_err, and NS_LOG_FUNCTION.

◆ Recv()

Ptr< Packet > ns3::Ipv4RawSocketImpl::Recv	(	uint32_t	maxSize,
		uint32_t	flags
	)

overridevirtual

Read data from the socket.

This function matches closely in semantics to the recv() function call in the standard C library (libc): ssize_t recv (int s, void *buf, size_t len, int flags); except that the receive I/O is asynchronous. This is the primary Recv method at this low-level API and must be implemented by subclasses.

This method is normally used only on a connected socket. In a typical blocking sockets model, this call would block until at least one byte is returned or the connection closes. In ns-3 at this API, the call returns immediately in such a case and returns 0 if nothing is available to be read. However, an application can set a callback, ns3::SetRecvCallback, to be notified of data being available to be read (when it conceptually unblocks); this is an asynchronous I/O model for recv().

This variant of Recv() uses class ns3::Packet to encapsulate data, rather than providing a raw pointer and length field. This allows an ns-3 application to attach tags if desired (such as a flow ID) and may allow the simulator to avoid some data copies. Despite the appearance of receiving Packets on a stream socket, just think of it as a fancy byte buffer with streaming semantics.

The semantics depend on the type of socket. For a datagram socket, each Recv() returns the data from at most one Send(), and order is not necessarily preserved. For a stream socket, the bytes are delivered in order, and on-the-wire packet boundaries are not preserved.

The flags argument is formed by or'ing one or more of the values: MSG_OOB process out-of-band data MSG_PEEK peek at incoming message None of these flags are supported for now.

Some variants of Recv() are supported as additional API, including RecvFrom(), overloaded Recv() without arguments, and variants that use raw character buffers.

Parameters

maxSize	reader will accept packet up to maxSize
flags	Socket control flags

Returns: Ptr<Packet> of the next in-sequence packet. Returns 0 if the socket cannot return a next in-sequence packet conforming to the maxSize and flags.

See also: SetRecvCallback

Implements ns3::Socket.

Definition at line 411 of file ipv4-raw-socket-impl.cc.

References NS_LOG_FUNCTION, and RecvFrom().

Here is the call graph for this function:

◆ RecvFrom()

Ptr< Packet > ns3::Ipv4RawSocketImpl::RecvFrom	(	uint32_t	maxSize,
		uint32_t	flags,
		Address &	fromAddress
	)

overridevirtual

Read a single packet from the socket and retrieve the sender address.

Calls Recv(maxSize, flags) with maxSize implicitly set to maximum sized integer, and flags set to zero.

This method has similar semantics to Recv () but subclasses may want to provide checks on socket state, so the implementation is pushed to subclasses.

Parameters

maxSize	reader will accept packet up to maxSize
flags	Socket control flags
fromAddress	output parameter that will return the address of the sender of the received packet, if any. Remains untouched if no packet is received.

Returns: Ptr<Packet> of the next in-sequence packet. Returns 0 if the socket cannot return a next in-sequence packet.

Implements ns3::Socket.

Definition at line 419 of file ipv4-raw-socket-impl.cc.

References data, m_recv, and NS_LOG_FUNCTION.

Referenced by Recv().

Here is the caller graph for this function:

◆ Send()

int ns3::Ipv4RawSocketImpl::Send	(	Ptr< Packet >	p,
		uint32_t	flags
	)

overridevirtual

Send data (or dummy data) to the remote host.

This function matches closely in semantics to the send() function call in the standard C library (libc): ssize_t send (int s, const void *msg, size_t len, int flags); except that the send I/O is asynchronous. This is the primary Send method at this low-level API and must be implemented by subclasses.

In a typical blocking sockets model, this call would block upon lack of space to hold the message to be sent. In ns-3 at this API, the call returns immediately in such a case, but the callback registered with SetSendCallback() is invoked when the socket has space (when it conceptually unblocks); this is an asynchronous I/O model for send().

This variant of Send() uses class ns3::Packet to encapsulate data, rather than providing a raw pointer and length field. This allows an ns-3 application to attach tags if desired (such as a flow ID) and may allow the simulator to avoid some data copies. Despite the appearance of sending Packets on a stream socket, just think of it as a fancy byte buffer with streaming semantics.

If either the message buffer within the Packet is too long to pass atomically through the underlying protocol (for datagram sockets), or the message buffer cannot entirely fit in the transmit buffer (for stream sockets), -1 is returned and SocketErrno is set to ERROR_MSGSIZE. If the packet does not fit, the caller can split the Packet (based on information obtained from GetTxAvailable) and reattempt to send the data.

The flags argument is formed by or'ing one or more of the values: MSG_OOB process out-of-band data MSG_DONTROUTE bypass routing, use direct interface These flags are unsupported as of ns-3.1.

Parameters

p	ns3::Packet to send
flags	Socket control flags

Returns: the number of bytes accepted for transmission if no error occurs, and -1 otherwise.

See also: SetSendCallback

Implements ns3::Socket.

Definition at line 227 of file ipv4-raw-socket-impl.cc.

References ns3::Socket::GetIpTos(), m_dst, m_protocol, NS_LOG_FUNCTION, SendTo(), and ns3::InetSocketAddress::SetTos().

Here is the call graph for this function:

◆ SendTo()

int ns3::Ipv4RawSocketImpl::SendTo	(	Ptr< Packet >	p,
		uint32_t	flags,
		const Address &	toAddress
	)

overridevirtual

Send data to a specified peer.

This method has similar semantics to Send () but subclasses may want to provide checks on socket state, so the implementation is pushed to subclasses.

Parameters

p	packet to send
flags	Socket control flags
toAddress	IP Address of remote host

Returns: -1 in case of error or the number of bytes copied in the internal buffer and accepted for transmission.

Implements ns3::Socket.

Definition at line 236 of file ipv4-raw-socket-impl.cc.

References ns3::Packet::AddPacketTag(), ns3::InetSocketAddress::ConvertFrom(), ns3::Socket::ERROR_INVAL, ns3::Socket::ERROR_NOTERROR, ns3::Ipv4Address::GetAny(), ns3::Ipv4Header::GetDestination(), ns3::Socket::GetIpTtl(), ns3::InetSocketAddress::GetIpv4(), ns3::Ipv4InterfaceAddress::GetMask(), ns3::Object::GetObject(), ns3::Socket::GetPriority(), ns3::Ipv4Header::GetSerializedSize(), ns3::Packet::GetSize(), ns3::Ipv4Header::GetSource(), ns3::InetSocketAddress::GetTos(), GetTxAvailable(), ns3::Socket::IpTos2Priority(), nsclick-simple-lan::ipv4, ns3::Ipv4Address::IsAny(), ns3::Socket::IsManualIpTtl(), ns3::InetSocketAddress::IsMatchingType(), ns3::Socket::m_boundnetdevice, m_err, m_iphdrincl, m_node, m_protocol, m_shutdownSend, m_src, ns3::Socket::NotifyDataSent(), ns3::Socket::NotifySend(), NS_ASSERT, NS_LOG_DEBUG, NS_LOG_FUNCTION, NS_LOG_LOGIC, pktSize, ns3::Packet::RemoveHeader(), ns3::Packet::ReplacePacketTag(), ns3::Ipv4Header::SetDestination(), ns3::SocketPriorityTag::SetPriority(), ns3::Ipv4Header::SetProtocol(), ns3::SocketIpTosTag::SetTos(), and ns3::SocketIpTtlTag::SetTtl().

Referenced by Send().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetAllowBroadcast()

bool ns3::Ipv4RawSocketImpl::SetAllowBroadcast ( bool allowBroadcast )

overridevirtual

Configure whether broadcast datagram transmissions are allowed.

This method corresponds to using setsockopt() SO_BROADCAST of real network or BSD sockets. If set on a socket, this option will enable or disable packets to be transmitted to broadcast destination addresses.

Parameters

allowBroadcast Whether broadcast is allowed

Returns: true if operation succeeds

Implements ns3::Socket.

Definition at line 526 of file ipv4-raw-socket-impl.cc.

References NS_LOG_FUNCTION.

◆ SetNode()

void ns3::Ipv4RawSocketImpl::SetNode ( Ptr< Node > node )

Set the node associated with this socket.

Parameters

node	node to set

Definition at line 77 of file ipv4-raw-socket-impl.cc.

References m_node, and NS_LOG_FUNCTION.

Referenced by ns3::Ipv4L3ClickProtocol::CreateRawSocket(), and ns3::Ipv4L3Protocol::CreateRawSocket().

Here is the caller graph for this function:

◆ SetProtocol()

void ns3::Ipv4RawSocketImpl::SetProtocol ( uint16_t protocol )

Set protocol field.

Parameters

protocol protocol to set

Definition at line 444 of file ipv4-raw-socket-impl.cc.

References m_protocol, and NS_LOG_FUNCTION.

Referenced by ns3::olsr::HelloRegressionTest::CreateNodes(), and ns3::olsr::TcRegressionTest::CreateNodes().

Here is the caller graph for this function:

◆ ShutdownRecv()

int ns3::Ipv4RawSocketImpl::ShutdownRecv ( )

overridevirtual

Returns: zero on success, -1 on failure.

Do not allow any further Recv calls. This method is typically implemented for Tcp sockets by a half close.

Implements ns3::Socket.

Definition at line 186 of file ipv4-raw-socket-impl.cc.

References m_shutdownRecv, and NS_LOG_FUNCTION.

◆ ShutdownSend()

int ns3::Ipv4RawSocketImpl::ShutdownSend ( )

overridevirtual

Returns: zero on success, -1 on failure.

Do not allow any further Send calls. This method is typically implemented for Tcp sockets by a half close.

Implements ns3::Socket.

Definition at line 178 of file ipv4-raw-socket-impl.cc.

References m_shutdownSend, and NS_LOG_FUNCTION.

Member Data Documentation

◆ m_dst

Ipv4Address ns3::Ipv4RawSocketImpl::m_dst

private

Destination address.

Definition at line 106 of file ipv4-raw-socket-impl.h.

Referenced by Ipv4RawSocketImpl(), Connect(), ForwardUp(), GetPeerName(), and Send().

◆ m_err

Socket::SocketErrno ns3::Ipv4RawSocketImpl::m_err

mutableprivate

Last error number.

Definition at line 103 of file ipv4-raw-socket-impl.h.

Referenced by Ipv4RawSocketImpl(), Bind(), Connect(), GetErrno(), GetPeerName(), Listen(), and SendTo().

◆ m_icmpFilter

uint32_t ns3::Ipv4RawSocketImpl::m_icmpFilter

private

ICMPv4 filter specification.

Definition at line 111 of file ipv4-raw-socket-impl.h.

Referenced by ForwardUp(), and GetTypeId().

◆ m_iphdrincl

bool ns3::Ipv4RawSocketImpl::m_iphdrincl

private

Include IP Header information (a.k.a setsockopt (IP_HDRINCL))

Definition at line 112 of file ipv4-raw-socket-impl.h.

Referenced by GetTypeId(), and SendTo().

◆ m_node

Ptr<Node> ns3::Ipv4RawSocketImpl::m_node

private

Node.

Definition at line 104 of file ipv4-raw-socket-impl.h.

Referenced by Ipv4RawSocketImpl(), Close(), DoDispose(), GetNode(), SendTo(), and SetNode().

◆ m_protocol

uint16_t ns3::Ipv4RawSocketImpl::m_protocol

private

Protocol.

Definition at line 107 of file ipv4-raw-socket-impl.h.

Referenced by Ipv4RawSocketImpl(), ForwardUp(), GetTypeId(), Send(), SendTo(), and SetProtocol().

◆ m_recv

std::list<Data> ns3::Ipv4RawSocketImpl::m_recv

private

Packet waiting to be processed.

Definition at line 108 of file ipv4-raw-socket-impl.h.

Referenced by ForwardUp(), GetRxAvailable(), and RecvFrom().

◆ m_shutdownRecv

bool ns3::Ipv4RawSocketImpl::m_shutdownRecv

private

Flag to shutdown receive capability.

Definition at line 110 of file ipv4-raw-socket-impl.h.

Referenced by Ipv4RawSocketImpl(), ForwardUp(), and ShutdownRecv().

◆ m_shutdownSend

bool ns3::Ipv4RawSocketImpl::m_shutdownSend

private

Flag to shutdown send capability.

Definition at line 109 of file ipv4-raw-socket-impl.h.

Referenced by Ipv4RawSocketImpl(), SendTo(), and ShutdownSend().

◆ m_src

Ipv4Address ns3::Ipv4RawSocketImpl::m_src

private

Source address.

Definition at line 105 of file ipv4-raw-socket-impl.h.

Referenced by Ipv4RawSocketImpl(), Bind(), ForwardUp(), GetSockName(), and SendTo().

The documentation for this class was generated from the following files:

src/internet/model/ipv4-raw-socket-impl.h
src/internet/model/ipv4-raw-socket-impl.cc

Classes

Public Member Functions

Static Public Member Functions

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ Ipv4RawSocketImpl()

Member Function Documentation

◆ Bind() [1/2]

◆ Bind() [2/2]

◆ Bind6()

◆ Close()

◆ Connect()

◆ DoDispose()

◆ ForwardUp()

◆ GetAllowBroadcast()

◆ GetErrno()

◆ GetNode()

◆ GetPeerName()

◆ GetRxAvailable()

◆ GetSocketType()

◆ GetSockName()

◆ GetTxAvailable()

◆ GetTypeId()

◆ Listen()

◆ Recv()

◆ RecvFrom()

◆ Send()

◆ SendTo()

◆ SetAllowBroadcast()

◆ SetNode()

◆ SetProtocol()

◆ ShutdownRecv()

◆ ShutdownSend()

Member Data Documentation

◆ m_dst

◆ m_err

◆ m_icmpFilter

◆ m_iphdrincl

◆ m_node

◆ m_protocol

◆ m_recv

◆ m_shutdownRecv

◆ m_shutdownSend

◆ m_src
