Abstract base class for NetDevice queue length controller. More...

#include "queue-limits.h"

Inheritance diagram for ns3::QueueLimits:

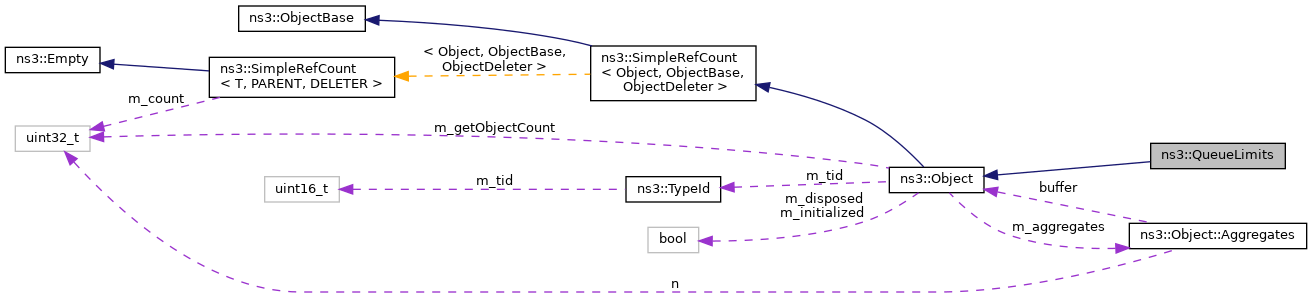

Collaboration diagram for ns3::QueueLimits:

Public Member Functions
	~QueueLimits () override

virtual int32_t	Available () const =0
	Available is called from NotifyTransmittedBytes to calculate the number of bytes that can be passed again to the NetDevice. More...

virtual void	Completed (uint32_t count)=0
	Record number of completed bytes and recalculate the limit. More...

virtual void	Queued (uint32_t count)=0
	Record the number of bytes queued. More...

virtual void	Reset ()=0
	Reset queue limits state. More...

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

	~Object () override
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose ()
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator () const
	Get an iterator to the Objects aggregated to this one. More...

TypeId	GetInstanceTypeId () const override
	Get the most derived TypeId for this Object. More...

template<typename T >
Ptr< T >	GetObject () const
	Get a pointer to the requested aggregated Object. More...

template<>
Ptr< Object >	GetObject () const
	Specialization of () for objects of type ns3::Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< Object >	GetObject (TypeId tid) const
	Specialization of (TypeId tid) for objects of type ns3::Object. More...

void	Initialize ()
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized () const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
	Copy constructor. More...

uint32_t	GetReferenceCount () const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o[[maybe_unused]])
	Assignment operator. More...

void	Ref () const
	Increment the reference count. More...

void	Unref () const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising errors. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId ()
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId ()
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId ()
	Get the type ID. More...

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	DoDispose ()
	Destructor implementation. More...

virtual void	DoInitialize ()
	Initialize() implementation. More...

virtual void	NotifyNewAggregate ()
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted ()
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid ()
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

Abstract base class for NetDevice queue length controller.

QueueLimits is an abstract base class providing the interface to the NetDevice queue length controller.

Child classes need to implement the methods used for a byte-based measure of the queue length.

The design and implementation of this class is inspired by Linux. For more details, see the queue limits Sphinx documentation.

Definition at line 43 of file queue-limits.h.

Constructor & Destructor Documentation

◆ ~QueueLimits()

ns3::QueueLimits::~QueueLimits ( )

override

Definition at line 39 of file queue-limits.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

◆ Available()

virtual int32_t ns3::QueueLimits::Available ( ) const

pure virtual

Available is called from NotifyTransmittedBytes to calculate the number of bytes that can be passed again to the NetDevice.

A negative value means that no packets can be passed to the NetDevice. In this case, NotifyTransmittedBytes stops the transmission queue.

Returns how many bytes can be queued

Returns: the number of bytes that can be queued

Implemented in ns3::DynamicQueueLimits.

◆ Completed()

virtual void ns3::QueueLimits::Completed ( uint32_t count )

pure virtual

Record number of completed bytes and recalculate the limit.

Parameters

count the number of completed bytes

Implemented in ns3::DynamicQueueLimits.

◆ GetTypeId()

TypeId ns3::QueueLimits::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 33 of file queue-limits.cc.

References ns3::TypeId::SetParent().

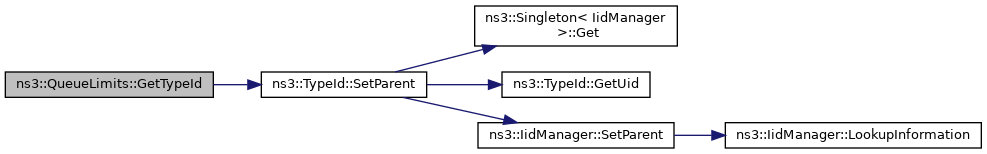

Here is the call graph for this function:

◆ Queued()

virtual void ns3::QueueLimits::Queued ( uint32_t count )

pure virtual

Record the number of bytes queued.

Parameters

count the number of bytes queued

Implemented in ns3::DynamicQueueLimits.

◆ Reset()

virtual void ns3::QueueLimits::Reset ( )

pure virtual

Reset queue limits state.

Implemented in ns3::DynamicQueueLimits.

The documentation for this class was generated from the following files:

src/network/utils/queue-limits.h
src/network/utils/queue-limits.cc
