ns3::NetDeviceQueueLock Class Reference

Network device transmission queue with lock. More...

#include "netmap-net-device.h"

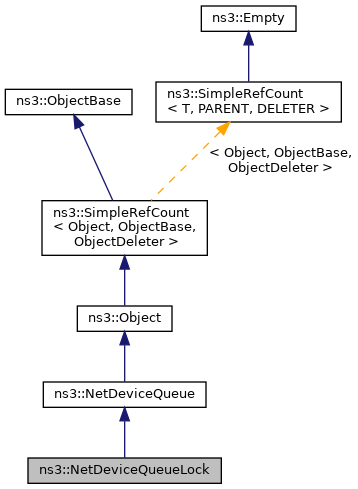

+ Inheritance diagram for ns3::NetDeviceQueueLock:
+ Collaboration diagram for ns3::NetDeviceQueueLock:

Public Member Functions

 NetDeviceQueueLock ()

virtual ~NetDeviceQueueLock ()

virtual bool IsStopped () const
 Get the status of the device transmission queue. More...

virtual void NotifyQueuedBytes (uint32_t bytes)
 Called by the netdevice to report the number of bytes queued to the device queue. More...

virtual void NotifyTransmittedBytes (uint32_t bytes)
 Called by the netdevice to report the number of bytes it is going to transmit. More...

virtual void Start ()
 Called by the device to start this device transmission queue. More...

virtual void Stop ()
 Called by the device to stop this device transmission queue. More...

virtual void Wake ()
 Called by the device to wake the queue disc associated with this device transmission queue. More...

- Public Member Functions inherited from ns3::NetDeviceQueue
 NetDeviceQueue ()

 ~NetDeviceQueue () override

template<typename QueueType >
void ConnectQueueTraces (Ptr< QueueType > queue)
 Connect the traced callbacks of a queue to the methods providing support for flow control and dynamic queue limits. More...

Ptr< QueueLimitsGetQueueLimits ()
 Get queue limits to this queue. More...

void NotifyAggregatedObject (Ptr< NetDeviceQueueInterface > ndqi)
 Notify this NetDeviceQueue that the NetDeviceQueueInterface was aggregated to an object. More...

template<typename QueueType >
void PacketDequeued (QueueType *queue, Ptr< const typename QueueType::ItemType > item)
 Perform the actions required by flow control and dynamic queue limits when a packet is dequeued (or dropped after dequeue) from the queue of a netdevice. More...

template<typename QueueType >
void PacketDiscarded (QueueType *queue, Ptr< const typename QueueType::ItemType > item)
 Perform the actions required by flow control and dynamic queue limits when a packet is dropped before being enqueued in the queue of a netdevice (which likely indicates that the queue is full) More...

template<typename QueueType >
void PacketEnqueued (QueueType *queue, Ptr< const typename QueueType::ItemType > item)
 Perform the actions required by flow control and dynamic queue limits when a packet is enqueued in the queue of a netdevice. More...

void ResetQueueLimits ()
 Reset queue limits state. More...

void SetQueueLimits (Ptr< QueueLimits > ql)
 Set queue limits to this queue. More...

virtual void SetWakeCallback (WakeCallback cb)
 Set the wake callback. More...

- Public Member Functions inherited from ns3::Object
 Object ()
 Constructor. More...

 ~Object () override
 Destructor. More...

void AggregateObject (Ptr< Object > other)
 Aggregate two Objects together. More...

void Dispose ()
 Dispose of this Object. More...

AggregateIterator GetAggregateIterator () const
 Get an iterator to the Objects aggregated to this one. More...

TypeId GetInstanceTypeId () const override
 Get the most derived TypeId for this Object. More...

template<typename T >
Ptr< T > GetObject () const
 Get a pointer to the requested aggregated Object. More...

template<>
Ptr< ObjectGetObject () const
 Specialization of () for objects of type ns3::Object. More...

template<typename T >
Ptr< T > GetObject (TypeId tid) const
 Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< ObjectGetObject (TypeId tid) const
 Specialization of (TypeId tid) for objects of type ns3::Object. More...

void Initialize ()
 Invoke DoInitialize on all Objects aggregated to this one. More...

bool IsInitialized () const
 Check if the object has been initialized. More...

- Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
 SimpleRefCount ()
 Default constructor. More...

 SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
 Copy constructor. More...

uint32_t GetReferenceCount () const
 Get the reference count of the object. More...

SimpleRefCountoperator= (const SimpleRefCount &o[[maybe_unused]])
 Assignment operator. More...

void Ref () const
 Increment the reference count. More...

void Unref () const
 Decrement the reference count. More...

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor. More...

void GetAttribute (std::string name, AttributeValue &value) const
 Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool GetAttributeFailSafe (std::string name, AttributeValue &value) const
 Get the value of an attribute without raising errors. More...

void SetAttribute (std::string name, const AttributeValue &value)
 Set a single attribute, raising fatal errors if unsuccessful. More...

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)
 Set a single attribute without raising errors. More...

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)
 Connect a TraceSource to a Callback with a context. More...

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
 Connect a TraceSource to a Callback without a context. More...

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected with a context. More...

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected without a context. More...


Static Public Member Functions

static TypeId GetTypeId ()
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::NetDeviceQueue
static TypeId GetTypeId ()
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::Object
static TypeId GetTypeId ()
 Register this type. More...

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId ()
 Get the type ID. More...


Private Attributes

std::mutex m_mutex
 Mutex to serialize the operations performed on the queue. More...


Additional Inherited Members

- Public Types inherited from ns3::NetDeviceQueue
typedef Callback< void > WakeCallback
 Callback invoked by netdevices to wake upper layers. More...

- Protected Member Functions inherited from ns3::Object
 Object (const Object &o)
 Copy an Object. More...

virtual void DoDispose ()
 Destructor implementation. More...

virtual void DoInitialize ()
 Initialize() implementation. More...

virtual void NotifyNewAggregate ()
 Notify all Objects aggregated to this one of a new Object being aggregated. More...

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)
 Complete construction of ObjectBase; invoked by derived classes. More...

virtual void NotifyConstructionCompleted ()
 Notifier called once the ObjectBase is fully constructed. More...


Detailed Description

Network device transmission queue with lock.

This class stores information about a single transmission queue of a network device that is exposed to queue discs. This class extends the NetDeviceQueue base class by introducing a lock for methods which require mutual exclusion on data access in emulation.

Definition at line 45 of file netmap-net-device.h.

Constructor & Destructor Documentation

◆ NetDeviceQueueLock()

ns3::NetDeviceQueueLock::NetDeviceQueueLock ( )

Definition at line 43 of file netmap-net-device.cc.

◆ ~NetDeviceQueueLock()

ns3::NetDeviceQueueLock::~NetDeviceQueueLock ( )
virtual

Definition at line 47 of file netmap-net-device.cc.

Member Function Documentation

◆ GetTypeId()

TypeId ns3::NetDeviceQueueLock::GetTypeId ( void  )
static

Get the type ID.

Returns
the object TypeId

Definition at line 34 of file netmap-net-device.cc.

References ns3::TypeId::SetParent().

Referenced by ns3::NetmapNetDeviceHelper::InstallPriv().

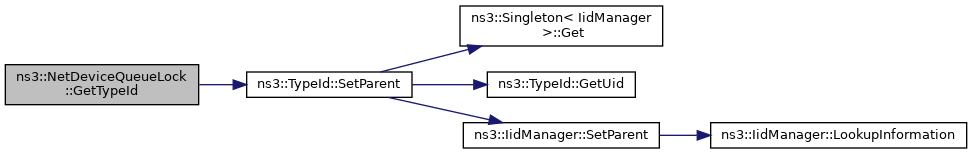

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ IsStopped()

bool ns3::NetDeviceQueueLock::IsStopped ( ) const
virtual

Get the status of the device transmission queue.

Returns
true if the device transmission queue is stopped.

Called by queue discs to enquire about the status of a given transmission queue. This is the analogous to the netif_xmit_stopped function of the Linux kernel.

Reimplemented from ns3::NetDeviceQueue.

Definition at line 52 of file netmap-net-device.cc.

References ns3::NetDeviceQueue::IsStopped(), and m_mutex.

+ Here is the call graph for this function:

◆ NotifyQueuedBytes()

void ns3::NetDeviceQueueLock::NotifyQueuedBytes ( uint32_t  bytes)
virtual

Called by the netdevice to report the number of bytes queued to the device queue.

Parameters
bytesnumber of bytes queued to the device queue

Reimplemented from ns3::NetDeviceQueue.

Definition at line 85 of file netmap-net-device.cc.

References m_mutex, and ns3::NetDeviceQueue::NotifyQueuedBytes().

+ Here is the call graph for this function:

◆ NotifyTransmittedBytes()

void ns3::NetDeviceQueueLock::NotifyTransmittedBytes ( uint32_t  bytes)
virtual

Called by the netdevice to report the number of bytes it is going to transmit.

Parameters
bytesnumber of bytes the device is going to transmit

Reimplemented from ns3::NetDeviceQueue.

Definition at line 93 of file netmap-net-device.cc.

References m_mutex, and ns3::NetDeviceQueue::NotifyTransmittedBytes().

+ Here is the call graph for this function:

◆ Start()

void ns3::NetDeviceQueueLock::Start ( )
virtual

Called by the device to start this device transmission queue.

This is the analogous to the netif_tx_start_queue function of the Linux kernel.

Reimplemented from ns3::NetDeviceQueue.

Definition at line 61 of file netmap-net-device.cc.

References m_mutex, and ns3::NetDeviceQueue::Start().

+ Here is the call graph for this function:

◆ Stop()

void ns3::NetDeviceQueueLock::Stop ( )
virtual

Called by the device to stop this device transmission queue.

This is the analogous to the netif_tx_stop_queue function of the Linux kernel.

Reimplemented from ns3::NetDeviceQueue.

Definition at line 69 of file netmap-net-device.cc.

References m_mutex, and ns3::NetDeviceQueue::Stop().

+ Here is the call graph for this function:

◆ Wake()

void ns3::NetDeviceQueueLock::Wake ( )
virtual

Called by the device to wake the queue disc associated with this device transmission queue.

This is done by invoking the wake callback. This is the analogous to the netif_tx_wake_queue function of the Linux kernel.

Reimplemented from ns3::NetDeviceQueue.

Definition at line 77 of file netmap-net-device.cc.

References m_mutex, and ns3::NetDeviceQueue::Wake().

+ Here is the call graph for this function:

Member Data Documentation

◆ m_mutex

std::mutex ns3::NetDeviceQueueLock::m_mutex
mutableprivate

Mutex to serialize the operations performed on the queue.

Definition at line 98 of file netmap-net-device.h.

Referenced by IsStopped(), NotifyQueuedBytes(), NotifyTransmittedBytes(), Start(), Stop(), and Wake().


The documentation for this class was generated from the following files:
