A single link record for a link state advertisement. More...

#include "global-router-interface.h"

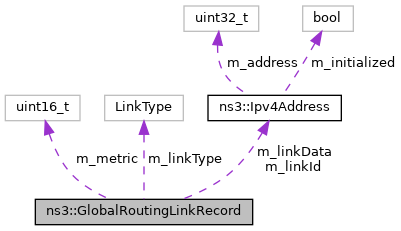

Collaboration diagram for ns3::GlobalRoutingLinkRecord:

Public Types
enum	LinkType { Unknown = 0 , PointToPoint , TransitNetwork , StubNetwork , VirtualLink }
	Enumeration of the possible types of Global Routing Link Records. More...

Public Member Functions
	GlobalRoutingLinkRecord ()
	Construct an empty ("uninitialized") Global Routing Link Record. More...

	GlobalRoutingLinkRecord (LinkType linkType, Ipv4Address linkId, Ipv4Address linkData, uint16_t metric)
	Construct an initialized Global Routing Link Record. More...

	~GlobalRoutingLinkRecord ()
	Destroy a Global Routing Link Record. More...

Ipv4Address	GetLinkData () const
	Get the Link Data field of the Global Routing Link Record. More...

Ipv4Address	GetLinkId () const
	Get the Link ID field of the Global Routing Link Record. More...

LinkType	GetLinkType () const
	Get the Link Type field of the Global Routing Link Record. More...

uint16_t	GetMetric () const
	Get the Metric Data field of the Global Routing Link Record. More...

void	SetLinkData (Ipv4Address addr)
	Set the Link Data field of the Global Routing Link Record. More...

void	SetLinkId (Ipv4Address addr)
	Set the Link ID field of the Global Routing Link Record. More...

void	SetLinkType (LinkType linkType)
	Set the Link Type field of the Global Routing Link Record. More...

void	SetMetric (uint16_t metric)
	Set the Metric Data field of the Global Routing Link Record. More...

Private Attributes
Ipv4Address	m_linkData
	m_linkId and m_linkData are defined by OSPF to have different meanings depending on the type of link a given link records represents. More...

Ipv4Address	m_linkId
	m_linkId and m_linkData are defined by OSPF to have different meanings depending on the type of link a given link records represents. More...

LinkType	m_linkType
	The type of the Global Routing Link Record. More...

uint16_t	m_metric
	The metric for a given link. More...

Friends
class	GlobalRoutingLSA
	Friend class. More...

Detailed Description

A single link record for a link state advertisement.

The GlobalRoutingLinkRecord is modeled after the OSPF link record field of a Link State Advertisement. Right now we will only see two types of link records corresponding to a stub network and a point-to-point link (channel).

Definition at line 53 of file global-router-interface.h.

Member Enumeration Documentation

◆ LinkType

enum ns3::GlobalRoutingLinkRecord::LinkType

Enumeration of the possible types of Global Routing Link Records.

These values are defined in the OSPF spec. We currently only use PointToPoint and StubNetwork types.

Enumerator
Unknown	Uninitialized Link Record.
PointToPoint	Record representing a point to point channel.
TransitNetwork	Unused – for future OSPF compatibility
StubNetwork	Record represents a leaf node network.
VirtualLink	Unused – for future OSPF compatibility

Definition at line 65 of file global-router-interface.h.

Constructor & Destructor Documentation

◆ GlobalRoutingLinkRecord() [1/2]

ns3::GlobalRoutingLinkRecord::GlobalRoutingLinkRecord ( )

Construct an empty ("uninitialized") Global Routing Link Record.

The Link ID and Link Data Ipv4 addresses are set to "0.0.0.0"; The Link Type is set to Unknown; The metric is set to 0.

Definition at line 48 of file global-router-interface.cc.

References NS_LOG_FUNCTION.

◆ GlobalRoutingLinkRecord() [2/2]

ns3::GlobalRoutingLinkRecord::GlobalRoutingLinkRecord	(	LinkType	linkType,
		Ipv4Address	linkId,
		Ipv4Address	linkData,
		uint16_t	metric
	)

Construct an initialized Global Routing Link Record.

Parameters

linkType	The type of link record to construct.
linkId	The link ID for the record.
linkData	The link data field for the record.
metric	The metric field for the record.

See also: LinkType; SetLinkId; SetLinkData

Definition at line 57 of file global-router-interface.cc.

References NS_LOG_FUNCTION.

◆ ~GlobalRoutingLinkRecord()

ns3::GlobalRoutingLinkRecord::~GlobalRoutingLinkRecord ( )

Destroy a Global Routing Link Record.

Currently does nothing. Here as a placeholder only.

Definition at line 69 of file global-router-interface.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

◆ GetLinkData()

Ipv4Address ns3::GlobalRoutingLinkRecord::GetLinkData ( ) const

Get the Link Data field of the Global Routing Link Record.

For an OSPF type 1 link (PointToPoint) the Link Data will be the IP address of the node of the local side of the link.

For an OSPF type 3 link (StubNetwork), the Link Data will be the network mask

Returns: The Ipv4Address corresponding to the Link Data field of the record.

Definition at line 89 of file global-router-interface.cc.

References m_linkData, and NS_LOG_FUNCTION.

Referenced by ns3::GlobalRouteManagerImpl::CheckForStubNode(), ns3::GlobalRoutingLSA::CopyLinkRecords(), ns3::GlobalRouteManagerLSDB::GetLSAByLinkData(), ns3::GlobalRouteManagerImpl::SPFGetNextLink(), ns3::GlobalRouteManagerImpl::SPFIntraAddRouter(), ns3::GlobalRouteManagerImpl::SPFIntraAddStub(), and ns3::GlobalRouteManagerImpl::SPFNexthopCalculation().

Here is the caller graph for this function:

◆ GetLinkId()

Ipv4Address ns3::GlobalRoutingLinkRecord::GetLinkId ( ) const

Get the Link ID field of the Global Routing Link Record.

For an OSPF type 1 link (PointToPoint) the Link ID will be the Router ID of the neighboring router.

For an OSPF type 3 link (StubNetwork), the Link ID will be the adjacent neighbor's IP address

Returns: The Ipv4Address corresponding to the Link ID field of the record.

Definition at line 75 of file global-router-interface.cc.

References m_linkId, and NS_LOG_FUNCTION.

Referenced by ns3::GlobalRouteManagerImpl::CheckForStubNode(), ns3::GlobalRoutingLSA::CopyLinkRecords(), ns3::GlobalRouteManagerImpl::SPFGetNextLink(), ns3::GlobalRouteManagerImpl::SPFIntraAddStub(), ns3::GlobalRouteManagerImpl::SPFNext(), and ns3::GlobalRouteManagerImpl::SPFProcessStubs().

Here is the caller graph for this function:

◆ GetLinkType()

GlobalRoutingLinkRecord::LinkType ns3::GlobalRoutingLinkRecord::GetLinkType ( ) const

Get the Link Type field of the Global Routing Link Record.

The Link Type describes the kind of link a given record represents. The values are defined by OSPF.

See also: LinkType

Returns: The LinkType of the current Global Routing Link Record.

Definition at line 103 of file global-router-interface.cc.

References m_linkType, and NS_LOG_FUNCTION.

Referenced by ns3::GlobalRouteManagerImpl::CheckForStubNode(), ns3::GlobalRoutingLSA::CopyLinkRecords(), ns3::GlobalRouteManagerLSDB::GetLSAByLinkData(), ns3::GlobalRouteManagerImpl::SPFIntraAddRouter(), ns3::GlobalRouteManagerImpl::SPFNext(), and ns3::GlobalRouteManagerImpl::SPFProcessStubs().

Here is the caller graph for this function:

◆ GetMetric()

uint16_t ns3::GlobalRoutingLinkRecord::GetMetric ( ) const

Get the Metric Data field of the Global Routing Link Record.

The metric is an abstract cost associated with forwarding a packet across a link. A sum of metrics must have a well-defined meaning. That is, you shouldn't use bandwidth as a metric (how does the sum of the bandwidth of two hops relate to the cost of sending a packet); rather you should use something like delay.

Returns: The metric field of the Global Routing Link Record.

Definition at line 117 of file global-router-interface.cc.

References m_metric, and NS_LOG_FUNCTION.

Referenced by ns3::GlobalRoutingLSA::CopyLinkRecords(), and ns3::GlobalRouteManagerImpl::SPFNext().

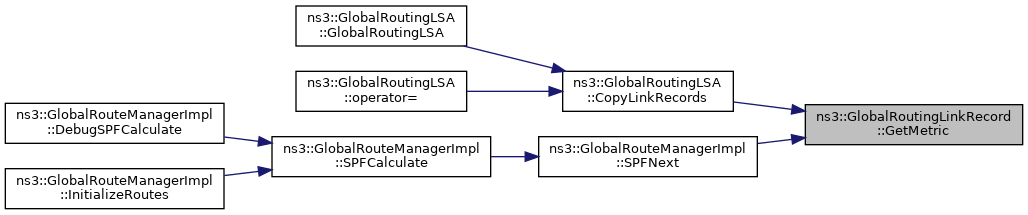

Here is the caller graph for this function:

◆ SetLinkData()

void ns3::GlobalRoutingLinkRecord::SetLinkData ( Ipv4Address addr )

Set the Link Data field of the Global Routing Link Record.

For an OSPF type 1 link (PointToPoint) the Link Data must be the IP address of the node of the local side of the link.

For an OSPF type 3 link (StubNetwork), the Link Data must be set to the network mask

Parameters

addr	An Ipv4Address to store in the Link Data field of the record.

Definition at line 96 of file global-router-interface.cc.

References m_linkData, and NS_LOG_FUNCTION.

Referenced by ns3::GlobalRouter::ProcessBridgedBroadcastLink(), and ns3::GlobalRouter::ProcessPointToPointLink().

Here is the caller graph for this function:

◆ SetLinkId()

void ns3::GlobalRoutingLinkRecord::SetLinkId ( Ipv4Address addr )

Set the Link ID field of the Global Routing Link Record.

For an OSPF type 1 link (PointToPoint) the Link ID must be the Router ID of the neighboring router.

For an OSPF type 3 link (StubNetwork), the Link ID must be the adjacent neighbor's IP address

Parameters

addr	An Ipv4Address to store in the Link ID field of the record.

Definition at line 82 of file global-router-interface.cc.

References m_linkId, and NS_LOG_FUNCTION.

Referenced by ns3::GlobalRouter::ProcessBridgedBroadcastLink(), and ns3::GlobalRouter::ProcessPointToPointLink().

Here is the caller graph for this function:

◆ SetLinkType()

void ns3::GlobalRoutingLinkRecord::SetLinkType ( GlobalRoutingLinkRecord::LinkType linkType )

Set the Link Type field of the Global Routing Link Record.

The Link Type describes the kind of link a given record represents. The values are defined by OSPF.

See also: LinkType

Parameters

linkType The new LinkType for the current Global Routing Link Record.

Definition at line 110 of file global-router-interface.cc.

References m_linkType, and NS_LOG_FUNCTION.

Referenced by ns3::GlobalRoutingLSA::CopyLinkRecords(), ns3::GlobalRouter::ProcessBridgedBroadcastLink(), and ns3::GlobalRouter::ProcessPointToPointLink().

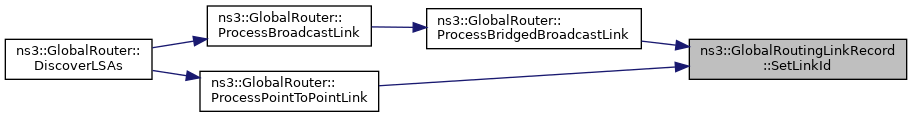

Here is the caller graph for this function:

◆ SetMetric()

void ns3::GlobalRoutingLinkRecord::SetMetric ( uint16_t metric )

Set the Metric Data field of the Global Routing Link Record.

The metric is an abstract cost associated with forwarding a packet across a link. A sum of metrics must have a well-defined meaning. That is, you shouldn't use bandwidth as a metric (how does the sum of the bandwidth of two hops relate to the cost of sending a packet); rather you should use something like delay.

Parameters

metric The new metric for the current Global Routing Link Record.

Definition at line 124 of file global-router-interface.cc.

References m_metric, and NS_LOG_FUNCTION.

Referenced by ns3::GlobalRouter::ProcessBridgedBroadcastLink(), and ns3::GlobalRouter::ProcessPointToPointLink().

Here is the caller graph for this function:

Friends And Related Function Documentation

◆ GlobalRoutingLSA

friend class GlobalRoutingLSA

friend

Friend class.

Definition at line 56 of file global-router-interface.h.

Member Data Documentation

◆ m_linkData

Ipv4Address ns3::GlobalRoutingLinkRecord::m_linkData

private

m_linkId and m_linkData are defined by OSPF to have different meanings depending on the type of link a given link records represents.

They work together.

For Type 1 link (PointToPoint), set m_linkData to local IP address

For Type 3 link (Stub), set m_linkData to mask

Definition at line 228 of file global-router-interface.h.

Referenced by GetLinkData(), ns3::GlobalRoutingLSA::Print(), and SetLinkData().

◆ m_linkId

Ipv4Address ns3::GlobalRoutingLinkRecord::m_linkId

private

m_linkId and m_linkData are defined by OSPF to have different meanings depending on the type of link a given link records represents.

They work together.

For Type 1 link (PointToPoint), set m_linkId to Router ID of neighboring router.

For Type 3 link (Stub), set m_linkId to neighbor's IP address

Definition at line 217 of file global-router-interface.h.

Referenced by GetLinkId(), ns3::GlobalRoutingLSA::Print(), and SetLinkId().

◆ m_linkType

LinkType ns3::GlobalRoutingLinkRecord::m_linkType

private

The type of the Global Routing Link Record.

Defined in the OSPF spec. We currently only use PointToPoint and StubNetwork types.

Definition at line 234 of file global-router-interface.h.

Referenced by GetLinkType(), ns3::GlobalRoutingLSA::Print(), and SetLinkType().

◆ m_metric

uint16_t ns3::GlobalRoutingLinkRecord::m_metric

private

The metric for a given link.

A metric is abstract cost associated with forwarding a packet across a link. A sum of metrics must have a well-defined meaning. That is, you shouldn't use bandwidth as a metric (how does the sum of the bandwidth of two hops relate to the cost of sending a packet); rather you should use something like delay.

Definition at line 245 of file global-router-interface.h.

Referenced by GetMetric(), ns3::GlobalRoutingLSA::Print(), and SetMetric().

The documentation for this class was generated from the following files:

src/internet/model/global-router-interface.h
src/internet/model/global-router-interface.cc
