BasicEnergyUpdateTest Class Reference

Test case of update remaining energy for BasicEnergySource and WifiRadioEnergyModel. More...

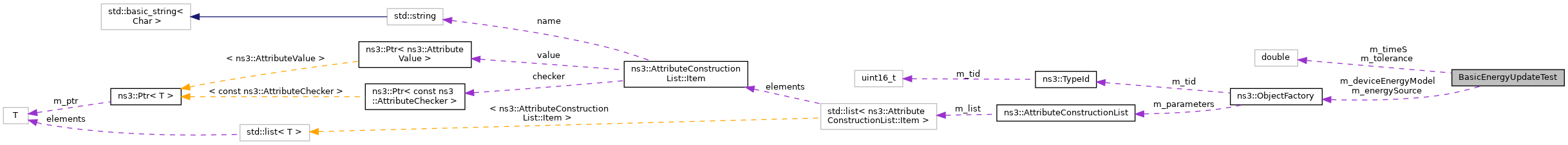

Collaboration diagram for BasicEnergyUpdateTest:

Public Member Functions
	BasicEnergyUpdateTest ()
virtual	~BasicEnergyUpdateTest ()
bool	DoRun ()
	Performs some tests involving state updates and the relative energy consumption. More...

Private Member Functions
bool	StateSwitchTest (WifiPhyState state)

Private Attributes
ObjectFactory	m_deviceEnergyModel
	Device energy model factory. More...
ObjectFactory	m_energySource
	Energy source factory. More...
double	m_timeS
	Time in seconds. More...
double	m_tolerance
	Tolerance for power estimation. More...

Detailed Description

Test case of update remaining energy for BasicEnergySource and WifiRadioEnergyModel.

Definition at line 44 of file basic-energy-model-test.cc.

Constructor & Destructor Documentation

BasicEnergyUpdateTest()

BasicEnergyUpdateTest::BasicEnergyUpdateTest

(

)

Definition at line 74 of file basic-energy-model-test.cc.

~BasicEnergyUpdateTest()

BasicEnergyUpdateTest::~BasicEnergyUpdateTest ( )

virtual

Definition at line 80 of file basic-energy-model-test.cc.

Member Function Documentation

DoRun()

bool BasicEnergyUpdateTest::DoRun

(

void

)

Performs some tests involving state updates and the relative energy consumption.

Returns

true is some error happened.

Definition at line 85 of file basic-energy-model-test.cc.

References CCA_BUSY, IDLE, RX, SLEEP, SWITCHING, and TX.

StateSwitchTest()

bool BasicEnergyUpdateTest::StateSwitchTest ( WifiPhyState  state )

private

Parameters

state

Radio state to switch to.

Returns

False if no error occurs.

Runs simulation for a while, check if final state & remaining energy is correctly updated.

Definition at line 126 of file basic-energy-model-test.cc.

References ns3::Object::AggregateObject(), ns3::EnergySource::AppendDeviceEnergyModel(), CCA_BUSY, ns3::WifiRadioEnergyModel::ChangeState(), ns3::Simulator::Destroy(), ns3::EnergySource::FindDeviceEnergyModels(), ns3::DeviceEnergyModelContainer::Get(), ns3::BasicEnergySource::GetInitialEnergy(), ns3::DeviceEnergyModelContainer::GetN(), ns3::BasicEnergySource::GetRemainingEnergy(), ns3::BasicEnergySource::GetSupplyVoltage(), IDLE, max, NS_FATAL_ERROR, NS_LOG_DEBUG, OFF, ns3::Simulator::Run(), RX, ns3::Simulator::Schedule(), ns3::Seconds(), ns3::BasicEnergySource::SetInitialEnergy(), ns3::EnergySource::SetNode(), SLEEP, ns3::Simulator::Stop(), SWITCHING, TX, and ns3::BasicEnergySource::UpdateEnergySource().

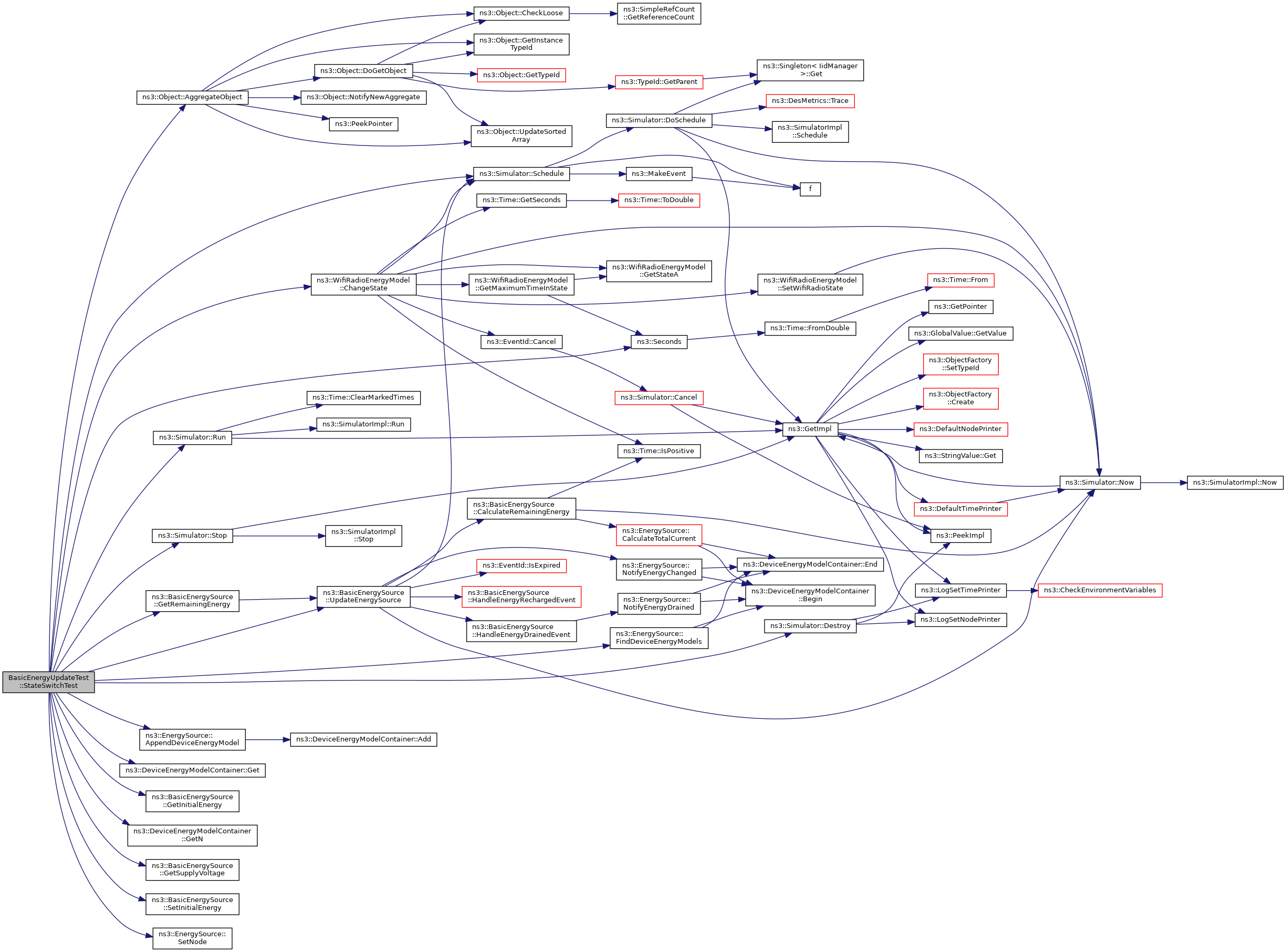

Here is the call graph for this function:

Member Data Documentation

m_deviceEnergyModel

ObjectFactory BasicEnergyUpdateTest::m_deviceEnergyModel

private

Device energy model factory.

Definition at line 71 of file basic-energy-model-test.cc.

m_energySource

ObjectFactory BasicEnergyUpdateTest::m_energySource

private

Energy source factory.

Definition at line 70 of file basic-energy-model-test.cc.

m_timeS

double BasicEnergyUpdateTest::m_timeS

private

Time in seconds.

Definition at line 67 of file basic-energy-model-test.cc.

m_tolerance

double BasicEnergyUpdateTest::m_tolerance

private

Tolerance for power estimation.

Definition at line 68 of file basic-energy-model-test.cc.

---

The documentation for this class was generated from the following file:

• src/energy/examples/basic-energy-model-test.cc
