A Discrete-Event Network Simulator
API
Public Member Functions | Static Public Member Functions | List of all members
ns3::Ipv6OptionPadnHeader Class Reference
Internet » IPv6 classes and sub-modules » IPV6 Header extension system.

Header of IPv6 Option Padn. More...

#include "ipv6-option-header.h"

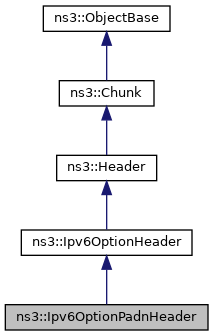

+ Inheritance diagram for ns3::Ipv6OptionPadnHeader:
+ Collaboration diagram for ns3::Ipv6OptionPadnHeader:

Public Member Functions

 Ipv6OptionPadnHeader (uint32_t pad=2)
 Constructor. More...

 ~Ipv6OptionPadnHeader () override
 Destructor. More...

uint32_t Deserialize (Buffer::Iterator start) override
 Deserialize the packet. More...

TypeId GetInstanceTypeId () const override
 Get the instance type ID. More...

uint32_t GetSerializedSize () const override
 Get the serialized size of the packet. More...

void Print (std::ostream &os) const override
 Print some information about the packet. More...

void Serialize (Buffer::Iterator start) const override
 Serialize the packet. More...

- Public Member Functions inherited from ns3::Ipv6OptionHeader
 Ipv6OptionHeader ()
 Constructor. More...

 ~Ipv6OptionHeader () override
 Destructor. More...

virtual Alignment GetAlignment () const
 Get the Alignment requirement of this option header. More...

uint8_t GetLength () const
 Get the option length. More...

uint8_t GetType () const
 Get the type of the option. More...

void SetLength (uint8_t length)
 Set the option length. More...

void SetType (uint8_t type)
 Set the type of the option. More...

- Public Member Functions inherited from ns3::Header
 ~Header () override

virtual uint32_t Deserialize (Buffer::Iterator start)=0
 Deserialize the object from a buffer iterator. More...

virtual uint32_t Deserialize (Buffer::Iterator start, Buffer::Iterator end)
 Deserialize the object from a buffer iterator. More...

- Public Member Functions inherited from ns3::Chunk
virtual uint32_t Deserialize (Buffer::Iterator start, Buffer::Iterator end)
 Deserialize the object from a buffer iterator. More...

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor. More...

void GetAttribute (std::string name, AttributeValue &value) const
 Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool GetAttributeFailSafe (std::string name, AttributeValue &value) const
 Get the value of an attribute without raising errors. More...

void SetAttribute (std::string name, const AttributeValue &value)
 Set a single attribute, raising fatal errors if unsuccessful. More...

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)
 Set a single attribute without raising errors. More...

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)
 Connect a TraceSource to a Callback with a context. More...

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
 Connect a TraceSource to a Callback without a context. More...

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected with a context. More...

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected without a context. More...


Static Public Member Functions

static TypeId GetTypeId ()
 Get the type identificator. More...

- Static Public Member Functions inherited from ns3::Ipv6OptionHeader
static TypeId GetTypeId ()
 Get the type identificator. More...

- Static Public Member Functions inherited from ns3::Header
static TypeId GetTypeId ()
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::Chunk
static TypeId GetTypeId ()
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId ()
 Get the type ID. More...


Additional Inherited Members

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)
 Complete construction of ObjectBase; invoked by derived classes. More...

virtual void NotifyConstructionCompleted ()
 Notifier called once the ObjectBase is fully constructed. More...

- Related Functions inherited from ns3::ObjectBase
static TypeId GetObjectIid ()
 Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...


Detailed Description

Header of IPv6 Option Padn.

Definition at line 209 of file ipv6-option-header.h.

Constructor & Destructor Documentation

◆ Ipv6OptionPadnHeader()

ns3::Ipv6OptionPadnHeader::Ipv6OptionPadnHeader ( uint32_t  pad = 2)

Constructor.

Parameters
padNumber of bytes to pad (>=2)

Definition at line 205 of file ipv6-option-header.cc.

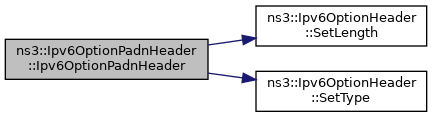

References NS_ASSERT_MSG, ns3::Ipv6OptionHeader::SetLength(), and ns3::Ipv6OptionHeader::SetType().

+ Here is the call graph for this function:

◆ ~Ipv6OptionPadnHeader()

ns3::Ipv6OptionPadnHeader::~Ipv6OptionPadnHeader ( )
override

Destructor.

Definition at line 212 of file ipv6-option-header.cc.

Member Function Documentation

◆ Deserialize()

uint32_t ns3::Ipv6OptionPadnHeader::Deserialize ( Buffer::Iterator  start)
overridevirtual

Deserialize the packet.

Parameters
startBuffer iterator
Returns
size of the packet

Reimplemented from ns3::Ipv6OptionHeader.

Definition at line 243 of file ipv6-option-header.cc.

References GetSerializedSize(), ns3::Buffer::Iterator::ReadU8(), ns3::Ipv6OptionHeader::SetLength(), ns3::Ipv6OptionHeader::SetType(), and two-ray-to-three-gpp-ch-calibration::start.

+ Here is the call graph for this function:

◆ GetInstanceTypeId()

TypeId ns3::Ipv6OptionPadnHeader::GetInstanceTypeId ( void  ) const
overridevirtual

Get the instance type ID.

Returns
instance type ID

Reimplemented from ns3::Ipv6OptionHeader.

Definition at line 200 of file ipv6-option-header.cc.

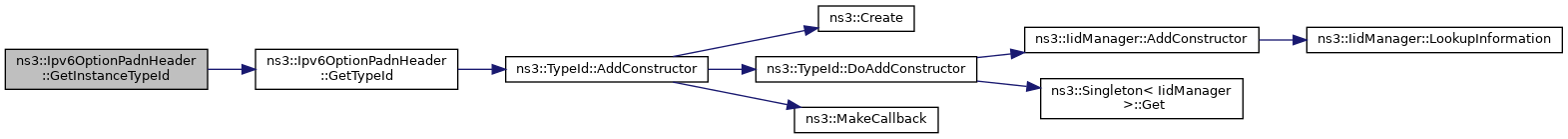

References GetTypeId().

+ Here is the call graph for this function:

◆ GetSerializedSize()

uint32_t ns3::Ipv6OptionPadnHeader::GetSerializedSize ( ) const
overridevirtual

Get the serialized size of the packet.

Returns
size

Reimplemented from ns3::Ipv6OptionHeader.

Definition at line 223 of file ipv6-option-header.cc.

References ns3::Ipv6OptionHeader::GetLength().

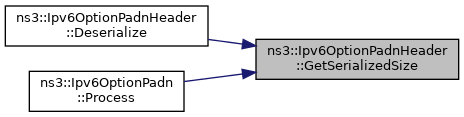

Referenced by Deserialize(), and ns3::Ipv6OptionPadn::Process().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::Ipv6OptionPadnHeader::GetTypeId ( void  )
static

Get the type identificator.

Returns
type identificator

Definition at line 190 of file ipv6-option-header.cc.

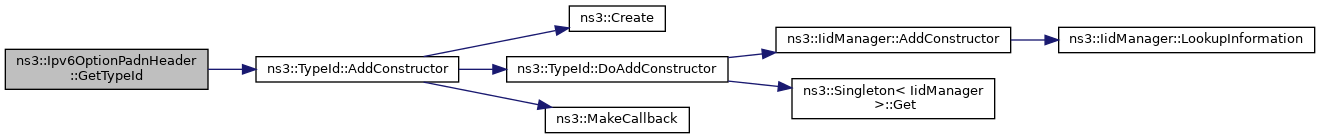

References ns3::TypeId::AddConstructor().

Referenced by GetInstanceTypeId().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ Print()

void ns3::Ipv6OptionPadnHeader::Print ( std::ostream &  os) const
overridevirtual

Print some information about the packet.

Parameters
osoutput stream

Reimplemented from ns3::Ipv6OptionHeader.

Definition at line 217 of file ipv6-option-header.cc.

References ns3::Ipv6OptionHeader::GetLength(), and ns3::Ipv6OptionHeader::GetType().

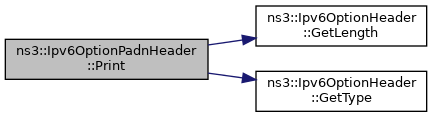

+ Here is the call graph for this function:

◆ Serialize()

void ns3::Ipv6OptionPadnHeader::Serialize ( Buffer::Iterator  start) const
overridevirtual

Serialize the packet.

Parameters
startBuffer iterator

Reimplemented from ns3::Ipv6OptionHeader.

Definition at line 229 of file ipv6-option-header.cc.

References ns3::Ipv6OptionHeader::GetLength(), ns3::Ipv6OptionHeader::GetType(), two-ray-to-three-gpp-ch-calibration::start, and ns3::Buffer::Iterator::WriteU8().

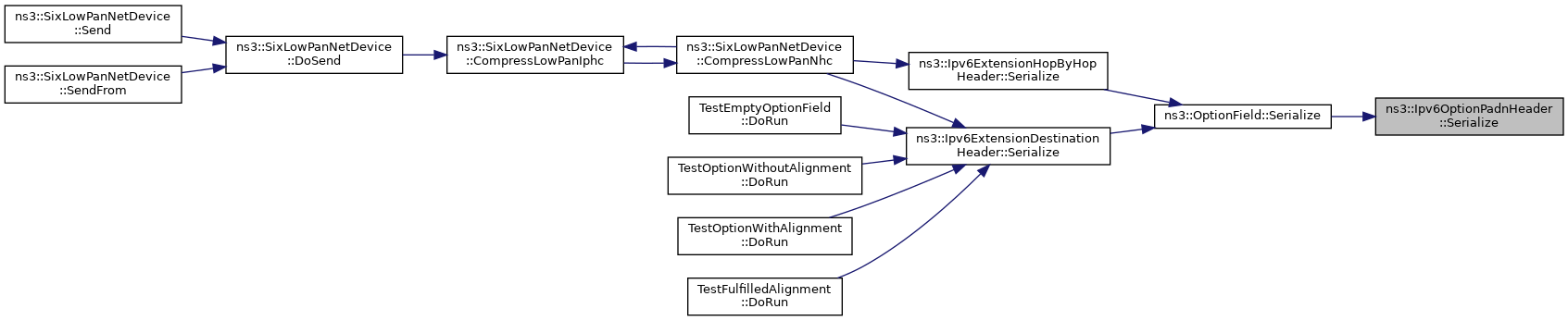

Referenced by ns3::OptionField::Serialize().

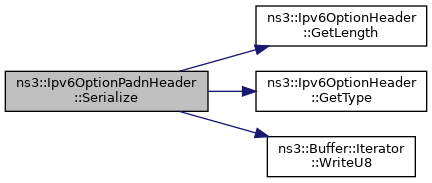

+ Here is the call graph for this function:
+ Here is the caller graph for this function:
The documentation for this class was generated from the following files:
