#include "ipv6-option-header.h"

Inheritance diagram for ns3::Ipv6OptionHeader:

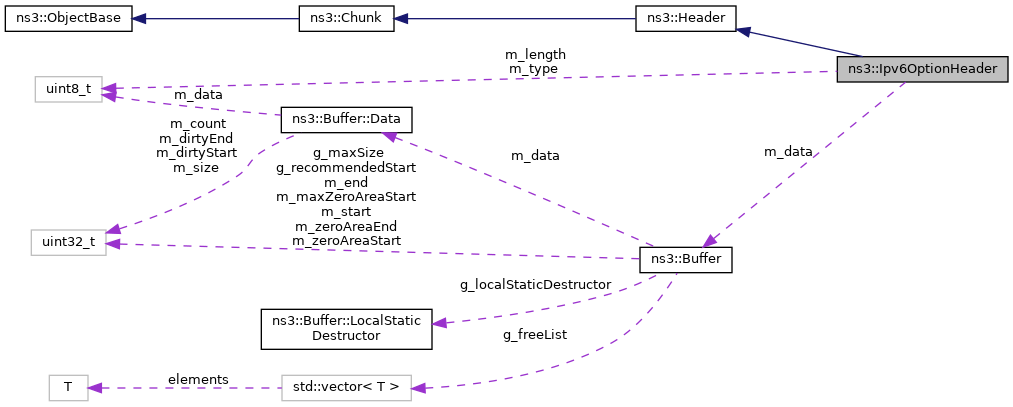

Collaboration diagram for ns3::Ipv6OptionHeader:

Classes
struct	Alignment
	represents the alignment requirements of an option header More...

Public Member Functions
	Ipv6OptionHeader ()
	Constructor. More...

	~Ipv6OptionHeader () override
	Destructor. More...

uint32_t	Deserialize (Buffer::Iterator start) override
	Deserialize the packet. More...

virtual Alignment	GetAlignment () const
	Get the Alignment requirement of this option header. More...

TypeId	GetInstanceTypeId () const override
	Get the instance type ID. More...

uint8_t	GetLength () const
	Get the option length. More...

uint32_t	GetSerializedSize () const override
	Get the serialized size of the packet. More...

uint8_t	GetType () const
	Get the type of the option. More...

void	Print (std::ostream &os) const override
	Print some information about the packet. More...

void	Serialize (Buffer::Iterator start) const override
	Serialize the packet. More...

void	SetLength (uint8_t length)
	Set the option length. More...

void	SetType (uint8_t type)
	Set the type of the option. More...

Public Member Functions inherited from ns3::Header
	~Header () override

virtual uint32_t	Deserialize (Buffer::Iterator start)=0
	Deserialize the object from a buffer iterator. More...

virtual uint32_t	Deserialize (Buffer::Iterator start, Buffer::Iterator end)
	Deserialize the object from a buffer iterator. More...

Public Member Functions inherited from ns3::Chunk
virtual uint32_t	Deserialize (Buffer::Iterator start, Buffer::Iterator end)
	Deserialize the object from a buffer iterator. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising errors. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId ()
	Get the type identificator. More...

Static Public Member Functions inherited from ns3::Header
static TypeId	GetTypeId ()
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Chunk
static TypeId	GetTypeId ()
	Get the type ID. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId ()
	Get the type ID. More...

Private Attributes
Buffer	m_data
	The anonymous data of this option. More...

uint8_t	m_length
	The option length. More...

uint8_t	m_type
	The type of the option. More...

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted ()
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid ()
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

Header for IPv6 Option.

Definition at line 35 of file ipv6-option-header.h.

Constructor & Destructor Documentation

◆ Ipv6OptionHeader()

ns3::Ipv6OptionHeader::Ipv6OptionHeader ( )

Constructor.

Definition at line 49 of file ipv6-option-header.cc.

◆ ~Ipv6OptionHeader()

ns3::Ipv6OptionHeader::~Ipv6OptionHeader ( )

override

Destructor.

Definition at line 55 of file ipv6-option-header.cc.

Member Function Documentation

◆ Deserialize()

uint32_t ns3::Ipv6OptionHeader::Deserialize ( Buffer::Iterator start )

overridevirtual

Deserialize the packet.

Parameters

start Buffer iterator

Returns: size of the packet

Implements ns3::Header.

Reimplemented in ns3::Ipv6OptionRouterAlertHeader, ns3::Ipv6OptionJumbogramHeader, ns3::Ipv6OptionPadnHeader, and ns3::Ipv6OptionPad1Header.

Definition at line 107 of file ipv6-option-header.cc.

References ns3::Buffer::AddAtEnd(), ns3::Buffer::Begin(), GetSerializedSize(), m_data, m_length, m_type, ns3::Buffer::Iterator::Next(), ns3::Buffer::Iterator::ReadU8(), two-ray-to-three-gpp-ch-calibration::start, and ns3::Buffer::Iterator::Write().

Here is the call graph for this function:

◆ GetAlignment()

Ipv6OptionHeader::Alignment ns3::Ipv6OptionHeader::GetAlignment ( ) const

virtual

Get the Alignment requirement of this option header.

Returns: The required alignment

Subclasses should only implement this method, if special alignment is required. Default is no alignment (1n+0).

Reimplemented in OptionWithAlignmentHeader, ns3::Ipv6OptionRouterAlertHeader, and ns3::Ipv6OptionJumbogramHeader.

Definition at line 125 of file ipv6-option-header.cc.

Referenced by ns3::OptionField::AddOption().

Here is the caller graph for this function:

◆ GetInstanceTypeId()

TypeId ns3::Ipv6OptionHeader::GetInstanceTypeId ( void ) const

overridevirtual

Get the instance type ID.

Returns: instance type ID

Implements ns3::ObjectBase.

Reimplemented in ns3::Ipv6OptionRouterAlertHeader, ns3::Ipv6OptionJumbogramHeader, ns3::Ipv6OptionPadnHeader, and ns3::Ipv6OptionPad1Header.

Definition at line 44 of file ipv6-option-header.cc.

References GetTypeId().

Here is the call graph for this function:

◆ GetLength()

uint8_t ns3::Ipv6OptionHeader::GetLength ( void ) const

Get the option length.

Returns: the option length

Definition at line 78 of file ipv6-option-header.cc.

References m_length.

Referenced by ns3::Ipv6OptionPadnHeader::GetSerializedSize(), ns3::Ipv6OptionJumbogramHeader::GetSerializedSize(), ns3::Ipv6OptionRouterAlertHeader::GetSerializedSize(), ns3::Ipv6OptionPadnHeader::Print(), ns3::Ipv6OptionJumbogramHeader::Print(), ns3::Ipv6OptionRouterAlertHeader::Print(), ns3::Ipv6OptionPadnHeader::Serialize(), ns3::Ipv6OptionJumbogramHeader::Serialize(), and ns3::Ipv6OptionRouterAlertHeader::Serialize().

Here is the caller graph for this function:

◆ GetSerializedSize()

uint32_t ns3::Ipv6OptionHeader::GetSerializedSize ( ) const

overridevirtual

Get the serialized size of the packet.

Returns: size

Implements ns3::Header.

Reimplemented in OptionWithAlignmentHeader, OptionWithoutAlignmentHeader, ns3::Ipv6OptionRouterAlertHeader, ns3::Ipv6OptionJumbogramHeader, ns3::Ipv6OptionPadnHeader, and ns3::Ipv6OptionPad1Header.

Definition at line 90 of file ipv6-option-header.cc.

References m_length.

Referenced by ns3::OptionField::AddOption(), and Deserialize().

Here is the caller graph for this function:

◆ GetType()

uint8_t ns3::Ipv6OptionHeader::GetType ( ) const

Get the type of the option.

Returns: the type of the option

Definition at line 66 of file ipv6-option-header.cc.

References m_type.

Referenced by TestOptionWithAlignment::DoRun(), TestFulfilledAlignment::DoRun(), ns3::Ipv6OptionPad1Header::Print(), ns3::Ipv6OptionPadnHeader::Print(), ns3::Ipv6OptionJumbogramHeader::Print(), ns3::Ipv6OptionRouterAlertHeader::Print(), ns3::Ipv6OptionPad1Header::Serialize(), ns3::Ipv6OptionPadnHeader::Serialize(), ns3::Ipv6OptionJumbogramHeader::Serialize(), and ns3::Ipv6OptionRouterAlertHeader::Serialize().

Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::Ipv6OptionHeader::GetTypeId ( void )

static

Get the type identificator.

Returns: type identificator

Definition at line 34 of file ipv6-option-header.cc.

References ns3::TypeId::AddConstructor().

Referenced by GetInstanceTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Print()

void ns3::Ipv6OptionHeader::Print ( std::ostream & os ) const

overridevirtual

Print some information about the packet.

Parameters

os	output stream

Implements ns3::Header.

Reimplemented in ns3::Ipv6OptionRouterAlertHeader, ns3::Ipv6OptionJumbogramHeader, ns3::Ipv6OptionPadnHeader, and ns3::Ipv6OptionPad1Header.

Definition at line 84 of file ipv6-option-header.cc.

References m_type.

◆ Serialize()

void ns3::Ipv6OptionHeader::Serialize ( Buffer::Iterator start ) const

overridevirtual

Serialize the packet.

Parameters

start Buffer iterator

Implements ns3::Header.

Reimplemented in OptionWithAlignmentHeader, OptionWithoutAlignmentHeader, ns3::Ipv6OptionRouterAlertHeader, ns3::Ipv6OptionJumbogramHeader, ns3::Ipv6OptionPadnHeader, and ns3::Ipv6OptionPad1Header.

Definition at line 96 of file ipv6-option-header.cc.

References ns3::Buffer::Begin(), ns3::Buffer::End(), m_data, m_length, m_type, two-ray-to-three-gpp-ch-calibration::start, ns3::Buffer::Iterator::Write(), and ns3::Buffer::Iterator::WriteU8().

Referenced by ns3::OptionField::AddOption().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetLength()

void ns3::Ipv6OptionHeader::SetLength ( uint8_t length )

Set the option length.

Parameters

length the option length

Definition at line 72 of file ipv6-option-header.cc.

References m_length.

Referenced by ns3::Ipv6OptionJumbogramHeader::Ipv6OptionJumbogramHeader(), ns3::Ipv6OptionPadnHeader::Ipv6OptionPadnHeader(), ns3::Ipv6OptionRouterAlertHeader::Ipv6OptionRouterAlertHeader(), ns3::Ipv6OptionPadnHeader::Deserialize(), ns3::Ipv6OptionJumbogramHeader::Deserialize(), and ns3::Ipv6OptionRouterAlertHeader::Deserialize().

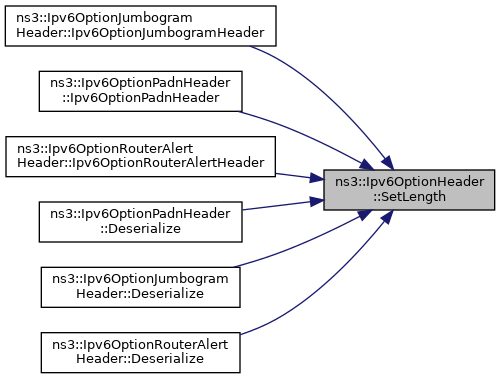

Here is the caller graph for this function:

◆ SetType()

void ns3::Ipv6OptionHeader::SetType ( uint8_t type )

Set the type of the option.

Parameters

type	the type of the option

Definition at line 60 of file ipv6-option-header.cc.

References m_type, and check-style-clang-format::type.

Referenced by ns3::Ipv6OptionJumbogramHeader::Ipv6OptionJumbogramHeader(), ns3::Ipv6OptionPad1Header::Ipv6OptionPad1Header(), ns3::Ipv6OptionPadnHeader::Ipv6OptionPadnHeader(), ns3::Ipv6OptionRouterAlertHeader::Ipv6OptionRouterAlertHeader(), ns3::Ipv6OptionPad1Header::Deserialize(), ns3::Ipv6OptionPadnHeader::Deserialize(), ns3::Ipv6OptionJumbogramHeader::Deserialize(), and ns3::Ipv6OptionRouterAlertHeader::Deserialize().

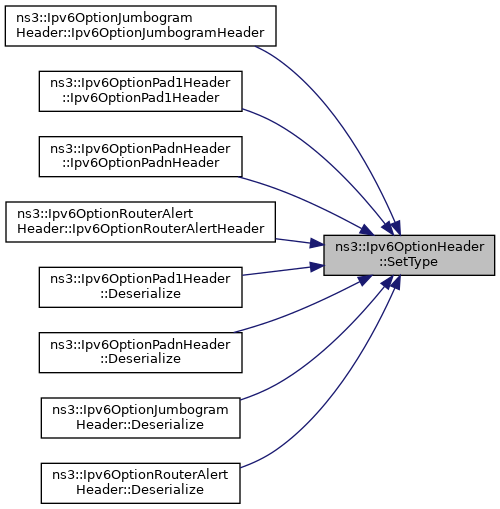

Here is the caller graph for this function:

Member Data Documentation

◆ m_data

Buffer ns3::Ipv6OptionHeader::m_data

private

The anonymous data of this option.

Definition at line 145 of file ipv6-option-header.h.

Referenced by Deserialize(), and Serialize().

◆ m_length

uint8_t ns3::Ipv6OptionHeader::m_length

private

The option length.

Definition at line 140 of file ipv6-option-header.h.

Referenced by Deserialize(), GetLength(), GetSerializedSize(), Serialize(), and SetLength().

◆ m_type

uint8_t ns3::Ipv6OptionHeader::m_type

private

The type of the option.

Definition at line 135 of file ipv6-option-header.h.

Referenced by Deserialize(), GetType(), Print(), Serialize(), and SetType().

The documentation for this class was generated from the following files:

src/internet/model/ipv6-option-header.h
src/internet/model/ipv6-option-header.cc
