This is the implementation of the ICMP protocol as described in RFC 792. More...

#include "icmpv4-l4-protocol.h"

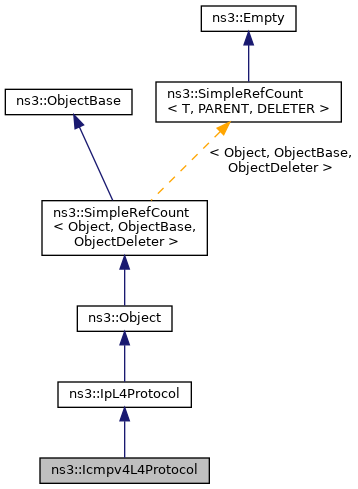

Inheritance diagram for ns3::Icmpv4L4Protocol:

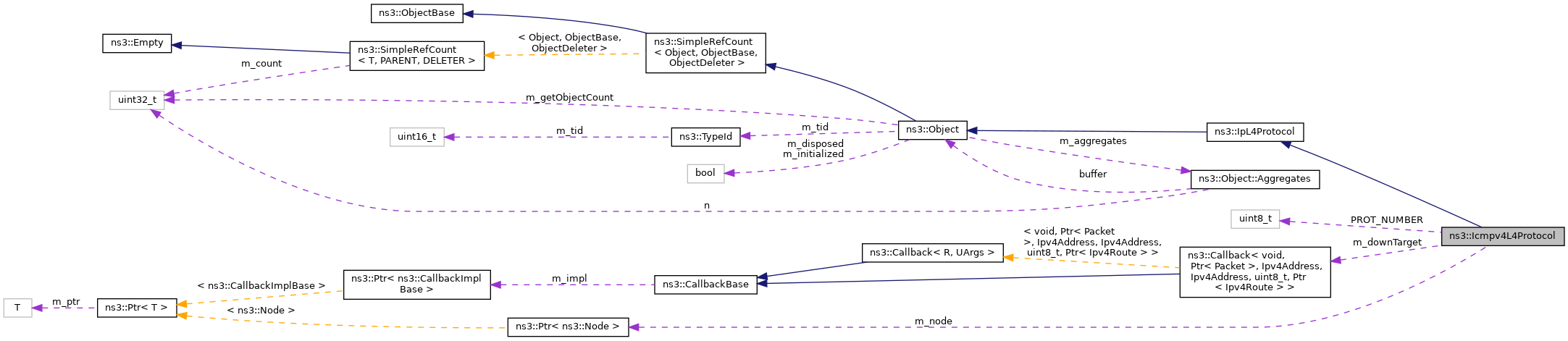

Collaboration diagram for ns3::Icmpv4L4Protocol:

Public Member Functions
	Icmpv4L4Protocol ()

	~Icmpv4L4Protocol () override

IpL4Protocol::DownTargetCallback	GetDownTarget () const override
	This method allows a caller to get the current down target callback set for this L4 protocol (IPv4 case) More...

IpL4Protocol::DownTargetCallback6	GetDownTarget6 () const override
	This method allows a caller to get the current down target callback set for this L4 protocol (IPv6 case) More...

int	GetProtocolNumber () const override
	Get the protocol number. More...

IpL4Protocol::RxStatus	Receive (Ptr< Packet > p, const Ipv4Header &header, Ptr< Ipv4Interface > incomingInterface) override
	Receive method. More...

IpL4Protocol::RxStatus	Receive (Ptr< Packet > p, const Ipv6Header &header, Ptr< Ipv6Interface > incomingInterface) override
	Receive method. More...

void	SendDestUnreachFragNeeded (Ipv4Header header, Ptr< const Packet > orgData, uint16_t nextHopMtu)
	Send a Destination Unreachable - Fragmentation needed ICMP error. More...

void	SendDestUnreachPort (Ipv4Header header, Ptr< const Packet > orgData)
	Send a Time Exceeded ICMP error. More...

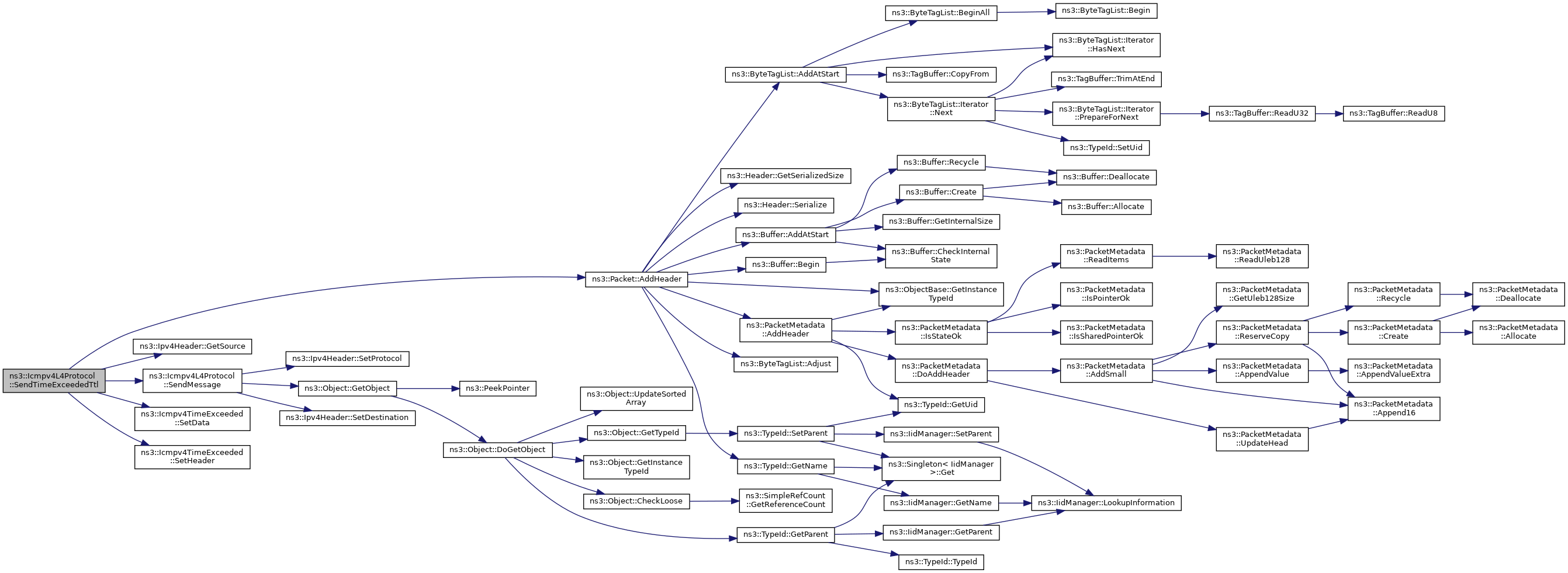

void	SendTimeExceededTtl (Ipv4Header header, Ptr< const Packet > orgData, bool isFragment)
	Send a Time Exceeded ICMP error. More...

void	SetDownTarget (IpL4Protocol::DownTargetCallback cb) override
	This method allows a caller to set the current down target callback set for this L4 protocol (IPv4 case) More...

void	SetDownTarget6 (IpL4Protocol::DownTargetCallback6 cb) override
	This method allows a caller to set the current down target callback set for this L4 protocol (IPv6 case) More...

void	SetNode (Ptr< Node > node)
	Set the node the protocol is associated with. More...

Public Member Functions inherited from ns3::IpL4Protocol
	~IpL4Protocol () override

virtual void	ReceiveIcmp (Ipv4Address icmpSource, uint8_t icmpTtl, uint8_t icmpType, uint8_t icmpCode, uint32_t icmpInfo, Ipv4Address payloadSource, Ipv4Address payloadDestination, const uint8_t payload[8])
	Called from lower-level layers to send the ICMP packet up in the stack. More...

virtual void	ReceiveIcmp (Ipv6Address icmpSource, uint8_t icmpTtl, uint8_t icmpType, uint8_t icmpCode, uint32_t icmpInfo, Ipv6Address payloadSource, Ipv6Address payloadDestination, const uint8_t payload[8])
	Called from lower-level layers to send the ICMPv6 packet up in the stack. More...

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

	~Object () override
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose ()
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator () const
	Get an iterator to the Objects aggregated to this one. More...

TypeId	GetInstanceTypeId () const override
	Get the most derived TypeId for this Object. More...

template<typename T >
Ptr< T >	GetObject () const
	Get a pointer to the requested aggregated Object. More...

template<>
Ptr< Object >	GetObject () const
	Specialization of () for objects of type ns3::Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< Object >	GetObject (TypeId tid) const
	Specialization of (TypeId tid) for objects of type ns3::Object. More...

void	Initialize ()
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized () const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
	Copy constructor. More...

uint32_t	GetReferenceCount () const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o[[maybe_unused]])
	Assignment operator. More...

void	Ref () const
	Increment the reference count. More...

void	Unref () const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising errors. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static uint16_t	GetStaticProtocolNumber ()
	Get the protocol number. More...

static TypeId	GetTypeId ()
	Get the type ID. More...

Static Public Member Functions inherited from ns3::IpL4Protocol
static TypeId	GetTypeId ()
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId ()
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId ()
	Get the type ID. More...

Static Public Attributes
static const uint8_t	PROT_NUMBER = 1
	ICMP protocol number (0x1) More...

Protected Member Functions
void	NotifyNewAggregate () override
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	DoInitialize ()
	Initialize() implementation. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted ()
	Notifier called once the ObjectBase is fully constructed. More...

Private Member Functions
void	DoDispose () override
	Destructor implementation. More...

void	Forward (Ipv4Address source, Icmpv4Header icmp, uint32_t info, Ipv4Header ipHeader, const uint8_t payload[8])
	Forward the message to an L4 protocol. More...

void	HandleDestUnreach (Ptr< Packet > p, Icmpv4Header header, Ipv4Address source, Ipv4Address destination)
	Handles an incoming ICMP Destination Unreachable packet. More...

void	HandleEcho (Ptr< Packet > p, Icmpv4Header header, Ipv4Address source, Ipv4Address destination, uint8_t tos)
	Handles an incoming ICMP Echo packet. More...

void	HandleTimeExceeded (Ptr< Packet > p, Icmpv4Header icmp, Ipv4Address source, Ipv4Address destination)
	Handles an incoming ICMP Time Exceeded packet. More...

void	SendDestUnreach (Ipv4Header header, Ptr< const Packet > orgData, uint8_t code, uint16_t nextHopMtu)
	Send an ICMP Destination Unreachable packet. More...

void	SendMessage (Ptr< Packet > packet, Ipv4Address dest, uint8_t type, uint8_t code)
	Send a generic ICMP packet. More...

void	SendMessage (Ptr< Packet > packet, Ipv4Address source, Ipv4Address dest, uint8_t type, uint8_t code, Ptr< Ipv4Route > route)
	Send a generic ICMP packet. More...

Private Attributes
IpL4Protocol::DownTargetCallback	m_downTarget
	callback to Ipv4::Send More...

Ptr< Node >	m_node
	the node this protocol is associated with More...

Additional Inherited Members
Public Types inherited from ns3::IpL4Protocol
typedef Callback< void, Ptr< Packet >, Ipv4Address, Ipv4Address, uint8_t, Ptr< Ipv4Route > >	DownTargetCallback
	callback to send packets over IPv4 More...

typedef Callback< void, Ptr< Packet >, Ipv6Address, Ipv6Address, uint8_t, Ptr< Ipv6Route > >	DownTargetCallback6
	callback to send packets over IPv6 More...

enum	RxStatus { RX_OK , RX_CSUM_FAILED , RX_ENDPOINT_CLOSED , RX_ENDPOINT_UNREACH }
	Rx status codes. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid ()
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

This is the implementation of the ICMP protocol as described in RFC 792.

Definition at line 46 of file icmpv4-l4-protocol.h.

Constructor & Destructor Documentation

◆ Icmpv4L4Protocol()

ns3::Icmpv4L4Protocol::Icmpv4L4Protocol ( )

Definition at line 55 of file icmpv4-l4-protocol.cc.

References NS_LOG_FUNCTION.

◆ ~Icmpv4L4Protocol()

ns3::Icmpv4L4Protocol::~Icmpv4L4Protocol ( )

override

Definition at line 61 of file icmpv4-l4-protocol.cc.

References m_node, NS_ASSERT, and NS_LOG_FUNCTION.

Member Function Documentation

◆ DoDispose()

void ns3::Icmpv4L4Protocol::DoDispose ( void )

overrideprivatevirtual

Destructor implementation.

This method is called by Dispose() or by the Object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overridden version of this method and chain up to their parent's implementation once they are done. i.e, for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose() method.

It is safe to call GetObject() from within this method.

Reimplemented from ns3::Object.

Definition at line 361 of file icmpv4-l4-protocol.cc.

References ns3::Object::DoDispose(), m_downTarget, m_node, NS_LOG_FUNCTION, and ns3::Callback< R, UArgs >::Nullify().

Here is the call graph for this function:

◆ Forward()

void ns3::Icmpv4L4Protocol::Forward	(	Ipv4Address	source,
		Icmpv4Header	icmp,
		uint32_t	info,
		Ipv4Header	ipHeader,
		const uint8_t	payload[8]
	)

private

Forward the message to an L4 protocol.

Parameters

source	the source
icmp	the ICMP header
info	info data (e.g., the target MTU)
ipHeader	the IP header carried by ICMP
payload	payload chunk carried by ICMP

Definition at line 241 of file icmpv4-l4-protocol.cc.

References ns3::Icmpv4Header::GetCode(), ns3::Ipv4Header::GetDestination(), ns3::Object::GetObject(), ns3::Ipv4Header::GetProtocol(), ns3::Ipv4Header::GetSource(), ns3::Ipv4Header::GetTtl(), ns3::Icmpv4Header::GetType(), nsclick-simple-lan::ipv4, m_node, and NS_LOG_FUNCTION.

Referenced by HandleDestUnreach(), and HandleTimeExceeded().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetDownTarget()

IpL4Protocol::DownTargetCallback ns3::Icmpv4L4Protocol::GetDownTarget ( ) const

overridevirtual

This method allows a caller to get the current down target callback set for this L4 protocol (IPv4 case)

Returns: current Callback for the L4 protocol

Implements ns3::IpL4Protocol.

Definition at line 383 of file icmpv4-l4-protocol.cc.

References m_downTarget, and NS_LOG_FUNCTION.

◆ GetDownTarget6()

IpL4Protocol::DownTargetCallback6 ns3::Icmpv4L4Protocol::GetDownTarget6 ( ) const

overridevirtual

This method allows a caller to get the current down target callback set for this L4 protocol (IPv6 case)

Returns: current Callback for the L4 protocol

Implements ns3::IpL4Protocol.

Definition at line 390 of file icmpv4-l4-protocol.cc.

References NS_LOG_FUNCTION.

◆ GetProtocolNumber()

int ns3::Icmpv4L4Protocol::GetProtocolNumber ( ) const

overridevirtual

Get the protocol number.

Returns: the protocol number

Implements ns3::IpL4Protocol.

Definition at line 110 of file icmpv4-l4-protocol.cc.

References NS_LOG_FUNCTION, and PROT_NUMBER.

◆ GetStaticProtocolNumber()

uint16_t ns3::Icmpv4L4Protocol::GetStaticProtocolNumber ( )

static

Get the protocol number.

Returns: the protocol number

Definition at line 103 of file icmpv4-l4-protocol.cc.

References NS_LOG_FUNCTION_NOARGS, and PROT_NUMBER.

Referenced by ns3::Ipv4L3ClickProtocol::GetIcmp(), and ns3::Ipv4L3Protocol::GetIcmp().

Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::Icmpv4L4Protocol::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 46 of file icmpv4-l4-protocol.cc.

References ns3::TypeId::SetParent().

Here is the call graph for this function:

◆ HandleDestUnreach()

void ns3::Icmpv4L4Protocol::HandleDestUnreach	(	Ptr< Packet >	p,
		Icmpv4Header	header,
		Ipv4Address	source,
		Ipv4Address	destination
	)

private

Handles an incoming ICMP Destination Unreachable packet.

Parameters

p	the packet
header	the IP header
source	the source address
destination	the destination address

Definition at line 265 of file icmpv4-l4-protocol.cc.

References Forward(), ns3::Icmpv4DestinationUnreachable::GetData(), ns3::Icmpv4DestinationUnreachable::GetHeader(), ns3::Icmpv4DestinationUnreachable::GetNextHopMtu(), NS_LOG_FUNCTION, and ns3::Packet::PeekHeader().

Referenced by Receive().

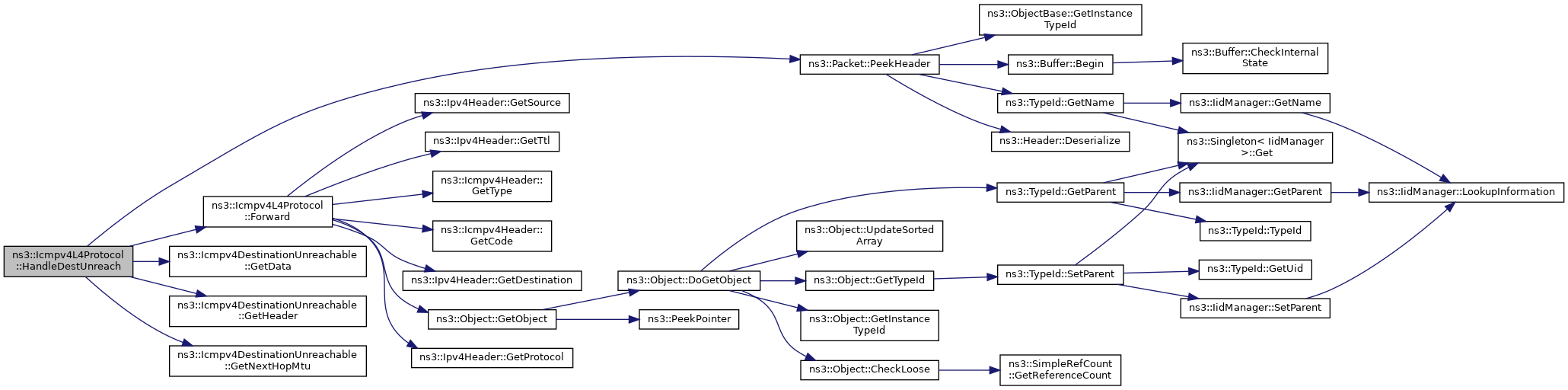

Here is the call graph for this function:

Here is the caller graph for this function:

◆ HandleEcho()

void ns3::Icmpv4L4Protocol::HandleEcho	(	Ptr< Packet >	p,
		Icmpv4Header	header,
		Ipv4Address	source,
		Ipv4Address	destination,
		uint8_t	tos
	)

private

Handles an incoming ICMP Echo packet.

Parameters

p	the packet
header	the IP header
source	the source address
destination	the destination address
tos	the type of service

Definition at line 222 of file icmpv4-l4-protocol.cc.

References ns3::Packet::AddHeader(), ns3::Icmpv4Header::ICMPV4_ECHO_REPLY, NS_LOG_FUNCTION, ns3::Packet::RemoveHeader(), ns3::Packet::ReplacePacketTag(), SendMessage(), and ns3::SocketIpTosTag::SetTos().

Referenced by Receive().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ HandleTimeExceeded()

void ns3::Icmpv4L4Protocol::HandleTimeExceeded	(	Ptr< Packet >	p,
		Icmpv4Header	icmp,
		Ipv4Address	source,
		Ipv4Address	destination
	)

private

Handles an incoming ICMP Time Exceeded packet.

Parameters

p	the packet
icmp	the ICMP header
source	the source address
destination	the destination address

Definition at line 281 of file icmpv4-l4-protocol.cc.

References Forward(), ns3::Icmpv4TimeExceeded::GetData(), ns3::Icmpv4TimeExceeded::GetHeader(), NS_LOG_FUNCTION, and ns3::Packet::PeekHeader().

Referenced by Receive().

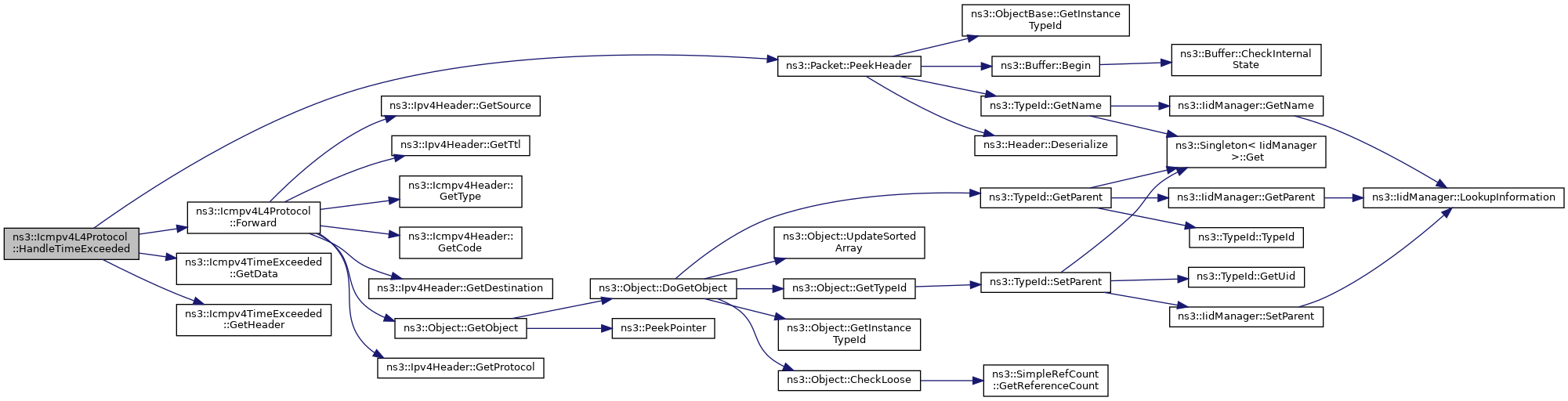

Here is the call graph for this function:

Here is the caller graph for this function:

◆ NotifyNewAggregate()

void ns3::Icmpv4L4Protocol::NotifyNewAggregate ( )

overrideprotectedvirtual

Notify all Objects aggregated to this one of a new Object being aggregated.

This function must be implemented in the stack that needs to notify other stacks connected to the node of their presence in the node.

This method is invoked whenever two sets of Objects are aggregated together. It is invoked exactly once for each Object in both sets. This method can be overridden by subclasses who wish to be notified of aggregation events. These subclasses must chain up to their base class NotifyNewAggregate() method.

It is safe to call GetObject() and AggregateObject() from within this method.

Reimplemented from ns3::Object.

Definition at line 80 of file icmpv4-l4-protocol.cc.

References nsclick-simple-lan::ipv4, ns3::Callback< R, UArgs >::IsNull(), m_downTarget, m_node, ns3::MakeCallback(), ns3::Object::NotifyNewAggregate(), NS_LOG_FUNCTION, ns3::Ipv4::Send(), SetDownTarget(), and SetNode().

Here is the call graph for this function:

◆ Receive() [1/2]

IpL4Protocol::RxStatus ns3::Icmpv4L4Protocol::Receive	(	Ptr< Packet >	p,
		const Ipv4Header &	header,
		Ptr< Ipv4Interface >	incomingInterface
	)

overridevirtual

Receive method.

Parameters

p	the packet
header	the IPv4 header
incomingInterface	the interface from which the packet is coming

Returns: the receive status

Implements ns3::IpL4Protocol.

Definition at line 298 of file icmpv4-l4-protocol.cc.

References ns3::Ipv4InterfaceAddress::GetAddress(), ns3::Ipv4Interface::GetAddress(), ns3::Ipv4InterfaceAddress::GetBroadcast(), ns3::Ipv4Header::GetDestination(), ns3::Ipv4Interface::GetNAddresses(), ns3::Ipv4Header::GetSource(), ns3::Ipv4Header::GetTos(), ns3::Icmpv4Header::GetType(), HandleDestUnreach(), HandleEcho(), HandleTimeExceeded(), ns3::Icmpv4Header::ICMPV4_DEST_UNREACH, ns3::Icmpv4Header::ICMPV4_ECHO, ns3::Icmpv4Header::ICMPV4_TIME_EXCEEDED, ns3::Ipv4Address::IsBroadcast(), ns3::Ipv4InterfaceAddress::IsInSameSubnet(), NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::Packet::RemoveHeader(), and ns3::IpL4Protocol::RX_OK.

Here is the call graph for this function:

◆ Receive() [2/2]

IpL4Protocol::RxStatus ns3::Icmpv4L4Protocol::Receive	(	Ptr< Packet >	p,
		const Ipv6Header &	header,
		Ptr< Ipv6Interface >	incomingInterface
	)

overridevirtual

Receive method.

Parameters

p	the packet
header	the IPv6 header
incomingInterface	the interface from which the packet is coming

Returns: the receive status

Implements ns3::IpL4Protocol.

Definition at line 351 of file icmpv4-l4-protocol.cc.

References ns3::Ipv6Header::GetDestination(), ns3::Ipv6Header::GetSource(), NS_LOG_FUNCTION, and ns3::IpL4Protocol::RX_ENDPOINT_UNREACH.

Here is the call graph for this function:

◆ SendDestUnreach()

void ns3::Icmpv4L4Protocol::SendDestUnreach	(	Ipv4Header	header,
		Ptr< const Packet >	orgData,
		uint8_t	code,
		uint16_t	nextHopMtu
	)

private

Send an ICMP Destination Unreachable packet.

Parameters

header	the original IP header
orgData	the original packet
code	the ICMP code
nextHopMtu	the next hop MTU

Definition at line 181 of file icmpv4-l4-protocol.cc.

References ns3::Packet::AddHeader(), ns3::Ipv4Header::GetSource(), ns3::Icmpv4Header::ICMPV4_DEST_UNREACH, NS_LOG_FUNCTION, SendMessage(), ns3::Icmpv4DestinationUnreachable::SetData(), ns3::Icmpv4DestinationUnreachable::SetHeader(), and ns3::Icmpv4DestinationUnreachable::SetNextHopMtu().

Referenced by SendDestUnreachFragNeeded(), and SendDestUnreachPort().

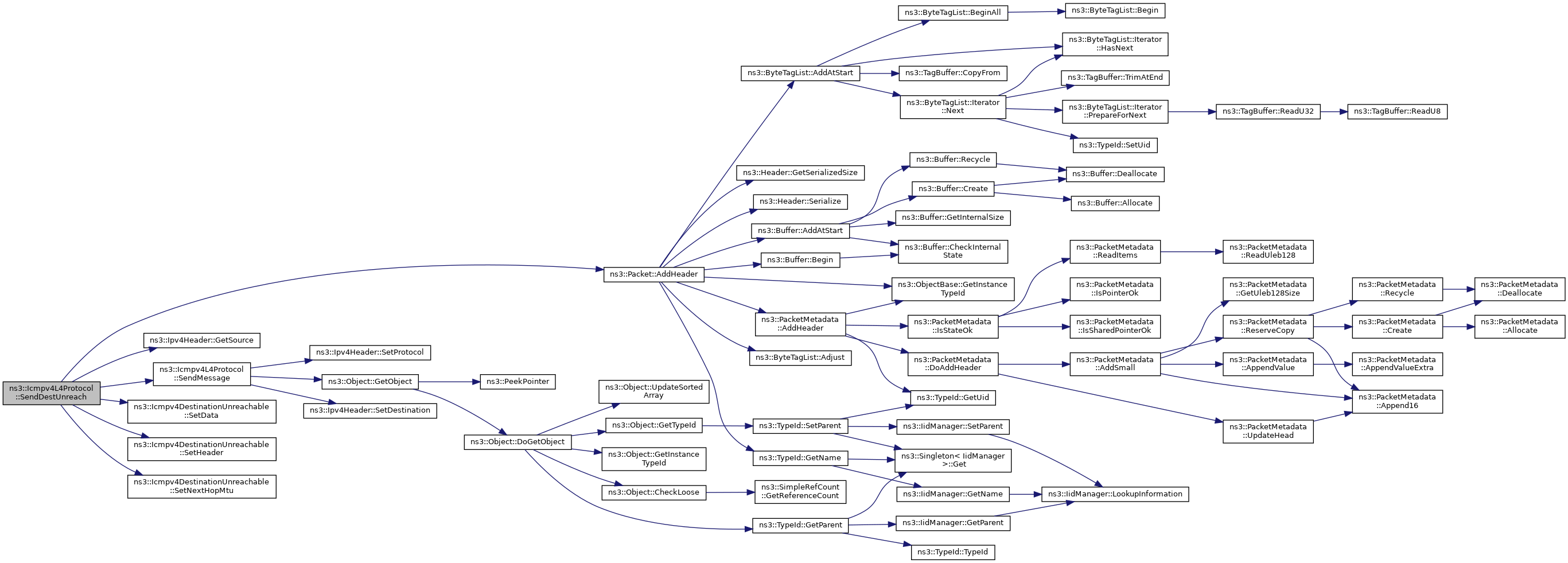

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SendDestUnreachFragNeeded()

void ns3::Icmpv4L4Protocol::SendDestUnreachFragNeeded	(	Ipv4Header	header,
		Ptr< const Packet >	orgData,
		uint16_t	nextHopMtu
	)

Send a Destination Unreachable - Fragmentation needed ICMP error.

Parameters

header	the original IP header
orgData	the original packet
nextHopMtu	the next hop MTU

Definition at line 165 of file icmpv4-l4-protocol.cc.

References ns3::Icmpv4DestinationUnreachable::ICMPV4_FRAG_NEEDED, NS_LOG_FUNCTION, and SendDestUnreach().

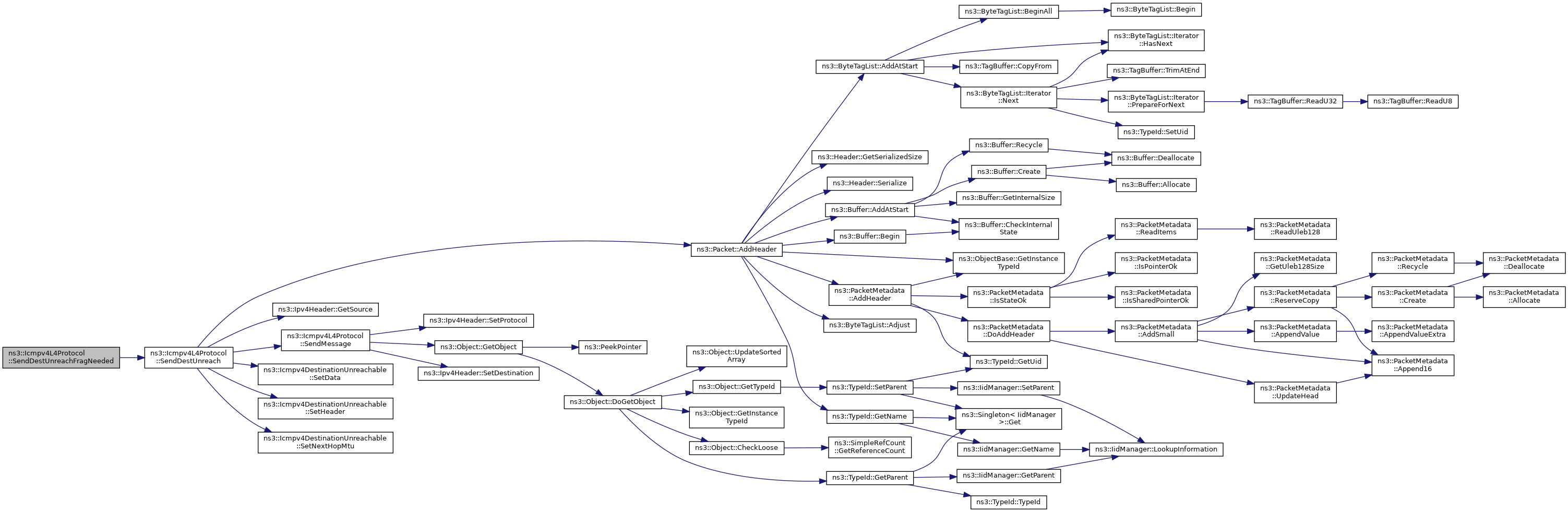

Here is the call graph for this function:

◆ SendDestUnreachPort()

void ns3::Icmpv4L4Protocol::SendDestUnreachPort	(	Ipv4Header	header,
		Ptr< const Packet >	orgData
	)

Send a Time Exceeded ICMP error.

Parameters

header	the original IP header
orgData	the original packet

Definition at line 174 of file icmpv4-l4-protocol.cc.

References ns3::Icmpv4DestinationUnreachable::ICMPV4_PORT_UNREACHABLE, NS_LOG_FUNCTION, and SendDestUnreach().

Here is the call graph for this function:

◆ SendMessage() [1/2]

void ns3::Icmpv4L4Protocol::SendMessage	(	Ptr< Packet >	packet,
		Ipv4Address	dest,
		uint8_t	type,
		uint8_t	code
	)

private

Send a generic ICMP packet.

Parameters

packet	the packet
dest	the destination
type	the ICMP type
code	the ICMP code

Definition at line 117 of file icmpv4-l4-protocol.cc.

References ns3::Object::GetObject(), nsclick-simple-lan::ipv4, m_node, NS_ASSERT, NS_LOG_FUNCTION, NS_LOG_LOGIC, NS_LOG_WARN, PROT_NUMBER, ns3::Ipv4Header::SetDestination(), ns3::Ipv4Header::SetProtocol(), and check-style-clang-format::type.

Referenced by HandleEcho(), SendDestUnreach(), and SendTimeExceededTtl().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SendMessage() [2/2]

void ns3::Icmpv4L4Protocol::SendMessage	(	Ptr< Packet >	packet,
		Ipv4Address	source,
		Ipv4Address	dest,
		uint8_t	type,
		uint8_t	code,
		Ptr< Ipv4Route >	route
	)
