This class implements a gaussian interference model, i.e., all incoming signals are added to the total interference. More...

#include "lte-interference.h"

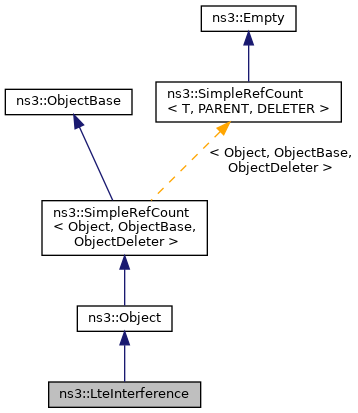

Inheritance diagram for ns3::LteInterference:

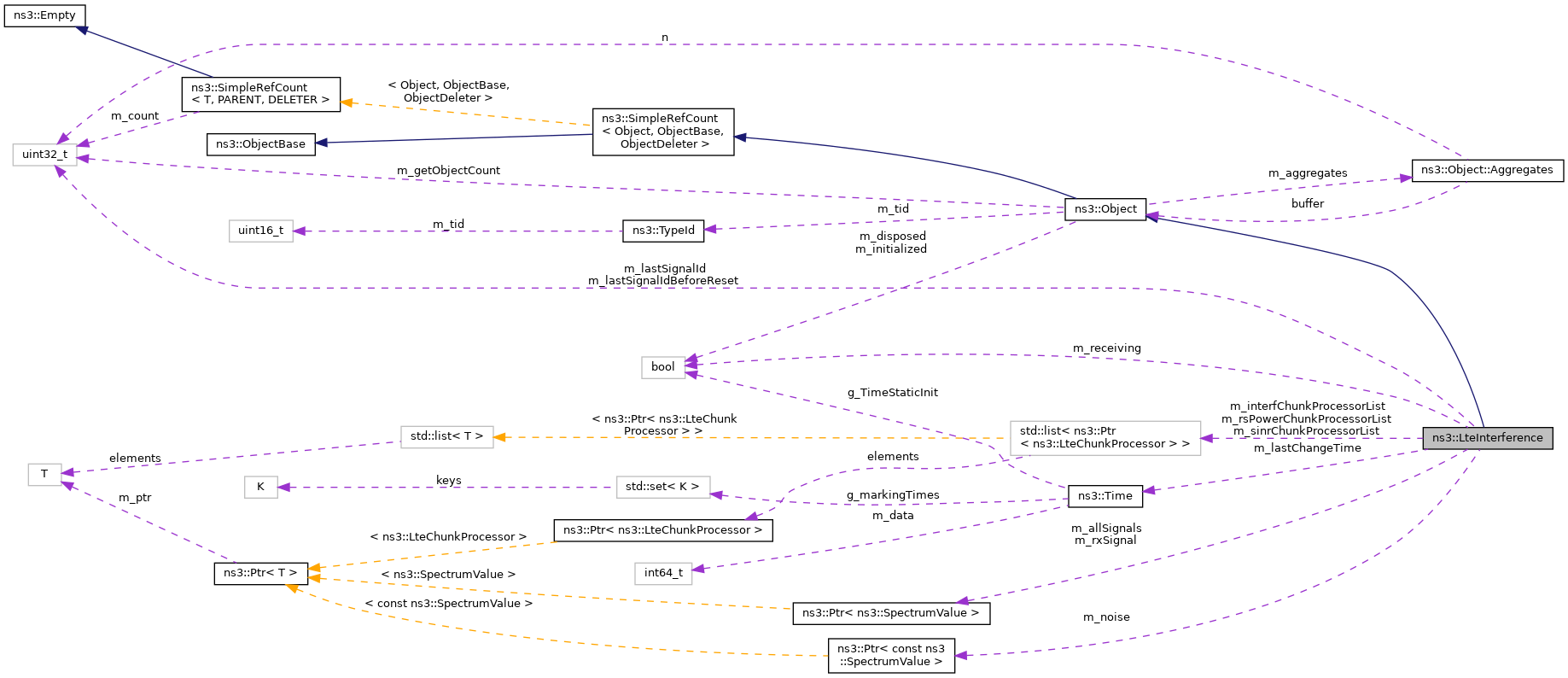

Collaboration diagram for ns3::LteInterference:

Public Member Functions
	LteInterference ()

	~LteInterference () override

virtual void	AddInterferenceChunkProcessor (Ptr< LteChunkProcessor > p)
	Add a LteChunkProcessor that will use the time-vs-frequency interference calculated by this LteInterference instance. More...

virtual void	AddRsPowerChunkProcessor (Ptr< LteChunkProcessor > p)
	Add a LteChunkProcessor that will use the time-vs-frequency power calculated by this LteInterference instance. More...

virtual void	AddSignal (Ptr< const SpectrumValue > spd, const Time duration)
	notify that a new signal is being perceived in the medium. More...

virtual void	AddSinrChunkProcessor (Ptr< LteChunkProcessor > p)
	Add a LteChunkProcessor that will use the time-vs-frequency SINR calculated by this LteInterference instance. More...

void	DoDispose () override
	Destructor implementation. More...

virtual void	EndRx ()
	notify that the RX attempt has ended. More...

virtual void	SetNoisePowerSpectralDensity (Ptr< const SpectrumValue > noisePsd)

virtual void	StartRx (Ptr< const SpectrumValue > rxPsd)
	Notify that the PHY is starting a RX attempt. More...

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

	~Object () override
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose ()
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator () const
	Get an iterator to the Objects aggregated to this one. More...

TypeId	GetInstanceTypeId () const override
	Get the most derived TypeId for this Object. More...

template<typename T >
Ptr< T >	GetObject () const
	Get a pointer to the requested aggregated Object. More...

template<>
Ptr< Object >	GetObject () const
	Specialization of () for objects of type ns3::Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< Object >	GetObject (TypeId tid) const
	Specialization of (TypeId tid) for objects of type ns3::Object. More...

void	Initialize ()
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized () const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
	Copy constructor. More...

uint32_t	GetReferenceCount () const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o[[maybe_unused]])
	Assignment operator. More...

void	Ref () const
	Increment the reference count. More...

void	Unref () const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising errors. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId ()
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId ()
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId ()
	Get the type ID. More...

Protected Member Functions
virtual void	ConditionallyEvaluateChunk ()
	Conditionally evaluate chunk. More...

virtual void	DoAddSignal (Ptr< const SpectrumValue > spd)
	Add signal function. More...

virtual void	DoSubtractSignal (Ptr< const SpectrumValue > spd, uint32_t signalId)
	Subtract signal. More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	DoInitialize ()
	Initialize() implementation. More...

virtual void	NotifyNewAggregate ()
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted ()
	Notifier called once the ObjectBase is fully constructed. More...

Protected Attributes
Ptr< SpectrumValue >	m_allSignals
	stores the spectral power density of the sum of incoming signals; does not include noise, includes the SPD of the signal being RX More...

std::list< Ptr< LteChunkProcessor > >	m_interfChunkProcessorList
	all the processor instances that need to be notified whenever a new interference chunk is calculated More...

Time	m_lastChangeTime {Seconds(0)}
	the time of the last change in m_TotalPower More...

uint32_t	m_lastSignalId {0}
	the last signal ID More...

uint32_t	m_lastSignalIdBeforeReset {0}
	the last signal ID before reset More...

Ptr< const SpectrumValue >	m_noise {nullptr}
	the noise value More...

bool	m_receiving {false}
	are we receiving? More...

std::list< Ptr< LteChunkProcessor > >	m_rsPowerChunkProcessorList
	all the processor instances that need to be notified whenever a new interference chunk is calculated More...

Ptr< SpectrumValue >	m_rxSignal {nullptr}
	stores the power spectral density of the signal whose RX is being attempted More...

std::list< Ptr< LteChunkProcessor > >	m_sinrChunkProcessorList
	all the processor instances that need to be notified whenever a new SINR chunk is calculated More...

Additional Inherited Members
Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid ()
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

This class implements a gaussian interference model, i.e., all incoming signals are added to the total interference.

Definition at line 40 of file lte-interference.h.

Constructor & Destructor Documentation

◆ LteInterference()

ns3::LteInterference::LteInterference ( )

Definition at line 32 of file lte-interference.cc.

References NS_LOG_FUNCTION.

◆ ~LteInterference()

ns3::LteInterference::~LteInterference ( )

override

Definition at line 40 of file lte-interference.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

◆ AddInterferenceChunkProcessor()

void ns3::LteInterference::AddInterferenceChunkProcessor ( Ptr< LteChunkProcessor > p )

virtual

Add a LteChunkProcessor that will use the time-vs-frequency interference calculated by this LteInterference instance.

Note that all the added LteChunkProcessors will work in parallel.

Parameters

p

Definition at line 242 of file lte-interference.cc.

References m_interfChunkProcessorList, and NS_LOG_FUNCTION.

◆ AddRsPowerChunkProcessor()

void ns3::LteInterference::AddRsPowerChunkProcessor ( Ptr< LteChunkProcessor > p )

virtual

Add a LteChunkProcessor that will use the time-vs-frequency power calculated by this LteInterference instance.

Note that all the added LteChunkProcessors will work in parallel.

Parameters

p

Definition at line 228 of file lte-interference.cc.

References m_rsPowerChunkProcessorList, and NS_LOG_FUNCTION.

◆ AddSignal()

void ns3::LteInterference::AddSignal	(	Ptr< const SpectrumValue >	spd,
		const Time	duration
	)

virtual

notify that a new signal is being perceived in the medium.

This method is to be called for all incoming signal, regardless of whether they're useful signals or interferers.

Parameters

spd	the power spectral density of the new signal
duration	the duration of the new signal

Definition at line 131 of file lte-interference.cc.

References DoAddSignal(), DoSubtractSignal(), m_lastSignalId, m_lastSignalIdBeforeReset, NS_LOG_FUNCTION, and ns3::Simulator::Schedule().

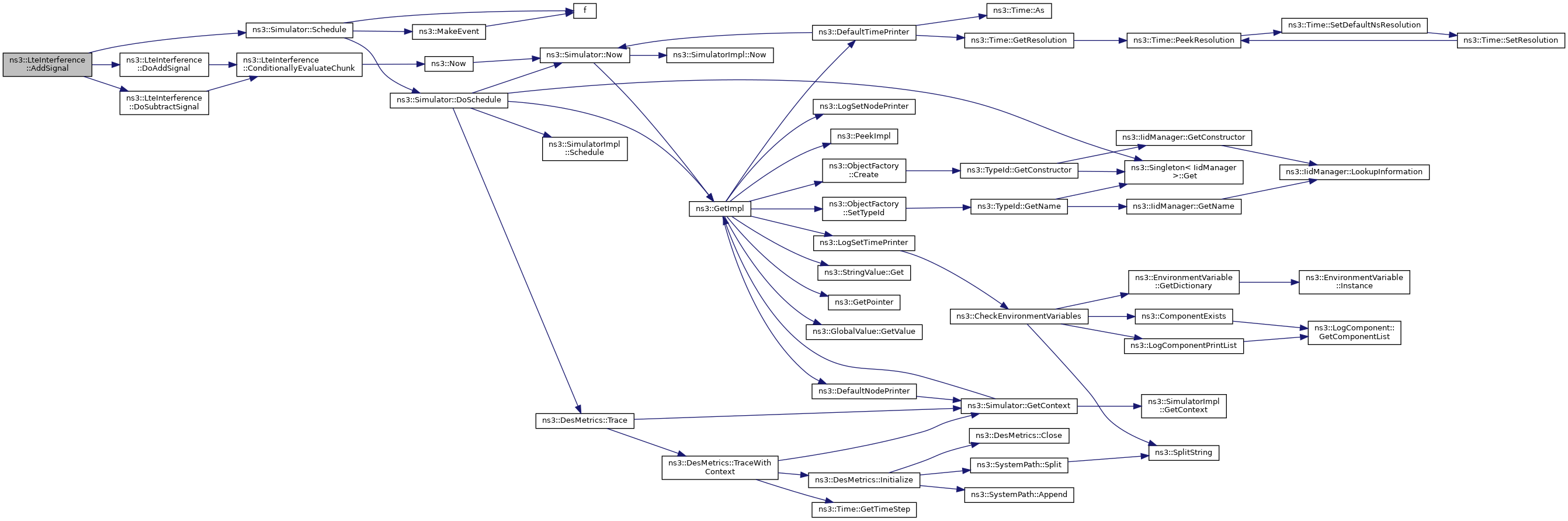

Here is the call graph for this function:

◆ AddSinrChunkProcessor()

void ns3::LteInterference::AddSinrChunkProcessor ( Ptr< LteChunkProcessor > p )

virtual

Add a LteChunkProcessor that will use the time-vs-frequency SINR calculated by this LteInterference instance.

Note that all the added LteChunkProcessors will work in parallel.

Parameters

p

Definition at line 235 of file lte-interference.cc.

References m_sinrChunkProcessorList, and NS_LOG_FUNCTION.

◆ ConditionallyEvaluateChunk()

void ns3::LteInterference::ConditionallyEvaluateChunk ( )

protectedvirtual

Conditionally evaluate chunk.

Definition at line 173 of file lte-interference.cc.

References m_allSignals, m_interfChunkProcessorList, m_lastChangeTime, m_noise, m_receiving, m_rsPowerChunkProcessorList, m_rxSignal, m_sinrChunkProcessorList, ns3::Now(), NS_LOG_DEBUG, NS_LOG_FUNCTION, and NS_LOG_LOGIC.

Referenced by DoAddSignal(), DoSubtractSignal(), EndRx(), and SetNoisePowerSpectralDensity().

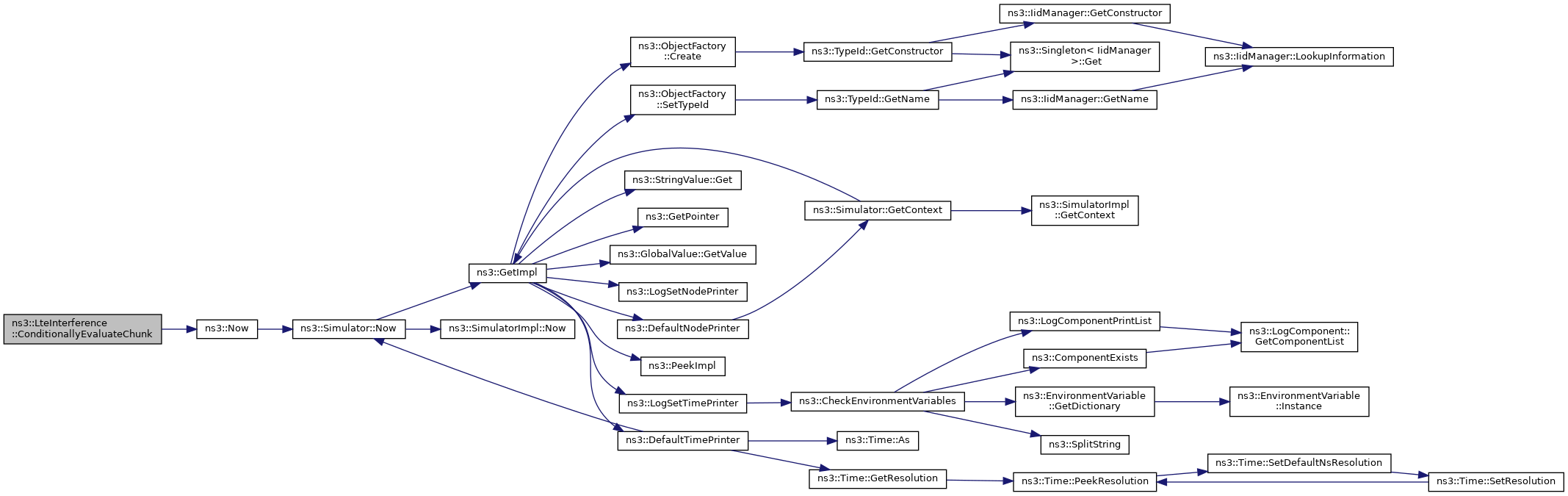

Here is the call graph for this function:

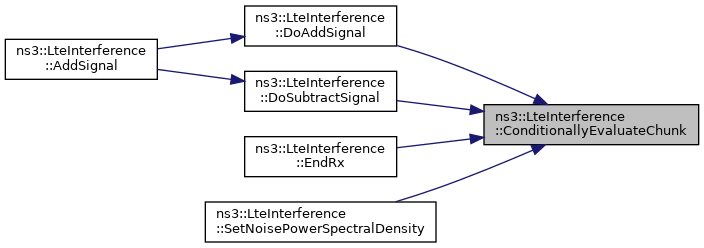

Here is the caller graph for this function:

◆ DoAddSignal()

void ns3::LteInterference::DoAddSignal ( Ptr< const SpectrumValue > spd )

protectedvirtual

Add signal function.

Parameters

spd	the power spectral density of the new signal

Definition at line 149 of file lte-interference.cc.

References ConditionallyEvaluateChunk(), and NS_LOG_FUNCTION.

Referenced by AddSignal().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DoDispose()

void ns3::LteInterference::DoDispose ( void )

overridevirtual

Destructor implementation.

This method is called by Dispose() or by the Object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overridden version of this method and chain up to their parent's implementation once they are done. i.e, for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose() method.

It is safe to call GetObject() from within this method.

Reimplemented from ns3::Object.

Definition at line 46 of file lte-interference.cc.

References ns3::Object::DoDispose(), m_allSignals, m_interfChunkProcessorList, m_noise, m_rsPowerChunkProcessorList, m_rxSignal, m_sinrChunkProcessorList, and NS_LOG_FUNCTION.

Here is the call graph for this function:
