TrickleTimer test. More...

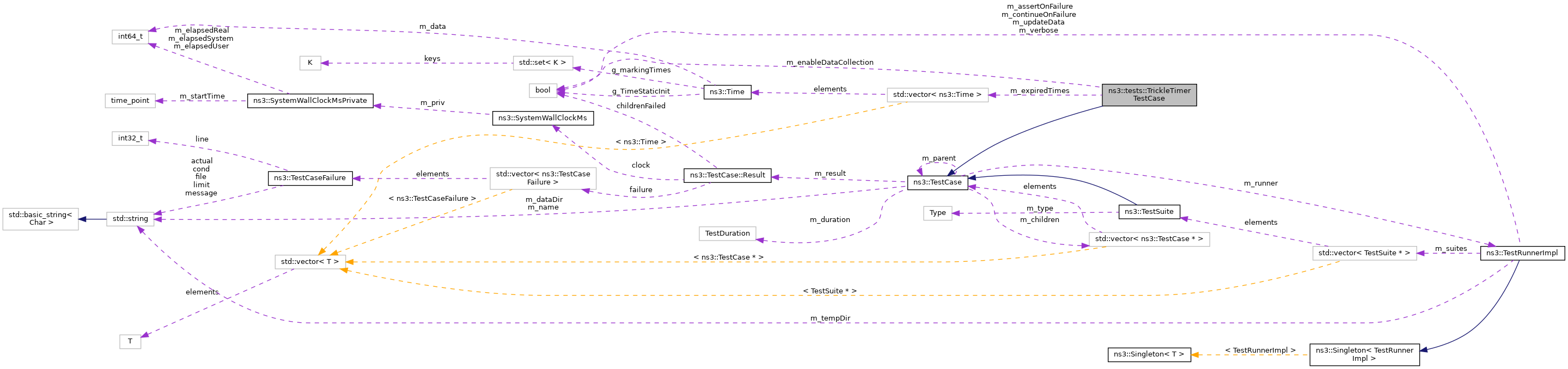

Inheritance diagram for ns3::tests::TrickleTimerTestCase: Collaboration diagram for ns3::tests::TrickleTimerTestCase:Public Member Functions | |
| TrickleTimerTestCase () | |
| Constructor. More... | |
| void | ConsistentEvent (Time interval, TrickleTimer *tricklePtr) |
| Inject in the timer a consistent event. More... | |
| void | DoRun () override |
| Implementation to actually run this TestCase. More... | |
| void | ExpireTimer () |
| Function to invoke when TrickleTimer expires. More... | |
| void | TestRedundancy (Time unit) |
| Test the redundancy suppression. More... | |
| void | TestSteadyState (Time unit) |
| Test the steady-state. More... | |
| void | TransientOver () |
| Function to signal that the transient is over. More... | |
| Public Member Functions inherited from ns3::TestCase | |
| TestCase (const TestCase &)=delete | |
| virtual | ~TestCase () |
| Destructor. More... | |
| std::string | GetName () const |
| TestCase & | operator= (const TestCase &)=delete |
Public Attributes | |
| bool | m_enableDataCollection |
| Collect data if true. More... | |
| std::vector< Time > | m_expiredTimes |
| Time when TrickleTimer expired. More... | |
Additional Inherited Members | |
| Public Types inherited from ns3::TestCase | |
| enum | TestDuration { QUICK = 1 , EXTENSIVE = 2 , TAKES_FOREVER = 3 } |
| How long the test takes to execute. More... | |
| Protected Member Functions inherited from ns3::TestCase | |
| TestCase (std::string name) | |
| Constructor. More... | |
| void | AddTestCase (TestCase *testCase, TestDuration duration=QUICK) |
| Add an individual child TestCase to this test suite. More... | |
| TestCase * | GetParent () const |
| Get the parent of this TestCase. More... | |
| bool | IsStatusFailure () const |
| Check if any tests failed. More... | |
| bool | IsStatusSuccess () const |
| Check if all tests passed. More... | |
| void | SetDataDir (std::string directory) |
| Set the data directory where reference trace files can be found. More... | |
| void | ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line) |
| Log the failure of this TestCase. More... | |
| bool | MustAssertOnFailure () const |
| Check if this run should assert on failure. More... | |
| bool | MustContinueOnFailure () const |
| Check if this run should continue on failure. More... | |
| std::string | CreateDataDirFilename (std::string filename) |
| Construct the full path to a file in the data directory. More... | |
| std::string | CreateTempDirFilename (std::string filename) |
| Construct the full path to a file in a temporary directory. More... | |
TrickleTimer test.
Definition at line 52 of file trickle-timer-test-suite.cc.
| ns3::tests::TrickleTimerTestCase::TrickleTimerTestCase | ( | ) |
Constructor.
Definition at line 91 of file trickle-timer-test-suite.cc.
| void ns3::tests::TrickleTimerTestCase::ConsistentEvent | ( | Time | interval, |
| TrickleTimer * | tricklePtr | ||
| ) |
Inject in the timer a consistent event.
| interval | Interval |
| tricklePtr | Pointer to the TrickleTimer |
Definition at line 187 of file trickle-timer-test-suite.cc.
References ns3::TrickleTimer::ConsistentEvent(), and ns3::Simulator::Schedule().
Referenced by TestRedundancy().
Here is the call graph for this function: Here is the caller graph for this function:
|
overridevirtual |
Implementation to actually run this TestCase.
Subclasses should override this method to conduct their tests.
Implements ns3::TestCase.
Definition at line 198 of file trickle-timer-test-suite.cc.
References ns3::Seconds(), TestRedundancy(), and TestSteadyState().
Here is the call graph for this function:| void ns3::tests::TrickleTimerTestCase::ExpireTimer | ( | ) |
Function to invoke when TrickleTimer expires.
Definition at line 97 of file trickle-timer-test-suite.cc.
References m_enableDataCollection, m_expiredTimes, and ns3::Simulator::Now().
Referenced by TestRedundancy(), and TestSteadyState().

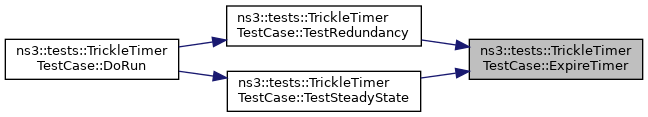

Here is the call graph for this function: Here is the caller graph for this function:| void ns3::tests::TrickleTimerTestCase::TestRedundancy | ( | Time | unit | ) |
Test the redundancy suppression.
| unit | Minimum interval |
Definition at line 155 of file trickle-timer-test-suite.cc.
References ConsistentEvent(), ns3::Simulator::Destroy(), ns3::TrickleTimer::Enable(), ExpireTimer(), ns3::TrickleTimer::GetDoublings(), m_enableDataCollection, m_expiredTimes, NS_TEST_EXPECT_MSG_EQ, ns3::TrickleTimer::Reset(), ns3::Simulator::Run(), ns3::Simulator::Schedule(), ns3::TrickleTimer::SetFunction(), ns3::Simulator::Stop(), and TransientOver().
Referenced by DoRun().

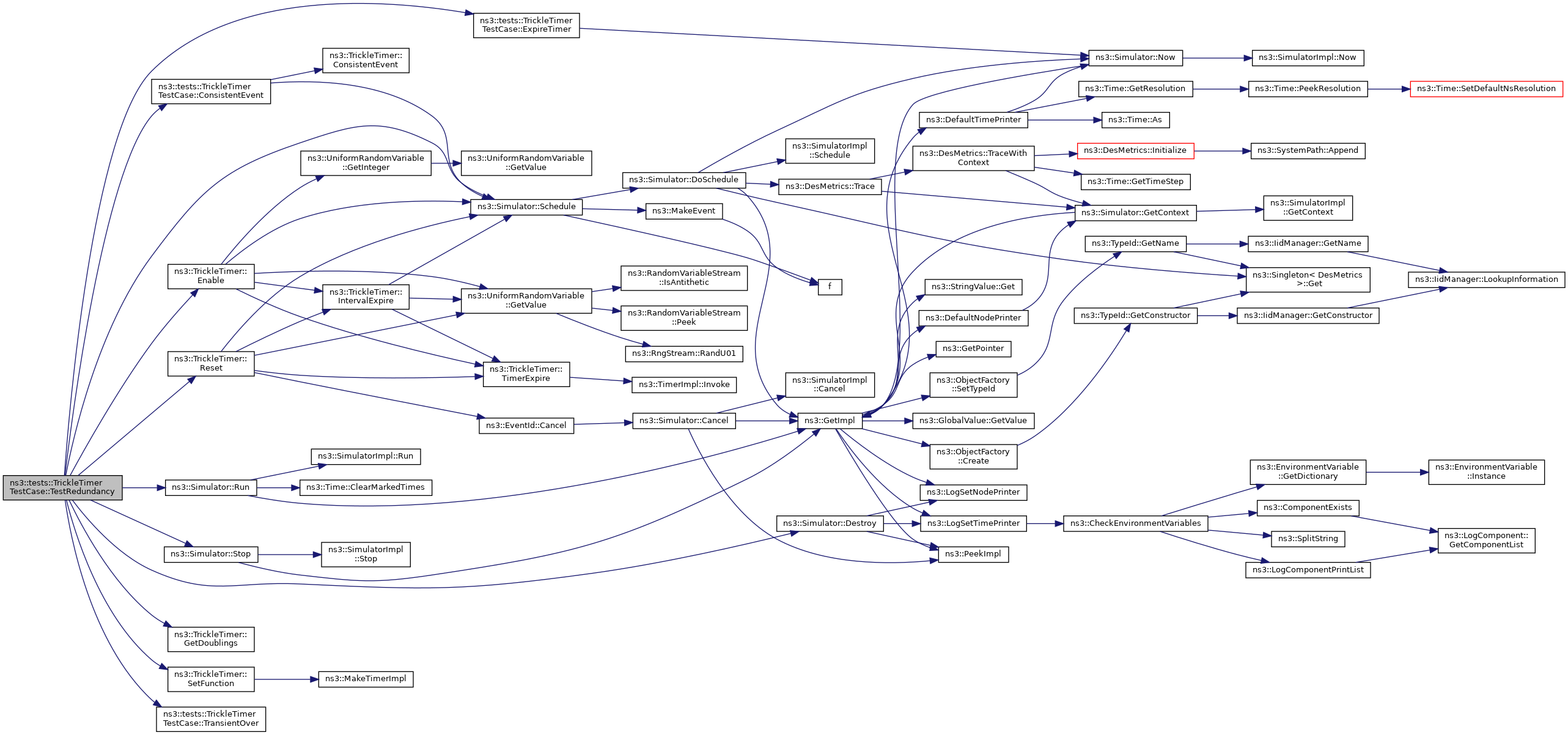

Here is the call graph for this function: Here is the caller graph for this function:| void ns3::tests::TrickleTimerTestCase::TestSteadyState | ( | Time | unit | ) |
Test the steady-state.
| unit | Minimum interval |
Definition at line 114 of file trickle-timer-test-suite.cc.
References ns3::Simulator::Destroy(), ns3::TrickleTimer::Enable(), ExpireTimer(), ns3::TrickleTimer::GetDoublings(), m_enableDataCollection, m_expiredTimes, max, min, NS_TEST_EXPECT_MSG_EQ, NS_TEST_EXPECT_MSG_GT_OR_EQ, NS_TEST_EXPECT_MSG_LT_OR_EQ, ns3::TrickleTimer::Reset(), ns3::Simulator::Run(), ns3::Simulator::Schedule(), ns3::TrickleTimer::SetFunction(), ns3::Simulator::Stop(), and TransientOver().
Referenced by DoRun().

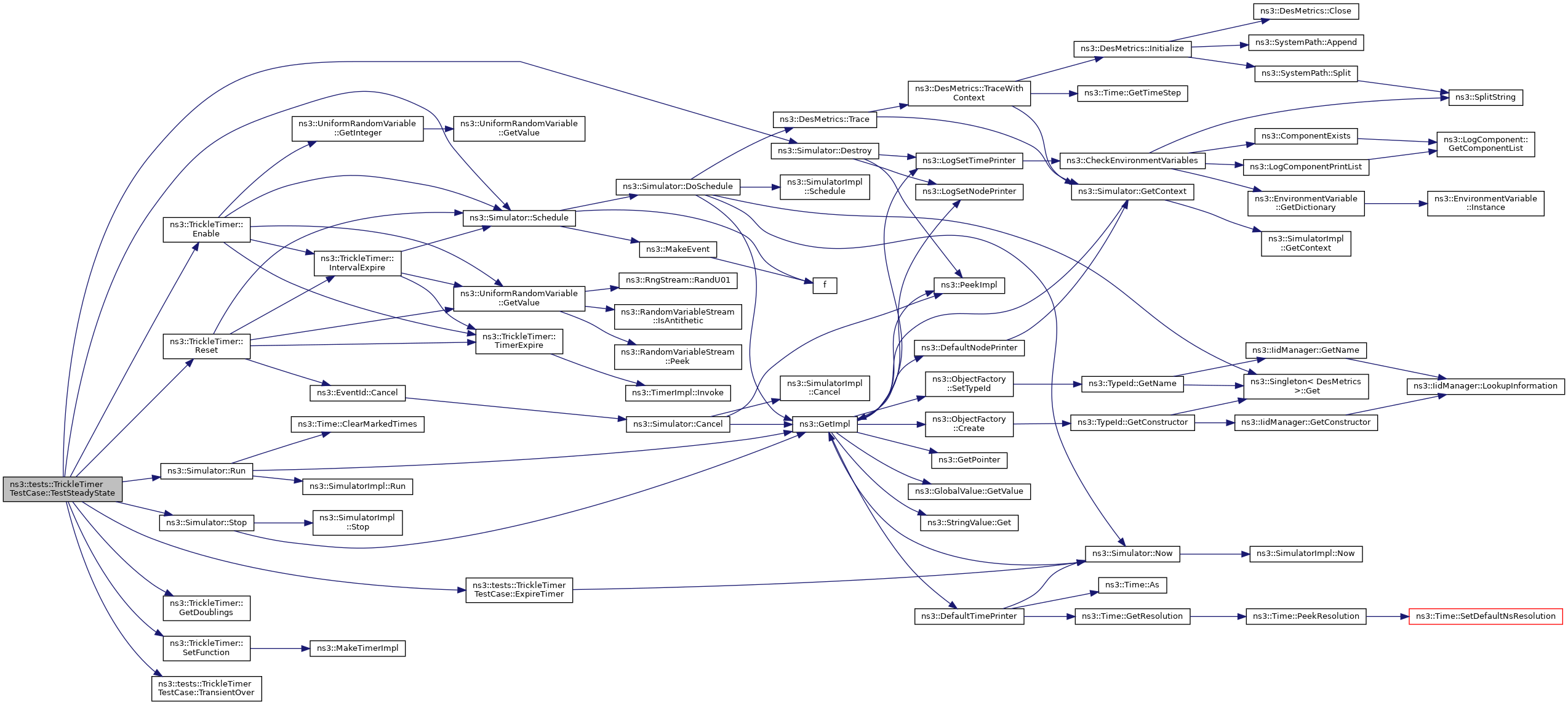

Here is the call graph for this function: Here is the caller graph for this function:| void ns3::tests::TrickleTimerTestCase::TransientOver | ( | ) |
Function to signal that the transient is over.
Definition at line 108 of file trickle-timer-test-suite.cc.
References m_enableDataCollection.
Referenced by TestRedundancy(), and TestSteadyState().
Here is the caller graph for this function:| bool ns3::tests::TrickleTimerTestCase::m_enableDataCollection |
Collect data if true.
Definition at line 88 of file trickle-timer-test-suite.cc.
Referenced by ExpireTimer(), TestRedundancy(), TestSteadyState(), and TransientOver().
| std::vector<Time> ns3::tests::TrickleTimerTestCase::m_expiredTimes |
Time when TrickleTimer expired.
Definition at line 62 of file trickle-timer-test-suite.cc.
Referenced by ExpireTimer(), TestRedundancy(), and TestSteadyState().
