Template for the implementation of the LteEnbRrcSapProvider as a member of an owner class of type C to which all methods are forwarded. More...

#include "lte-rrc-sap.h"

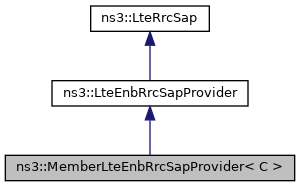

Inheritance diagram for ns3::MemberLteEnbRrcSapProvider< C >:

Collaboration diagram for ns3::MemberLteEnbRrcSapProvider< C >:

Public Member Functions
	MemberLteEnbRrcSapProvider ()=delete

	MemberLteEnbRrcSapProvider (C *owner)
	Constructor. More...

void	CompleteSetupUe (uint16_t rnti, CompleteSetupUeParameters params) override
	Complete setup UE function. More...

void	RecvIdealUeContextRemoveRequest (uint16_t rnti) override
	Receive ideal UE context remove request from the UE RRC. More...

void	RecvMeasurementReport (uint16_t rnti, MeasurementReport msg) override
	Receive a MeasurementReport message from a UE during a measurement reporting procedure (Section 5.5.5 of TS 36.331). More...

void	RecvRrcConnectionReconfigurationCompleted (uint16_t rnti, RrcConnectionReconfigurationCompleted msg) override
	Receive an RRCConnectionReconfigurationComplete message from a UE during an RRC connection reconfiguration procedure (Section 5.3.5 of TS 36.331). More...

void	RecvRrcConnectionReestablishmentComplete (uint16_t rnti, RrcConnectionReestablishmentComplete msg) override
	Receive an RRCConnectionReestablishmentComplete message from a UE during an RRC connection re-establishment procedure (Section 5.3.7 of TS 36.331). More...

void	RecvRrcConnectionReestablishmentRequest (uint16_t rnti, RrcConnectionReestablishmentRequest msg) override
	Receive an RRCConnectionReestablishmentRequest message from a UE during an RRC connection re-establishment procedure (Section 5.3.7 of TS 36.331). More...

void	RecvRrcConnectionRequest (uint16_t rnti, RrcConnectionRequest msg) override
	Receive an RRCConnectionRequest message from a UE during an RRC connection establishment procedure (Section 5.3.3 of TS 36.331). More...

void	RecvRrcConnectionSetupCompleted (uint16_t rnti, RrcConnectionSetupCompleted msg) override
	Receive an RRCConnectionSetupComplete message from a UE during an RRC connection establishment procedure (Section 5.3.3 of TS 36.331). More...

Public Member Functions inherited from ns3::LteRrcSap
virtual	~LteRrcSap ()

Private Attributes
C *	m_owner
	the owner class More...

Additional Inherited Members
Public Types inherited from ns3::LteRrcSap
enum	ReestablishmentCause { RECONFIGURATION_FAILURE , HANDOVER_FAILURE , OTHER_FAILURE }
	ReestablishmentCause enumeration. More...

Static Public Member Functions inherited from ns3::LteRrcSap
static double	ConvertPdschConfigDedicated2Double (PdschConfigDedicated pdschConfigDedicated)
	Convert PDSCH config dedicated function. More...

Static Public Attributes inherited from ns3::LteRrcSap
static const uint8_t	MaxReportCells = 8
	Constraint values. More...

Detailed Description

template<class C>
class ns3::MemberLteEnbRrcSapProvider< C >

Template for the implementation of the LteEnbRrcSapProvider as a member of an owner class of type C to which all methods are forwarded.

Definition at line 1677 of file lte-rrc-sap.h.

Constructor & Destructor Documentation

◆ MemberLteEnbRrcSapProvider() [1/2]

template<class C >

ns3::MemberLteEnbRrcSapProvider< C >::MemberLteEnbRrcSapProvider ( C * owner )

Constructor.

Parameters

owner

Definition at line 1710 of file lte-rrc-sap.h.

◆ MemberLteEnbRrcSapProvider() [2/2]

template<class C >

ns3::MemberLteEnbRrcSapProvider< C >::MemberLteEnbRrcSapProvider ( )

delete

Member Function Documentation

◆ CompleteSetupUe()

template<class C >

void ns3::MemberLteEnbRrcSapProvider< C >::CompleteSetupUe	(	uint16_t	rnti,
		CompleteSetupUeParameters	params
	)

overridevirtual

Complete setup UE function.

Parameters

rnti	the RNTI of UE which sent the message
params	CompleteSetupUeParameters

Implements ns3::LteEnbRrcSapProvider.

Definition at line 1717 of file lte-rrc-sap.h.

References two-ray-to-three-gpp-ch-calibration::params.

◆ RecvIdealUeContextRemoveRequest()

template<class C >

void ns3::MemberLteEnbRrcSapProvider< C >::RecvIdealUeContextRemoveRequest ( uint16_t rnti )

overridevirtual

Receive ideal UE context remove request from the UE RRC.

Receive the notification from UE to remove the UE context once radio link failure or random access failure is detected. It is needed since no RLF detection mechanism at eNodeB is implemented.

Parameters

rnti	the C-RNTI of the UE

Implements ns3::LteEnbRrcSapProvider.

Definition at line 1773 of file lte-rrc-sap.h.

References ns3::Simulator::ScheduleNow().

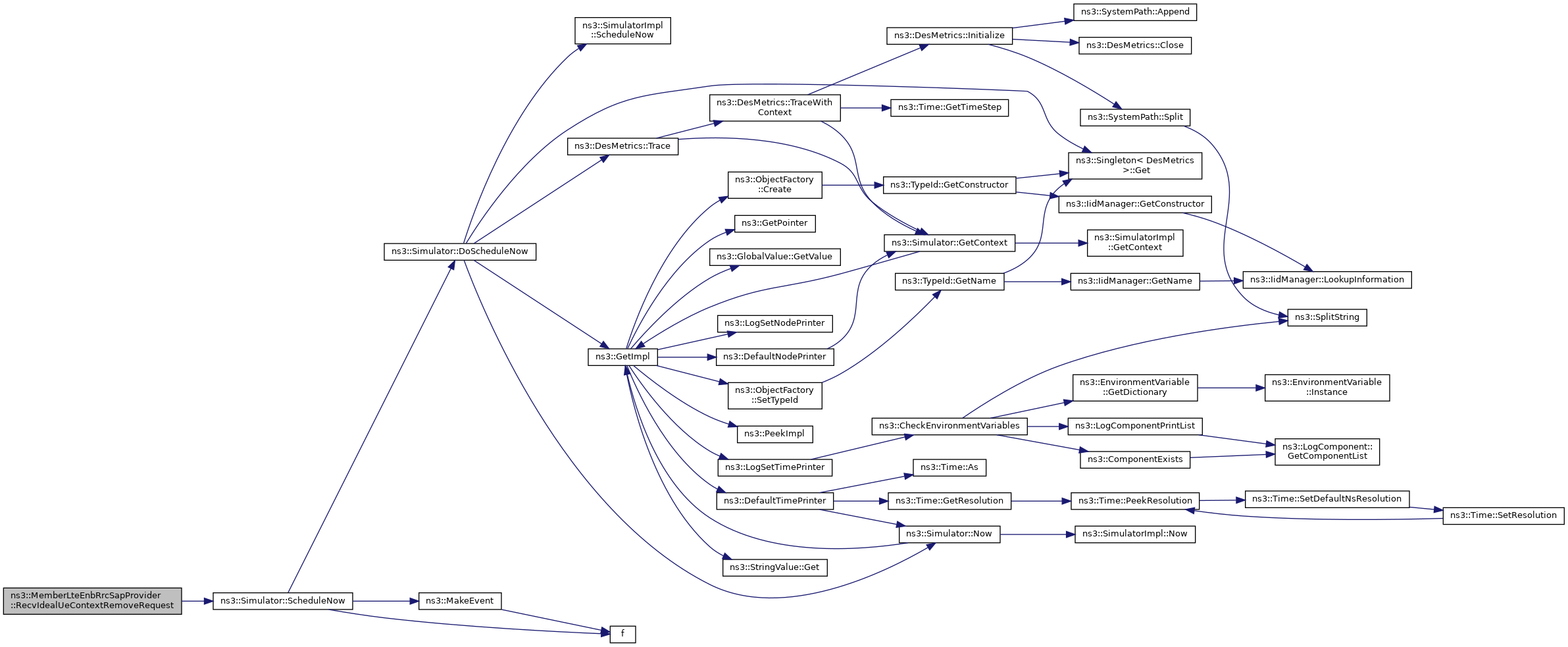

Here is the call graph for this function:

◆ RecvMeasurementReport()

template<class C >

void ns3::MemberLteEnbRrcSapProvider< C >::RecvMeasurementReport	(	uint16_t	rnti,
		MeasurementReport	msg
	)

overridevirtual

Receive a MeasurementReport message from a UE during a measurement reporting procedure (Section 5.5.5 of TS 36.331).

Parameters

rnti	the RNTI of UE which sent the message
msg	the message

Implements ns3::LteEnbRrcSapProvider.

Definition at line 1766 of file lte-rrc-sap.h.

References ns3::Simulator::ScheduleNow().

Here is the call graph for this function:

◆ RecvRrcConnectionReconfigurationCompleted()

template<class C >

void ns3::MemberLteEnbRrcSapProvider< C >::RecvRrcConnectionReconfigurationCompleted	(	uint16_t	rnti,
		RrcConnectionReconfigurationCompleted	msg
	)

overridevirtual

Receive an RRCConnectionReconfigurationComplete message from a UE during an RRC connection reconfiguration procedure (Section 5.3.5 of TS 36.331).

Parameters

rnti	the RNTI of UE which sent the message
msg	the message

Implements ns3::LteEnbRrcSapProvider.

Definition at line 1739 of file lte-rrc-sap.h.

References ns3::Simulator::ScheduleNow().

Here is the call graph for this function:

◆ RecvRrcConnectionReestablishmentComplete()

template<class C >

void ns3::MemberLteEnbRrcSapProvider< C >::RecvRrcConnectionReestablishmentComplete	(	uint16_t	rnti,
		RrcConnectionReestablishmentComplete	msg
	)

overridevirtual

Receive an RRCConnectionReestablishmentComplete message from a UE during an RRC connection re-establishment procedure (Section 5.3.7 of TS 36.331).

Parameters

rnti	the RNTI of UE which sent the message
msg	the message

Implements ns3::LteEnbRrcSapProvider.

Definition at line 1757 of file lte-rrc-sap.h.

References ns3::Simulator::ScheduleNow().

Here is the call graph for this function:

◆ RecvRrcConnectionReestablishmentRequest()

template<class C >

void ns3::MemberLteEnbRrcSapProvider< C >::RecvRrcConnectionReestablishmentRequest	(	uint16_t	rnti,
		RrcConnectionReestablishmentRequest	msg
	)

overridevirtual

Receive an RRCConnectionReestablishmentRequest message from a UE during an RRC connection re-establishment procedure (Section 5.3.7 of TS 36.331).

Parameters

rnti	the RNTI of UE which sent the message
msg	the message

Implements ns3::LteEnbRrcSapProvider.

Definition at line 1748 of file lte-rrc-sap.h.

References ns3::Simulator::ScheduleNow().

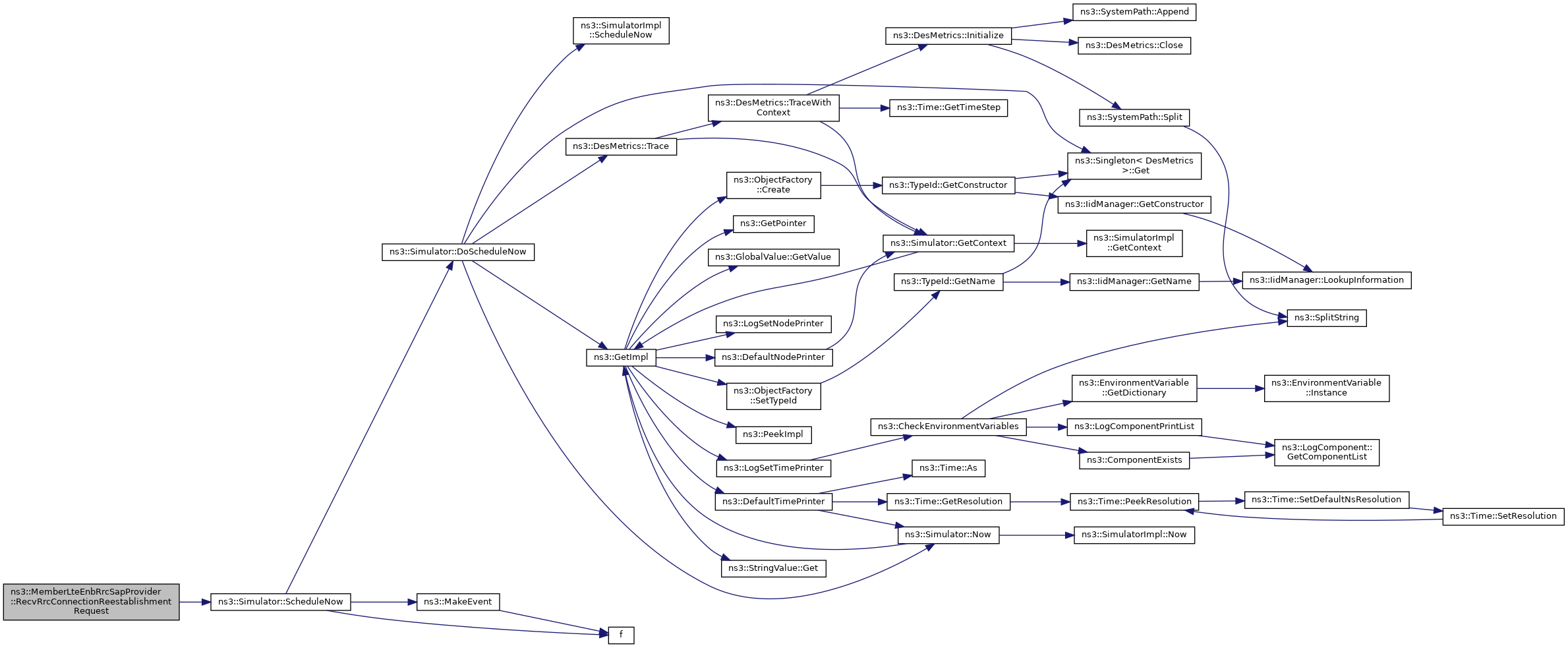

Here is the call graph for this function:

◆ RecvRrcConnectionRequest()

template<class C >

void ns3::MemberLteEnbRrcSapProvider< C >::RecvRrcConnectionRequest	(	uint16_t	rnti,
		RrcConnectionRequest	msg
	)

overridevirtual

Receive an RRCConnectionRequest message from a UE during an RRC connection establishment procedure (Section 5.3.3 of TS 36.331).

Parameters

rnti	the RNTI of UE which sent the message
msg	the message

Implements ns3::LteEnbRrcSapProvider.

Definition at line 1724 of file lte-rrc-sap.h.

References ns3::Simulator::ScheduleNow().

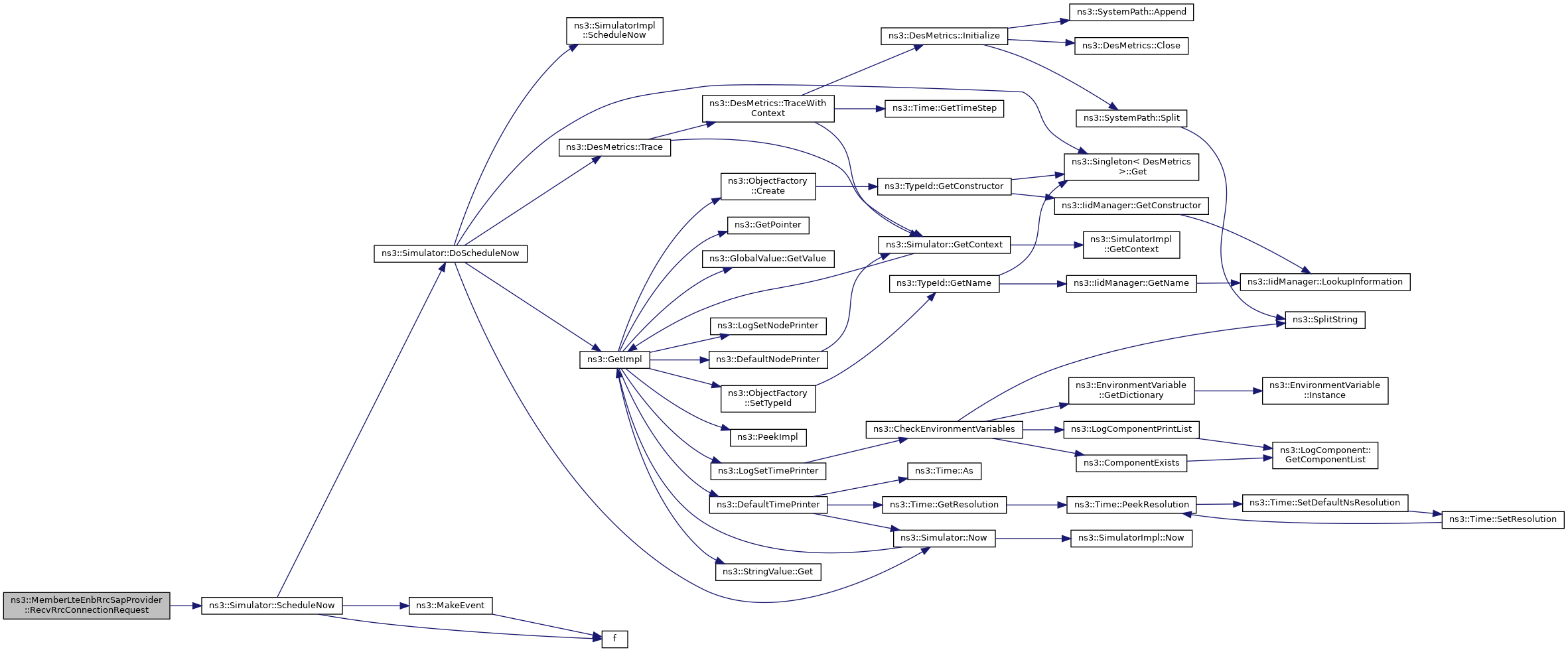

Here is the call graph for this function:

◆ RecvRrcConnectionSetupCompleted()

template<class C >

void ns3::MemberLteEnbRrcSapProvider< C >::RecvRrcConnectionSetupCompleted	(	uint16_t	rnti,
		RrcConnectionSetupCompleted	msg
	)

overridevirtual

Receive an RRCConnectionSetupComplete message from a UE during an RRC connection establishment procedure (Section 5.3.3 of TS 36.331).

Parameters

rnti	the RNTI of UE which sent the message
msg	the message

Implements ns3::LteEnbRrcSapProvider.

Definition at line 1731 of file lte-rrc-sap.h.

References ns3::Simulator::ScheduleNow().

Here is the call graph for this function:

Member Data Documentation

◆ m_owner

template<class C >

C* ns3::MemberLteEnbRrcSapProvider< C >::m_owner

private

the owner class

Definition at line 1706 of file lte-rrc-sap.h.

The documentation for this class was generated from the following file:

src/lte/model/lte-rrc-sap.h
