A-MPDU reception test. More...

Inheritance diagram for TestAmpduReception:

Collaboration diagram for TestAmpduReception:

Public Member Functions
	TestAmpduReception ()

Public Member Functions inherited from WifiPhyReceptionTest
	WifiPhyReceptionTest (std::string test_name)
	Constructor. More...

	~WifiPhyReceptionTest () override=default
	Destructor. More...

Public Member Functions inherited from ns3::TestCase
	TestCase (const TestCase &)=delete

virtual	~TestCase ()
	Destructor. More...

std::string	GetName () const

TestCase &	operator= (const TestCase &)=delete

Private Member Functions
void	CheckPhyState (WifiPhyState expectedState)
	Check the PHY state. More...

void	CheckRxDroppedBitmapAmpdu1 (uint8_t expected)
	Check the RX dropped bitmap for A-MPDU 1. More...

void	CheckRxDroppedBitmapAmpdu2 (uint8_t expected)
	Check the RX dropped bitmap for A-MPDU 2. More...

void	CheckRxFailureBitmapAmpdu1 (uint8_t expected)
	Check the RX failure bitmap for A-MPDU 1. More...

void	CheckRxFailureBitmapAmpdu2 (uint8_t expected)
	Check the RX failure bitmap for A-MPDU 2. More...

void	CheckRxSuccessBitmapAmpdu1 (uint8_t expected)
	Check the RX success bitmap for A-MPDU 1. More...

void	CheckRxSuccessBitmapAmpdu2 (uint8_t expected)
	Check the RX success bitmap for A-MPDU 2. More...

void	DoRun () override
	Implementation to actually run this TestCase. More...

void	DoSetup () override
	Implementation to do any local setup required for this TestCase. More...

void	IncrementFailureBitmap (uint32_t size)
	Increment reception failure bitmap. More...

void	IncrementSuccessBitmap (uint32_t size)
	Increment reception success bitmap. More...

void	ResetBitmaps ()
	Reset bitmaps function. More...

void	RxDropped (Ptr< const Packet > p, WifiPhyRxfailureReason reason)
	RX dropped function. More...

void	RxFailure (Ptr< const WifiPsdu > psdu)
	RX failure function. More...

void	RxSuccess (Ptr< const WifiPsdu > psdu, RxSignalInfo rxSignalInfo, WifiTxVector txVector, std::vector< bool > statusPerMpdu)
	RX success function. More...

void	SendAmpduWithThreeMpdus (double rxPowerDbm, uint32_t referencePacketSize)
	Send A-MPDU with 3 MPDUs of different size (i-th MSDU will have 100 bytes more than (i-1)-th). More...

Private Attributes
uint8_t	m_rxDroppedBitmapAmpdu1 {0}
	bitmap of dropped MPDUs in A-MPDU #1 More...

uint8_t	m_rxDroppedBitmapAmpdu2 {0}
	bitmap of dropped MPDUs in A-MPDU #2 More...

uint8_t	m_rxFailureBitmapAmpdu1 {0}
	bitmap of unsuccessfully received MPDUs in A-MPDU #1 More...

uint8_t	m_rxFailureBitmapAmpdu2 {0}
	bitmap of unsuccessfully received MPDUs in A-MPDU #2 More...

uint8_t	m_rxSuccessBitmapAmpdu1 {0}
	bitmap of successfully received MPDUs in A-MPDU #1 More...

uint8_t	m_rxSuccessBitmapAmpdu2 {0}
	bitmap of successfully received MPDUs in A-MPDU #2 More...

Additional Inherited Members
Public Types inherited from ns3::TestCase
enum	TestDuration { QUICK = 1 , EXTENSIVE = 2 , TAKES_FOREVER = 3 }
	How long the test takes to execute. More...

Protected Member Functions inherited from WifiPhyReceptionTest
void	CheckPhyState (WifiPhyState expectedState)
	Schedule now to check the PHY state. More...

void	DoCheckPhyState (WifiPhyState expectedState)
	Check the PHY state now. More...

void	DoTeardown () override
	Implementation to do any local setup required for this TestCase. More...

void	SendPacket (double rxPowerDbm, uint32_t packetSize, uint8_t mcs)
	Send packet function. More...

Protected Member Functions inherited from ns3::TestCase
	TestCase (std::string name)
	Constructor. More...

void	AddTestCase (TestCase *testCase, TestDuration duration=QUICK)
	Add an individual child TestCase to this test suite. More...

TestCase *	GetParent () const
	Get the parent of this TestCase. More...

bool	IsStatusFailure () const
	Check if any tests failed. More...

bool	IsStatusSuccess () const
	Check if all tests passed. More...

void	SetDataDir (std::string directory)
	Set the data directory where reference trace files can be found. More...

void	ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
	Log the failure of this TestCase. More...

bool	MustAssertOnFailure () const
	Check if this run should assert on failure. More...

bool	MustContinueOnFailure () const
	Check if this run should continue on failure. More...

std::string	CreateDataDirFilename (std::string filename)
	Construct the full path to a file in the data directory. More...

std::string	CreateTempDirFilename (std::string filename)
	Construct the full path to a file in a temporary directory. More...

Protected Attributes inherited from WifiPhyReceptionTest
Ptr< SpectrumWifiPhy >	m_phy
	the PHY More...

uint64_t	m_uid {0}
	the UID to use for the PPDU More...

Detailed Description

A-MPDU reception test.

Definition at line 2466 of file wifi-phy-reception-test.cc.

Constructor & Destructor Documentation

◆ TestAmpduReception()

TestAmpduReception::TestAmpduReception ( )

Definition at line 2569 of file wifi-phy-reception-test.cc.

Member Function Documentation

◆ CheckPhyState()

void TestAmpduReception::CheckPhyState ( WifiPhyState expectedState )

private

Check the PHY state.

Parameters

expectedState the expected PHY state

Definition at line 2760 of file wifi-phy-reception-test.cc.

References ns3::PointerValue::Get(), ns3::ObjectBase::GetAttribute(), WifiPhyReceptionTest::m_phy, ns3::Now(), and NS_TEST_ASSERT_MSG_EQ.

Here is the call graph for this function:

◆ CheckRxDroppedBitmapAmpdu1()

void TestAmpduReception::CheckRxDroppedBitmapAmpdu1 ( uint8_t expected )

private

Check the RX dropped bitmap for A-MPDU 1.

Parameters

expected the expected bitmap

Definition at line 2744 of file wifi-phy-reception-test.cc.

References m_rxDroppedBitmapAmpdu1, and NS_TEST_ASSERT_MSG_EQ.

Referenced by DoRun().

Here is the caller graph for this function:

◆ CheckRxDroppedBitmapAmpdu2()

void TestAmpduReception::CheckRxDroppedBitmapAmpdu2 ( uint8_t expected )

private

Check the RX dropped bitmap for A-MPDU 2.

Parameters

expected the expected bitmap

Definition at line 2752 of file wifi-phy-reception-test.cc.

References m_rxDroppedBitmapAmpdu2, and NS_TEST_ASSERT_MSG_EQ.

Referenced by DoRun().

Here is the caller graph for this function:

◆ CheckRxFailureBitmapAmpdu1()

void TestAmpduReception::CheckRxFailureBitmapAmpdu1 ( uint8_t expected )

private

Check the RX failure bitmap for A-MPDU 1.

Parameters

expected the expected bitmap

Definition at line 2728 of file wifi-phy-reception-test.cc.

References m_rxFailureBitmapAmpdu1, and NS_TEST_ASSERT_MSG_EQ.

Referenced by DoRun().

Here is the caller graph for this function:

◆ CheckRxFailureBitmapAmpdu2()

void TestAmpduReception::CheckRxFailureBitmapAmpdu2 ( uint8_t expected )

private

Check the RX failure bitmap for A-MPDU 2.

Parameters

expected the expected bitmap

Definition at line 2736 of file wifi-phy-reception-test.cc.

References m_rxFailureBitmapAmpdu2, and NS_TEST_ASSERT_MSG_EQ.

Referenced by DoRun().

Here is the caller graph for this function:

◆ CheckRxSuccessBitmapAmpdu1()

void TestAmpduReception::CheckRxSuccessBitmapAmpdu1 ( uint8_t expected )

private

Check the RX success bitmap for A-MPDU 1.

Parameters

expected the expected bitmap

Definition at line 2712 of file wifi-phy-reception-test.cc.

References m_rxSuccessBitmapAmpdu1, and NS_TEST_ASSERT_MSG_EQ.

Referenced by DoRun().

Here is the caller graph for this function:

◆ CheckRxSuccessBitmapAmpdu2()

void TestAmpduReception::CheckRxSuccessBitmapAmpdu2 ( uint8_t expected )

private

Check the RX success bitmap for A-MPDU 2.

Parameters

expected the expected bitmap

Definition at line 2720 of file wifi-phy-reception-test.cc.

References m_rxSuccessBitmapAmpdu2, and NS_TEST_ASSERT_MSG_EQ.

Referenced by DoRun().

Here is the caller graph for this function:

◆ DoRun()

void TestAmpduReception::DoRun ( )

overrideprivatevirtual

Implementation to actually run this TestCase.

Subclasses should override this method to conduct their tests.

Implements ns3::TestCase.

Definition at line 2833 of file wifi-phy-reception-test.cc.

References ns3::WifiPhy::AssignStreams(), CheckRxDroppedBitmapAmpdu1(), CheckRxDroppedBitmapAmpdu2(), CheckRxFailureBitmapAmpdu1(), CheckRxFailureBitmapAmpdu2(), CheckRxSuccessBitmapAmpdu1(), CheckRxSuccessBitmapAmpdu2(), WifiPhyReceptionTest::m_phy, ns3::MicroSeconds(), ns3::NanoSeconds(), ResetBitmaps(), ns3::Seconds(), and SendAmpduWithThreeMpdus().

Here is the call graph for this function:

◆ DoSetup()

void TestAmpduReception::DoSetup ( )

overrideprivatevirtual

Implementation to do any local setup required for this TestCase.

Subclasses should override this method to perform any costly per-test setup before DoRun is invoked.

Reimplemented from WifiPhyReceptionTest.

Definition at line 2812 of file wifi-phy-reception-test.cc.

References WifiPhyReceptionTest::DoSetup(), WifiPhyReceptionTest::m_phy, ns3::MakeCallback(), ns3::MicroSeconds(), RxDropped(), RxFailure(), RxSuccess(), ns3::WifiPhy::SetFrameCaptureModel(), ns3::WifiPhy::SetPreambleDetectionModel(), ns3::WifiPhy::SetReceiveErrorCallback(), ns3::WifiPhy::SetReceiveOkCallback(), and ns3::ObjectBase::TraceConnectWithoutContext().

Here is the call graph for this function:

◆ IncrementFailureBitmap()

void TestAmpduReception::IncrementFailureBitmap ( uint32_t size )

private

Increment reception failure bitmap.

Parameters

size	the size of the received packet

Definition at line 2653 of file wifi-phy-reception-test.cc.

References m_rxFailureBitmapAmpdu1, and m_rxFailureBitmapAmpdu2.

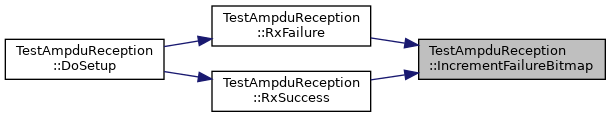

Referenced by RxFailure(), and RxSuccess().

Here is the caller graph for this function:

◆ IncrementSuccessBitmap()

void TestAmpduReception::IncrementSuccessBitmap ( uint32_t size )

private

Increment reception success bitmap.

Parameters

size	the size of the received packet

Definition at line 2614 of file wifi-phy-reception-test.cc.

References m_rxSuccessBitmapAmpdu1, and m_rxSuccessBitmapAmpdu2.

Referenced by RxSuccess().

Here is the caller graph for this function:

◆ ResetBitmaps()

void TestAmpduReception::ResetBitmaps ( )

private

Reset bitmaps function.

Definition at line 2575 of file wifi-phy-reception-test.cc.

References m_rxDroppedBitmapAmpdu1, m_rxDroppedBitmapAmpdu2, m_rxFailureBitmapAmpdu1, m_rxFailureBitmapAmpdu2, m_rxSuccessBitmapAmpdu1, and m_rxSuccessBitmapAmpdu2.

Referenced by DoRun().

Here is the caller graph for this function:

◆ RxDropped()

void TestAmpduReception::RxDropped	(	Ptr< const Packet >	p,
		WifiPhyRxfailureReason	reason
	)

private

RX dropped function.

Parameters

p	the packet
reason	the reason

Definition at line 2682 of file wifi-phy-reception-test.cc.

References ns3::Packet::GetSize(), m_rxDroppedBitmapAmpdu1, m_rxDroppedBitmapAmpdu2, and NS_LOG_FUNCTION.

Referenced by DoSetup().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ RxFailure()

void TestAmpduReception::RxFailure ( Ptr< const WifiPsdu > psdu )

private

RX failure function.

Parameters

psdu the PSDU

Definition at line 2643 of file wifi-phy-reception-test.cc.

References ns3::WifiPsdu::begin(), ns3::WifiPsdu::end(), IncrementFailureBitmap(), and NS_LOG_FUNCTION.

Referenced by DoSetup().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ RxSuccess()

void TestAmpduReception::RxSuccess	(	Ptr< const WifiPsdu >	psdu,
		RxSignalInfo	rxSignalInfo,
		WifiTxVector	txVector,
		std::vector< bool >	statusPerMpdu
	)

private

RX success function.

Parameters

psdu	the PSDU
rxSignalInfo	the info on the received signal (

See also: RxSignalInfo)

Parameters

txVector	the transmit vector
statusPerMpdu	reception status per MPDU

Definition at line 2586 of file wifi-phy-reception-test.cc.

References ns3::WifiPsdu::begin(), ns3::WifiPsdu::end(), ns3::WifiPsdu::GetNMpdus(), IncrementFailureBitmap(), IncrementSuccessBitmap(), NS_ABORT_MSG_IF, and NS_LOG_FUNCTION.

Referenced by DoSetup().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SendAmpduWithThreeMpdus()

void TestAmpduReception::SendAmpduWithThreeMpdus	(	double	rxPowerDbm,
		uint32_t	referencePacketSize
	)

private

Send A-MPDU with 3 MPDUs of different size (i-th MSDU will have 100 bytes more than (i-1)-th).

Parameters

rxPowerDbm	the transmit power in dBm
referencePacketSize	the reference size of the packets in bytes (i-th MSDU will have 100 bytes more than (i-1)-th)

Definition at line 2774 of file wifi-phy-reception-test.cc.

References ns3::WifiPhy::CalculateTxDuration(), CHANNEL_WIDTH, ns3::DbmToW(), FREQUENCY, ns3::WifiPhy::GetOperatingChannel(), ns3::WifiPhy::GetPhyBand(), ns3::WifiPsdu::GetSize(), GUARD_WIDTH, WifiPhyReceptionTest::m_phy, WifiPhyReceptionTest::m_uid, ns3::WifiMacHeader::SetQosTid(), ns3::WifiMacHeader::SetType(), ns3::SpectrumWifiPhy::StartRx(), ns3::WIFI_MAC_QOSDATA, and ns3::WIFI_PREAMBLE_HE_SU.

Referenced by DoRun().

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

◆ m_rxDroppedBitmapAmpdu1

uint8_t TestAmpduReception::m_rxDroppedBitmapAmpdu1 {0}

private

bitmap of dropped MPDUs in A-MPDU #1

Definition at line 2565 of file wifi-phy-reception-test.cc.

Referenced by CheckRxDroppedBitmapAmpdu1(), ResetBitmaps(), and RxDropped().

◆ m_rxDroppedBitmapAmpdu2

uint8_t TestAmpduReception::m_rxDroppedBitmapAmpdu2 {0}

private

bitmap of dropped MPDUs in A-MPDU #2

Definition at line 2566 of file wifi-phy-reception-test.cc.

Referenced by CheckRxDroppedBitmapAmpdu2(), ResetBitmaps(), and RxDropped().

◆ m_rxFailureBitmapAmpdu1

uint8_t TestAmpduReception::m_rxFailureBitmapAmpdu1 {0}

private

bitmap of unsuccessfully received MPDUs in A-MPDU #1

Definition at line 2562 of file wifi-phy-reception-test.cc.

Referenced by CheckRxFailureBitmapAmpdu1(), IncrementFailureBitmap(), and ResetBitmaps().

◆ m_rxFailureBitmapAmpdu2

uint8_t TestAmpduReception::m_rxFailureBitmapAmpdu2 {0}

private

bitmap of unsuccessfully received MPDUs in A-MPDU #2

Definition at line 2563 of file wifi-phy-reception-test.cc.

Referenced by CheckRxFailureBitmapAmpdu2(), IncrementFailureBitmap(), and ResetBitmaps().

◆ m_rxSuccessBitmapAmpdu1

uint8_t TestAmpduReception::m_rxSuccessBitmapAmpdu1 {0}

private

bitmap of successfully received MPDUs in A-MPDU #1

Definition at line 2559 of file wifi-phy-reception-test.cc.

Referenced by CheckRxSuccessBitmapAmpdu1(), IncrementSuccessBitmap(), and ResetBitmaps().

◆ m_rxSuccessBitmapAmpdu2

uint8_t TestAmpduReception::m_rxSuccessBitmapAmpdu2 {0}

private

bitmap of successfully received MPDUs in A-MPDU #2

Definition at line 2560 of file wifi-phy-reception-test.cc.

Referenced by CheckRxSuccessBitmapAmpdu2(), IncrementSuccessBitmap(), and ResetBitmaps().

The documentation for this class was generated from the following file:

src/wifi/test/wifi-phy-reception-test.cc

Public Member Functions

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ TestAmpduReception()

Member Function Documentation

◆ CheckPhyState()

◆ CheckRxDroppedBitmapAmpdu1()

◆ CheckRxDroppedBitmapAmpdu2()

◆ CheckRxFailureBitmapAmpdu1()

◆ CheckRxFailureBitmapAmpdu2()

◆ CheckRxSuccessBitmapAmpdu1()

◆ CheckRxSuccessBitmapAmpdu2()

◆ DoRun()

◆ DoSetup()

◆ IncrementFailureBitmap()

◆ IncrementSuccessBitmap()

◆ ResetBitmaps()

◆ RxDropped()

◆ RxFailure()

◆ RxSuccess()

◆ SendAmpduWithThreeMpdus()

Member Data Documentation

◆ m_rxDroppedBitmapAmpdu1

◆ m_rxDroppedBitmapAmpdu2

◆ m_rxFailureBitmapAmpdu1

◆ m_rxFailureBitmapAmpdu2

◆ m_rxSuccessBitmapAmpdu1

◆ m_rxSuccessBitmapAmpdu2
