The Traffic Control layer aims at introducing an equivalent of the Linux Traffic Control infrastructure into ns-3. More...

#include "traffic-control-layer.h"

Inheritance diagram for ns3::TrafficControlLayer:

Collaboration diagram for ns3::TrafficControlLayer:

Classes
struct	NetDeviceInfo
	Information to store for each device. More...

struct	ProtocolHandlerEntry
	Protocol handler entry. More...

Public Types
typedef std::vector< Ptr< QueueDisc > >	QueueDiscVector
	Typedef for queue disc vector. More...

Public Member Functions
	TrafficControlLayer ()
	Constructor. More...

	TrafficControlLayer (const TrafficControlLayer &)=delete

	~TrafficControlLayer () override

virtual void	DeleteRootQueueDiscOnDevice (Ptr< NetDevice > device)
	This method can be used to remove the root queue disc (and associated filters, classes and queues) installed on a device. More...

TypeId	GetInstanceTypeId () const override
	Get the type ID for the instance. More...

virtual Ptr< QueueDisc >	GetRootQueueDiscOnDevice (Ptr< NetDevice > device) const
	This method can be used to get the root queue disc installed on a device. More...

TrafficControlLayer &	operator= (const TrafficControlLayer &)=delete

virtual void	Receive (Ptr< NetDevice > device, Ptr< const Packet > p, uint16_t protocol, const Address &from, const Address &to, NetDevice::PacketType packetType)
	Called by NetDevices, incoming packet. More...

void	RegisterProtocolHandler (Node::ProtocolHandler handler, uint16_t protocolType, Ptr< NetDevice > device)
	Register an IN handler. More...

virtual void	ScanDevices ()
	Collect information needed to determine how to handle packets destined to each of the NetDevices of this node. More...

virtual void	Send (Ptr< NetDevice > device, Ptr< QueueDiscItem > item)
	Called from upper layer to queue a packet for the transmission. More...

void	SetNode (Ptr< Node > node)
	Set node associated with this stack. More...

virtual void	SetRootQueueDiscOnDevice (Ptr< NetDevice > device, Ptr< QueueDisc > qDisc)
	This method can be used to set the root queue disc installed on a device. More...

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

	~Object () override
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose ()
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator () const
	Get an iterator to the Objects aggregated to this one. More...

template<typename T >
Ptr< T >	GetObject () const
	Get a pointer to the requested aggregated Object. More...

template<>
Ptr< Object >	GetObject () const
	Specialization of () for objects of type ns3::Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< Object >	GetObject (TypeId tid) const
	Specialization of (TypeId tid) for objects of type ns3::Object. More...

void	Initialize ()
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized () const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
	Copy constructor. More...

uint32_t	GetReferenceCount () const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o[[maybe_unused]])
	Assignment operator. More...

void	Ref () const
	Increment the reference count. More...

void	Unref () const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising errors. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId ()
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId ()
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId ()
	Get the type ID. More...

Protected Member Functions
void	DoDispose () override
	Destructor implementation. More...

void	DoInitialize () override
	Initialize() implementation. More...

void	NotifyNewAggregate () override
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted ()
	Notifier called once the ObjectBase is fully constructed. More...

Private Types
typedef std::vector< ProtocolHandlerEntry >	ProtocolHandlerList
	Typedef for protocol handlers container. More...

Private Member Functions
uint32_t	GetNDevices () const
	Required by the object map accessor. More...

Ptr< QueueDisc >	GetRootQueueDiscOnDeviceByIndex (uint32_t index) const
	Required by the object map accessor. More...

Private Attributes
TracedCallback< Ptr< const Packet > >	m_dropped
	The trace source fired when the Traffic Control layer drops a packet because no queue disc is installed on the device, the device supports flow control and the device queue is stopped. More...

ProtocolHandlerList	m_handlers
	List of upper-layer handlers. More...

std::map< Ptr< NetDevice >, NetDeviceInfo >	m_netDevices
	Map storing the required information for each device with a queue disc installed. More...

Ptr< Node >	m_node
	The node this TrafficControlLayer object is aggregated to. More...

Additional Inherited Members
Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid ()
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

The Traffic Control layer aims at introducing an equivalent of the Linux Traffic Control infrastructure into ns-3.

The Traffic Control layer sits in between the NetDevices (L2) and any network protocol (e.g., IP). It is in charge of processing packets and performing actions on them: scheduling, dropping, marking, policing, etc.

Traffic control layer class

This object represents the main interface of the Traffic Control Module. Basically, we manage both IN and OUT directions (sometimes called RX and TX, respectively). The OUT direction is easy to follow, since it involves direct calls: upper layer (e.g. IP) calls the Send method on an instance of this class, which then calls the Enqueue method of the QueueDisc associated with the device. The Dequeue method of the QueueDisc finally calls the Send method of the NetDevice.

The IN direction uses a little trick to reduce dependencies between modules. In simple words, we use Callbacks to connect upper layer (which should register their Receive callback through RegisterProtocolHandler) and NetDevices.

An example of the IN connection between this layer and IP layer is the following:

 Ptr<TrafficControlLayer> tc = m_node->GetObject<TrafficControlLayer> ();

 NS_ASSERT (tc != 0);

 m_node->RegisterProtocolHandler (MakeCallback (&TrafficControlLayer::Receive, tc),
                                  Ipv4L3Protocol::PROT_NUMBER, device);
 m_node->RegisterProtocolHandler (MakeCallback (&TrafficControlLayer::Receive, tc),
                                  ArpL3Protocol::PROT_NUMBER, device);

 tc->RegisterProtocolHandler (MakeCallback (&Ipv4L3Protocol::Receive, this),
                              Ipv4L3Protocol::PROT_NUMBER, device);
 tc->RegisterProtocolHandler (MakeCallback (&ArpL3Protocol::Receive, PeekPointer
(GetObject<ArpL3Protocol> ())), ArpL3Protocol::PROT_NUMBER, device);

On the node, for IPv4 and ARP packet, is registered the TrafficControlLayer::Receive callback. At the same time, on the TrafficControlLayer object, is registered the callbacks associated to the upper layers (IPv4 or ARP).

When the node receives an IPv4 or ARP packet, it calls the Receive method on TrafficControlLayer, that calls the right upper-layer callback once it finishes the operations on the packet received.

Discrimination through callbacks (in other words: what is the right upper-layer callback for this packet?) is done through checks over the device and the protocol number.

Definition at line 92 of file traffic-control-layer.h.

Member Typedef Documentation

◆ ProtocolHandlerList

typedef std::vector<ProtocolHandlerEntry> ns3::TrafficControlLayer::ProtocolHandlerList

private

Typedef for protocol handlers container.

Definition at line 237 of file traffic-control-layer.h.

◆ QueueDiscVector

typedef std::vector<Ptr<QueueDisc> > ns3::TrafficControlLayer::QueueDiscVector

Typedef for queue disc vector.

Definition at line 140 of file traffic-control-layer.h.

Constructor & Destructor Documentation

◆ TrafficControlLayer() [1/2]

ns3::TrafficControlLayer::TrafficControlLayer ( )

Constructor.

Definition at line 68 of file traffic-control-layer.cc.

References NS_LOG_FUNCTION.

◆ ~TrafficControlLayer()

ns3::TrafficControlLayer::~TrafficControlLayer ( )

override

Definition at line 74 of file traffic-control-layer.cc.

References NS_LOG_FUNCTION.

◆ TrafficControlLayer() [2/2]

ns3::TrafficControlLayer::TrafficControlLayer ( const TrafficControlLayer & )

delete

Member Function Documentation

◆ DeleteRootQueueDiscOnDevice()

void ns3::TrafficControlLayer::DeleteRootQueueDiscOnDevice ( Ptr< NetDevice > device )

virtual

This method can be used to remove the root queue disc (and associated filters, classes and queues) installed on a device.

Parameters

device the device on which the installed queue disc will be deleted

Definition at line 264 of file traffic-control-layer.cc.

References m_netDevices, NS_ASSERT_MSG, and NS_LOG_FUNCTION.

◆ DoDispose()

void ns3::TrafficControlLayer::DoDispose ( void )

overrideprotectedvirtual

Destructor implementation.

This method is called by Dispose() or by the Object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overridden version of this method and chain up to their parent's implementation once they are done. i.e, for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose() method.

It is safe to call GetObject() from within this method.

Reimplemented from ns3::Object.

Definition at line 80 of file traffic-control-layer.cc.

References ns3::Object::DoDispose(), m_handlers, m_netDevices, m_node, and NS_LOG_FUNCTION.

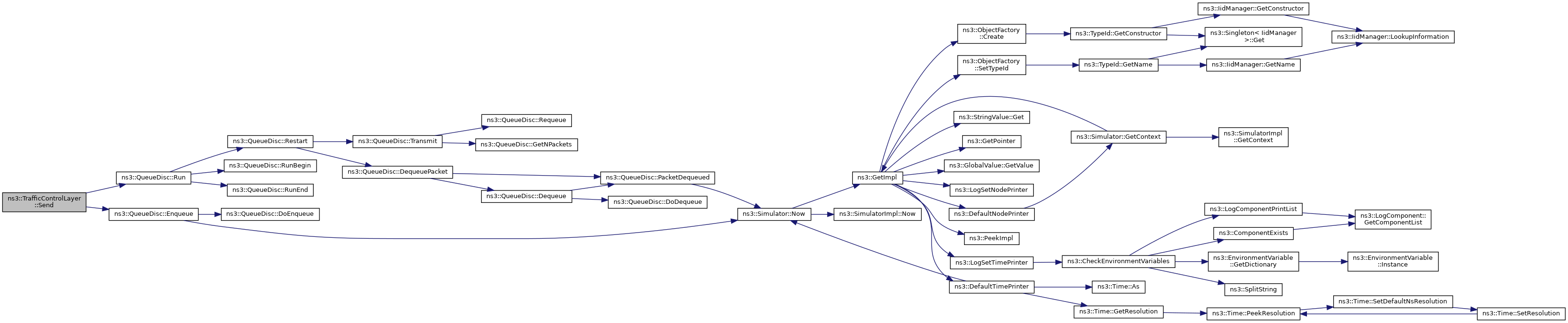

Here is the call graph for this function:

◆ DoInitialize()

void ns3::TrafficControlLayer::DoInitialize ( void )

overrideprotectedvirtual

Initialize() implementation.

This method is called only once by Initialize(). If the user calls Initialize() multiple times, DoInitialize() is called only the first time.

Subclasses are expected to override this method and chain up to their parent's implementation once they are done. It is safe to call GetObject() and AggregateObject() from within this method.

Reimplemented from ns3::Object.

Definition at line 90 of file traffic-control-layer.cc.

References ns3::Object::DoInitialize(), m_netDevices, NS_LOG_FUNCTION, and ScanDevices().

Here is the call graph for this function:

◆ GetInstanceTypeId()

TypeId ns3::TrafficControlLayer::GetInstanceTypeId ( void ) const

overridevirtual

Get the type ID for the instance.

Returns: the instance TypeId

Reimplemented from ns3::Object.

Definition at line 63 of file traffic-control-layer.cc.

References GetTypeId().

Here is the call graph for this function:

◆ GetNDevices()

uint32_t ns3::TrafficControlLayer::GetNDevices ( ) const

private

Required by the object map accessor.

Returns: the number of devices in the m_netDevices map

Definition at line 323 of file traffic-control-layer.cc.

References ns3::Node::GetNDevices(), and m_node.

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetRootQueueDiscOnDevice()

Ptr< QueueDisc > ns3::TrafficControlLayer::GetRootQueueDiscOnDevice ( Ptr< NetDevice > device ) const

virtual

This method can be used to get the root queue disc installed on a device.

Parameters

device the device on which the requested root queue disc is installed

Returns: the root queue disc installed on the given device

Definition at line 243 of file traffic-control-layer.cc.

References m_netDevices, and NS_LOG_FUNCTION.

Referenced by GetRootQueueDiscOnDeviceByIndex().

Here is the caller graph for this function:

◆ GetRootQueueDiscOnDeviceByIndex()

Ptr< QueueDisc > ns3::TrafficControlLayer::GetRootQueueDiscOnDeviceByIndex ( uint32_t index ) const

private

Required by the object map accessor.

Parameters

index the index of the device in the node's device list

Returns: the root queue disc installed on the specified device

Definition at line 257 of file traffic-control-layer.cc.

References ns3::Node::GetDevice(), GetRootQueueDiscOnDevice(), m_node, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

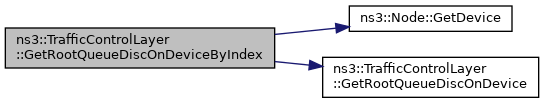

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::TrafficControlLayer::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 39 of file traffic-control-layer.cc.

References GetNDevices(), GetRootQueueDiscOnDeviceByIndex(), m_dropped, ns3::MakeObjectMapAccessor(), ns3::MakeTraceSourceAccessor(), and ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ NotifyNewAggregate()

void ns3::TrafficControlLayer::NotifyNewAggregate ( )

overrideprotectedvirtual

Notify all Objects aggregated to this one of a new Object being aggregated.

This function must be implemented in the stack that needs to notify other stacks connected to the node of their presence in the node.

This method is invoked whenever two sets of Objects are aggregated together. It is invoked exactly once for each Object in both sets. This method can be overridden by subclasses who wish to be notified of aggregation events. These subclasses must chain up to their base class NotifyNewAggregate() method.

It is safe to call GetObject() and AggregateObject() from within this method.

Reimplemented from ns3::Object.

Definition at line 306 of file traffic-control-layer.cc.

References m_node, ns3::Object::NotifyNewAggregate(), NS_LOG_FUNCTION, and SetNode().

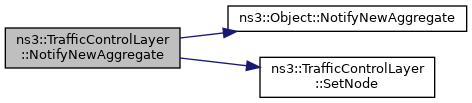

Here is the call graph for this function:

◆ operator=()

TrafficControlLayer& ns3::TrafficControlLayer::operator= ( const TrafficControlLayer & )

delete

◆ Receive()

void ns3::TrafficControlLayer::Receive	(	Ptr< NetDevice >	device,
		Ptr< const Packet >	p,
		uint16_t	protocol,
		const Address &	from,
		const Address &	to,
		NetDevice::PacketType	packetType
	)

virtual

Called by NetDevices, incoming packet.

After analyses and scheduling, this method will call the right handler to pass the packet up in the stack.

Parameters

device	network device
p	the packet
protocol	next header value
from	address of the correspondent
to	address of the destination
packetType	type of the packet

Definition at line 329 of file traffic-control-layer.cc.

References m_handlers, NS_ABORT_MSG_IF, NS_LOG_DEBUG, and NS_LOG_FUNCTION.

Referenced by ns3::Ipv4L3Protocol::AddInterface(), ns3::Ipv6L3Protocol::AddInterface(), ns3::Ipv4Interface::Send(), and ns3::Ipv6Interface::Send().

Here is the caller graph for this function:

◆ RegisterProtocolHandler()

void ns3::TrafficControlLayer::RegisterProtocolHandler	(	Node::ProtocolHandler	handler,
		uint16_t	protocolType,
		Ptr< NetDevice >	device
	)

Register an IN handler.

The handler will be invoked when a packet is received to pass it to upper layers.

Parameters

handler	the handler to register
protocolType	the type of protocol this handler is interested in. This protocol type is a so-called EtherType, as registered here: http://standards.ieee.org/regauth/ethertype/eth.txt the value zero is interpreted as matching all protocols.
device	the device attached to this handler. If the value is zero, the handler is attached to all devices.

Definition at line 109 of file traffic-control-layer.cc.

References ns3::TrafficControlLayer::ProtocolHandlerEntry::device, ns3::TrafficControlLayer::ProtocolHandlerEntry::handler, m_handlers, NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::TrafficControlLayer::ProtocolHandlerEntry::promiscuous, and ns3::TrafficControlLayer::ProtocolHandlerEntry::protocol.

◆ ScanDevices()

void ns3::TrafficControlLayer::ScanDevices ( )

virtual

Collect information needed to determine how to handle packets destined to each of the NetDevices of this node.

Checks whether a NetDeviceQueueInterface objects is aggregated to each of the NetDevices of this node and sets the required callbacks properly.

Definition at line 128 of file traffic-control-layer.cc.

References ns3::Node::GetDevice(), ns3::Node::GetId(), ns3::Node::GetNDevices(), ns3::QueueDisc::GetQueueDiscClass(), m_netDevices, m_node, ns3::MakeCallback(), NS_ABORT_MSG, NS_ABORT_MSG_IF, NS_ASSERT_MSG, NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::QueueDisc::Run(), ns3::QueueDisc::WAKE_CHILD, and ns3::QueueDisc::WAKE_ROOT.

Referenced by DoInitialize().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Send()

void ns3::TrafficControlLayer::Send	(	Ptr< NetDevice >	device,
		Ptr< QueueDiscItem >	item
	)

virtual

Called from upper layer to queue a packet for the transmission.

Parameters

device	the device the packet must be sent to
item	a queue item including a packet and additional information

Definition at line 361 of file traffic-control-layer.cc.

References ns3::QueueDisc::Enqueue(), m_dropped, m_netDevices, NS_ASSERT, NS_LOG_DEBUG, NS_LOG_FUNCTION, and ns3::QueueDisc::Run().

Here is the call graph for this function:

◆ SetNode()

void ns3::TrafficControlLayer::SetNode ( Ptr< Node > node )

Set node associated with this stack.

Parameters

node	node to set

Definition at line 299 of file traffic-control-layer.cc.

References m_node, and NS_LOG_FUNCTION.

Referenced by NotifyNewAggregate().

Here is the caller graph for this function:

◆ SetRootQueueDiscOnDevice()

void ns3::TrafficControlLayer::SetRootQueueDiscOnDevice	(	Ptr< NetDevice >	device,
		Ptr< QueueDisc >	qDisc
	)

virtual

This method can be used to set the root queue disc installed on a device.

Parameters

device	the device on which the provided queue disc will be installed
qDisc	the queue disc to be installed as root queue disc on device

Definition at line 221 of file traffic-control-layer.cc.

References m_netDevices, NS_ABORT_MSG_IF, and NS_LOG_FUNCTION.

Member Data Documentation

◆ m_dropped

TracedCallback<Ptr<const Packet> > ns3::TrafficControlLayer::m_dropped

private

The trace source fired when the Traffic Control layer drops a packet because no queue disc is installed on the device, the device supports flow control and the device queue is stopped.

Definition at line 262 of file traffic-control-layer.h.

Referenced by GetTypeId(), and Send().

◆ m_handlers

ProtocolHandlerList ns3::TrafficControlLayer::m_handlers

private

List of upper-layer handlers.

Definition at line 255 of file traffic-control-layer.h.

Referenced by DoDispose(), Receive(), and RegisterProtocolHandler().

◆ m_netDevices

std::map<Ptr<NetDevice>, NetDeviceInfo> ns3::TrafficControlLayer::m_netDevices

private

Map storing the required information for each device with a queue disc installed.

Definition at line 254 of file traffic-control-layer.h.

Referenced by DeleteRootQueueDiscOnDevice(), DoDispose(), DoInitialize(), GetRootQueueDiscOnDevice(), ScanDevices(), Send(), and SetRootQueueDiscOnDevice().

◆ m_node

Ptr<Node> ns3::TrafficControlLayer::m_node

private

The node this TrafficControlLayer object is aggregated to.

Definition at line 252 of file traffic-control-layer.h.

Referenced by DoDispose(), GetNDevices(), GetRootQueueDiscOnDeviceByIndex(), NotifyNewAggregate(), ScanDevices(), and SetNode().

The documentation for this class was generated from the following files:

src/traffic-control/model/traffic-control-layer.h
src/traffic-control/model/traffic-control-layer.cc

Classes

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Private Types

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ ProtocolHandlerList

◆ QueueDiscVector

Constructor & Destructor Documentation

◆ TrafficControlLayer() [1/2]

◆ ~TrafficControlLayer()

◆ TrafficControlLayer() [2/2]

Member Function Documentation

◆ DeleteRootQueueDiscOnDevice()

◆ DoDispose()

◆ DoInitialize()

◆ GetInstanceTypeId()

◆ GetNDevices()

◆ GetRootQueueDiscOnDevice()

◆ GetRootQueueDiscOnDeviceByIndex()

◆ GetTypeId()

◆ NotifyNewAggregate()

◆ operator=()

◆ Receive()

◆ RegisterProtocolHandler()

◆ ScanDevices()

◆ Send()

◆ SetNode()

◆ SetRootQueueDiscOnDevice()

Member Data Documentation

◆ m_dropped

◆ m_handlers

◆ m_netDevices

◆ m_node
