build a set of CsmaNetDevice objects More...

#include "csma-helper.h"

Inheritance diagram for ns3::CsmaHelper:

Collaboration diagram for ns3::CsmaHelper:

Public Member Functions
	CsmaHelper ()
	Construct a CsmaHelper. More...

	~CsmaHelper () override

int64_t	AssignStreams (NetDeviceContainer c, int64_t stream)
	Assign a fixed random variable stream number to the random variables used by this model. More...

void	DisableFlowControl ()
	Disable flow control only if you know what you are doing. More...

NetDeviceContainer	Install (const NodeContainer &c) const
	This method creates an ns3::CsmaChannel with the attributes configured by CsmaHelper::SetChannelAttribute. More...

NetDeviceContainer	Install (const NodeContainer &c, Ptr< CsmaChannel > channel) const
	For each Ptr<node> in the provided container, this method creates an ns3::CsmaNetDevice (with the attributes configured by CsmaHelper::SetDeviceAttribute); adds the device to the node; and attaches the provided channel to the device. More...

NetDeviceContainer	Install (const NodeContainer &c, std::string channelName) const
	For each Ptr<node> in the provided container, this method creates an ns3::CsmaNetDevice (with the attributes configured by CsmaHelper::SetDeviceAttribute); adds the device to the node; and attaches the provided channel to the device. More...

NetDeviceContainer	Install (Ptr< Node > node) const
	This method creates an ns3::CsmaChannel with the attributes configured by CsmaHelper::SetChannelAttribute, an ns3::CsmaNetDevice with the attributes configured by CsmaHelper::SetDeviceAttribute and then adds the device to the node and attaches the channel to the device. More...

NetDeviceContainer	Install (Ptr< Node > node, Ptr< CsmaChannel > channel) const
	This method creates an ns3::CsmaNetDevice with the attributes configured by CsmaHelper::SetDeviceAttribute and then adds the device to the node and attaches the provided channel to the device. More...

NetDeviceContainer	Install (Ptr< Node > node, std::string channelName) const
	This method creates an ns3::CsmaNetDevice with the attributes configured by CsmaHelper::SetDeviceAttribute and then adds the device to the node and attaches the provided channel to the device. More...

NetDeviceContainer	Install (std::string name) const
	This method creates an ns3::CsmaChannel with the attributes configured by CsmaHelper::SetChannelAttribute, an ns3::CsmaNetDevice with the attributes configured by CsmaHelper::SetDeviceAttribute and then adds the device to the node and attaches the channel to the device. More...

NetDeviceContainer	Install (std::string nodeName, Ptr< CsmaChannel > channel) const
	This method creates an ns3::CsmaNetDevice with the attributes configured by CsmaHelper::SetDeviceAttribute and then adds the device to the node and attaches the provided channel to the device. More...

NetDeviceContainer	Install (std::string nodeName, std::string channelName) const
	This method creates an ns3::CsmaNetDevice with the attributes configured by CsmaHelper::SetDeviceAttribute and then adds the device to the node and attaches the provided channel to the device. More...

void	SetChannelAttribute (std::string n1, const AttributeValue &v1)

void	SetDeviceAttribute (std::string n1, const AttributeValue &v1)

template<typename... Ts>
void	SetQueue (std::string type, Ts &&... args)

Public Member Functions inherited from ns3::PcapHelperForDevice
	PcapHelperForDevice ()
	Construct a PcapHelperForDevice. More...

virtual	~PcapHelperForDevice ()
	Destroy a PcapHelperForDevice. More...

void	EnablePcap (std::string prefix, NetDeviceContainer d, bool promiscuous=false)
	Enable pcap output on each device in the container which is of the appropriate type. More...

void	EnablePcap (std::string prefix, NodeContainer n, bool promiscuous=false)
	Enable pcap output on each device (which is of the appropriate type) in the nodes provided in the container. More...

void	EnablePcap (std::string prefix, Ptr< NetDevice > nd, bool promiscuous=false, bool explicitFilename=false)
	Enable pcap output the indicated net device. More...

void	EnablePcap (std::string prefix, std::string ndName, bool promiscuous=false, bool explicitFilename=false)
	Enable pcap output the indicated net device using a device previously named using the ns-3 object name service. More...

void	EnablePcap (std::string prefix, uint32_t nodeid, uint32_t deviceid, bool promiscuous=false)
	Enable pcap output on the device specified by a global node-id (of a previously created node) and associated device-id. More...

void	EnablePcapAll (std::string prefix, bool promiscuous=false)
	Enable pcap output on each device (which is of the appropriate type) in the set of all nodes created in the simulation. More...

Public Member Functions inherited from ns3::AsciiTraceHelperForDevice
	AsciiTraceHelperForDevice ()
	Construct an AsciiTraceHelperForDevice. More...

virtual	~AsciiTraceHelperForDevice ()
	Destroy an AsciiTraceHelperForDevice. More...

void	EnableAscii (Ptr< OutputStreamWrapper > stream, NetDeviceContainer d)
	Enable ascii trace output on each device in the container which is of the appropriate type. More...

void	EnableAscii (Ptr< OutputStreamWrapper > stream, NodeContainer n)
	Enable ascii trace output on each device (which is of the appropriate type) in the nodes provided in the container. More...

void	EnableAscii (Ptr< OutputStreamWrapper > stream, Ptr< NetDevice > nd)
	Enable ascii trace output on the indicated net device. More...

void	EnableAscii (Ptr< OutputStreamWrapper > stream, std::string ndName)
	Enable ascii trace output the indicated net device using a device previously named using the ns-3 object name service. More...

void	EnableAscii (Ptr< OutputStreamWrapper > stream, uint32_t nodeid, uint32_t deviceid)
	Enable ascii trace output on the device specified by a global node-id (of a previously created node) and associated device-id. More...

void	EnableAscii (std::string prefix, NetDeviceContainer d)
	Enable ascii trace output on each device in the container which is of the appropriate type. More...

void	EnableAscii (std::string prefix, NodeContainer n)
	Enable ascii trace output on each device (which is of the appropriate type) in the nodes provided in the container. More...

void	EnableAscii (std::string prefix, Ptr< NetDevice > nd, bool explicitFilename=false)
	Enable ascii trace output on the indicated net device. More...

void	EnableAscii (std::string prefix, std::string ndName, bool explicitFilename=false)
	Enable ascii trace output the indicated net device using a device previously named using the ns-3 object name service. More...

void	EnableAscii (std::string prefix, uint32_t nodeid, uint32_t deviceid, bool explicitFilename)
	Enable ascii trace output on the device specified by a global node-id (of a previously created node) and associated device-id. More...

void	EnableAsciiAll (Ptr< OutputStreamWrapper > stream)
	Enable ascii trace output on each device (which is of the appropriate type) in the set of all nodes created in the simulation. More...

void	EnableAsciiAll (std::string prefix)
	Enable ascii trace output on each device (which is of the appropriate type) in the set of all nodes created in the simulation. More...

Private Member Functions
void	EnableAsciiInternal (Ptr< OutputStreamWrapper > stream, std::string prefix, Ptr< NetDevice > nd, bool explicitFilename) override
	Enable ascii trace output on the indicated net device. More...

void	EnablePcapInternal (std::string prefix, Ptr< NetDevice > nd, bool promiscuous, bool explicitFilename) override
	Enable pcap output on the indicated net device. More...

Ptr< NetDevice >	InstallPriv (Ptr< Node > node, Ptr< CsmaChannel > channel) const
	This method creates an ns3::CsmaNetDevice with the attributes configured by CsmaHelper::SetDeviceAttribute and then adds the device to the node and attaches the provided channel to the device. More...

Private Attributes
ObjectFactory	m_channelFactory
	factory for the channel More...

ObjectFactory	m_deviceFactory
	factory for the NetDevices More...

bool	m_enableFlowControl
	whether to enable flow control More...

ObjectFactory	m_queueFactory
	factory for the queues More...

Detailed Description

build a set of CsmaNetDevice objects

Normally we eschew multiple inheritance, however, the classes PcapUserHelperForDevice and AsciiTraceUserHelperForDevice are treated as "mixins". A mixin is a self-contained class that encapsulates a general attribute or a set of functionality that may be of interest to many other classes.

Definition at line 47 of file csma-helper.h.

Constructor & Destructor Documentation

◆ CsmaHelper()

ns3::CsmaHelper::CsmaHelper ( )

Construct a CsmaHelper.

Definition at line 41 of file csma-helper.cc.

References m_channelFactory, m_deviceFactory, m_enableFlowControl, m_queueFactory, and ns3::ObjectFactory::SetTypeId().

Here is the call graph for this function:

◆ ~CsmaHelper()

ns3::CsmaHelper::~CsmaHelper ( )

inlineoverride

Definition at line 55 of file csma-helper.h.

Member Function Documentation

◆ AssignStreams()

int64_t ns3::CsmaHelper::AssignStreams	(	NetDeviceContainer	c,
		int64_t	stream
	)

Assign a fixed random variable stream number to the random variables used by this model.

Return the number of streams (possibly zero) that have been assigned. The Install() method should have previously been called by the user.

Parameters

c	NetDeviceContainer of the set of net devices for which the CsmaNetDevice should be modified to use a fixed stream
stream	first stream index to use

Returns: the number of stream indices assigned by this helper

Definition at line 296 of file csma-helper.cc.

References ns3::NetDeviceContainer::Begin(), second::csma, and ns3::NetDeviceContainer::End().

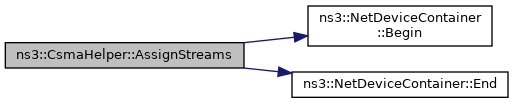

Here is the call graph for this function:

◆ DisableFlowControl()

void ns3::CsmaHelper::DisableFlowControl ( )

Disable flow control only if you know what you are doing.

By disabling flow control, this NetDevice will be sent packets even if there is no room for them (such packets will be likely dropped by this NetDevice). Also, any queue disc installed on this NetDevice will have no effect, as every packet enqueued to the traffic control layer queue disc will be immediately dequeued.

Definition at line 62 of file csma-helper.cc.

References m_enableFlowControl.

◆ EnableAsciiInternal()

void ns3::CsmaHelper::EnableAsciiInternal	(	Ptr< OutputStreamWrapper >	stream,
		std::string	prefix,
		Ptr< NetDevice >	nd,
		bool	explicitFilename
	)

overrideprivatevirtual

Enable ascii trace output on the indicated net device.

NetDevice-specific implementation mechanism for hooking the trace and writing to the trace file.

Parameters

stream	The output stream object to use when logging ascii traces.
prefix	Filename prefix to use for ascii trace files.
nd	Net device for which you want to enable tracing.
explicitFilename	Treat the prefix as an explicit filename if true

Implements ns3::AsciiTraceHelperForDevice.

Definition at line 111 of file csma-helper.cc.

Here is the call graph for this function:

◆ EnablePcapInternal()

void ns3::CsmaHelper::EnablePcapInternal	(	std::string	prefix,
		Ptr< NetDevice >	nd,
		bool	promiscuous,
		bool	explicitFilename
	)

overrideprivatevirtual

Enable pcap output on the indicated net device.

NetDevice-specific implementation mechanism for hooking the trace and writing to the trace file.

Parameters

prefix	Filename prefix to use for pcap files.
nd	Net device for which you want to enable tracing.
promiscuous	If true capture all possible packets available at the device.
explicitFilename	Treat the prefix as an explicit filename if true

Implements ns3::PcapHelperForDevice.

Definition at line 68 of file csma-helper.cc.

References ns3::PcapHelper::CreateFile(), ns3::PcapHelper::DLT_EN10MB, create-module::file, ns3::PcapHelper::GetFilenameFromDevice(), ns3::PcapHelper::HookDefaultSink(), and NS_LOG_INFO.

Here is the call graph for this function:

◆ Install() [1/9]

NetDeviceContainer ns3::CsmaHelper::Install ( const NodeContainer & c ) const

This method creates an ns3::CsmaChannel with the attributes configured by CsmaHelper::SetChannelAttribute.

For each Ptr<node> in the provided container: it creates an ns3::CsmaNetDevice (with the attributes configured by CsmaHelper::SetDeviceAttribute); adds the device to the node; and attaches the channel to the device.

Parameters

c	The NodeContainer holding the nodes to be changed.

Returns: A container holding the added net devices.

Definition at line 268 of file csma-helper.cc.

References third::channel, ns3::ObjectFactory::Create(), ns3::Object::GetObject(), Install(), and m_channelFactory.

Here is the call graph for this function:

◆ Install() [2/9]

NetDeviceContainer ns3::CsmaHelper::Install	(	const NodeContainer &	c,
		Ptr< CsmaChannel >	channel
	)		const

For each Ptr<node> in the provided container, this method creates an ns3::CsmaNetDevice (with the attributes configured by CsmaHelper::SetDeviceAttribute); adds the device to the node; and attaches the provided channel to the device.

Parameters

c	The NodeContainer holding the nodes to be changed.
channel	The channel to attach to the devices.

Returns: A container holding the added net devices.

Definition at line 276 of file csma-helper.cc.

References ns3::NetDeviceContainer::Add(), ns3::NodeContainer::Begin(), third::channel, ns3::NodeContainer::End(), and InstallPriv().

Here is the call graph for this function:

◆ Install() [3/9]

NetDeviceContainer ns3::CsmaHelper::Install	(	const NodeContainer &	c,
		std::string	channelName
	)		const

For each Ptr<node> in the provided container, this method creates an ns3::CsmaNetDevice (with the attributes configured by CsmaHelper::SetDeviceAttribute); adds the device to the node; and attaches the provided channel to the device.

Parameters

c	The NodeContainer holding the nodes to be changed.
channelName	The name of the channel to attach to the devices.

Returns: A container holding the added net devices.

Definition at line 289 of file csma-helper.cc.

References third::channel, and Install().

Here is the call graph for this function:

◆ Install() [4/9]

NetDeviceContainer ns3::CsmaHelper::Install ( Ptr< Node > node ) const

This method creates an ns3::CsmaChannel with the attributes configured by CsmaHelper::SetChannelAttribute, an ns3::CsmaNetDevice with the attributes configured by CsmaHelper::SetDeviceAttribute and then adds the device to the node and attaches the channel to the device.

Parameters

node	The node to install the device in

Returns: A container holding the added net device.

Definition at line 226 of file csma-helper.cc.

References third::channel, ns3::ObjectFactory::Create(), ns3::Object::GetObject(), and m_channelFactory.

Referenced by ns3::CsmaStarHelper::CsmaStarHelper(), EpcS1uDlTestCase::DoRun(), EpcS1uUlTestCase::DoRun(), Install(), and NeighborCacheExample::Run().

Here is the call graph for this function:

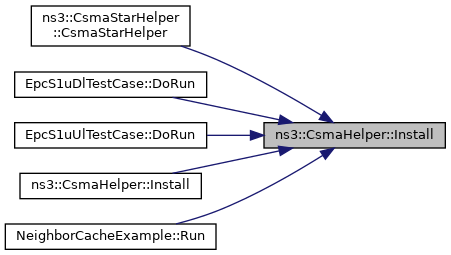

Here is the caller graph for this function:

◆ Install() [5/9]

NetDeviceContainer ns3::CsmaHelper::Install	(	Ptr< Node >	node,
		Ptr< CsmaChannel >	channel
	)		const

This method creates an ns3::CsmaNetDevice with the attributes configured by CsmaHelper::SetDeviceAttribute and then adds the device to the node and attaches the provided channel to the device.

Parameters

node	The node to install the device in
channel	The channel to attach to the device.

Returns: A container holding the added net device.

Definition at line 240 of file csma-helper.cc.

References third::channel, and InstallPriv().

Here is the call graph for this function:

◆ Install() [6/9]

NetDeviceContainer ns3::CsmaHelper::Install	(	Ptr< Node >	node,
		std::string	channelName
	)		const

This method creates an ns3::CsmaNetDevice with the attributes configured by CsmaHelper::SetDeviceAttribute and then adds the device to the node and attaches the provided channel to the device.

Parameters

node	The node to install the device in
channelName	The name of the channel to attach to the device.

Returns: A container holding the added net device.

Definition at line 246 of file csma-helper.cc.

References third::channel, and InstallPriv().

Here is the call graph for this function:

◆ Install() [7/9]

NetDeviceContainer ns3::CsmaHelper::Install ( std::string name ) const

This method creates an ns3::CsmaChannel with the attributes configured by CsmaHelper::SetChannelAttribute, an ns3::CsmaNetDevice with the attributes configured by CsmaHelper::SetDeviceAttribute and then adds the device to the node and attaches the channel to the device.

Parameters

name	The name of the node to install the device in

Returns: A container holding the added net device.

Definition at line 233 of file csma-helper.cc.

References Install().

Here is the call graph for this function:

◆ Install() [8/9]

NetDeviceContainer ns3::CsmaHelper::Install	(	std::string	nodeName,
		Ptr< CsmaChannel >	channel
	)		const

This method creates an ns3::CsmaNetDevice with the attributes configured by CsmaHelper::SetDeviceAttribute and then adds the device to the node and attaches the provided channel to the device.

Parameters

nodeName	The name of the node to install the device in
channel	The channel to attach to the device.

Returns: A container holding the added net device.

Definition at line 253 of file csma-helper.cc.

References third::channel, and InstallPriv().

Here is the call graph for this function:

◆ Install() [9/9]

NetDeviceContainer ns3::CsmaHelper::Install	(	std::string	nodeName,
		std::string	channelName
	)		const

This method creates an ns3::CsmaNetDevice with the attributes configured by CsmaHelper::SetDeviceAttribute and then adds the device to the node and attaches the provided channel to the device.

Parameters

nodeName	The name of the node to install the device in
channelName	The name of the channel to attach to the device.

Returns: A container holding the added net device.

Definition at line 260 of file csma-helper.cc.

References third::channel, and InstallPriv().

Here is the call graph for this function:

◆ InstallPriv()

Ptr< NetDevice > ns3::CsmaHelper::InstallPriv	(	Ptr< Node >	node,
		Ptr< CsmaChannel >	channel
	)		const

private

This method creates an ns3::CsmaNetDevice with the attributes configured by CsmaHelper::SetDeviceAttribute and then adds the device to the node and attaches the provided channel to the device.

Parameters
