a 3d building block More...

#include "building.h"

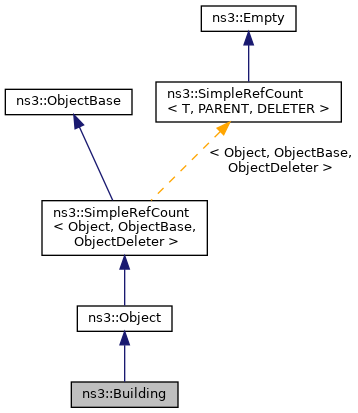

Inheritance diagram for ns3::Building:

Collaboration diagram for ns3::Building:

Public Types
enum	BuildingType_t { Residential , Office , Commercial }
	Building type enum. More...

enum	ExtWallsType_t { Wood , ConcreteWithWindows , ConcreteWithoutWindows , StoneBlocks }
	External building wall type enum. More...

Public Member Functions
	Building ()
	Create a zero-sized building located at coordinates (0.0,0.0,0.0) and with 1 floors and 1 room. More...

	Building (double xMin, double xMax, double yMin, double yMax, double zMin, double zMax)
	Construct a simple building with 1 room and 1 floor. More...

	~Building () override
	Destructor. More...

void	DoDispose () override
	Destructor implementation. More...

Box	GetBoundaries () const

BuildingType_t	GetBuildingType () const

ExtWallsType_t	GetExtWallsType () const

uint16_t	GetFloor (Vector position) const

uint32_t	GetId () const

uint16_t	GetNFloors () const

uint16_t	GetNRoomsX () const

uint16_t	GetNRoomsY () const

uint16_t	GetRoomX (Vector position) const

uint16_t	GetRoomY (Vector position) const

bool	IsInside (Vector position) const

bool	IsIntersect (const Vector &l1, const Vector &l2) const
	Checks if a line-segment between position l1 and position l2 intersects a building. More...

void	SetBoundaries (Box box)
	Set the boundaries of the building. More...

void	SetBuildingType (Building::BuildingType_t t)

void	SetExtWallsType (Building::ExtWallsType_t t)

void	SetNFloors (uint16_t nfloors)

void	SetNRoomsX (uint16_t nroomx)

void	SetNRoomsY (uint16_t nroomy)

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

	~Object () override
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose ()
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator () const
	Get an iterator to the Objects aggregated to this one. More...

TypeId	GetInstanceTypeId () const override
	Get the most derived TypeId for this Object. More...

template<typename T >
Ptr< T >	GetObject () const
	Get a pointer to the requested aggregated Object. More...

template<>
Ptr< Object >	GetObject () const
	Specialization of () for objects of type ns3::Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< Object >	GetObject (TypeId tid) const
	Specialization of (TypeId tid) for objects of type ns3::Object. More...

void	Initialize ()
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized () const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
	Copy constructor. More...

uint32_t	GetReferenceCount () const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o[[maybe_unused]])
	Assignment operator. More...

void	Ref () const
	Increment the reference count. More...

void	Unref () const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising errors. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId ()
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId ()
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId ()
	Get the type ID. More...

Private Attributes
Box	m_buildingBounds
	Building boundaries. More...

uint32_t	m_buildingId
	Building ID number. More...

BuildingType_t	m_buildingType
	Building type. More...

ExtWallsType_t	m_externalWalls
	External building wall type. More...

uint16_t	m_floors
	number of floors, must be greater than 0, and 1 means only one floor (i.e., groundfloor) More...

uint16_t	m_roomsX
	X Room coordinate. More...

uint16_t	m_roomsY
	Y Room coordinate. More...

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	DoInitialize ()
	Initialize() implementation. More...

virtual void	NotifyNewAggregate ()
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted ()
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid ()
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

a 3d building block

Definition at line 37 of file building.h.

Member Enumeration Documentation

◆ BuildingType_t

enum ns3::Building::BuildingType_t

Building type enum.

Enumerator
Residential
Office
Commercial

Definition at line 50 of file building.h.

◆ ExtWallsType_t

enum ns3::Building::ExtWallsType_t

External building wall type enum.

Enumerator
Wood
ConcreteWithWindows
ConcreteWithoutWindows
StoneBlocks

Definition at line 60 of file building.h.

Constructor & Destructor Documentation

◆ Building() [1/2]

ns3::Building::Building	(	double	xMin,
		double	xMax,
		double	yMin,
		double	yMax,
		double	zMin,
		double	zMax
	)

Construct a simple building with 1 room and 1 floor.

Parameters

xMin	x coordinates of left boundary.
xMax	x coordinates of right boundary.
yMin	y coordinates of bottom boundary.
yMax	y coordinates of top boundary.
zMin	z coordinates of down boundary.
zMax	z coordinates of up boundary.

Definition at line 100 of file building.cc.

References NS_FATAL_ERROR.

◆ Building() [2/2]

ns3::Building::Building ( )

Create a zero-sized building located at coordinates (0.0,0.0,0.0) and with 1 floors and 1 room.

Definition at line 118 of file building.cc.

References ns3::BuildingList::Add(), m_buildingId, and NS_LOG_FUNCTION.

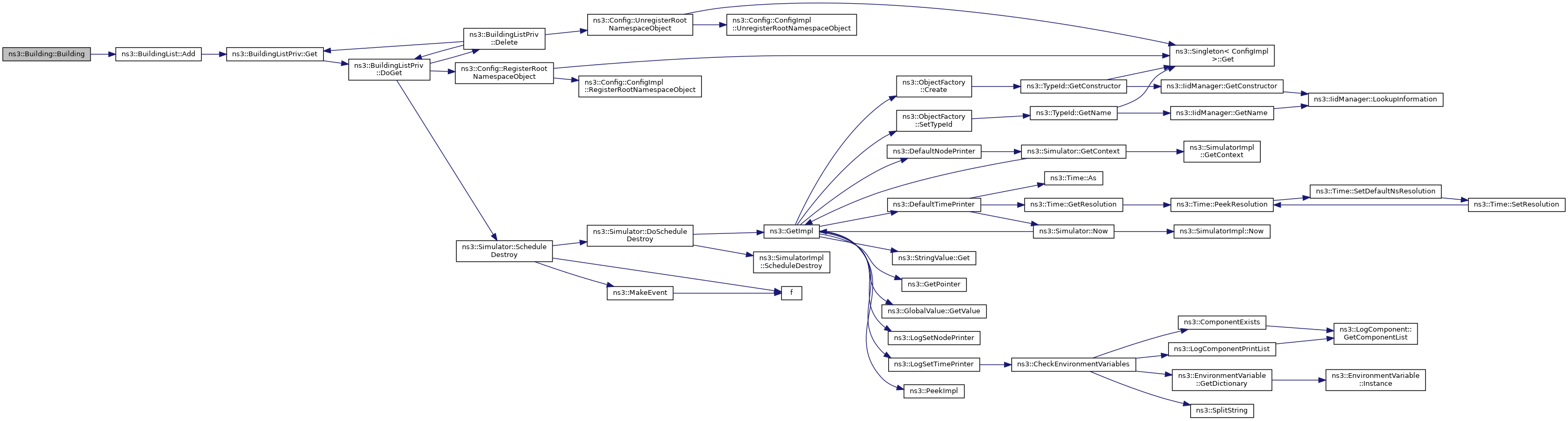

Here is the call graph for this function:

◆ ~Building()

ns3::Building::~Building ( )

override

Destructor.

Definition at line 124 of file building.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

◆ DoDispose()

void ns3::Building::DoDispose ( void )

overridevirtual

Destructor implementation.

This method is called by Dispose() or by the Object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overridden version of this method and chain up to their parent's implementation once they are done. i.e, for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose() method.

It is safe to call GetObject() from within this method.

Reimplemented from ns3::Object.

Definition at line 130 of file building.cc.

References NS_LOG_FUNCTION.

◆ GetBoundaries()

Box ns3::Building::GetBoundaries ( ) const

Returns: the boundaries of the building

Definition at line 185 of file building.cc.

References m_buildingBounds, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the caller graph for this function:

◆ GetBuildingType()

Building::BuildingType_t ns3::Building::GetBuildingType ( ) const

Returns: the type of building

Definition at line 192 of file building.cc.

References m_buildingType.

Referenced by GetTypeId().

Here is the caller graph for this function:

◆ GetExtWallsType()

Building::ExtWallsType_t ns3::Building::GetExtWallsType ( ) const

Returns: the type of external walls of the building

Definition at line 198 of file building.cc.

References m_externalWalls.

Referenced by GetTypeId().

Here is the caller graph for this function:

◆ GetFloor()

uint16_t ns3::Building::GetFloor ( Vector position ) const

Parameters

position a position inside the building

Returns: the floor where the position falls

Definition at line 270 of file building.cc.

References IsInside(), m_buildingBounds, m_floors, NS_ASSERT, NS_LOG_LOGIC, ns3::Box::zMax, and ns3::Box::zMin.

Here is the call graph for this function:

◆ GetId()

uint32_t ns3::Building::GetId ( void ) const

Returns: the unique id of this Building. This unique id happens to be also the index of the Building into the BuildingList.

Definition at line 136 of file building.cc.

References m_buildingId, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the caller graph for this function:

◆ GetNFloors()

uint16_t ns3::Building::GetNFloors ( ) const

Returns: the number of floors of the building

Definition at line 204 of file building.cc.

References m_floors.

Referenced by GetTypeId().

Here is the caller graph for this function:

◆ GetNRoomsX()

uint16_t ns3::Building::GetNRoomsX ( ) const

Returns: the number of rooms along the x-axis of the building

Definition at line 210 of file building.cc.

References m_roomsX.

Referenced by GetTypeId().

Here is the caller graph for this function:

◆ GetNRoomsY()

uint16_t ns3::Building::GetNRoomsY ( ) const

Returns: the number of rooms along the y-axis

Definition at line 216 of file building.cc.

References m_roomsY.

Referenced by GetTypeId().

Here is the caller graph for this function:

◆ GetRoomX()

uint16_t ns3::Building::GetRoomX ( Vector position ) const

Parameters

position a position inside the building

Returns: the number of the room along the X axis where the position falls

Definition at line 228 of file building.cc.

References IsInside(), m_buildingBounds, m_roomsX, NS_ASSERT, NS_LOG_LOGIC, two-ray-to-three-gpp-ch-calibration::x, ns3::Box::xMax, and ns3::Box::xMin.

Here is the call graph for this function:

◆ GetRoomY()

uint16_t ns3::Building::GetRoomY ( Vector position ) const

Parameters

position a position inside the building

Returns: the number of the room along the Y axis where the position falls

Definition at line 249 of file building.cc.

References IsInside(), m_buildingBounds, m_roomsY, NS_ASSERT, NS_LOG_LOGIC, ns3::Box::yMax, and ns3::Box::yMin.

Here is the call graph for this function:

◆ GetTypeId()

TypeId ns3::Building::GetTypeId ( void )

static

Get the type ID.

Returns: The object TypeId.

Definition at line 41 of file building.cc.

References Commercial, ConcreteWithoutWindows, ConcreteWithWindows, GetBoundaries(), GetBuildingType(), GetExtWallsType(), GetId(), GetNFloors(), GetNRoomsX(), GetNRoomsY(), ns3::MakeEnumChecker(), ns3::MakeUintegerAccessor(), Office, Residential, SetBoundaries(), SetBuildingType(), SetExtWallsType(), SetNFloors(), SetNRoomsX(), SetNRoomsY(), ns3::TypeId::SetParent(), StoneBlocks, and Wood.

Here is the call graph for this function:

◆ IsInside()

bool ns3::Building::IsInside ( Vector position ) const

Parameters

position some position

Returns: true if the position fall inside the building, false otherwise

Definition at line 222 of file building.cc.

References ns3::Box::IsInside(), and m_buildingBounds.

Referenced by GetFloor(), GetRoomX(), and GetRoomY().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ IsIntersect()

bool ns3::Building::IsIntersect	(	const Vector &	l1,
		const Vector &	l2
	)		const

Checks if a line-segment between position l1 and position l2 intersects a building.

Parameters

l1	position
l2	position

Returns: true if there is a intersection, false otherwise

Definition at line 291 of file building.cc.

References ns3::Box::IsIntersect(), and m_buildingBounds.

Here is the call graph for this function:

◆ SetBoundaries()

void ns3::Building::SetBoundaries ( Box box )

Set the boundaries of the building.

Parameters

box	the Box defining the boundaries of the building

Definition at line 143 of file building.cc.

References m_buildingBounds, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the caller graph for this function:

◆ SetBuildingType()

void ns3::Building::SetBuildingType ( Building::BuildingType_t t )

Parameters

t	the type of building (i.e., Residential, Office, Commercial)

This method allows to set building type (default is Residential)

Definition at line 150 of file building.cc.

References m_buildingType, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the caller graph for this function:

◆ SetExtWallsType()

void ns3::Building::SetExtWallsType ( Building::ExtWallsType_t t )

Parameters

t	the type of external walls (i.e., Wood, ConcreteWithWindows, ConcreteWithoutWindows and StoneBlocks), used for evaluating the loss due to the penetration of external walls in outdoor <-> indoor comm.

This method allows to set external walls type (default is Residential)

Definition at line 157 of file building.cc.

References m_externalWalls, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the caller graph for this function:

◆ SetNFloors()

void ns3::Building::SetNFloors ( uint16_t nfloors )

Parameters

nfloors the number of floors in the building

This method allows to set the number of floors in the building (default is 1)

Definition at line 164 of file building.cc.

References m_floors, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the caller graph for this function:

◆ SetNRoomsX()

void ns3::Building::SetNRoomsX ( uint16_t nroomx )

Parameters

nroomx the number of rooms along the x axis

This method allows to set the number of rooms along the x-axis

Definition at line 171 of file building.cc.

References m_roomsX, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the caller graph for this function:

◆ SetNRoomsY()

void ns3::Building::SetNRoomsY ( uint16_t nroomy )

Parameters

nroomy the number of floors in the building

This method allows to set the number of rooms along the y-axis

Definition at line 178 of file building.cc.

References m_roomsY, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the caller graph for this function:

Member Data Documentation

◆ m_buildingBounds

Box ns3::Building::m_buildingBounds

private

Building boundaries.

Definition at line 222 of file building.h.

Referenced by GetBoundaries(), GetFloor(), GetRoomX(), GetRoomY(), IsInside(), IsIntersect(), and SetBoundaries().

◆ m_buildingId

uint32_t ns3::Building::m_buildingId

private

Building ID number.

Definition at line 232 of file building.h.

Referenced by Building(), and GetId().

◆ m_buildingType

BuildingType_t ns3::Building::m_buildingType

private

Building type.

Definition at line 233 of file building.h.

Referenced by GetBuildingType(), and SetBuildingType().

◆ m_externalWalls

ExtWallsType_t ns3::Building::m_externalWalls

private

External building wall type.

Definition at line 234 of file building.h.

Referenced by GetExtWallsType(), and SetExtWallsType().

◆ m_floors

uint16_t ns3::Building::m_floors

private

number of floors, must be greater than 0, and 1 means only one floor (i.e., groundfloor)

Definition at line 228 of file building.h.

Referenced by GetFloor(), GetNFloors(), and SetNFloors().

◆ m_roomsX

uint16_t ns3::Building::m_roomsX

private

X Room coordinate.

Definition at line 229 of file building.h.

Referenced by GetNRoomsX(), GetRoomX(), and SetNRoomsX().

◆ m_roomsY

uint16_t ns3::Building::m_roomsY

private

Y Room coordinate.

Definition at line 230 of file building.h.

Referenced by GetNRoomsY(), GetRoomY(), and SetNRoomsY().

The documentation for this class was generated from the following files:

src/buildings/model/building.h
src/buildings/model/building.cc

Public Types

Public Member Functions

Static Public Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Member Enumeration Documentation

◆ BuildingType_t

◆ ExtWallsType_t

Constructor & Destructor Documentation

◆ Building() [1/2]

◆ Building() [2/2]

◆ ~Building()

Member Function Documentation

◆ DoDispose()

◆ GetBoundaries()

◆ GetBuildingType()

◆ GetExtWallsType()

◆ GetFloor()

◆ GetId()

◆ GetNFloors()

◆ GetNRoomsX()

◆ GetNRoomsY()

◆ GetRoomX()

◆ GetRoomY()

◆ GetTypeId()

◆ IsInside()

◆ IsIntersect()

◆ SetBoundaries()

◆ SetBuildingType()

◆ SetExtWallsType()

◆ SetNFloors()

◆ SetNRoomsX()

◆ SetNRoomsY()

Member Data Documentation

◆ m_buildingBounds

◆ m_buildingId

◆ m_buildingType

◆ m_externalWalls

◆ m_floors

◆ m_roomsX

◆ m_roomsY
