an address for a packet socket More...

#include "packet-socket-address.h"

Collaboration diagram for ns3::PacketSocketAddress:

Public Member Functions
	PacketSocketAddress ()

Address	ConvertTo () const
	Convert an instance of this class to a polymorphic Address instance. More...

Address	GetPhysicalAddress () const
	Get the destination address. More...

uint16_t	GetProtocol () const
	Get the protocol. More...

uint32_t	GetSingleDevice () const
	Get the device this address is bound to. More...

bool	IsSingleDevice () const
	Checks if the address is bound to a specified NetDevice. More...

	operator Address () const

void	SetAllDevices ()
	Set the address to match all the outgoing NetDevice. More...

void	SetPhysicalAddress (const Address address)
	Set the destination address. More...

void	SetProtocol (uint16_t protocol)
	Set the protocol. More...

void	SetSingleDevice (uint32_t device)
	Set the address to match only a specified NetDevice. More...

Static Public Member Functions
static PacketSocketAddress	ConvertFrom (const Address &address)

static bool	IsMatchingType (const Address &address)

Static Private Member Functions
static uint8_t	GetType ()
	Return the Type of address. More...

Private Attributes
Address	m_address
	Destination address. More...

uint32_t	m_device
	Outgoing NetDevice index. More...

bool	m_isSingleDevice
	True if directed to a specific outgoing NetDevice. More...

uint16_t	m_protocol
	Protocol. More...

Detailed Description

an address for a packet socket

Definition at line 39 of file packet-socket-address.h.

Constructor & Destructor Documentation

◆ PacketSocketAddress()

ns3::PacketSocketAddress::PacketSocketAddress ( )

Definition at line 29 of file packet-socket-address.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

◆ ConvertFrom()

PacketSocketAddress ns3::PacketSocketAddress::ConvertFrom ( const Address & address )

static

Parameters

address a polymorphic address

Returns: an Address Convert a polymorphic address to an Mac48Address instance. The conversion performs a type check.

Definition at line 115 of file packet-socket-address.cc.

References first::address, ns3::Address::CopyAllFrom(), IsMatchingType(), ns3::Address::MAX_SIZE, NS_ASSERT, NS_LOG_FUNCTION, SetAllDevices(), SetPhysicalAddress(), SetProtocol(), and SetSingleDevice().

Referenced by ns3::PacketSocket::Bind(), ns3::PacketSocket::GetTxAvailable(), ns3::PacketSocketServer::HandleRead(), ns3::PacketSocketClient::Send(), and ns3::PacketSocket::SendTo().

Here is the call graph for this function:

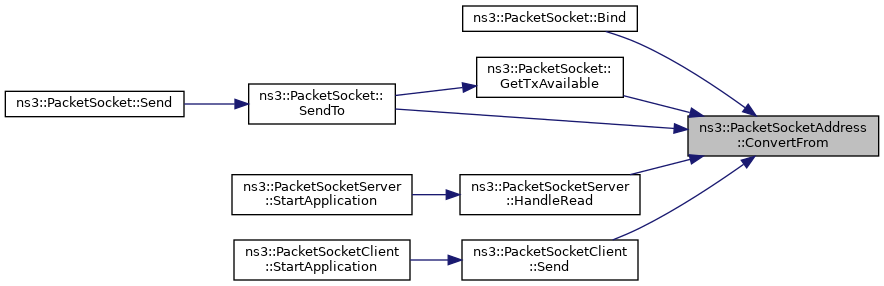

Here is the caller graph for this function:

◆ ConvertTo()

Address ns3::PacketSocketAddress::ConvertTo ( ) const

Convert an instance of this class to a polymorphic Address instance.

Returns: a new Address instance

Definition at line 98 of file packet-socket-address.cc.

References first::address, ns3::Address::CopyAllTo(), GetType(), m_address, m_device, m_isSingleDevice, m_protocol, ns3::Address::MAX_SIZE, and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ GetPhysicalAddress()

Address ns3::PacketSocketAddress::GetPhysicalAddress ( ) const

Get the destination address.

Returns: The destination address

Definition at line 86 of file packet-socket-address.cc.

References m_address, and NS_LOG_FUNCTION.

Referenced by ns3::PacketSocket::SendTo().

Here is the caller graph for this function:

◆ GetProtocol()

uint16_t ns3::PacketSocketAddress::GetProtocol ( ) const

Get the protocol.

Returns: the protocol

Definition at line 65 of file packet-socket-address.cc.

References m_protocol, and NS_LOG_FUNCTION.

Referenced by ns3::PacketSocket::SendTo().

Here is the caller graph for this function:

◆ GetSingleDevice()

uint32_t ns3::PacketSocketAddress::GetSingleDevice ( ) const

Get the device this address is bound to.

Returns: the device index

Definition at line 79 of file packet-socket-address.cc.

References m_device, and NS_LOG_FUNCTION.

Referenced by ns3::PacketSocket::GetMinMtu(), and ns3::PacketSocket::SendTo().

Here is the caller graph for this function:

◆ GetType()

uint8_t ns3::PacketSocketAddress::GetType ( )

staticprivate

Return the Type of address.

Returns: type of address

Definition at line 155 of file packet-socket-address.cc.

References NS_LOG_FUNCTION_NOARGS, ns3::Address::Register(), and check-style-clang-format::type.

Referenced by ConvertTo(), and IsMatchingType().

Here is the call graph for this function:

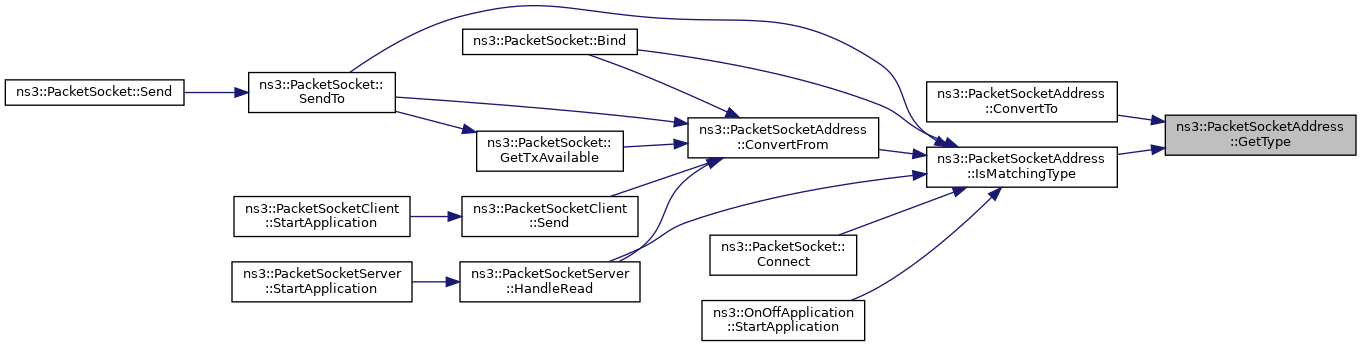

Here is the caller graph for this function:

◆ IsMatchingType()

bool ns3::PacketSocketAddress::IsMatchingType ( const Address & address )

static

Parameters

address address to test

Returns: true if the address matches, false otherwise.

Definition at line 148 of file packet-socket-address.cc.

References first::address, GetType(), and NS_LOG_FUNCTION.

Referenced by ns3::PacketSocket::Bind(), ns3::PacketSocket::Connect(), ConvertFrom(), ns3::PacketSocketServer::HandleRead(), ns3::PacketSocket::SendTo(), and ns3::OnOffApplication::StartApplication().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ IsSingleDevice()

bool ns3::PacketSocketAddress::IsSingleDevice ( ) const

Checks if the address is bound to a specified NetDevice.

Returns: true if the address is bound to a NetDevice

Definition at line 72 of file packet-socket-address.cc.

References m_isSingleDevice, and NS_LOG_FUNCTION.

Referenced by ns3::PacketSocket::GetMinMtu(), and ns3::PacketSocket::SendTo().

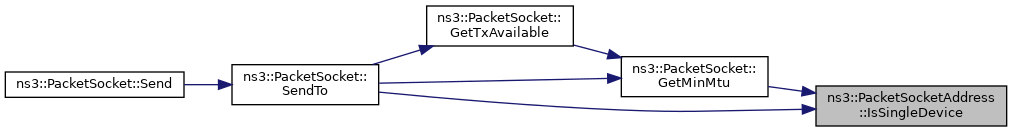

Here is the caller graph for this function:

◆ operator Address()

ns3::PacketSocketAddress::operator Address ( ) const

Returns: a new Address instance

Convert an instance of this class to a polymorphic Address instance.

Definition at line 92 of file packet-socket-address.cc.

◆ SetAllDevices()

void ns3::PacketSocketAddress::SetAllDevices ( )

Set the address to match all the outgoing NetDevice.

Definition at line 42 of file packet-socket-address.cc.

References m_device, m_isSingleDevice, and NS_LOG_FUNCTION.

Referenced by ConvertFrom(), and ns3::PacketSocket::GetSockName().

Here is the caller graph for this function:

◆ SetPhysicalAddress()

void ns3::PacketSocketAddress::SetPhysicalAddress ( const Address address )

Set the destination address.

Parameters

address the destination address

Definition at line 58 of file packet-socket-address.cc.

References first::address, m_address, and NS_LOG_FUNCTION.

Referenced by ns3::NoBackhaulEpcHelper::AddEnb(), ConvertFrom(), PacketSocketAppsTest::DoRun(), SpectrumIdealPhyTestCase::DoRun(), CsmaPacketSocketTestCase::DoRun(), BlockAckAggregationDisabledTest::DoRun(), PreservePacketsInAmpdus::DoRun(), OfdmaAckSequenceTest::DoRun(), TestUnsupportedModulationReception::DoRun(), Bug730TestCase::DoRun(), Bug2222TestCase::DoRun(), WifiTxopTest::DoRun(), ns3::PacketSocket::GetSockName(), Experiment::Run(), NetAnimExperiment::Run(), WifiChannelSwitchingTest::SendPacket(), UanExperiment::SendSinglePacket(), MultiLinkSetupTest::StartTraffic(), MultiLinkTxTest::StartTraffic(), MultiLinkMuTxTest::StartTraffic(), and ReleaseSeqNoAfterCtsTimeoutTest::StartTraffic().

Here is the caller graph for this function:

◆ SetProtocol()

void ns3::PacketSocketAddress::SetProtocol ( uint16_t protocol )

Set the protocol.

Parameters

protocol the protocol

Definition at line 35 of file packet-socket-address.cc.

References m_protocol, and NS_LOG_FUNCTION.

Referenced by ns3::NoBackhaulEpcHelper::AddEnb(), ConvertFrom(), PacketSocketAppsTest::DoRun(), SpectrumIdealPhyTestCase::DoRun(), CsmaPacketSocketTestCase::DoRun(), BlockAckAggregationDisabledTest::DoRun(), PreservePacketsInAmpdus::DoRun(), OfdmaAckSequenceTest::DoRun(), TestUnsupportedModulationReception::DoRun(), Bug730TestCase::DoRun(), Bug2222TestCase::DoRun(), WifiTxopTest::DoRun(), EmlsrOperationsTestBase::DoSetup(), MultiLinkOperationsTestBase::DoSetup(), ns3::PacketSocket::GetSockName(), Experiment::Run(), NetAnimExperiment::Run(), WifiChannelSwitchingTest::SendPacket(), UanExperiment::SendSinglePacket(), MultiLinkSetupTest::StartTraffic(), MultiLinkTxTest::StartTraffic(), MultiLinkMuTxTest::StartTraffic(), and ReleaseSeqNoAfterCtsTimeoutTest::StartTraffic().

Here is the caller graph for this function:

◆ SetSingleDevice()

void ns3::PacketSocketAddress::SetSingleDevice ( uint32_t device )

Set the address to match only a specified NetDevice.

Parameters

device the NetDevice index

Definition at line 50 of file packet-socket-address.cc.

References m_device, m_isSingleDevice, and NS_LOG_FUNCTION.

Referenced by ns3::NoBackhaulEpcHelper::AddEnb(), ConvertFrom(), PacketSocketAppsTest::DoRun(), SpectrumIdealPhyTestCase::DoRun(), CsmaPacketSocketTestCase::DoRun(), BlockAckAggregationDisabledTest::DoRun(), PreservePacketsInAmpdus::DoRun(), OfdmaAckSequenceTest::DoRun(), TestUnsupportedModulationReception::DoRun(), Bug730TestCase::DoRun(), QosFragmentationTestCase::DoRun(), Bug2222TestCase::DoRun(), WifiTxopTest::DoRun(), EmlsrOperationsTestBase::DoSetup(), MultiLinkOperationsTestBase::DoSetup(), ns3::PacketSocket::GetSockName(), Experiment::Run(), NetAnimExperiment::Run(), WifiChannelSwitchingTest::SendPacket(), UanExperiment::SendSinglePacket(), MultiLinkSetupTest::StartTraffic(), MultiLinkTxTest::StartTraffic(), MultiLinkMuTxTest::StartTraffic(), and ReleaseSeqNoAfterCtsTimeoutTest::StartTraffic().

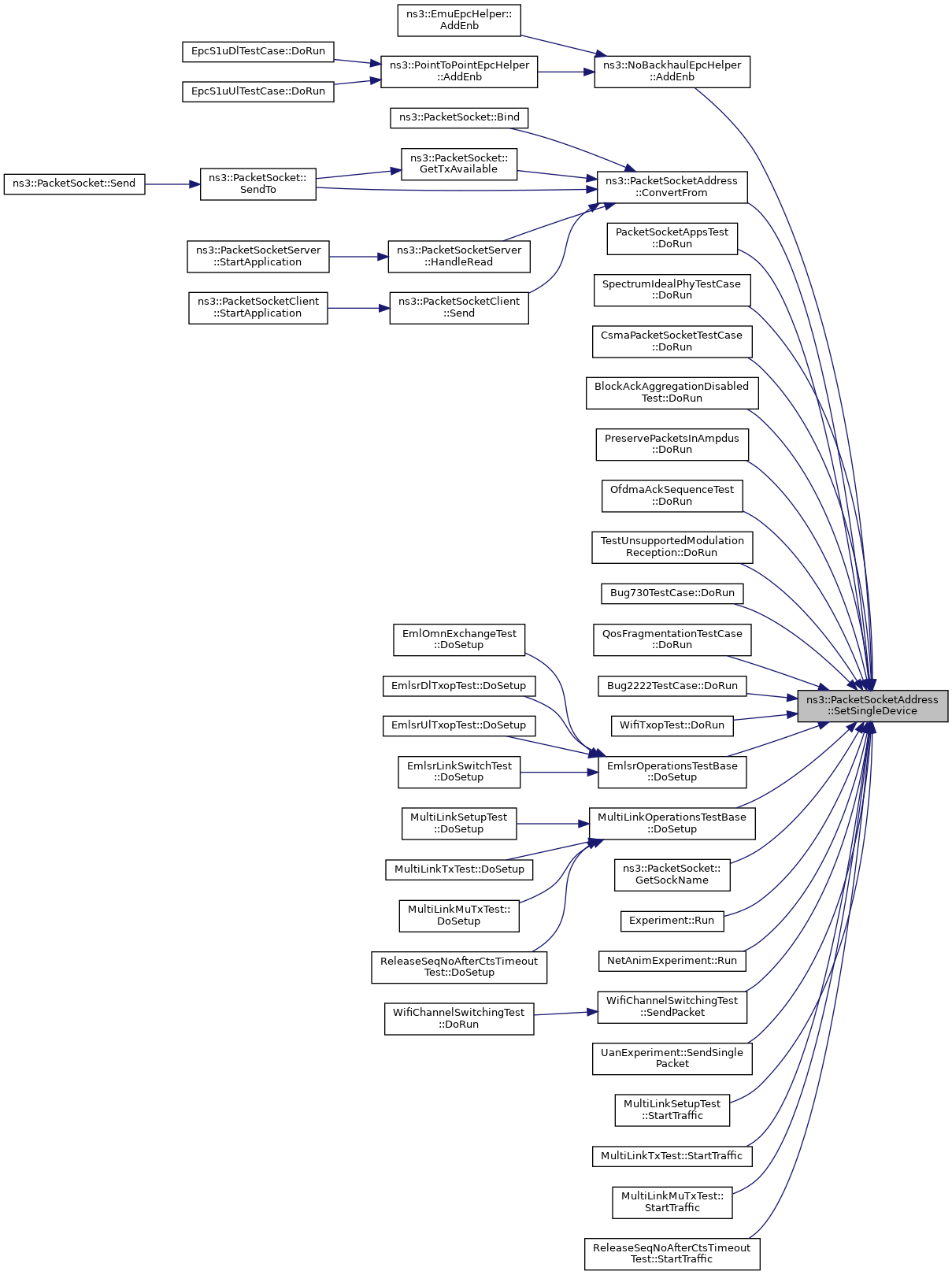

Here is the caller graph for this function:

Member Data Documentation

◆ m_address

Address ns3::PacketSocketAddress::m_address

private

Destination address.

Definition at line 128 of file packet-socket-address.h.

Referenced by ConvertTo(), GetPhysicalAddress(), and SetPhysicalAddress().

◆ m_device

uint32_t ns3::PacketSocketAddress::m_device

private

Outgoing NetDevice index.

Definition at line 127 of file packet-socket-address.h.

Referenced by ConvertTo(), GetSingleDevice(), SetAllDevices(), and SetSingleDevice().

◆ m_isSingleDevice

bool ns3::PacketSocketAddress::m_isSingleDevice

private

True if directed to a specific outgoing NetDevice.

Definition at line 126 of file packet-socket-address.h.

Referenced by ConvertTo(), IsSingleDevice(), SetAllDevices(), and SetSingleDevice().

◆ m_protocol

uint16_t ns3::PacketSocketAddress::m_protocol

private

Protocol.

Definition at line 125 of file packet-socket-address.h.

Referenced by ConvertTo(), GetProtocol(), and SetProtocol().

The documentation for this class was generated from the following files:

src/network/utils/packet-socket-address.h
src/network/utils/packet-socket-address.cc
