Helper class that adds RIP routing to nodes. More...

#include "rip-helper.h"

Inheritance diagram for ns3::RipHelper:

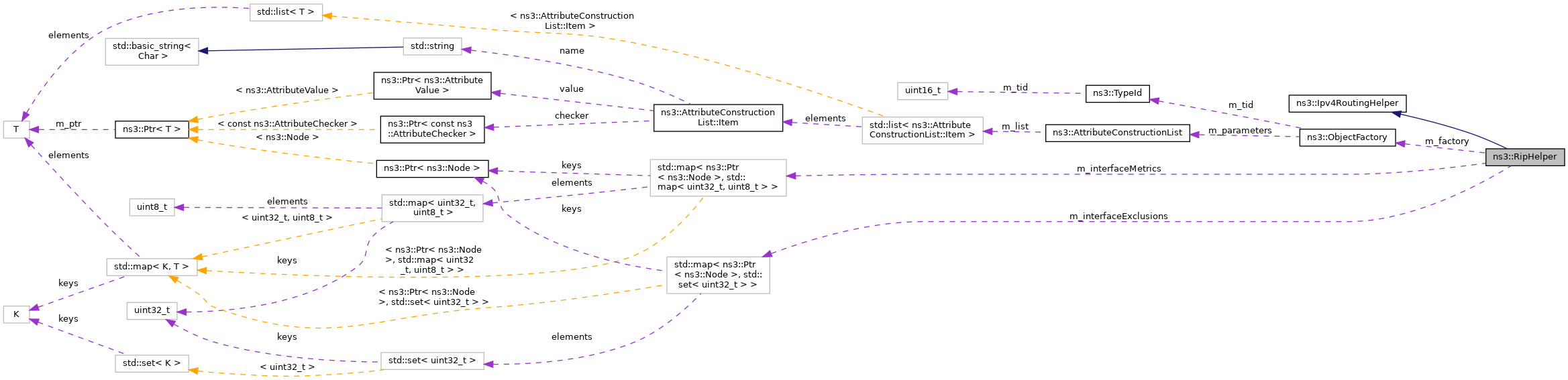

Collaboration diagram for ns3::RipHelper:

Public Member Functions
	RipHelper ()

	RipHelper (const RipHelper &o)
	Construct an RipHelper from another previously initialized instance (Copy Constructor). More...

	~RipHelper () override

int64_t	AssignStreams (NodeContainer c, int64_t stream)
	Assign a fixed random variable stream number to the random variables used by this model. More...

RipHelper *	Copy () const override

Ptr< Ipv4RoutingProtocol >	Create (Ptr< Node > node) const override

void	ExcludeInterface (Ptr< Node > node, uint32_t interface)
	Exclude an interface from RIP protocol. More...

RipHelper &	operator= (const RipHelper &)=delete

void	Set (std::string name, const AttributeValue &value)

void	SetDefaultRouter (Ptr< Node > node, Ipv4Address nextHop, uint32_t interface)
	Install a default route in the node. More...

void	SetInterfaceMetric (Ptr< Node > node, uint32_t interface, uint8_t metric)
	Set a metric for an interface. More...

Public Member Functions inherited from ns3::Ipv4RoutingHelper
virtual	~Ipv4RoutingHelper ()

Private Attributes
ObjectFactory	m_factory
	Object Factory. More...

std::map< Ptr< Node >, std::set< uint32_t > >	m_interfaceExclusions
	Interface Exclusion set. More...

std::map< Ptr< Node >, std::map< uint32_t, uint8_t > >	m_interfaceMetrics
	Interface Metric set. More...

Additional Inherited Members
Static Public Member Functions inherited from ns3::Ipv4RoutingHelper
template<class T >
static Ptr< T >	GetRouting (Ptr< Ipv4RoutingProtocol > protocol)
	Request a specified routing protocol <T> from Ipv4RoutingProtocol protocol. More...

static void	PrintNeighborCacheAllAt (Time printTime, Ptr< OutputStreamWrapper > stream, Time::Unit unit=Time::S)
	prints the neighbor cache of all nodes at a particular time. More...

static void	PrintNeighborCacheAllEvery (Time printInterval, Ptr< OutputStreamWrapper > stream, Time::Unit unit=Time::S)
	prints the neighbor cache of all nodes at regular intervals specified by user. More...

static void	PrintNeighborCacheAt (Time printTime, Ptr< Node > node, Ptr< OutputStreamWrapper > stream, Time::Unit unit=Time::S)
	prints the neighbor cache of a node at a particular time. More...

static void	PrintNeighborCacheEvery (Time printInterval, Ptr< Node > node, Ptr< OutputStreamWrapper > stream, Time::Unit unit=Time::S)
	prints the neighbor cache of a node at regular intervals specified by user. More...

static void	PrintRoutingTableAllAt (Time printTime, Ptr< OutputStreamWrapper > stream, Time::Unit unit=Time::S)
	prints the routing tables of all nodes at a particular time. More...

static void	PrintRoutingTableAllEvery (Time printInterval, Ptr< OutputStreamWrapper > stream, Time::Unit unit=Time::S)
	prints the routing tables of all nodes at regular intervals specified by user. More...

static void	PrintRoutingTableAt (Time printTime, Ptr< Node > node, Ptr< OutputStreamWrapper > stream, Time::Unit unit=Time::S)
	prints the routing tables of a node at a particular time. More...

static void	PrintRoutingTableEvery (Time printInterval, Ptr< Node > node, Ptr< OutputStreamWrapper > stream, Time::Unit unit=Time::S)
	prints the routing tables of a node at regular intervals specified by user. More...

Detailed Description

Helper class that adds RIP routing to nodes.

This class is expected to be used in conjunction with ns3::InternetStackHelper::SetRoutingHelper

Definition at line 41 of file rip-helper.h.

Constructor & Destructor Documentation

◆ RipHelper() [1/2]

ns3::RipHelper::RipHelper ( )

Definition at line 30 of file rip-helper.cc.

References m_factory, and ns3::ObjectFactory::SetTypeId().

Referenced by Copy().

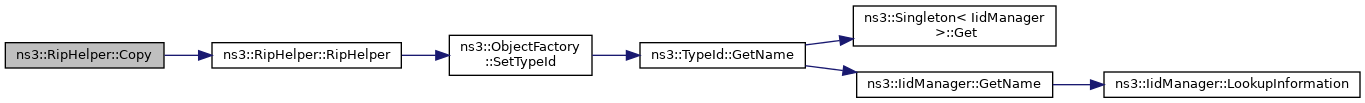

Here is the call graph for this function:

Here is the caller graph for this function:

◆ RipHelper() [2/2]

ns3::RipHelper::RipHelper ( const RipHelper & o )

Construct an RipHelper from another previously initialized instance (Copy Constructor).

Parameters

o	The object to copy from.

Definition at line 35 of file rip-helper.cc.

References m_interfaceExclusions, and m_interfaceMetrics.

◆ ~RipHelper()

ns3::RipHelper::~RipHelper ( )

override

Definition at line 42 of file rip-helper.cc.

References m_interfaceExclusions, and m_interfaceMetrics.

Member Function Documentation

◆ AssignStreams()

int64_t ns3::RipHelper::AssignStreams	(	NodeContainer	c,
		int64_t	stream
	)

Assign a fixed random variable stream number to the random variables used by this model.

Return the number of streams (possibly zero) that have been assigned. The Install() method should have previously been called by the user.

Parameters

c	NetDeviceContainer of the set of net devices for which the SixLowPanNetDevice should be modified to use a fixed stream
stream	first stream index to use
