Abstract base class for IPv4 routing protocols. More...

#include "ipv4-routing-protocol.h"

Inheritance diagram for ns3::Ipv4RoutingProtocol:

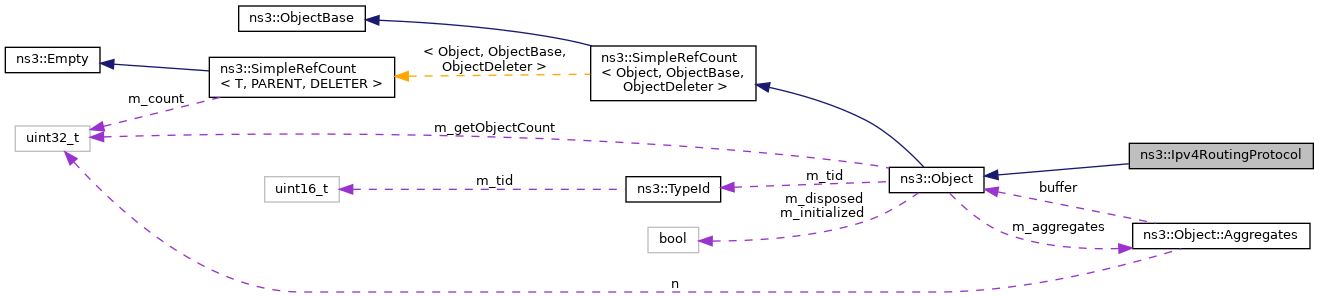

Collaboration diagram for ns3::Ipv4RoutingProtocol:

Public Types
typedef Callback< void, Ptr< const Packet >, const Ipv4Header &, Socket::SocketErrno >	ErrorCallback
	Callback for routing errors (e.g., no route found) More...

typedef Callback< void, Ptr< const Packet >, const Ipv4Header &, uint32_t >	LocalDeliverCallback
	Callback for packets to be locally delivered. More...

typedef Callback< void, Ptr< Ipv4MulticastRoute >, Ptr< const Packet >, const Ipv4Header & >	MulticastForwardCallback
	Callback for multicast packets to be forwarded. More...

typedef Callback< void, Ptr< Ipv4Route >, Ptr< const Packet >, const Ipv4Header & >	UnicastForwardCallback
	Callback for unicast packets to be forwarded. More...

Public Member Functions
virtual void	NotifyAddAddress (uint32_t interface, Ipv4InterfaceAddress address)=0

virtual void	NotifyInterfaceDown (uint32_t interface)=0

virtual void	NotifyInterfaceUp (uint32_t interface)=0

virtual void	NotifyRemoveAddress (uint32_t interface, Ipv4InterfaceAddress address)=0

virtual void	PrintRoutingTable (Ptr< OutputStreamWrapper > stream, Time::Unit unit=Time::S) const =0
	Print the Routing Table entries. More...

virtual bool	RouteInput (Ptr< const Packet > p, const Ipv4Header &header, Ptr< const NetDevice > idev, const UnicastForwardCallback &ucb, const MulticastForwardCallback &mcb, const LocalDeliverCallback &lcb, const ErrorCallback &ecb)=0
	Route an input packet (to be forwarded or locally delivered) More...

virtual Ptr< Ipv4Route >	RouteOutput (Ptr< Packet > p, const Ipv4Header &header, Ptr< NetDevice > oif, Socket::SocketErrno &sockerr)=0
	Query routing cache for an existing route, for an outbound packet. More...

virtual void	SetIpv4 (Ptr< Ipv4 > ipv4)=0

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

	~Object () override
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose ()
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator () const
	Get an iterator to the Objects aggregated to this one. More...

TypeId	GetInstanceTypeId () const override
	Get the most derived TypeId for this Object. More...

template<typename T >
Ptr< T >	GetObject () const
	Get a pointer to the requested aggregated Object. More...

template<>
Ptr< Object >	GetObject () const
	Specialization of () for objects of type ns3::Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< Object >	GetObject (TypeId tid) const
	Specialization of (TypeId tid) for objects of type ns3::Object. More...

void	Initialize ()
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized () const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
	Copy constructor. More...

uint32_t	GetReferenceCount () const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o[[maybe_unused]])
	Assignment operator. More...

void	Ref () const
	Increment the reference count. More...

void	Unref () const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising errors. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId ()
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId ()
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId ()
	Get the type ID. More...

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	DoDispose ()
	Destructor implementation. More...

virtual void	DoInitialize ()
	Initialize() implementation. More...

virtual void	NotifyNewAggregate ()
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted ()
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid ()
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

Abstract base class for IPv4 routing protocols.

Defines two virtual functions for packet routing and forwarding. The first, RouteOutput(), is used for locally originated packets, and the second, RouteInput(), is used for forwarding and/or delivering received packets. Also defines the signatures of four callbacks used in RouteInput().

Definition at line 57 of file ipv4-routing-protocol.h.

Member Typedef Documentation

◆ ErrorCallback

typedef Callback<void, Ptr<const Packet>, const Ipv4Header&, Socket::SocketErrno> ns3::Ipv4RoutingProtocol::ErrorCallback

Callback for routing errors (e.g., no route found)

Definition at line 78 of file ipv4-routing-protocol.h.

◆ LocalDeliverCallback

typedef Callback<void, Ptr<const Packet>, const Ipv4Header&, uint32_t> ns3::Ipv4RoutingProtocol::LocalDeliverCallback

Callback for packets to be locally delivered.

Definition at line 75 of file ipv4-routing-protocol.h.

◆ MulticastForwardCallback

typedef Callback<void, Ptr<Ipv4MulticastRoute>, Ptr<const Packet>, const Ipv4Header&> ns3::Ipv4RoutingProtocol::MulticastForwardCallback

Callback for multicast packets to be forwarded.

Definition at line 72 of file ipv4-routing-protocol.h.

◆ UnicastForwardCallback

typedef Callback<void, Ptr<Ipv4Route>, Ptr<const Packet>, const Ipv4Header&> ns3::Ipv4RoutingProtocol::UnicastForwardCallback

Callback for unicast packets to be forwarded.

Definition at line 68 of file ipv4-routing-protocol.h.

Member Function Documentation

◆ GetTypeId()

TypeId ns3::Ipv4RoutingProtocol::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 31 of file ipv4-routing-protocol.cc.

References ns3::TypeId::SetParent().

Here is the call graph for this function:

◆ NotifyAddAddress()

virtual void ns3::Ipv4RoutingProtocol::NotifyAddAddress	(	uint32_t	interface,
		Ipv4InterfaceAddress	address
	)

pure virtual

Parameters

interface	the index of the interface we are being notified about
address	a new address being added to an interface

Protocols are expected to implement this method to be notified whenever a new address is added to an interface. Typically used to add a 'network route' on an interface. Can be invoked on an up or down interface.

Implemented in ns3::olsr::RoutingProtocol, ns3::Ipv4BRouting, ns3::Ipv4ARouting, ns3::Rip, ns3::Ipv4StaticRouting, ns3::Ipv4ListRouting, ns3::Ipv4GlobalRouting, ns3::dsdv::RoutingProtocol, ns3::Ipv4ClickRouting, and ns3::aodv::RoutingProtocol.

◆ NotifyInterfaceDown()

virtual void ns3::Ipv4RoutingProtocol::NotifyInterfaceDown ( uint32_t interface )

pure virtual

Parameters

interface the index of the interface we are being notified about

Protocols are expected to implement this method to be notified of the state change of an interface in a node.

Implemented in ns3::olsr::RoutingProtocol, ns3::Ipv4BRouting, ns3::Ipv4ARouting, ns3::Rip, ns3::Ipv4StaticRouting, ns3::Ipv4ListRouting, ns3::Ipv4GlobalRouting, ns3::dsdv::RoutingProtocol, ns3::Ipv4ClickRouting, and ns3::aodv::RoutingProtocol.

◆ NotifyInterfaceUp()

virtual void ns3::Ipv4RoutingProtocol::NotifyInterfaceUp ( uint32_t interface )

pure virtual

Parameters

interface the index of the interface we are being notified about

Protocols are expected to implement this method to be notified of the state change of an interface in a node.

Implemented in ns3::olsr::RoutingProtocol, ns3::Ipv4BRouting, ns3::Ipv4ARouting, ns3::Rip, ns3::Ipv4StaticRouting, ns3::Ipv4ListRouting, ns3::Ipv4GlobalRouting, ns3::dsdv::RoutingProtocol, ns3::Ipv4ClickRouting, and ns3::aodv::RoutingProtocol.

◆ NotifyRemoveAddress()

virtual void ns3::Ipv4RoutingProtocol::NotifyRemoveAddress	(	uint32_t	interface,
		Ipv4InterfaceAddress	address
	)

pure virtual

Parameters

interface	the index of the interface we are being notified about
address	a new address being added to an interface

Protocols are expected to implement this method to be notified whenever a new address is removed from an interface. Typically used to remove the 'network route' of an interface. Can be invoked on an up or down interface.

Implemented in ns3::olsr::RoutingProtocol, ns3::Ipv4BRouting, ns3::Ipv4ARouting, ns3::Rip, ns3::Ipv4StaticRouting, ns3::Ipv4ListRouting, ns3::Ipv4GlobalRouting, ns3::dsdv::RoutingProtocol, ns3::Ipv4ClickRouting, and ns3::aodv::RoutingProtocol.

◆ PrintRoutingTable()

virtual void ns3::Ipv4RoutingProtocol::PrintRoutingTable	(	Ptr< OutputStreamWrapper >	stream,
		Time::Unit	unit = `Time::S`
	)		const

pure virtual

Print the Routing Table entries.

Parameters

stream	The ostream the Routing table is printed to
unit	The time unit to be used in the report

Implemented in ns3::olsr::RoutingProtocol, ns3::Rip, ns3::Ipv4StaticRouting, ns3::Ipv4ListRouting, ns3::Ipv4GlobalRouting, ns3::dsdv::RoutingProtocol, ns3::Ipv4ClickRouting, ns3::aodv::RoutingProtocol, ns3::Ipv4BRouting, and ns3::Ipv4ARouting.

◆ RouteInput()

virtual bool ns3::Ipv4RoutingProtocol::RouteInput	(	Ptr< const Packet >	p,
		const Ipv4Header &	header,
		Ptr< const NetDevice >	idev,
		const UnicastForwardCallback &	ucb,
		const MulticastForwardCallback &	mcb,
		const LocalDeliverCallback &	lcb,
		const ErrorCallback &	ecb
	)

pure virtual

Route an input packet (to be forwarded or locally delivered)

This lookup is used in the forwarding process. The packet is handed over to the Ipv4RoutingProtocol, and will get forwarded onward by one of the callbacks. The Linux equivalent is ip_route_input(). There are four valid outcomes, and a matching callbacks to handle each.

Parameters

p	received packet
header	input parameter used to form a search key for a route
idev	Pointer to ingress network device
ucb	Callback for the case in which the packet is to be forwarded as unicast
mcb	Callback for the case in which the packet is to be forwarded as multicast
lcb	Callback for the case in which the packet is to be locally delivered
ecb	Callback to call if there is an error in forwarding

Returns: true if the Ipv4RoutingProtocol takes responsibility for forwarding or delivering the packet, false otherwise

Implemented in ns3::olsr::RoutingProtocol, ns3::Ipv4BRouting, ns3::Ipv4ARouting, ns3::Rip, ns3::Ipv4StaticRouting, ns3::Ipv4ListRouting, ns3::Ipv4GlobalRouting, ns3::dsdv::RoutingProtocol, ns3::Ipv4ClickRouting, and ns3::aodv::RoutingProtocol.

◆ RouteOutput()

virtual Ptr<Ipv4Route> ns3::Ipv4RoutingProtocol::RouteOutput	(	Ptr< Packet >	p,
		const Ipv4Header &	header,
		Ptr< NetDevice >	oif,
		Socket::SocketErrno &	sockerr
	)

pure virtual

Query routing cache for an existing route, for an outbound packet.

This lookup is used by transport protocols. It does not cause any packet to be forwarded, and is synchronous. Can be used for multicast or unicast. The Linux equivalent is ip_route_output()

The header input parameter may have an uninitialized value for the source address, but the destination address should always be properly set by the caller.

Parameters

p	packet to be routed. Note that this method may modify the packet. Callers may also pass in a null pointer.
header	input parameter (used to form key to search for the route)
oif	Output interface Netdevice. May be zero, or may be bound via socket options to a particular output interface.
sockerr	Output parameter; socket errno

Returns: a code that indicates what happened in the lookup

Implemented in ns3::olsr::RoutingProtocol, ns3::Ipv4BRouting, ns3::Ipv4ARouting, ns3::Rip, ns3::Ipv4StaticRouting, ns3::Ipv4ListRouting, ns3::Ipv4GlobalRouting, ns3::dsdv::RoutingProtocol, ns3::Ipv4ClickRouting, and ns3::aodv::RoutingProtocol.

◆ SetIpv4()

virtual void ns3::Ipv4RoutingProtocol::SetIpv4 ( Ptr< Ipv4 > ipv4 )

pure virtual

Parameters

ipv4	the ipv4 object this routing protocol is being associated with

Typically, invoked directly or indirectly from ns3::Ipv4::SetRoutingProtocol

Implemented in ns3::olsr::RoutingProtocol, ns3::Ipv4BRouting, ns3::Ipv4ARouting, ns3::Rip, ns3::Ipv4StaticRouting, ns3::Ipv4ListRouting, ns3::Ipv4GlobalRouting, ns3::dsdv::RoutingProtocol, ns3::Ipv4ClickRouting, and ns3::aodv::RoutingProtocol.

The documentation for this class was generated from the following files:

src/internet/model/ipv4-routing-protocol.h
