Global routing protocol for IPv4 stacks. More...

#include "ipv4-global-routing.h"

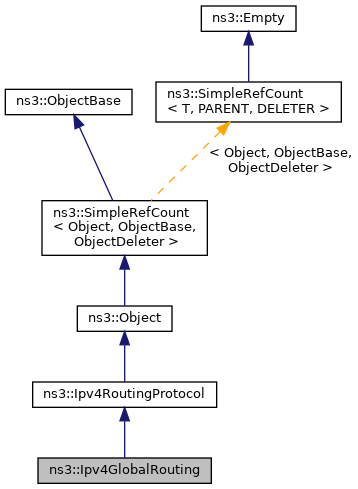

Inheritance diagram for ns3::Ipv4GlobalRouting:

Collaboration diagram for ns3::Ipv4GlobalRouting:

Public Member Functions
	Ipv4GlobalRouting ()
	Construct an empty Ipv4GlobalRouting routing protocol,. More...

	~Ipv4GlobalRouting () override

void	AddASExternalRouteTo (Ipv4Address network, Ipv4Mask networkMask, Ipv4Address nextHop, uint32_t interface)
	Add an external route to the global routing table. More...

void	AddHostRouteTo (Ipv4Address dest, Ipv4Address nextHop, uint32_t interface)
	Add a host route to the global routing table. More...

void	AddHostRouteTo (Ipv4Address dest, uint32_t interface)
	Add a host route to the global routing table. More...

void	AddNetworkRouteTo (Ipv4Address network, Ipv4Mask networkMask, Ipv4Address nextHop, uint32_t interface)
	Add a network route to the global routing table. More...

void	AddNetworkRouteTo (Ipv4Address network, Ipv4Mask networkMask, uint32_t interface)
	Add a network route to the global routing table. More...

int64_t	AssignStreams (int64_t stream)
	Assign a fixed random variable stream number to the random variables used by this model. More...

uint32_t	GetNRoutes () const
	Get the number of individual unicast routes that have been added to the routing table. More...

Ipv4RoutingTableEntry *	GetRoute (uint32_t i) const
	Get a route from the global unicast routing table. More...

void	NotifyAddAddress (uint32_t interface, Ipv4InterfaceAddress address) override

void	NotifyInterfaceDown (uint32_t interface) override

void	NotifyInterfaceUp (uint32_t interface) override

void	NotifyRemoveAddress (uint32_t interface, Ipv4InterfaceAddress address) override

void	PrintRoutingTable (Ptr< OutputStreamWrapper > stream, Time::Unit unit=Time::S) const override
	Print the Routing Table entries. More...

void	RemoveRoute (uint32_t i)
	Remove a route from the global unicast routing table. More...

bool	RouteInput (Ptr< const Packet > p, const Ipv4Header &header, Ptr< const NetDevice > idev, const UnicastForwardCallback &ucb, const MulticastForwardCallback &mcb, const LocalDeliverCallback &lcb, const ErrorCallback &ecb) override
	Route an input packet (to be forwarded or locally delivered) More...

Ptr< Ipv4Route >	RouteOutput (Ptr< Packet > p, const Ipv4Header &header, Ptr< NetDevice > oif, Socket::SocketErrno &sockerr) override
	Query routing cache for an existing route, for an outbound packet. More...

void	SetIpv4 (Ptr< Ipv4 > ipv4) override

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

	~Object () override
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose ()
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator () const
	Get an iterator to the Objects aggregated to this one. More...

TypeId	GetInstanceTypeId () const override
	Get the most derived TypeId for this Object. More...

template<typename T >
Ptr< T >	GetObject () const
	Get a pointer to the requested aggregated Object. More...

template<>
Ptr< Object >	GetObject () const
	Specialization of () for objects of type ns3::Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< Object >	GetObject (TypeId tid) const
	Specialization of (TypeId tid) for objects of type ns3::Object. More...

void	Initialize ()
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized () const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
	Copy constructor. More...

uint32_t	GetReferenceCount () const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o[[maybe_unused]])
	Assignment operator. More...

void	Ref () const
	Increment the reference count. More...

void	Unref () const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising errors. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId ()
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Ipv4RoutingProtocol
static TypeId	GetTypeId ()
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId ()
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId ()
	Get the type ID. More...

Protected Member Functions
void	DoDispose () override
	Destructor implementation. More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	DoInitialize ()
	Initialize() implementation. More...

virtual void	NotifyNewAggregate ()
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted ()
	Notifier called once the ObjectBase is fully constructed. More...

Private Types
typedef std::list< Ipv4RoutingTableEntry * >	ASExternalRoutes
	container of Ipv4RoutingTableEntry (routes to external AS) More...

typedef std::list< Ipv4RoutingTableEntry * >::const_iterator	ASExternalRoutesCI
	const iterator of container of Ipv4RoutingTableEntry (routes to external AS) More...

typedef std::list< Ipv4RoutingTableEntry * >::iterator	ASExternalRoutesI
	iterator of container of Ipv4RoutingTableEntry (routes to external AS) More...

typedef std::list< Ipv4RoutingTableEntry * >	HostRoutes
	container of Ipv4RoutingTableEntry (routes to hosts) More...

typedef std::list< Ipv4RoutingTableEntry * >::const_iterator	HostRoutesCI
	const iterator of container of Ipv4RoutingTableEntry (routes to hosts) More...

typedef std::list< Ipv4RoutingTableEntry * >::iterator	HostRoutesI
	iterator of container of Ipv4RoutingTableEntry (routes to hosts) More...

typedef std::list< Ipv4RoutingTableEntry * >	NetworkRoutes
	container of Ipv4RoutingTableEntry (routes to networks) More...

typedef std::list< Ipv4RoutingTableEntry * >::const_iterator	NetworkRoutesCI
	const iterator of container of Ipv4RoutingTableEntry (routes to networks) More...

typedef std::list< Ipv4RoutingTableEntry * >::iterator	NetworkRoutesI
	iterator of container of Ipv4RoutingTableEntry (routes to networks) More...

Private Member Functions
Ptr< Ipv4Route >	LookupGlobal (Ipv4Address dest, Ptr< NetDevice > oif=nullptr)
	Lookup in the forwarding table for destination. More...

Private Attributes
ASExternalRoutes	m_ASexternalRoutes
	External routes imported. More...

HostRoutes	m_hostRoutes
	Routes to hosts. More...

Ptr< Ipv4 >	m_ipv4
	associated IPv4 instance More...

NetworkRoutes	m_networkRoutes
	Routes to networks. More...

Ptr< UniformRandomVariable >	m_rand
	A uniform random number generator for randomly routing packets among ECMP. More...

bool	m_randomEcmpRouting
	Set to true if packets are randomly routed among ECMP; set to false for using only one route consistently. More...

bool	m_respondToInterfaceEvents
	Set to true if this interface should respond to interface events by globallly recomputing routes. More...

Additional Inherited Members
Public Types inherited from ns3::Ipv4RoutingProtocol
typedef Callback< void, Ptr< const Packet >, const Ipv4Header &, Socket::SocketErrno >	ErrorCallback
	Callback for routing errors (e.g., no route found) More...

typedef Callback< void, Ptr< const Packet >, const Ipv4Header &, uint32_t >	LocalDeliverCallback
	Callback for packets to be locally delivered. More...

typedef Callback< void, Ptr< Ipv4MulticastRoute >, Ptr< const Packet >, const Ipv4Header & >	MulticastForwardCallback
	Callback for multicast packets to be forwarded. More...

typedef Callback< void, Ptr< Ipv4Route >, Ptr< const Packet >, const Ipv4Header & >	UnicastForwardCallback
	Callback for unicast packets to be forwarded. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid ()
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

Global routing protocol for IPv4 stacks.

In ns-3 we have the concept of a pluggable routing protocol. Routing protocols are added to a list maintained by the Ipv4L3Protocol. Every stack gets one routing protocol for free – the Ipv4StaticRouting routing protocol is added in the constructor of the Ipv4L3Protocol (this is the piece of code that implements the functionality of the IP layer).

As an option to running a dynamic routing protocol, a GlobalRouteManager object has been created to allow users to build routes for all participating nodes. One can think of this object as a "routing oracle"; it has an omniscient view of the topology, and can construct shortest path routes between all pairs of nodes. These routes must be stored somewhere in the node, so therefore this class Ipv4GlobalRouting is used as one of the pluggable routing protocols. It is kept distinct from Ipv4StaticRouting because these routes may be dynamically cleared and rebuilt in the middle of the simulation, while manually entered routes into the Ipv4StaticRouting may need to be kept distinct.

This class deals with Ipv4 unicast routes only.

See also: Ipv4RoutingProtocol; GlobalRouteManager

Definition at line 72 of file ipv4-global-routing.h.

Member Typedef Documentation

◆ ASExternalRoutes

typedef std::list<Ipv4RoutingTableEntry*> ns3::Ipv4GlobalRouting::ASExternalRoutes

private

container of Ipv4RoutingTableEntry (routes to external AS)

Definition at line 263 of file ipv4-global-routing.h.

◆ ASExternalRoutesCI

typedef std::list<Ipv4RoutingTableEntry*>::const_iterator ns3::Ipv4GlobalRouting::ASExternalRoutesCI

private

const iterator of container of Ipv4RoutingTableEntry (routes to external AS)

Definition at line 265 of file ipv4-global-routing.h.

◆ ASExternalRoutesI

typedef std::list<Ipv4RoutingTableEntry*>::iterator ns3::Ipv4GlobalRouting::ASExternalRoutesI

private

iterator of container of Ipv4RoutingTableEntry (routes to external AS)

Definition at line 267 of file ipv4-global-routing.h.

◆ HostRoutes

typedef std::list<Ipv4RoutingTableEntry*> ns3::Ipv4GlobalRouting::HostRoutes

private

container of Ipv4RoutingTableEntry (routes to hosts)

Definition at line 249 of file ipv4-global-routing.h.

◆ HostRoutesCI

typedef std::list<Ipv4RoutingTableEntry*>::const_iterator ns3::Ipv4GlobalRouting::HostRoutesCI

private

const iterator of container of Ipv4RoutingTableEntry (routes to hosts)

Definition at line 251 of file ipv4-global-routing.h.

◆ HostRoutesI

typedef std::list<Ipv4RoutingTableEntry*>::iterator ns3::Ipv4GlobalRouting::HostRoutesI

private

iterator of container of Ipv4RoutingTableEntry (routes to hosts)

Definition at line 253 of file ipv4-global-routing.h.

◆ NetworkRoutes

typedef std::list<Ipv4RoutingTableEntry*> ns3::Ipv4GlobalRouting::NetworkRoutes

private

container of Ipv4RoutingTableEntry (routes to networks)

Definition at line 256 of file ipv4-global-routing.h.

◆ NetworkRoutesCI

typedef std::list<Ipv4RoutingTableEntry*>::const_iterator ns3::Ipv4GlobalRouting::NetworkRoutesCI

private

const iterator of container of Ipv4RoutingTableEntry (routes to networks)

Definition at line 258 of file ipv4-global-routing.h.

◆ NetworkRoutesI

typedef std::list<Ipv4RoutingTableEntry*>::iterator ns3::Ipv4GlobalRouting::NetworkRoutesI

private

iterator of container of Ipv4RoutingTableEntry (routes to networks)

Definition at line 260 of file ipv4-global-routing.h.

Constructor & Destructor Documentation

◆ Ipv4GlobalRouting()

ns3::Ipv4GlobalRouting::Ipv4GlobalRouting ( )

Construct an empty Ipv4GlobalRouting routing protocol,.

The Ipv4GlobalRouting class supports host and network unicast routes. This method initializes the lists containing these routes to empty.

See also: Ipv4GlobalRouting

Definition at line 65 of file ipv4-global-routing.cc.

References m_rand, and NS_LOG_FUNCTION.

◆ ~Ipv4GlobalRouting()

ns3::Ipv4GlobalRouting::~Ipv4GlobalRouting ( )

override

Definition at line 74 of file ipv4-global-routing.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

◆ AddASExternalRouteTo()

void ns3::Ipv4GlobalRouting::AddASExternalRouteTo	(	Ipv4Address	network,
		Ipv4Mask	networkMask,
		Ipv4Address	nextHop,
		uint32_t	interface
	)

Add an external route to the global routing table.

Parameters

network	The Ipv4Address network for this route.
networkMask	The Ipv4Mask to extract the network.
nextHop	The next hop Ipv4Address
interface	The network interface index used to send packets to the destination.

Definition at line 119 of file ipv4-global-routing.cc.

References ns3::Ipv4RoutingTableEntry::CreateNetworkRouteTo(), m_ASexternalRoutes, and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ AddHostRouteTo() [1/2]

void ns3::Ipv4GlobalRouting::AddHostRouteTo	(	Ipv4Address	dest,
		Ipv4Address	nextHop,
		uint32_t	interface
	)

Add a host route to the global routing table.

Parameters

dest	The Ipv4Address destination for this route.
nextHop	The Ipv4Address of the next hop in the route.
interface	The network interface index used to send packets to the destination.

See also: Ipv4Address

Definition at line 80 of file ipv4-global-routing.cc.

References ns3::Ipv4RoutingTableEntry::CreateHostRouteTo(), m_hostRoutes, and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ AddHostRouteTo() [2/2]

void ns3::Ipv4GlobalRouting::AddHostRouteTo	(	Ipv4Address	dest,
		uint32_t	interface
	)

Add a host route to the global routing table.

Parameters

dest	The Ipv4Address destination for this route.
interface	The network interface index used to send packets to the destination.

See also: Ipv4Address

Definition at line 89 of file ipv4-global-routing.cc.

References ns3::Ipv4RoutingTableEntry::CreateHostRouteTo(), m_hostRoutes, and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ AddNetworkRouteTo() [1/2]

void ns3::Ipv4GlobalRouting::AddNetworkRouteTo	(	Ipv4Address	network,
		Ipv4Mask	networkMask,
		Ipv4Address	nextHop,
		uint32_t	interface
	)

Add a network route to the global routing table.

Parameters

network	The Ipv4Address network for this route.
networkMask	The Ipv4Mask to extract the network.
nextHop	The next hop in the route to the destination network.
interface	The network interface index used to send packets to the destination.

See also: Ipv4Address

Definition at line 98 of file ipv4-global-routing.cc.

References ns3::Ipv4RoutingTableEntry::CreateNetworkRouteTo(), m_networkRoutes, and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ AddNetworkRouteTo() [2/2]

void ns3::Ipv4GlobalRouting::AddNetworkRouteTo	(	Ipv4Address	network,
		Ipv4Mask	networkMask,
		uint32_t	interface
	)

Add a network route to the global routing table.

Parameters

network	The Ipv4Address network for this route.
networkMask	The Ipv4Mask to extract the network.
interface	The network interface index used to send packets to the destination.

See also: Ipv4Address

Definition at line 110 of file ipv4-global-routing.cc.

References ns3::Ipv4RoutingTableEntry::CreateNetworkRouteTo(), m_networkRoutes, and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ AssignStreams()

int64_t ns3::Ipv4GlobalRouting::AssignStreams ( int64_t stream )

Assign a fixed random variable stream number to the random variables used by this model.

Return the number of streams (possibly zero) that have been assigned.

Parameters

stream first stream index to use

Returns: the number of stream indices assigned by this model

Definition at line 343 of file ipv4-global-routing.cc.

References m_rand, NS_LOG_FUNCTION, and ns3::RandomVariableStream::SetStream().

Here is the call graph for this function:

◆ DoDispose()

void ns3::Ipv4GlobalRouting::DoDispose ( void )

overrideprotectedvirtual

Destructor implementation.

This method is called by Dispose() or by the Object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overridden version of this method and chain up to their parent's implementation once they are done. i.e, for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose() method.

It is safe to call GetObject() from within this method.

Reimplemented from ns3::Object.

Definition at line 351 of file ipv4-global-routing.cc.

References ns3::Object::DoDispose(), m_ASexternalRoutes, m_hostRoutes, m_networkRoutes, and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ GetNRoutes()

uint32_t ns3::Ipv4GlobalRouting::GetNRoutes ( ) const

Get the number of individual unicast routes that have been added to the routing table.

Warning: The default route counts as one of the routes.

Returns: the number of routes

Definition at line 234 of file ipv4-global-routing.cc.

References m_ASexternalRoutes, m_hostRoutes, m_networkRoutes, and NS_LOG_FUNCTION.

Referenced by PrintRoutingTable().

Here is the caller graph for this function:

◆ GetRoute()

Ipv4RoutingTableEntry * ns3::Ipv4GlobalRouting::GetRoute ( uint32_t i ) const

Get a route from the global unicast routing table.

Externally, the unicast global routing table appears simply as a table with n entries. The one subtlety of note is that if a default route has been set it will appear as the zeroth entry in the table. This means that if you add only a default route, the table will have one entry that can be accessed either by explicitly calling GetDefaultRoute () or by calling GetRoute (0).

Similarly, if the default route has been set, calling RemoveRoute (0) will remove the default route.

Parameters

i	The index (into the routing table) of the route to retrieve. If the default route has been set, it will occupy index zero.

Returns: If route is set, a pointer to that Ipv4RoutingTableEntry is returned, otherwise a zero pointer is returned.

See also: Ipv4RoutingTableEntry; Ipv4GlobalRouting::RemoveRoute

Definition at line 245 of file ipv4-global-routing.cc.

References two-ray-to-three-gpp-ch-calibration::k, m_ASexternalRoutes, m_hostRoutes, m_networkRoutes, NS_ASSERT, and NS_LOG_FUNCTION.

Referenced by PrintRoutingTable().

Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::Ipv4GlobalRouting::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 44 of file ipv4-global-routing.cc.

References m_randomEcmpRouting, m_respondToInterfaceEvents, ns3::MakeBooleanAccessor(), ns3::MakeBooleanChecker(), and ns3::TypeId::SetParent().

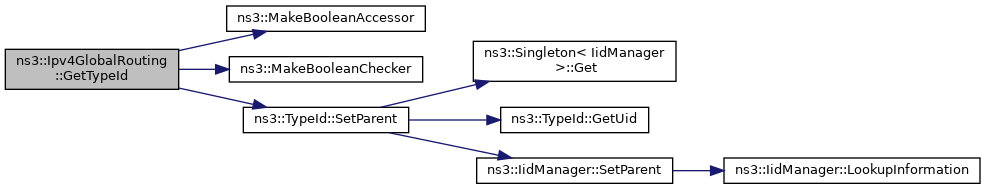

Here is the call graph for this function:

◆ LookupGlobal()

Ptr< Ipv4Route > ns3::Ipv4GlobalRouting::LookupGlobal	(	Ipv4Address	dest,
		Ptr< NetDevice >	oif = `nullptr`
	)

private

Lookup in the forwarding table for destination.

Parameters

dest	destination address
oif	output interface if any (put 0 otherwise)

Returns: Ipv4Route to route the packet to reach dest address

Todo:: handle multi-address case

Definition at line 131 of file ipv4-global-routing.cc.

References ns3::Ipv4RoutingTableEntry::GetDest(), ns3::Ipv4RoutingTableEntry::GetGateway(), ns3::UniformRandomVariable::GetInteger(), ns3::Ipv4RoutingTableEntry::GetInterface(), ns3::Ipv4Mask::IsMatch(), two-ray-to-three-gpp-ch-calibration::k, m_ASexternalRoutes, m_hostRoutes, m_ipv4, m_networkRoutes, m_rand, m_randomEcmpRouting, NS_ASSERT, NS_LOG_FUNCTION, and NS_LOG_LOGIC.

Referenced by RouteInput(), and RouteOutput().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ NotifyAddAddress()

void ns3::Ipv4GlobalRouting::NotifyAddAddress	(	uint32_t	interface,
		Ipv4InterfaceAddress	address
	)

overridevirtual

Parameters

interface	the index of the interface we are being notified about
address	a new address being added to an interface

Protocols are expected to implement this method to be notified whenever a new address is added to an interface. Typically used to add a 'network route' on an interface. Can be invoked on an up or down interface.

Implements ns3::Ipv4RoutingProtocol.

Definition at line 554 of file ipv4-global-routing.cc.

References first::address, ns3::GlobalRouteManager::BuildGlobalRoutingDatabase(), ns3::GlobalRouteManager::DeleteGlobalRoutes(), ns3::GlobalRouteManager::InitializeRoutes(), m_respondToInterfaceEvents, ns3::Simulator::Now(), and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ NotifyInterfaceDown()

void ns3::Ipv4GlobalRouting::NotifyInterfaceDown ( uint32_t interface )

overridevirtual

Parameters

interface the index of the interface we are being notified about

Protocols are expected to implement this method to be notified of the state change of an interface in a node.

Implements ns3::Ipv4RoutingProtocol.

Definition at line 542 of file ipv4-global-routing.cc.

References ns3::GlobalRouteManager::BuildGlobalRoutingDatabase(), ns3::GlobalRouteManager::DeleteGlobalRoutes(), ns3::GlobalRouteManager::InitializeRoutes(), m_respondToInterfaceEvents, ns3::Simulator::Now(), and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ NotifyInterfaceUp()

void ns3::Ipv4GlobalRouting::NotifyInterfaceUp ( uint32_t interface )

overridevirtual

Parameters

interface the index of the interface we are being notified about

Protocols are expected to implement this method to be notified of the state change of an interface in a node.

Implements ns3::Ipv4RoutingProtocol.

Definition at line 530 of file ipv4-global-routing.cc.

References ns3::GlobalRouteManager::BuildGlobalRoutingDatabase(), ns3::GlobalRouteManager::DeleteGlobalRoutes(), ns3::GlobalRouteManager::InitializeRoutes(), m_respondToInterfaceEvents, ns3::Simulator::Now(), and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ NotifyRemoveAddress()

void ns3::Ipv4GlobalRouting::NotifyRemoveAddress	(	uint32_t	interface,
		Ipv4InterfaceAddress	address
	)

overridevirtual

Parameters

interface	the index of the interface we are being notified about
address	a new address being added to an interface

Protocols are expected to implement this method to be notified whenever a new address is removed from an interface. Typically used to remove the 'network route' of an interface. Can be invoked on an up or down interface.

Implements ns3::Ipv4RoutingProtocol.

Definition at line 566 of file ipv4-global-routing.cc.

References first::address, ns3::GlobalRouteManager::BuildGlobalRoutingDatabase(), ns3::GlobalRouteManager::DeleteGlobalRoutes(), ns3::GlobalRouteManager::InitializeRoutes(), m_respondToInterfaceEvents, ns3::Simulator::Now(), and NS_LOG_FUNCTION.

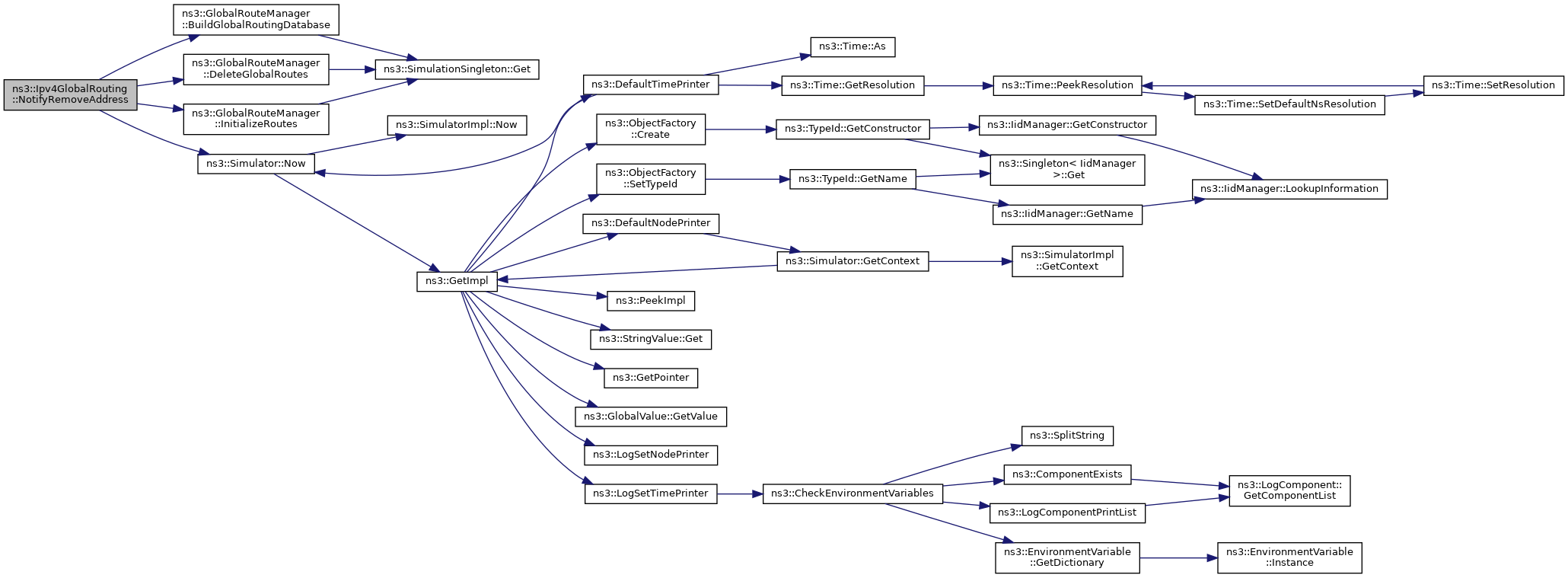

Here is the call graph for this function:

◆ PrintRoutingTable()

void ns3::Ipv4GlobalRouting::PrintRoutingTable	(	Ptr< OutputStreamWrapper >	stream,
		Time::Unit	unit = `Time::S`
	)		const

overridevirtual

Print the Routing Table entries.

Parameters

stream	The ostream the Routing table is printed to
unit	The time unit to be used in the report

Implements ns3::Ipv4RoutingProtocol.

Definition at line 373 of file ipv4-global-routing.cc.

References ns3::Time::As(), ns3::Names::FindName(), ns3::Ipv4RoutingTableEntry::GetDest(), ns3::Ipv4RoutingTableEntry::GetDestNetworkMask(), ns3::Ipv4RoutingTableEntry::GetGateway(), ns3::Ipv4RoutingTableEntry::GetInterface(), GetNRoutes(), GetRoute(), ns3::OutputStreamWrapper::GetStream(), ns3::Ipv4RoutingTableEntry::IsGateway(), ns3::Ipv4RoutingTableEntry::IsHost(), m_ipv4, ns3::Now(), and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ RemoveRoute()

void ns3::Ipv4GlobalRouting::RemoveRoute ( uint32_t i )

Remove a route from the global unicast routing table.

Externally, the unicast global routing table appears simply as a table with n entries. The one subtlety of note is that if a default route has been set it will appear as the zeroth entry in the table. This means that if the default route has been set, calling RemoveRoute (0) will remove the default route.

Parameters

i	The index (into the routing table) of the route to remove. If the default route has been set, it will occupy index zero.

See also: Ipv4RoutingTableEntry; Ipv4GlobalRouting::GetRoute; Ipv4GlobalRouting::AddRoute

Definition at line 289 of file ipv4-global-routing.cc.

References two-ray-to-three-gpp-ch-calibration::k, m_ASexternalRoutes, m_hostRoutes, m_networkRoutes, NS_ASSERT, NS_LOG_FUNCTION, and NS_LOG_LOGIC.

◆ RouteInput()

bool ns3::Ipv4GlobalRouting::RouteInput	(	Ptr< const Packet >	p,
		const Ipv4Header &	header,
		Ptr< const NetDevice >	idev,
		const UnicastForwardCallback &	ucb,
		const MulticastForwardCallback &	mcb,
		const LocalDeliverCallback &	lcb,
		const ErrorCallback &	ecb
	)

overridevirtual

Route an input packet (to be forwarded or locally delivered)

This lookup is used in the forwarding process. The packet is handed over to the Ipv4RoutingProtocol, and will get forwarded onward by one of the callbacks. The Linux equivalent is ip_route_input(). There are four valid outcomes, and a matching callbacks to handle each.

Parameters

p	received packet
header	input parameter used to form a search key for a route
idev	Pointer to ingress network device
ucb	Callback for the case in which the packet is to be forwarded as unicast
mcb	Callback for the case in which the packet is to be forwarded as multicast
lcb	Callback for the case in which the packet is to be locally delivered
ecb	Callback to call if there is an error in forwarding

Returns: true if the Ipv4RoutingProtocol takes responsibility for forwarding or delivering the packet, false otherwise

Implements ns3::Ipv4RoutingProtocol.

Definition at line 472 of file ipv4-global-routing.cc.

References ns3::Socket::ERROR_NOROUTETOHOST, ns3::Ipv4Header::GetDestination(), ns3::Ipv4Header::GetSource(), ns3::Callback< R, UArgs >::IsNull(), LookupGlobal(), m_ipv4, NS_ASSERT, NS_LOG_FUNCTION, and NS_LOG_LOGIC.

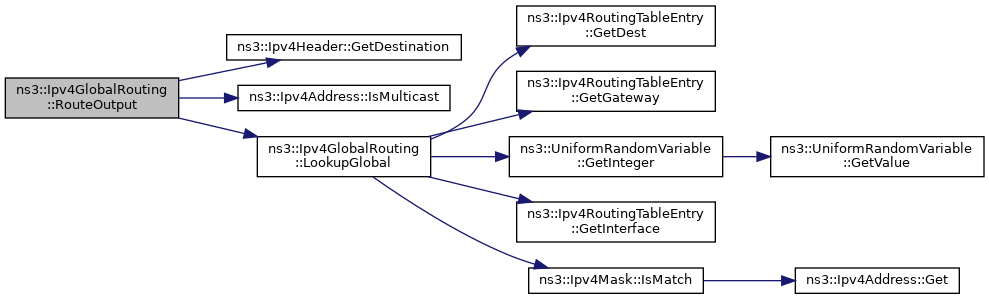

Here is the call graph for this function:

◆ RouteOutput()

Ptr< Ipv4Route > ns3::Ipv4GlobalRouting::RouteOutput	(	Ptr< Packet >	p,
		const Ipv4Header &	header,
		Ptr< NetDevice >	oif,
		Socket::SocketErrno &	sockerr
	)

overridevirtual

Query routing cache for an existing route, for an outbound packet.

This lookup is used by transport protocols. It does not cause any packet to be forwarded, and is synchronous. Can be used for multicast or unicast. The Linux equivalent is ip_route_output()

The header input parameter may have an uninitialized value for the source address, but the destination address should always be properly set by the caller.

Parameters

p	packet to be routed. Note that this method may modify the packet. Callers may also pass in a null pointer.
header	input parameter (used to form key to search for the route)
oif	Output interface Netdevice. May be zero, or may be bound via socket options to a particular output interface.
sockerr	Output parameter; socket errno

Returns: a code that indicates what happened in the lookup

Implements ns3::Ipv4RoutingProtocol.

Definition at line 440 of file ipv4-global-routing.cc.

References ns3::Socket::ERROR_NOROUTETOHOST, ns3::Socket::ERROR_NOTERROR, ns3::Ipv4Header::GetDestination(), ns3::Ipv4Address::IsMulticast(), LookupGlobal(), NS_LOG_FUNCTION, and NS_LOG_LOGIC.

Here is the call graph for this function:

◆ SetIpv4()

void ns3::Ipv4GlobalRouting::SetIpv4 ( Ptr< Ipv4 > ipv4 )

overridevirtual

Parameters

ipv4	the ipv4 object this routing protocol is being associated with

Typically, invoked directly or indirectly from ns3::Ipv4::SetRoutingProtocol

Implements ns3::Ipv4RoutingProtocol.

Definition at line 578 of file ipv4-global-routing.cc.

References nsclick-simple-lan::ipv4, m_ipv4, NS_ASSERT, and NS_LOG_FUNCTION.

Member Data Documentation

◆ m_ASexternalRoutes

ASExternalRoutes ns3::Ipv4GlobalRouting::m_ASexternalRoutes

private

External routes imported.

Definition at line 279 of file ipv4-global-routing.h.

Referenced by AddASExternalRouteTo(), DoDispose(), GetNRoutes(), GetRoute(), LookupGlobal(), and RemoveRoute().

◆ m_hostRoutes

HostRoutes ns3::Ipv4GlobalRouting::m_hostRoutes

private

Routes to hosts.

Definition at line 277 of file ipv4-global-routing.h.

Referenced by AddHostRouteTo(), DoDispose(), GetNRoutes(), GetRoute(), LookupGlobal(), and RemoveRoute().

◆ m_ipv4

Ptr<Ipv4> ns3::Ipv4GlobalRouting::m_ipv4

private

associated IPv4 instance

Definition at line 281 of file ipv4-global-routing.h.

Referenced by LookupGlobal(), PrintRoutingTable(), RouteInput(), and SetIpv4().

◆ m_networkRoutes

NetworkRoutes ns3::Ipv4GlobalRouting::m_networkRoutes

private

Routes to networks.

Definition at line 278 of file ipv4-global-routing.h.

Referenced by AddNetworkRouteTo(), DoDispose(), GetNRoutes(), GetRoute(), LookupGlobal(), and RemoveRoute().

◆ m_rand

Ptr<UniformRandomVariable> ns3::Ipv4GlobalRouting::m_rand

private

A uniform random number generator for randomly routing packets among ECMP.

Definition at line 246 of file ipv4-global-routing.h.

Referenced by Ipv4GlobalRouting(), AssignStreams(), and LookupGlobal().

◆ m_randomEcmpRouting

bool ns3::Ipv4GlobalRouting::m_randomEcmpRouting

private

Set to true if packets are randomly routed among ECMP; set to false for using only one route consistently.

Definition at line 241 of file ipv4-global-routing.h.

Referenced by GetTypeId(), and LookupGlobal().

◆ m_respondToInterfaceEvents

bool ns3::Ipv4GlobalRouting::m_respondToInterfaceEvents

private

Set to true if this interface should respond to interface events by globallly recomputing routes.

Definition at line 244 of file ipv4-global-routing.h.

Referenced by GetTypeId(), NotifyAddAddress(), NotifyInterfaceDown(), NotifyInterfaceUp(), and NotifyRemoveAddress().

The documentation for this class was generated from the following files:

src/internet/model/ipv4-global-routing.h
src/internet/model/ipv4-global-routing.cc

Public Member Functions

Static Public Member Functions

Protected Member Functions

Private Types

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ ASExternalRoutes

◆ ASExternalRoutesCI

◆ ASExternalRoutesI

◆ HostRoutes

◆ HostRoutesCI

◆ HostRoutesI

◆ NetworkRoutes

◆ NetworkRoutesCI

◆ NetworkRoutesI

Constructor & Destructor Documentation

◆ Ipv4GlobalRouting()

◆ ~Ipv4GlobalRouting()

Member Function Documentation

◆ AddASExternalRouteTo()

◆ AddHostRouteTo() [1/2]

◆ AddHostRouteTo() [2/2]

◆ AddNetworkRouteTo() [1/2]

◆ AddNetworkRouteTo() [2/2]

◆ AssignStreams()

◆ DoDispose()

◆ GetNRoutes()

◆ GetRoute()

◆ GetTypeId()

◆ LookupGlobal()

◆ NotifyAddAddress()

◆ NotifyInterfaceDown()

◆ NotifyInterfaceUp()

◆ NotifyRemoveAddress()

◆ PrintRoutingTable()

◆ RemoveRoute()

◆ RouteInput()

◆ RouteOutput()

◆ SetIpv4()

Member Data Documentation

◆ m_ASexternalRoutes

◆ m_hostRoutes

◆ m_ipv4

◆ m_networkRoutes

◆ m_rand

◆ m_randomEcmpRouting

◆ m_respondToInterfaceEvents
