Implement the IPv4 layer. More...

#include "ipv4-l3-protocol.h"

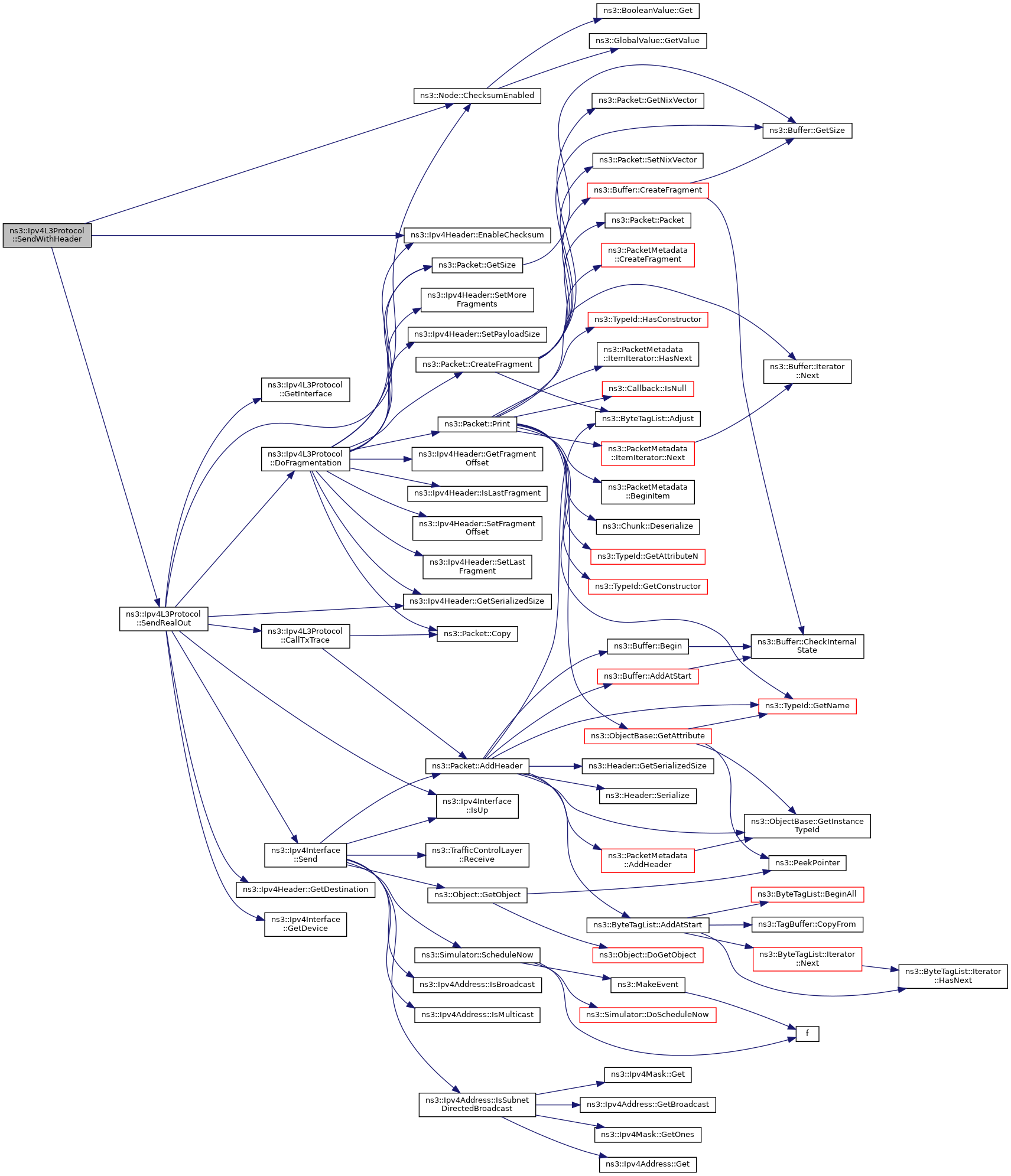

Inheritance diagram for ns3::Ipv4L3Protocol:

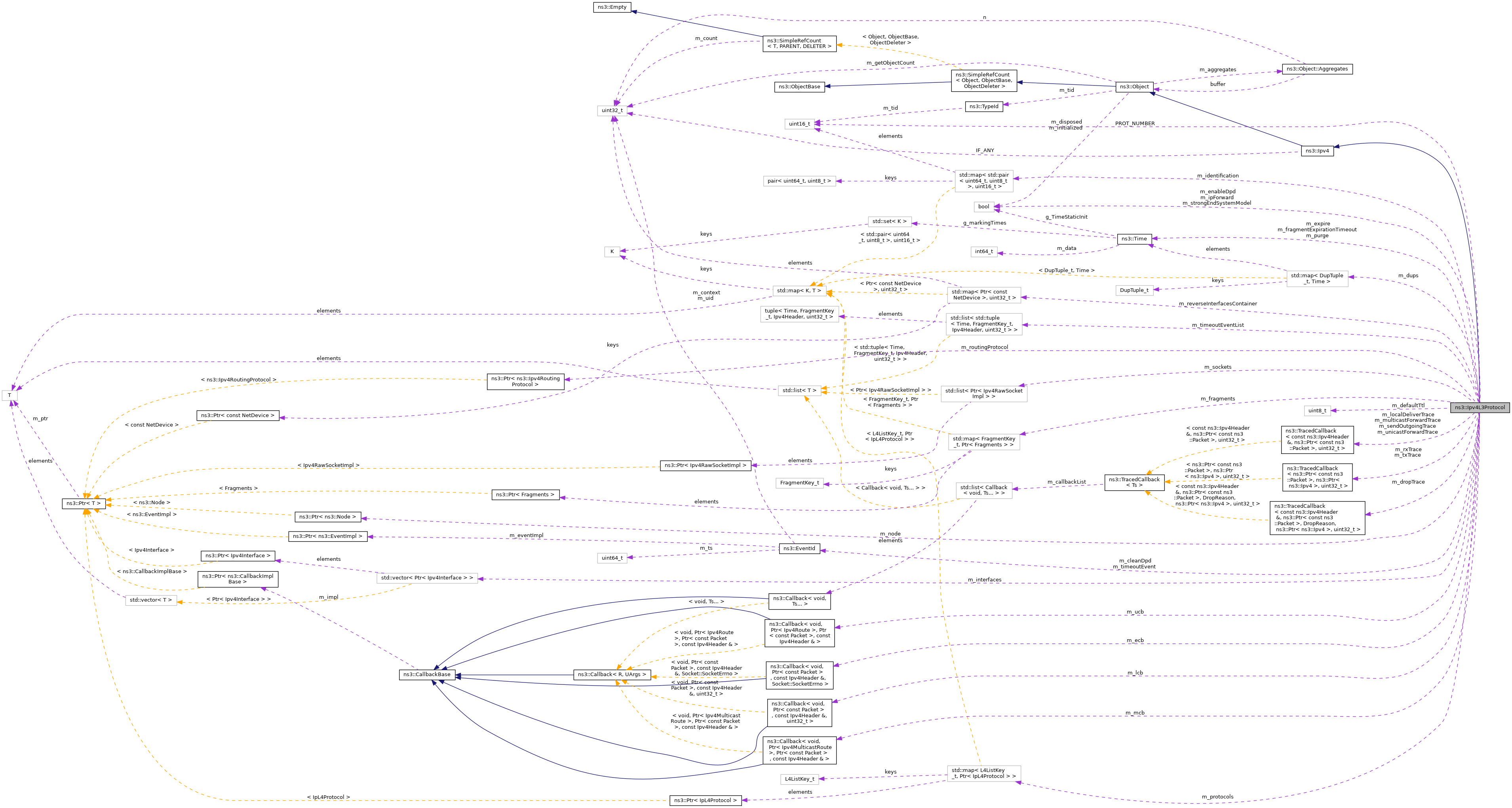

Collaboration diagram for ns3::Ipv4L3Protocol:

Classes
class	Fragments
	A Set of Fragment belonging to the same packet (src, dst, identification and proto) More...

Public Types
enum	DropReason { DROP_TTL_EXPIRED = 1 , DROP_NO_ROUTE , DROP_BAD_CHECKSUM , DROP_INTERFACE_DOWN , DROP_ROUTE_ERROR , DROP_FRAGMENT_TIMEOUT , DROP_DUPLICATE }
	Reason why a packet has been dropped. More...

typedef void(*	DropTracedCallback) (const Ipv4Header &header, Ptr< const Packet > packet, DropReason reason, Ptr< Ipv4 > ipv4, uint32_t interface)
	TracedCallback signature for packet drop events. More...

typedef void(*	SentTracedCallback) (const Ipv4Header &header, Ptr< const Packet > packet, uint32_t interface)
	TracedCallback signature for packet send, forward, or local deliver events. More...

typedef void(*	TxRxTracedCallback) (Ptr< const Packet > packet, Ptr< Ipv4 > ipv4, uint32_t interface)
	TracedCallback signature for packet transmission or reception events. More...

Public Member Functions
	Ipv4L3Protocol ()

	Ipv4L3Protocol (const Ipv4L3Protocol &)=delete

	~Ipv4L3Protocol () override

bool	AddAddress (uint32_t i, Ipv4InterfaceAddress address) override

uint32_t	AddInterface (Ptr< NetDevice > device) override

Ptr< Socket >	CreateRawSocket () override
	Creates a raw socket. More...

void	DeleteRawSocket (Ptr< Socket > socket) override
	Deletes a particular raw socket. More...

Ipv4InterfaceAddress	GetAddress (uint32_t interfaceIndex, uint32_t addressIndex) const override
	Because addresses can be removed, the addressIndex is not guaranteed to be static across calls to this method. More...

Ptr< Ipv4Interface >	GetInterface (uint32_t i) const
	Get an interface. More...

int32_t	GetInterfaceForAddress (Ipv4Address addr) const override
	Return the interface number of the interface that has been assigned the specified IP address. More...

int32_t	GetInterfaceForDevice (Ptr< const NetDevice > device) const override

int32_t	GetInterfaceForPrefix (Ipv4Address addr, Ipv4Mask mask) const override
	Return the interface number of first interface found that has an Ipv4 address within the prefix specified by the input address and mask parameters. More...

uint16_t	GetMetric (uint32_t i) const override

uint16_t	GetMtu (uint32_t i) const override

uint32_t	GetNAddresses (uint32_t interface) const override

Ptr< NetDevice >	GetNetDevice (uint32_t i) override

uint32_t	GetNInterfaces () const override

Ptr< IpL4Protocol >	GetProtocol (int protocolNumber) const override

Ptr< IpL4Protocol >	GetProtocol (int protocolNumber, int32_t interfaceIndex) const override
	Get L4 protocol by protocol number for the specified interface. More...

Ptr< Ipv4RoutingProtocol >	GetRoutingProtocol () const override
	Get the routing protocol to be used by this Ipv4 stack. More...

void	Insert (Ptr< IpL4Protocol > protocol) override

void	Insert (Ptr< IpL4Protocol > protocol, uint32_t interfaceIndex) override
	Add a L4 protocol to a specific interface. More...

bool	IsDestinationAddress (Ipv4Address address, uint32_t iif) const override
	Determine whether address and interface corresponding to received packet can be accepted for local delivery. More...

bool	IsForwarding (uint32_t i) const override

bool	IsUnicast (Ipv4Address ad) const
	Check if an IPv4 address is unicast according to the node. More...

bool	IsUp (uint32_t i) const override

Ipv4L3Protocol &	operator= (const Ipv4L3Protocol &)=delete

void	Receive (Ptr< NetDevice > device, Ptr< const Packet > p, uint16_t protocol, const Address &from, const Address &to, NetDevice::PacketType packetType)
	Lower layer calls this method after calling L3Demux::Lookup The ARP subclass needs to know from which NetDevice this packet is coming to: More...

void	Remove (Ptr< IpL4Protocol > protocol) override

void	Remove (Ptr< IpL4Protocol > protocol, uint32_t interfaceIndex) override
	Remove a L4 protocol from a specific interface. More...

bool	RemoveAddress (uint32_t interface, Ipv4Address address) override
	Remove the given address on named Ipv4 interface. More...

bool	RemoveAddress (uint32_t interfaceIndex, uint32_t addressIndex) override
	Remove the address at addressIndex on named interface. More...

Ipv4Address	SelectSourceAddress (Ptr< const NetDevice > device, Ipv4Address dst, Ipv4InterfaceAddress::InterfaceAddressScope_e scope) override
	Return the first primary source address with scope less than or equal to the requested scope, to use in sending a packet to destination dst out of the specified device. More...

void	Send (Ptr< Packet > packet, Ipv4Address source, Ipv4Address destination, uint8_t protocol, Ptr< Ipv4Route > route) override

void	SendWithHeader (Ptr< Packet > packet, Ipv4Header ipHeader, Ptr< Ipv4Route > route) override

void	SetDefaultTtl (uint8_t ttl)

void	SetDown (uint32_t i) override

void	SetForwarding (uint32_t i, bool val) override

void	SetMetric (uint32_t i, uint16_t metric) override

void	SetNode (Ptr< Node > node)
	Set node associated with this stack. More...

void	SetRoutingProtocol (Ptr< Ipv4RoutingProtocol > routingProtocol) override
	Register a new routing protocol to be used by this Ipv4 stack. More...

void	SetUp (uint32_t i) override

Ipv4Address	SourceAddressSelection (uint32_t interface, Ipv4Address dest) override
	Choose the source address to use with destination address. More...

Public Member Functions inherited from ns3::Ipv4
	Ipv4 ()

	~Ipv4 () override

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

	~Object () override
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose ()
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator () const
	Get an iterator to the Objects aggregated to this one. More...

TypeId	GetInstanceTypeId () const override
	Get the most derived TypeId for this Object. More...

template<typename T >
Ptr< T >	GetObject () const
	Get a pointer to the requested aggregated Object. More...

template<>
Ptr< Object >	GetObject () const
	Specialization of () for objects of type ns3::Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< Object >	GetObject (TypeId tid) const
	Specialization of (TypeId tid) for objects of type ns3::Object. More...

void	Initialize ()
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized () const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
	Copy constructor. More...

uint32_t	GetReferenceCount () const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o[[maybe_unused]])
	Assignment operator. More...

void	Ref () const
	Increment the reference count. More...

void	Unref () const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising errors. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId ()
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Ipv4
static TypeId	GetTypeId ()
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId ()
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId ()
	Get the type ID. More...

Static Public Attributes
static const uint16_t	PROT_NUMBER = 0x0800
	Protocol number (0x0800) More...

Static Public Attributes inherited from ns3::Ipv4
static const uint32_t	IF_ANY = 0xffffffff
	interface wildcard, meaning any interface More...

Protected Member Functions
void	DoDispose () override
	Destructor implementation. More...

void	NotifyNewAggregate () override
	This function will notify other components connected to the node that a new stack member is now connected This will be used to notify Layer 3 protocol of layer 4 protocol stack to connect them together. More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	DoInitialize ()
	Initialize() implementation. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted ()
	Notifier called once the ObjectBase is fully constructed. More...

Private Types
typedef std::map< DupTuple_t, Time >	DupMap_t
	Maps packet duplicate tuple to expiration time. More...

typedef std::tuple< uint64_t, uint8_t, Ipv4Address, Ipv4Address >	DupTuple_t
	IETF RFC 6621, Section 6.2 de-duplication w/o IPSec RFC 6621 recommended duplicate packet tuple: {IPV hash, IP protocol, IP source address, IP destination address}. More...

typedef std::pair< uint64_t, uint32_t >	FragmentKey_t
	Key identifying a fragmented packet. More...

typedef std::list< std::tuple< Time, FragmentKey_t, Ipv4Header, uint32_t > >	FragmentsTimeoutsList_t
	Container for fragment timeouts. More...

typedef std::list< std::tuple< Time, FragmentKey_t, Ipv4Header, uint32_t > >::iterator	FragmentsTimeoutsListI_t
	Container Iterator for fragment timeouts.. More...

typedef std::vector< Ptr< Ipv4Interface > >	Ipv4InterfaceList
	Container of the IPv4 Interfaces. More...

typedef std::map< Ptr< const NetDevice >, uint32_t >	Ipv4InterfaceReverseContainer
	Container of NetDevices registered to IPv4 and their interface indexes. More...

typedef std::pair< Ptr< Packet >, Ipv4Header >	Ipv4PayloadHeaderPair
	Pair of a packet and an Ipv4 header. More...

typedef std::map< L4ListKey_t, Ptr< IpL4Protocol > >	L4List_t
	Container of the IPv4 L4 instances. More...

typedef std::pair< int, int32_t >	L4ListKey_t
	Container of the IPv4 L4 keys: protocol number, interface index. More...

typedef std::map< FragmentKey_t, Ptr< Fragments > >	MapFragments_t
	Container of fragments, stored as pairs(src+dst addr, src+dst port) / fragment. More...

typedef std::list< Ptr< Ipv4RawSocketImpl > >	SocketList
	Container of the IPv4 Raw Sockets. More...

Private Member Functions
uint32_t	AddIpv4Interface (Ptr< Ipv4Interface > interface)
	Add an IPv4 interface to the stack. More...

Ipv4Header	BuildHeader (Ipv4Address source, Ipv4Address destination, uint8_t protocol, uint16_t payloadSize, uint8_t ttl, uint8_t tos, bool mayFragment)
	Construct an IPv4 header. More...

void	CallTxTrace (const Ipv4Header &ipHeader, Ptr< Packet > packet, Ptr< Ipv4 > ipv4, uint32_t interface)
	Make a copy of the packet, add the header and invoke the TX trace callback. More...

void	DecreaseIdentification (Ipv4Address source, Ipv4Address destination, uint8_t protocol)
	Decrease the identification value for a dropped or recursed packet. More...

void	DoFragmentation (Ptr< Packet > packet, const Ipv4Header &ipv4Header, uint32_t outIfaceMtu, std::list< Ipv4PayloadHeaderPair > &listFragments)
	Fragment a packet. More...

Ptr< Icmpv4L4Protocol >	GetIcmp () const
	Get ICMPv4 protocol. More...

bool	GetIpForward () const override
	Get the IP forwarding state. More...

bool	GetStrongEndSystemModel () const override
	Get the Strong End System Model status. More...

bool	GetWeakEsModel () const override
	Get the Weak Es Model status. More...

void	HandleFragmentsTimeout (FragmentKey_t key, Ipv4Header &ipHeader, uint32_t iif)
	Process the timeout for packet fragments. More...

void	HandleTimeout ()
	Handles a fragmented packet timeout. More...

void	IpForward (Ptr< Ipv4Route > rtentry, Ptr< const Packet > p, const Ipv4Header &header)
	Forward a packet. More...

void	IpMulticastForward (Ptr< Ipv4MulticastRoute > mrtentry, Ptr< const Packet > p, const Ipv4Header &header)
	Forward a multicast packet. More...

bool	IsUnicast (Ipv4Address ad, Ipv4Mask interfaceMask) const
	Check if an IPv4 address is unicast. More...

void	LocalDeliver (Ptr< const Packet > p, const Ipv4Header &ip, uint32_t iif)
	Deliver a packet. More...

bool	ProcessFragment (Ptr< Packet > &packet, Ipv4Header &ipHeader, uint32_t iif)
	Process a packet fragment. More...

void	RemoveDuplicates ()
	Remove expired duplicates packet entry. More...

void	RouteInputError (Ptr< const Packet > p, const Ipv4Header &ipHeader, Socket::SocketErrno sockErrno)
	Fallback when no route is found. More...

void	SendRealOut (Ptr< Ipv4Route > route, Ptr< Packet > packet, const Ipv4Header &ipHeader)
	Send packet with route. More...

void	SetIpForward (bool forward) override
	Set or unset the IP forwarding state. More...

void	SetStrongEndSystemModel (bool model) override
	Set or unset the Strong End System Model. More...

FragmentsTimeoutsListI_t	SetTimeout (FragmentKey_t key, Ipv4Header ipHeader, uint32_t iif)
	Set a new timeout "event" for a fragmented packet. More...

void	SetupLoopback ()
	Setup loopback interface. More...

void	SetWeakEsModel (bool model) override
	Set or unset the Weak Es Model. More...

bool	UpdateDuplicate (Ptr< const Packet > p, const Ipv4Header &header)
	Registers duplicate entry, return false if new. More...

Private Attributes
EventId	m_cleanDpd
	event to cleanup expired duplicate entries More...

uint8_t	m_defaultTtl
	Default TTL. More...

TracedCallback< const Ipv4Header &, Ptr< const Packet >, DropReason, Ptr< Ipv4 >, uint32_t >	m_dropTrace
	Trace of dropped packets. More...

DupMap_t	m_dups
	map of packet duplicate tuples to expiry event More...

Ipv4RoutingProtocol::ErrorCallback	m_ecb
	Error callback. More...

bool	m_enableDpd
	Enable multicast duplicate packet detection. More...

Time	m_expire
	duplicate entry expiration delay More...

Time	m_fragmentExpirationTimeout
	Expiration timeout. More...

MapFragments_t	m_fragments
	Fragmented packets. More...

std::map< std::pair< uint64_t, uint8_t >, uint16_t >	m_identification
	Identification (for each {src, dst, proto} tuple) More...

Ipv4InterfaceList	m_interfaces
	List of IPv4 interfaces. More...

bool	m_ipForward
	Forwarding packets (i.e. More...

Ipv4RoutingProtocol::LocalDeliverCallback	m_lcb
	Local delivery callback. More...

TracedCallback< const Ipv4Header &, Ptr< const Packet >, uint32_t >	m_localDeliverTrace
	Trace of locally delivered packets. More...

Ipv4RoutingProtocol::MulticastForwardCallback	m_mcb
	Multicast forward callback. More...

TracedCallback< const Ipv4Header &, Ptr< const Packet >, uint32_t >	m_multicastForwardTrace
	Trace of multicast forwarded packets. More...

Ptr< Node >	m_node
	Node attached to stack. More...

L4List_t	m_protocols
	List of transport protocol. More...

Time	m_purge
	time between purging expired duplicate entries More...

Ipv4InterfaceReverseContainer	m_reverseInterfacesContainer
	Container of NetDevice / Interface index associations. More...

Ptr< Ipv4RoutingProtocol >	m_routingProtocol
	Routing protocol associated with the stack. More...

TracedCallback< Ptr< const Packet >, Ptr< Ipv4 >, uint32_t >	m_rxTrace
	Trace of received packets. More...

TracedCallback< const Ipv4Header &, Ptr< const Packet >, uint32_t >	m_sendOutgoingTrace
	Trace of sent packets. More...

SocketList	m_sockets
	List of IPv4 raw sockets. More...

bool	m_strongEndSystemModel
	Strong End System Model state. More...

EventId	m_timeoutEvent
	Event for the next scheduled timeout. More...

FragmentsTimeoutsList_t	m_timeoutEventList
	Timeout "events" container. More...

TracedCallback< Ptr< const Packet >, Ptr< Ipv4 >, uint32_t >	m_txTrace
	Trace of transmitted packets. More...

Ipv4RoutingProtocol::UnicastForwardCallback	m_ucb
	Unicast forward callback. More...

TracedCallback< const Ipv4Header &, Ptr< const Packet >, uint32_t >	m_unicastForwardTrace
	Trace of unicast forwarded packets. More...

Friends
class	::Ipv4L3ProtocolTestCase
	Ipv4L3ProtocolTestCase test case. More...

Additional Inherited Members
Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid ()
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

Implement the IPv4 layer.

This is the actual implementation of IP. It contains APIs to send and receive packets at the IP layer, as well as APIs for IP routing.

This class contains two distinct groups of trace sources. The trace sources 'Rx' and 'Tx' are called, respectively, immediately after receiving from the NetDevice and immediately before sending to a NetDevice for transmitting a packet. These are low level trace sources that include the Ipv4Header already serialized into the packet. In contrast, the Drop, SendOutgoing, UnicastForward, and LocalDeliver trace sources are slightly higher-level and pass around the Ipv4Header as an explicit parameter and not as part of the packet.

IP fragmentation and reassembly is handled at this level. At the moment the fragmentation does not handle IP option headers, and in particular the ones that shall not be fragmented. Moreover, the actual implementation does not mimic exactly the Linux kernel. Hence it is not possible, for instance, to test a fragmentation attack.

Definition at line 83 of file ipv4-l3-protocol.h.

Member Typedef Documentation

◆ DropTracedCallback

typedef void(* ns3::Ipv4L3Protocol::DropTracedCallback) (const Ipv4Header &header, Ptr< const Packet > packet, DropReason reason, Ptr< Ipv4 > ipv4, uint32_t interface)

TracedCallback signature for packet drop events.

Parameters

[in]	header	the Ipv4Header.
[in]	packet	the packet.
[in]	reason	the reason the packet was dropped.
[in]	ipv4	the Ipv4 protocol
[in]	interface	IP-level interface number

Deprecated:: The non-const Ptr<Ipv4> argument is deprecated and will be changed to Ptr<const Ipv4> in a future release.

Definition at line 274 of file ipv4-l3-protocol.h.

◆ DupMap_t

typedef std::map<DupTuple_t, Time> ns3::Ipv4L3Protocol::DupMap_t

private

Maps packet duplicate tuple to expiration time.

Definition at line 622 of file ipv4-l3-protocol.h.

◆ DupTuple_t

typedef std::tuple<uint64_t, uint8_t, Ipv4Address, Ipv4Address> ns3::Ipv4L3Protocol::DupTuple_t

private

IETF RFC 6621, Section 6.2 de-duplication w/o IPSec RFC 6621 recommended duplicate packet tuple: {IPV hash, IP protocol, IP source address, IP destination address}.

Definition at line 620 of file ipv4-l3-protocol.h.

◆ FragmentKey_t

typedef std::pair<uint64_t, uint32_t> ns3::Ipv4L3Protocol::FragmentKey_t

private

Key identifying a fragmented packet.

Definition at line 510 of file ipv4-l3-protocol.h.

◆ FragmentsTimeoutsList_t

typedef std::list<std::tuple<Time, FragmentKey_t, Ipv4Header, uint32_t> > ns3::Ipv4L3Protocol::FragmentsTimeoutsList_t

private

Container for fragment timeouts.

Definition at line 514 of file ipv4-l3-protocol.h.

◆ FragmentsTimeoutsListI_t

typedef std::list<std::tuple<Time, FragmentKey_t, Ipv4Header, uint32_t> >::iterator ns3::Ipv4L3Protocol::FragmentsTimeoutsListI_t

private

Container Iterator for fragment timeouts..

Definition at line 517 of file ipv4-l3-protocol.h.

◆ Ipv4InterfaceList

typedef std::vector<Ptr<Ipv4Interface> > ns3::Ipv4L3Protocol::Ipv4InterfaceList

private

Container of the IPv4 Interfaces.

Definition at line 449 of file ipv4-l3-protocol.h.

◆ Ipv4InterfaceReverseContainer

typedef std::map<Ptr<const NetDevice>, uint32_t> ns3::Ipv4L3Protocol::Ipv4InterfaceReverseContainer

private

Container of NetDevices registered to IPv4 and their interface indexes.

Definition at line 453 of file ipv4-l3-protocol.h.

◆ Ipv4PayloadHeaderPair

typedef std::pair<Ptr<Packet>, Ipv4Header> ns3::Ipv4L3Protocol::Ipv4PayloadHeaderPair

private

Pair of a packet and an Ipv4 header.

Definition at line 408 of file ipv4-l3-protocol.h.

◆ L4List_t

typedef std::map<L4ListKey_t, Ptr<IpL4Protocol> > ns3::Ipv4L3Protocol::L4List_t

private

Container of the IPv4 L4 instances.

Definition at line 467 of file ipv4-l3-protocol.h.

◆ L4ListKey_t

typedef std::pair<int, int32_t> ns3::Ipv4L3Protocol::L4ListKey_t

private

Container of the IPv4 L4 keys: protocol number, interface index.

Definition at line 462 of file ipv4-l3-protocol.h.

◆ MapFragments_t

typedef std::map<FragmentKey_t, Ptr<Fragments> > ns3::Ipv4L3Protocol::MapFragments_t

private

Container of fragments, stored as pairs(src+dst addr, src+dst port) / fragment.

Definition at line 612 of file ipv4-l3-protocol.h.

◆ SentTracedCallback

typedef void(* ns3::Ipv4L3Protocol::SentTracedCallback) (const Ipv4Header &header, Ptr< const Packet > packet, uint32_t interface)

TracedCallback signature for packet send, forward, or local deliver events.

Parameters

[in]	header	the Ipv4Header
[in]	packet	the packet
[in]	interface	IP-level interface number

Definition at line 246 of file ipv4-l3-protocol.h.

◆ SocketList

typedef std::list<Ptr<Ipv4RawSocketImpl> > ns3::Ipv4L3Protocol::SocketList

private

Container of the IPv4 Raw Sockets.

Definition at line 457 of file ipv4-l3-protocol.h.

◆ TxRxTracedCallback

typedef void(* ns3::Ipv4L3Protocol::TxRxTracedCallback) (Ptr< const Packet > packet, Ptr< Ipv4 > ipv4, uint32_t interface)

TracedCallback signature for packet transmission or reception events.

Parameters

[in]	packet	the packet.
[in]	ipv4	the Ipv4 protocol
[in]	interface	IP-level interface number

Deprecated:: The non-const Ptr<Ipv4> argument is deprecated and will be changed to Ptr<const Ipv4> in a future release.

Definition at line 259 of file ipv4-l3-protocol.h.

Member Enumeration Documentation

◆ DropReason

enum ns3::Ipv4L3Protocol::DropReason

Reason why a packet has been dropped.

Enumerator
DROP_TTL_EXPIRED	Packet TTL has expired.
DROP_NO_ROUTE	No route to host.
DROP_BAD_CHECKSUM	Bad checksum.
DROP_INTERFACE_DOWN	Interface is down so can not send packet.
DROP_ROUTE_ERROR	Route error.
DROP_FRAGMENT_TIMEOUT	Fragment timeout exceeded.
DROP_DUPLICATE	Duplicate packet received.

Definition at line 104 of file ipv4-l3-protocol.h.

Constructor & Destructor Documentation

◆ Ipv4L3Protocol() [1/2]

ns3::Ipv4L3Protocol::Ipv4L3Protocol ( )

Definition at line 133 of file ipv4-l3-protocol.cc.

References IpForward(), IpMulticastForward(), LocalDeliver(), m_ecb, m_lcb, m_mcb, m_ucb, ns3::MakeCallback(), NS_LOG_FUNCTION, and RouteInputError().

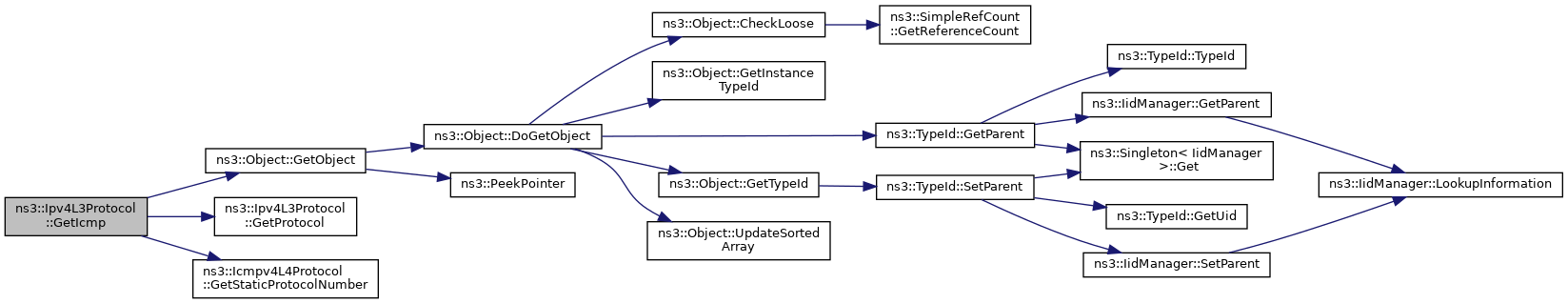

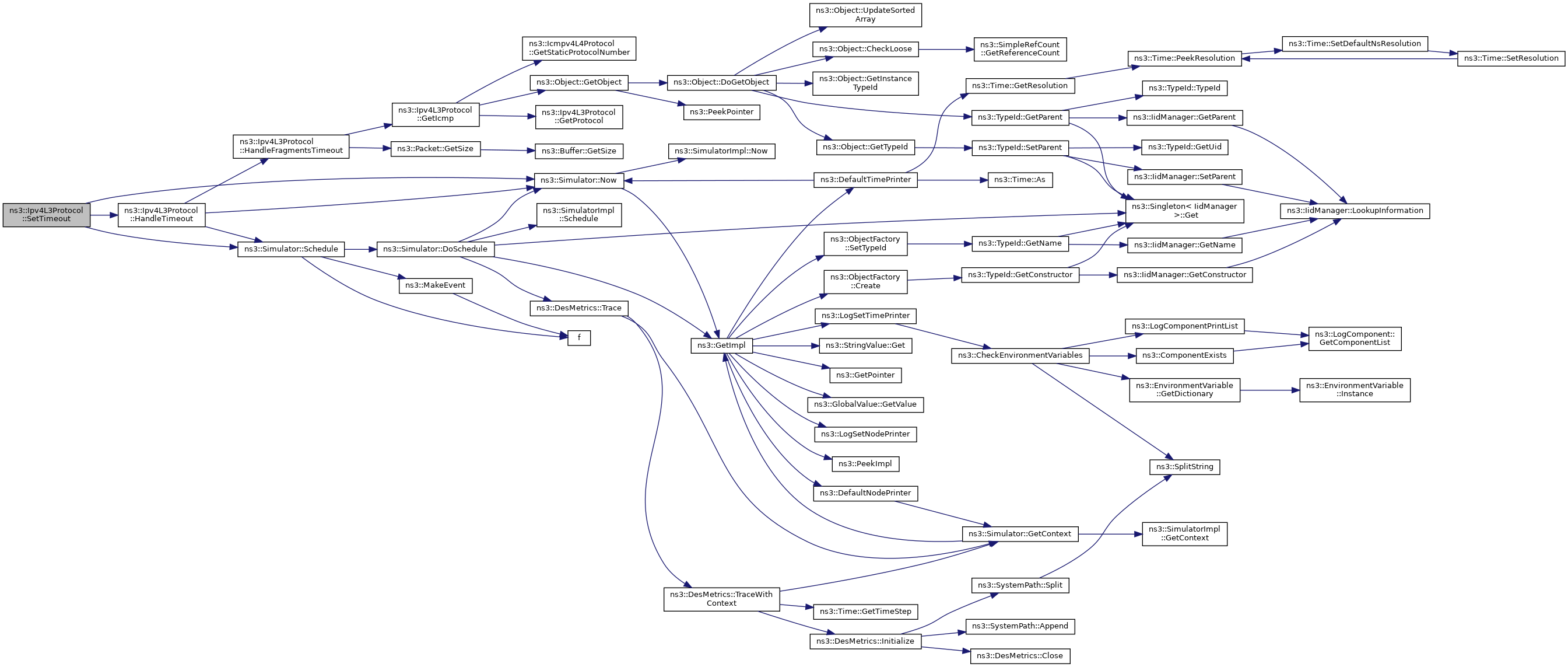

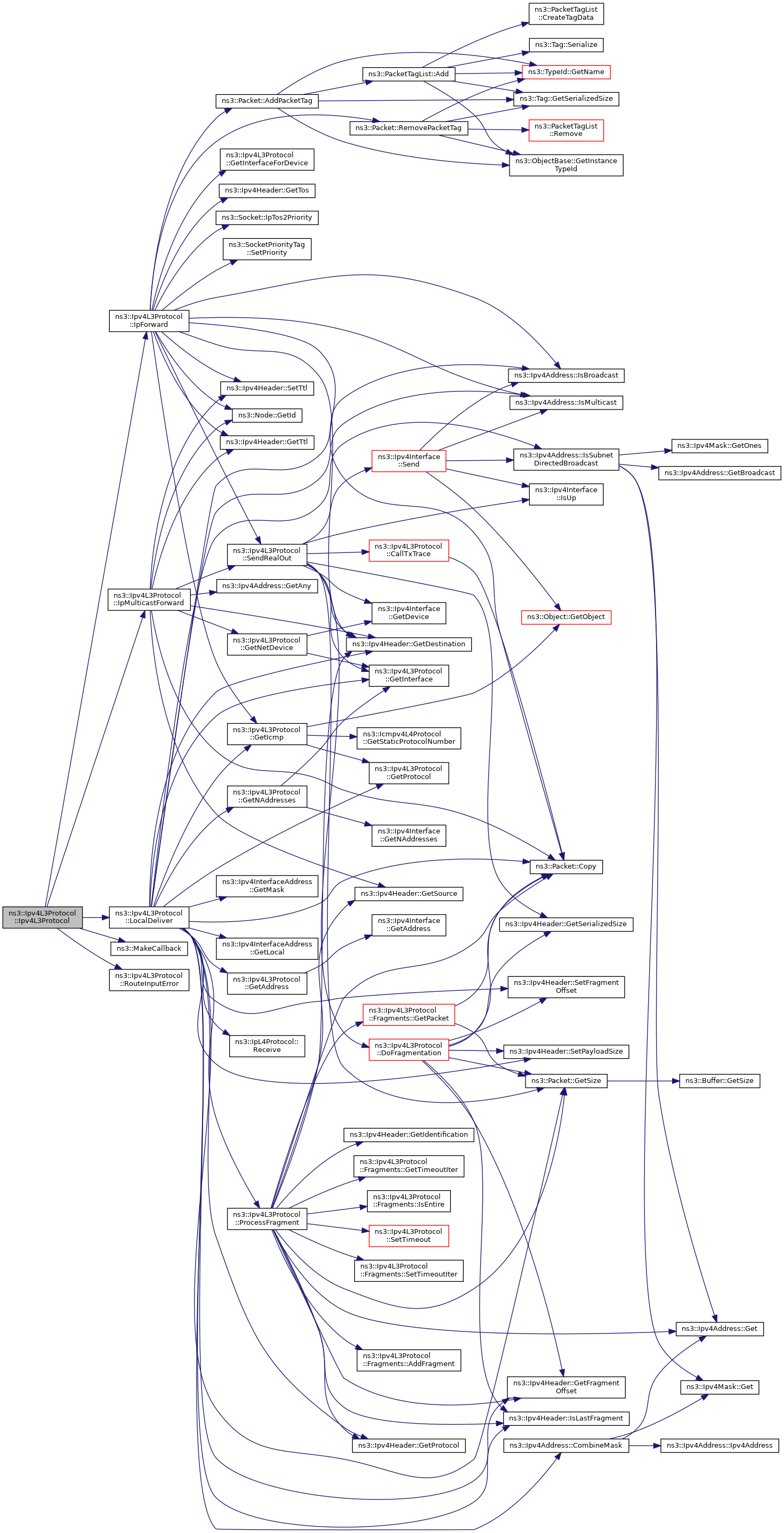

Here is the call graph for this function:

◆ ~Ipv4L3Protocol()

ns3::Ipv4L3Protocol::~Ipv4L3Protocol ( )

override

Definition at line 142 of file ipv4-l3-protocol.cc.

References NS_LOG_FUNCTION.

◆ Ipv4L3Protocol() [2/2]

ns3::Ipv4L3Protocol::Ipv4L3Protocol ( const Ipv4L3Protocol & )

delete

Member Function Documentation

◆ AddAddress()

bool ns3::Ipv4L3Protocol::AddAddress	(	uint32_t	interface,
		Ipv4InterfaceAddress	address
	)

overridevirtual

Parameters

interface	Interface number of an Ipv4 interface
address	Ipv4InterfaceAddress address to associate with the underlying Ipv4 interface

Returns: true if the operation succeeded

Implements ns3::Ipv4.

Definition at line 1168 of file ipv4-l3-protocol.cc.

References ns3::Ipv4Interface::AddAddress(), first::address, m_routingProtocol, and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ AddInterface()

uint32_t ns3::Ipv4L3Protocol::AddInterface ( Ptr< NetDevice > device )

overridevirtual

Parameters

device device to add to the list of Ipv4 interfaces which can be used as output interfaces during packet forwarding.

Returns: the index of the Ipv4 interface added.

Once a device has been added, it can never be removed: if you want to disable it, you can invoke Ipv4::SetDown which will make sure that it is never used during packet forwarding.

Implements ns3::Ipv4.

Definition at line 400 of file ipv4-l3-protocol.cc.

References AddIpv4Interface(), ns3::CreateObject(), ns3::Object::GetObject(), m_ipForward, m_node, ns3::MakeCallback(), NS_ASSERT, NS_LOG_FUNCTION, ns3::PeekPointer(), ns3::ArpL3Protocol::PROT_NUMBER, PROT_NUMBER, ns3::ArpL3Protocol::Receive(), Receive(), ns3::TrafficControlLayer::Receive(), ns3::Node::RegisterProtocolHandler(), and ns3::Ipv4Interface::SetNode().

Here is the call graph for this function:

◆ AddIpv4Interface()

uint32_t ns3::Ipv4L3Protocol::AddIpv4Interface ( Ptr< Ipv4Interface > interface )

private

Add an IPv4 interface to the stack.

Parameters

interface interface to add

Returns: index of newly added interface

Definition at line 433 of file ipv4-l3-protocol.cc.

References ns3::Ipv4Interface::GetDevice(), m_interfaces, m_reverseInterfacesContainer, and NS_LOG_FUNCTION.

Referenced by AddInterface(), and SetupLoopback().

Here is the call graph for this function:

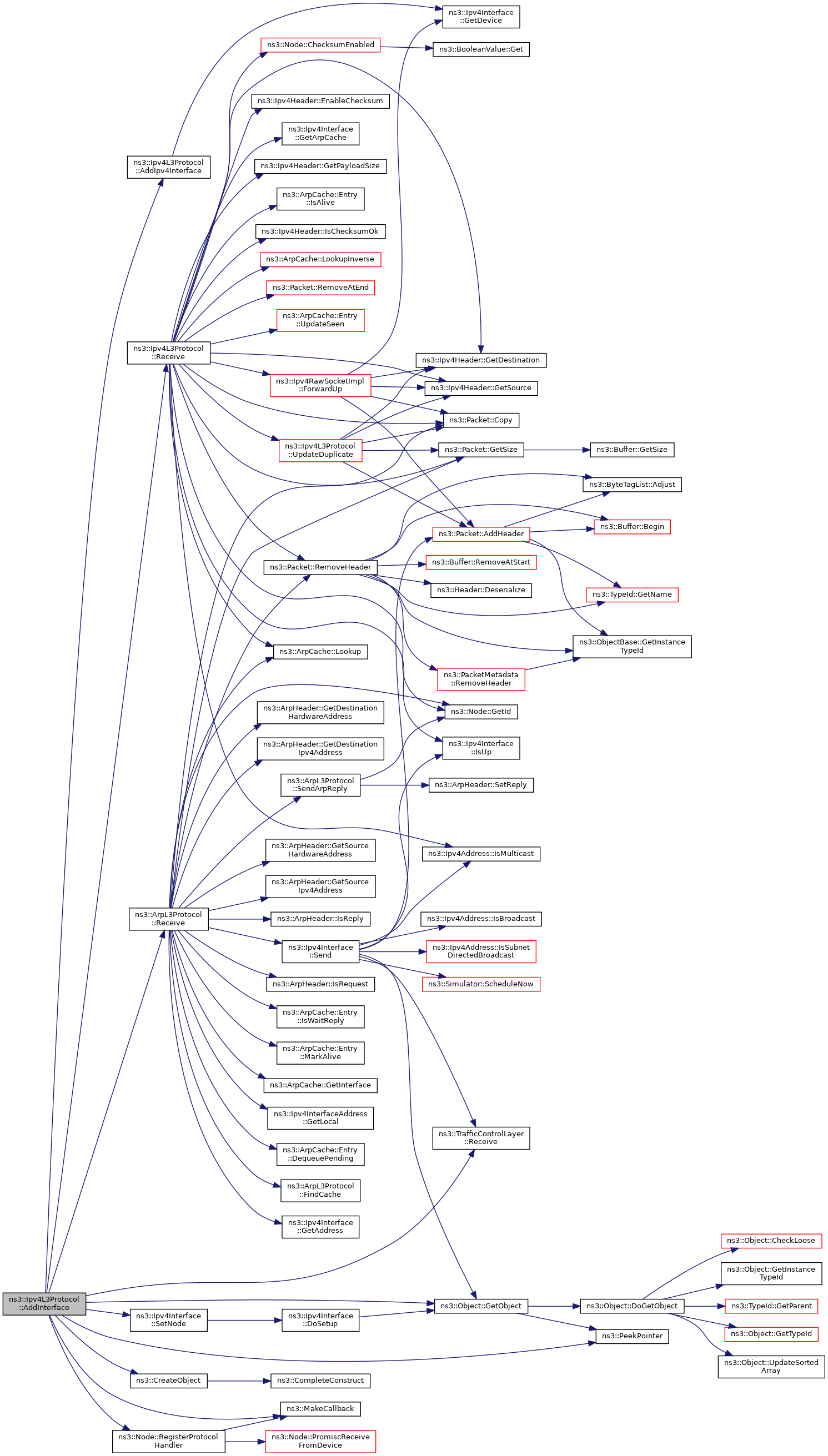

Here is the caller graph for this function:

◆ BuildHeader()

Ipv4Header ns3::Ipv4L3Protocol::BuildHeader	(	Ipv4Address	source,
		Ipv4Address	destination,
		uint8_t	protocol,
		uint16_t	payloadSize,
		uint8_t	ttl,
		uint8_t	tos,
		bool	mayFragment
	)

private

Construct an IPv4 header.

Parameters

source	source IPv4 address
destination	destination IPv4 address
protocol	L4 protocol
payloadSize	payload size
ttl	Time to Live
tos	Type of Service
mayFragment	true if the packet can be fragmented

Returns: newly created IPv4 header

Definition at line 931 of file ipv4-l3-protocol.cc.

References ns3::Node::ChecksumEnabled(), ns3::Ipv4Header::EnableChecksum(), ns3::Ipv4Address::Get(), m_identification, NS_LOG_FUNCTION, ns3::Ipv4Header::SetDestination(), ns3::Ipv4Header::SetDontFragment(), ns3::Ipv4Header::SetIdentification(), ns3::Ipv4Header::SetMayFragment(), ns3::Ipv4Header::SetPayloadSize(), ns3::Ipv4Header::SetProtocol(), ns3::Ipv4Header::SetSource(), ns3::Ipv4Header::SetTos(), and ns3::Ipv4Header::SetTtl().

Referenced by Send().

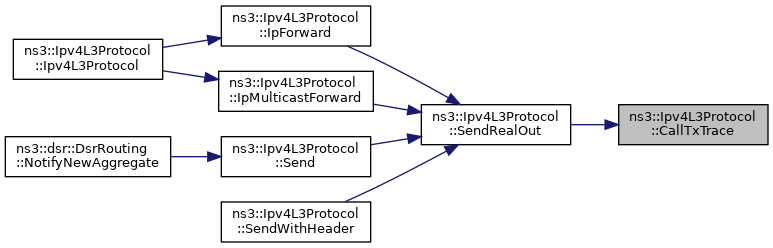

Here is the call graph for this function:

Here is the caller graph for this function:

◆ CallTxTrace()

void ns3::Ipv4L3Protocol::CallTxTrace	(	const Ipv4Header &	ipHeader,
		Ptr< Packet >	packet,
		Ptr< Ipv4 >	ipv4,
		uint32_t	interface
	)

private

Make a copy of the packet, add the header and invoke the TX trace callback.

Parameters

ipHeader	the IP header that will be added to the packet
packet	the packet
ipv4	the Ipv4 protocol
interface	the IP-level interface index

Note: If the TracedCallback API ever is extended, we could consider to check for connected functions before adding the header

Definition at line 745 of file ipv4-l3-protocol.cc.

References ns3::Packet::AddHeader(), ns3::Packet::Copy(), nsclick-simple-lan::ipv4, and m_txTrace.

Referenced by SendRealOut().

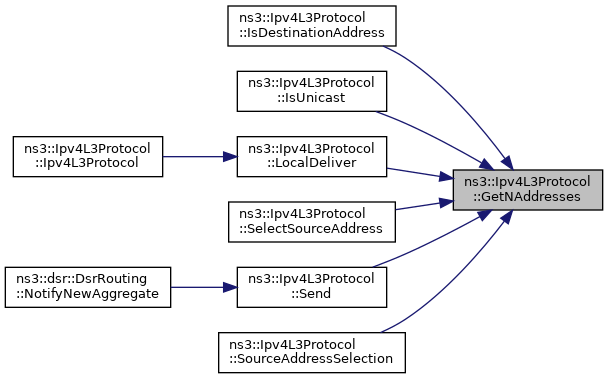

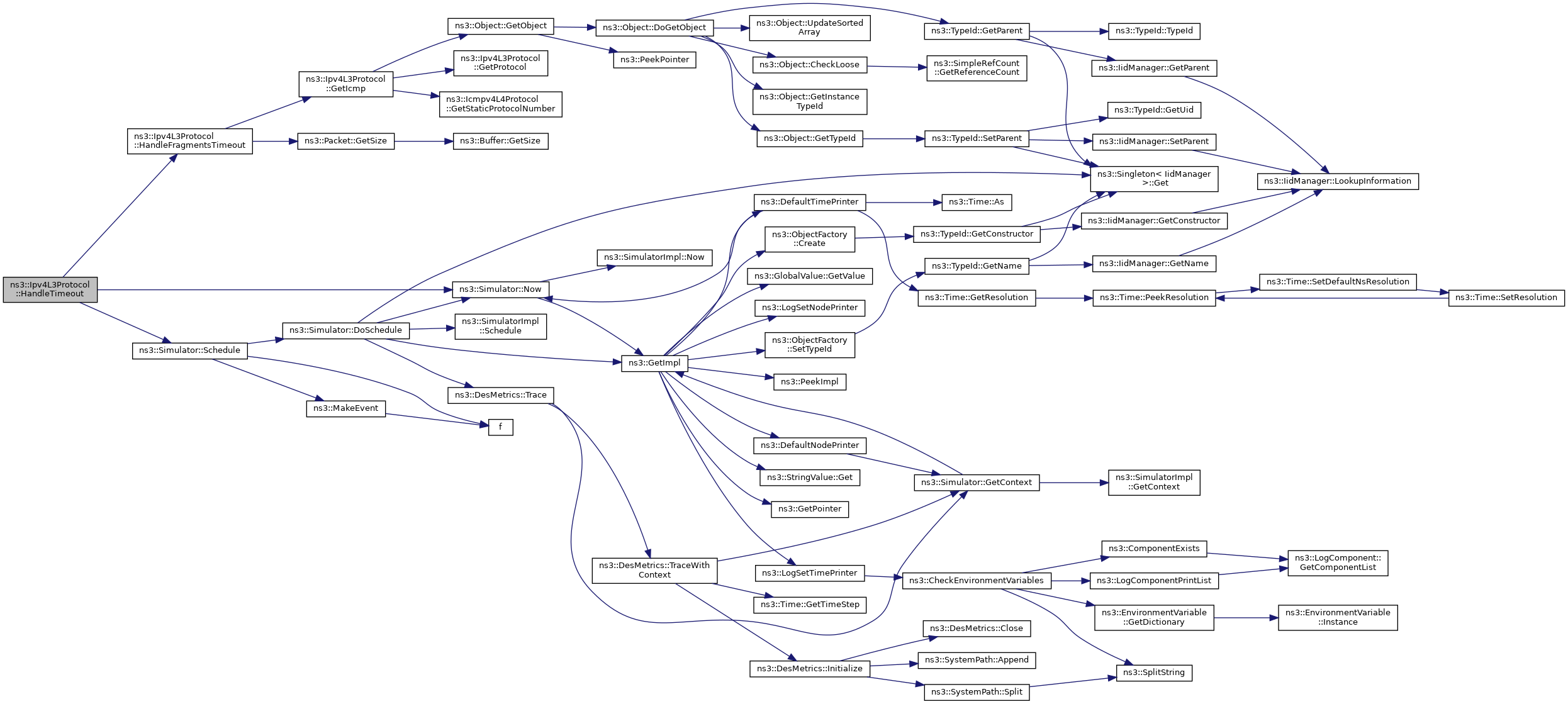

Here is the call graph for this function:

Here is the caller graph for this function:

◆ CreateRawSocket()

Ptr< Socket > ns3::Ipv4L3Protocol::CreateRawSocket ( )

overridevirtual

Creates a raw socket.

Returns: a smart pointer to the instantiated raw socket

Implements ns3::Ipv4.

Definition at line 254 of file ipv4-l3-protocol.cc.

References m_node, m_sockets, NS_LOG_FUNCTION, and ns3::Ipv4RawSocketImpl::SetNode().

Here is the call graph for this function:

◆ DecreaseIdentification()

void ns3::Ipv4L3Protocol::DecreaseIdentification	(	Ipv4Address	source,
		Ipv4Address	destination,
		uint8_t	protocol
	)

private

Decrease the identification value for a dropped or recursed packet.

Parameters

source	source IPv4 address
destination	destination IPv4 address
protocol	L4 protocol

Definition at line 919 of file ipv4-l3-protocol.cc.

References ns3::Ipv4Address::Get(), and m_identification.

Referenced by Send().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DeleteRawSocket()

void ns3::Ipv4L3Protocol::DeleteRawSocket ( Ptr< Socket > socket )

overridevirtual

Deletes a particular raw socket.

Parameters

socket Smart pointer to the raw socket to be deleted

Implements ns3::Ipv4.

Definition at line 264 of file ipv4-l3-protocol.cc.

References m_sockets, and NS_LOG_FUNCTION.

◆ DoDispose()

void ns3::Ipv4L3Protocol::DoDispose ( void )

overrideprotectedvirtual

Destructor implementation.

This method is called by Dispose() or by the Object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overridden version of this method and chain up to their parent's implementation once they are done. i.e, for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose() method.

It is safe to call GetObject() from within this method.

Reimplemented from ns3::Object.

Definition at line 314 of file ipv4-l3-protocol.cc.

References ns3::EventId::Cancel(), ns3::Object::DoDispose(), ns3::EventId::IsRunning(), m_cleanDpd, m_dups, m_fragments, m_interfaces, m_node, m_protocols, m_reverseInterfacesContainer, m_routingProtocol, m_sockets, m_timeoutEvent, m_timeoutEventList, and NS_LOG_FUNCTION.

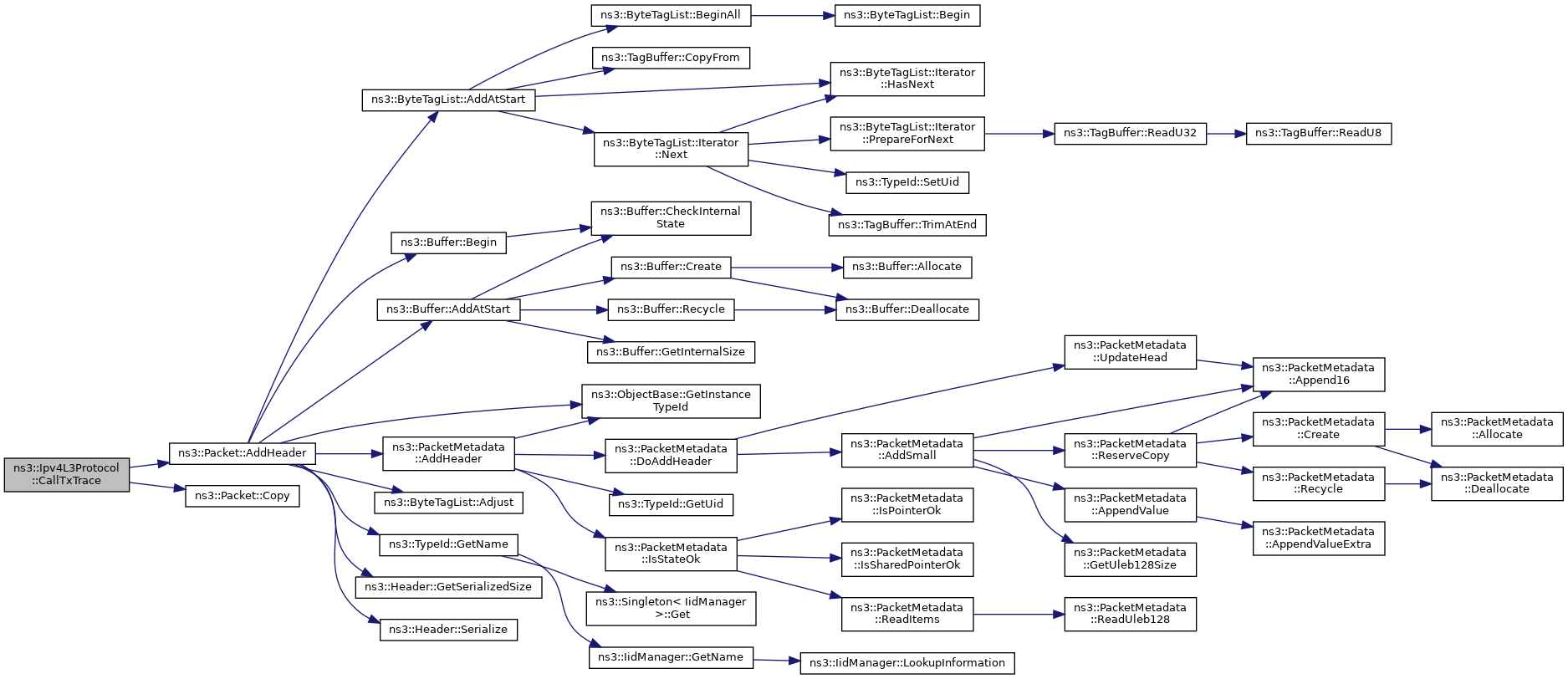

Here is the call graph for this function:

◆ DoFragmentation()

void ns3::Ipv4L3Protocol::DoFragmentation	(	Ptr< Packet >	packet,
		const Ipv4Header &	ipv4Header,
		uint32_t	outIfaceMtu,
		std::list< Ipv4PayloadHeaderPair > &	listFragments
	)

private

Fragment a packet.

Parameters

packet	the packet
ipv4Header	the IPv4 header
outIfaceMtu	the MTU of the interface
listFragments	the list of fragments

Definition at line 1482 of file ipv4-l3-protocol.cc.

References ns3::Node::ChecksumEnabled(), ns3::Packet::Copy(), ns3::Packet::CreateFragment(), ns3::Ipv4Header::EnableChecksum(), ns3::Ipv4Header::GetFragmentOffset(), ns3::Ipv4Header::GetSerializedSize(), ns3::Packet::GetSize(), ns3::Ipv4Header::IsLastFragment(), NS_ASSERT_MSG, NS_LOG_FUNCTION, NS_LOG_LOGIC, ns3::Packet::Print(), ns3::Ipv4Header::SetFragmentOffset(), ns3::Ipv4Header::SetLastFragment(), ns3::Ipv4Header::SetMoreFragments(), and ns3::Ipv4Header::SetPayloadSize().

Referenced by SendRealOut().

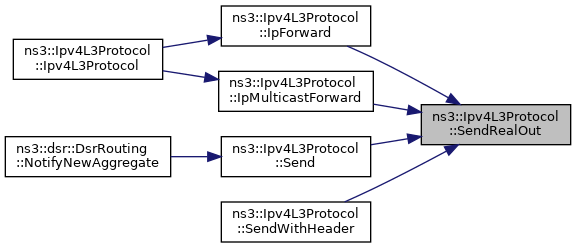

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetAddress()

Ipv4InterfaceAddress ns3::Ipv4L3Protocol::GetAddress	(	uint32_t	interface,
		uint32_t	addressIndex
	)		const

overridevirtual

Because addresses can be removed, the addressIndex is not guaranteed to be static across calls to this method.

Parameters

interface	Interface number of an Ipv4 interface
addressIndex	index of Ipv4InterfaceAddress

Returns: the Ipv4InterfaceAddress associated to the interface and addressIndex

Implements ns3::Ipv4.

Definition at line 1181 of file ipv4-l3-protocol.cc.

References ns3::Ipv4Interface::GetAddress(), and NS_LOG_FUNCTION.

Referenced by IsDestinationAddress(), IsUnicast(), LocalDeliver(), SelectSourceAddress(), Send(), and SourceAddressSelection().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetIcmp()

Ptr< Icmpv4L4Protocol > ns3::Ipv4L3Protocol::GetIcmp ( ) const

private

Get ICMPv4 protocol.

Returns: Icmpv4L4Protocol pointer

Definition at line 682 of file ipv4-l3-protocol.cc.

References ns3::Object::GetObject(), GetProtocol(), ns3::Icmpv4L4Protocol::GetStaticProtocolNumber(), and NS_LOG_FUNCTION.

Referenced by HandleFragmentsTimeout(), IpForward(), and LocalDeliver().

Here is the call graph for this function:

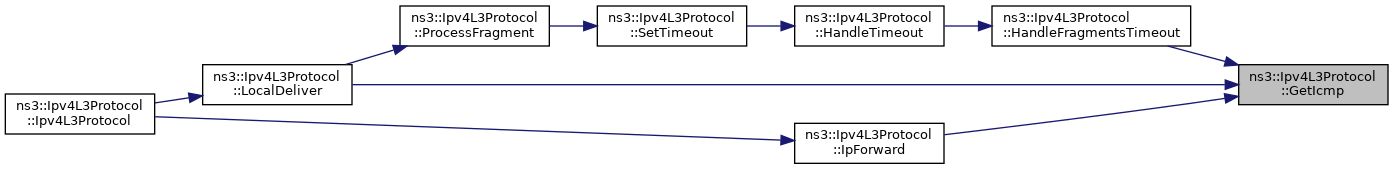

Here is the caller graph for this function:

◆ GetInterface()

Ptr< Ipv4Interface > ns3::Ipv4L3Protocol::GetInterface ( uint32_t i ) const

Get an interface.

Parameters

i	interface index

Returns: IPv4 interface pointer

Definition at line 443 of file ipv4-l3-protocol.cc.

References m_interfaces, and NS_LOG_FUNCTION.

Referenced by GetNAddresses(), GetNetDevice(), LocalDeliver(), and SendRealOut().

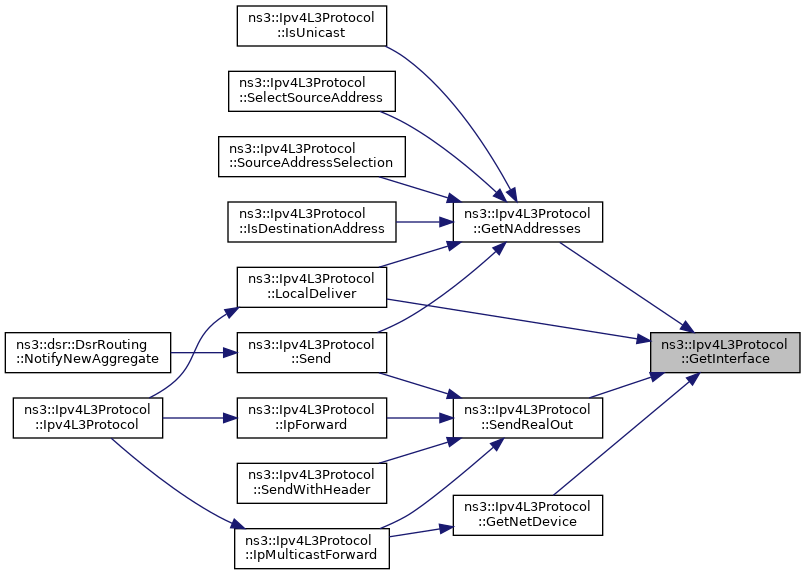

Here is the caller graph for this function:

◆ GetInterfaceForAddress()

int32_t ns3::Ipv4L3Protocol::GetInterfaceForAddress ( Ipv4Address address ) const

overridevirtual

Return the interface number of the interface that has been assigned the specified IP address.

Parameters

address The IP address being searched for

Returns: The interface number of the Ipv4 interface with the given address or -1 if not found.

Each IP interface has one or more IP addresses associated with it. This method searches the list of interfaces for one that holds a particular address. This call takes an IP address as a parameter and returns the interface number of the first interface that has been assigned that address, or -1 if not found. There must be an exact match; this method will not match broadcast or multicast addresses.

Implements ns3::Ipv4.

Definition at line 461 of file ipv4-l3-protocol.cc.

References first::address, m_interfaces, and NS_LOG_FUNCTION.

◆ GetInterfaceForDevice()

int32_t ns3::Ipv4L3Protocol::GetInterfaceForDevice ( Ptr< const NetDevice > device ) const

overridevirtual

Parameters

device The NetDevice for an Ipv4Interface

Returns: The interface number of an Ipv4 interface or -1 if not found.

Implements ns3::Ipv4.

Definition at line 499 of file ipv4-l3-protocol.cc.

References m_reverseInterfacesContainer, and NS_LOG_FUNCTION.

Referenced by IpForward(), SelectSourceAddress(), and Send().

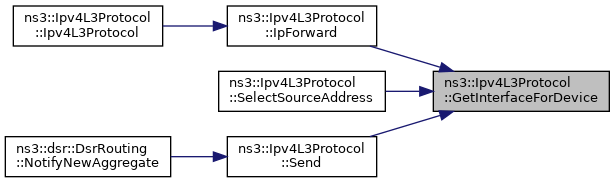

Here is the caller graph for this function:

◆ GetInterfaceForPrefix()

int32_t ns3::Ipv4L3Protocol::GetInterfaceForPrefix	(	Ipv4Address	address,
		Ipv4Mask	mask
	)		const

overridevirtual

Return the interface number of first interface found that has an Ipv4 address within the prefix specified by the input address and mask parameters.

Parameters

address	The IP address assigned to the interface of interest.
mask	The IP prefix to use in the mask

Returns: The interface number of the Ipv4 interface with the given address or -1 if not found.

Each IP interface has one or more IP addresses associated with it. This method searches the list of interfaces for the first one found that holds an address that is included within the prefix formed by the input address and mask parameters. The value -1 is returned if no match is found.

Implements ns3::Ipv4.

Definition at line 480 of file ipv4-l3-protocol.cc.

References first::address, m_interfaces, and NS_LOG_FUNCTION.

◆ GetIpForward()

bool ns3::Ipv4L3Protocol::GetIpForward ( ) const

overrideprivatevirtual

Get the IP forwarding state.

Returns: true if IP is in forwarding state

Implements ns3::Ipv4.

Definition at line 1434 of file ipv4-l3-protocol.cc.

References m_ipForward, and NS_LOG_FUNCTION.

◆ GetMetric()

uint16_t ns3::Ipv4L3Protocol::GetMetric ( uint32_t interface ) const

overridevirtual

Parameters

interface The interface number of an Ipv4 interface

Returns: routing metric (cost) associated to the underlying Ipv4 interface

Implements ns3::Ipv4.

Definition at line 1334 of file ipv4-l3-protocol.cc.

References ns3::Ipv4Interface::GetMetric(), and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ GetMtu()

uint16_t ns3::Ipv4L3Protocol::GetMtu ( uint32_t interface ) const

overridevirtual

Parameters

interface Interface number of Ipv4 interface

Returns: the Maximum Transmission Unit (in bytes) associated to the underlying Ipv4 interface

Implements ns3::Ipv4.

Definition at line 1342 of file ipv4-l3-protocol.cc.

References ns3::Ipv4Interface::GetDevice(), and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ GetNAddresses()

uint32_t ns3::Ipv4L3Protocol::GetNAddresses ( uint32_t interface ) const

overridevirtual

Parameters

interface Interface number of an Ipv4 interface

Returns: the number of Ipv4InterfaceAddress entries for the interface.

Implements ns3::Ipv4.

Definition at line 1189 of file ipv4-l3-protocol.cc.

References GetInterface(), ns3::Ipv4Interface::GetNAddresses(), and NS_LOG_FUNCTION.

Referenced by IsDestinationAddress(), IsUnicast(), LocalDeliver(), SelectSourceAddress(), Send(), and SourceAddressSelection().

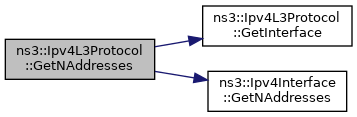

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetNetDevice()

Ptr< NetDevice > ns3::Ipv4L3Protocol::GetNetDevice ( uint32_t interface )

overridevirtual

Parameters

interface The interface number of an Ipv4 interface.

Returns: The NetDevice associated with the Ipv4 interface number.

Implements ns3::Ipv4.

Definition at line 1416 of file ipv4-l3-protocol.cc.

References ns3::Ipv4Interface::GetDevice(), GetInterface(), and NS_LOG_FUNCTION.

Referenced by IpMulticastForward().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetNInterfaces()

uint32_t ns3::Ipv4L3Protocol::GetNInterfaces ( ) const

overridevirtual

Returns: the number of interfaces added by the user.

Implements ns3::Ipv4.

Definition at line 454 of file ipv4-l3-protocol.cc.

References m_interfaces, and NS_LOG_FUNCTION.

Referenced by IsDestinationAddress(), IsUnicast(), and SelectSourceAddress().

Here is the caller graph for this function:

◆ GetProtocol() [1/2]

Ptr< IpL4Protocol > ns3::Ipv4L3Protocol::GetProtocol ( int protocolNumber ) const

overridevirtual

Parameters

protocolNumber number of protocol to lookup in this L4 Demux

Returns: a matching L4 Protocol

This method is typically called by lower layers to forward packets up the stack to the right protocol.

Implements ns3::Ipv4.

Definition at line 211 of file ipv4-l3-protocol.cc.

References NS_LOG_FUNCTION.

Referenced by GetIcmp(), and LocalDeliver().

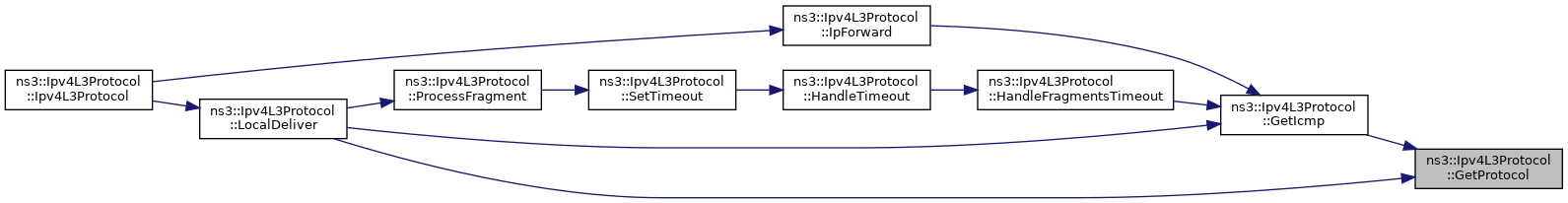

Here is the caller graph for this function:

◆ GetProtocol() [2/2]

Ptr< IpL4Protocol > ns3::Ipv4L3Protocol::GetProtocol	(	int	protocolNumber,
		int32_t	interfaceIndex
	)		const

overridevirtual

Get L4 protocol by protocol number for the specified interface.

Parameters

protocolNumber	protocol number
interfaceIndex	interface index, -1 means "any" interface.

Returns: corresponding IpL4Protocol or 0 if not found

Implements ns3::Ipv4.

Definition at line 219 of file ipv4-l3-protocol.cc.

References m_protocols, and NS_LOG_FUNCTION.

◆ GetRoutingProtocol()

Ptr< Ipv4RoutingProtocol > ns3::Ipv4L3Protocol::GetRoutingProtocol ( ) const

overridevirtual

Get the routing protocol to be used by this Ipv4 stack.

Returns: smart pointer to Ipv4RoutingProtocol object, or null pointer if none

Implements ns3::Ipv4.

Definition at line 307 of file ipv4-l3-protocol.cc.

References m_routingProtocol, and NS_LOG_FUNCTION.

◆ GetStrongEndSystemModel()

bool ns3::Ipv4L3Protocol::GetStrongEndSystemModel ( ) const

overrideprivatevirtual

Get the Strong End System Model status.

RFC1122 term for whether host rejects datagram with a dest. address on another interface

Returns: true for Strong End System Model activated

Implements ns3::Ipv4.

Definition at line 1462 of file ipv4-l3-protocol.cc.

References m_strongEndSystemModel, and NS_LOG_FUNCTION.

Referenced by IsDestinationAddress().

Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::Ipv4L3Protocol::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 55 of file ipv4-l3-protocol.cc.

References m_defaultTtl, m_dropTrace, m_enableDpd, m_expire, m_fragmentExpirationTimeout, m_interfaces, m_localDeliverTrace, m_multicastForwardTrace, m_purge, m_rxTrace, m_sendOutgoingTrace, m_txTrace, m_unicastForwardTrace, ns3::MakeBooleanAccessor(), ns3::MakeBooleanChecker(), ns3::MakeObjectVectorAccessor(), ns3::MakeTimeAccessor(), ns3::MakeTimeChecker(), ns3::MakeTraceSourceAccessor(), ns3::MakeUintegerAccessor(), ns3::MilliSeconds(), ns3::Seconds(), and ns3::TypeId::SetParent().

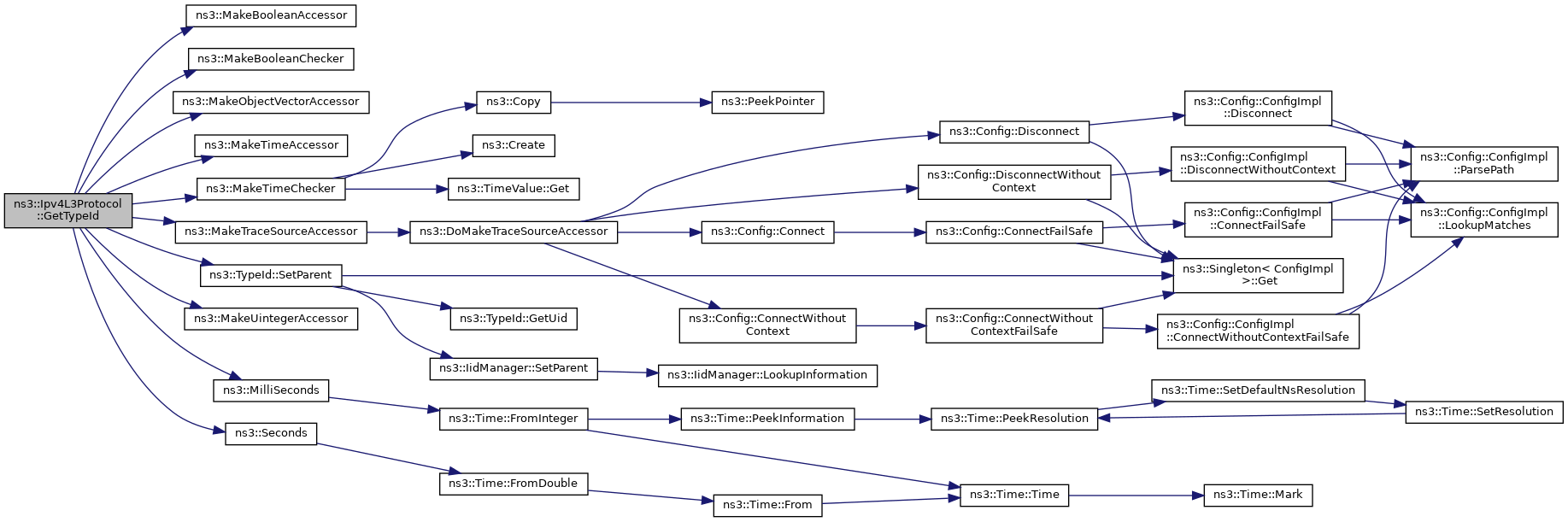

Here is the call graph for this function:

◆ GetWeakEsModel()

bool ns3::Ipv4L3Protocol::GetWeakEsModel ( ) const

overrideprivatevirtual

Get the Weak Es Model status.

RFC1122 term for whether host accepts datagram with a dest. address on another interface

Returns: true for Weak Es Model activated

Deprecated:: Deprecated since ns-3.41. Use SetStrongEndSystemModel instead.

Implements ns3::Ipv4.

Definition at line 1448 of file ipv4-l3-protocol.cc.

References m_strongEndSystemModel, and NS_LOG_FUNCTION.

◆ HandleFragmentsTimeout()

void ns3::Ipv4L3Protocol::HandleFragmentsTimeout	(	FragmentKey_t	key,
		Ipv4Header &	ipHeader,
		uint32_t	iif
	)

private

Process the timeout for packet fragments.

Parameters

key	representing the packet fragments
ipHeader	the IP header of the original packet
iif	Input Interface

Definition at line 1761 of file ipv4-l3-protocol.cc.

References DROP_FRAGMENT_TIMEOUT, GetIcmp(), ns3::Packet::GetSize(), m_dropTrace, m_fragments, and NS_LOG_FUNCTION.

Referenced by HandleTimeout().

Here is the call graph for this function:

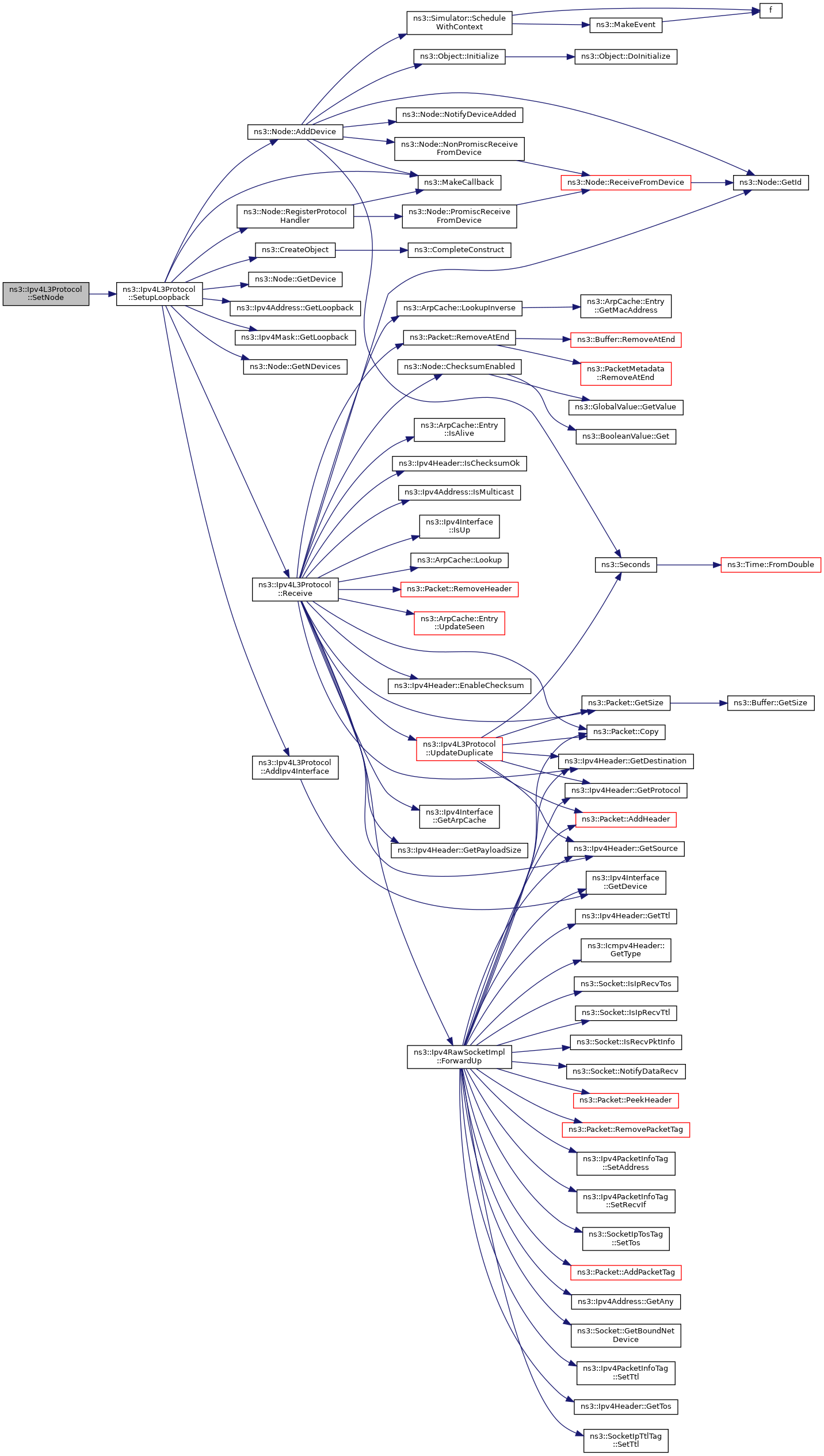

Here is the caller graph for this function:

◆ HandleTimeout()

void ns3::Ipv4L3Protocol::HandleTimeout ( )

private

Handles a fragmented packet timeout.

Definition at line 1901 of file ipv4-l3-protocol.cc.

References HandleFragmentsTimeout(), m_timeoutEvent, m_timeoutEventList, ns3::Simulator::Now(), and ns3::Simulator::Schedule().

Referenced by SetTimeout().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Insert() [1/2]

void ns3::Ipv4L3Protocol::Insert ( Ptr< IpL4Protocol > protocol )

overridevirtual

Parameters

protocol a template for the protocol to add to this L4 Demux.

Invoke Copy on the input template to get a copy of the input protocol which can be used on the Node on which this L4 Demux is running. The new L4Protocol is registered internally as a working L4 Protocol and returned from this method. The caller does not get ownership of the returned pointer.

Implements ns3::Ipv4.

Definition at line 148 of file ipv4-l3-protocol.cc.

References ns3::IpL4Protocol::GetProtocolNumber(), m_protocols, NS_LOG_FUNCTION, and NS_LOG_WARN.

Here is the call graph for this function:

◆ Insert() [2/2]

void ns3::Ipv4L3Protocol::Insert	(	Ptr< IpL4Protocol >	protocol,
		uint32_t	interfaceIndex
	)

overridevirtual

Add a L4 protocol to a specific interface.

This may be called multiple times for multiple interfaces for the same protocol. To insert for all interfaces, use the separate Insert (Ptr<IpL4Protocol> protocol) method.

Setting a protocol on a specific interface will overwrite the previously bound protocol.

Parameters

protocol	L4 protocol.
interfaceIndex	interface index.

Implements ns3::Ipv4.

Definition at line 160 of file ipv4-l3-protocol.cc.

References ns3::IpL4Protocol::GetProtocolNumber(), m_protocols, NS_LOG_FUNCTION, and NS_LOG_WARN.

Here is the call graph for this function:

◆ IpForward()

void ns3::Ipv4L3Protocol::IpForward	(	Ptr< Ipv4Route >	rtentry,
		Ptr< const Packet >	p,
		const Ipv4Header &	header
	)

private

Forward a packet.

Parameters

rtentry	route
p	packet to forward
header	IPv4 header to add to the packet

Definition at line 1068 of file ipv4-l3-protocol.cc.

References ns3::Packet::AddPacketTag(), ns3::Packet::Copy(), DROP_TTL_EXPIRED, ns3::Ipv4Header::GetDestination(), GetIcmp(), ns3::Node::GetId(), GetInterfaceForDevice(), ns3::Ipv4Header::GetTos(), ns3::Ipv4Header::GetTtl(), ns3::Socket::IpTos2Priority(), ns3::Ipv4Address::IsBroadcast(), ns3::Ipv4Address::IsMulticast(), m_dropTrace, m_node, m_unicastForwardTrace, NS_LOG_FUNCTION, NS_LOG_LOGIC, NS_LOG_WARN, ns3::Packet::RemovePacketTag(), SendRealOut(), ns3::SocketPriorityTag::SetPriority(), and ns3::Ipv4Header::SetTtl().

Referenced by Ipv4L3Protocol().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ IpMulticastForward()

void ns3::Ipv4L3Protocol::IpMulticastForward	(	Ptr< Ipv4MulticastRoute >	mrtentry,
		Ptr< const Packet >	p,
		const Ipv4Header &	header
	)

private

Forward a multicast packet.

Parameters

mrtentry	route
p	packet to forward
header	IPv4 header to add to the packet

Definition at line 1031 of file ipv4-l3-protocol.cc.

References ns3::Packet::Copy(), DROP_TTL_EXPIRED, ns3::Ipv4Address::GetAny(), ns3::Ipv4Header::GetDestination(), ns3::Node::GetId(), GetNetDevice(), ns3::Ipv4Header::GetSource(), ns3::Ipv4Header::GetTtl(), m_dropTrace, m_multicastForwardTrace, m_node, NS_LOG_FUNCTION, NS_LOG_LOGIC, NS_LOG_WARN, SendRealOut(), and ns3::Ipv4Header::SetTtl().

Referenced by Ipv4L3Protocol().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ IsDestinationAddress()

bool ns3::Ipv4L3Protocol::IsDestinationAddress	(	Ipv4Address	address,
		uint32_t	iif
	)		const

overridevirtual

Determine whether address and interface corresponding to received packet can be accepted for local delivery.

Parameters

address	The IP address being considered
iif	The incoming Ipv4 interface index

Returns: true if the address is associated with the interface index

This method can be used to determine whether a received packet has an acceptable address for local delivery on the host. The address may be a unicast, multicast, or broadcast address. This method will return true if address is an exact match of a unicast address on one of the host's interfaces (see below), if address corresponds to a multicast group that the host has joined (and the incoming device is acceptable), or if address corresponds to a broadcast address.

If the Ipv4 attribute StrongEndSystemModel is true, the address must match one assigned to the incoming device. If the attribute is false, the unicast address may match any of the Ipv4 addresses on any interface.

Implements ns3::Ipv4.

Definition at line 513 of file ipv4-l3-protocol.cc.

References first::address, GetAddress(), ns3::Ipv4InterfaceAddress::GetBroadcast(), ns3::Ipv4InterfaceAddress::GetLocal(), GetNAddresses(), GetNInterfaces(), GetStrongEndSystemModel(), NS_LOG_FUNCTION, and NS_LOG_LOGIC.

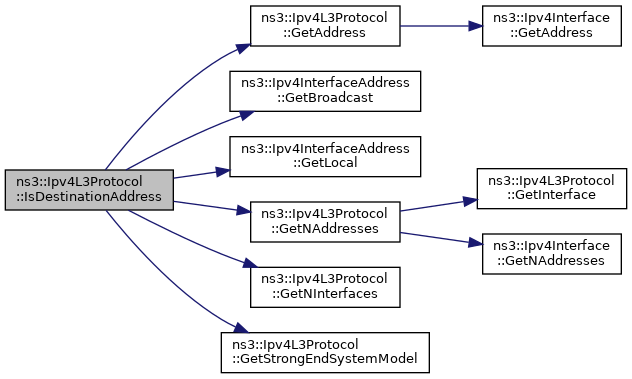

Here is the call graph for this function:

◆ IsForwarding()

bool ns3::Ipv4L3Protocol::IsForwarding ( uint32_t interface ) const

overridevirtual

Parameters

interface Interface number of Ipv4 interface

Returns: true if IP forwarding enabled for input datagrams on this device

Implements ns3::Ipv4.

Definition at line 1399 of file ipv4-l3-protocol.cc.

References NS_LOG_FUNCTION, and NS_LOG_LOGIC.

◆ IsUnicast() [1/2]

bool ns3::Ipv4L3Protocol::IsUnicast ( Ipv4Address ad ) const

Check if an IPv4 address is unicast according to the node.

This function checks all the node's interfaces and the respective subnet masks. An address is considered unicast if it's not broadcast, subnet-broadcast or multicast.

Parameters

ad address

Returns: true if the address is unicast

Definition at line 697 of file ipv4-l3-protocol.cc.

References GetAddress(), ns3::Ipv4InterfaceAddress::GetBroadcast(), GetNAddresses(), GetNInterfaces(), ns3::Ipv4Address::IsBroadcast(), ns3::Ipv4Address::IsMulticast(), NS_LOG_FUNCTION, and NS_LOG_LOGIC.

Here is the call graph for this function:

◆ IsUnicast() [2/2]

bool ns3::Ipv4L3Protocol::IsUnicast	(	Ipv4Address	ad,
		Ipv4Mask	interfaceMask
	)		const

private

Check if an IPv4 address is unicast.

Parameters

ad	address
interfaceMask	the network mask

Returns: true if the address is unicast

Definition at line 727 of file ipv4-l3-protocol.cc.

References ns3::Ipv4Address::IsMulticast(), ns3::Ipv4Address::IsSubnetDirectedBroadcast(), and NS_LOG_FUNCTION.

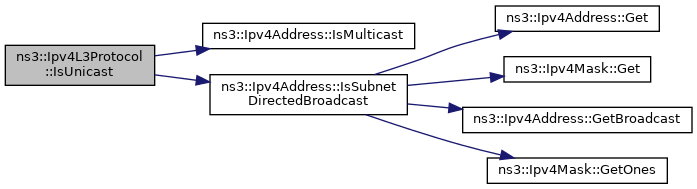

Here is the call graph for this function:

◆ IsUp()

bool ns3::Ipv4L3Protocol::IsUp ( uint32_t interface ) const

overridevirtual

Parameters

interface Interface number of Ipv4 interface

Returns: true if the underlying interface is in the "up" state, false otherwise.

Implements ns3::Ipv4.

Definition at line 1350 of file ipv4-l3-protocol.cc.

References ns3::Ipv4Interface::IsUp(), and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ LocalDeliver()

void ns3::Ipv4L3Protocol::LocalDeliver	(	Ptr< const Packet >	p,
		const Ipv4Header &	ip,
		uint32_t	iif
	)

private

Deliver a packet.

Parameters

p	packet delivered
ip	IPv4 header
iif	input interface packet was received

Definition at line 1105 of file ipv4-l3-protocol.cc.

References ns3::Ipv4Address::CombineMask(), ns3::Packet::Copy(), GetAddress(), ns3::Ipv4Header::GetDestination(), ns3::Ipv4Header::GetFragmentOffset(), GetIcmp(), GetInterface(), ns3::Ipv4InterfaceAddress::GetLocal(), ns3::Ipv4InterfaceAddress::GetMask(), GetNAddresses(), ns3::Ipv4Header::GetProtocol(), GetProtocol(), ns3::Packet::GetSize(), ns3::Ipv4Address::IsBroadcast(), ns3::Ipv4Header::IsLastFragment(), ns3::Ipv4Address::IsMulticast(), ns3::Ipv4Address::IsSubnetDirectedBroadcast(), m_localDeliverTrace, NS_LOG_FUNCTION, NS_LOG_LOGIC, ProcessFragment(), ns3::IpL4Protocol::Receive(), ns3::IpL4Protocol::RX_CSUM_FAILED, ns3::IpL4Protocol::RX_ENDPOINT_CLOSED, ns3::IpL4Protocol::RX_ENDPOINT_UNREACH, ns3::IpL4Protocol::RX_OK, ns3::Ipv4Header::SetFragmentOffset(), and ns3::Ipv4Header::SetPayloadSize().

Referenced by Ipv4L3Protocol().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ NotifyNewAggregate()

void ns3::Ipv4L3Protocol::NotifyNewAggregate ( )

overrideprotectedvirtual

This function will notify other components connected to the node that a new stack member is now connected This will be used to notify Layer 3 protocol of layer 4 protocol stack to connect them together.

Reimplemented from ns3::Object.

Definition at line 282 of file ipv4-l3-protocol.cc.

References m_node, ns3::Object::NotifyNewAggregate(), NS_LOG_FUNCTION, and SetNode().

Here is the call graph for this function:

◆ operator=()

Ipv4L3Protocol& ns3::Ipv4L3Protocol::operator= ( const Ipv4L3Protocol & )

delete

◆ ProcessFragment()

bool ns3::Ipv4L3Protocol::ProcessFragment	(	Ptr< Packet > &	packet,
		Ipv4Header &	ipHeader,
		uint32_t	iif
	)

private

Process a packet fragment.

Parameters

packet	the packet
ipHeader	the IP header
iif	Input Interface

Returns: true is the fragment completed the packet

Definition at line 1566 of file ipv4-l3-protocol.cc.

References ns3::Ipv4L3Protocol::Fragments::AddFragment(), ns3::Packet::Copy(), ns3::Ipv4Address::Get(), ns3::Ipv4Header::GetDestination(), ns3::Ipv4Header::GetFragmentOffset(), ns3::Ipv4Header::GetIdentification(), ns3::Ipv4L3Protocol::Fragments::GetPacket(), ns3::Ipv4Header::GetProtocol(), ns3::Packet::GetSize(), ns3::Ipv4Header::GetSource(), ns3::Ipv4L3Protocol::Fragments::GetTimeoutIter(), ns3::Ipv4L3Protocol::Fragments::IsEntire(), ns3::Ipv4Header::IsLastFragment(), m_fragments, m_timeoutEventList, NS_LOG_FUNCTION, NS_LOG_LOGIC, SetTimeout(), and ns3::Ipv4L3Protocol::Fragments::SetTimeoutIter().

Referenced by LocalDeliver().

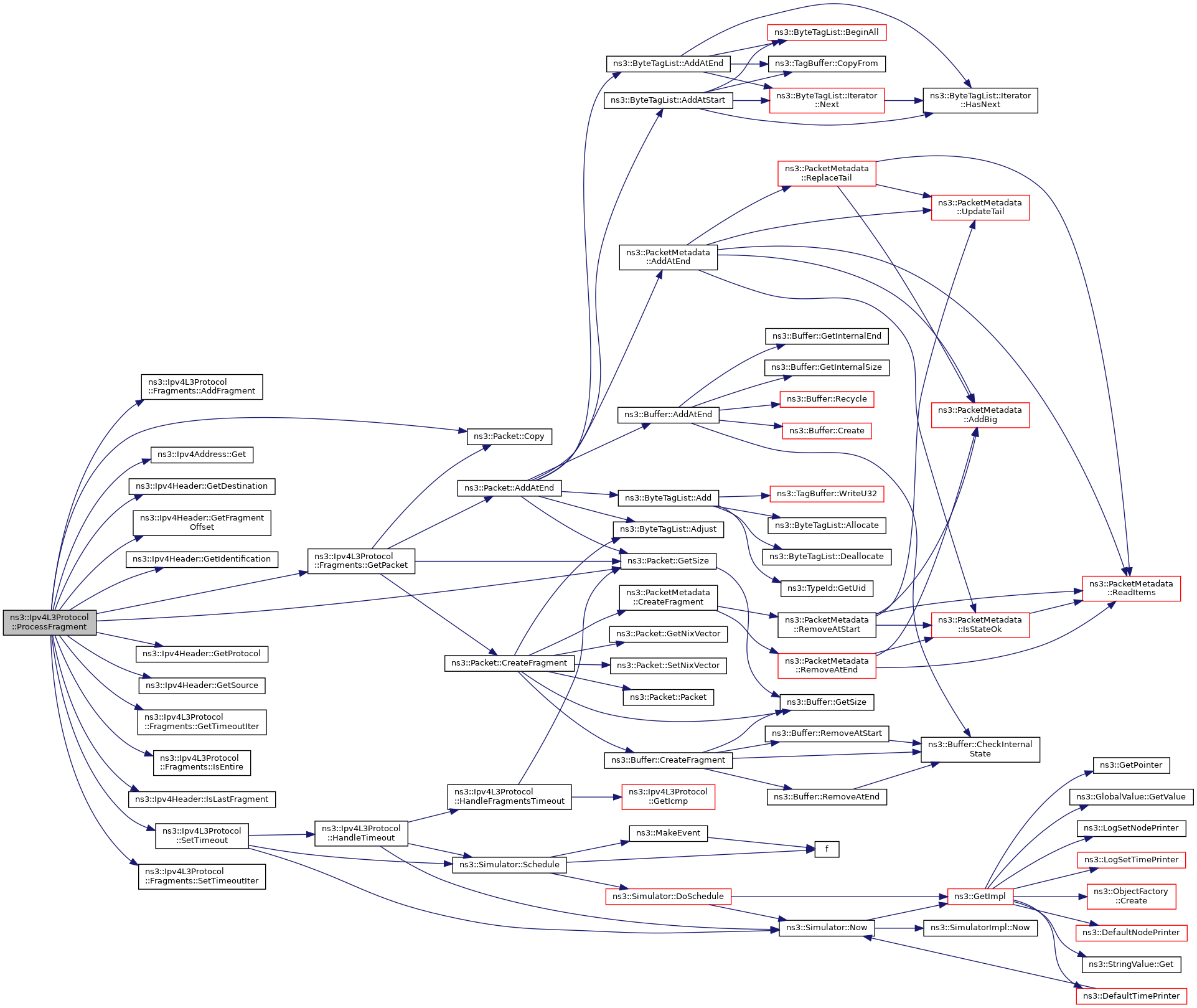

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Receive()

void ns3::Ipv4L3Protocol::Receive	(	Ptr< NetDevice >	device,
		Ptr< const Packet >	p,
		uint16_t	protocol,
		const Address &	from,
		const Address &	to,
		NetDevice::PacketType	packetType
	)

Lower layer calls this method after calling L3Demux::Lookup The ARP subclass needs to know from which NetDevice this packet is coming to:

implement a per-NetDevice ARP cache
send back arp replies on the right device
Parameters

device network device

p the packet

protocol protocol value

from address of the correspondent

to address of the destination

packetType type of the packet

Definition at line 579 of file ipv4-l3-protocol.cc.

References ns3::Node::ChecksumEnabled(), ns3::Packet::Copy(), DROP_BAD_CHECKSUM, DROP_DUPLICATE, DROP_INTERFACE_DOWN, DROP_NO_ROUTE, ns3::Ipv4Header::EnableChecksum(), ns3::Ipv4RawSocketImpl::ForwardUp(), ns3::Ipv4Interface::GetArpCache(), ns3::Ipv4Header::GetDestination(), ns3::Node::GetId(), ns3::Ipv4Header::GetPayloadSize(), ns3::Packet::GetSize(), ns3::Ipv4Header::GetSource(), ns3::ArpCache::Entry::IsAlive(), ns3::Ipv4Header::IsChecksumOk(), ns3::Ipv4Address::IsMulticast(), ns3::Ipv4Interface::IsUp(), ns3::ArpCache::Lookup(), ns3::ArpCache::LookupInverse(), m_dropTrace, m_ecb, m_enableDpd, m_interfaces, m_lcb, m_mcb, m_node, m_routingProtocol, m_rxTrace, m_sockets, m_ucb, NS_ASSERT_MSG, NS_LOG_FUNCTION, NS_LOG_LOGIC, NS_LOG_WARN, ns3::Packet::RemoveAtEnd(), ns3::Packet::RemoveHeader(), UpdateDuplicate(), and ns3::ArpCache::Entry::UpdateSeen().

Referenced by AddInterface(), and SetupLoopback().

Here is the call graph for this function:

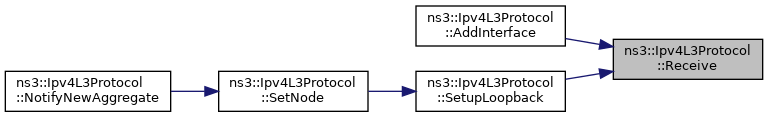

Here is the caller graph for this function:

◆ Remove() [1/2]

void ns3::Ipv4L3Protocol::Remove ( Ptr< IpL4Protocol > protocol )

overridevirtual

Parameters

protocol protocol to remove from this demux.

The input value to this method should be the value returned from the Ipv4L4Protocol::Insert method.

Implements ns3::Ipv4.

Definition at line 174 of file ipv4-l3-protocol.cc.

References ns3::IpL4Protocol::GetProtocolNumber(), m_protocols, NS_LOG_FUNCTION, and NS_LOG_WARN.

Here is the call graph for this function:

◆ Remove() [2/2]

void ns3::Ipv4L3Protocol::Remove	(	Ptr< IpL4Protocol >	protocol,
		uint32_t	interfaceIndex
	)

overridevirtual

Remove a L4 protocol from a specific interface.

Parameters

protocol	L4 protocol to remove.
interfaceIndex	interface index.

Implements ns3::Ipv4.

Definition at line 192 of file ipv4-l3-protocol.cc.

References ns3::IpL4Protocol::GetProtocolNumber(), m_protocols, NS_LOG_FUNCTION, and NS_LOG_WARN.

Here is the call graph for this function:

◆ RemoveAddress() [1/2]

bool ns3::Ipv4L3Protocol::RemoveAddress	(	uint32_t	interface,
		Ipv4Address	address
	)

overridevirtual

Remove the given address on named Ipv4 interface.

Parameters

interface	Interface number of an Ipv4 interface
address	The address to remove

Returns: true if the operation succeeded

Implements ns3::Ipv4.

Definition at line 1214 of file ipv4-l3-protocol.cc.

References first::address, ns3::Ipv4Address::GetLoopback(), m_routingProtocol, NS_LOG_FUNCTION, and NS_LOG_WARN.

Here is the call graph for this function:

◆ RemoveAddress() [2/2]

bool ns3::Ipv4L3Protocol::RemoveAddress	(	uint32_t	interface,
		uint32_t	addressIndex
	)

overridevirtual

Remove the address at addressIndex on named interface.

The addressIndex for all higher indices will decrement by one after this method is called; so, for example, to remove 5 addresses from an interface i, one could call RemoveAddress (i, 0); 5 times.

Parameters

interface	Interface number of an Ipv4 interface
addressIndex	index of Ipv4InterfaceAddress to remove

Returns: true if the operation succeeded

Implements ns3::Ipv4.

Definition at line 1197 of file ipv4-l3-protocol.cc.

References first::address, m_routingProtocol, and NS_LOG_FUNCTION.

◆ RemoveDuplicates()

void ns3::Ipv4L3Protocol::RemoveDuplicates ( )

private

Remove expired duplicates packet entry.

Definition at line 1850 of file ipv4-l3-protocol.cc.

References ns3::Time::IsStrictlyPositive(), m_cleanDpd, m_dups, m_purge, ns3::Simulator::Now(), NS_LOG_DEBUG, NS_LOG_FUNCTION, NS_LOG_LOGIC, and ns3::Simulator::Schedule().

Referenced by UpdateDuplicate().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ RouteInputError()

void ns3::Ipv4L3Protocol::RouteInputError	(	Ptr< const Packet >	p,
		const Ipv4Header &	ipHeader,
		Socket::SocketErrno	sockErrno
	)

private

Fallback when no route is found.

Parameters

p	packet
ipHeader	IPv4 header
sockErrno	error number

Definition at line 1469 of file ipv4-l3-protocol.cc.

References DROP_ROUTE_ERROR, m_dropTrace, NS_LOG_FUNCTION, and NS_LOG_LOGIC.

Referenced by Ipv4L3Protocol().

Here is the caller graph for this function:

◆ SelectSourceAddress()

Ipv4Address ns3::Ipv4L3Protocol::SelectSourceAddress	(	Ptr< const NetDevice >	device,
		Ipv4Address	dst,
		Ipv4InterfaceAddress::InterfaceAddressScope_e	scope
	)

overridevirtual

Return the first primary source address with scope less than or equal to the requested scope, to use in sending a packet to destination dst out of the specified device.

This method mirrors the behavior of Linux inet_select_addr() and is provided because interfaces may have multiple IP addresses configured on them with different scopes, and with a primary and secondary status. Secondary addresses are never returned.

See also: Ipv4InterfaceAddress

If a non-zero device pointer is provided, the method first tries to return a primary address that is configured on that device, and whose subnet matches that of dst and whose scope is less than or equal to the requested scope. If a primary address does not match the subnet of dst but otherwise matches the scope, it is returned. If no such address on the device is found, the other devices are searched in order of their interface index, but not considering dst as a factor in the search. Because a loopback interface is typically the first one configured on a node, it will be the first alternate device to be tried. Addresses scoped at LINK scope are not returned in this phase.

If no device pointer is provided, the same logic as above applies, only that there is no preferred device that is consulted first. This means that if the device pointer is null, input parameter dst will be ignored.

If there are no possible addresses to return, a warning log message is issued and the all-zeroes address is returned.

Parameters

device	output NetDevice (optionally provided, only to constrain the search)
dst	Destination address to match, if device is provided
scope	Scope of returned address must be less than or equal to this

Returns: the first primary Ipv4Address that meets the search criteria

Implements ns3::Ipv4.

Definition at line 1264 of file ipv4-l3-protocol.cc.

References ns3::Ipv4Address::CombineMask(), GetAddress(), GetInterfaceForDevice(), ns3::Ipv4InterfaceAddress::GetLocal(), ns3::Ipv4InterfaceAddress::GetMask(), GetNAddresses(), GetNInterfaces(), ns3::Ipv4InterfaceAddress::GetScope(), ns3::Ipv4InterfaceAddress::IsSecondary(), ns3::Ipv4InterfaceAddress::LINK, NS_ASSERT_MSG, NS_LOG_FUNCTION, and NS_LOG_WARN.

Here is the call graph for this function:

◆ Send()

void ns3::Ipv4L3Protocol::Send	(	Ptr< Packet >	packet,
		Ipv4Address	source,
		Ipv4Address	destination,
		uint8_t	protocol,
		Ptr< Ipv4Route >	route
	)

overridevirtual

Parameters

packet	packet to send
source	source address of packet
destination	address of packet
protocol	number of packet
route	route entry

Higher-level layers call this method to send a packet down the stack to the MAC and PHY layers.

Implements ns3::Ipv4.

Definition at line 759 of file ipv4-l3-protocol.cc.

References BuildHeader(), ns3::Ipv4Address::CombineMask(), ns3::Packet::Copy(), DecreaseIdentification(), DROP_NO_ROUTE, ns3::Ipv4Interface::GetAddress(), GetAddress(), ns3::Ipv4Address::GetAny(), ns3::Ipv4Header::GetDestination(), ns3::Ipv4Interface::GetDevice(), GetInterfaceForDevice(), ns3::Ipv4InterfaceAddress::GetLocal(), ns3::Ipv4InterfaceAddress::GetMask(), ns3::Ipv4Interface::GetNAddresses(), GetNAddresses(), ns3::Packet::GetSize(), ns3::SocketIpTosTag::GetTos(), ns3::SocketIpTtlTag::GetTtl(), ns3::Ipv4Address::IsAny(), ns3::Ipv4Address::IsBroadcast(), ns3::Ipv4Address::IsLocalMulticast(), ns3::Ipv4Address::IsMulticast(), ns3::Ipv4Address::IsSubnetDirectedBroadcast(), m_defaultTtl, m_dropTrace, m_enableDpd, m_interfaces, m_routingProtocol, m_sendOutgoingTrace, NS_FATAL_ERROR, NS_LOG_ERROR, NS_LOG_FUNCTION, NS_LOG_LOGIC, NS_LOG_WARN, ns3::Packet::RemovePacketTag(), SendRealOut(), and UpdateDuplicate().

Referenced by ns3::dsr::DsrRouting::NotifyNewAggregate().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SendRealOut()

void ns3::Ipv4L3Protocol::SendRealOut	(	Ptr< Ipv4Route >	route,
		Ptr< Packet >	packet,
		const Ipv4Header &	ipHeader
	)

private

Send packet with route.

Parameters

route	route
packet	packet to send
ipHeader	IPv4 header to add to the packet

Definition at line 978 of file ipv4-l3-protocol.cc.

References CallTxTrace(), DoFragmentation(), DROP_NO_ROUTE, ns3::Ipv4Header::GetDestination(), ns3::Ipv4Interface::GetDevice(), GetInterface(), ns3::Ipv4Header::GetSerializedSize(), ns3::Packet::GetSize(), ns3::Ipv4Interface::IsUp(), m_dropTrace, NS_ASSERT, NS_LOG_FUNCTION, NS_LOG_LOGIC, NS_LOG_WARN, and ns3::Ipv4Interface::Send().

Referenced by IpForward(), IpMulticastForward(), Send(), and SendWithHeader().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SendWithHeader()

void ns3::Ipv4L3Protocol::SendWithHeader	(	Ptr< Packet >	packet,
		Ipv4Header	ipHeader,
		Ptr< Ipv4Route >	route
	)

overridevirtual

Parameters

packet	packet to send
ipHeader	IP Header
route	route entry

Higher-level layers call this method to send a packet with IPv4 Header (Intend to be used with IpHeaderInclude attribute.)

Implements ns3::Ipv4.

Definition at line 734 of file ipv4-l3-protocol.cc.

References ns3::Node::ChecksumEnabled(), ns3::Ipv4Header::EnableChecksum(), NS_LOG_FUNCTION, and SendRealOut().

Here is the call graph for this function:

◆ SetDefaultTtl()

void ns3::Ipv4L3Protocol::SetDefaultTtl ( uint8_t ttl )

Parameters

ttl	default ttl to use

When we need to send an ipv4 packet, we use this default ttl value.

Definition at line 393 of file ipv4-l3-protocol.cc.

References m_defaultTtl, and NS_LOG_FUNCTION.

◆ SetDown()

void ns3::Ipv4L3Protocol::SetDown ( uint32_t interface )

overridevirtual

Parameters

interface Interface number of Ipv4 interface

Set the interface into the "down" state. In this state, it is ignored during Ipv4 forwarding.

Implements ns3::Ipv4.

Definition at line 1386 of file ipv4-l3-protocol.cc.

References m_routingProtocol, NS_LOG_FUNCTION, and ns3::Ipv4Interface::SetDown().

Here is the call graph for this function:

◆ SetForwarding()

void ns3::Ipv4L3Protocol::SetForwarding	(	uint32_t	interface,
		bool	val
	)

overridevirtual

Parameters

interface	Interface number of Ipv4 interface
val	Value to set the forwarding flag

If set to true, IP forwarding is enabled for input datagrams on this device

Implements ns3::Ipv4.

Definition at line 1408 of file ipv4-l3-protocol.cc.

References NS_LOG_FUNCTION, and ns3::Ipv4Interface::SetForwarding().

Here is the call graph for this function:

◆ SetIpForward()

void ns3::Ipv4L3Protocol::SetIpForward ( bool forward )

overrideprivatevirtual

Set or unset the IP forwarding state.

Parameters

forward the forwarding state

Implements ns3::Ipv4.

Definition at line 1423 of file ipv4-l3-protocol.cc.

References m_interfaces, m_ipForward, and NS_LOG_FUNCTION.

◆ SetMetric()

void ns3::Ipv4L3Protocol::SetMetric	(	uint32_t	interface,
		uint16_t	metric
	)

overridevirtual

Parameters

interface	The interface number of an Ipv4 interface
metric	routing metric (cost) associated to the underlying Ipv4 interface

Implements ns3::Ipv4.

Definition at line 1326 of file ipv4-l3-protocol.cc.

References NS_LOG_FUNCTION, and ns3::Ipv4Interface::SetMetric().

Here is the call graph for this function:

◆ SetNode()

void ns3::Ipv4L3Protocol::SetNode ( Ptr< Node > node )

Set node associated with this stack.

Parameters

node	node to set

Definition at line 245 of file ipv4-l3-protocol.cc.

References m_node, NS_LOG_FUNCTION, and SetupLoopback().

Referenced by NotifyNewAggregate().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetRoutingProtocol()

void ns3::Ipv4L3Protocol::SetRoutingProtocol ( Ptr< Ipv4RoutingProtocol > routingProtocol )

overridevirtual

Register a new routing protocol to be used by this Ipv4 stack.

This call will replace any routing protocol that has been previously registered. If you want to add multiple routing protocols, you must add them to a Ipv4ListRoutingProtocol directly.

Parameters

routingProtocol smart pointer to Ipv4RoutingProtocol object

Implements ns3::Ipv4.

Definition at line 299 of file ipv4-l3-protocol.cc.

References m_routingProtocol, and NS_LOG_FUNCTION.

◆ SetStrongEndSystemModel()

void ns3::Ipv4L3Protocol::SetStrongEndSystemModel ( bool model )

overrideprivatevirtual

Set or unset the Strong End System Model.

RFC1122 term for whether host rejects datagram with a dest. address on another interface

Parameters

model true for Strong End System Model

Implements ns3::Ipv4.

Definition at line 1455 of file ipv4-l3-protocol.cc.

References m_strongEndSystemModel, and NS_LOG_FUNCTION.

◆ SetTimeout()

Ipv4L3Protocol::FragmentsTimeoutsListI_t ns3::Ipv4L3Protocol::SetTimeout	(	FragmentKey_t	key,
		Ipv4Header	ipHeader,
		uint32_t	iif
	)

private

Set a new timeout "event" for a fragmented packet.

Parameters

key	the fragment identification
ipHeader	the IPv4 header of the fragmented packet
iif	input interface of the packet

Returns: an iterator to the inserted "event"

Definition at line 1884 of file ipv4-l3-protocol.cc.

References HandleTimeout(), m_fragmentExpirationTimeout, m_timeoutEvent, m_timeoutEventList, ns3::Simulator::Now(), and ns3::Simulator::Schedule().

Referenced by ProcessFragment().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetUp()

void ns3::Ipv4L3Protocol::SetUp ( uint32_t interface )

overridevirtual

Parameters

interface Interface number of Ipv4 interface

Set the interface into the "up" state. In this state, it is considered valid during Ipv4 forwarding.

Implements ns3::Ipv4.

Definition at line 1358 of file ipv4-l3-protocol.cc.

References m_routingProtocol, NS_LOG_FUNCTION, NS_LOG_LOGIC, and ns3::Ipv4Interface::SetUp().

Here is the call graph for this function:

◆ SetupLoopback()

void ns3::Ipv4L3Protocol::SetupLoopback ( )

private

Setup loopback interface.

Definition at line 356 of file ipv4-l3-protocol.cc.

References ns3::Node::AddDevice(), AddIpv4Interface(), ns3::CreateObject(), ns3::Node::GetDevice(), ns3::Ipv4Address::GetLoopback(), ns3::Ipv4Mask::GetLoopback(), ns3::Node::GetNDevices(), m_node, m_routingProtocol, ns3::MakeCallback(), NS_LOG_FUNCTION, PROT_NUMBER, Receive(), and ns3::Node::RegisterProtocolHandler().

Referenced by SetNode().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetWeakEsModel()

void ns3::Ipv4L3Protocol::SetWeakEsModel ( bool model )

overrideprivatevirtual

Set or unset the Weak Es Model.

RFC1122 term for whether host accepts datagram with a dest. address on another interface

Parameters

model true for Weak Es Model

Deprecated:: Deprecated since ns-3.41. Use SetStrongEndSystemModel instead.

Implements ns3::Ipv4.

Definition at line 1441 of file ipv4-l3-protocol.cc.

References m_strongEndSystemModel, and NS_LOG_FUNCTION.

◆ SourceAddressSelection()

Ipv4Address ns3::Ipv4L3Protocol::SourceAddressSelection	(	uint32_t	interface,
		Ipv4Address	dest
	)

overridevirtual

Choose the source address to use with destination address.

Parameters

interface	interface index
dest	IPv4 destination address

Returns: IPv4 source address to use

Implements ns3::Ipv4.

Definition at line 1237 of file ipv4-l3-protocol.cc.

References GetAddress(), ns3::Ipv4InterfaceAddress::GetLocal(), GetNAddresses(), and NS_LOG_FUNCTION.

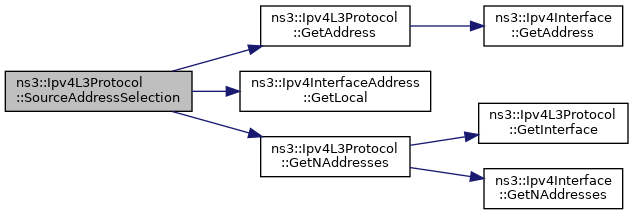

Here is the call graph for this function:

◆ UpdateDuplicate()

bool ns3::Ipv4L3Protocol::UpdateDuplicate	(	Ptr< const Packet >	p,
		const Ipv4Header &	header
	)

private

Registers duplicate entry, return false if new.

Parameters

[in]	p	Possibly duplicate packet.
[in]	header	Packet p header.

Returns: True if this packet is a duplicate

Definition at line 1783 of file ipv4-l3-protocol.cc.

References ns3::Packet::AddHeader(), ns3::Packet::Copy(), ns3::Packet::CopyData(), ns3::Ipv4Header::GetDestination(), ns3::Ipv4Header::GetFragmentOffset(), ns3::Ipv4Header::GetIdentification(), ns3::Ipv4Header::GetProtocol(), ns3::Ipv4Header::GetSerializedSize(), ns3::Packet::GetSize(), ns3::Ipv4Header::GetSource(), ns3::Packet::GetUid(), nlohmann::detail::hash(), ns3::Hash32(), ns3::Ipv4Header::IsLastFragment(), ns3::EventId::IsRunning(), ns3::Time::IsStrictlyPositive(), m_cleanDpd, m_dups, m_expire, m_purge, ns3::Simulator::Now(), NS_ASSERT_MSG, NS_LOG_DEBUG, NS_LOG_FUNCTION, RemoveDuplicates(), ns3::Simulator::Schedule(), and ns3::Seconds().

Referenced by Receive(), and Send().

Here is the call graph for this function:

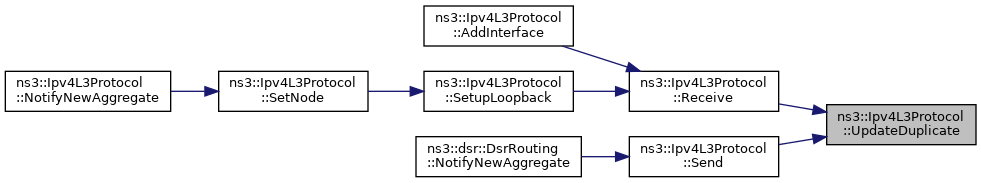

Here is the caller graph for this function:

Friends And Related Function Documentation

◆ ::Ipv4L3ProtocolTestCase

friend class ::Ipv4L3ProtocolTestCase

friend

Ipv4L3ProtocolTestCase test case.

Definition at line 294 of file ipv4-l3-protocol.h.

Member Data Documentation

◆ m_cleanDpd

EventId ns3::Ipv4L3Protocol::m_cleanDpd

private

event to cleanup expired duplicate entries

Definition at line 640 of file ipv4-l3-protocol.h.

Referenced by DoDispose(), RemoveDuplicates(), and UpdateDuplicate().

◆ m_defaultTtl

uint8_t ns3::Ipv4L3Protocol::m_defaultTtl

private

Default TTL.

Definition at line 475 of file ipv4-l3-protocol.h.

Referenced by GetTypeId(), Send(), and SetDefaultTtl().

◆ m_dropTrace

TracedCallback<const Ipv4Header&, Ptr<const Packet>, DropReason, Ptr<Ipv4>, uint32_t> ns3::Ipv4L3Protocol::m_dropTrace

private

Trace of dropped packets.

Deprecated:: The non-const Ptr<Ipv4> argument is deprecated and will be changed to Ptr<const Ipv4> in a future release.

Definition at line 503 of file ipv4-l3-protocol.h.

Referenced by GetTypeId(), HandleFragmentsTimeout(), IpForward(), IpMulticastForward(), Receive(), RouteInputError(), Send(), and SendRealOut().

◆ m_dups

DupMap_t ns3::Ipv4L3Protocol::m_dups

private

map of packet duplicate tuples to expiry event

Definition at line 637 of file ipv4-l3-protocol.h.

Referenced by DoDispose(), RemoveDuplicates(), and UpdateDuplicate().

◆ m_ecb

Ipv4RoutingProtocol::ErrorCallback ns3::Ipv4L3Protocol::m_ecb

private

Error callback.

Definition at line 645 of file ipv4-l3-protocol.h.

Referenced by Ipv4L3Protocol(), and Receive().

◆ m_enableDpd

bool ns3::Ipv4L3Protocol::m_enableDpd

private

Enable multicast duplicate packet detection.

Definition at line 636 of file ipv4-l3-protocol.h.

Referenced by GetTypeId(), Receive(), and Send().

◆ m_expire

Time ns3::Ipv4L3Protocol::m_expire

private

duplicate entry expiration delay

Definition at line 638 of file ipv4-l3-protocol.h.

Referenced by GetTypeId(), and UpdateDuplicate().

◆ m_fragmentExpirationTimeout

Time ns3::Ipv4L3Protocol::m_fragmentExpirationTimeout

private

Expiration timeout.

Definition at line 615 of file ipv4-l3-protocol.h.

Referenced by GetTypeId(), and SetTimeout().

◆ m_fragments

MapFragments_t ns3::Ipv4L3Protocol::m_fragments

private

Fragmented packets.

Definition at line 614 of file ipv4-l3-protocol.h.

Referenced by ns3::Ipv4L3Protocol::Fragments::AddFragment(), DoDispose(), ns3::Ipv4L3Protocol::Fragments::GetPacket(), ns3::Ipv4L3Protocol::Fragments::GetPartialPacket(), HandleFragmentsTimeout(), ns3::Ipv4L3Protocol::Fragments::IsEntire(), and ProcessFragment().

◆ m_identification

std::map<std::pair<uint64_t, uint8_t>, uint16_t> ns3::Ipv4L3Protocol::m_identification

private

Identification (for each {src, dst, proto} tuple)

Definition at line 477 of file ipv4-l3-protocol.h.

Referenced by BuildHeader(), and DecreaseIdentification().

◆ m_interfaces

Ipv4InterfaceList ns3::Ipv4L3Protocol::m_interfaces

private

List of IPv4 interfaces.

Definition at line 472 of file ipv4-l3-protocol.h.

Referenced by AddIpv4Interface(), DoDispose(), GetInterface(), GetInterfaceForAddress(), GetInterfaceForPrefix(), GetNInterfaces(), GetTypeId(), Receive(), Send(), and SetIpForward().

◆ m_ipForward

bool ns3::Ipv4L3Protocol::m_ipForward

private

Forwarding packets (i.e.

router mode) state.

Definition at line 469 of file ipv4-l3-protocol.h.

Referenced by AddInterface(), GetIpForward(), and SetIpForward().

◆ m_lcb

Ipv4RoutingProtocol::LocalDeliverCallback ns3::Ipv4L3Protocol::m_lcb

private

Local delivery callback.

Definition at line 644 of file ipv4-l3-protocol.h.

Referenced by Ipv4L3Protocol(), and Receive().

◆ m_localDeliverTrace

TracedCallback<const Ipv4Header&, Ptr<const Packet>, uint32_t> ns3::Ipv4L3Protocol::m_localDeliverTrace

private

Trace of locally delivered packets.

Definition at line 487 of file ipv4-l3-protocol.h.

Referenced by GetTypeId(), and LocalDeliver().

◆ m_mcb

Ipv4RoutingProtocol::MulticastForwardCallback ns3::Ipv4L3Protocol::m_mcb

private

Multicast forward callback.

Definition at line 643 of file ipv4-l3-protocol.h.

Referenced by Ipv4L3Protocol(), and Receive().

◆ m_multicastForwardTrace

TracedCallback<const Ipv4Header&, Ptr<const Packet>, uint32_t> ns3::Ipv4L3Protocol::m_multicastForwardTrace

private

Trace of multicast forwarded packets.

Definition at line 485 of file ipv4-l3-protocol.h.

Referenced by GetTypeId(), and IpMulticastForward().

◆ m_node

Ptr<Node> ns3::Ipv4L3Protocol::m_node

private

Node attached to stack.

Definition at line 478 of file ipv4-l3-protocol.h.

Referenced by AddInterface(), CreateRawSocket(), DoDispose(), IpForward(), IpMulticastForward(), NotifyNewAggregate(), Receive(), SetNode(), and SetupLoopback().

◆ m_protocols

L4List_t ns3::Ipv4L3Protocol::m_protocols

private

List of transport protocol.

Definition at line 471 of file ipv4-l3-protocol.h.

Referenced by DoDispose(), GetProtocol(), Insert(), and Remove().

◆ m_purge

Time ns3::Ipv4L3Protocol::m_purge

private

time between purging expired duplicate entries

Definition at line 639 of file ipv4-l3-protocol.h.

Referenced by GetTypeId(), RemoveDuplicates(), and UpdateDuplicate().

◆ m_reverseInterfacesContainer

Ipv4InterfaceReverseContainer ns3::Ipv4L3Protocol::m_reverseInterfacesContainer

private

Container of NetDevice / Interface index associations.

Definition at line 474 of file ipv4-l3-protocol.h.

Referenced by AddIpv4Interface(), DoDispose(), and GetInterfaceForDevice().

◆ m_routingProtocol

Ptr<Ipv4RoutingProtocol> ns3::Ipv4L3Protocol::m_routingProtocol

private

Routing protocol associated with the stack.

Definition at line 505 of file ipv4-l3-protocol.h.

Referenced by AddAddress(), DoDispose(), GetRoutingProtocol(), Receive(), RemoveAddress(), Send(), SetDown(), SetRoutingProtocol(), SetUp(), and SetupLoopback().

◆ m_rxTrace

TracedCallback<Ptr<const Packet>, Ptr<Ipv4>, uint32_t> ns3::Ipv4L3Protocol::m_rxTrace

private

Trace of received packets.

Deprecated:: The non-const Ptr<Ipv4> argument is deprecated and will be changed to Ptr<const Ipv4> in a future release.

Definition at line 497 of file ipv4-l3-protocol.h.

Referenced by GetTypeId(), and Receive().

◆ m_sendOutgoingTrace

TracedCallback<const Ipv4Header&, Ptr<const Packet>, uint32_t> ns3::Ipv4L3Protocol::m_sendOutgoingTrace

private

Trace of sent packets.

Definition at line 481 of file ipv4-l3-protocol.h.

Referenced by GetTypeId(), and Send().

◆ m_sockets

SocketList ns3::Ipv4L3Protocol::m_sockets

private

List of IPv4 raw sockets.

Definition at line 507 of file ipv4-l3-protocol.h.

Referenced by CreateRawSocket(), DeleteRawSocket(), DoDispose(), and Receive().

◆ m_strongEndSystemModel

bool ns3::Ipv4L3Protocol::m_strongEndSystemModel

private

Strong End System Model state.

Definition at line 470 of file ipv4-l3-protocol.h.

Referenced by GetStrongEndSystemModel(), GetWeakEsModel(), SetStrongEndSystemModel(), and SetWeakEsModel().

◆ m_timeoutEvent

EventId ns3::Ipv4L3Protocol::m_timeoutEvent

private

Event for the next scheduled timeout.

Definition at line 543 of file ipv4-l3-protocol.h.

Referenced by DoDispose(), HandleTimeout(), and SetTimeout().

◆ m_timeoutEventList

FragmentsTimeoutsList_t ns3::Ipv4L3Protocol::m_timeoutEventList

private

Timeout "events" container.

Definition at line 541 of file ipv4-l3-protocol.h.

Referenced by DoDispose(), HandleTimeout(), ProcessFragment(), and SetTimeout().

◆ m_txTrace

TracedCallback<Ptr<const Packet>, Ptr<Ipv4>, uint32_t> ns3::Ipv4L3Protocol::m_txTrace

private

Trace of transmitted packets.

Deprecated:: The non-const Ptr<Ipv4> argument is deprecated and will be changed to Ptr<const Ipv4> in a future release.

Definition at line 493 of file ipv4-l3-protocol.h.

Referenced by CallTxTrace(), and GetTypeId().

◆ m_ucb

Ipv4RoutingProtocol::UnicastForwardCallback ns3::Ipv4L3Protocol::m_ucb

private

Unicast forward callback.

Definition at line 642 of file ipv4-l3-protocol.h.

Referenced by Ipv4L3Protocol(), and Receive().

◆ m_unicastForwardTrace

TracedCallback<const Ipv4Header&, Ptr<const Packet>, uint32_t> ns3::Ipv4L3Protocol::m_unicastForwardTrace

private

Trace of unicast forwarded packets.

Definition at line 483 of file ipv4-l3-protocol.h.

Referenced by GetTypeId(), and IpForward().

◆ PROT_NUMBER

const uint16_t ns3::Ipv4L3Protocol::PROT_NUMBER = 0x0800

static

Protocol number (0x0800)

Definition at line 91 of file ipv4-l3-protocol.h.

Referenced by ns3::NoBackhaulEpcHelper::AddEnb(), AddInterface(), ns3::OpenFlowSwitchNetDevice::BufferFromPacket(), ns3::EpcTftClassifier::Classify(), ns3::dsr::DsrRouting::PromiscReceive(), ns3::LteNetDevice::Receive(), ns3::EpcPgwApplication::RecvFromTunDevice(), ns3::Ipv4Interface::Send(), ns3::LteEnbNetDevice::Send(), ns3::LteUeNetDevice::Send(), and SetupLoopback().

The documentation for this class was generated from the following files:

src/internet/model/ipv4-l3-protocol.h
src/internet/model/ipv4-l3-protocol.cc

device	network device
p	the packet
protocol	protocol value
from	address of the correspondent
to	address of the destination
packetType	type of the packet

Classes

Public Types

Public Member Functions

Static Public Member Functions

Static Public Attributes

Protected Member Functions

Private Types

Private Member Functions

Private Attributes

Friends

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ DropTracedCallback

◆ DupMap_t

◆ DupTuple_t

◆ FragmentKey_t

◆ FragmentsTimeoutsList_t

◆ FragmentsTimeoutsListI_t

◆ Ipv4InterfaceList

◆ Ipv4InterfaceReverseContainer

◆ Ipv4PayloadHeaderPair

◆ L4List_t

◆ L4ListKey_t

◆ MapFragments_t

◆ SentTracedCallback

◆ SocketList

◆ TxRxTracedCallback

Member Enumeration Documentation

◆ DropReason

Constructor & Destructor Documentation

◆ Ipv4L3Protocol() [1/2]

◆ ~Ipv4L3Protocol()

◆ Ipv4L3Protocol() [2/2]

Member Function Documentation

◆ AddAddress()

◆ AddInterface()

◆ AddIpv4Interface()

◆ BuildHeader()

◆ CallTxTrace()

◆ CreateRawSocket()

◆ DecreaseIdentification()

◆ DeleteRawSocket()

◆ DoDispose()

◆ DoFragmentation()

◆ GetAddress()

◆ GetIcmp()

◆ GetInterface()

◆ GetInterfaceForAddress()

◆ GetInterfaceForDevice()

◆ GetInterfaceForPrefix()

◆ GetIpForward()

◆ GetMetric()

◆ GetMtu()

◆ GetNAddresses()

◆ GetNetDevice()

◆ GetNInterfaces()

◆ GetProtocol() [1/2]

◆ GetProtocol() [2/2]

◆ GetRoutingProtocol()

◆ GetStrongEndSystemModel()

◆ GetTypeId()

◆ GetWeakEsModel()

◆ HandleFragmentsTimeout()

◆ HandleTimeout()

◆ Insert() [1/2]

◆ Insert() [2/2]

◆ IpForward()

◆ IpMulticastForward()

◆ IsDestinationAddress()

◆ IsForwarding()

◆ IsUnicast() [1/2]

◆ IsUnicast() [2/2]

◆ IsUp()

◆ LocalDeliver()

◆ NotifyNewAggregate()

◆ operator=()

◆ ProcessFragment()

◆ Receive()

◆ Remove() [1/2]
