Class to allow a node to use Click for external routing. More...

#include "ipv4-click-routing.h"

Inheritance diagram for ns3::Ipv4ClickRouting:

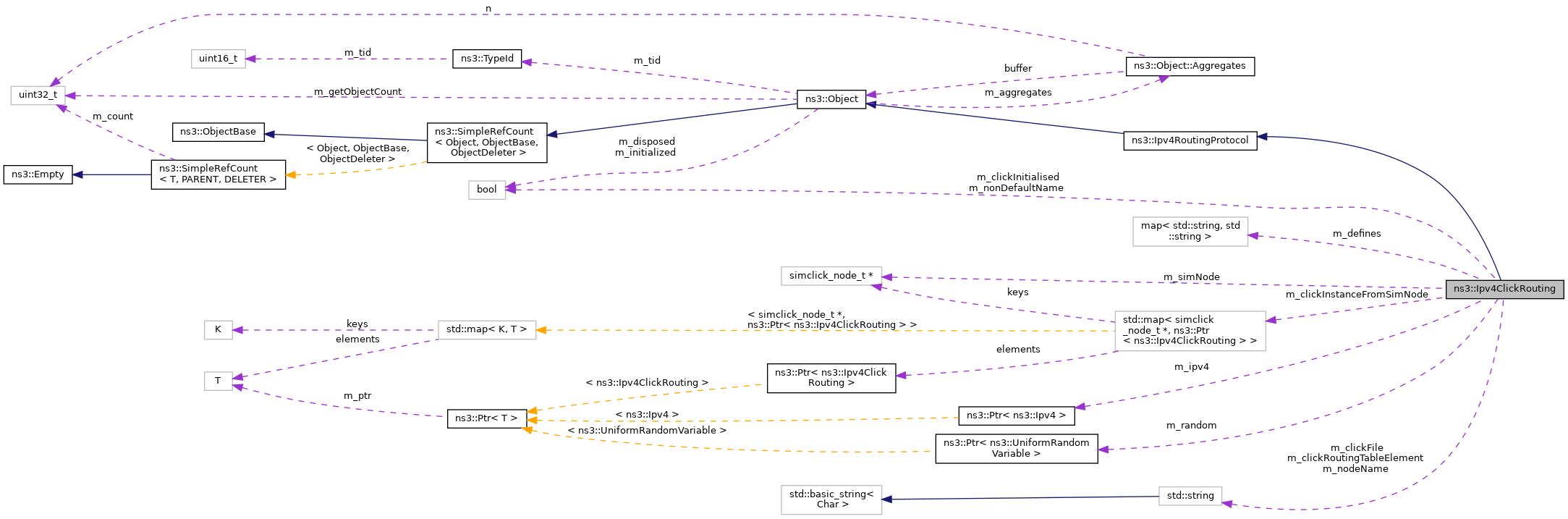

Collaboration diagram for ns3::Ipv4ClickRouting:

Public Member Functions
	Ipv4ClickRouting ()
	Constructor. More...

	~Ipv4ClickRouting () override

void	DoDispose () override
	Destructor implementation. More...

std::map< std::string, std::string >	GetDefines ()
	Provides for SIMCLICK_GET_DEFINES. More...

int	GetInterfaceId (const char *ifname)
	Provides for SIMCLICK_IFID_FROM_NAME. More...

std::string	GetIpAddressFromInterfaceId (int ifid)
	Provides for SIMCLICK_IPADDR_FROM_NAME. More...

std::string	GetIpPrefixFromInterfaceId (int ifid)
	Provides for SIMCLICK_IPPREFIX_FROM_NAME. More...

std::string	GetMacAddressFromInterfaceId (int ifid)
	Provides for SIMCLICK_MACADDR_FROM_NAME. More...

std::string	GetNodeName ()
	Provides for SIMCLICK_GET_NODE_NAME. More...

Ptr< UniformRandomVariable >	GetRandomVariable ()
	Get the uniform random variable. More...

void	HandlePacketFromClick (int ifid, int type, const unsigned char *data, int len)
	Receives a packet from Click. More...

void	HandleScheduleFromClick (const struct timeval *when)
	Schedules simclick_click_run to run at the given time. More...

bool	IsInterfaceReady (int ifid)
	Provides for SIMCLICK_IF_READY. More...

void	NotifyAddAddress (uint32_t interface, Ipv4InterfaceAddress address) override

void	NotifyInterfaceDown (uint32_t interface) override

void	NotifyInterfaceUp (uint32_t interface) override

void	NotifyRemoveAddress (uint32_t interface, Ipv4InterfaceAddress address) override

void	PrintRoutingTable (Ptr< OutputStreamWrapper > stream, Time::Unit unit=Time::S) const override
	Print the Routing Table entries. More...

std::string	ReadHandler (std::string elementName, std::string handlerName)
	Read Handler interface for a node's Click Elements. More...

void	Receive (Ptr< Packet > p, Mac48Address receiverAddr, Mac48Address dest)
	Allow a lower layer to send data to Click. More...

bool	RouteInput (Ptr< const Packet > p, const Ipv4Header &header, Ptr< const NetDevice > idev, const UnicastForwardCallback &ucb, const MulticastForwardCallback &mcb, const LocalDeliverCallback &lcb, const ErrorCallback &ecb) override
	Route an input packet (to be forwarded or locally delivered) More...

Ptr< Ipv4Route >	RouteOutput (Ptr< Packet > p, const Ipv4Header &header, Ptr< NetDevice > oif, Socket::SocketErrno &sockerr) override
	Query routing cache for an existing route, for an outbound packet. More...

void	Send (Ptr< Packet > p, Ipv4Address src, Ipv4Address dest)
	Allow a higher layer to send data through Click. More...

void	SendPacketToClick (int ifid, int type, const unsigned char *data, int len)
	Sends a packet to Click. More...

void	SetClickFile (std::string clickfile)
	Click configuration file to be used by the node's Click Instance. More...

void	SetClickRoutingTableElement (std::string name)
	Name of the routing table element being used by Click. More...

void	SetDefines (std::map< std::string, std::string > defines)
	Click defines to be used by the node's Click Instance. More...

void	SetIpv4 (Ptr< Ipv4 > ipv4) override
	Set the Ipv4 instance to be used. More...

void	SetNodeName (std::string name)
	Name of the node as to be used by Click. More...

void	SetPromisc (int ifid)
	Sets an interface to run on promiscuous mode. More...

int	WriteHandler (std::string elementName, std::string handlerName, std::string writeString)
	Write Handler interface for a node's Click Elements. More...

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

	~Object () override
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose ()
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator () const
	Get an iterator to the Objects aggregated to this one. More...

TypeId	GetInstanceTypeId () const override
	Get the most derived TypeId for this Object. More...

template<typename T >
Ptr< T >	GetObject () const
	Get a pointer to the requested aggregated Object. More...

template<>
Ptr< Object >	GetObject () const
	Specialization of () for objects of type ns3::Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< Object >	GetObject (TypeId tid) const
	Specialization of (TypeId tid) for objects of type ns3::Object. More...

void	Initialize ()
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized () const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
	Copy constructor. More...

uint32_t	GetReferenceCount () const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o[[maybe_unused]])
	Assignment operator. More...

void	Ref () const
	Increment the reference count. More...

void	Unref () const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising errors. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static Ptr< Ipv4ClickRouting >	GetClickInstanceFromSimNode (simclick_node_t *simnode)
	Allows the Click service methods, which reside outside Ipv4ClickRouting, to get the required Ipv4ClickRouting instances. More...

static TypeId	GetTypeId ()
	Get type ID. More...

Static Public Member Functions inherited from ns3::Ipv4RoutingProtocol
static TypeId	GetTypeId ()
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId ()
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId ()
	Get the type ID. More...

Protected Member Functions
void	DoInitialize () override
	Initialize() implementation. More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	NotifyNewAggregate ()
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted ()
	Notifier called once the ObjectBase is fully constructed. More...

Private Member Functions
void	AddSimNodeToClickMapping ()
	Used internally in DoInitialize () to Add a mapping to m_clickInstanceFromSimNode mapping. More...

struct timeval	GetTimevalFromNow () const
	Get current simulation time as a timeval. More...

void	RunClickEvent ()
	This method has to be scheduled every time Click calls SIMCLICK_SCHEDULE. More...

Private Attributes
std::string	m_clickFile
	Name of .click configuration file. More...

bool	m_clickInitialised
	Whether click has been initialized. More...

std::string	m_clickRoutingTableElement
	Name of the routing table element. More...

std::map< std::string, std::string >	m_defines
	Defines for .click configuration file parsing. More...

Ptr< Ipv4 >	m_ipv4
	Pointer to the IPv4 object. More...

std::string	m_nodeName
	Name of the node. More...

bool	m_nonDefaultName
	Whether a non-default name has been set. More...

Ptr< UniformRandomVariable >	m_random
	Uniform random variable. More...

simclick_node_t *	m_simNode
	Pointer to the simclick node. More...

Static Private Attributes
static std::map< simclick_node_t *, Ptr< Ipv4ClickRouting > >	m_clickInstanceFromSimNode
	Provide a mapping between the node reference used by Click and the corresponding Ipv4ClickRouting instance. More...

Friends
class	::ClickIfidFromNameTest

class	::ClickIpMacAddressFromNameTest

class	::ClickTrivialTest

Additional Inherited Members
Public Types inherited from ns3::Ipv4RoutingProtocol
typedef Callback< void, Ptr< const Packet >, const Ipv4Header &, Socket::SocketErrno >	ErrorCallback
	Callback for routing errors (e.g., no route found) More...

typedef Callback< void, Ptr< const Packet >, const Ipv4Header &, uint32_t >	LocalDeliverCallback
	Callback for packets to be locally delivered. More...

typedef Callback< void, Ptr< Ipv4MulticastRoute >, Ptr< const Packet >, const Ipv4Header & >	MulticastForwardCallback
	Callback for multicast packets to be forwarded. More...

typedef Callback< void, Ptr< Ipv4Route >, Ptr< const Packet >, const Ipv4Header & >	UnicastForwardCallback
	Callback for unicast packets to be forwarded. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid ()
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

Class to allow a node to use Click for external routing.

Definition at line 57 of file ipv4-click-routing.h.

Constructor & Destructor Documentation

◆ Ipv4ClickRouting()

ns3::Ipv4ClickRouting::Ipv4ClickRouting ( )

Constructor.

Definition at line 62 of file ipv4-click-routing.cc.

References AddSimNodeToClickMapping(), m_random, and m_simNode.

Here is the call graph for this function:

◆ ~Ipv4ClickRouting()

ns3::Ipv4ClickRouting::~Ipv4ClickRouting ( )

override

Definition at line 73 of file ipv4-click-routing.cc.

Member Function Documentation

◆ AddSimNodeToClickMapping()

void ns3::Ipv4ClickRouting::AddSimNodeToClickMapping ( )

private

Used internally in DoInitialize () to Add a mapping to m_clickInstanceFromSimNode mapping.

Definition at line 263 of file ipv4-click-routing.cc.

References m_clickInstanceFromSimNode, and m_simNode.

Referenced by Ipv4ClickRouting().

Here is the caller graph for this function:

◆ DoDispose()

void ns3::Ipv4ClickRouting::DoDispose ( void )

overridevirtual

Destructor implementation.

This method is called by Dispose() or by the Object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overridden version of this method and chain up to their parent's implementation once they are done. i.e, for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose() method.

It is safe to call GetObject() from within this method.

Reimplemented from ns3::Object.

Definition at line 121 of file ipv4-click-routing.cc.

References ns3::Object::DoDispose(), m_clickInitialised, m_ipv4, and m_simNode.

Here is the call graph for this function:

◆ DoInitialize()

void ns3::Ipv4ClickRouting::DoInitialize ( void )

overrideprotectedvirtual

Initialize() implementation.

This method is called only once by Initialize(). If the user calls Initialize() multiple times, DoInitialize() is called only the first time.

Subclasses are expected to override this method and chain up to their parent's implementation once they are done. It is safe to call GetObject() and AggregateObject() from within this method.

Reimplemented from ns3::Object.

Definition at line 78 of file ipv4-click-routing.cc.

References m_clickFile, m_clickInitialised, m_ipv4, m_nodeName, m_nonDefaultName, m_simNode, NS_ASSERT, and NS_LOG_DEBUG.

◆ GetClickInstanceFromSimNode()

Ptr< Ipv4ClickRouting > ns3::Ipv4ClickRouting::GetClickInstanceFromSimNode ( simclick_node_t * simnode )

static

Allows the Click service methods, which reside outside Ipv4ClickRouting, to get the required Ipv4ClickRouting instances.

Parameters

simnode The Click simclick_node_t instance for which the Ipv4ClickRouting instance is required

Returns: A Ptr to the required Ipv4ClickRouting instance

Definition at line 269 of file ipv4-click-routing.cc.

References m_clickInstanceFromSimNode.

Referenced by simclick_sim_command(), and simclick_sim_send().

Here is the caller graph for this function:

◆ GetDefines()

std::map< std::string, std::string > ns3::Ipv4ClickRouting::GetDefines ( )

Provides for SIMCLICK_GET_DEFINES.

Returns: The defines mapping for .click configuration file parsing

Definition at line 145 of file ipv4-click-routing.cc.

References m_defines.

Referenced by simclick_sim_command().

Here is the caller graph for this function:

◆ GetInterfaceId()

int ns3::Ipv4ClickRouting::GetInterfaceId ( const char * ifname )

Provides for SIMCLICK_IFID_FROM_NAME.

Parameters

ifname The name of the interface

Returns: The interface ID which corresponds to ifname

Definition at line 170 of file ipv4-click-routing.cc.

References INTERFACE_ID_FIRST, INTERFACE_ID_FIRST_DROP, and m_ipv4.

Referenced by simclick_sim_command().

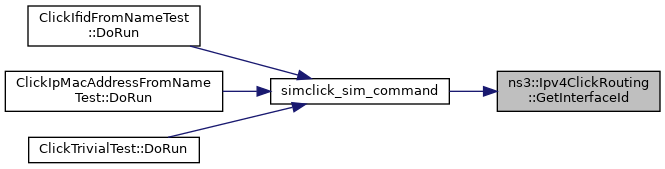

Here is the caller graph for this function:

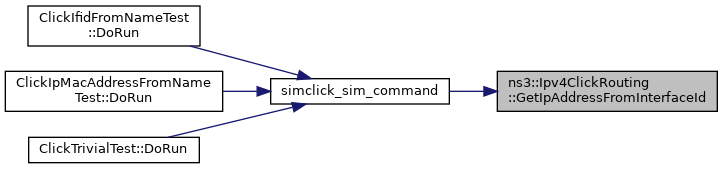

◆ GetIpAddressFromInterfaceId()

std::string ns3::Ipv4ClickRouting::GetIpAddressFromInterfaceId ( int ifid )

Provides for SIMCLICK_IPADDR_FROM_NAME.

Parameters

ifid	The interface ID for which the IP Address is required

Returns: The IP Address of the interface in string format

Definition at line 233 of file ipv4-click-routing.cc.

References m_ipv4.

Referenced by simclick_sim_command().

Here is the caller graph for this function:

◆ GetIpPrefixFromInterfaceId()

std::string ns3::Ipv4ClickRouting::GetIpPrefixFromInterfaceId ( int ifid )

Provides for SIMCLICK_IPPREFIX_FROM_NAME.

Parameters

ifid	The interface ID for which the IP Prefix is required

Returns: The IP Prefix of the interface in string format

Definition at line 242 of file ipv4-click-routing.cc.

References m_ipv4.

Referenced by simclick_sim_command().

Here is the caller graph for this function:

◆ GetMacAddressFromInterfaceId()

std::string ns3::Ipv4ClickRouting::GetMacAddressFromInterfaceId ( int ifid )

Provides for SIMCLICK_MACADDR_FROM_NAME.

Parameters

ifid	The interface ID for which the MAC Address is required

Returns: The MAC Address of the interface in string format

Definition at line 251 of file ipv4-click-routing.cc.

References ns3::Mac48Address::ConvertFrom(), and m_ipv4.

Referenced by simclick_sim_command().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetNodeName()

std::string ns3::Ipv4ClickRouting::GetNodeName ( )

Provides for SIMCLICK_GET_NODE_NAME.

Returns: The Node name

Definition at line 164 of file ipv4-click-routing.cc.

References m_nodeName.

Referenced by simclick_sim_command().

Here is the caller graph for this function:

◆ GetRandomVariable()

Ptr< UniformRandomVariable > ns3::Ipv4ClickRouting::GetRandomVariable ( )

Get the uniform random variable.

Returns: Uniform random variable.

Definition at line 115 of file ipv4-click-routing.cc.

References m_random.

Referenced by simclick_sim_command().

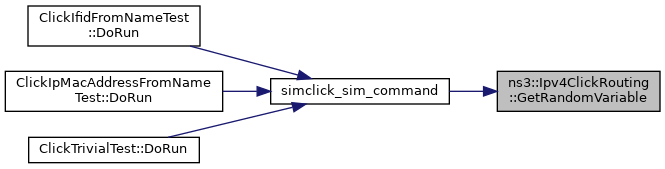

Here is the caller graph for this function:

◆ GetTimevalFromNow()

struct timeval ns3::Ipv4ClickRouting::GetTimevalFromNow ( ) const

private

Get current simulation time as a timeval.

Returns: Current simulation time as a timeval.

Definition at line 269 of file ipv4-click-routing.cc.

Referenced by RunClickEvent(), and SendPacketToClick().

Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::Ipv4ClickRouting::GetTypeId ( void )

static

Get type ID.

Returns: TypeId.

Definition at line 52 of file ipv4-click-routing.cc.

References ns3::TypeId::SetParent().

Here is the call graph for this function:

◆ HandlePacketFromClick()

void ns3::Ipv4ClickRouting::HandlePacketFromClick	(	int	ifid,
		int	type,
		const unsigned char *	data,
		int	len
	)

Receives a packet from Click.

Parameters

ifid	The interface ID from which the packet is arriving
type	The type of packet as defined in click/simclick.h
data	The contents of the packet
len	The length of the packet

Definition at line 337 of file ipv4-click-routing.cc.

References data, m_ipv4, NS_LOG_DEBUG, and ns3::Packet::RemoveHeader().

Referenced by simclick_sim_send().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ HandleScheduleFromClick()

void ns3::Ipv4ClickRouting::HandleScheduleFromClick ( const struct timeval * when )

Schedules simclick_click_run to run at the given time.

Parameters

when	Time at which the simclick_click_run instance should be run

Definition at line 324 of file ipv4-click-routing.cc.

References ns3::Time::FromInteger(), ns3::Simulator::Now(), NS_LOG_DEBUG, RunClickEvent(), ns3::Time::S, ns3::Simulator::Schedule(), and ns3::Time::US.

Referenced by simclick_sim_command().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ IsInterfaceReady()

bool ns3::Ipv4ClickRouting::IsInterfaceReady ( int ifid )

Provides for SIMCLICK_IF_READY.

Parameters

ifid	Interface ID

Returns: Returns 1, if the interface is ready, -1 if ifid is invalid

Definition at line 227 of file ipv4-click-routing.cc.

References m_ipv4.

Referenced by simclick_sim_command().

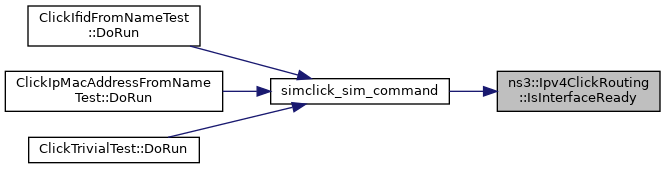

Here is the caller graph for this function:

◆ NotifyAddAddress()

void ns3::Ipv4ClickRouting::NotifyAddAddress	(	uint32_t	interface,
		Ipv4InterfaceAddress	address
	)

overridevirtual

Parameters

interface	the index of the interface we are being notified about
address	a new address being added to an interface

Protocols are expected to implement this method to be notified whenever a new address is added to an interface. Typically used to add a 'network route' on an interface. Can be invoked on an up or down interface.

Implements ns3::Ipv4RoutingProtocol.

Definition at line 586 of file ipv4-click-routing.cc.

◆ NotifyInterfaceDown()

void ns3::Ipv4ClickRouting::NotifyInterfaceDown ( uint32_t interface )

overridevirtual

Parameters

interface the index of the interface we are being notified about

Protocols are expected to implement this method to be notified of the state change of an interface in a node.

Implements ns3::Ipv4RoutingProtocol.

Definition at line 581 of file ipv4-click-routing.cc.

◆ NotifyInterfaceUp()

void ns3::Ipv4ClickRouting::NotifyInterfaceUp ( uint32_t interface )

overridevirtual

Parameters

interface the index of the interface we are being notified about

Protocols are expected to implement this method to be notified of the state change of an interface in a node.

Implements ns3::Ipv4RoutingProtocol.

Definition at line 576 of file ipv4-click-routing.cc.

◆ NotifyRemoveAddress()

void ns3::Ipv4ClickRouting::NotifyRemoveAddress	(	uint32_t	interface,
		Ipv4InterfaceAddress	address
	)

overridevirtual

Parameters

interface	the index of the interface we are being notified about
address	a new address being added to an interface

Protocols are expected to implement this method to be notified whenever a new address is removed from an interface. Typically used to remove the 'network route' of an interface. Can be invoked on an up or down interface.

Implements ns3::Ipv4RoutingProtocol.

Definition at line 591 of file ipv4-click-routing.cc.

◆ PrintRoutingTable()

void ns3::Ipv4ClickRouting::PrintRoutingTable	(	Ptr< OutputStreamWrapper >	stream,
		Time::Unit	unit = `Time::S`
	)		const

overridevirtual

Print the Routing Table entries.

Parameters

stream	The ostream the Routing table is printed to
unit	The time unit to be used in the report

Implements ns3::Ipv4RoutingProtocol.

Definition at line 570 of file ipv4-click-routing.cc.

References ns3::OutputStreamWrapper::GetStream().

Here is the call graph for this function:

◆ ReadHandler()

std::string ns3::Ipv4ClickRouting::ReadHandler	(	std::string	elementName,
		std::string	handlerName
	)

Read Handler interface for a node's Click Elements.

Allows a user to read state information of a Click element.

Parameters

elementName	name of the Click element.
handlerName	name of the handler to be read.

Returns: String read.

Definition at line 437 of file ipv4-click-routing.cc.

References m_simNode.

Referenced by RouteOutput().

Here is the caller graph for this function:

◆ Receive()

void ns3::Ipv4ClickRouting::Receive	(	Ptr< Packet >	p,
		Mac48Address	receiverAddr,
		Mac48Address	dest
	)

Allow a lower layer to send data to Click.

(From Ipv4ExtRouting)

Parameters

p	The packet to be sent
receiverAddr	Receiving interface's address
dest	The Destination MAC address

Definition at line 409 of file ipv4-click-routing.cc.

References ns3::Mac48Address::ConvertFrom(), ns3::Packet::CopyData(), ns3::Packet::GetSize(), m_ipv4, NS_LOG_FUNCTION, and SendPacketToClick().

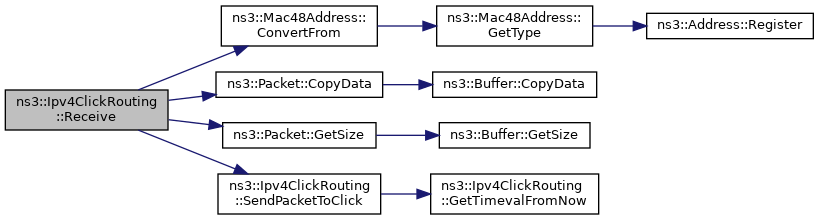

Here is the call graph for this function:

◆ RouteInput()

bool ns3::Ipv4ClickRouting::RouteInput	(	Ptr< const Packet >	p,
		const Ipv4Header &	header,
		Ptr< const NetDevice >	idev,
		const UnicastForwardCallback &	ucb,
		const MulticastForwardCallback &	mcb,
		const LocalDeliverCallback &	lcb,
		const ErrorCallback &	ecb
	)

overridevirtual

Route an input packet (to be forwarded or locally delivered)

This lookup is used in the forwarding process. The packet is handed over to the Ipv4RoutingProtocol, and will get forwarded onward by one of the callbacks. The Linux equivalent is ip_route_input(). There are four valid outcomes, and a matching callbacks to handle each.

Parameters

p	received packet
header	input parameter used to form a search key for a route
idev	Pointer to ingress network device
ucb	Callback for the case in which the packet is to be forwarded as unicast
mcb	Callback for the case in which the packet is to be forwarded as multicast
lcb	Callback for the case in which the packet is to be locally delivered
ecb	Callback to call if there is an error in forwarding

Returns: true if the Ipv4RoutingProtocol takes responsibility for forwarding or delivering the packet, false otherwise

Implements ns3::Ipv4RoutingProtocol.

Definition at line 557 of file ipv4-click-routing.cc.

References NS_FATAL_ERROR.

◆ RouteOutput()

Ptr< Ipv4Route > ns3::Ipv4ClickRouting::RouteOutput	(	Ptr< Packet >	p,
		const Ipv4Header &	header,
		Ptr< NetDevice >	oif,
		Socket::SocketErrno &	sockerr
	)

overridevirtual

Query routing cache for an existing route, for an outbound packet.

This lookup is used by transport protocols. It does not cause any packet to be forwarded, and is synchronous. Can be used for multicast or unicast. The Linux equivalent is ip_route_output()

The header input parameter may have an uninitialized value for the source address, but the destination address should always be properly set by the caller.

Parameters

p	packet to be routed. Note that this method may modify the packet. Callers may also pass in a null pointer.
header	input parameter (used to form key to search for the route)
oif	Output interface Netdevice. May be zero, or may be bound via socket options to a particular output interface.
sockerr	Output parameter; socket errno

Returns: a code that indicates what happened in the lookup

Todo:: Implement IP aliasing and Click

Implements ns3::Ipv4RoutingProtocol.

Definition at line 482 of file ipv4-click-routing.cc.

References ns3::Socket::ERROR_NOROUTETOHOST, ns3::Socket::ERROR_NOTERROR, ns3::Ipv4Header::GetDestination(), ns3::Ipv4InterfaceAddress::GetLocal(), m_clickRoutingTableElement, m_ipv4, m_nodeName, NS_ASSERT, NS_FATAL_ERROR, NS_LOG_DEBUG, ns3::Ipv4Address::Print(), and ReadHandler().

Here is the call graph for this function:

◆ RunClickEvent()

void ns3::Ipv4ClickRouting::RunClickEvent ( )

private

This method has to be scheduled every time Click calls SIMCLICK_SCHEDULE.

Definition at line 314 of file ipv4-click-routing.cc.

References GetTimevalFromNow(), m_simNode, ns3::Simulator::Now(), and NS_LOG_DEBUG.

Referenced by HandleScheduleFromClick().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Send()

void ns3::Ipv4ClickRouting::Send	(	Ptr< Packet >	p,
		Ipv4Address	src,
		Ipv4Address	dest
	)

Allow a higher layer to send data through Click.

(From Ipv4ExtRouting)

Parameters

p	The packet to be sent
src	The source IP Address
dest	The destination IP Address

Definition at line 383 of file ipv4-click-routing.cc.

References ns3::Packet::CopyData(), ns3::Packet::GetSize(), m_ipv4, and SendPacketToClick().

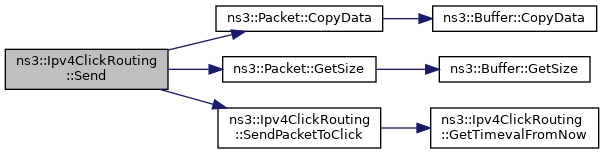

Here is the call graph for this function:

◆ SendPacketToClick()

void ns3::Ipv4ClickRouting::SendPacketToClick	(	int	ifid,
		int	type,
		const unsigned char *	data,
		int	len
	)

Sends a packet to Click.

Parameters

ifid	The interface ID from which the packet is arriving
type	The type of packet as defined in click/simclick.h
data	The contents of the packet
len	The length of the packet

Definition at line 368 of file ipv4-click-routing.cc.

References data, GetTimevalFromNow(), m_simNode, and NS_LOG_FUNCTION.

Referenced by Receive(), and Send().

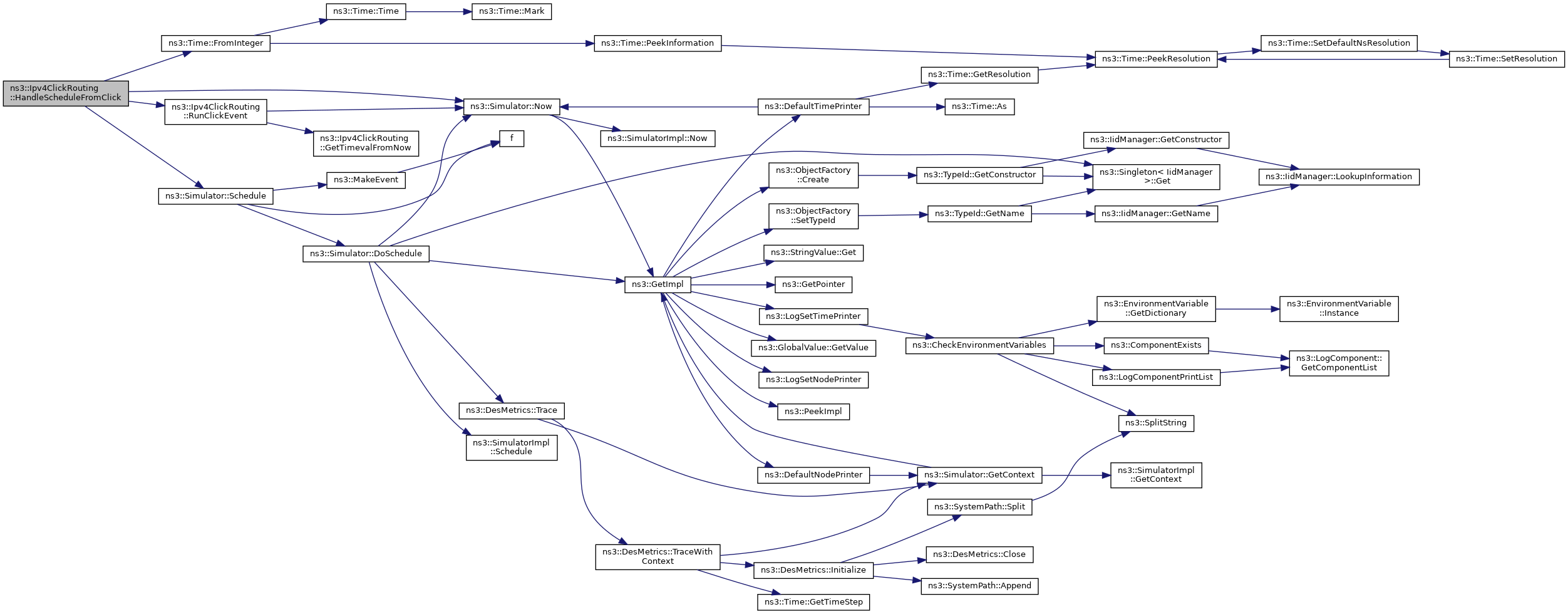

Here is the call graph for this function:

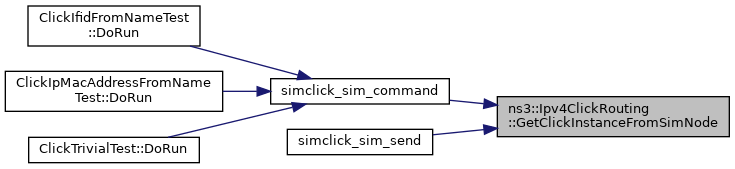

Here is the caller graph for this function:

◆ SetClickFile()

void ns3::Ipv4ClickRouting::SetClickFile ( std::string clickfile )

Click configuration file to be used by the node's Click Instance.

Parameters

clickfile name of .click configuration file

Definition at line 133 of file ipv4-click-routing.cc.

References m_clickFile.

◆ SetClickRoutingTableElement()

void ns3::Ipv4ClickRouting::SetClickRoutingTableElement ( std::string name )

Name of the routing table element being used by Click.

Required for RouteOutput ()

Parameters

name	Name of the routing table element.

Definition at line 151 of file ipv4-click-routing.cc.

References m_clickRoutingTableElement.

◆ SetDefines()

void ns3::Ipv4ClickRouting::SetDefines ( std::map< std::string, std::string > defines )

Click defines to be used by the node's Click Instance.

Parameters

defines mapping of defines for .click configuration file parsing

Definition at line 139 of file ipv4-click-routing.cc.

References m_defines.

◆ SetIpv4()

void ns3::Ipv4ClickRouting::SetIpv4 ( Ptr< Ipv4 > ipv4 )

overridevirtual

Set the Ipv4 instance to be used.

Parameters

ipv4	The Ipv4 instance

Implements ns3::Ipv4RoutingProtocol.

Definition at line 109 of file ipv4-click-routing.cc.

References nsclick-simple-lan::ipv4, and m_ipv4.

◆ SetNodeName()

void ns3::Ipv4ClickRouting::SetNodeName ( std::string name )

Name of the node as to be used by Click.

Required for Click Dumps.

Parameters

name	Name to be assigned to the node.

Definition at line 157 of file ipv4-click-routing.cc.

References m_nodeName, and m_nonDefaultName.

◆ SetPromisc()

void ns3::Ipv4ClickRouting::SetPromisc ( int ifid )

Sets an interface to run on promiscuous mode.

Parameters

ifid	Interface ID.

Definition at line 474 of file ipv4-click-routing.cc.

References m_ipv4, and NS_ASSERT.

Referenced by simclick_sim_command().

Here is the caller graph for this function:

◆ WriteHandler()

int ns3::Ipv4ClickRouting::WriteHandler	(	std::string	elementName,
		std::string	handlerName,
		std::string	writeString
	)

Write Handler interface for a node's Click Elements.

Allows a user to modify state information of a Click element.

Parameters

elementName	name of the Click element.
handlerName	name of the handler to be read.
writeString	string to be written using the write handler.

Returns: Write operation status.

Definition at line 455 of file ipv4-click-routing.cc.

References m_simNode.

Friends And Related Function Documentation

◆ ::ClickIfidFromNameTest

friend class ::ClickIfidFromNameTest

friend

Definition at line 62 of file ipv4-click-routing.h.

◆ ::ClickIpMacAddressFromNameTest

friend class ::ClickIpMacAddressFromNameTest

friend

Definition at line 63 of file ipv4-click-routing.h.

◆ ::ClickTrivialTest

friend class ::ClickTrivialTest

friend

Definition at line 61 of file ipv4-click-routing.h.

Member Data Documentation

◆ m_clickFile

std::string ns3::Ipv4ClickRouting::m_clickFile

private

Name of .click configuration file.

Definition at line 291 of file ipv4-click-routing.h.

Referenced by DoInitialize(), and SetClickFile().

◆ m_clickInitialised

bool ns3::Ipv4ClickRouting::m_clickInitialised

private

Whether click has been initialized.

Definition at line 296 of file ipv4-click-routing.h.

Referenced by DoDispose(), and DoInitialize().

◆ m_clickInstanceFromSimNode

std::map< simclick_node_t *, Ptr< Ipv4ClickRouting > > ns3::Ipv4ClickRouting::m_clickInstanceFromSimNode

staticprivate

Provide a mapping between the node reference used by Click and the corresponding Ipv4ClickRouting instance.

Definition at line 146 of file ipv4-click-routing.h.

Referenced by AddSimNodeToClickMapping(), and GetClickInstanceFromSimNode().

◆ m_clickRoutingTableElement

std::string ns3::Ipv4ClickRouting::m_clickRoutingTableElement

private

Name of the routing table element.

Definition at line 294 of file ipv4-click-routing.h.

Referenced by RouteOutput(), and SetClickRoutingTableElement().

◆ m_defines

std::map<std::string, std::string> ns3::Ipv4ClickRouting::m_defines

private

Defines for .click configuration file parsing.

Definition at line 292 of file ipv4-click-routing.h.

Referenced by GetDefines(), and SetDefines().

◆ m_ipv4

Ptr<Ipv4> ns3::Ipv4ClickRouting::m_ipv4

private

Pointer to the IPv4 object.

Definition at line 299 of file ipv4-click-routing.h.

Referenced by DoDispose(), DoInitialize(), GetInterfaceId(), GetIpAddressFromInterfaceId(), GetIpPrefixFromInterfaceId(), GetMacAddressFromInterfaceId(), HandlePacketFromClick(), IsInterfaceReady(), Receive(), RouteOutput(), Send(), SetIpv4(), and SetPromisc().

◆ m_nodeName

std::string ns3::Ipv4ClickRouting::m_nodeName

private

Name of the node.

Definition at line 293 of file ipv4-click-routing.h.

Referenced by DoInitialize(), GetNodeName(), RouteOutput(), and SetNodeName().

◆ m_nonDefaultName

bool ns3::Ipv4ClickRouting::m_nonDefaultName

private

Whether a non-default name has been set.

Definition at line 297 of file ipv4-click-routing.h.

Referenced by DoInitialize(), and SetNodeName().

◆ m_random

Ptr<UniformRandomVariable> ns3::Ipv4ClickRouting::m_random

private

Uniform random variable.

Definition at line 300 of file ipv4-click-routing.h.

Referenced by Ipv4ClickRouting(), and GetRandomVariable().

◆ m_simNode

simclick_node_t* ns3::Ipv4ClickRouting::m_simNode

private

Pointer to the simclick node.

Definition at line 140 of file ipv4-click-routing.h.

Referenced by Ipv4ClickRouting(), AddSimNodeToClickMapping(), DoDispose(), DoInitialize(), ReadHandler(), RunClickEvent(), SendPacketToClick(), and WriteHandler().

The documentation for this class was generated from the following files:

src/click/model/ipv4-click-routing.h
src/click/model/ipv4-click-routing.cc

Public Member Functions

Static Public Member Functions

Protected Member Functions

Private Member Functions

Private Attributes

Static Private Attributes

Friends

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ Ipv4ClickRouting()

◆ ~Ipv4ClickRouting()

Member Function Documentation

◆ AddSimNodeToClickMapping()

◆ DoDispose()

◆ DoInitialize()

◆ GetClickInstanceFromSimNode()

◆ GetDefines()

◆ GetInterfaceId()

◆ GetIpAddressFromInterfaceId()

◆ GetIpPrefixFromInterfaceId()

◆ GetMacAddressFromInterfaceId()

◆ GetNodeName()

◆ GetRandomVariable()

◆ GetTimevalFromNow()

◆ GetTypeId()

◆ HandlePacketFromClick()

◆ HandleScheduleFromClick()

◆ IsInterfaceReady()

◆ NotifyAddAddress()

◆ NotifyInterfaceDown()

◆ NotifyInterfaceUp()

◆ NotifyRemoveAddress()

◆ PrintRoutingTable()

◆ ReadHandler()

◆ Receive()

◆ RouteInput()

◆ RouteOutput()

◆ RunClickEvent()

◆ Send()

◆ SendPacketToClick()

◆ SetClickFile()

◆ SetClickRoutingTableElement()

◆ SetDefines()

◆ SetIpv4()

◆ SetNodeName()

◆ SetPromisc()

◆ WriteHandler()

Friends And Related Function Documentation

◆ ::ClickIfidFromNameTest

◆ ::ClickIpMacAddressFromNameTest

◆ ::ClickTrivialTest

Member Data Documentation

◆ m_clickFile

◆ m_clickInitialised

◆ m_clickInstanceFromSimNode

◆ m_clickRoutingTableElement

◆ m_defines

◆ m_ipv4

◆ m_nodeName

◆ m_nonDefaultName

◆ m_random

◆ m_simNode
