ICMPv6 Option Prefix Information. More...

#include "icmpv6-header.h"

Inheritance diagram for ns3::Icmpv6OptionPrefixInformation:

Collaboration diagram for ns3::Icmpv6OptionPrefixInformation:

Public Types
enum	Flags_t { NONE = 0 , ROUTERADDR = 32 , AUTADDRCONF = 64 , ONLINK = 128 }
	Icmpv6 Option Prefix Information flag field values. More...

Public Member Functions
	Icmpv6OptionPrefixInformation ()
	Constructor. More...

	Icmpv6OptionPrefixInformation (Ipv6Address network, uint8_t prefixlen)
	Constructor. More...

	~Icmpv6OptionPrefixInformation () override
	Destructor. More...

uint32_t	Deserialize (Buffer::Iterator start) override
	Deserialize the packet. More...

uint8_t	GetFlags () const
	Get the flags. More...

TypeId	GetInstanceTypeId () const override
	Get the instance type ID. More...

uint32_t	GetPreferredTime () const
	Get the preferred time of the information. More...

Ipv6Address	GetPrefix () const
	Get the IPv6 prefix. More...

uint8_t	GetPrefixLength () const
	Get the prefix length. More...

uint32_t	GetReserved () const
	Get the reserved field. More...

uint32_t	GetSerializedSize () const override
	Get the serialized size. More...

uint32_t	GetValidTime () const
	Get the valid time of the information. More...

void	Print (std::ostream &os) const override
	Print information. More...

void	Serialize (Buffer::Iterator start) const override
	Serialize the packet. More...

void	SetFlags (uint8_t flags)
	Set the flags. More...

void	SetPreferredTime (uint32_t preferredTime)
	Set the preferred time of the information. More...

void	SetPrefix (Ipv6Address prefix)
	Set the IPv6 prefix. More...

void	SetPrefixLength (uint8_t prefixLength)
	Set the prefix length. More...

void	SetReserved (uint32_t reserved)
	Set the reserved field (normally it will be 0x00000000). More...

void	SetValidTime (uint32_t validTime)
	Set the valid time of the information. More...

Public Member Functions inherited from ns3::Icmpv6OptionHeader
	Icmpv6OptionHeader ()
	Constructor. More...

	~Icmpv6OptionHeader () override
	Destructor. More...

uint8_t	GetLength () const
	Get the length of the option in 8 bytes unit. More...

uint8_t	GetType () const
	Get the type of the option. More...

void	SetLength (uint8_t len)
	Set the length of the option. More...

void	SetType (uint8_t type)
	Set the type of the option. More...

Public Member Functions inherited from ns3::Header
	~Header () override

virtual uint32_t	Deserialize (Buffer::Iterator start)=0
	Deserialize the object from a buffer iterator. More...

virtual uint32_t	Deserialize (Buffer::Iterator start, Buffer::Iterator end)
	Deserialize the object from a buffer iterator. More...

Public Member Functions inherited from ns3::Chunk
virtual uint32_t	Deserialize (Buffer::Iterator start, Buffer::Iterator end)
	Deserialize the object from a buffer iterator. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising errors. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId ()
	Get the UID of this class. More...

Static Public Member Functions inherited from ns3::Icmpv6OptionHeader
static TypeId	GetTypeId ()
	Get the UID of this class. More...

Static Public Member Functions inherited from ns3::Header
static TypeId	GetTypeId ()
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Chunk
static TypeId	GetTypeId ()
	Get the type ID. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId ()
	Get the type ID. More...

Private Attributes
uint8_t	m_flags
	The flags. More...

uint32_t	m_preferredTime
	The preferred time. More...

Ipv6Address	m_prefix
	The prefix value. More...

uint8_t	m_prefixLength
	The length of the prefix. More...

uint32_t	m_reserved
	The reserved field. More...

uint32_t	m_validTime
	The valid time. More...

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted ()
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid ()
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

ICMPv6 Option Prefix Information.

Definition at line 1428 of file icmpv6-header.h.

Member Enumeration Documentation

◆ Flags_t

enum ns3::Icmpv6OptionPrefixInformation::Flags_t

Icmpv6 Option Prefix Information flag field values.

Enumerator
NONE	No flags.
ROUTERADDR	Router Address.
AUTADDRCONF	Autonomous Address Configuration.
ONLINK	On-link.

Definition at line 1463 of file icmpv6-header.h.

Constructor & Destructor Documentation

◆ Icmpv6OptionPrefixInformation() [1/2]

ns3::Icmpv6OptionPrefixInformation::Icmpv6OptionPrefixInformation ( )

Constructor.

Definition at line 1771 of file icmpv6-header.cc.

References ns3::Icmpv6Header::ICMPV6_OPT_PREFIX, NS_LOG_FUNCTION, SetFlags(), ns3::Icmpv6OptionHeader::SetLength(), SetPreferredTime(), SetPrefix(), SetPrefixLength(), SetReserved(), ns3::Icmpv6OptionHeader::SetType(), and SetValidTime().

Here is the call graph for this function:

◆ Icmpv6OptionPrefixInformation() [2/2]

ns3::Icmpv6OptionPrefixInformation::Icmpv6OptionPrefixInformation	(	Ipv6Address	network,
		uint8_t	prefixlen
	)

Constructor.

Parameters

network	prefix
prefixlen	prefix length

Definition at line 1784 of file icmpv6-header.cc.

References ns3::Icmpv6Header::ICMPV6_OPT_PREFIX, NS_LOG_FUNCTION, SetFlags(), ns3::Icmpv6OptionHeader::SetLength(), SetPreferredTime(), SetPrefix(), SetPrefixLength(), SetReserved(), ns3::Icmpv6OptionHeader::SetType(), and SetValidTime().

Here is the call graph for this function:

◆ ~Icmpv6OptionPrefixInformation()

ns3::Icmpv6OptionPrefixInformation::~Icmpv6OptionPrefixInformation ( )

override

Destructor.

Definition at line 1797 of file icmpv6-header.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

◆ Deserialize()

uint32_t ns3::Icmpv6OptionPrefixInformation::Deserialize ( Buffer::Iterator start )

overridevirtual

Deserialize the packet.

Parameters

start start offset

Returns: length of packet

Reimplemented from ns3::Icmpv6OptionHeader.

Definition at line 1923 of file icmpv6-header.cc.

References GetSerializedSize(), NS_LOG_FUNCTION, ns3::Buffer::Iterator::Read(), ns3::Buffer::Iterator::ReadNtohU32(), ns3::Buffer::Iterator::ReadU8(), SetFlags(), ns3::Icmpv6OptionHeader::SetLength(), SetPreferredTime(), SetPrefix(), SetPrefixLength(), SetReserved(), ns3::Icmpv6OptionHeader::SetType(), SetValidTime(), and two-ray-to-three-gpp-ch-calibration::start.

Here is the call graph for this function:

◆ GetFlags()

uint8_t ns3::Icmpv6OptionPrefixInformation::GetFlags ( ) const

Get the flags.

Returns: the flags.

Definition at line 1818 of file icmpv6-header.cc.

References m_flags, and NS_LOG_FUNCTION.

◆ GetInstanceTypeId()

TypeId ns3::Icmpv6OptionPrefixInformation::GetInstanceTypeId ( void ) const

overridevirtual

Get the instance type ID.

Returns: instance type ID

Reimplemented from ns3::Icmpv6OptionHeader.

Definition at line 1765 of file icmpv6-header.cc.

References GetTypeId(), and NS_LOG_FUNCTION.

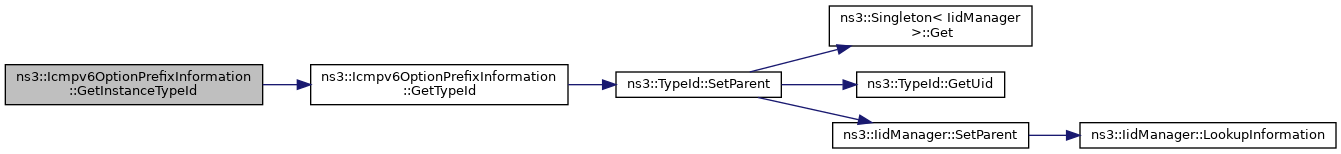

Here is the call graph for this function:

◆ GetPreferredTime()

uint32_t ns3::Icmpv6OptionPrefixInformation::GetPreferredTime ( ) const

Get the preferred time of the information.

Returns: preferred time

Definition at line 1846 of file icmpv6-header.cc.

References m_preferredTime, and NS_LOG_FUNCTION.

◆ GetPrefix()

Ipv6Address ns3::Icmpv6OptionPrefixInformation::GetPrefix ( ) const

Get the IPv6 prefix.

Returns: IPv6 prefix

Definition at line 1874 of file icmpv6-header.cc.

References m_prefix, and NS_LOG_FUNCTION.

◆ GetPrefixLength()

uint8_t ns3::Icmpv6OptionPrefixInformation::GetPrefixLength ( ) const

Get the prefix length.

Returns: prefix length

Definition at line 1803 of file icmpv6-header.cc.

References m_prefixLength, and NS_LOG_FUNCTION.

◆ GetReserved()

uint32_t ns3::Icmpv6OptionPrefixInformation::GetReserved ( ) const

Get the reserved field.

Returns: the reserved field (should be 0x00000000)

Definition at line 1860 of file icmpv6-header.cc.

References m_preferredTime, and NS_LOG_FUNCTION.

◆ GetSerializedSize()

uint32_t ns3::Icmpv6OptionPrefixInformation::GetSerializedSize ( ) const

overridevirtual

Get the serialized size.

Returns: serialized size

Reimplemented from ns3::Icmpv6OptionHeader.

Definition at line 1896 of file icmpv6-header.cc.

References NS_LOG_FUNCTION.

Referenced by Deserialize().

Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::Icmpv6OptionPrefixInformation::GetTypeId ( void )

static

Get the UID of this class.

Returns: UID

Definition at line 1755 of file icmpv6-header.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetValidTime()

uint32_t ns3::Icmpv6OptionPrefixInformation::GetValidTime ( ) const

Get the valid time of the information.

Returns: valid time

Definition at line 1832 of file icmpv6-header.cc.

References m_validTime, and NS_LOG_FUNCTION.

◆ Print()

void ns3::Icmpv6OptionPrefixInformation::Print ( std::ostream & os ) const

overridevirtual

Print information.

Parameters

os	output stream

Reimplemented from ns3::Icmpv6OptionHeader.

Definition at line 1888 of file icmpv6-header.cc.

References ns3::Icmpv6OptionHeader::GetLength(), ns3::Icmpv6OptionHeader::GetType(), m_prefix, and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ Serialize()

void ns3::Icmpv6OptionPrefixInformation::Serialize ( Buffer::Iterator start ) const

overridevirtual

Serialize the packet.

Parameters

start start offset

Reimplemented from ns3::Icmpv6OptionHeader.

Definition at line 1903 of file icmpv6-header.cc.

References ns3::Ipv6Address::GetBytes(), ns3::Icmpv6OptionHeader::GetLength(), ns3::Icmpv6OptionHeader::GetType(), m_flags, m_preferredTime, m_prefix, m_prefixLength, m_reserved, m_validTime, NS_LOG_FUNCTION, two-ray-to-three-gpp-ch-calibration::start, ns3::Buffer::Iterator::Write(), ns3::Buffer::Iterator::WriteHtonU32(), and ns3::Buffer::Iterator::WriteU8().

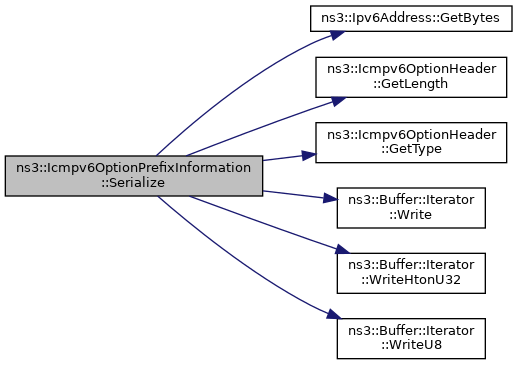

Here is the call graph for this function:

◆ SetFlags()

void ns3::Icmpv6OptionPrefixInformation::SetFlags ( uint8_t flags )

Set the flags.

Parameters

flags the flags to set

Definition at line 1825 of file icmpv6-header.cc.

References m_flags, and NS_LOG_FUNCTION.

Referenced by Icmpv6OptionPrefixInformation(), Deserialize(), and ns3::Radvd::Send().

Here is the caller graph for this function:

◆ SetPreferredTime()

void ns3::Icmpv6OptionPrefixInformation::SetPreferredTime ( uint32_t preferredTime )

Set the preferred time of the information.

Parameters

preferredTime preferred time

Definition at line 1853 of file icmpv6-header.cc.

References m_preferredTime, and NS_LOG_FUNCTION.

Referenced by Icmpv6OptionPrefixInformation(), Deserialize(), and ns3::Radvd::Send().

Here is the caller graph for this function:

◆ SetPrefix()

void ns3::Icmpv6OptionPrefixInformation::SetPrefix ( Ipv6Address prefix )

Set the IPv6 prefix.

Parameters

prefix the IPv6 prefix

Definition at line 1881 of file icmpv6-header.cc.

References m_prefix, and NS_LOG_FUNCTION.

Referenced by Icmpv6OptionPrefixInformation(), Deserialize(), and ns3::Radvd::Send().

Here is the caller graph for this function:

◆ SetPrefixLength()

void ns3::Icmpv6OptionPrefixInformation::SetPrefixLength ( uint8_t prefixLength )

Set the prefix length.

Parameters

prefixLength the prefix length

Definition at line 1810 of file icmpv6-header.cc.

References m_prefixLength, NS_ASSERT, and NS_LOG_FUNCTION.

Referenced by Icmpv6OptionPrefixInformation(), Deserialize(), and ns3::Radvd::Send().

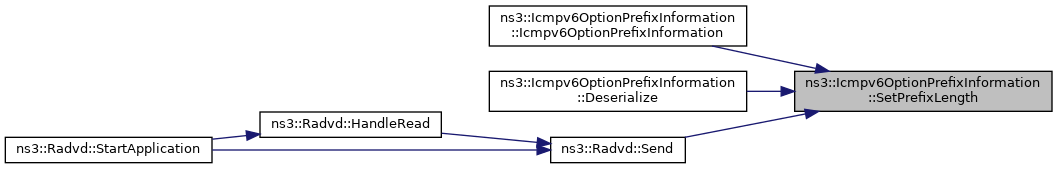

Here is the caller graph for this function:

◆ SetReserved()

void ns3::Icmpv6OptionPrefixInformation::SetReserved ( uint32_t reserved )

Set the reserved field (normally it will be 0x00000000).

Parameters

reserved reserved value

Definition at line 1867 of file icmpv6-header.cc.

References m_reserved, and NS_LOG_FUNCTION.

Referenced by Icmpv6OptionPrefixInformation(), and Deserialize().

Here is the caller graph for this function:

◆ SetValidTime()

void ns3::Icmpv6OptionPrefixInformation::SetValidTime ( uint32_t validTime )

Set the valid time of the information.

Parameters

validTime valid time

Definition at line 1839 of file icmpv6-header.cc.

References m_validTime, and NS_LOG_FUNCTION.

Referenced by Icmpv6OptionPrefixInformation(), Deserialize(), and ns3::Radvd::Send().

Here is the caller graph for this function:

Member Data Documentation

◆ m_flags

uint8_t ns3::Icmpv6OptionPrefixInformation::m_flags

private

The flags.

Definition at line 1582 of file icmpv6-header.h.

Referenced by GetFlags(), Serialize(), and SetFlags().

◆ m_preferredTime

uint32_t ns3::Icmpv6OptionPrefixInformation::m_preferredTime

private

The preferred time.

Definition at line 1592 of file icmpv6-header.h.

Referenced by GetPreferredTime(), GetReserved(), Serialize(), and SetPreferredTime().

◆ m_prefix

Ipv6Address ns3::Icmpv6OptionPrefixInformation::m_prefix

private

The prefix value.

Definition at line 1572 of file icmpv6-header.h.

Referenced by GetPrefix(), Print(), Serialize(), and SetPrefix().

◆ m_prefixLength

uint8_t ns3::Icmpv6OptionPrefixInformation::m_prefixLength

private

The length of the prefix.

Definition at line 1577 of file icmpv6-header.h.

Referenced by GetPrefixLength(), Serialize(), and SetPrefixLength().

◆ m_reserved

uint32_t ns3::Icmpv6OptionPrefixInformation::m_reserved

private

The reserved field.

Definition at line 1597 of file icmpv6-header.h.

Referenced by Serialize(), and SetReserved().

◆ m_validTime

uint32_t ns3::Icmpv6OptionPrefixInformation::m_validTime

private

The valid time.

Definition at line 1587 of file icmpv6-header.h.

Referenced by GetValidTime(), Serialize(), and SetValidTime().

The documentation for this class was generated from the following files:

src/internet/model/icmpv6-header.h
src/internet/model/icmpv6-header.cc

Public Types

Public Member Functions

Static Public Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Member Enumeration Documentation

◆ Flags_t

Constructor & Destructor Documentation

◆ Icmpv6OptionPrefixInformation() [1/2]

◆ Icmpv6OptionPrefixInformation() [2/2]

◆ ~Icmpv6OptionPrefixInformation()

Member Function Documentation

◆ Deserialize()

◆ GetFlags()

◆ GetInstanceTypeId()

◆ GetPreferredTime()

◆ GetPrefix()

◆ GetPrefixLength()

◆ GetReserved()

◆ GetSerializedSize()

◆ GetTypeId()

◆ GetValidTime()

◆ Print()

◆ Serialize()

◆ SetFlags()

◆ SetPreferredTime()

◆ SetPrefix()

◆ SetPrefixLength()

◆ SetReserved()

◆ SetValidTime()

Member Data Documentation

◆ m_flags

◆ m_preferredTime

◆ m_prefix

◆ m_prefixLength

◆ m_reserved

◆ m_validTime
