ns3::Icmpv6OptionHeader Class Reference

ICMPv6 option header. More...

#include "icmpv6-header.h"

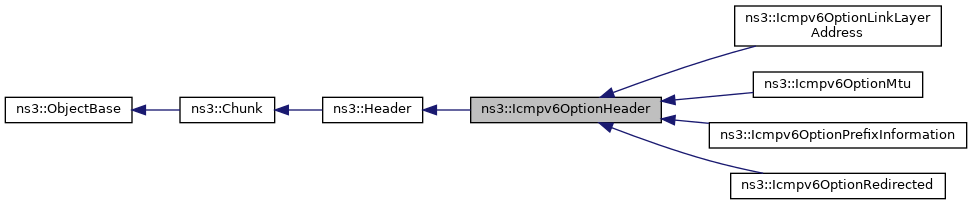

Inheritance diagram for ns3::Icmpv6OptionHeader:

Collaboration diagram for ns3::Icmpv6OptionHeader:

Public Member Functions
	Icmpv6OptionHeader ()
	Constructor. More...
	~Icmpv6OptionHeader () override
	Destructor. More...
uint32_t	Deserialize (Buffer::Iterator start) override
	Deserialize the packet. More...
TypeId	GetInstanceTypeId () const override
	Get the instance type ID. More...
uint8_t	GetLength () const
	Get the length of the option in 8 bytes unit. More...
uint32_t	GetSerializedSize () const override
	Get the serialized size. More...
uint8_t	GetType () const
	Get the type of the option. More...
void	Print (std::ostream &os) const override
	Print information. More...
void	Serialize (Buffer::Iterator start) const override
	Serialize the packet. More...
void	SetLength (uint8_t len)
	Set the length of the option. More...
void	SetType (uint8_t type)
	Set the type of the option. More...
Public Member Functions inherited from ns3::Header
	~Header () override
virtual uint32_t	Deserialize (Buffer::Iterator start)=0
	Deserialize the object from a buffer iterator. More...
virtual uint32_t	Deserialize (Buffer::Iterator start, Buffer::Iterator end)
	Deserialize the object from a buffer iterator. More...
Public Member Functions inherited from ns3::Chunk
virtual uint32_t	Deserialize (Buffer::Iterator start, Buffer::Iterator end)
	Deserialize the object from a buffer iterator. More...
Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...
void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...
bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising errors. More...
void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...
bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...
bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...
bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...
bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...
bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId ()
	Get the UID of this class. More...
Static Public Member Functions inherited from ns3::Header
static TypeId	GetTypeId ()
	Get the type ID. More...
Static Public Member Functions inherited from ns3::Chunk
static TypeId	GetTypeId ()
	Get the type ID. More...
Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId ()
	Get the type ID. More...

Private Attributes
uint8_t	m_len
	The length. More...
uint8_t	m_type
	The type. More...

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...
virtual void	NotifyConstructionCompleted ()
	Notifier called once the ObjectBase is fully constructed. More...
Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid ()
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

ICMPv6 option header.

Definition at line 240 of file icmpv6-header.h.

Constructor & Destructor Documentation

Icmpv6OptionHeader()

ns3::Icmpv6OptionHeader::Icmpv6OptionHeader

(

)

Constructor.

Todo:

Definition at line 1577 of file icmpv6-header.cc.

References m_len, m_type, and NS_LOG_FUNCTION.

~Icmpv6OptionHeader()

ns3::Icmpv6OptionHeader::~Icmpv6OptionHeader ( )

override

Destructor.

Definition at line 1585 of file icmpv6-header.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

Deserialize()

uint32_t ns3::Icmpv6OptionHeader::Deserialize ( Buffer::Iterator  start )

overridevirtual

Deserialize the packet.

Parameters

start

start offset

Returns

length of packet

Implements ns3::Header.

Reimplemented in ns3::Icmpv6OptionRedirected, ns3::Icmpv6OptionLinkLayerAddress, ns3::Icmpv6OptionPrefixInformation, and ns3::Icmpv6OptionMtu.

Definition at line 1633 of file icmpv6-header.cc.

References GetSerializedSize(), NS_LOG_FUNCTION, and two-ray-to-three-gpp-ch-calibration::start.

Here is the call graph for this function:

GetInstanceTypeId()

TypeId ns3::Icmpv6OptionHeader::GetInstanceTypeId ( void  ) const

overridevirtual

Get the instance type ID.

Returns

instance type ID

Implements ns3::ObjectBase.

Reimplemented in ns3::Icmpv6OptionRedirected, ns3::Icmpv6OptionLinkLayerAddress, ns3::Icmpv6OptionPrefixInformation, and ns3::Icmpv6OptionMtu.

Definition at line 1571 of file icmpv6-header.cc.

References GetTypeId(), and NS_LOG_FUNCTION.

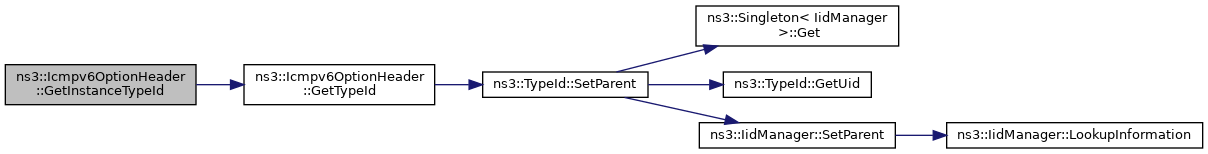

Here is the call graph for this function:

GetLength()

uint8_t ns3::Icmpv6OptionHeader::GetLength

(

void

)

const

Get the length of the option in 8 bytes unit.

Returns

length of the option

Definition at line 1605 of file icmpv6-header.cc.

References m_len, and NS_LOG_FUNCTION.

Referenced by ns3::Icmpv6OptionLinkLayerAddress::Deserialize(), ns3::Icmpv6OptionRedirected::Deserialize(), ns3::Icmpv6OptionLinkLayerAddress::GetSerializedSize(), Print(), ns3::Icmpv6OptionMtu::Print(), ns3::Icmpv6OptionPrefixInformation::Print(), ns3::Icmpv6OptionLinkLayerAddress::Print(), ns3::Icmpv6OptionRedirected::Print(), ns3::Icmpv6OptionMtu::Serialize(), ns3::Icmpv6OptionPrefixInformation::Serialize(), ns3::Icmpv6OptionLinkLayerAddress::Serialize(), and ns3::Icmpv6OptionRedirected::Serialize().

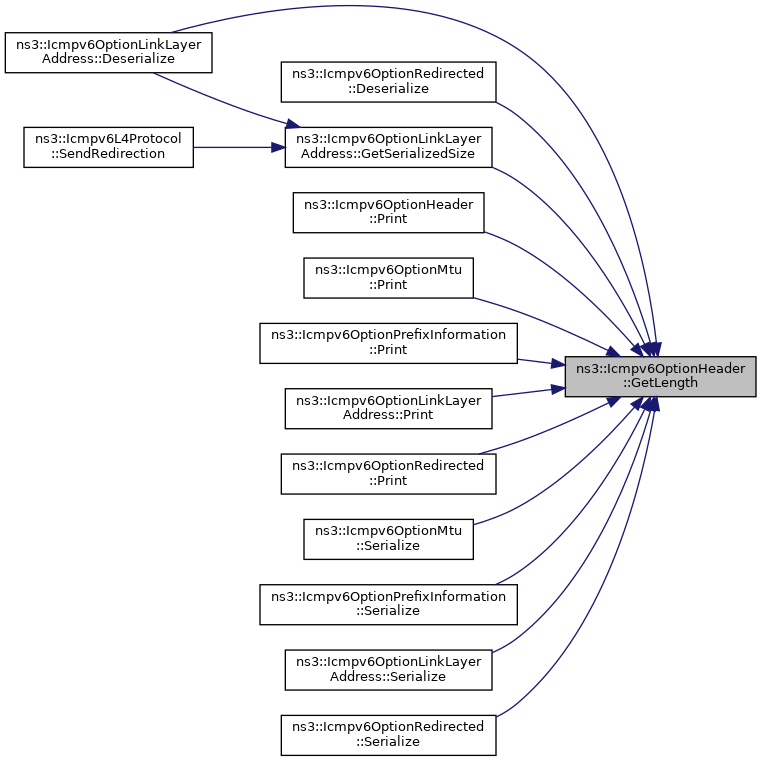

Here is the caller graph for this function:

GetSerializedSize()

uint32_t ns3::Icmpv6OptionHeader::GetSerializedSize ( ) const

overridevirtual

Get the serialized size.

Returns

serialized size

Implements ns3::Header.

Reimplemented in ns3::Icmpv6OptionRedirected, ns3::Icmpv6OptionLinkLayerAddress, ns3::Icmpv6OptionPrefixInformation, and ns3::Icmpv6OptionMtu.

Definition at line 1626 of file icmpv6-header.cc.

References m_len, and NS_LOG_FUNCTION.

Referenced by Deserialize().

Here is the caller graph for this function:

GetType()

uint8_t ns3::Icmpv6OptionHeader::GetType

(

)

const

Get the type of the option.

Returns

type

Definition at line 1591 of file icmpv6-header.cc.

References m_type, and NS_LOG_FUNCTION.

Referenced by Print(), ns3::Icmpv6OptionMtu::Print(), ns3::Icmpv6OptionPrefixInformation::Print(), ns3::Icmpv6OptionLinkLayerAddress::Print(), ns3::Icmpv6OptionRedirected::Print(), ns3::Icmpv6OptionMtu::Serialize(), ns3::Icmpv6OptionPrefixInformation::Serialize(), ns3::Icmpv6OptionLinkLayerAddress::Serialize(), and ns3::Icmpv6OptionRedirected::Serialize().

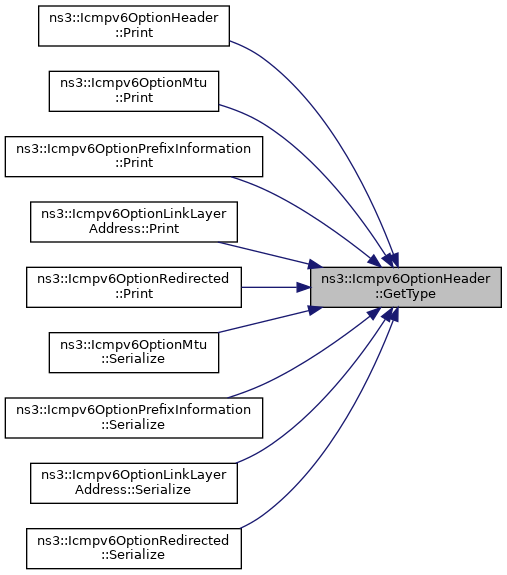

Here is the caller graph for this function:

GetTypeId()

TypeId ns3::Icmpv6OptionHeader::GetTypeId ( void  )

static

Get the UID of this class.

Returns

UID

Definition at line 1561 of file icmpv6-header.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

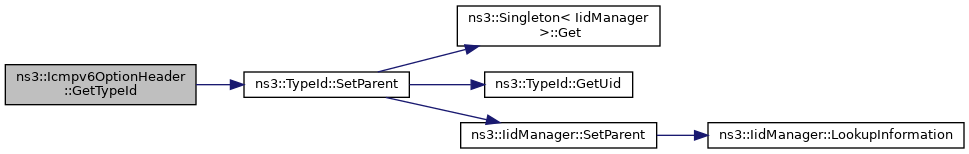

Here is the call graph for this function:

Here is the caller graph for this function:

Print()

void ns3::Icmpv6OptionHeader::Print ( std::ostream &  os ) const

overridevirtual

Print information.

Parameters

os	output stream

Implements ns3::Header.

Reimplemented in ns3::Icmpv6OptionRedirected, ns3::Icmpv6OptionLinkLayerAddress, ns3::Icmpv6OptionPrefixInformation, and ns3::Icmpv6OptionMtu.

Definition at line 1619 of file icmpv6-header.cc.

References GetLength(), GetType(), and NS_LOG_FUNCTION.

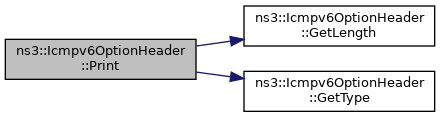

Here is the call graph for this function:

Serialize()

void ns3::Icmpv6OptionHeader::Serialize ( Buffer::Iterator  start ) const

overridevirtual

Serialize the packet.

Parameters

start

start offset

Implements ns3::Header.

Reimplemented in ns3::Icmpv6OptionRedirected, ns3::Icmpv6OptionLinkLayerAddress, ns3::Icmpv6OptionPrefixInformation, and ns3::Icmpv6OptionMtu.

Definition at line 1640 of file icmpv6-header.cc.

References NS_LOG_FUNCTION, and two-ray-to-three-gpp-ch-calibration::start.

SetLength()

void ns3::Icmpv6OptionHeader::SetLength

(

uint8_t

len

)

Set the length of the option.

Parameters

len	length value to set

Definition at line 1612 of file icmpv6-header.cc.

References m_len, and NS_LOG_FUNCTION.

Referenced by ns3::Icmpv6OptionLinkLayerAddress::Icmpv6OptionLinkLayerAddress(), ns3::Icmpv6OptionMtu::Icmpv6OptionMtu(), ns3::Icmpv6OptionPrefixInformation::Icmpv6OptionPrefixInformation(), ns3::Icmpv6OptionMtu::Deserialize(), ns3::Icmpv6OptionPrefixInformation::Deserialize(), ns3::Icmpv6OptionLinkLayerAddress::Deserialize(), ns3::Icmpv6OptionRedirected::Deserialize(), and ns3::Icmpv6OptionRedirected::SetPacket().

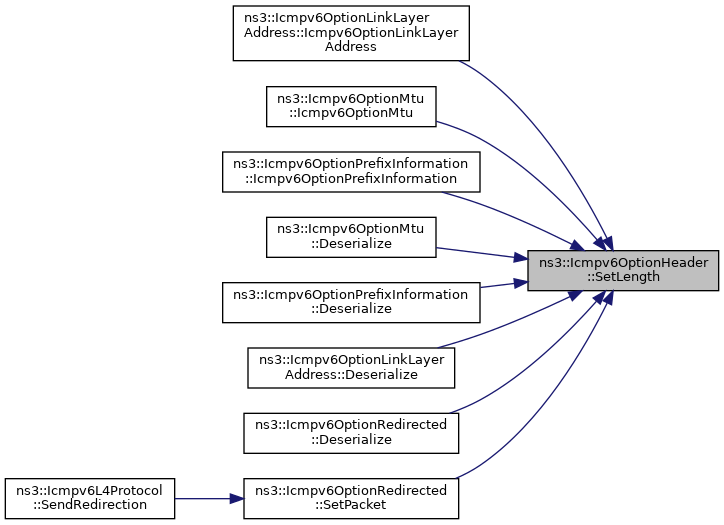

Here is the caller graph for this function:

SetType()

void ns3::Icmpv6OptionHeader::SetType

(

uint8_t

type

)

Set the type of the option.

Parameters

type	the type to set

Definition at line 1598 of file icmpv6-header.cc.

References m_type, NS_LOG_FUNCTION, and check-style-clang-format::type.

Referenced by ns3::Icmpv6OptionLinkLayerAddress::Icmpv6OptionLinkLayerAddress(), ns3::Icmpv6OptionMtu::Icmpv6OptionMtu(), ns3::Icmpv6OptionPrefixInformation::Icmpv6OptionPrefixInformation(), ns3::Icmpv6OptionRedirected::Icmpv6OptionRedirected(), ns3::Icmpv6OptionMtu::Deserialize(), ns3::Icmpv6OptionPrefixInformation::Deserialize(), ns3::Icmpv6OptionLinkLayerAddress::Deserialize(), and ns3::Icmpv6OptionRedirected::Deserialize().

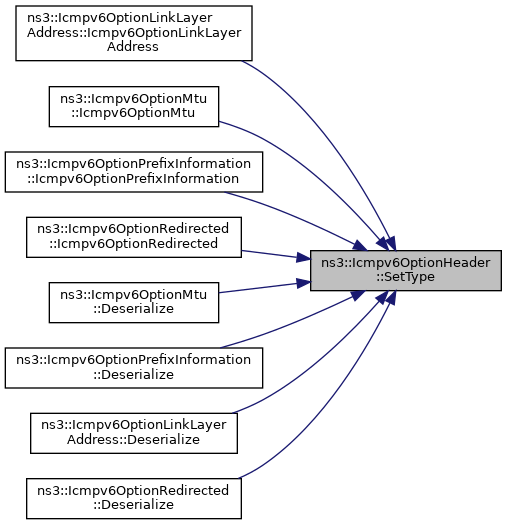

Here is the caller graph for this function:

Member Data Documentation

m_len

uint8_t ns3::Icmpv6OptionHeader::m_len

private

The length.

Definition at line 323 of file icmpv6-header.h.

Referenced by Icmpv6OptionHeader(), GetLength(), GetSerializedSize(), and SetLength().

m_type

uint8_t ns3::Icmpv6OptionHeader::m_type

private

The type.

Definition at line 318 of file icmpv6-header.h.

Referenced by Icmpv6OptionHeader(), GetType(), and SetType().

---

The documentation for this class was generated from the following files:

• src/internet/model/icmpv6-header.h
• src/internet/model/icmpv6-header.cc
