Make sure that the channel width and the channel number can be changed at runtime. More...

Inheritance diagram for Bug2831TestCase:

Collaboration diagram for Bug2831TestCase:

Public Member Functions
	Bug2831TestCase ()

	~Bug2831TestCase () override

void	DoRun () override
	Implementation to actually run this TestCase. More...

Public Member Functions inherited from ns3::TestCase
	TestCase (const TestCase &)=delete

virtual	~TestCase ()
	Destructor. More...

std::string	GetName () const

TestCase &	operator= (const TestCase &)=delete

Private Member Functions
void	ChangeSupportedChannelWidth ()
	Function called to change the supported channel width at runtime. More...

void	RxCallback (std::string context, Ptr< const Packet > p, RxPowerWattPerChannelBand rxPowersW)
	Callback triggered when a packet is received by the PHYs. More...

Private Attributes
Ptr< YansWifiPhy >	m_apPhy
	AP PHY. More...

uint16_t	m_assocReqCount
	count number of association requests More...

uint16_t	m_assocRespCount
	count number of association responses More...

uint16_t	m_countOperationalChannelWidth20
	count number of beacon frames announcing a 20 MHz operating channel width More...

uint16_t	m_countOperationalChannelWidth40
	count number of beacon frames announcing a 40 MHz operating channel width More...

Ptr< YansWifiPhy >	m_staPhy
	STA PHY. More...

Additional Inherited Members
Public Types inherited from ns3::TestCase
enum	TestDuration { QUICK = 1 , EXTENSIVE = 2 , TAKES_FOREVER = 3 }
	How long the test takes to execute. More...

Protected Member Functions inherited from ns3::TestCase
	TestCase (std::string name)
	Constructor. More...

void	AddTestCase (TestCase *testCase, TestDuration duration=QUICK)
	Add an individual child TestCase to this test suite. More...

TestCase *	GetParent () const
	Get the parent of this TestCase. More...

bool	IsStatusFailure () const
	Check if any tests failed. More...

bool	IsStatusSuccess () const
	Check if all tests passed. More...

void	SetDataDir (std::string directory)
	Set the data directory where reference trace files can be found. More...

void	ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
	Log the failure of this TestCase. More...

bool	MustAssertOnFailure () const
	Check if this run should assert on failure. More...

bool	MustContinueOnFailure () const
	Check if this run should continue on failure. More...

std::string	CreateDataDirFilename (std::string filename)
	Construct the full path to a file in the data directory. More...

std::string	CreateTempDirFilename (std::string filename)
	Construct the full path to a file in a temporary directory. More...

Detailed Description

Make sure that the channel width and the channel number can be changed at runtime.

The scenario considers an access point and a station using a 20 MHz channel width. After 1s, we change the channel width and the channel number to use a 40 MHz channel. The tests checks the operational channel width sent in Beacon frames and verify that the association procedure is executed twice.

See Bug 2831

Definition at line 1728 of file wifi-test.cc.

Constructor & Destructor Documentation

◆ Bug2831TestCase()

Bug2831TestCase::Bug2831TestCase ( )

Definition at line 1759 of file wifi-test.cc.

◆ ~Bug2831TestCase()

Bug2831TestCase::~Bug2831TestCase ( )

override

Definition at line 1768 of file wifi-test.cc.

Member Function Documentation

◆ ChangeSupportedChannelWidth()

void Bug2831TestCase::ChangeSupportedChannelWidth ( )

private

Function called to change the supported channel width at runtime.

Definition at line 1773 of file wifi-test.cc.

References m_apPhy, m_staPhy, ns3::WifiPhy::SetOperatingChannel(), and ns3::WIFI_PHY_BAND_5GHZ.

Referenced by DoRun().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DoRun()

void Bug2831TestCase::DoRun ( )

overridevirtual

Implementation to actually run this TestCase.

Subclasses should override this method to conduct their tests.

Implements ns3::TestCase.

Definition at line 1812 of file wifi-test.cc.

References ns3::Node::AddDevice(), ns3::Object::AggregateObject(), ChangeSupportedChannelWidth(), third::channel, ns3::WifiMac::ConfigureStandard(), ns3::WifiPhy::ConfigureStandard(), ns3::Config::Connect(), ns3::ObjectFactory::Create(), ns3::WifiMac::GetFrameExchangeManager(), m_apPhy, m_assocReqCount, m_assocRespCount, m_countOperationalChannelWidth20, m_countOperationalChannelWidth40, m_staPhy, third::mac, ns3::MakeCallback(), NS_TEST_ASSERT_MSG_EQ, RxCallback(), ns3::Seconds(), ns3::WifiMac::SetAddress(), ns3::YansWifiPhy::SetChannel(), ns3::WifiMac::SetDevice(), ns3::WifiPhy::SetDevice(), ns3::WifiPhy::SetErrorRateModel(), ns3::WifiNetDevice::SetHtConfiguration(), ns3::YansWifiPhy::SetInterferenceHelper(), ns3::WifiNetDevice::SetMac(), ns3::WifiMac::SetMacQueueScheduler(), ns3::WifiPhy::SetMobility(), ns3::WifiPhy::SetOperatingChannel(), ns3::WifiNetDevice::SetPhy(), ns3::WifiNetDevice::SetRemoteStationManager(), ns3::WifiNetDevice::SetStandard(), ns3::ObjectFactory::SetTypeId(), ns3::WIFI_PHY_BAND_5GHZ, and ns3::WIFI_STANDARD_80211ax.

Here is the call graph for this function:

◆ RxCallback()

void Bug2831TestCase::RxCallback	(	std::string	context,
		Ptr< const Packet >	p,
		RxPowerWattPerChannelBand	rxPowersW
	)

private

Callback triggered when a packet is received by the PHYs.

Parameters

context	the context
p	the received packet
rxPowersW	the received power per channel band in watts

Definition at line 1780 of file wifi-test.cc.

References ns3::Packet::Copy(), ns3::WifiMacHeader::IsAssocReq(), ns3::WifiMacHeader::IsAssocResp(), ns3::WifiMacHeader::IsBeacon(), m_assocReqCount, m_assocRespCount, m_countOperationalChannelWidth20, m_countOperationalChannelWidth40, and ns3::Packet::RemoveHeader().

Referenced by DoRun().

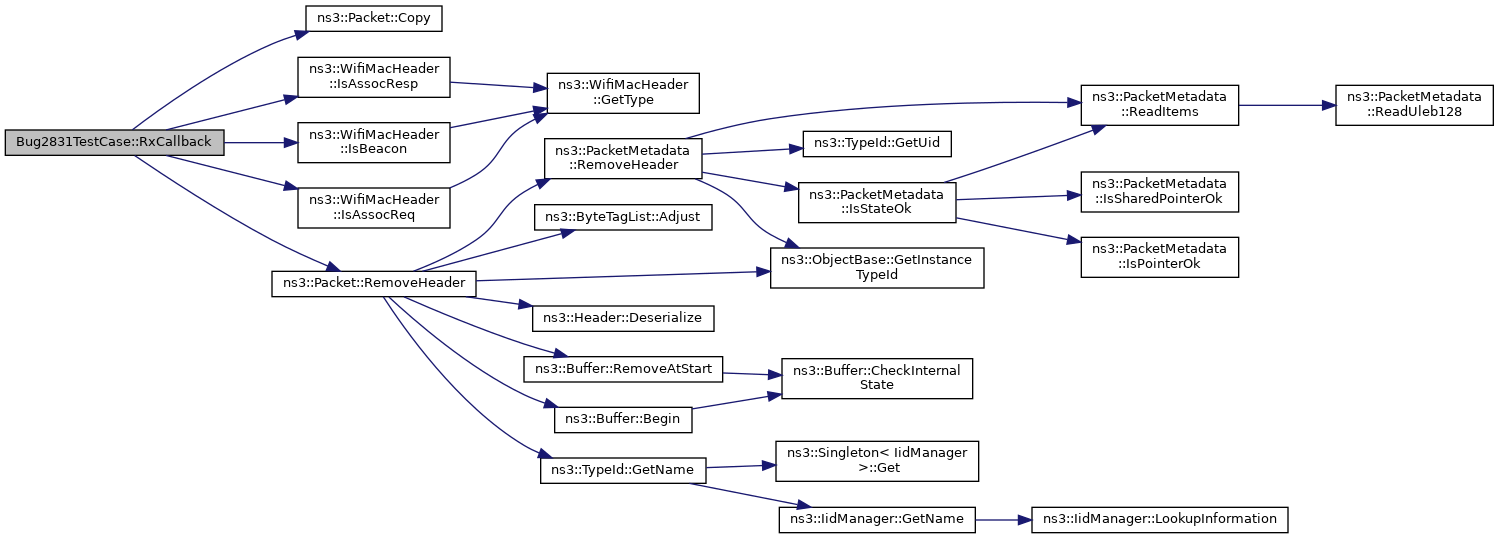

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

◆ m_apPhy

Ptr<YansWifiPhy> Bug2831TestCase::m_apPhy

private

AP PHY.

Definition at line 1748 of file wifi-test.cc.

Referenced by ChangeSupportedChannelWidth(), and DoRun().

◆ m_assocReqCount

uint16_t Bug2831TestCase::m_assocReqCount

private

count number of association requests

Definition at line 1751 of file wifi-test.cc.

Referenced by DoRun(), and RxCallback().

◆ m_assocRespCount

uint16_t Bug2831TestCase::m_assocRespCount

private

count number of association responses

Definition at line 1752 of file wifi-test.cc.

Referenced by DoRun(), and RxCallback().

◆ m_countOperationalChannelWidth20

uint16_t Bug2831TestCase::m_countOperationalChannelWidth20

private

count number of beacon frames announcing a 20 MHz operating channel width

Definition at line 1753 of file wifi-test.cc.

Referenced by DoRun(), and RxCallback().

◆ m_countOperationalChannelWidth40

uint16_t Bug2831TestCase::m_countOperationalChannelWidth40

private

count number of beacon frames announcing a 40 MHz operating channel width

Definition at line 1755 of file wifi-test.cc.

Referenced by DoRun(), and RxCallback().

◆ m_staPhy

Ptr<YansWifiPhy> Bug2831TestCase::m_staPhy

private

STA PHY.

Definition at line 1749 of file wifi-test.cc.

Referenced by ChangeSupportedChannelWidth(), and DoRun().

The documentation for this class was generated from the following file:

src/wifi/test/wifi-test.cc
